Description
From pipe to tap

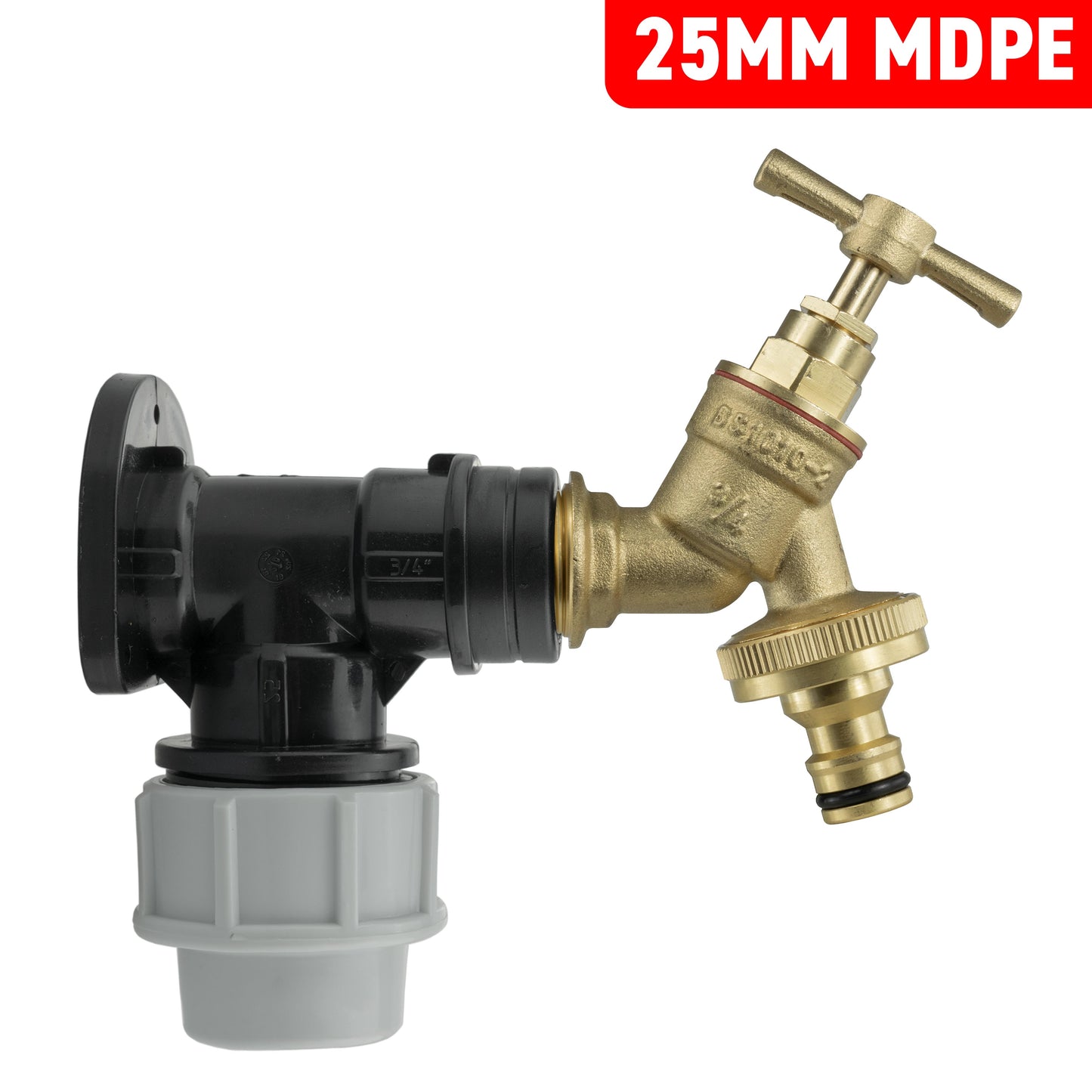

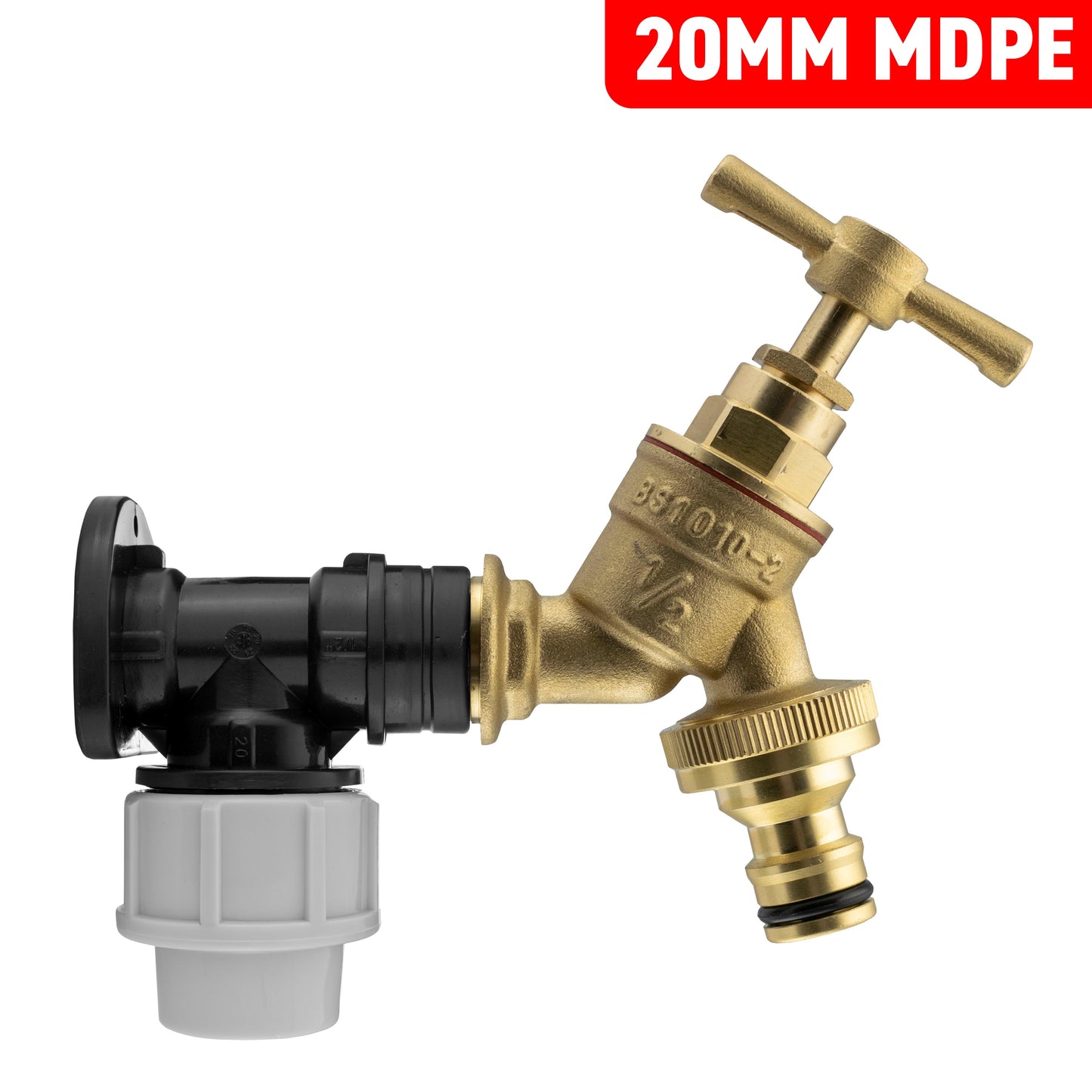

Create an accessible garden watering point from your MDPE water pipe. A wall-mounted flange holds the brass crosshead bib tap, while its male quick-connect outlet takes a matching hose-end connector.
Choose the inlet to match your pipe: 20mm or 25mm outside diameter. Each option pairs one flange with the matching brass tap.
One selected kit supplied. Pipe, wall fixings, support clips, PTFE tape and a hose-end connector are sold separately.
Match the pipe and tap thread
The MDPE size is the pipe's outside diameter. The BSP sizes below describe the threaded joint between the flange and tap.
| MDPE pipe OD | Flange outlet | Tap inlet |
|---|---|---|
| 20mm | ½-inch BSP female | ½-inch BSP male |
| 25mm | ¾-inch BSP female | ¾-inch BSP male |
Both kits have the same type of male quick-connect hose outlet. You receive the size selected above, rather than both flanges.
Connect your hose
The brass outlet is a male quick-connect plug. A matching female click-lock connector on the hose pushes onto this plug; bare hose does not attach directly.
Choose the hose-end connector for your hose size. For ½-inch garden hose, the brass female hose connector shown in Frequently bought together is one option, sold separately.
Turn the tap's crosshead handle to control the water. Leave room below the outlet to connect and release the hose.
Plan the mounting point
Keep the tap accessible and support the pipe feeding it.
Secure the flange
Use fixings suited to the wall or panel through the flange's mounting holes. Support the MDPE pipe independently so it does not pull on the fitting.
Make the pipe connection
Isolate and depressurise the supply. Prepare a square, clean pipe end, check insertion depth and pipe-liner requirements, then assemble the compression connection using the fitting guidance.
Fit and check the tap
Use a suitable sealing method for the BSP joint and support the flange while tightening. Align the tap, leave the handle and outlet clear, and check the completed joints before use.
What's included?
Does the kit include both flange sizes?
No. It contains one flange in your selected MDPE size and one matching brass quick-connect bib tap. The 20mm and 25mm versions are separate choices.
Are PTFE tape and a hose connector supplied?
No. PTFE tape and the female hose-end connector are sold separately, along with the pipe, wall fixings and support clips. The supplied tap already has its male quick-connect outlet.
Product information & technical details
| SKU | WF20KIT002[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 MDPE wall flange in the selected 20mm or 25mm size, 1 matching brass bib tap with male quick-connect outlet |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| 20mm option | 20mm compression inlet; ½-inch BSP female flange with ½-inch BSP male brass tap. |
| 25mm option | 25mm compression inlet; ¾-inch BSP female flange with ¾-inch BSP male brass tap. |
| Hose outlet | Male click-lock / quick-connect plug. Female hose-end connector sold separately. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
