Description
Brass at the tap. Quick connection for the hose.

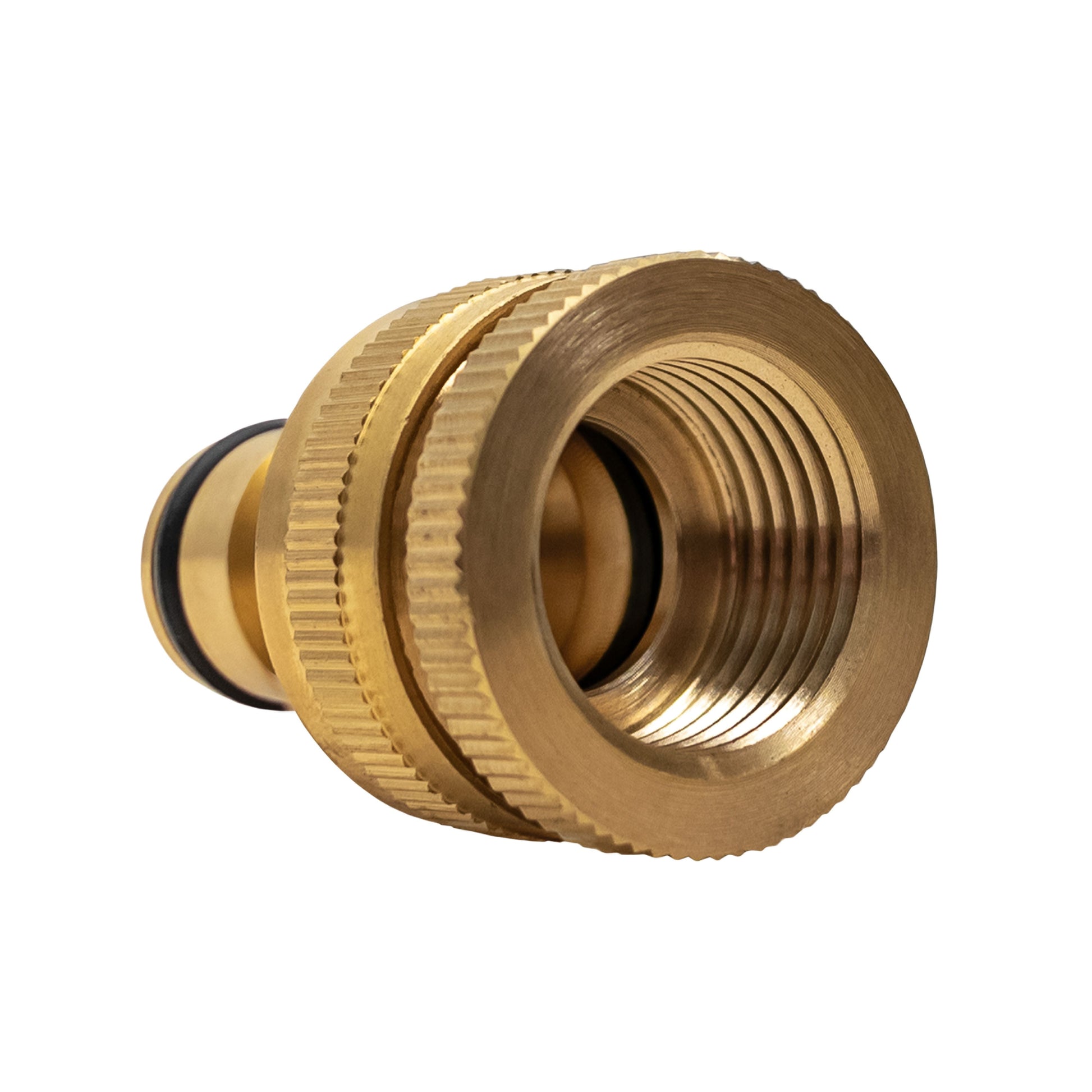

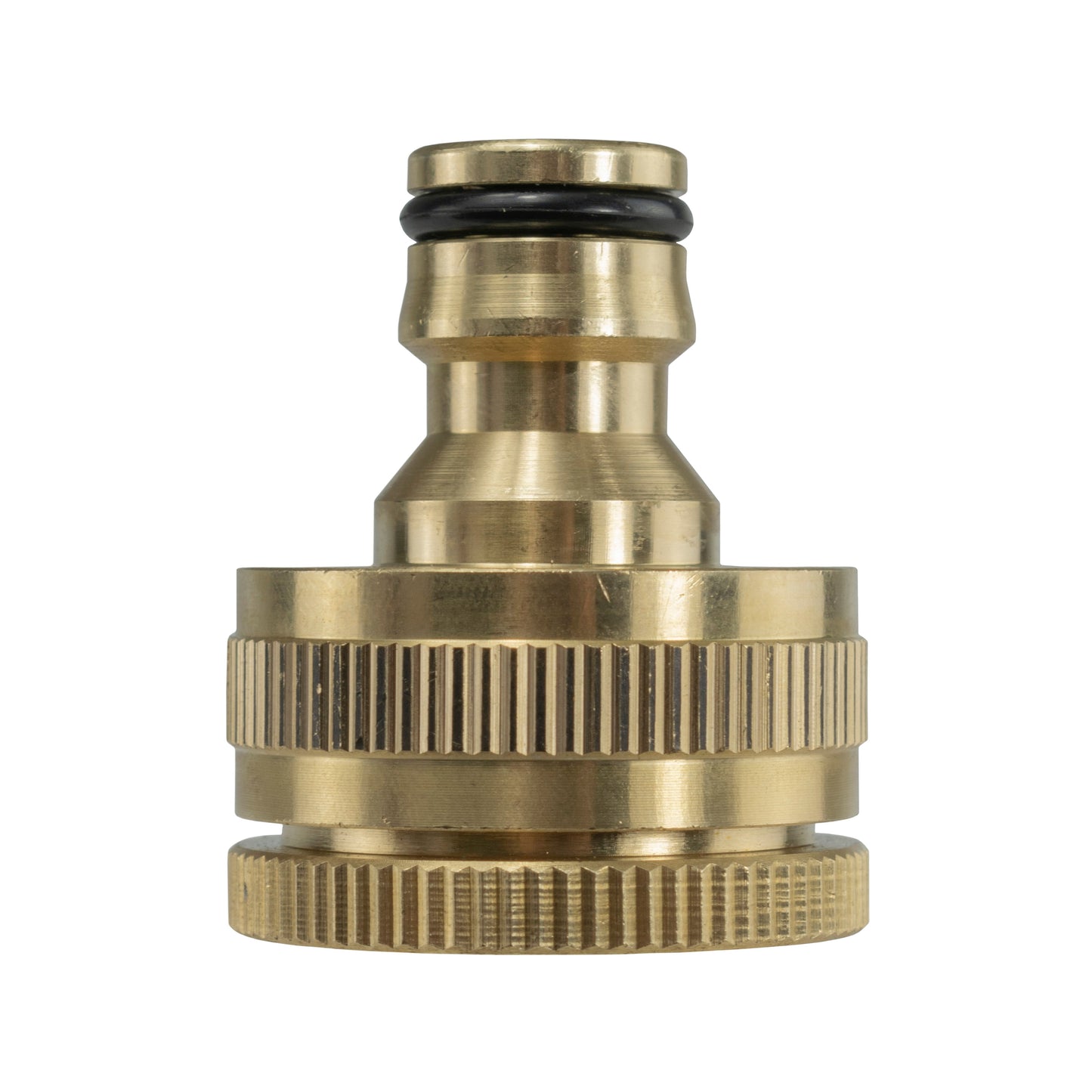

Use one metal adapter with either of two matching tap threads. The brass body has a 1-inch BSP female inlet; its removable brass insert reduces that inlet to ¾-inch BSP female.
Once fitted, the male garden plug is ready for a compatible female hose socket. Leave the adapter on the tap and disconnect the hose at the socket’s release collar when the watering is done.
One brass adapter and one reducer supplied. Tap, hose and female socket are separate.
Choose the inlet before you connect

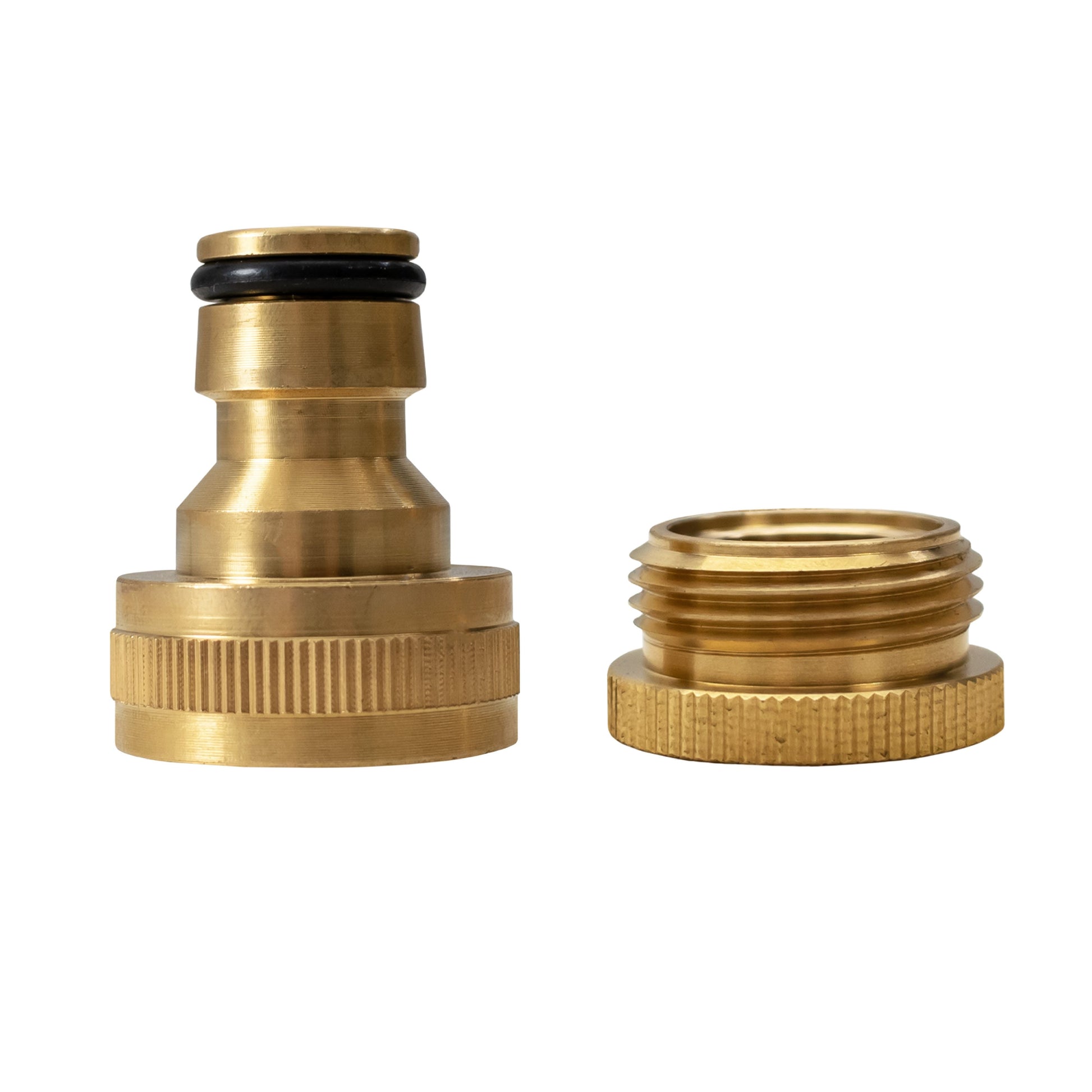

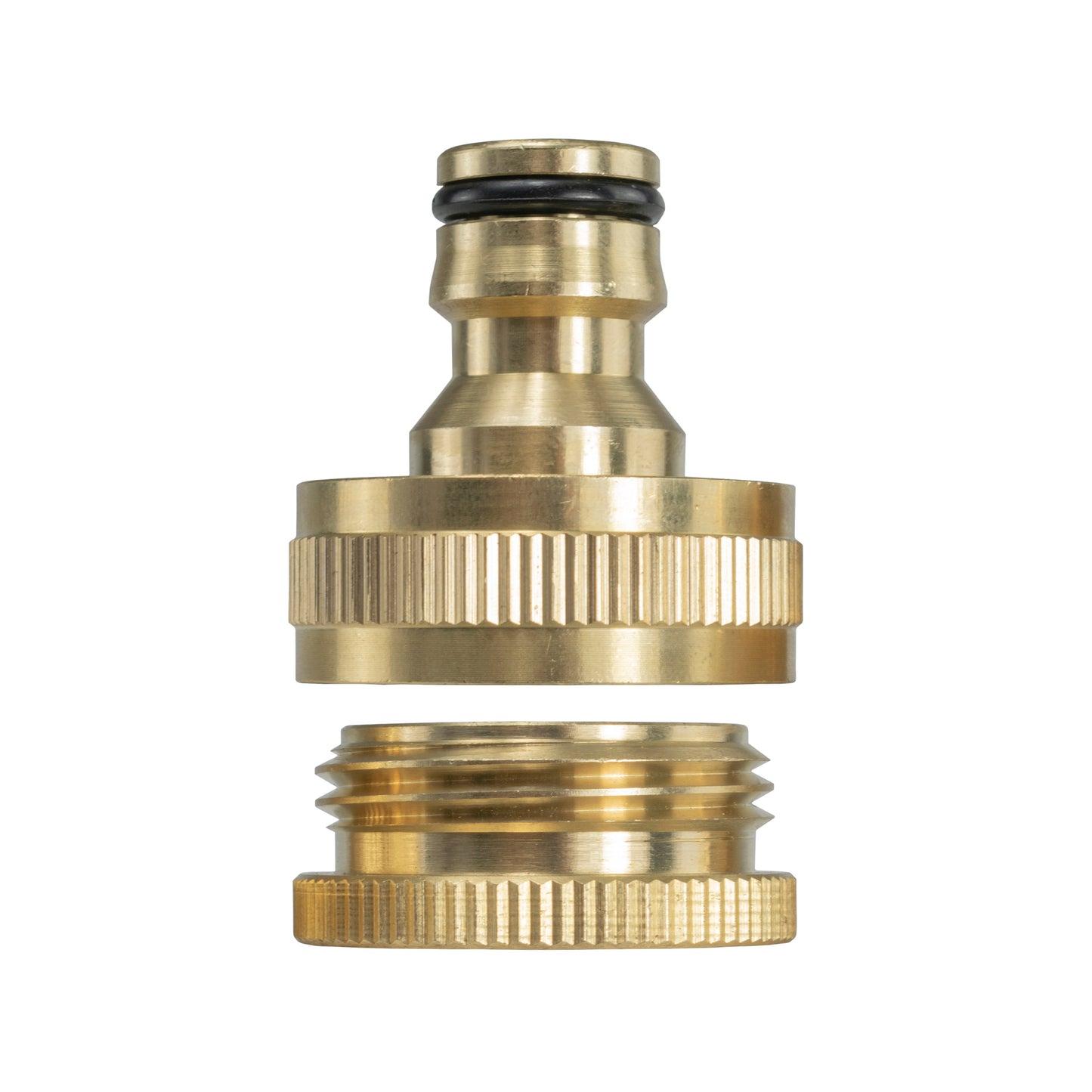

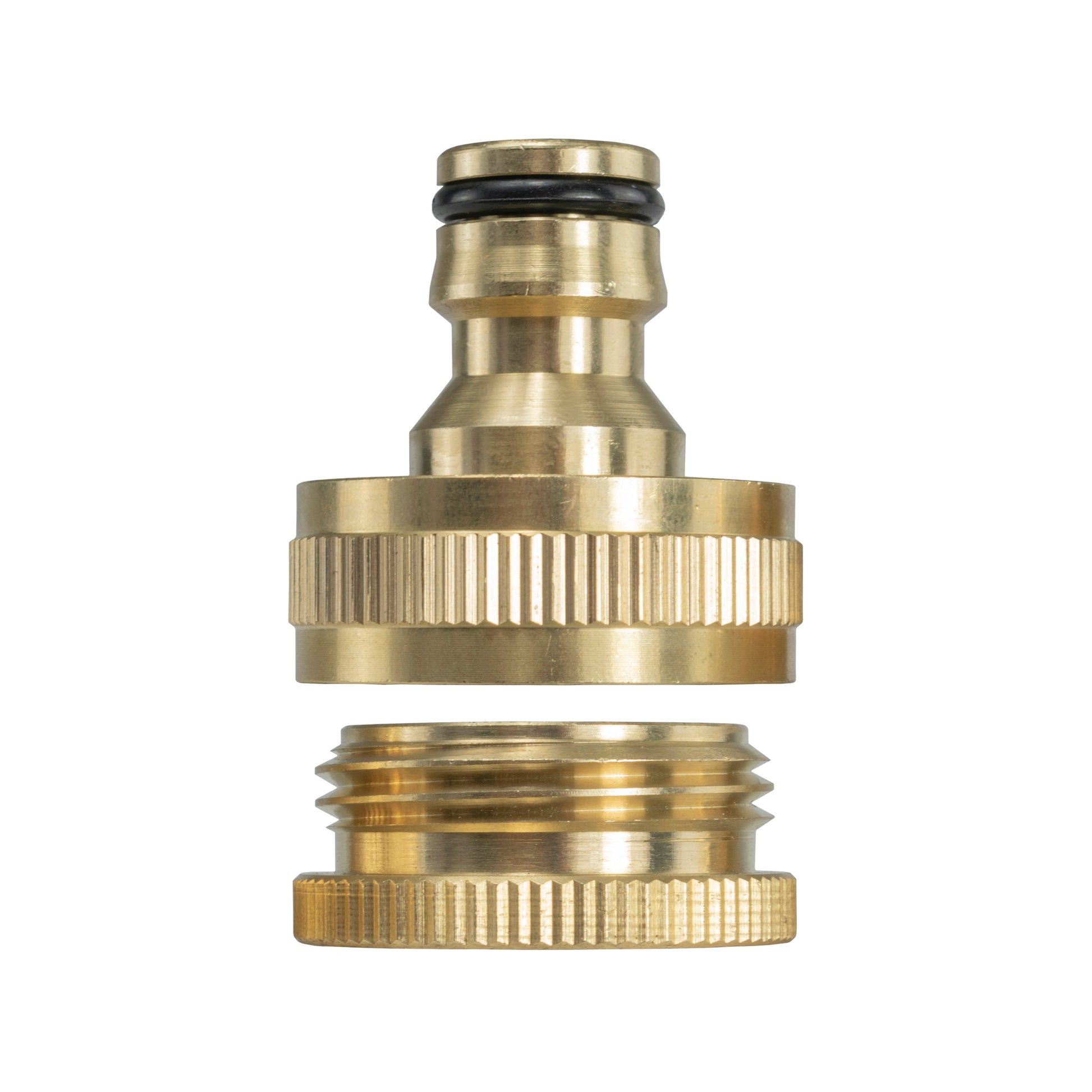

The separated view shows the single brass reducer beneath the main body. Its outer thread screws into the adapter; its inner female thread accepts a matching ¾-inch BSP male tap outlet.
Remove the insert to use the main body on a 1-inch BSP male outlet. These are two configurations of the same adapter, not a choice of hose diameters.
The opposite end is a male garden quick-connect plug. Bare hose needs a separate female socket that suits the hose and accepts this plug profile.
Make the thread match first
Check your tap
Turn the supply off and identify the male BSP outlet. Fit or remove the reducer as needed, checking the inlet seal is clean and seated.
Start the thread squarely
Hold the ribbed edge and screw the adapter onto the matching tap. Avoid cross-threading and overtightening; stop if the parts do not engage cleanly.
Connect the hose socket
Push the separate female connector fully onto the male plug. Open the tap gradually and check the joints. Turn the water off before releasing the socket.
Before you choose
How many reducer inserts are supplied?
One. It changes the adapter’s inlet from 1-inch to ¾-inch BSP female. Other sizes or multi-insert assemblies are not included.
Does the outlet have a BSP thread too?
No. The hose end is a male garden quick-connect plug. The two stated BSP sizes describe the female tap inlet with or without its insert.
Will the adapter fit a half-inch BSP tap?
No. Its supplied inlet choices are 1-inch and ¾-inch BSP female. Use a suitable different adapter for a half-inch BSP male outlet.
Is the female hose connector included?
No. Add a compatible socket for your hose. The white connector in the installation illustration is separate; the optional product above is one example.
Product information & technical details
| SKU | TAPCON1-34BSPF001BRASS |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Brass |
| Material | Brass |
| Inlet with reducer | ¾-inch BSP female |
|---|---|
| Inlet without reducer | 1-inch BSP female |
| Outlet connection | Male garden quick-connect plug |
| Supplied parts | One brass adapter and one brass reducer |
| Hose attachment | Separate compatible female garden socket required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
