Description
Let your watering line branch out
Follow two routes from one junction when your beds or planting areas spread in different directions.
This ½″ barbed irrigation Y-splitter connects three matching hose lengths through one fixed, open body. The angled arms let the hose routes fan out from the junction.
One splitter supplied. Hose, clips and other watering equipment are sold separately.
Choose the junction that follows your route
A conventional tee keeps two connections in line and takes another off to the side. This Y-shaped fitting spreads the three hose connections around an angled central junction instead.
Lay the tube routes out before cutting. Each hose needs to reach its tail without being stretched, twisted or bent sharply beside the fitting. Allow enough length for the full insertion depth at all three ends.

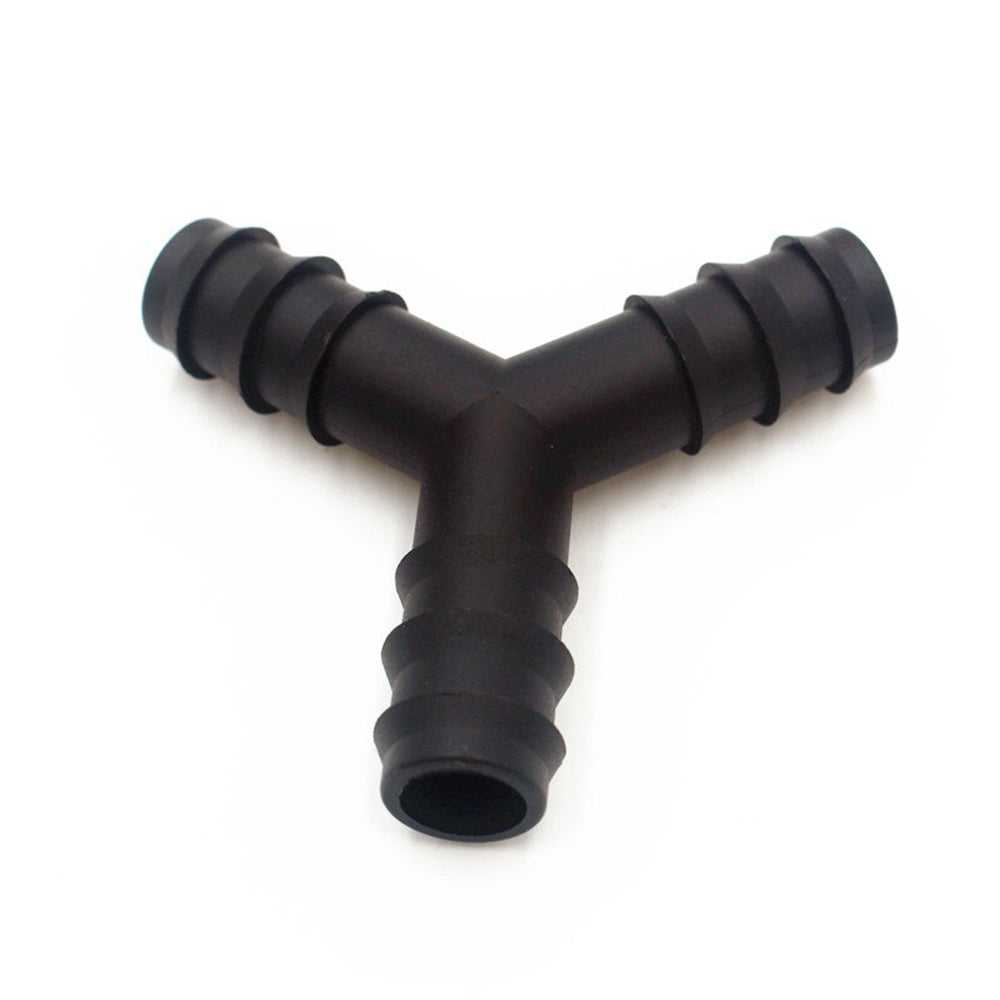

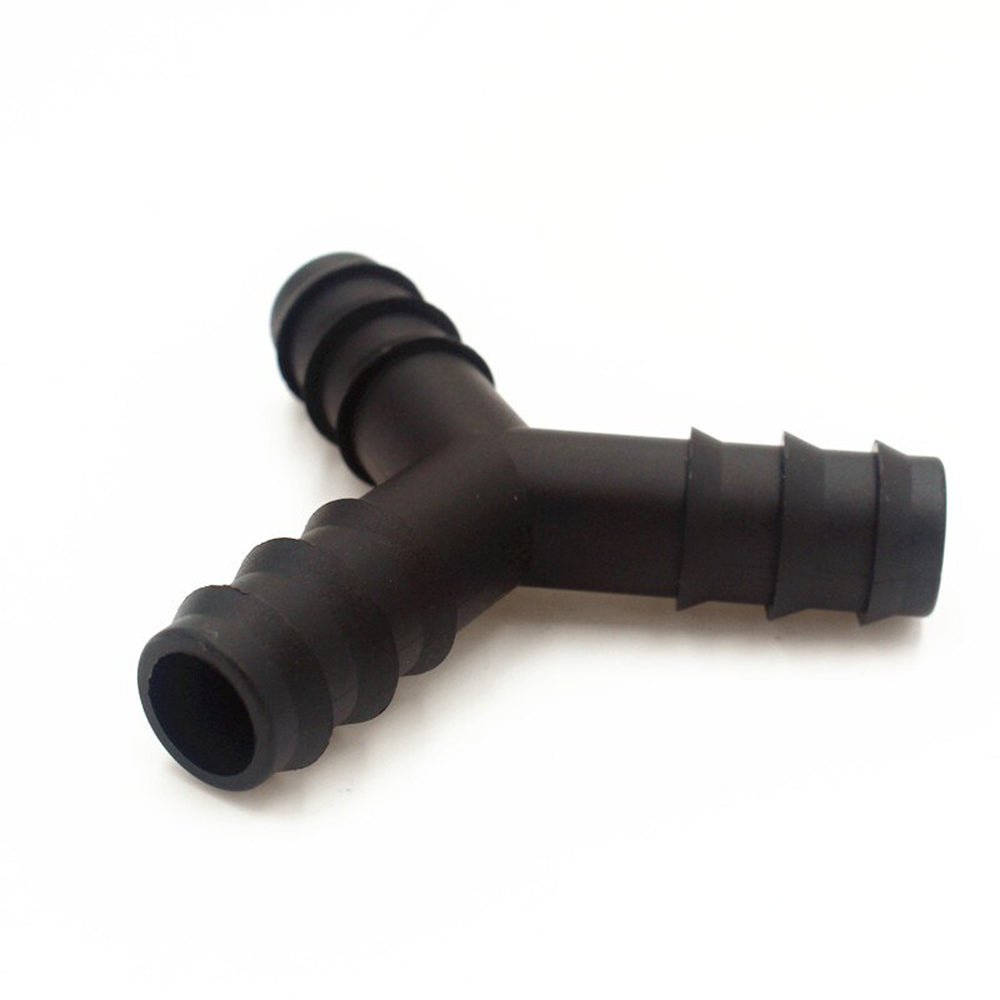

Check the tube bore: the tails fit inside matching approximately 13mm-bore irrigation hose. In common 13/16mm tube, 16mm is the outside measurement. The actual product photo helps you identify the insertion barbs rather than a quick-click plug or threaded fitting.
Connect the hoses, then check the delivery
Fit all three hose ends
Isolate and depressurise the supply first. Push each matching tube fully over its barbed tail towards the body. Use compatible retaining clips where the hose system requires them, and leave no port open to discharge water unintentionally.
Support the branch routes
Keep the three runs relaxed so movement or hose weight does not pull sideways on the joints. Restore water gradually within your system's operating limits and inspect every connection.
Control each run separately if needed
The splitter does not meter water or shut off a branch. Choose separate compatible controls if the installation needs them, and check delivery at the watering outlets: a shared junction alone cannot balance different hose runs.
Choosing your Y-splitter
Will it divide water equally between the branches?
Not necessarily. It provides a shared passage, but hose length, height, outlets and supply conditions affect water delivery. The fitting contains no balancing or regulating mechanism.
Is this the same as a three-way tap connector?
No. These are insertion barbs for matching irrigation hose. There are no tap threads, garden-hose click sockets or shut-off handles. Match any supply connection or control valve separately.
Why is this called 16mm as well as half-inch?
In common 13/16mm irrigation sizing, the hose has approximately 13mm internal and 16mm external diameter. The fitting goes inside the approximately 13mm bore. Check tube type and wall too; a hose with 16mm internal diameter is a different size.
What is included with the splitter?
One black plastic Y-shaped fitting. Hose, clips, taps, valves and watering outlets are not included. Select those parts for the hose system and watering layout you intend to build.
Product information & technical details
| SKU | TEE-Y-16B-001 |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
| Connection layout | Y-shaped, three-way hose junction |
|---|---|
| Hose connections | Three matching barbed hose tails |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
| Pack contents | One black plastic Y-splitter |
