Description
Connect a soaker line to your garden hose
This barb-to-male quick connector gives suitable ½-inch porous or irrigation hose a detachable garden hose connection. The barbed tail stays inside the irrigation pipe, while a compatible female socket connects to the exposed male plug.
It is a practical connection for a soaker line in a border or vegetable bed when you want to detach the supply hose without pulling the barb out of the pipe each time.
One black plastic connector with an orange sealing ring supplied. Hose and female sockets are separate.
Leave the barb fitted; detach at the plug

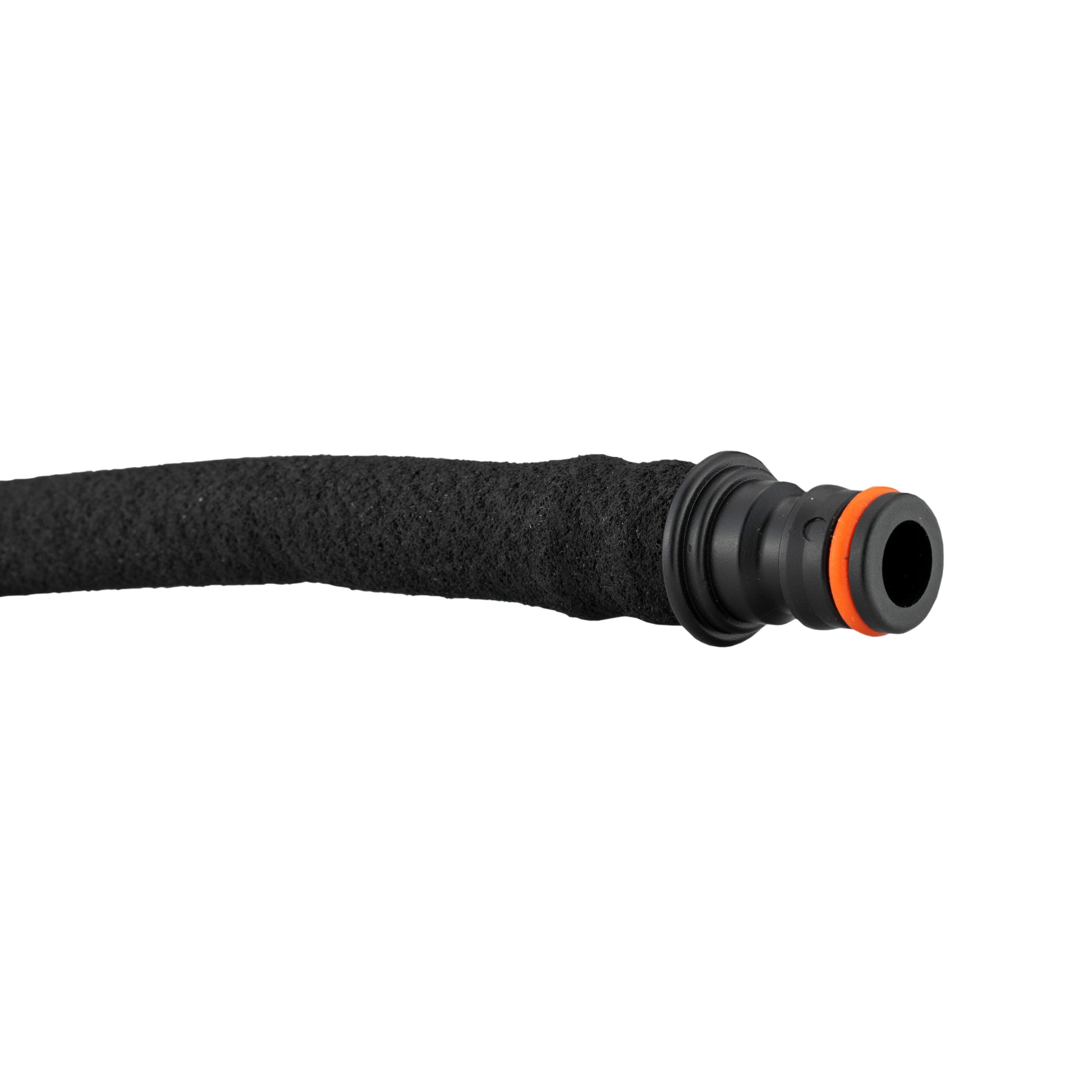

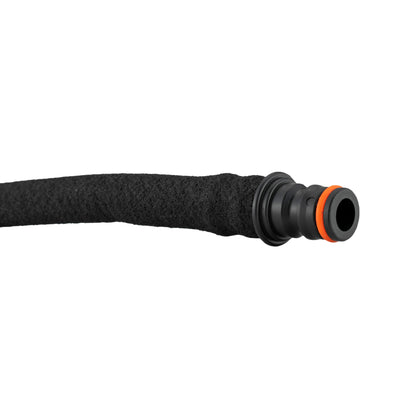

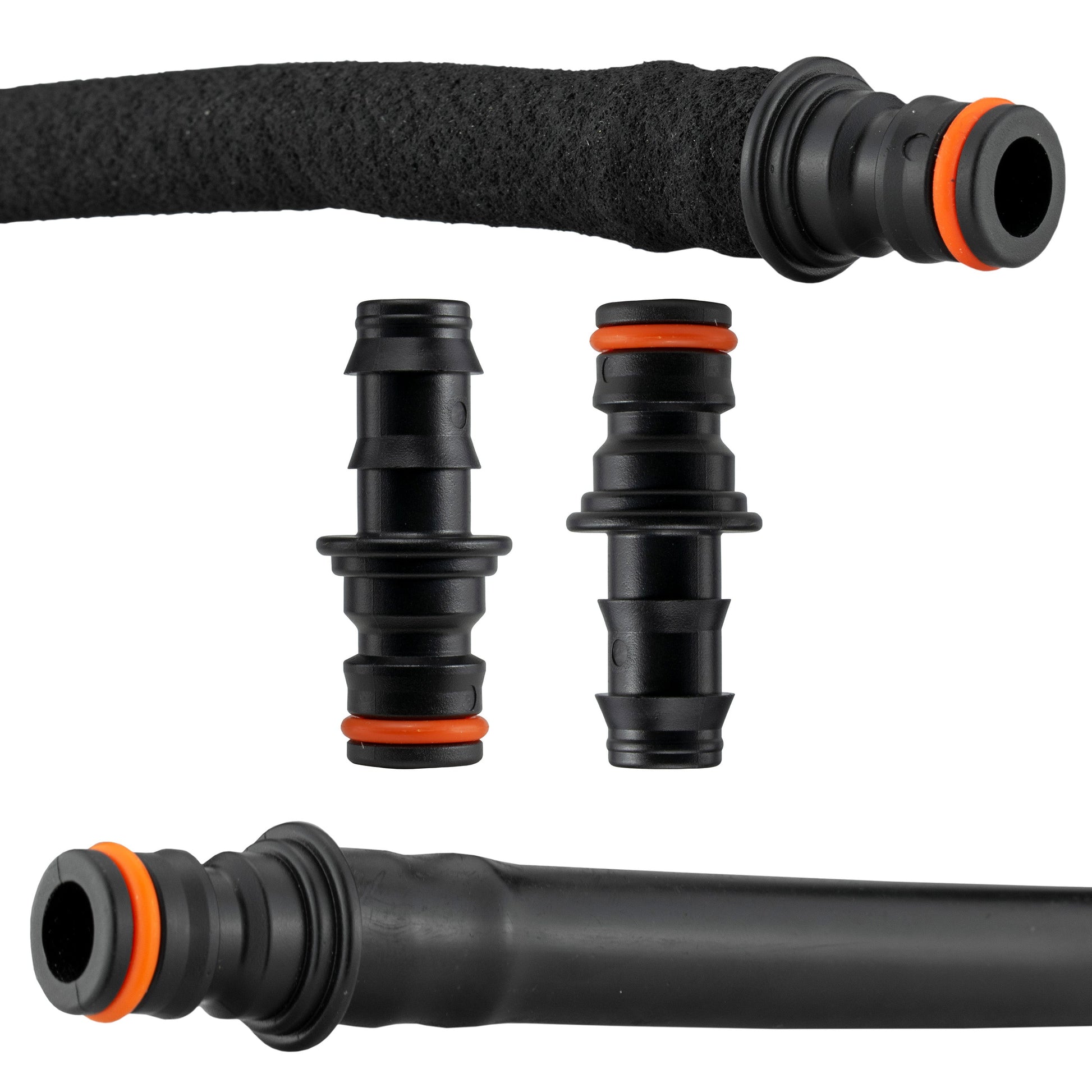

The photograph shows the barbed tail inside porous hose. The central shoulder remains outside the hose, with the male plug and orange sealing ring accessible for the supply connection.
A compatible female garden socket clicks over the male plug. Use the release mechanism on that socket when disconnecting; this male adapter has no sliding release sleeve of its own.
Two male plugs will not connect directly to each other. If your supply end already has a male plug, you need the appropriate female connection rather than another male adapter.
The adapter provides a connection point; watering output and operating pressure depend on the hose and the rest of your system. Follow the porous pipe’s own pressure and use guidance.
Check the pipe size before fitting
The hose tail is specified as ½-inch nominal, often rounded to 13mm in garden hose sizing. Irrigation pipe may instead be named for its outside diameter: 13/16mm describes roughly 13mm internally and 16mm externally.

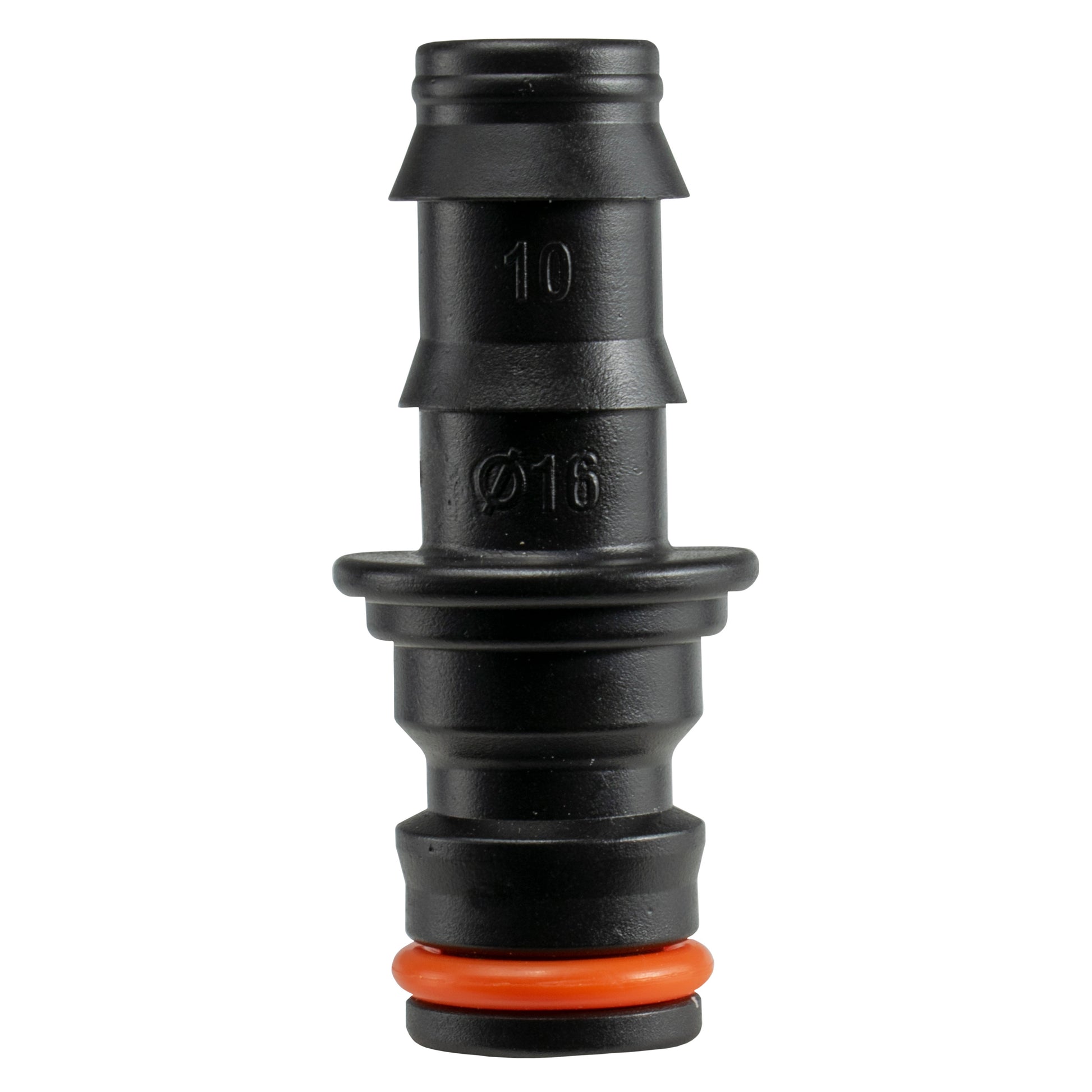

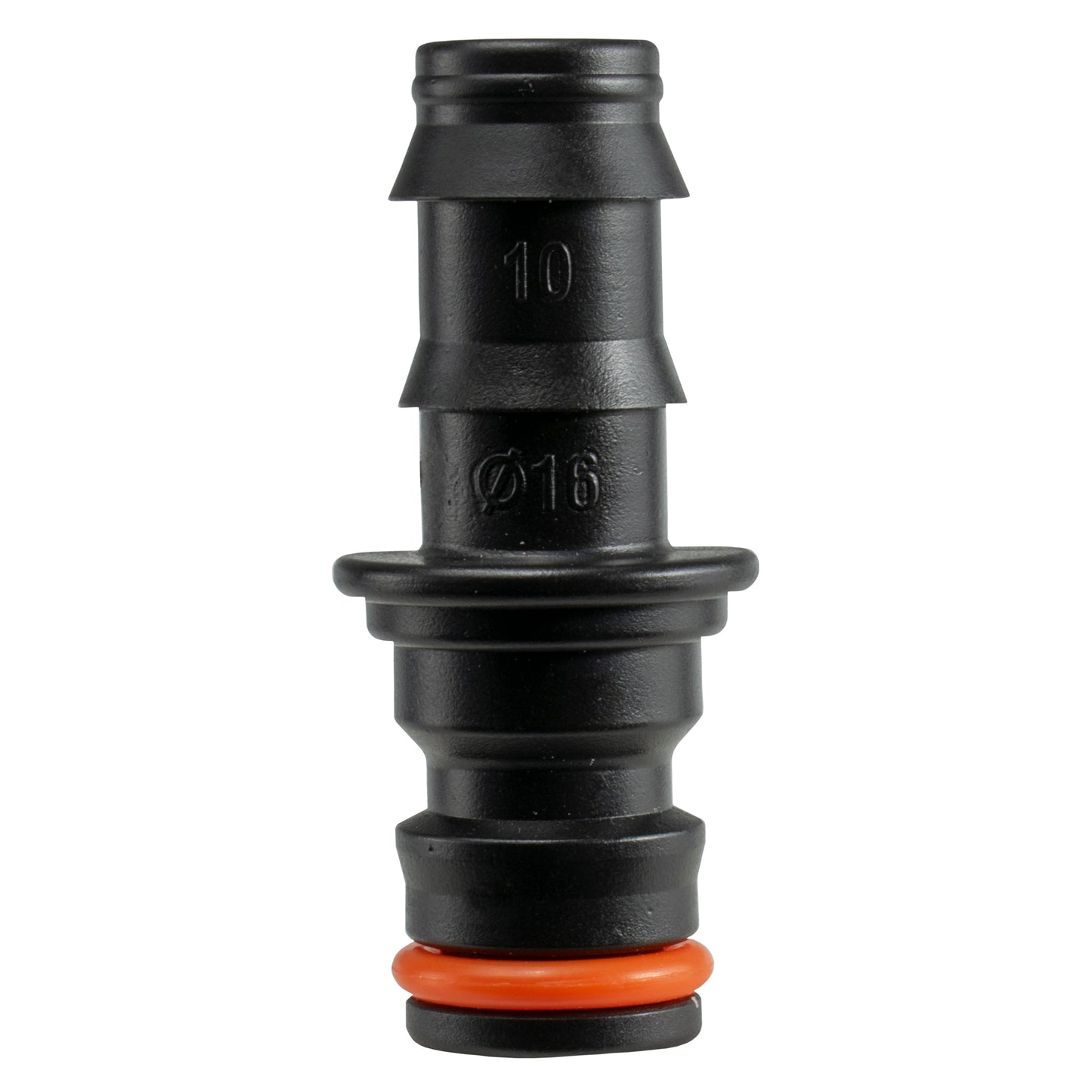

The Ø16 marking visible on the fitting should be read alongside the pipe specification, rather than taken as a 16mm internal bore. Check that the pipe’s bore and material suit this push-on barb.
Seat the hose
Turn off the water and release pressure. Push a clean, sound pipe end fully over the barb. Secure it with a suitable clip where required for your hose and installation.
Attach the supply

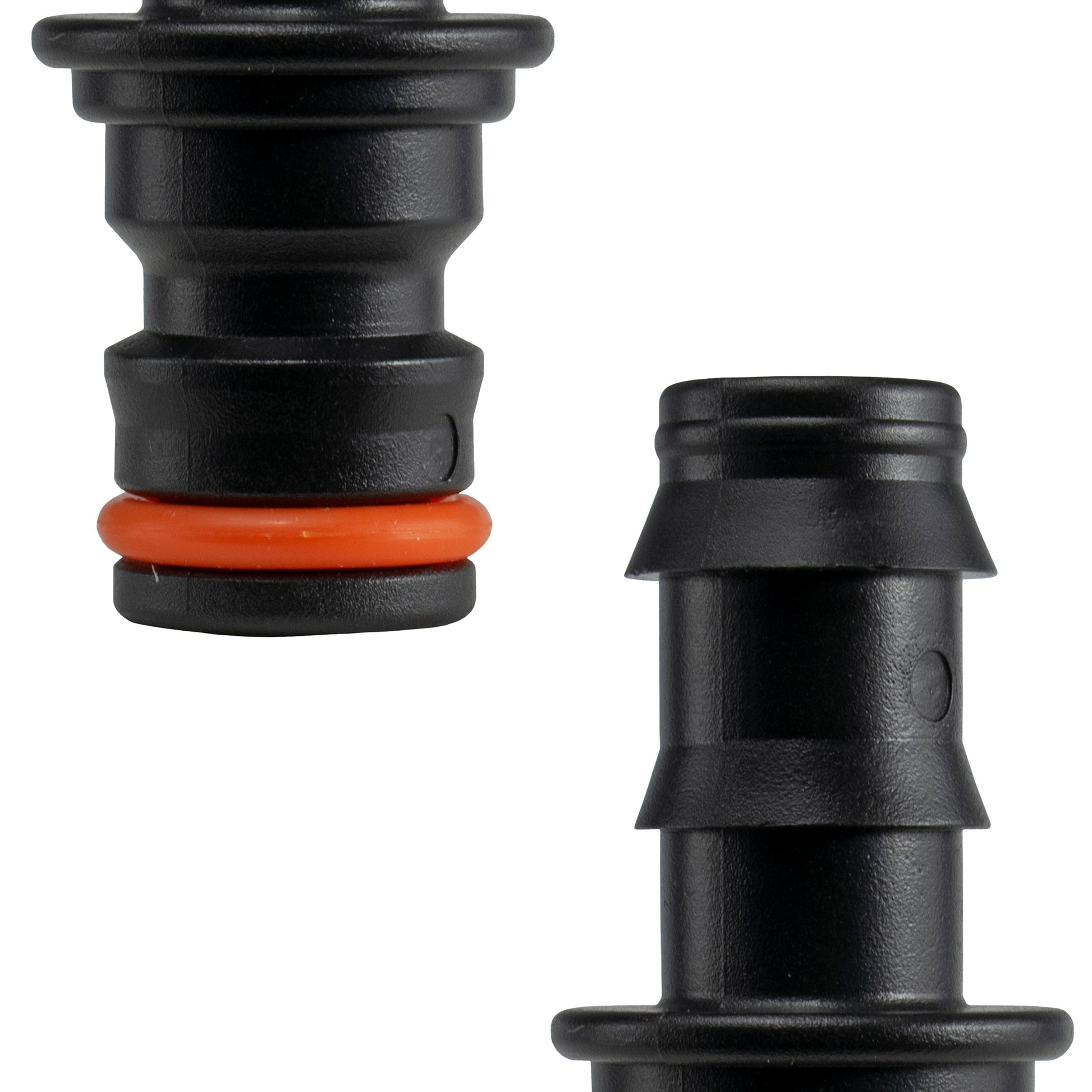

Check that the orange sealing ring is seated and undamaged. Connect a compatible female socket to the male plug and check engagement before opening the tap gradually.
Check and disconnect
Inspect the hose joint and quick connection separately. Turn off the supply and release pressure before operating the female socket’s release mechanism.
Questions about the male irrigation adapter
Which end connects to the garden hose socket?
The male plug with the orange sealing ring connects to a compatible female garden hose socket. The barbed tail goes inside suitable ½-inch porous or irrigation hose.
Is the 16mm marking the internal hose size?
No. This fitting has a nominal ½-inch barb. In irrigation, 16mm commonly refers to the pipe’s outside diameter, with 13/16mm describing its approximate internal/external sizes. Check the particular pipe specification before fitting.
Does it include a shut-off valve or pressure reducer?
No separate valve or pressure reducer is supplied. This is a straight connection adapter; manage watering flow and pressure using the appropriate equipment for your hose.
How many connectors are supplied?

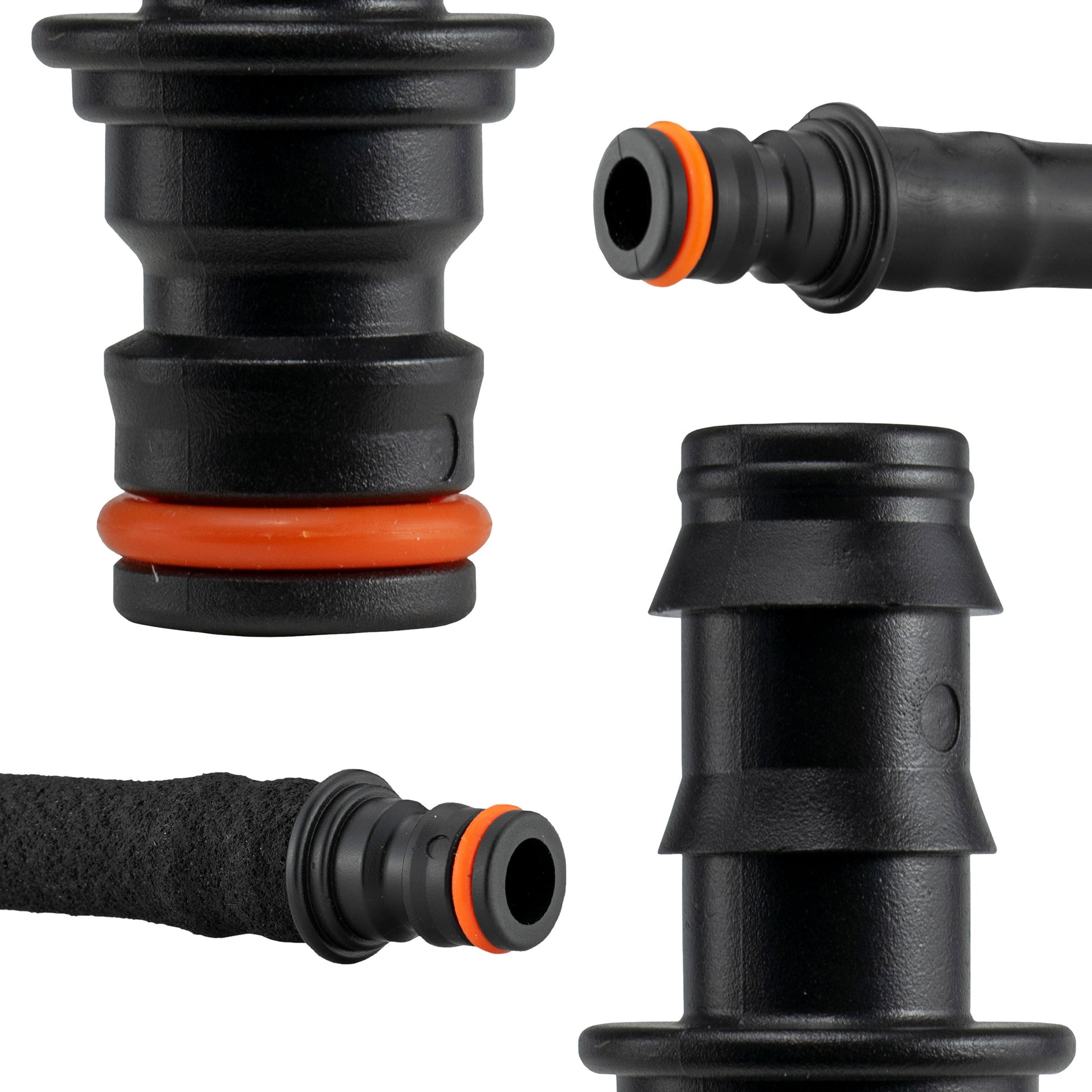

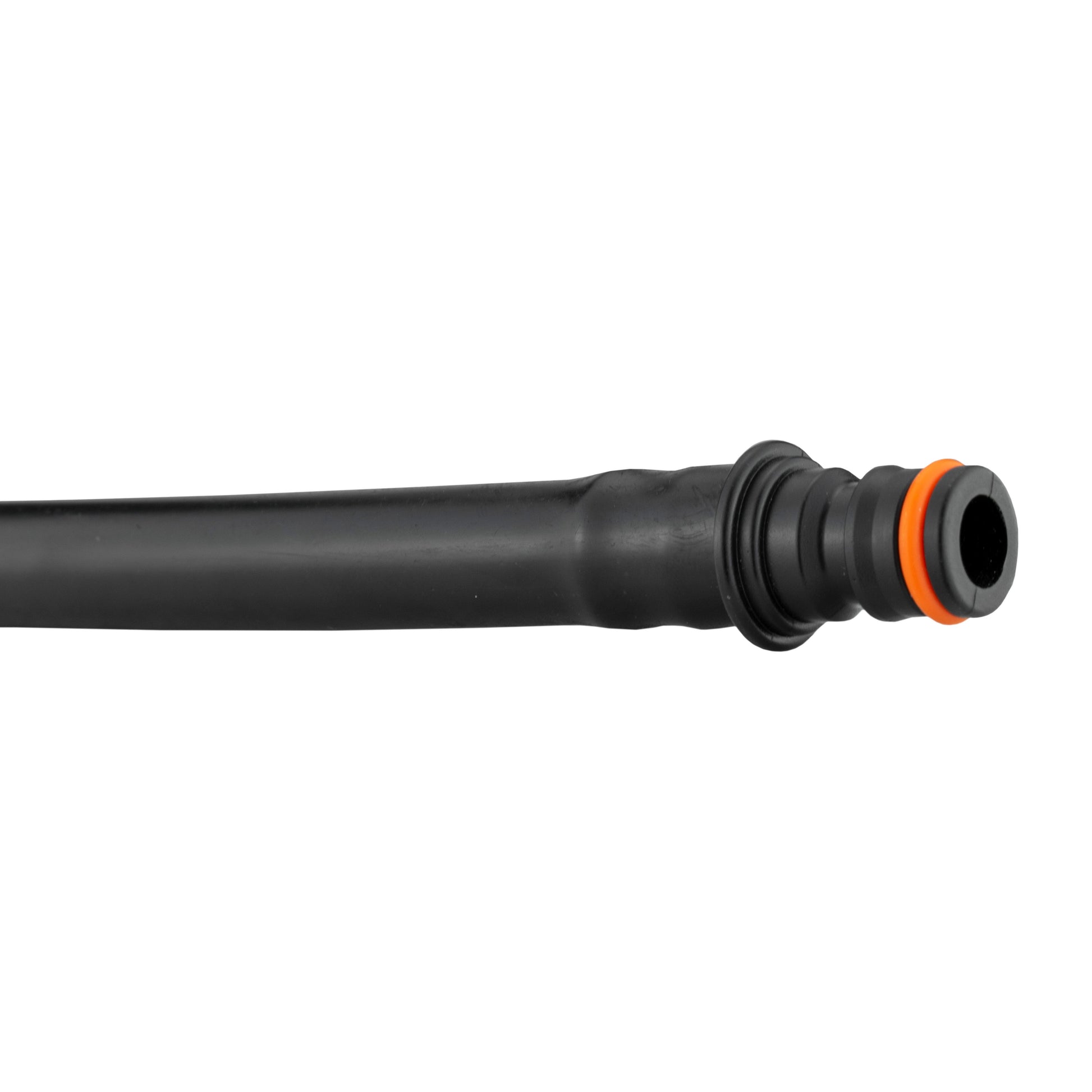

One connector. Some photos show multiple views or hose-connection examples. Hose, female sockets and separate retaining clips are not included.
Product information & technical details
| SKU | STR16B-SNAPON-001 |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| Colour | Black, Orange |
| Material | Plastic |
| Nominal hose connection | ½-inch barb for suitable porous/irrigation hose |
| Irrigation size convention | 13/16mm describes approximate internal/external pipe diameters |
|---|---|
| Quick connection | Male garden hose plug |
| Mating quick fitting | Compatible female garden hose socket |
| Visible seal | Orange sealing ring on male plug |
| Pack contents | One straight barbed male quick connector |
