Description
Join a run. Turn a corner. Add a branch.
A useful mix of four fitting shapes for planning or adapting your ½″ irrigation hose layout.
Two joiners connect lengths, two elbows make right-angle turns, two tees create branches and four plugs close open ends. The photograph shows the actual ten-piece pack, so you can see what is included before planning your connections.
10 black plastic fittings supplied. Hose, clips, taps and watering equipment are sold separately.
Give each fitting a job in your layout

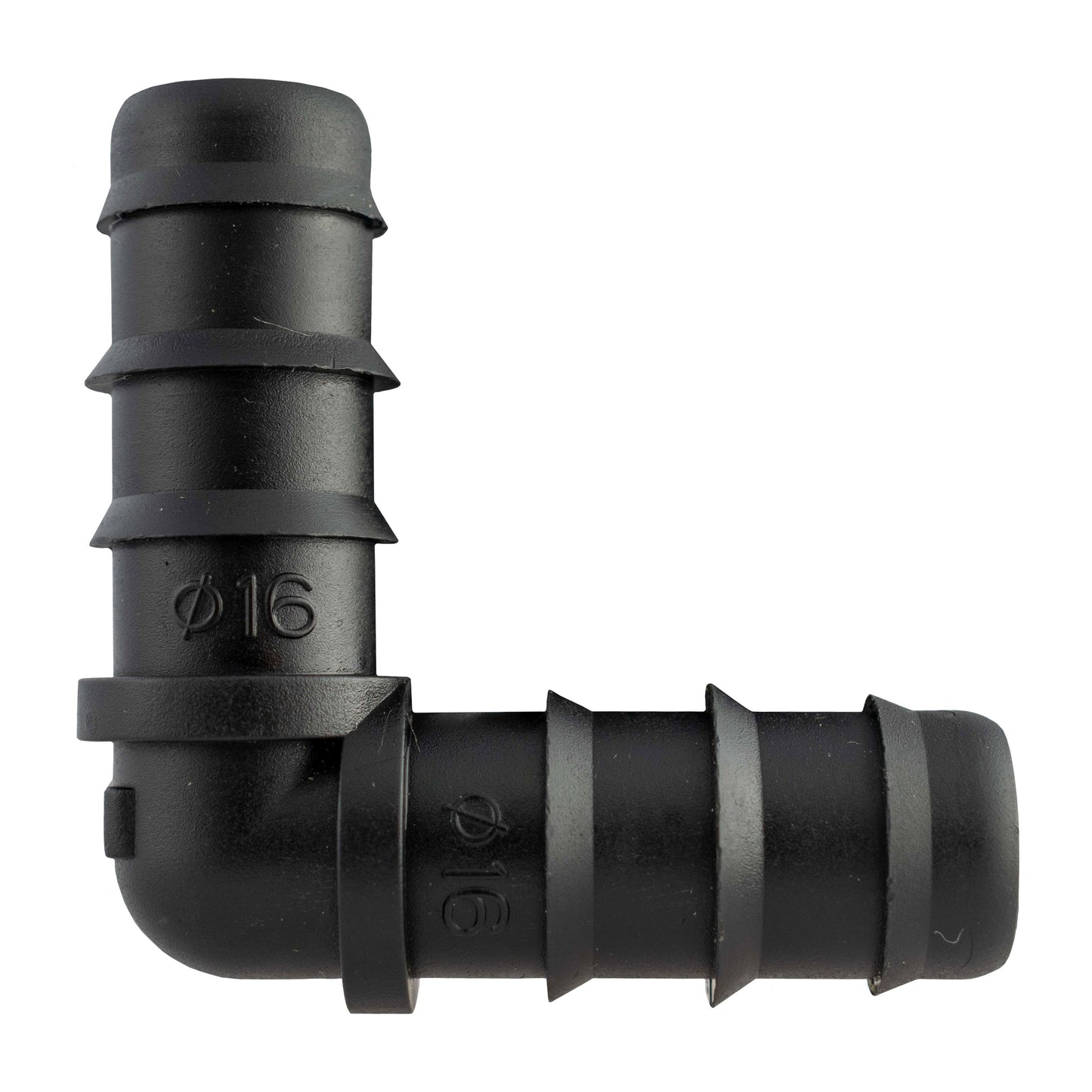

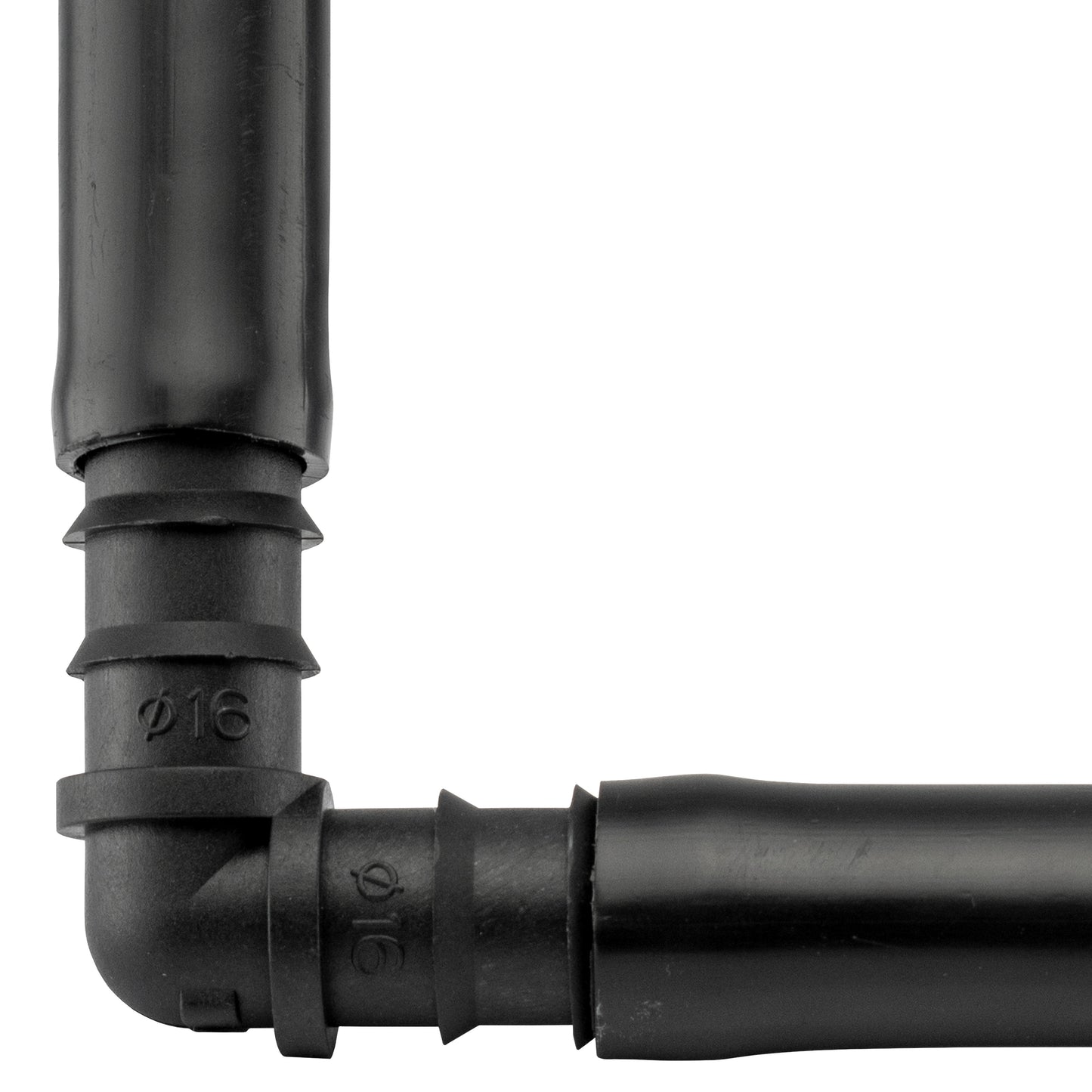

The elbow shown takes two hose lengths around a corner. Joiners are the straight-line equivalent, while tees let you take a branch towards another part of the bed.
Map the route first and count the open ends as well as the bends and branches. The pack is a fixed selection, so check that its two tees, two elbows, two joiners and four plugs suit your plan.

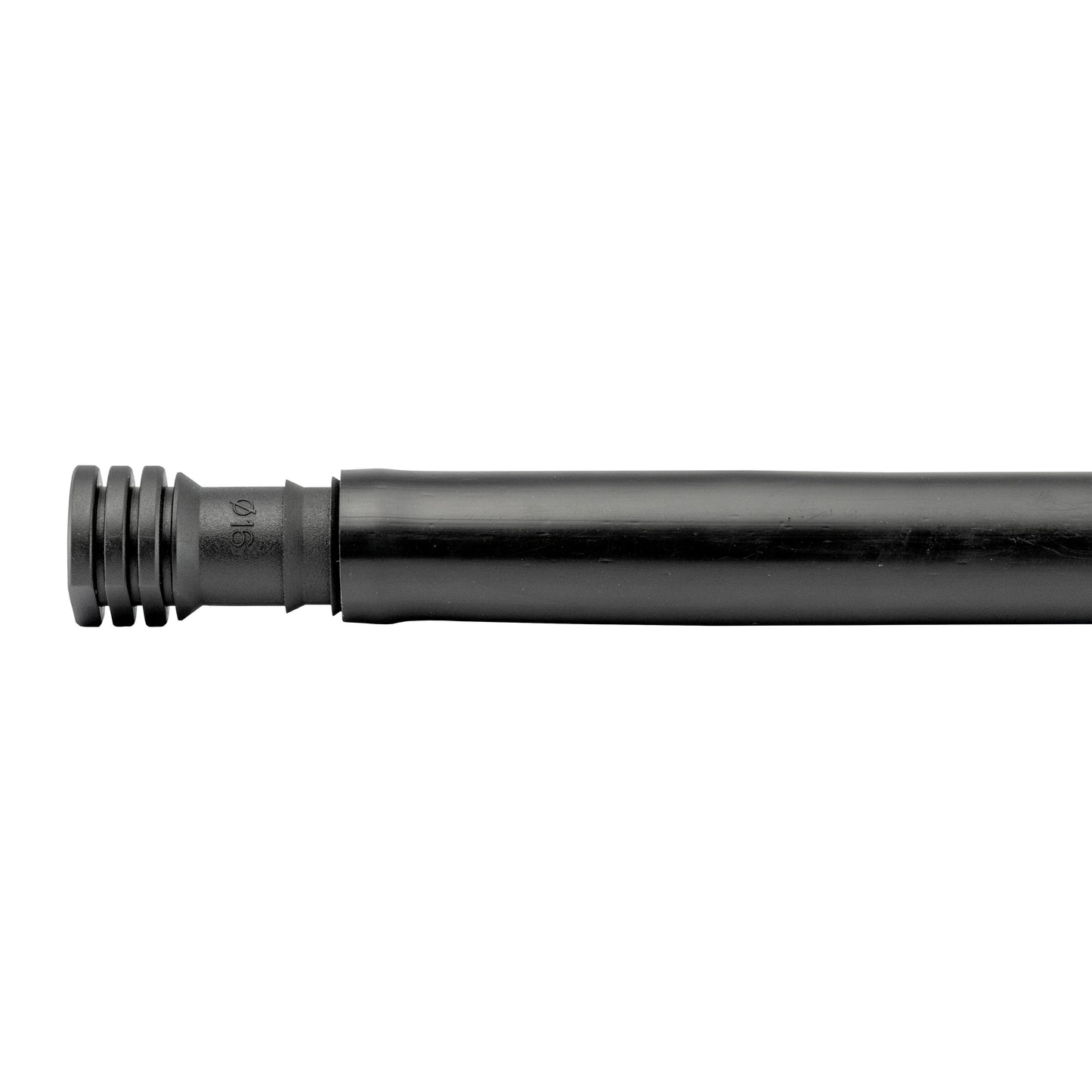

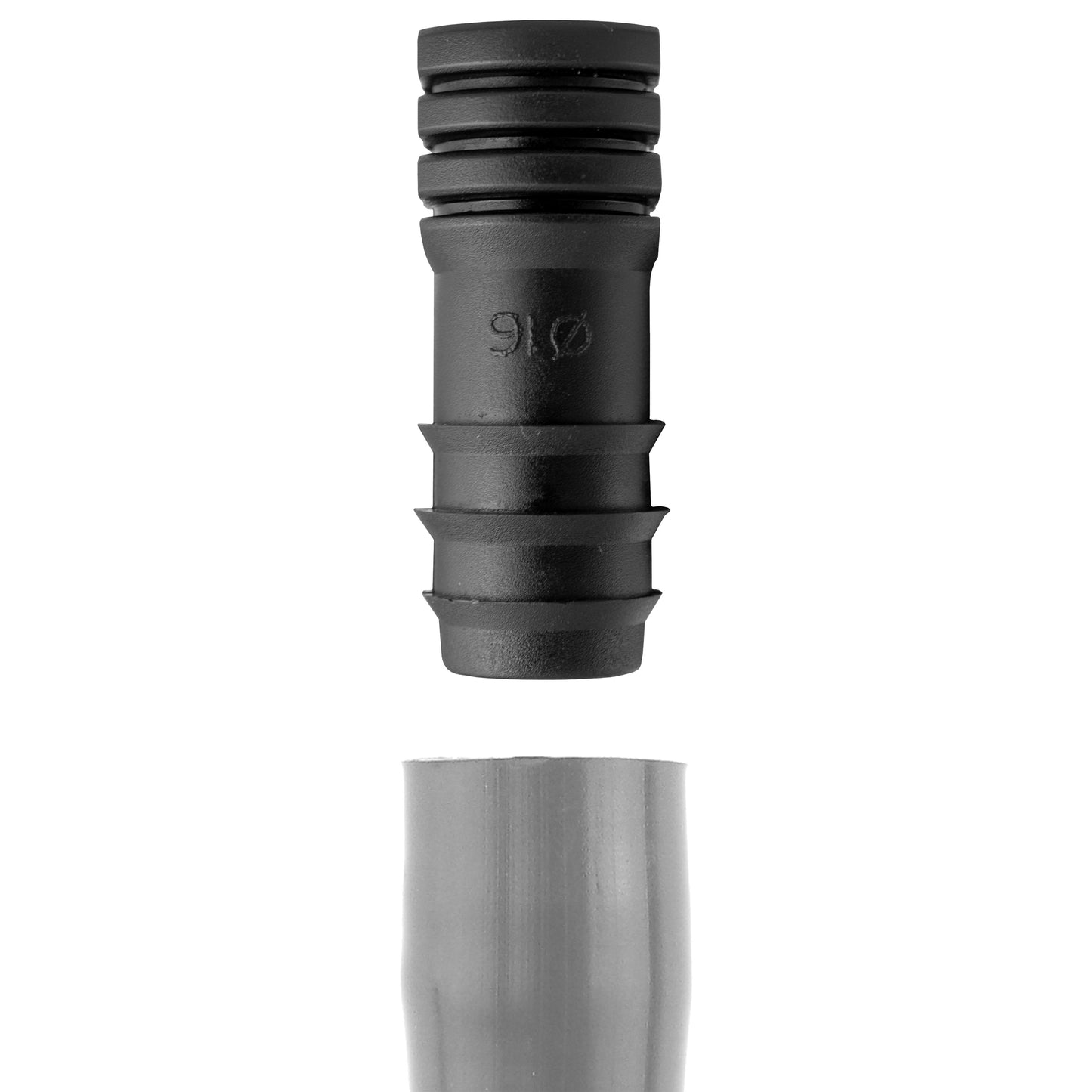

Using porous hose? A plug closes the cut end so water travels along the run and seeps through the hose wall as intended. It is not a valve and does not turn the watering off.

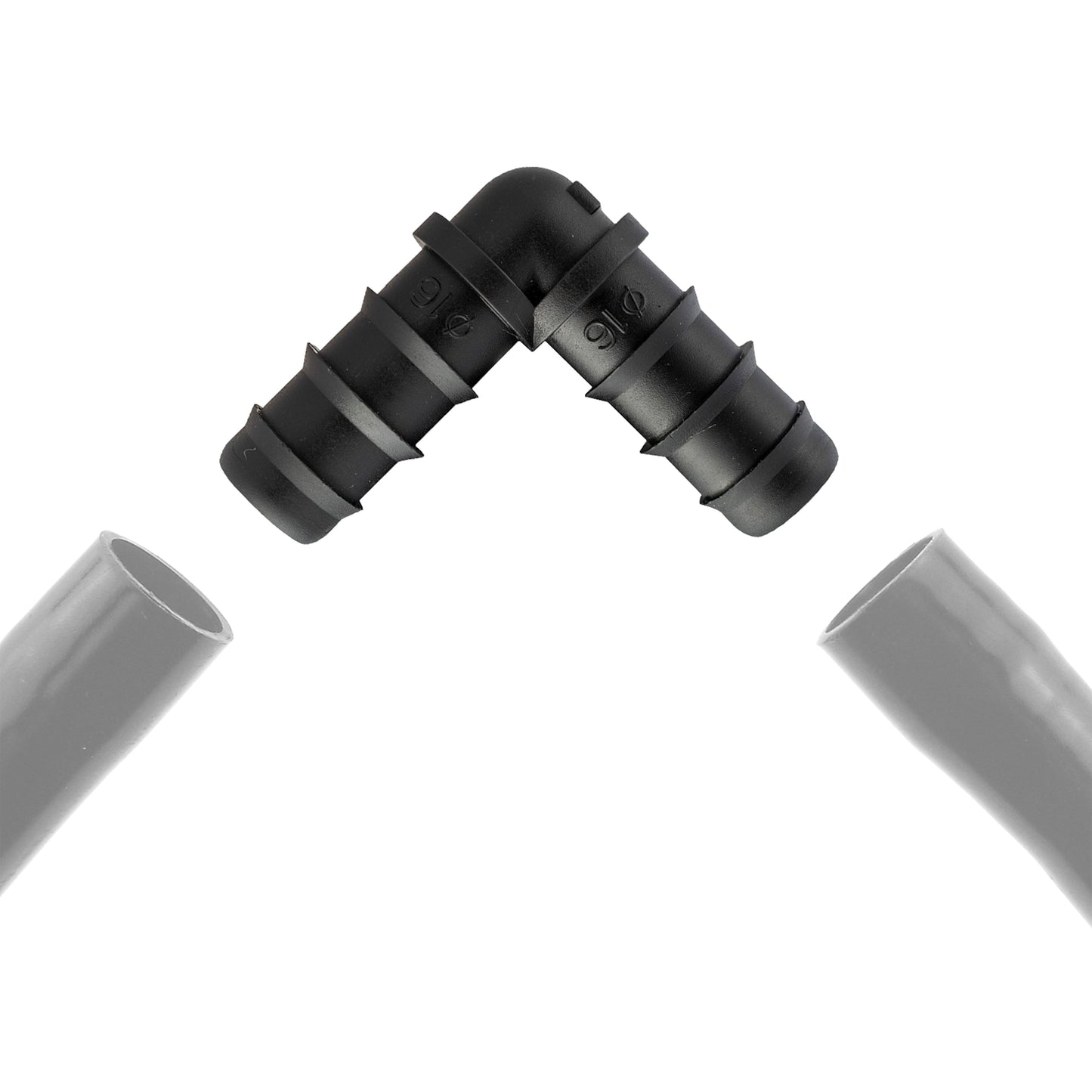

Illustrative elbow installation. Hose, bed edging and other installation materials are not included.
Match the tube, then make the connections
Check the bore and wall

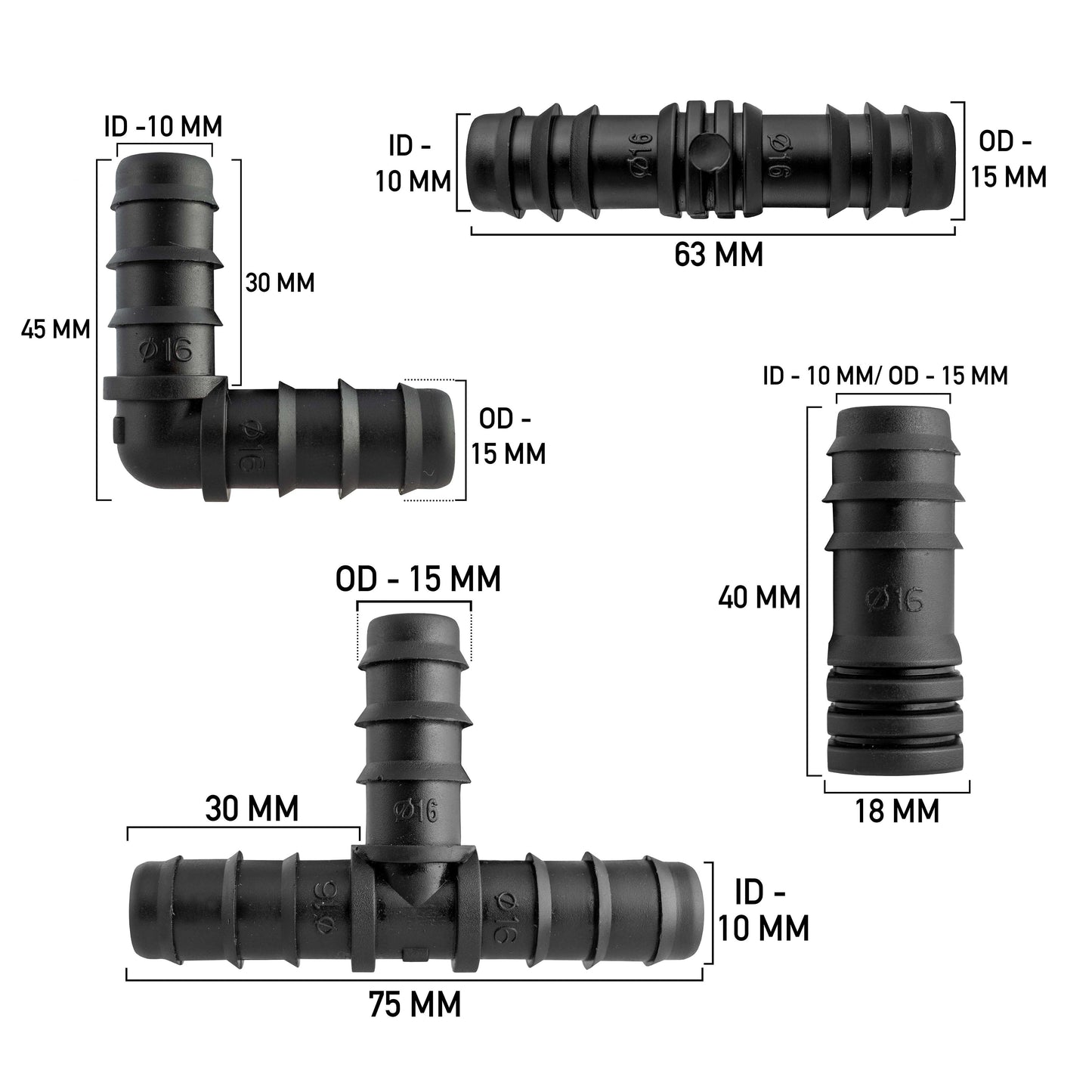

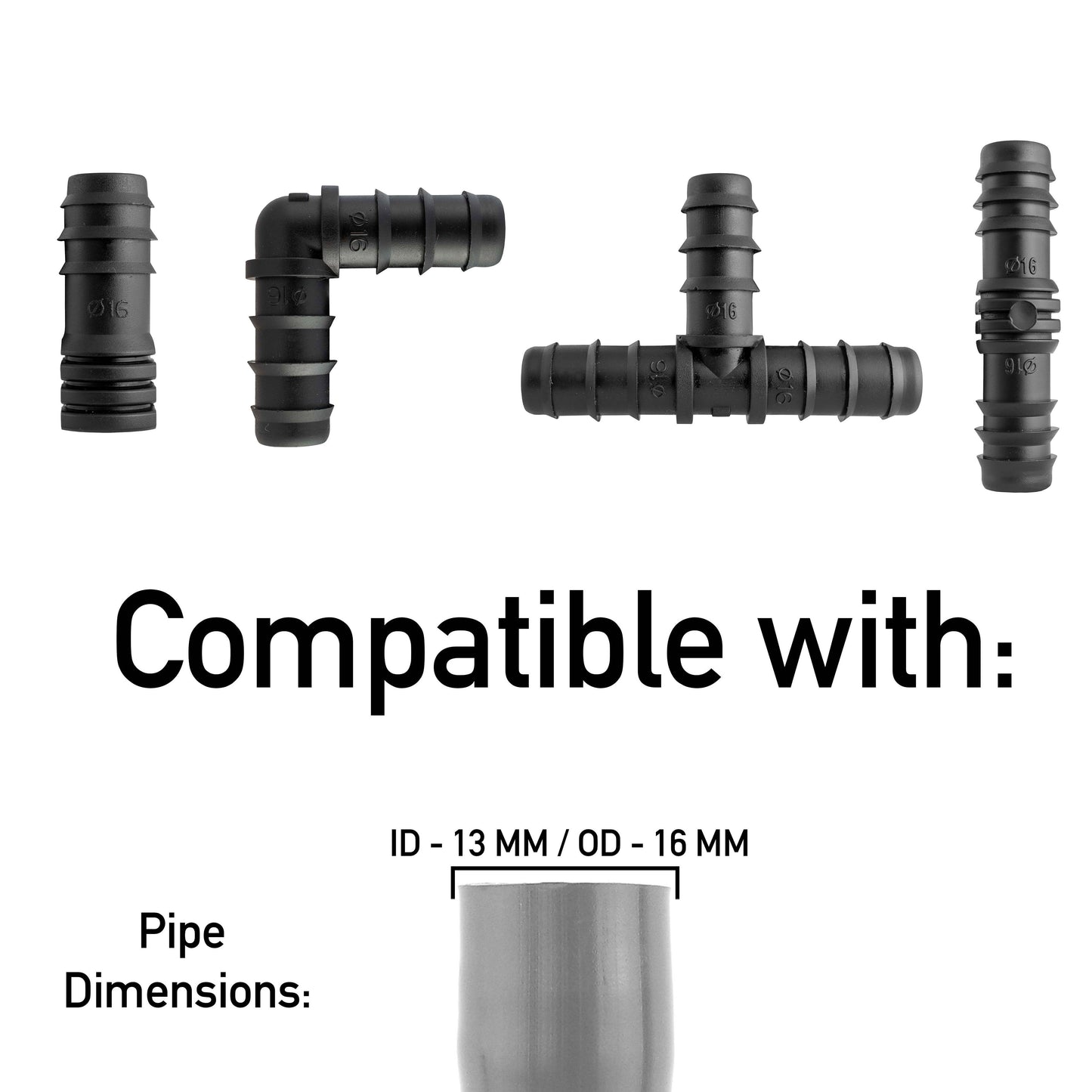

These are insertion-barb fittings for matching approximately 13mm-bore hose. With common 13/16mm irrigation tube, 16mm is the outside diameter. Check the tube type too: matching a number alone does not make every hose interchangeable.
Seat every connected end

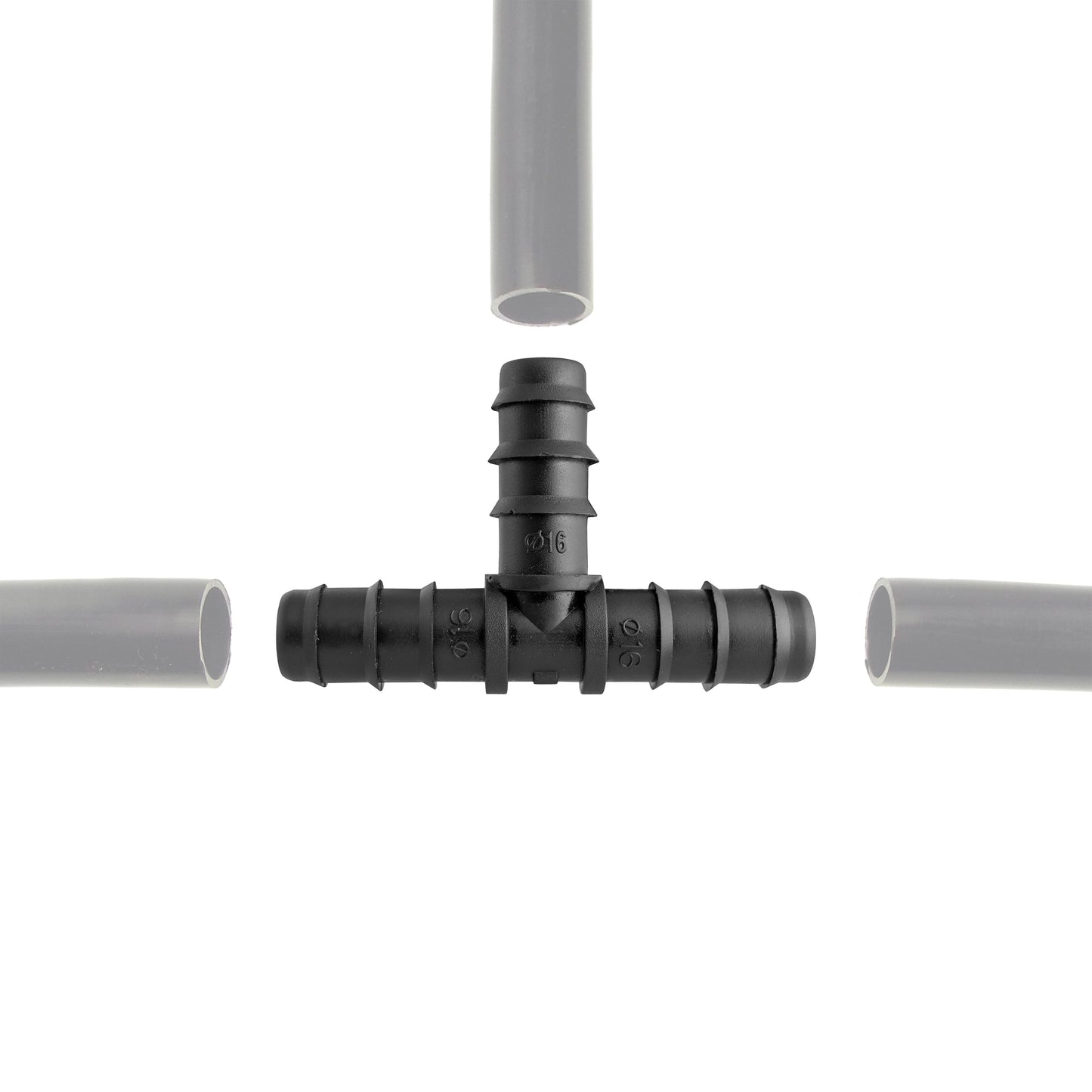

Isolate the water supply. Push each hose end over the complete barbed tail towards the fitting body. On a tee, connect all three ports or close an unused branch with a suitable hose-and-plug arrangement; do not leave an open outlet.
Support and check the run
Leave the hose relaxed rather than stretched between fittings. Use compatible retention clips where your tube system requires them. Restore water gradually within the system's operating limits and inspect the joints before leaving it watering.
Planning your irrigation connections
What exactly is in the ten-piece pack?
Two straight barbed joiners, two 90° barbed elbows, two three-way barbed tees and four barbed end plugs. This is a fittings pack: no hose, tap connector, clips or watering outlets are included.
Will these fit 16mm irrigation pipe?
They suit matching ½″/approximately 13mm internal-diameter irrigation hose. This is often called 13/16mm because the tube is about 13mm inside and 16mm outside. Confirm those dimensions and the tube's suitability for insertion barbs; 16mm internal-diameter hose is a different size.
Can the end plugs be used with soaker hose?
Yes, with suitable matching-bore soaker hose. Insert a plug into each open end that needs closing. Porous hose will still release water through its wall: that is its watering function, rather than a leak prevented by the plug.
Does this connect directly to a garden tap?
No. These pieces have hose-insertion barbs, with no threaded tap inlet or quick-click socket. Choose a separate supply connector to match your tap or irrigation system, and allow for any control or pressure-regulating equipment that system needs.
Product information & technical details
| SKU | MIXPOROUS10 |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
| Pack quantity | 10 fittings |
| Elbows | 2 × 90° barbed elbows |
|---|---|

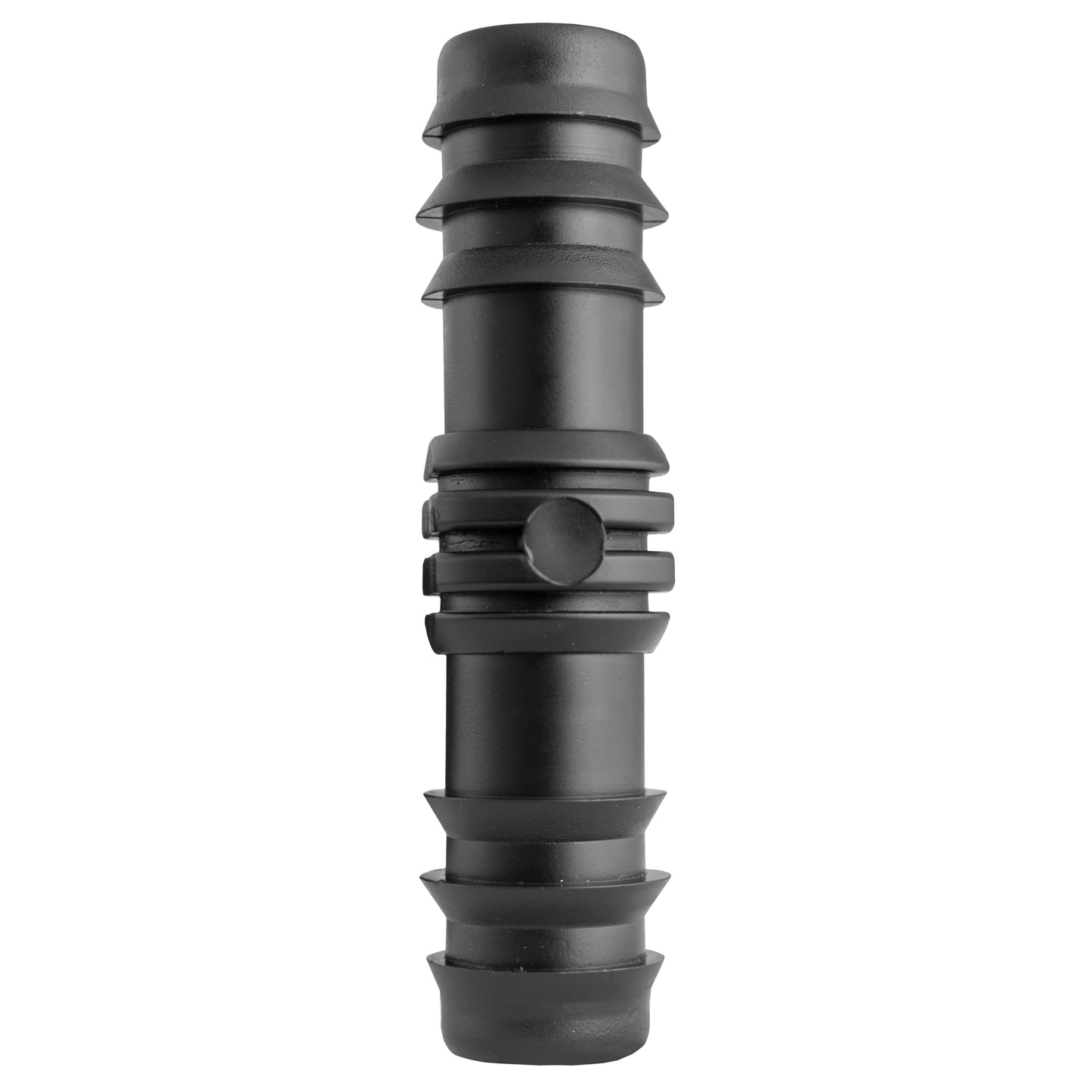

| Straight joiners | 2 × double-ended barbed joiners |

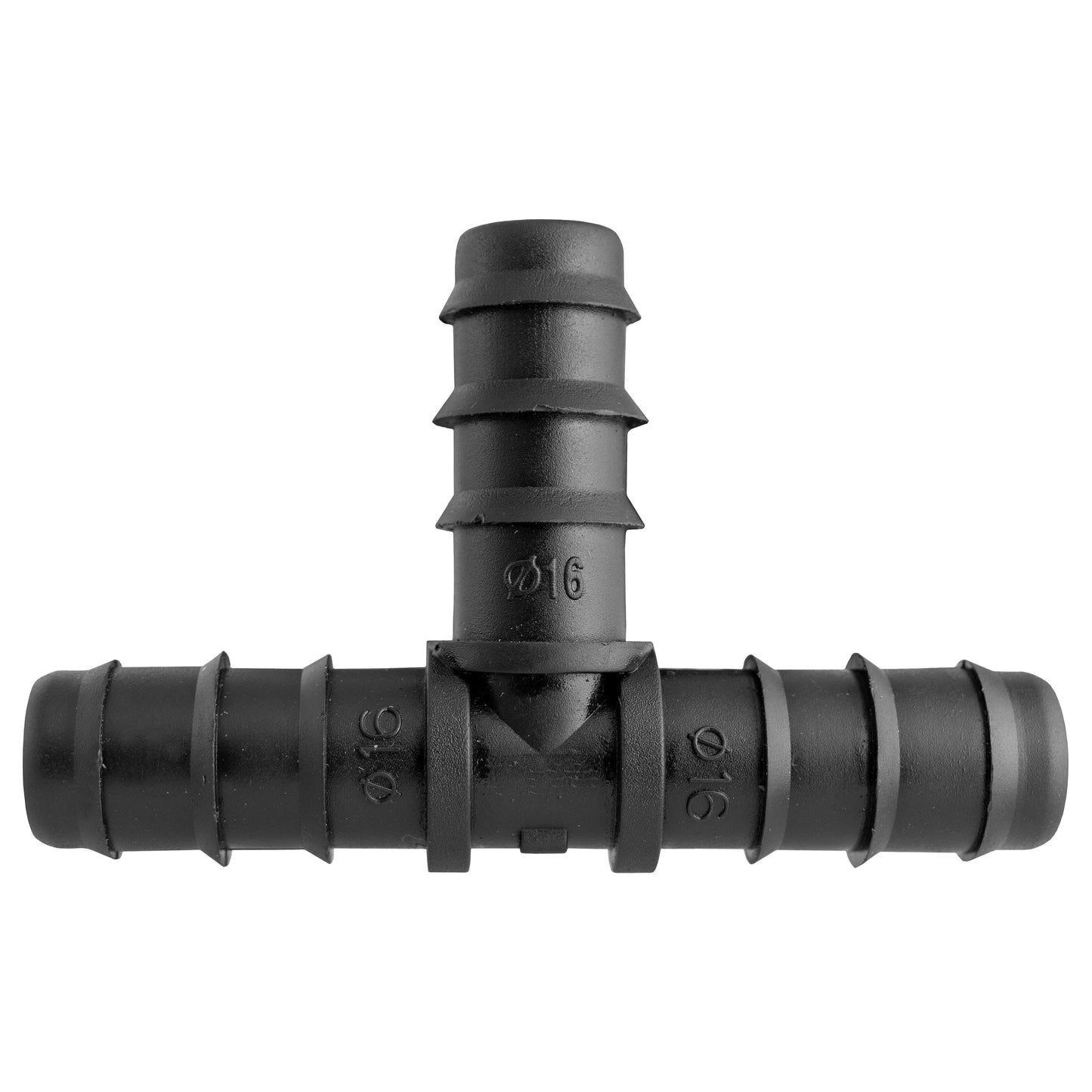

| Tees | 2 × three-way barbed tees |

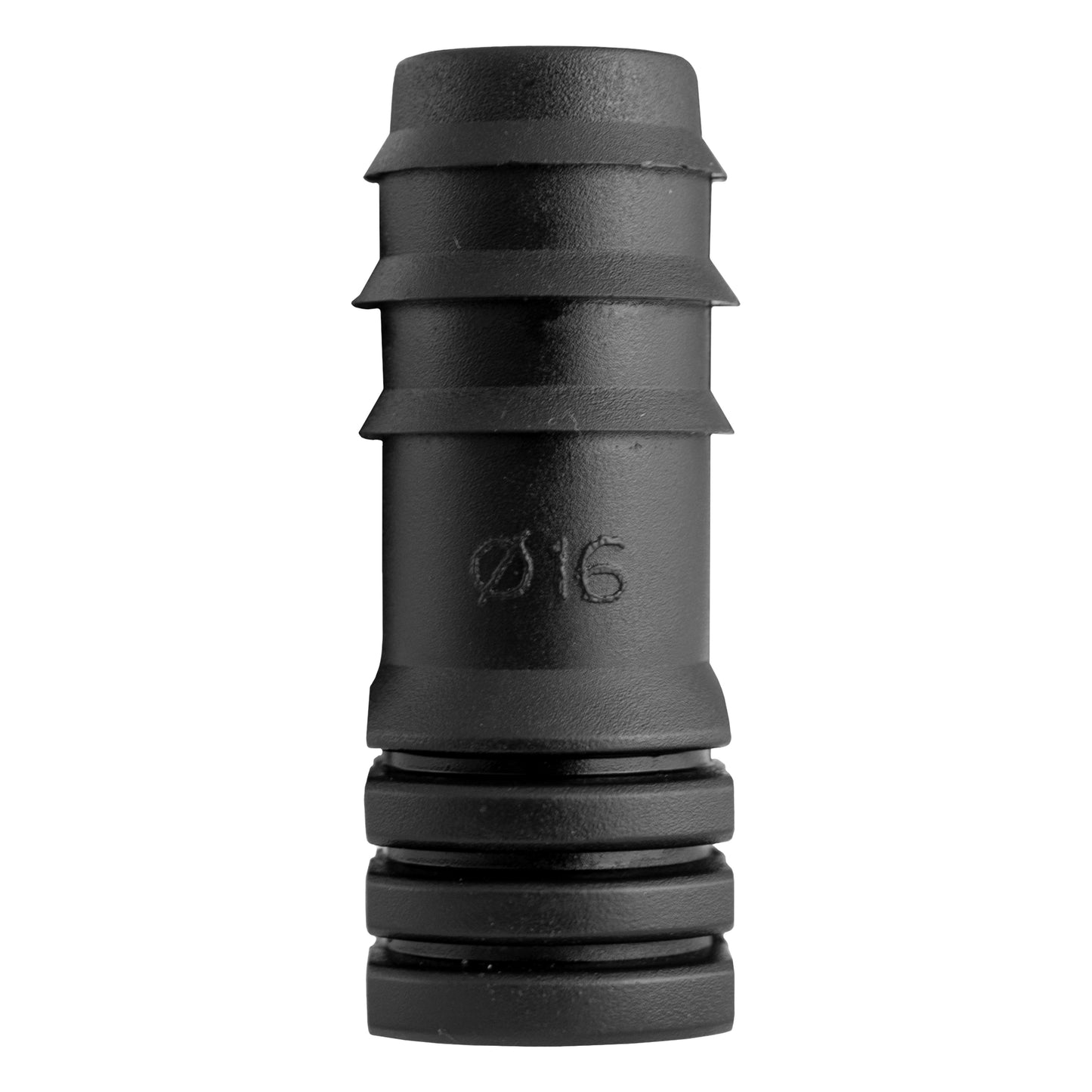

| End plugs | 4 × barbed end plugs |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
