Description
A neat finish for your watering line
Close the far end of a hose run with a compact push-in stop plug.

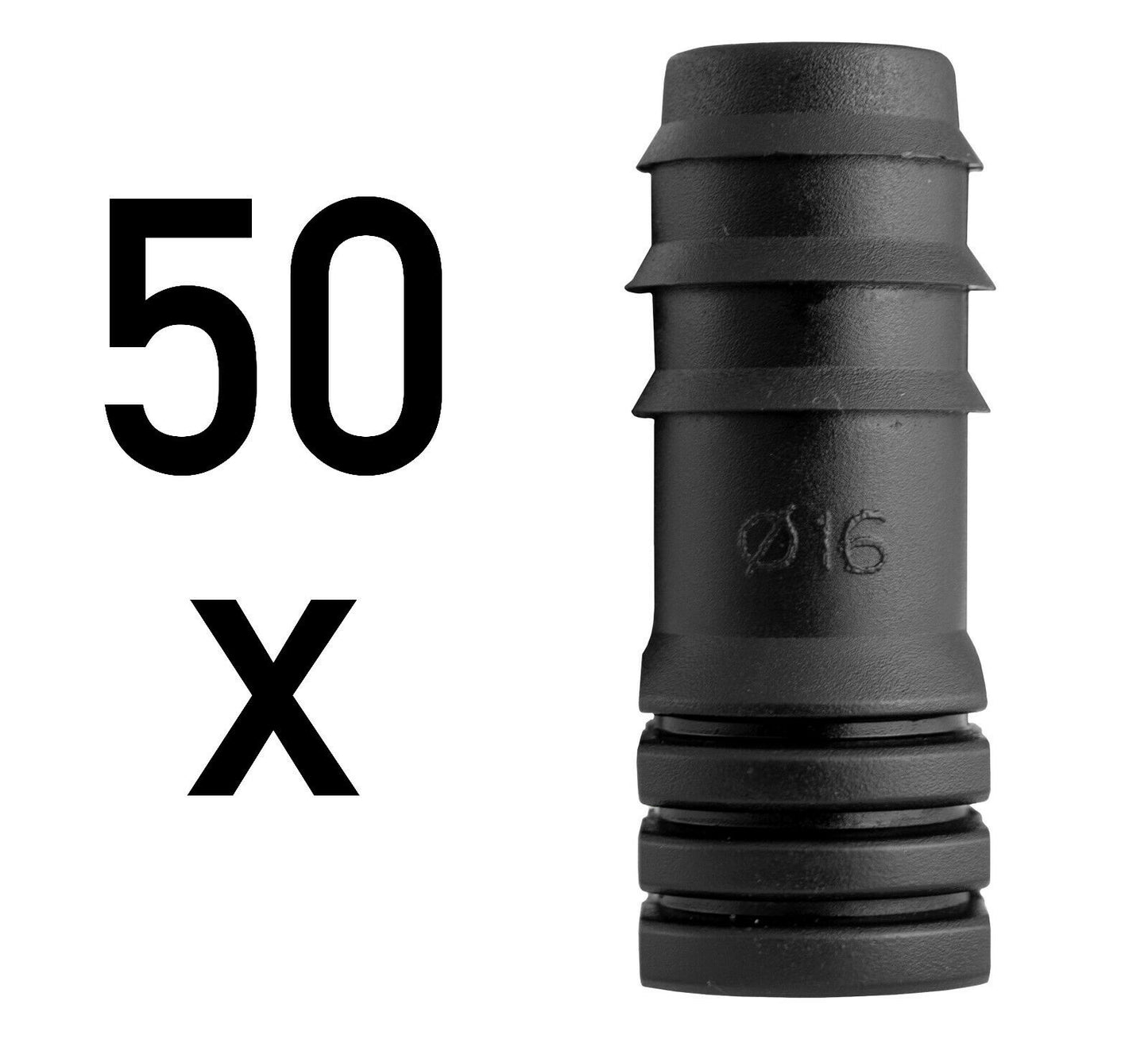

This ½″ barbed end plug fits inside matching soaker or irrigation hose. The barbed tail sits within the tube, while the solid ribbed head closes the end and stays outside the hose.
Plugs only, in your chosen pack size. The hose and garden setting in the example are not included.
Fit the tail inside the hose
The long barbed section enters the hose; the wider closed head stays outside. It is a push-in end plug, with no screw thread or opening through the head.
- Check the hose bore: the fitting is sold for approximately ½″/13mm internal diameter. The common 13/16mm irrigation reference describes the inside and outside of the tube.
- Check the hose wall: porous rubber and LDPE tubing can have different wall thicknesses and grip. Follow the connection and clip requirements for your hose.
- Leave room to inspect it: finish the run where you can reach the plug and see the joint when the system is operating.
The moulded 16mm marking is part of the irrigation sizing convention. It does not mean the plug is intended for a 16mm internal bore or a ½″ BSP threaded port.
Finish the run before turning on the water
Prepare the hose end
Isolate and depressurise the supply. Follow your hose system's flushing instructions before closing a new or altered run, then prepare a clean, square hose end.
Seat the plug fully
Push the hose over the barbed tail until it reaches the head-side stop. Fit a suitable retaining clip if your hose system requires one, without crushing or cutting the hose wall.
Check the finish
Restore water gradually at the pressure recommended for the hose. Inspect the plug joint. With porous hose, normal seepage along the wall should not be confused with water escaping around the end fitting.
Choosing your stop-end plugs
Will the soaker hose stop releasing water?
No. Porous hose is meant to seep water through its wall to water the bed. This plug closes the open end; it does not turn porous hose into a solid delivery hose.
Is the ribbed head a screw cap?
No. The head is a solid part of the push-in plug. Its ribs are not a BSP thread, and it does not screw onto a tap or threaded pipe end.
Does 16mm mean the hose needs a 16mm internal bore?
No. This fitting is for matching approximately ½″/13mm-bore hose. In the familiar 13/16mm irrigation size, 16mm refers to the tube's outside diameter. Check your hose specification and wall type before fitting.
Do the pack options contain different plug sizes?
No. The fitting is the same in every pack. Choose the quantity of plugs you need: 1, 2, 4, 6, 8, 10, 20, 50 or 100. Hose, retaining clips and other fittings are separate.
Product information & technical details
| SKU | PLUG16B001 |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
| Function | Stop end for an open hose run |
| Connection | One barbed insertion tail with a solid closed head |
|---|---|
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm bore, 16mm outside |
| Overall length | Approximately 40mm |
| Head diameter | Approximately 18mm |
| Pack options | 1, 2, 4, 6, 8, 10, 20, 50 or 100 plugs |
