Description
Bring the tap connection forward
A black plastic extended adapter for positioning a compatible fitting away from the male connection.

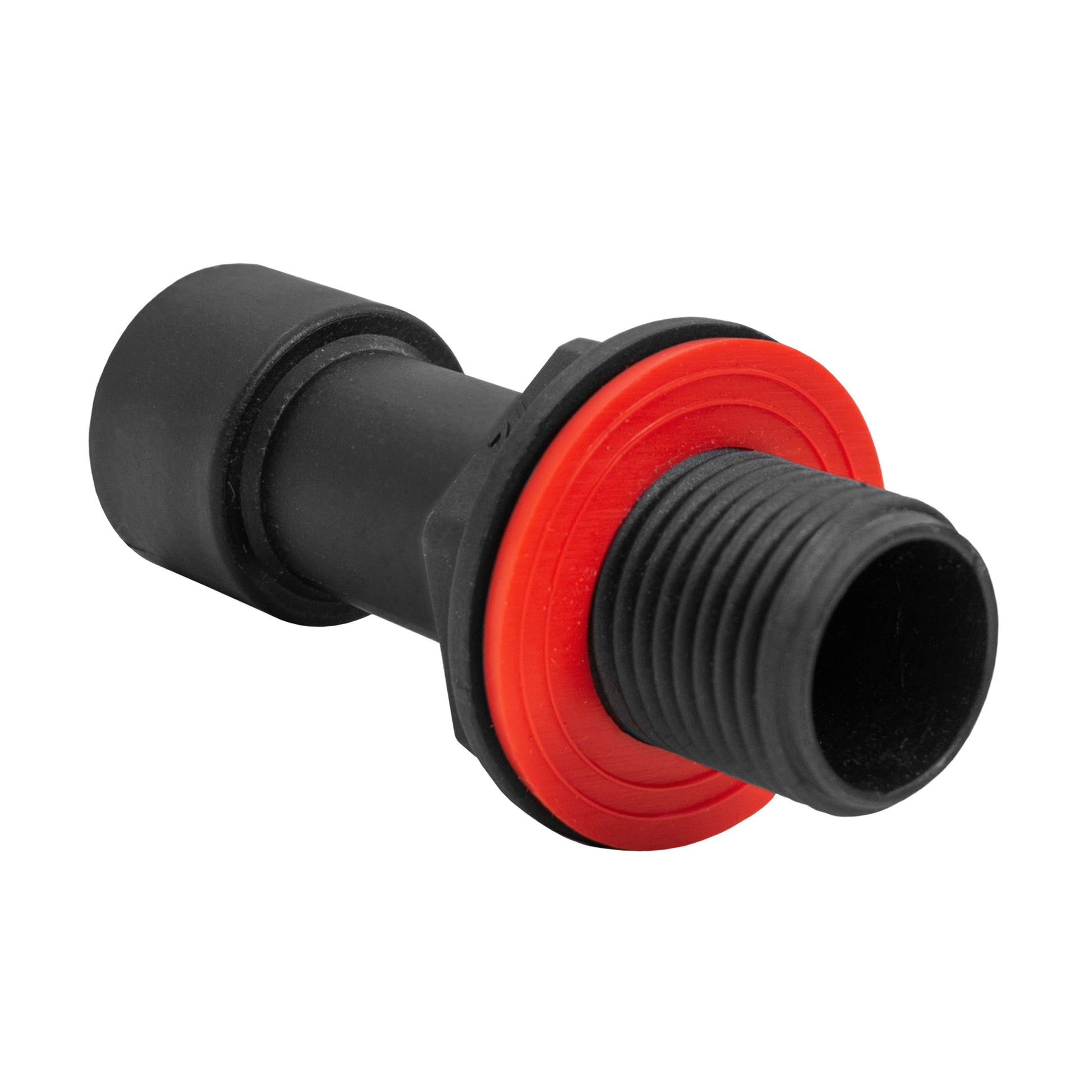

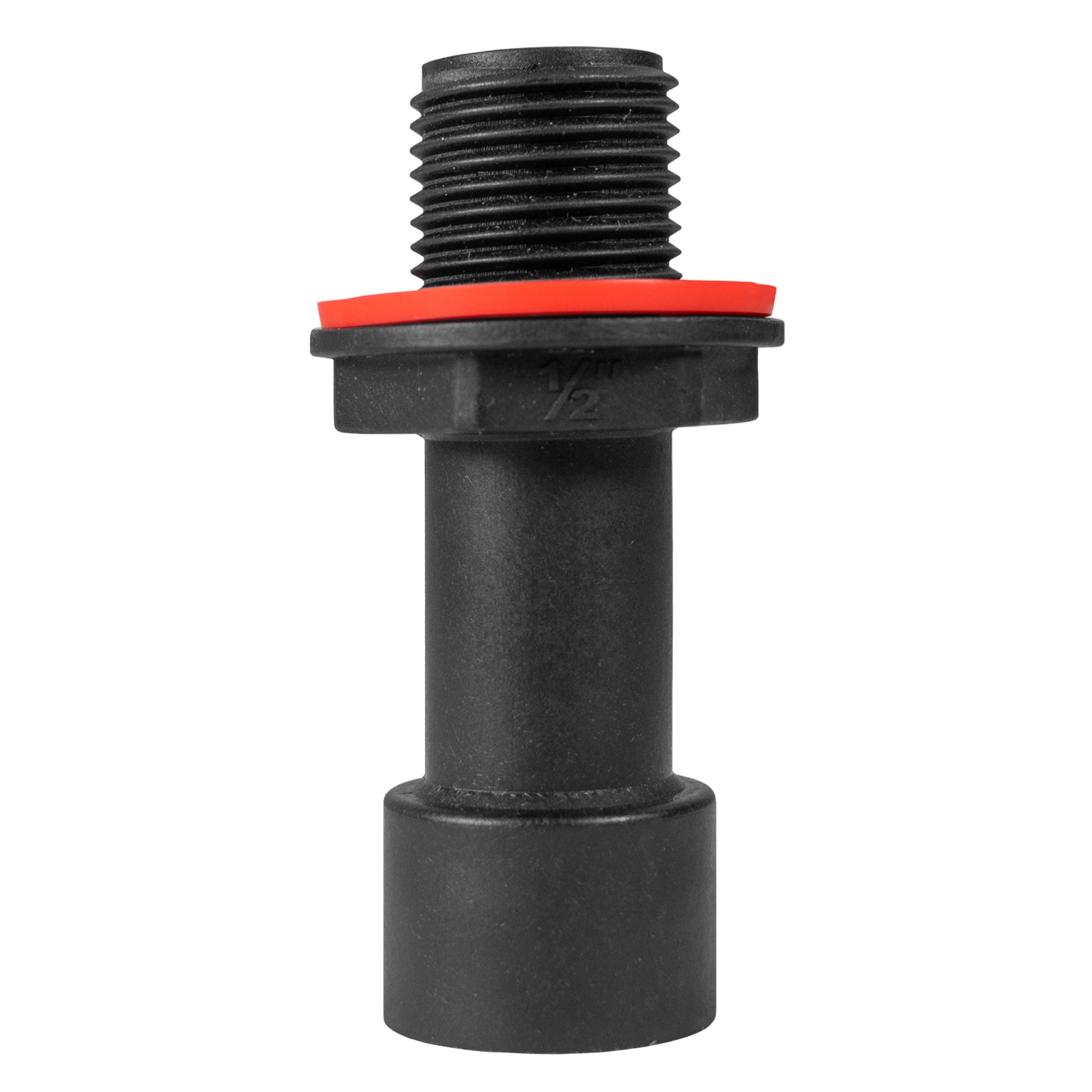

It has a 1/2-inch BSP male thread at one end and a 1/2-inch BSP female socket at the other. A red sealing washer is fitted at the male flange.
One adapter supplied. Tap and retaining nut sold separately.
Match both threaded connections

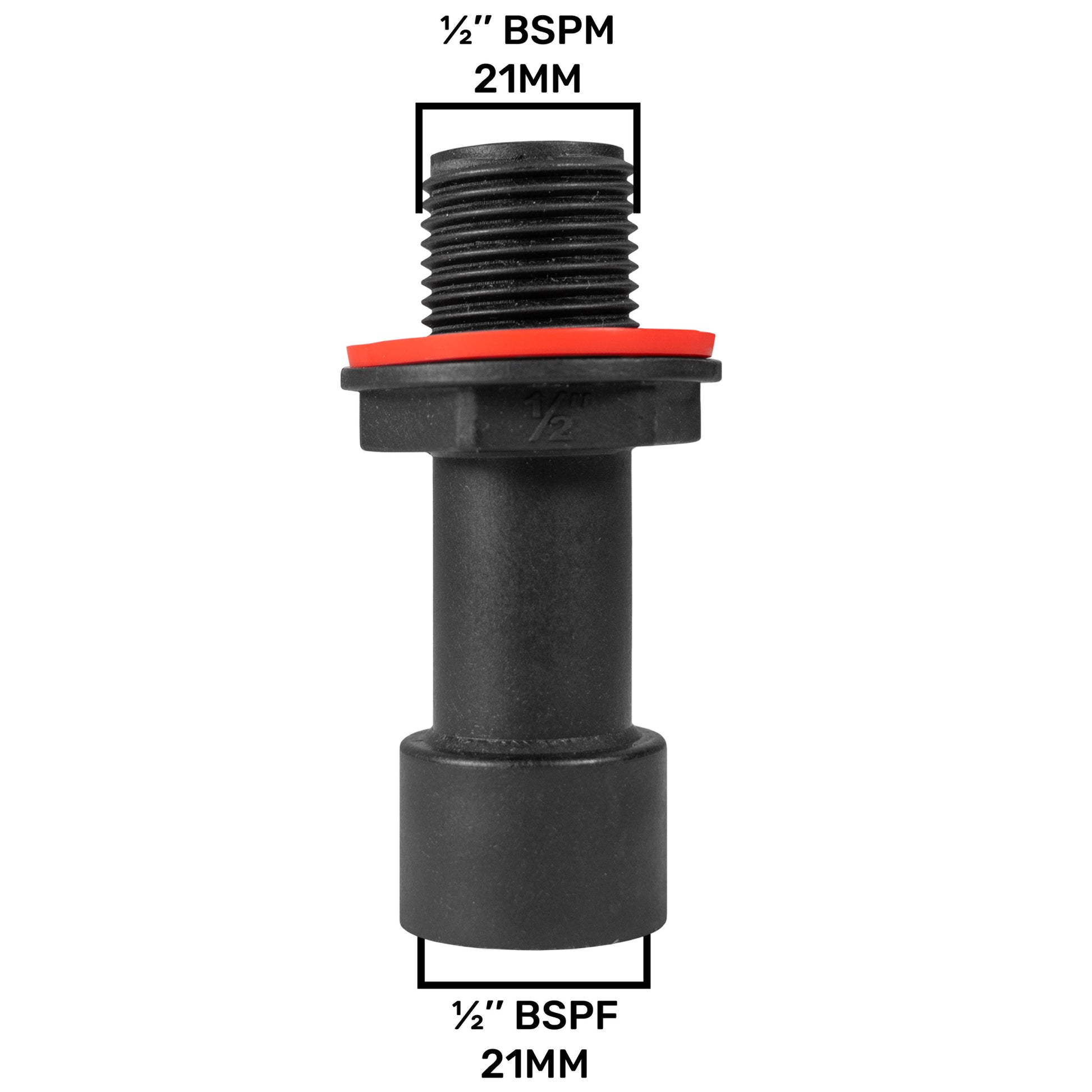

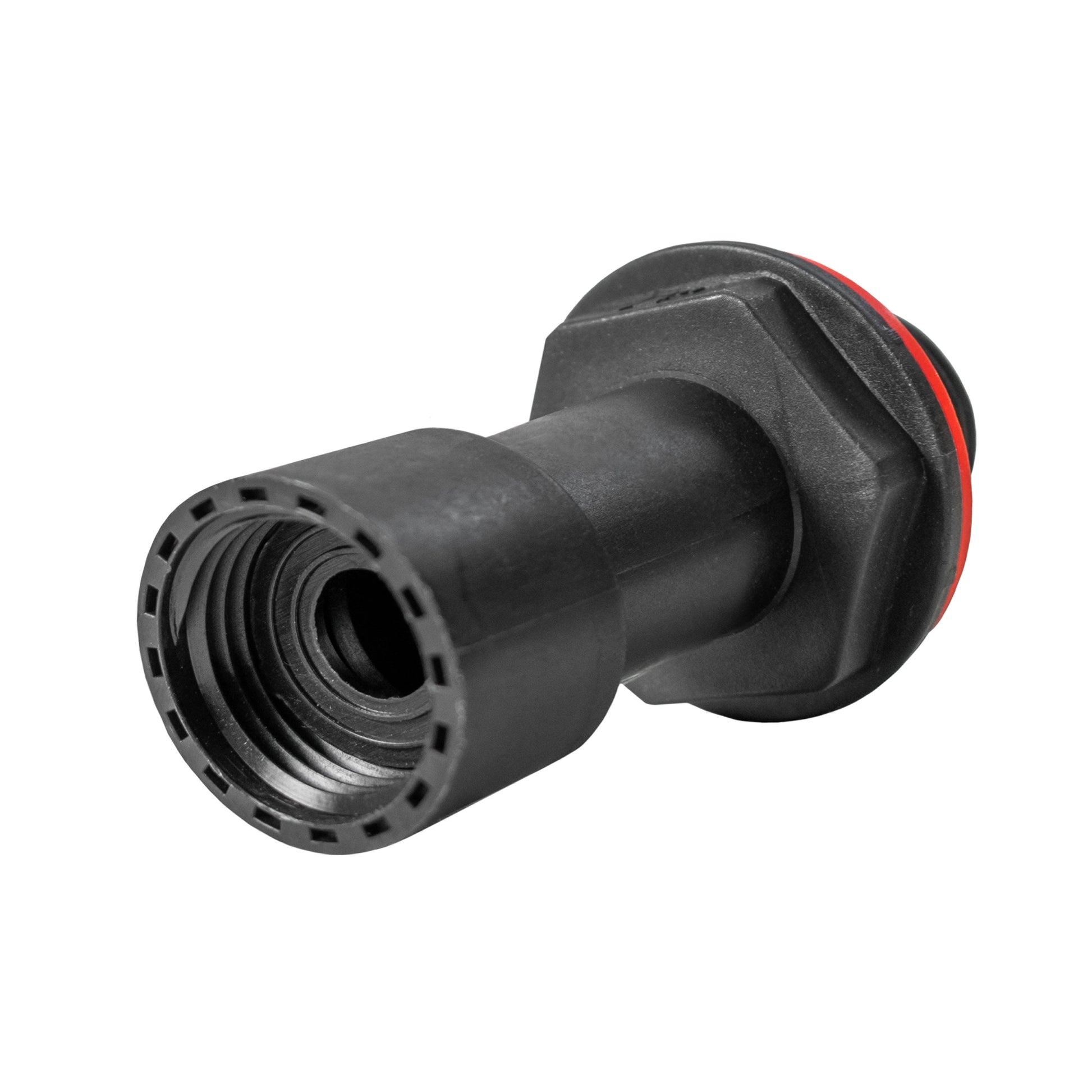

The close-up shows the female socket that accepts a matching half-inch BSP male fitting, such as a separately purchased tap. The opposite end has the external male thread and fitted red washer.
Both ends use the same nominal BSP size. This adapter changes the position of the connection; it does not reduce a larger thread to a smaller one and does not connect directly to bare hose.
Check the tank outlet, the tap inlet and the space needed to operate the tap handle together. The BSP designation identifies the thread, not a drill diameter or the amount of usable clearance.
Plan the mounting before fitting
Choose the arrangement that matches your existing tank outlet.
Existing threaded outlet
Check for a matching half-inch BSP female connection and a suitable sealing face. Engage the adapter carefully without forcing the thread or overtightening the plastic body.
Through-wall installation
A plain hole needs suitable separate retaining hardware and a compatible sealing arrangement. This adapter is supplied without a retaining nut; check the wall shape, thickness and access before planning a new outlet.
Fit the tap and check
Use a matching male fitting in the female socket. Support the adapter while fitting, confirm the handle has room to move, and check every completed joint for leakage before leaving the setup in use.
Questions about the extended adapter
Are both ends half-inch BSP?
Yes. One end has a half-inch BSP male thread and the other has a half-inch BSP female socket. It is an extended straight adapter, not a reducer. Check both mating threads before choosing it for your tank and tap.
Is the retaining nut included?
No. One black plastic adapter with a fitted red sealing washer is supplied. A separate retaining nut and any other mounting parts needed for your particular tank must be obtained separately. A tap, hose and tank are not included.
Can I push a hose onto this adapter?
No. Both connections are BSP threads rather than hose barbs or quick-connect outlets. Choose a suitable separately purchased threaded tap or connector for the female socket, then match the hose connection to that fitting.
Will it clear a recessed water-butt outlet?
The extended body moves the female connection forward from the male end. Check the recess, sealing face and space needed by your chosen tap together; an extended body alone does not establish that every tank and tap combination will fit.
Product information & technical details
| SKU | EXTENSION12BSPM-F001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Male connection | 1/2-inch BSP male |
|---|---|
| Female connection | 1/2-inch BSP female |
| Adapter format | Extended straight male-to-female |
| Supplied contents | 1 adapter with fitted red sealing washer |
| Retaining nut | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
