Description

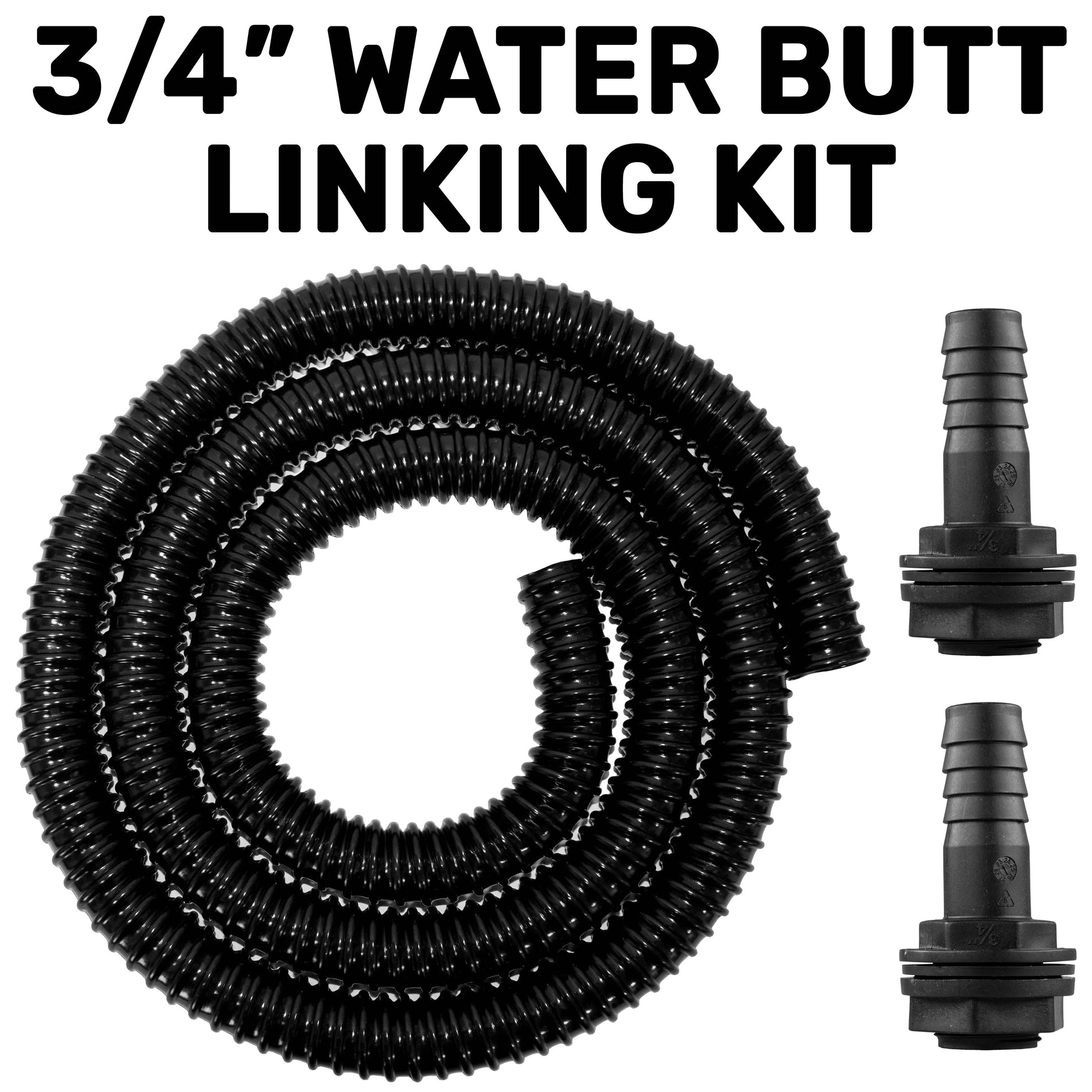

A 19mm tank link
Join two suitable water butts with corrugated PVC hose and two ¾-inch BSP straight tank fittings.
The kit includes a 27mm HSS hole saw alongside the fittings, back nuts and washers. Select 1m to 5m of hose for the route you have planned.
Water butts, hose clips, power drill and any additional sealing materials are separate.

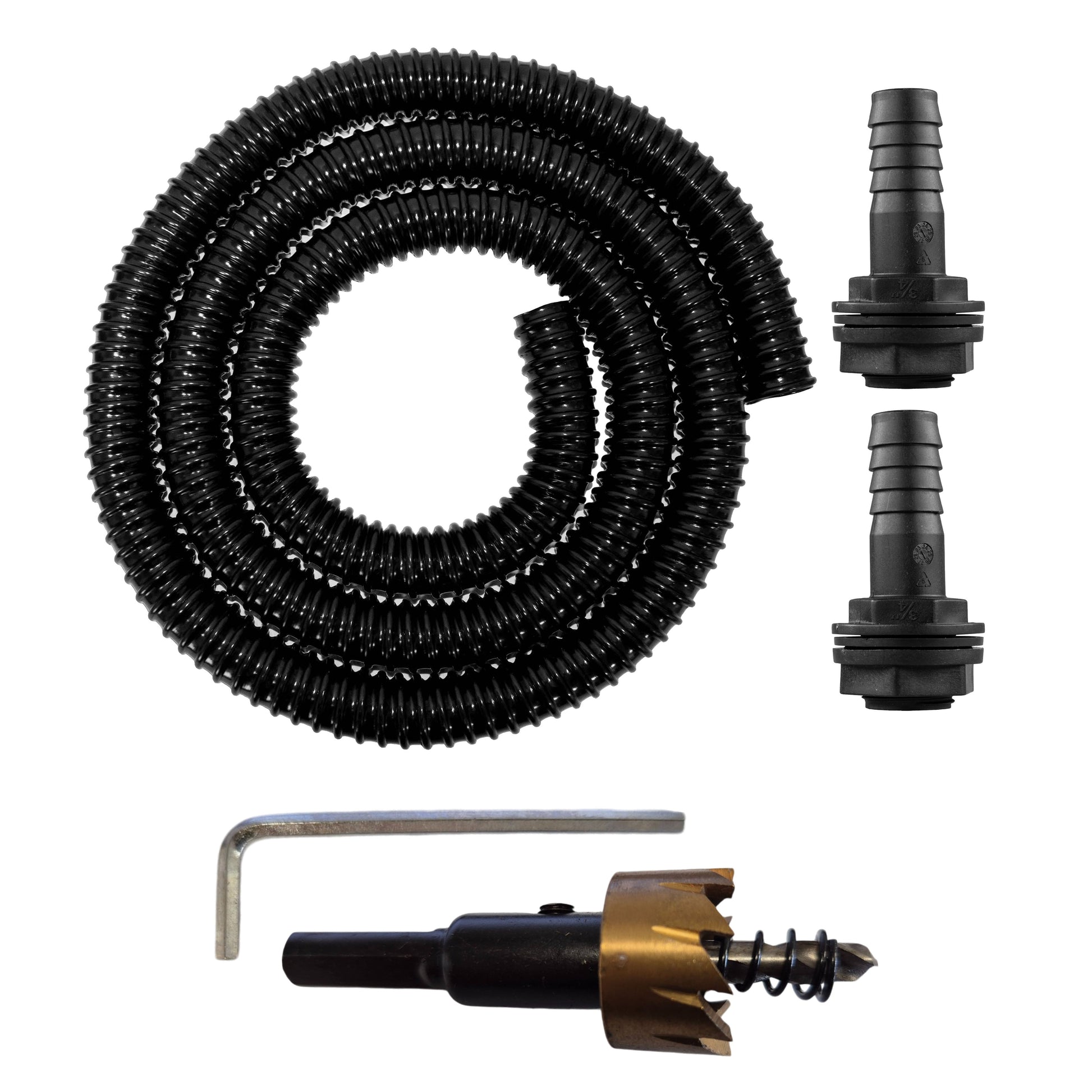

One kit, your chosen length
The hose length changes with your selection. The fitting and cutter quantities stay the same.

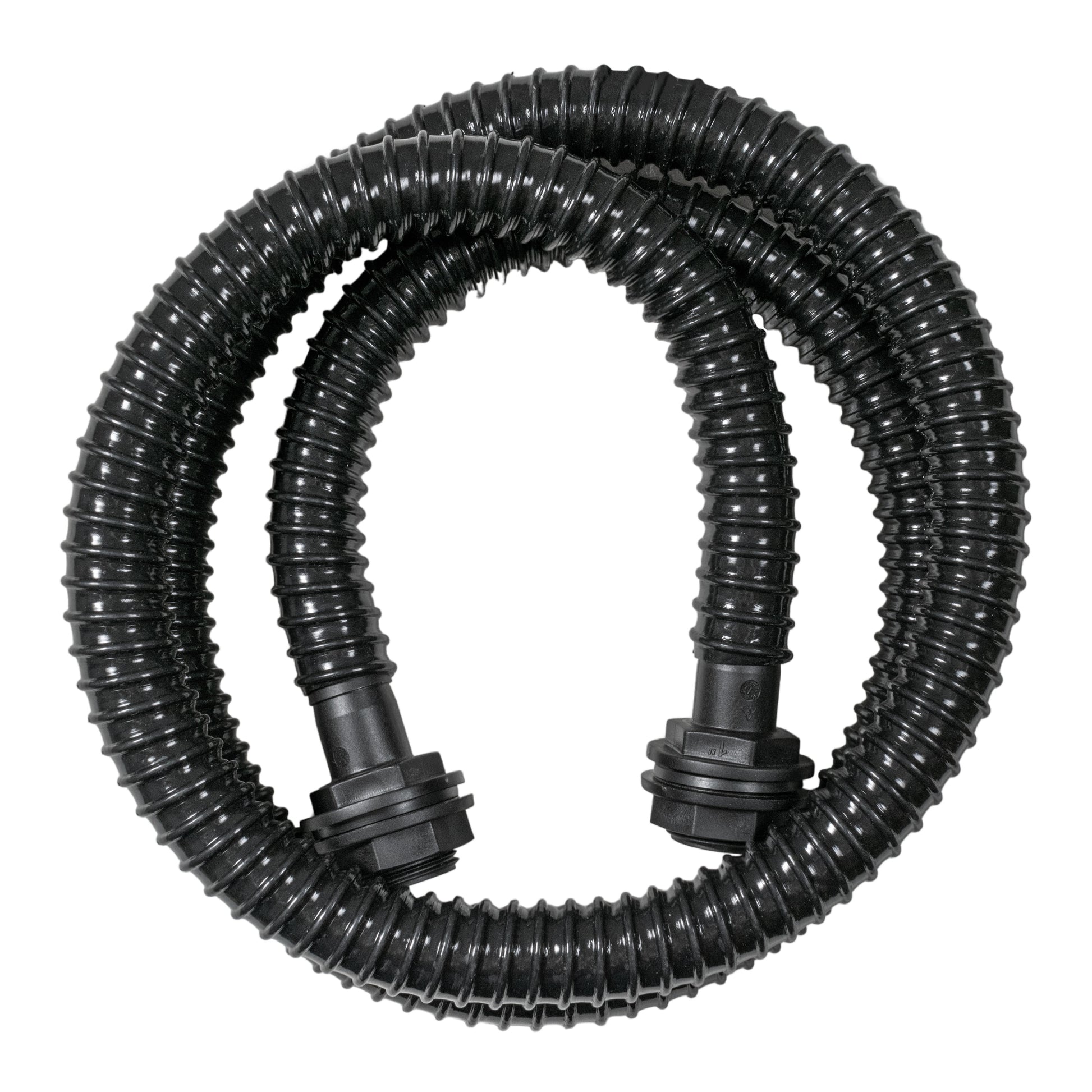

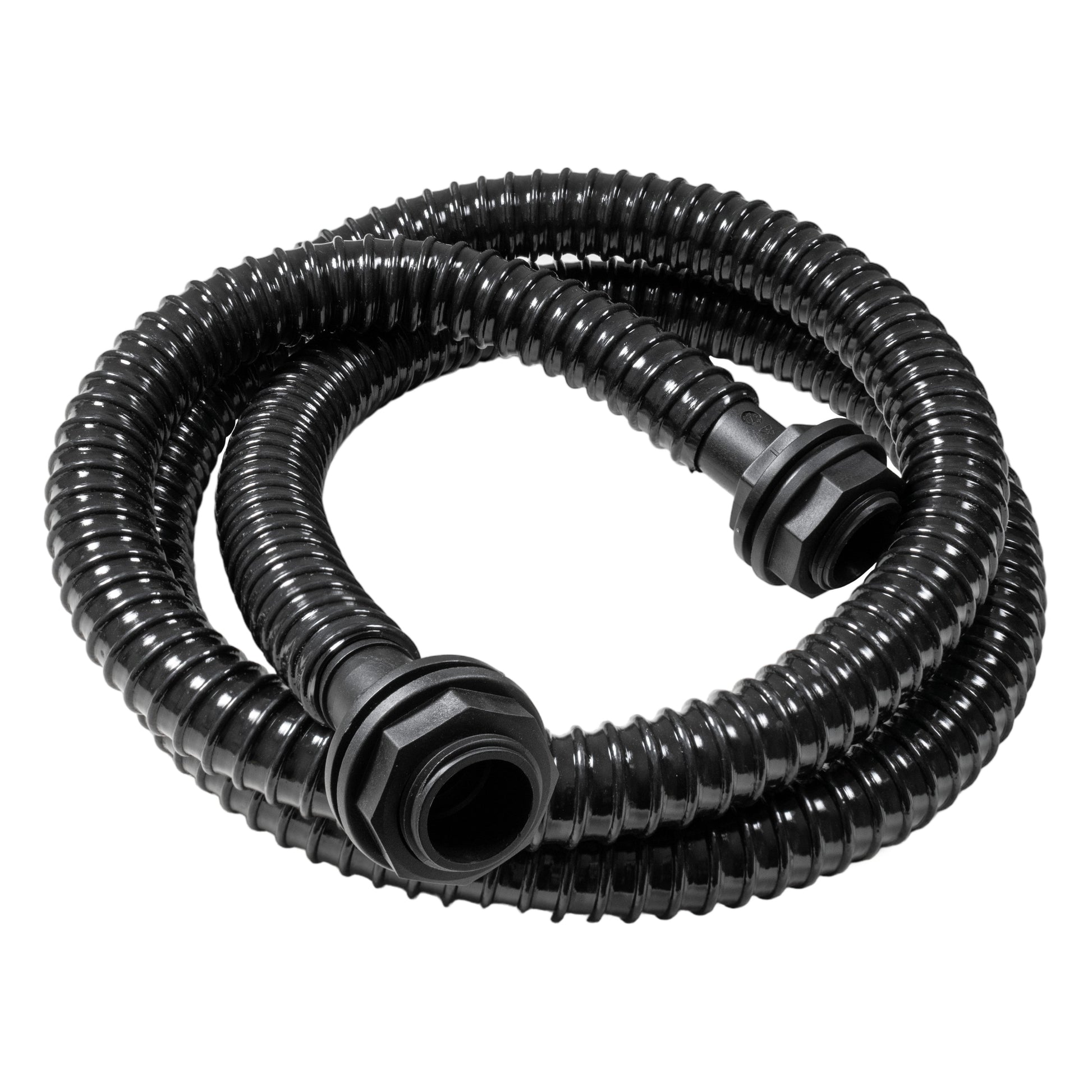

One length of pipe
Black corrugated PVC hose with a nominal 19mm internal diameter. Choose 1m, 2m, 3m, 4m or 5m, then trim it for your installation if needed. Its internal ridges are smoothed, rather than forming a completely flat inner wall.

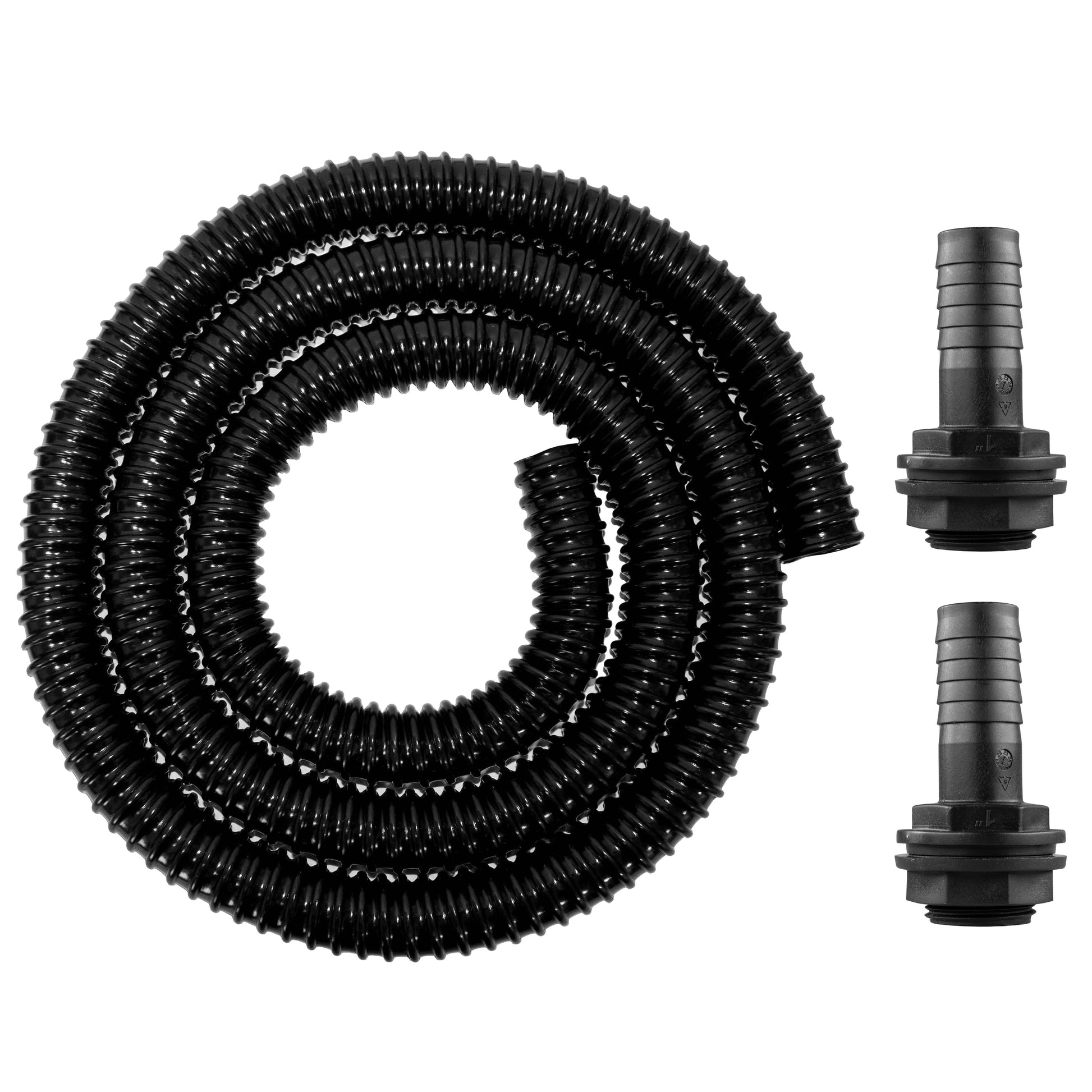

Two straight fittings
Each plastic fitting has a ¾-inch BSP male tank thread, a hose barb for the pipe, and its mounting nut and washer. The pair provides one connection at each tank; no taps or automatic controls are included.

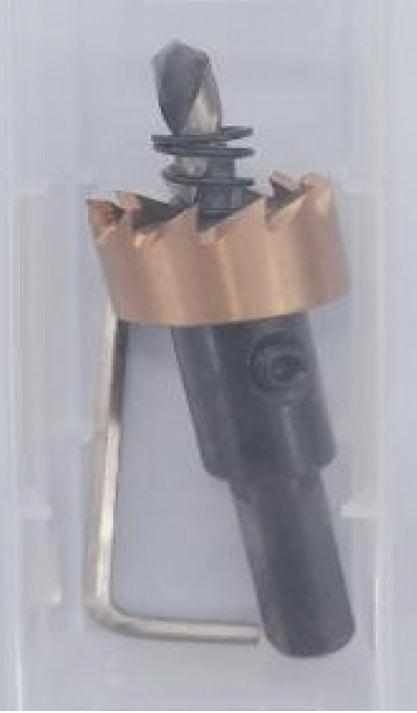

One mounting cutter
A 27mm HSS hole saw is included to make an opening for a suitable tank fitting. It does not cut a BSP thread. Check the fitting, tank wall and tool instructions before drilling, with room to access the nut inside.

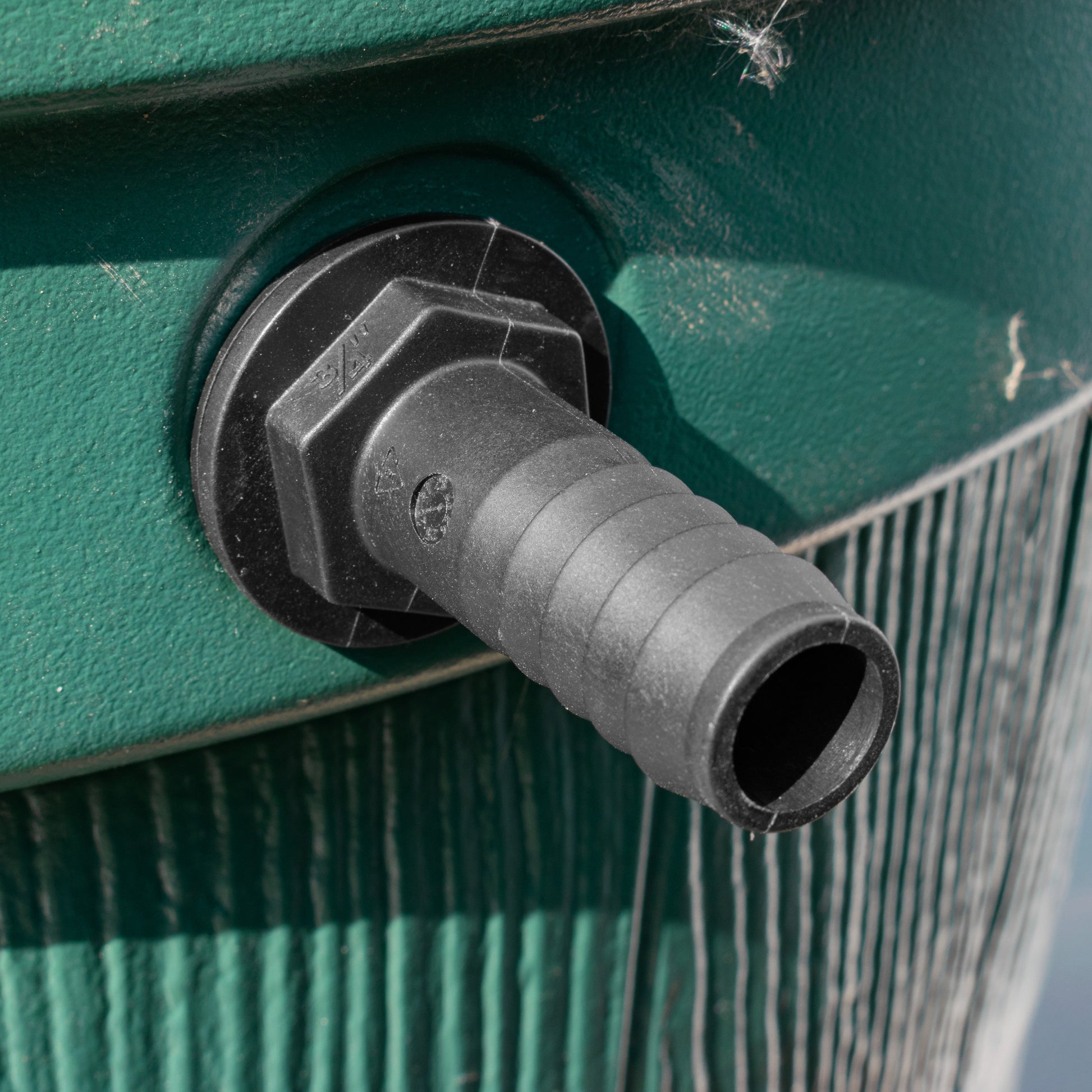

Know the two connections

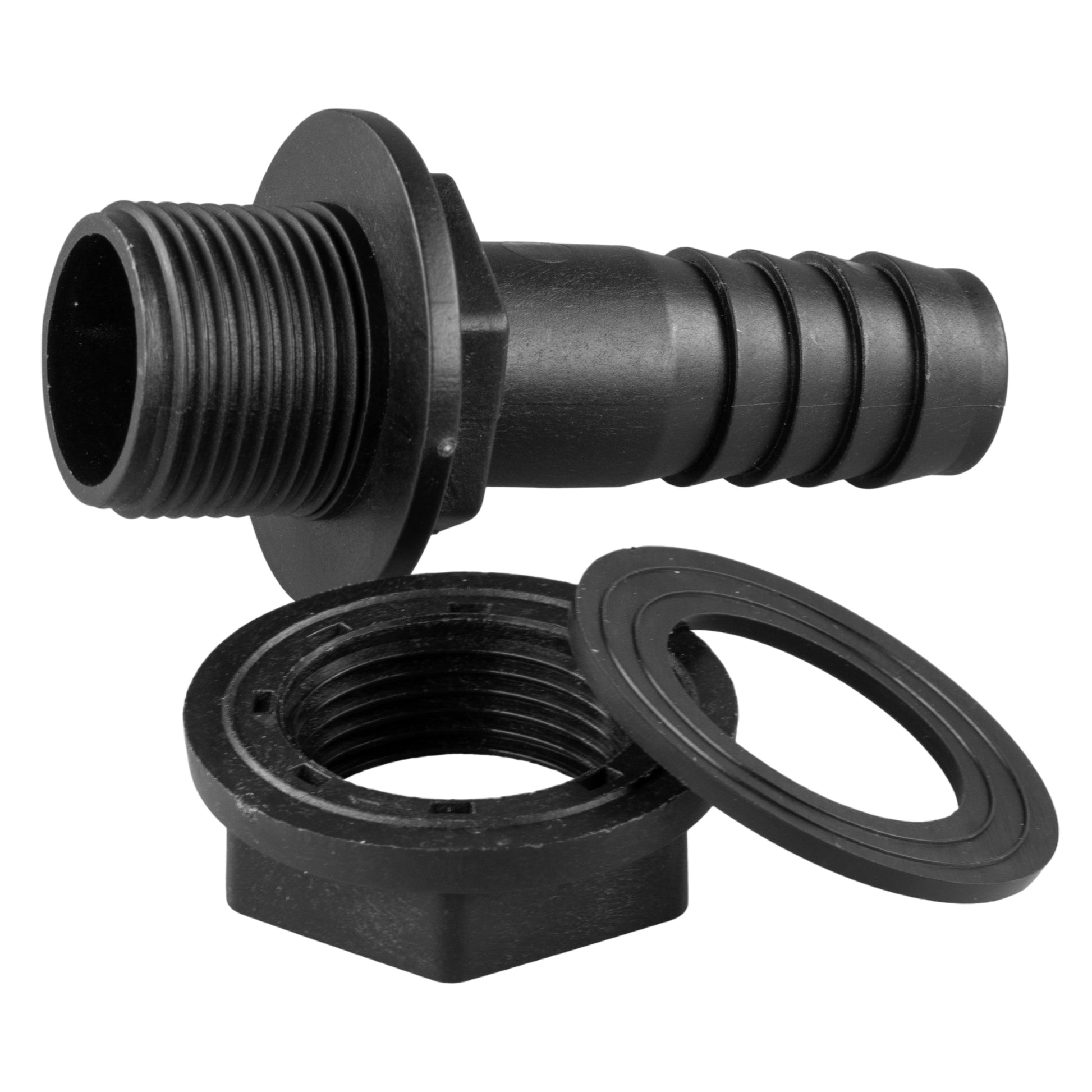

This photograph shows one of the tank fittings with its nut and washer removed. The threaded stem mounts at the tank; the ribbed hosetail grips inside the hose.
Choose a mounting area where the washer can sit evenly and the nut can be reached. Keep the seating surface clean, check wall thickness against the actual fitting and avoid excessive force on the plastic.
The tank washer does not hold the hose onto the barb. Use suitable clips separately, sized from the outside of the hose fitted over the barb. 16-27mm worm-drive hose clips are one option where that measured diameter is within their range.

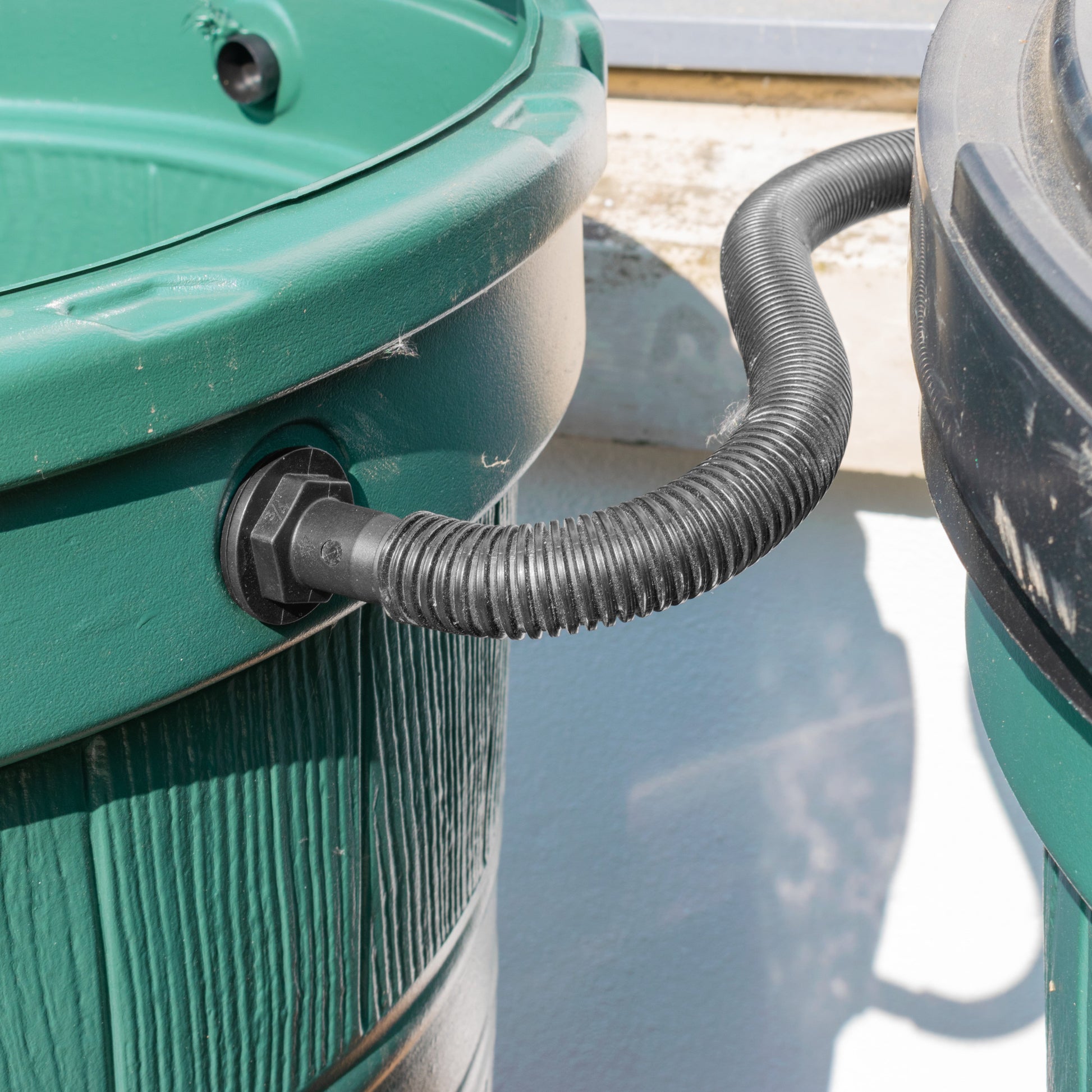

Support the hose so it does not hang from the connectors. Check both tank-wall seals and both hose joints with water after fitting.
Measure before you drill
Position the tanks and plan the whole connection first.
Follow the hose route
Measure from one intended fitting to the other along the route the pipe will take. Include gentle bends and the pipe that slides onto each barb. A 1m hose does not necessarily span a 1m gap between tank walls.

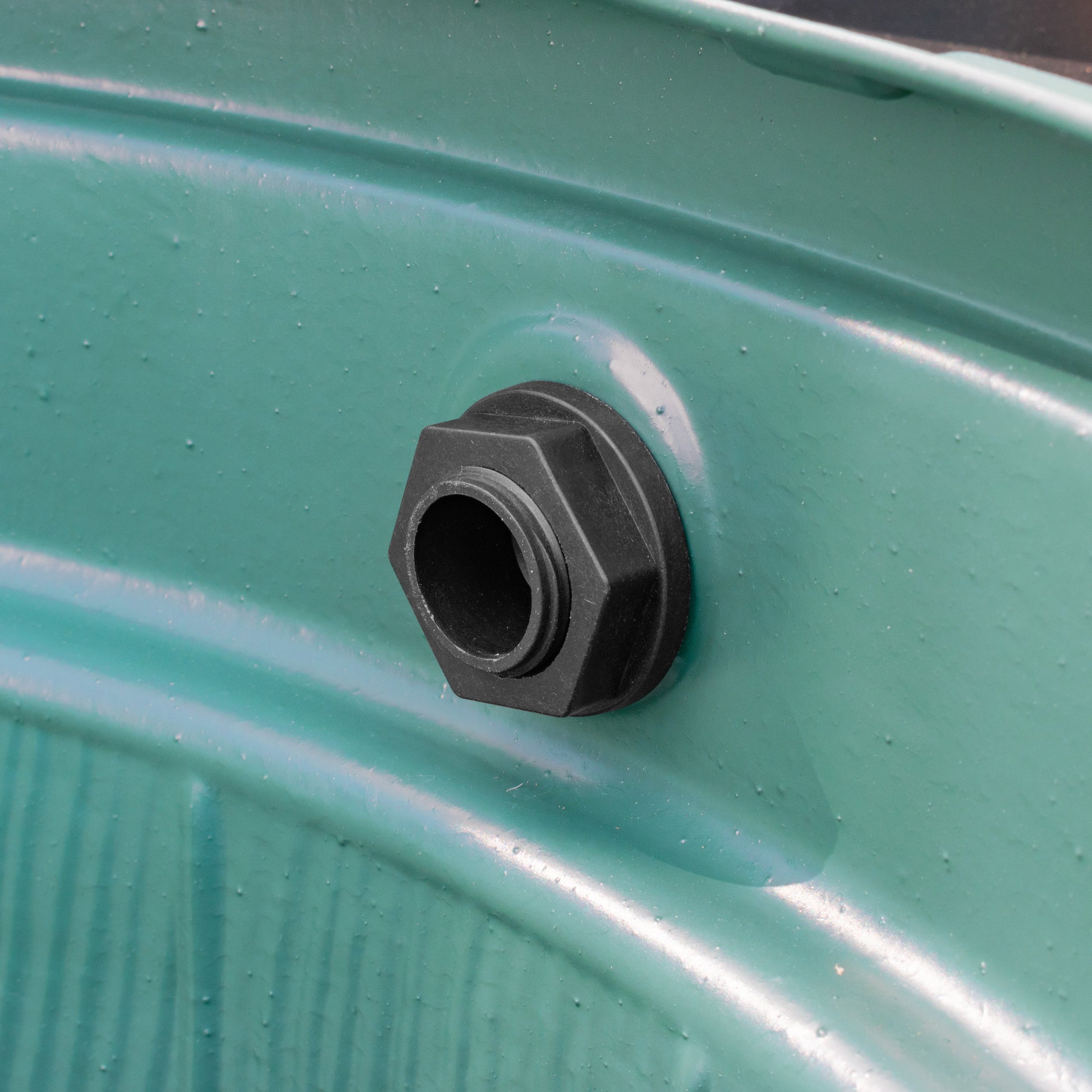

Check the mounting
Look at the tank shape, mounting surfaces and internal access before preparing holes. If using an existing threaded connection, its BSP size and gender must match. This is not a universal fitting for every water butt.
Plan for full tanks
Keep suitable overflow provision available when both tanks fill. This kit connects them with a hose; it does not provide a complete overflow system, pump or automatic level controller.
Questions about the ¾-inch kit
Which size refers to the hose and which to the tank?
19mm describes the nominal internal diameter of the corrugated hose. The fittings have ¾-inch BSP male tank threads and matching hose barbs. The 27mm measurement is the included hole saw diameter. These measurements describe different parts of the kit.
Do longer options include more fittings?
No. Every option includes two straight fittings with their back nuts and washers, plus one 27mm HSS hole saw. Only the hose length changes between 1m and 5m. Select the pipe length for your route rather than expecting extra connectors in a longer kit.
Are clips included for securing the hose?
No. Choose suitable hose clips separately. Measure the hose outside diameter after it is fitted onto a barb and select a clip range that covers that measurement. The 19mm hose bore alone does not tell you the required clip size.
Does smooth bore mean a flat hose interior?
No. This corrugated hose has smoothed internal ridges. The smooth-bore description used for this pipe style does not mean a completely flat inner wall. Keep turns gentle and avoid crushing the hose when routing it or tightening a clip.
Product information & technical details
| SKU | WB34LINK-001M+DB |
|---|---|
| Product type | |
| Length | 1m, 2m, 3m, 4m, 5m |
| Internal diameter | 19mm (3/4") |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 19mm (3/4") |
| Kit parts | Corrugated hose in selected length, 2 straight tank connectors, Back nuts and washers, 27mm HSS hole saw |
| Colour | Black |
|---|---|
| Material | Plastic, Steel |
| Included cutter | 27mm HSS hole saw |
| Straight tank fittings | 2 × ¾-inch BSP male to 19mm hose barb |
| Tank mounting | Back nut and washer for each fitting |
| Hose material | Flexible PVC |
| Hose bore profile | Smoothed internal ridges; not completely flat |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
