Description

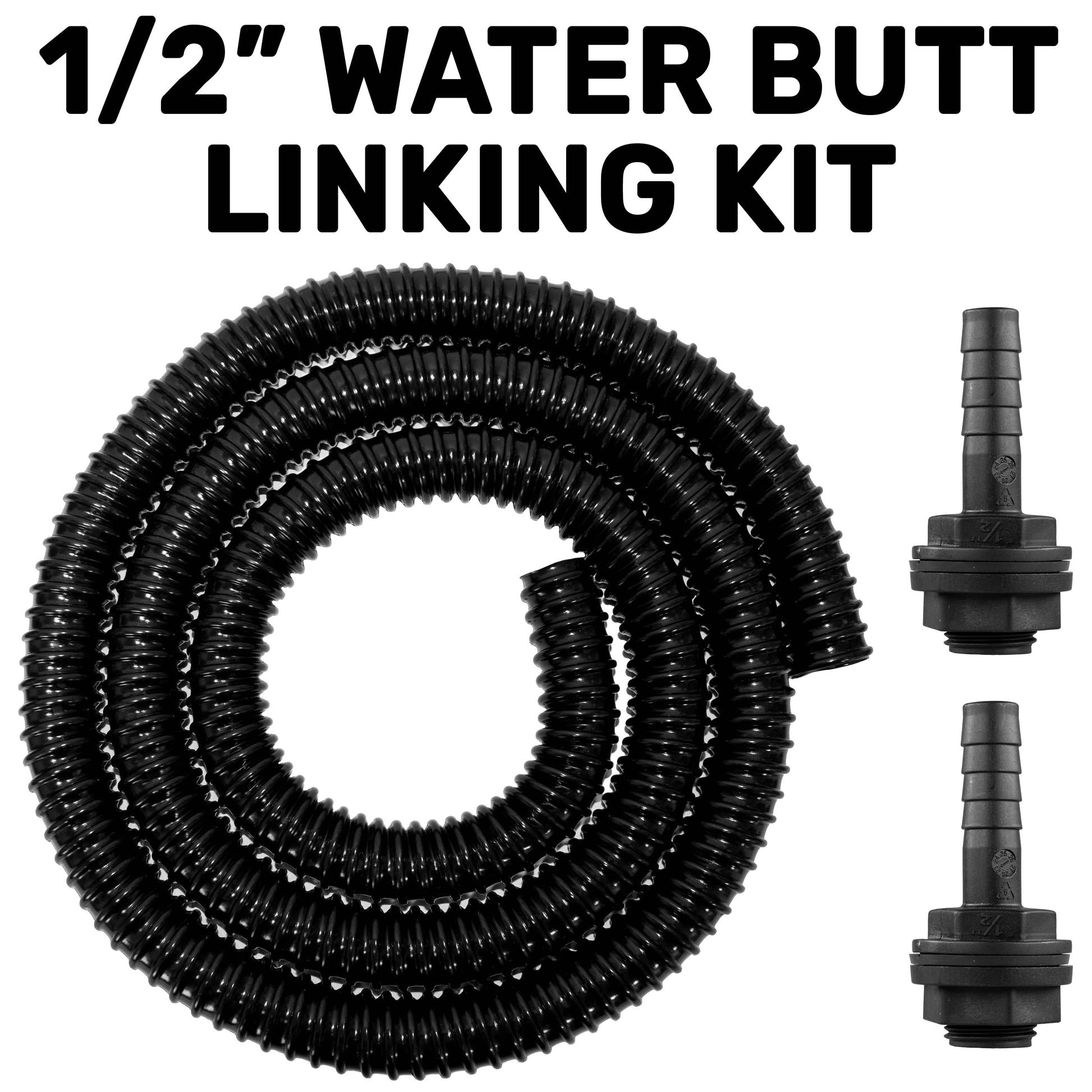

A half-inch tank link

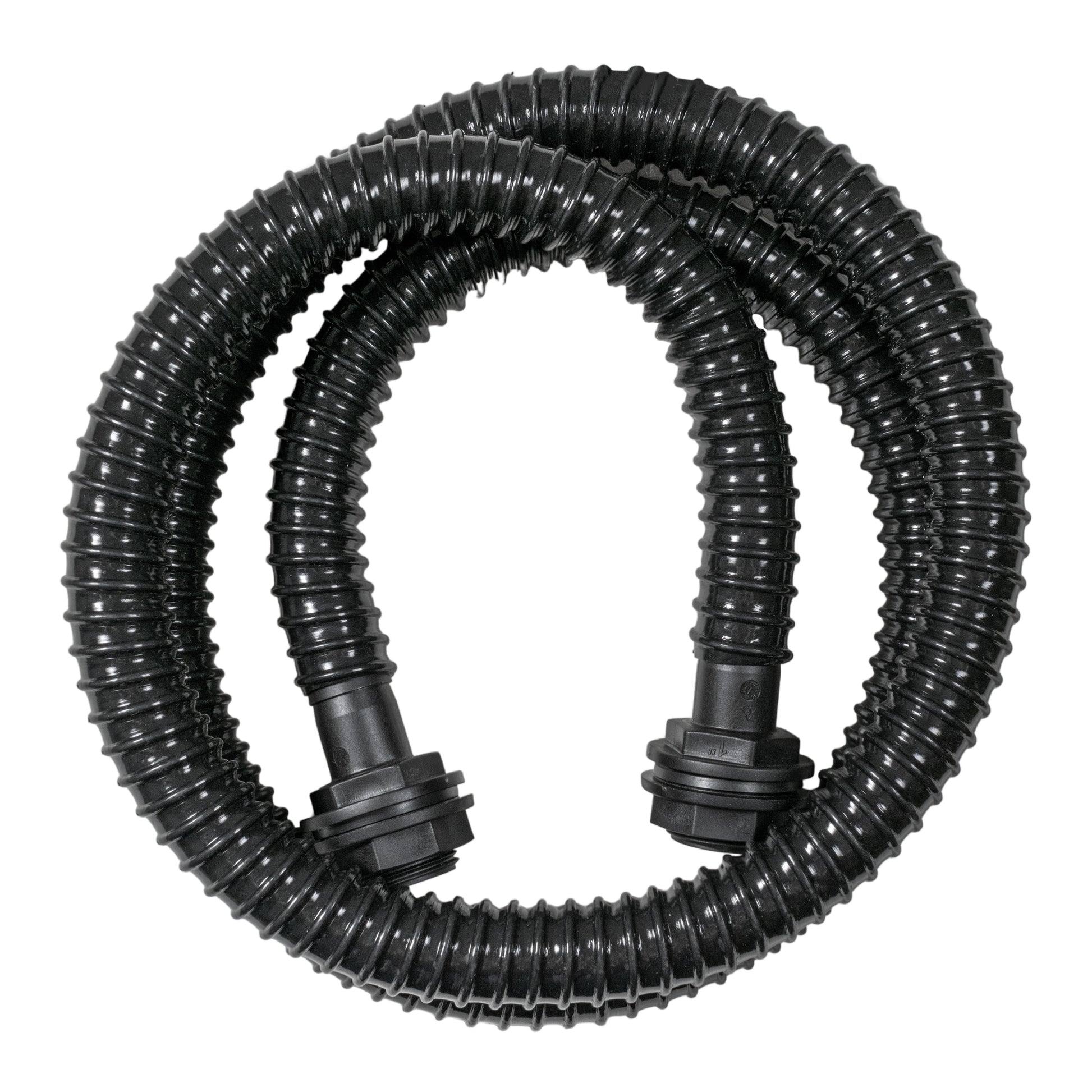

Connect two suitable water butts with 13mm corrugated hose and a pair of ½-inch BSP tank fittings.
This version also includes a 21mm HSS hole saw. Choose one hose length from 1m to 5m; the fittings, mounting parts and cutter are the same with every option.
Hose clips, water butts, a power drill and any extra sealing materials are supplied separately.
Two ends, two seals

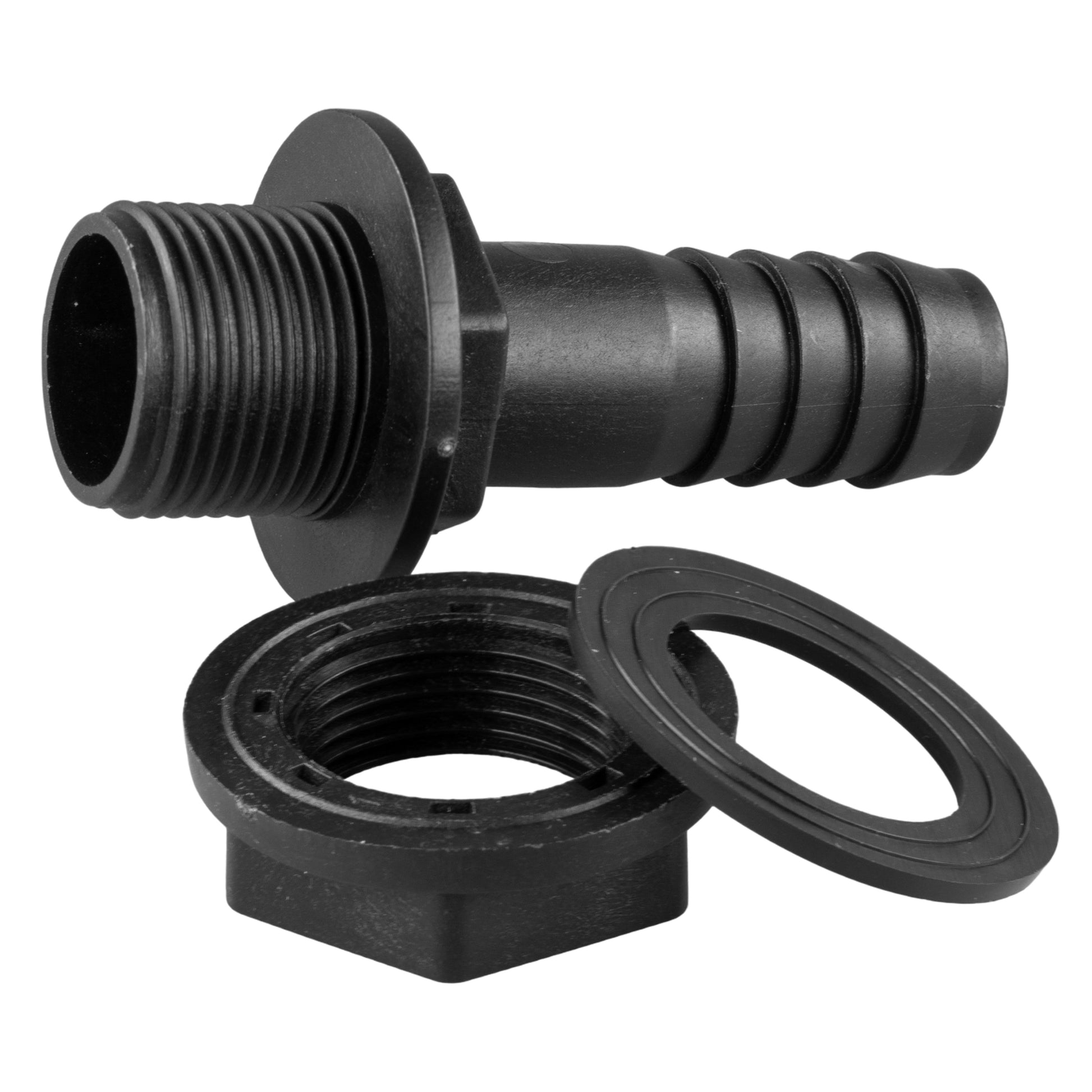

Each straight fitting has a ½-inch BSP male thread for mounting at the tank and a hose barb for the 13mm pipe. The photograph shows one fitting with its back nut and washer removed.
Check the tank wall, seating area and access before marking an opening. The washer belongs at the tank mounting; it does not secure the hose onto the barb.
Push the hose fully onto each barb and use suitable hose clips separately. Size a clip from the outside of the fitted hose, not from its internal bore. 12-20mm worm-drive hose clips are an option where the measured outside diameter is within that range.

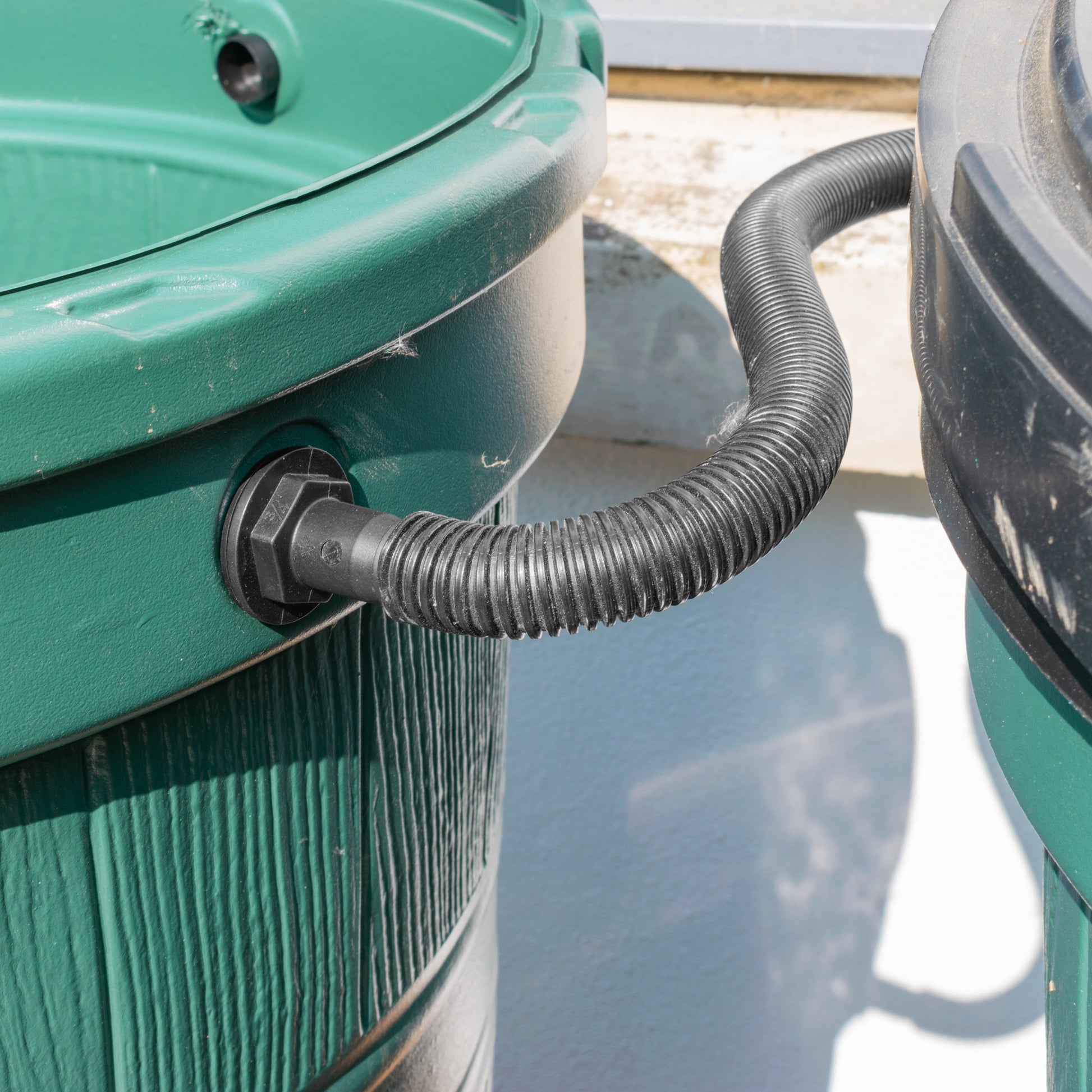

Keep the hose supported so it does not pull on either connector. Check the tank-wall mountings and the hose joints with water after fitting.
Choose the length, keep the kit
Every option has the same parts. Only the hose length changes.
Hose for your route
Select 1m, 2m, 3m, 4m or 5m of black corrugated PVC hose. Measure along the route between the proposed fittings, allowing for bends and hose engagement at both ends. Leave room for a gentle curve rather than stretching the hose tight.
Two tank connections

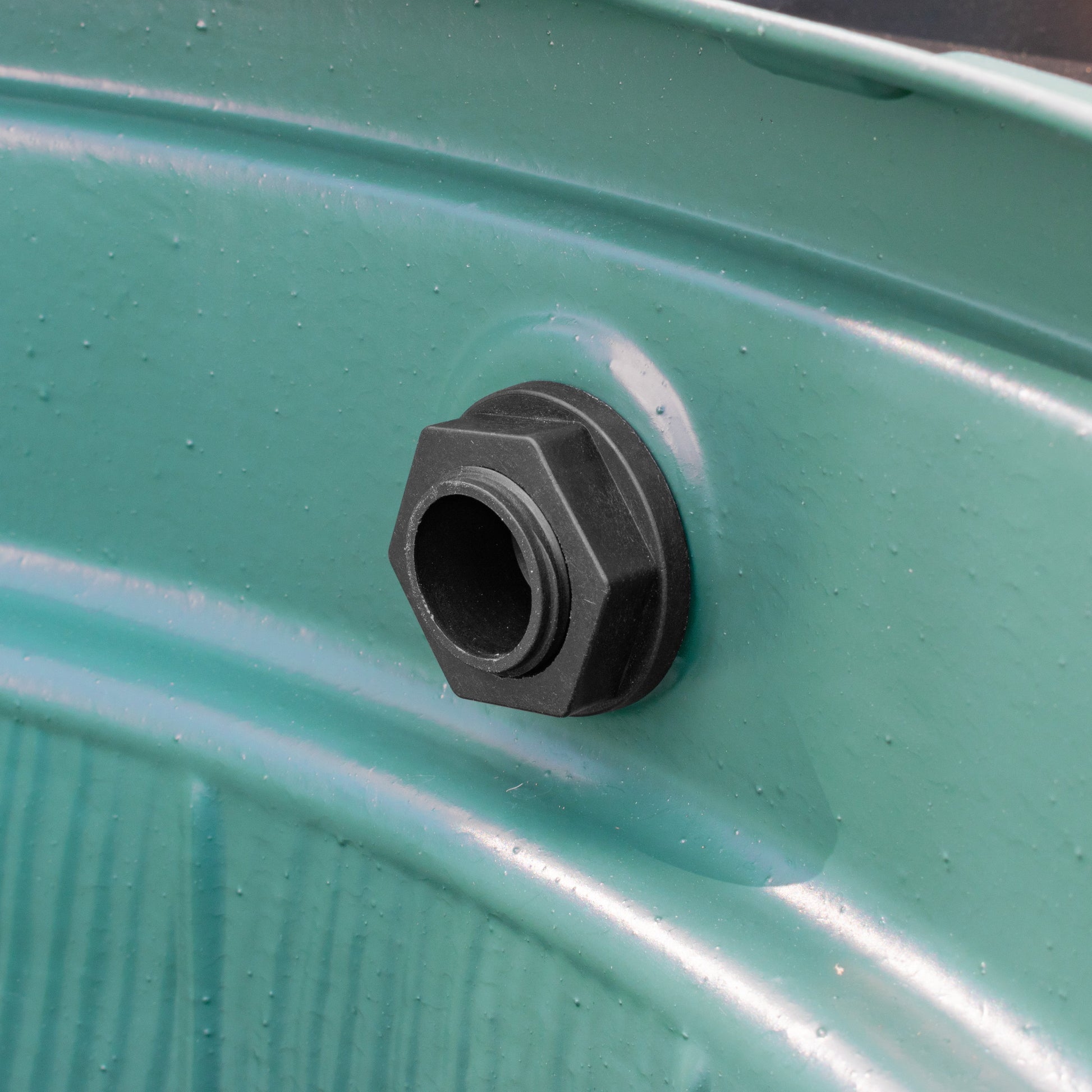

Two straight plastic hosetails are included, with their back nuts and washers. Confirm that both tanks have suitable mounting areas and that the nuts can be reached from inside. Tanks and shut-off valves are not included.
Cutter included

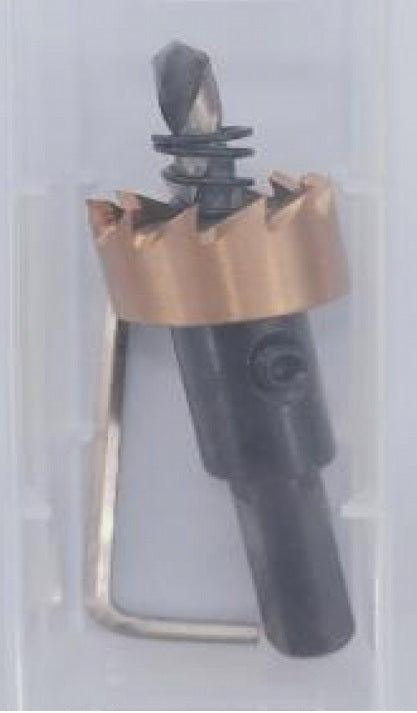

One 21mm HSS hole saw is supplied. Check it against the actual fitting and tank material before cutting, and follow the instructions for your power tool. It makes an opening for a retained fitting; it does not form a threaded outlet.
Leave room for rainwater
A link is one part of the wider tank arrangement.
Plan where excess water can go when both tanks are full. This kit supplies a hose connection between them, rather than an automatic level controller or a complete overflow system. Keep the tank bases stable, the hose route accessible and any existing overflow provision clear.
The pipe is described as smooth bore, but it still has smoothed internal ridges. Avoid tight turns or clip pressure that flatten the hose, and check the route again once everything is in position.
Questions before fitting
Is 13mm the same option as ½ inch?
Yes. This is the nominal half-inch hose option, listed as 13mm in the hose specification. The fittings also have half-inch BSP male tank threads. Hose bore and BSP thread designations describe different parts of the connection; neither is an outside hose measurement.
What is supplied with each length?

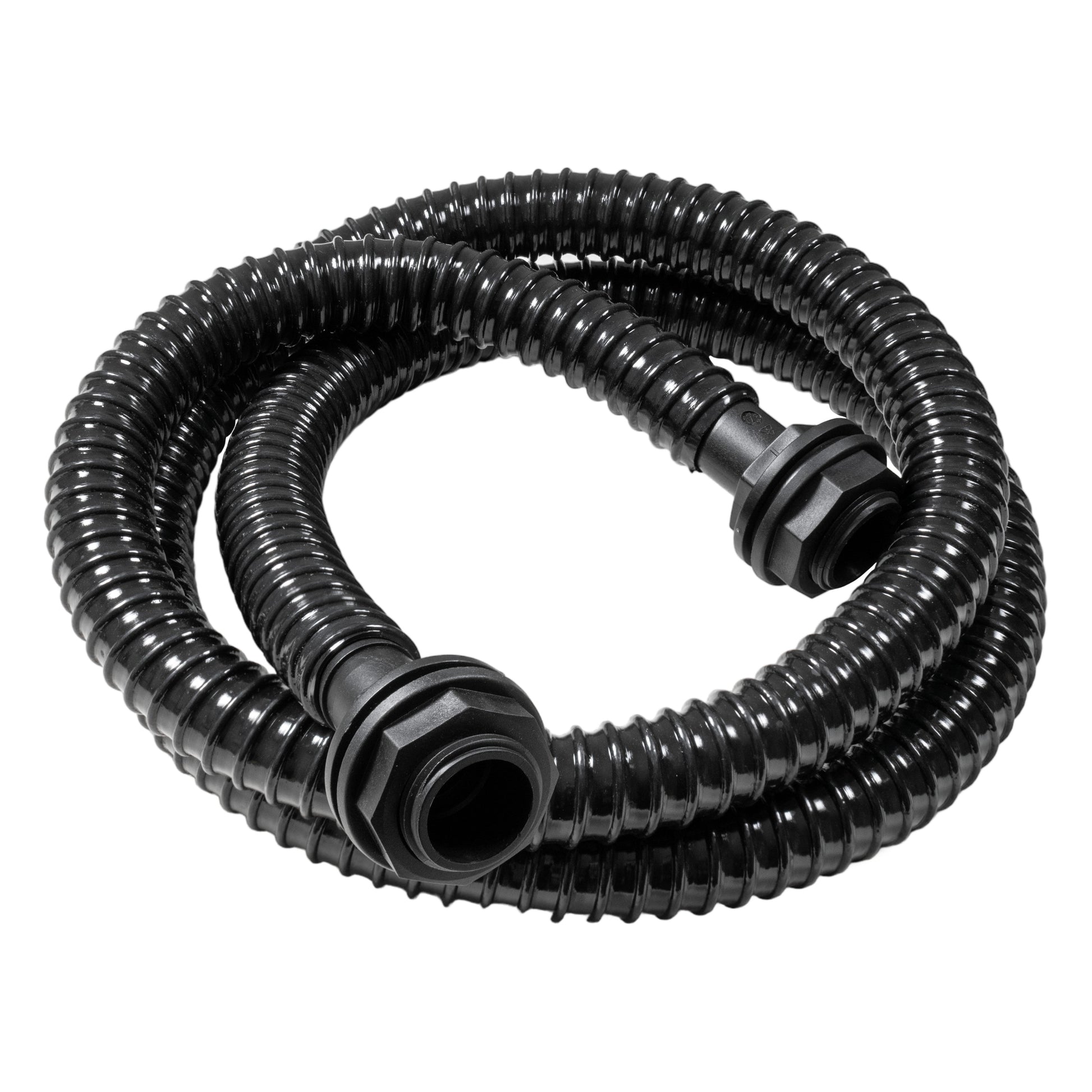

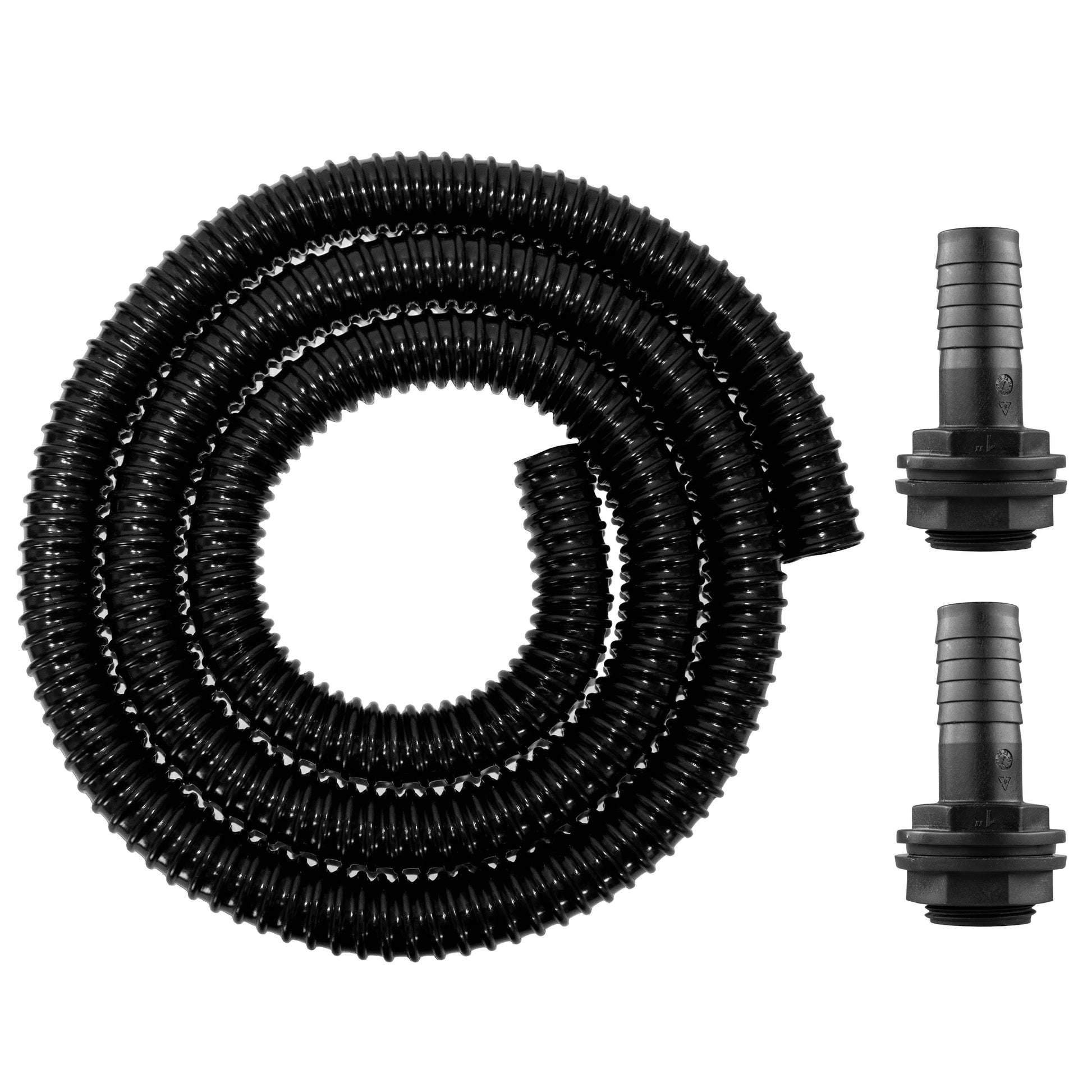

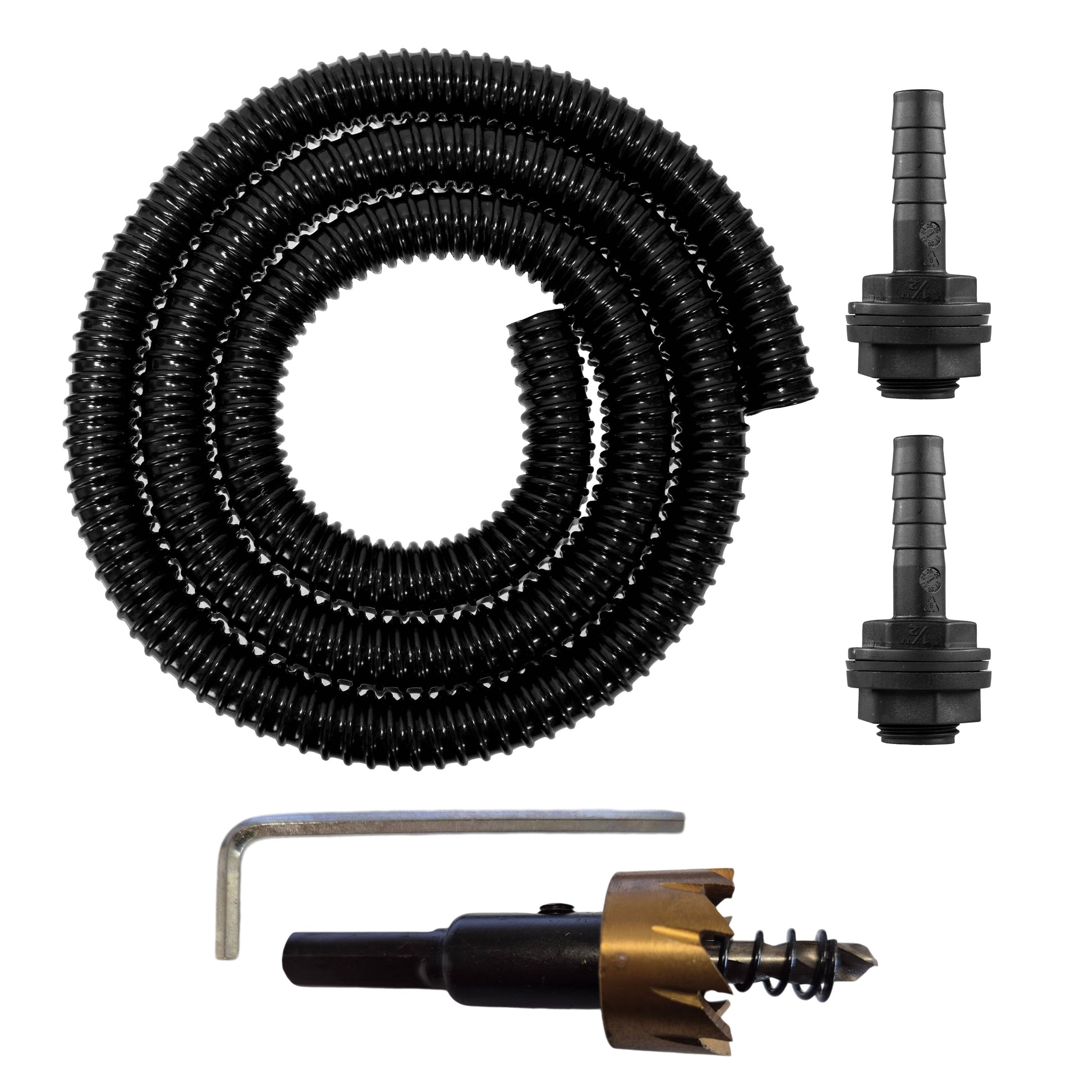

One selected length of corrugated hose, two straight tank fittings with their back nuts and washers, and one 21mm HSS hole saw. The 1m to 5m options change only the hose length. Water butts, hose clips and a power drill are separate.
Can I choose a length equal to the gap between tanks?
Measure the hose route between the fitting positions instead of only the empty gap between the tanks. Allow for gentle bends and the hose pushed onto each barb. The supplied length needs to cover that whole route without pulling on either fitting.
Will the cutter make a threaded connection?
No. The 21mm hole saw cuts an opening for the fitting, which is held with its back nut and washer. Check the actual fitting, wall thickness, seating surface and internal access before drilling. It is not a universal-fit promise for every tank.
Product information & technical details
| SKU | WB12LINK-001M+DB |
|---|---|
| Product type | |
| Length | 1m, 2m, 3m, 4m, 5m |
| Internal diameter | 13mm (1/2") |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Barb size | 13mm (1/2") |
| Kit parts | Corrugated hose in selected length, 2 straight tank connectors, Back nuts and washers, 21mm HSS hole saw |
| Colour | Black |
|---|---|
| Material | Plastic, Steel |
| Included cutter | 21mm HSS hole saw |
| Straight tank fittings | 2 × ½-inch BSP male to 13mm hose barb |
| Tank mounting | Back nut and washer for each fitting |
| Hose material | Flexible PVC |
| Hose bore profile | Smoothed internal ridges; not completely flat |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
