Description

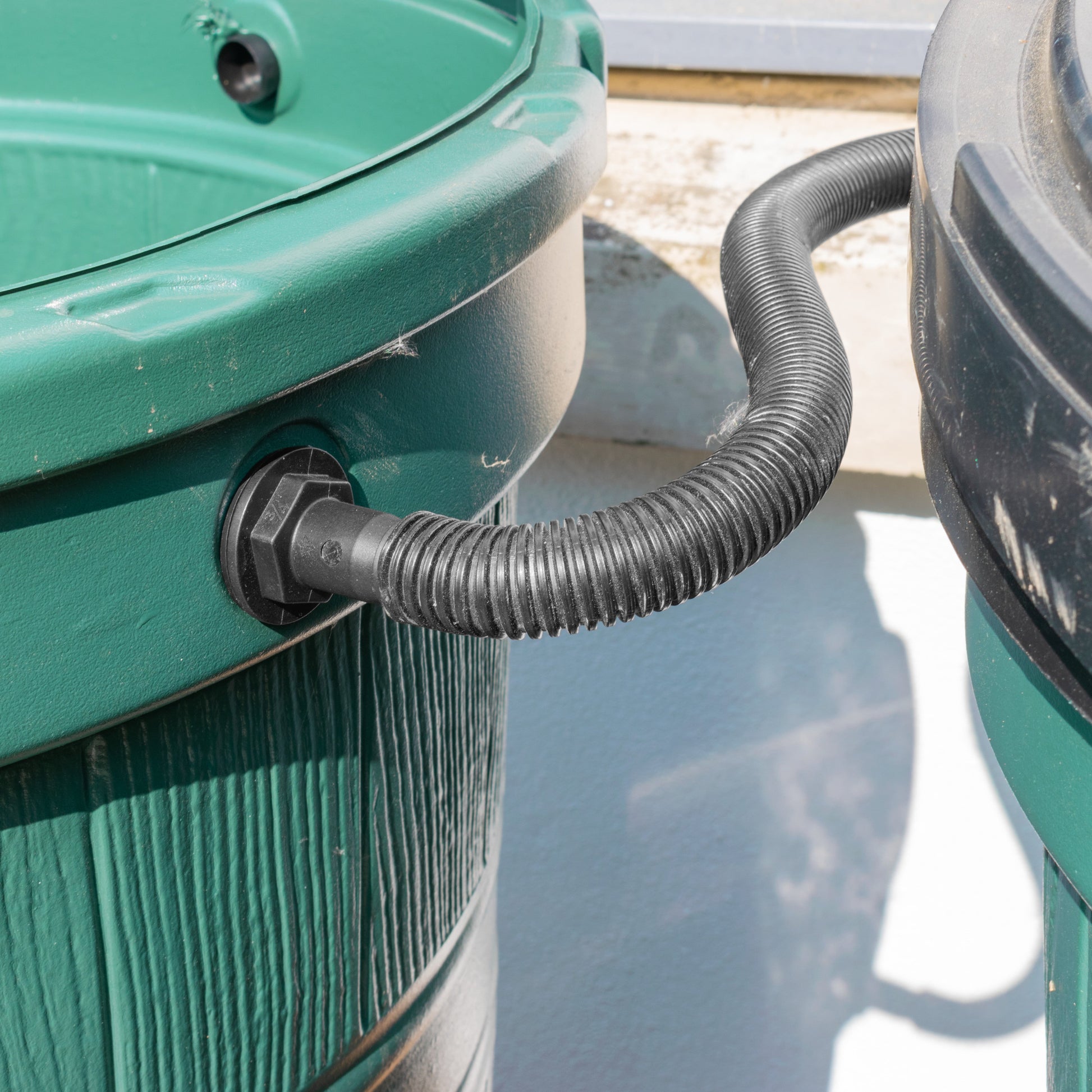

Link your water butts
Make a hose connection between two suitable tanks with 25mm corrugated hose, two straight tank fittings and a 34mm HSS hole saw.
Choose 1m, 2m, 3m, 4m or 5m of hose to suit your planned route. Every option includes the same pair of fittings and mounting parts, plus the cutter.
Water butts, power drill, hose clips and any additional sealing materials are not included.
Plan the connection
Decide where the tanks and fittings will sit before choosing your hose length.
Measure the route
Measure between the proposed fitting positions along the route the hose will follow. Allow for gentle curves, clearances and the length pushed onto both barbs. The selected length is hose supplied, not the maximum gap between tanks.
Check both tank walls
Choose suitable seating areas and make sure you can reach the back nuts inside. Check the supplied fittings against the tank walls and planned openings. Do not assume that every pre-threaded outlet or container wall will fit.
Leave space for overflow
Plan where excess rainwater will go when both tanks are full. This kit provides a connection between tanks; it does not include an overflow route, automatic level control, pump or shut-off valve.

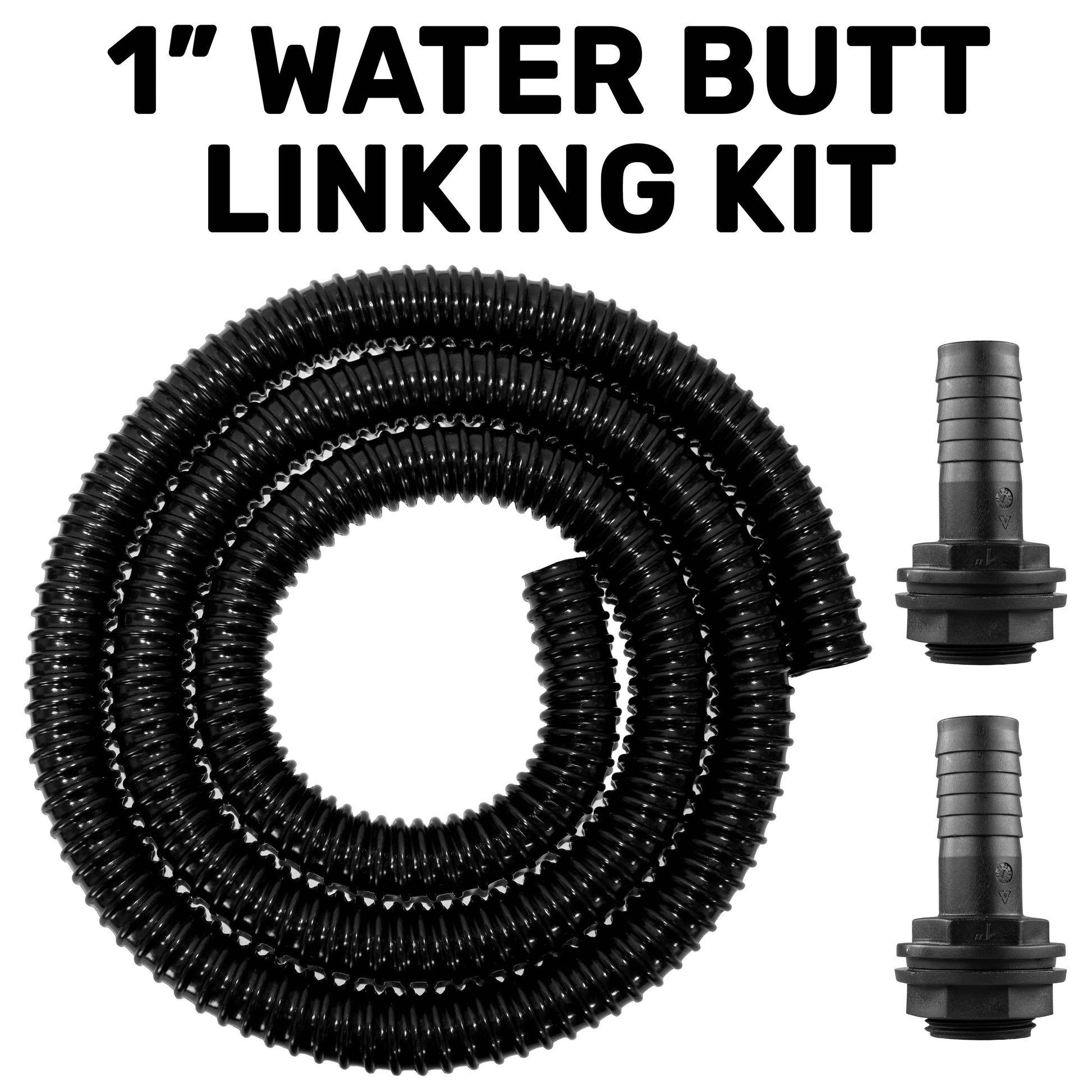

What comes in the kit

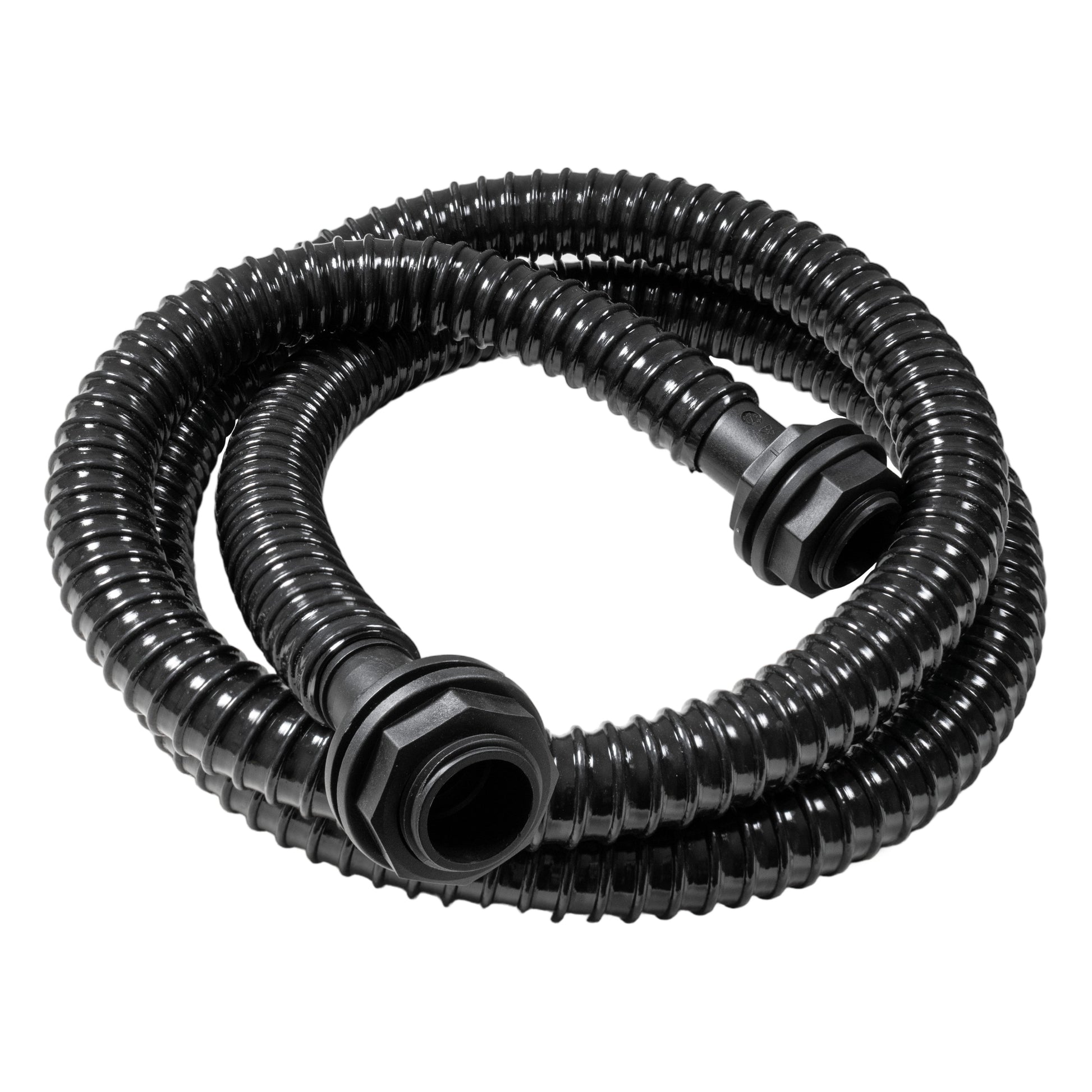

- One length of black 25mm (1-inch) internal-diameter corrugated PVC hose, in the length you select.

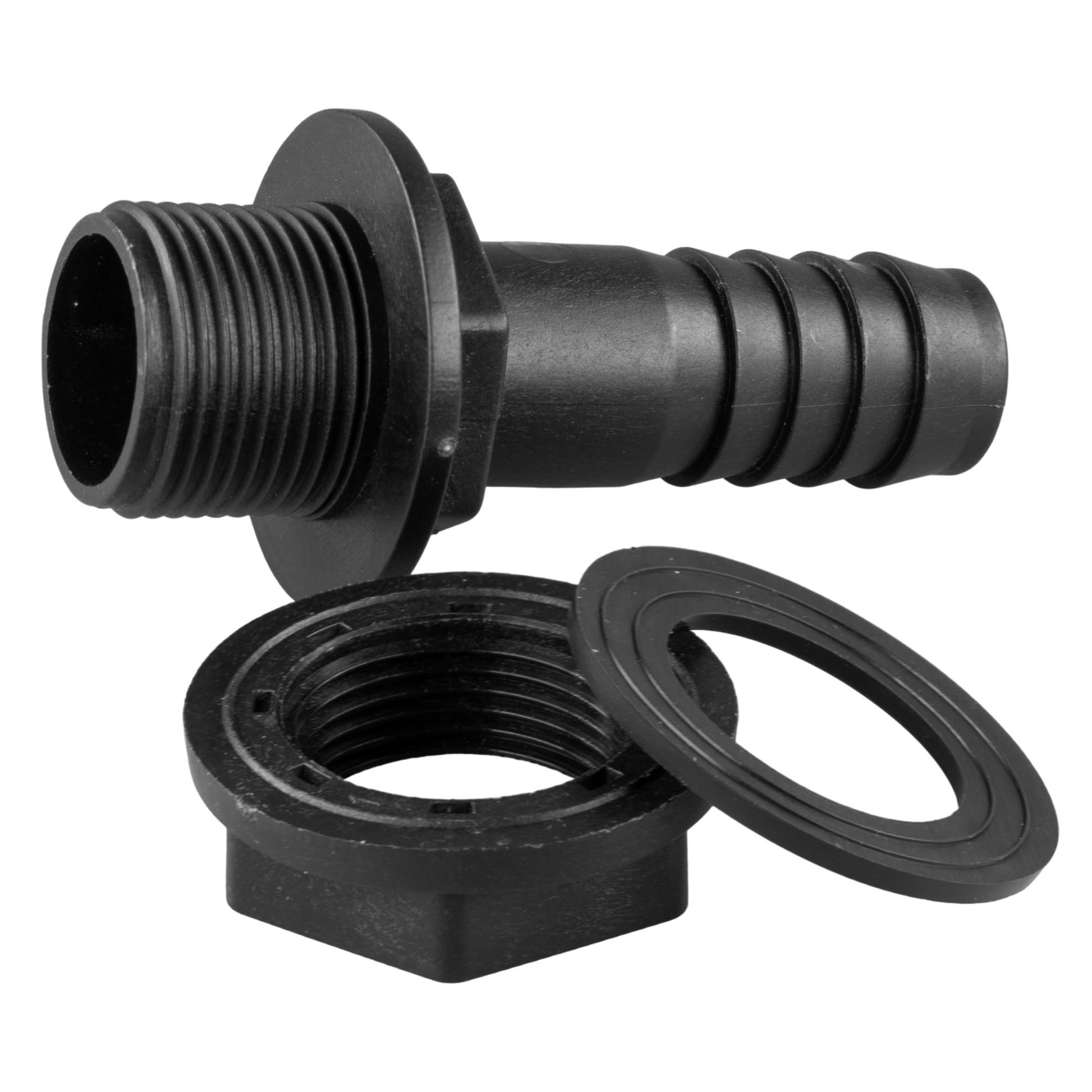

- Two straight plastic fittings, each with a 1-inch BSP male tank connection and a 25mm hose barb.
- Back nuts and washer sets for mounting the fittings.

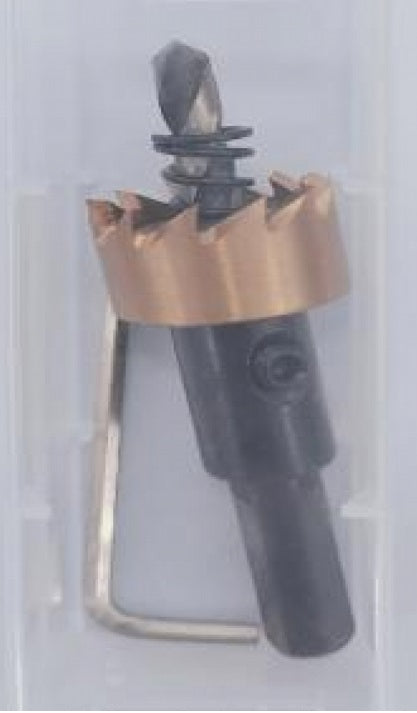

- One 34mm HSS hole saw cutter.
The supplied cutter makes an opening; it does not cut a BSP thread. Check the actual fitting, wall material and cutter setup before starting, and follow the instructions for your power tool.

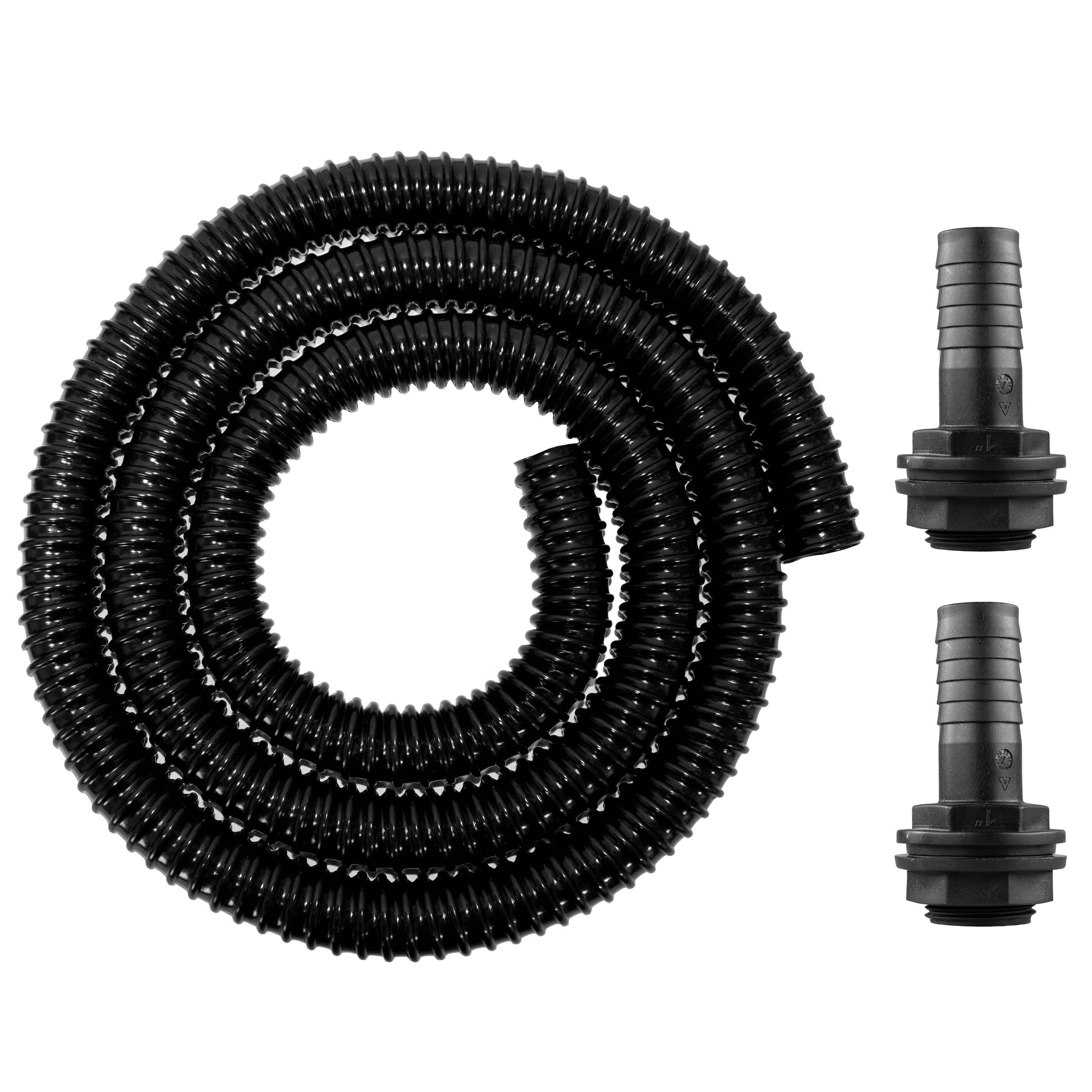

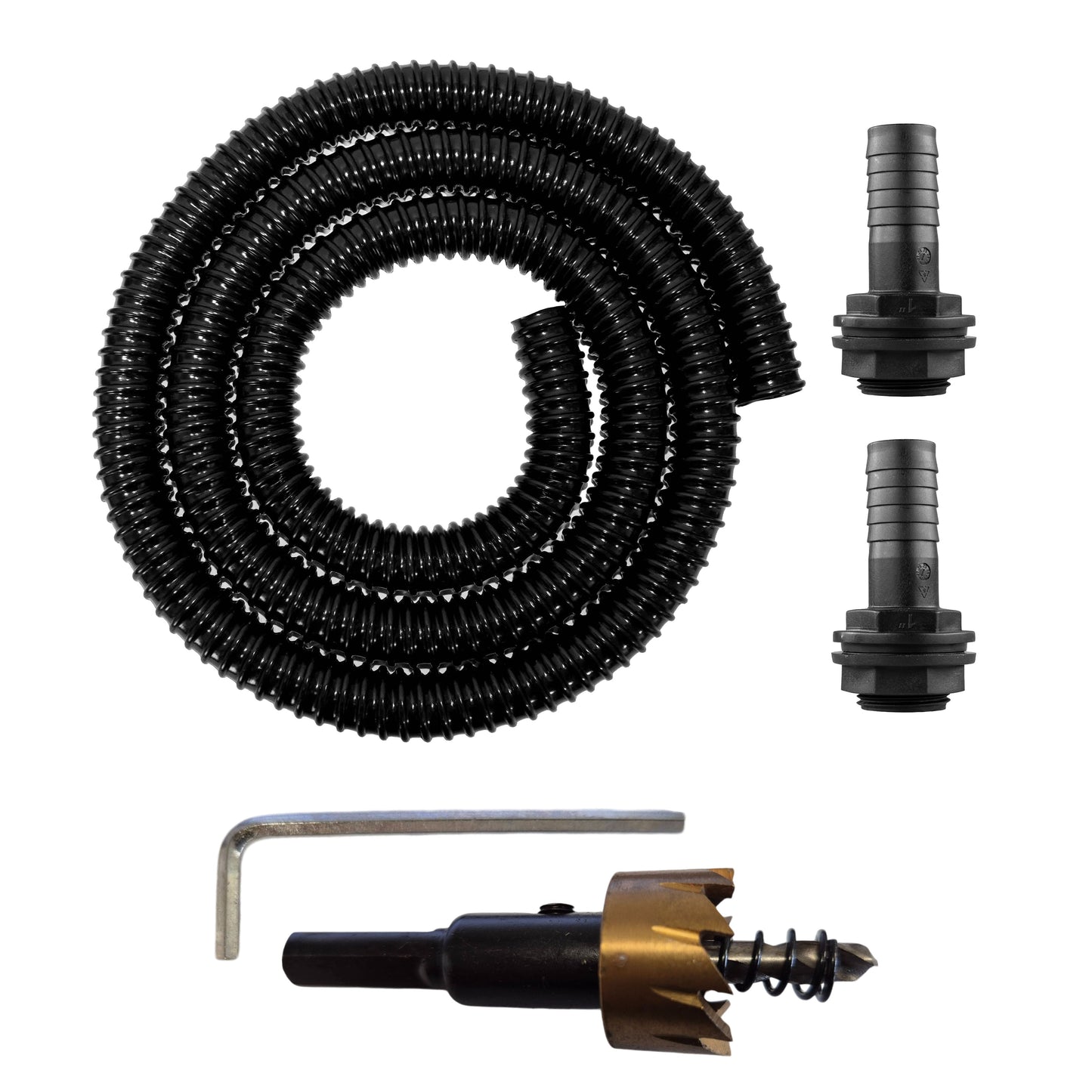

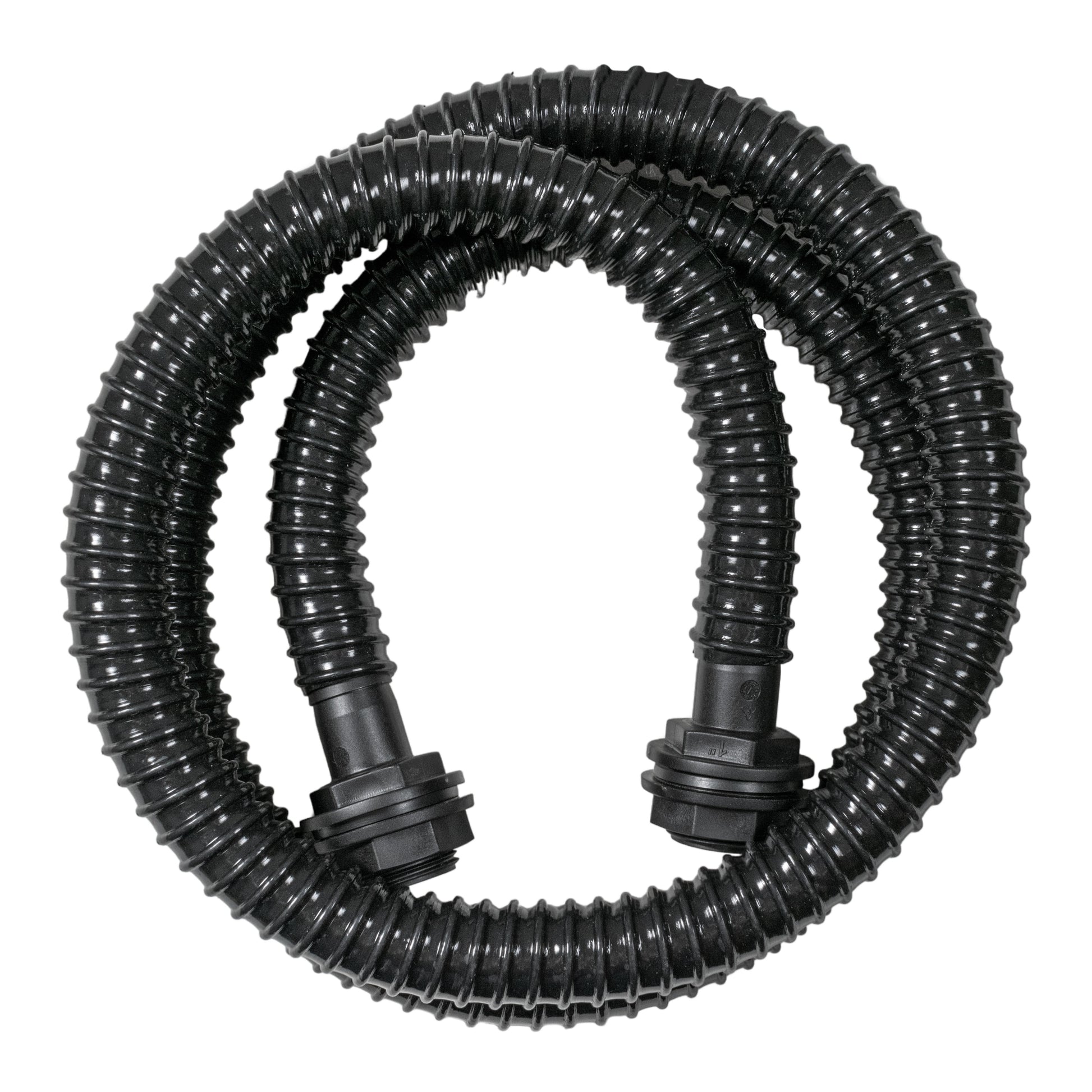

The photograph shows the kit parts together. Hose coils are a presentation of the pipe, not a scale drawing of the length selected.
Fit, support and check
Keep the hose route relaxed and test each connection after assembly.

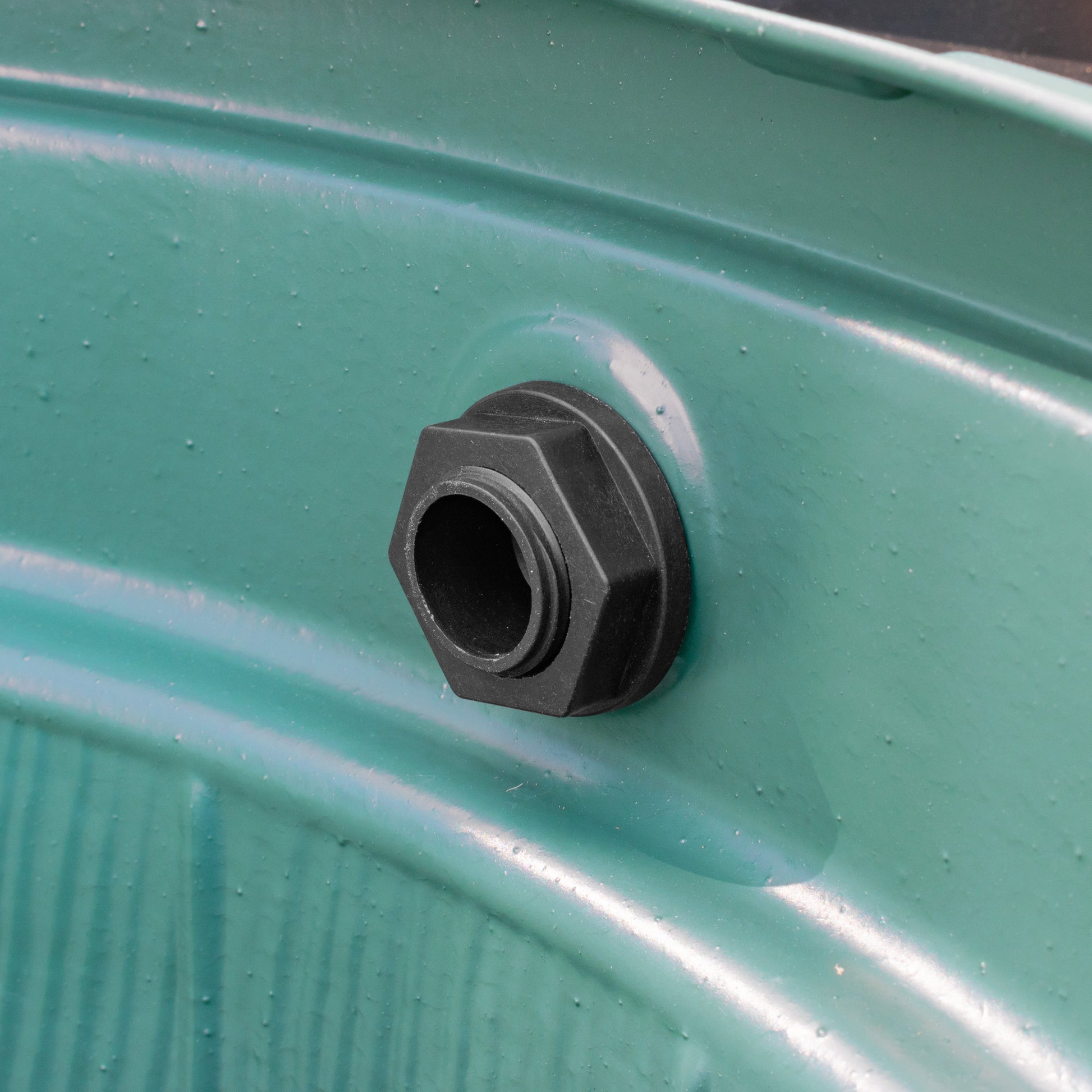

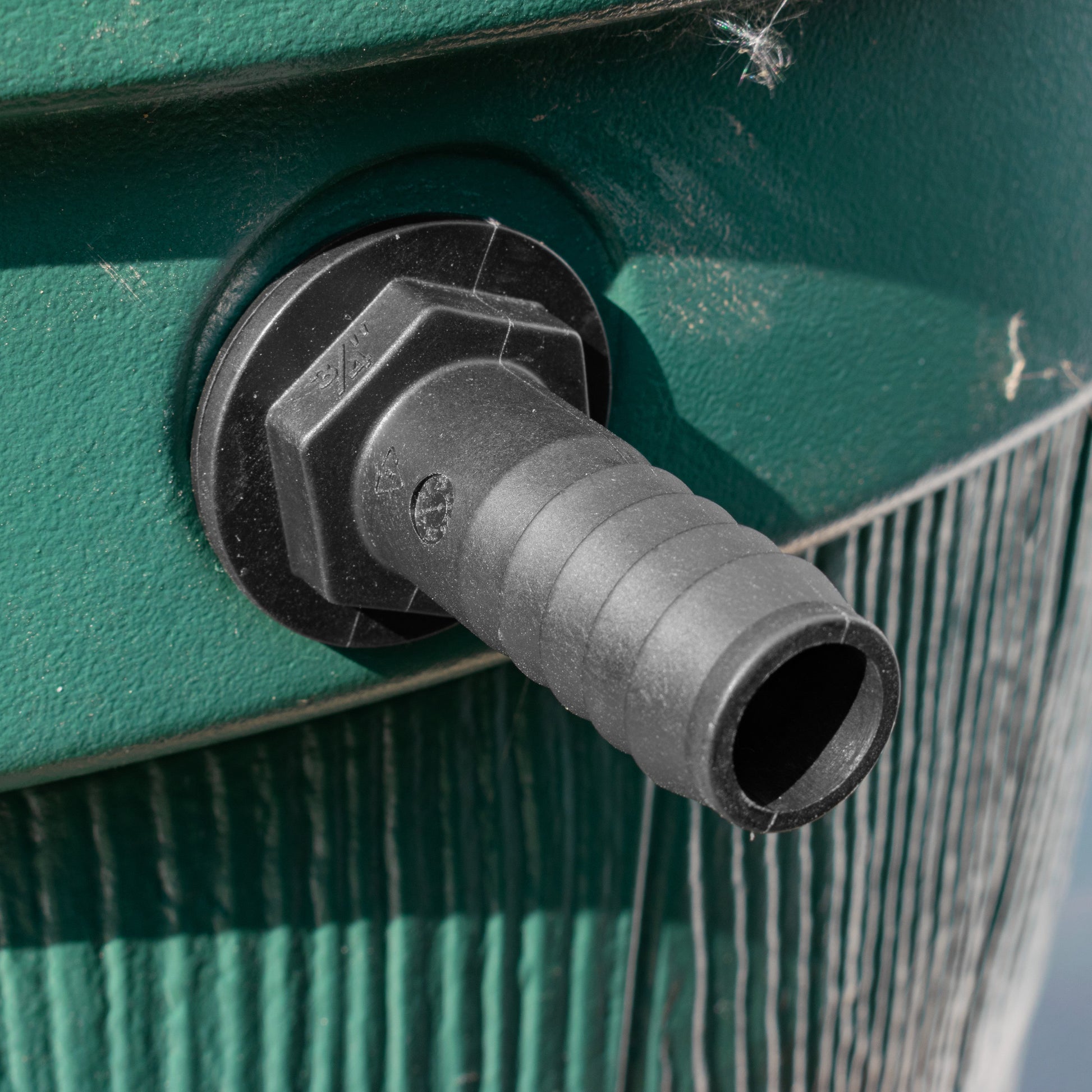

Seat the tank fittings
Keep the mounting surfaces clean and the washers seated evenly. Refit the back nuts with care, avoiding excessive force on the plastic or tank wall. Check access before making any permanent openings.
Secure the hose ends
Fit the hose fully onto the barbs and choose suitable clips separately. Measure the outside diameter with the hose on the fitting: it differs from the 25mm internal bore. 25-40mm butterfly-grip hose clips are one option where that measured diameter is within their range.
Inspect with water
Support the hose so its weight does not pull on the fittings. Fill and inspect the tank-wall seals and hose joints. Check again after the hose has settled, and keep a suitable overflow route available.
Questions about this kit
What changes when I select a different length?
Only the supplied hose length changes between the 1m, 2m, 3m, 4m and 5m options. Each has the same 25mm hose bore, two 1-inch BSP male straight tank fittings with mounting parts, and one 34mm HSS hole saw. Select the length for your measured hose route.
Is the hose completely smooth inside?
No. It is corrugated PVC hose with smoothed internal ridges. The term smooth bore used for this style of hose does not mean a completely flat inner wall. Keep bends gentle and avoid flattening the hose when routing or securing it.
Are hose clips and a power drill included?
No. The kit includes the hole saw cutter, hose and two tank fittings with their mounting parts. Supply a suitable power drill and hose clips separately. Choose clips for the actual outside diameter of the hose when it is pushed onto a barb.
Does the hole saw make a threaded tank outlet?
No. The 34mm cutter makes an opening for mounting a fitting; it does not form a BSP thread. The fitting is retained with its back nut and washer arrangement. Check wall thickness, seating and internal access before drilling your tank.
Product information & technical details
| SKU | WB1LINK-001M+DB |
|---|---|
| Product type | |
| Length | 1m, 2m, 3m, 4m, 5m |
| Internal diameter | 25mm (1") |
| BSP thread size | 1" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Kit parts | Corrugated hose in selected length, 2 straight tank connectors, Back nuts and washers, 34mm HSS hole saw |
| Colour | Black |
|---|---|
| Material | Plastic, Steel |
| Included cutter | 34mm HSS hole saw |
| Straight tank fittings | 2 × 1-inch BSP male to 25mm hose barb |
| Tank mounting | Back nut and washer set for each fitting |
| Hose material | Flexible PVC |
| Hose bore profile | Smoothed internal ridges; not completely flat |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
