Description
Connect your tanks with the length you need

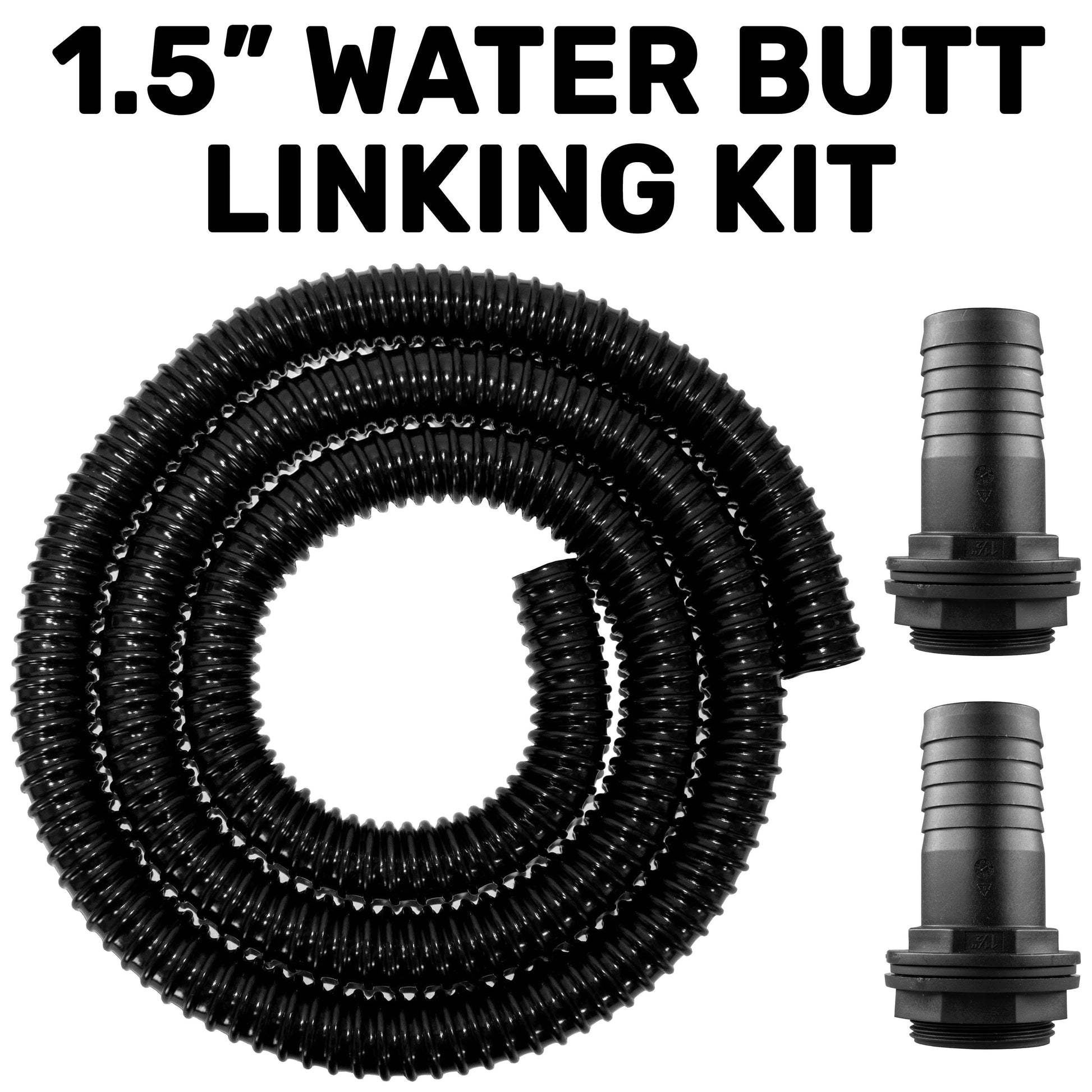

This 1.5-inch water-butt linking kit brings together two straight tank fittings and a chosen length of black 40mm corrugated hose.
Use the length selector for a 1m, 2m, 3m, 4m or 5m hose. The fitting size stays the same across all five options, so the choice here is the length needed between your planned mounting points.
Two retaining nuts and two sealing washers are included. Tanks and installation extras are separate.
The parts for both ends of the link

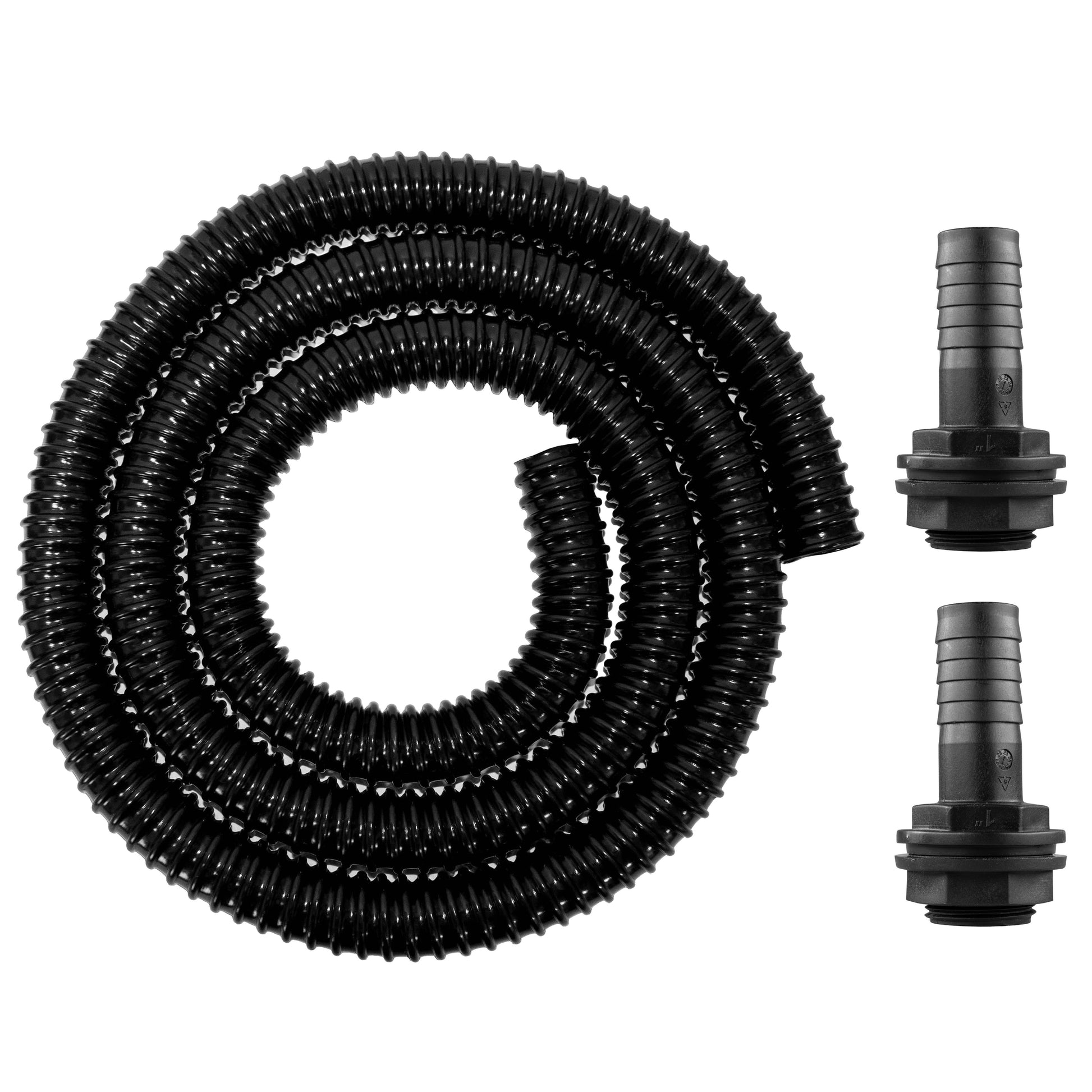

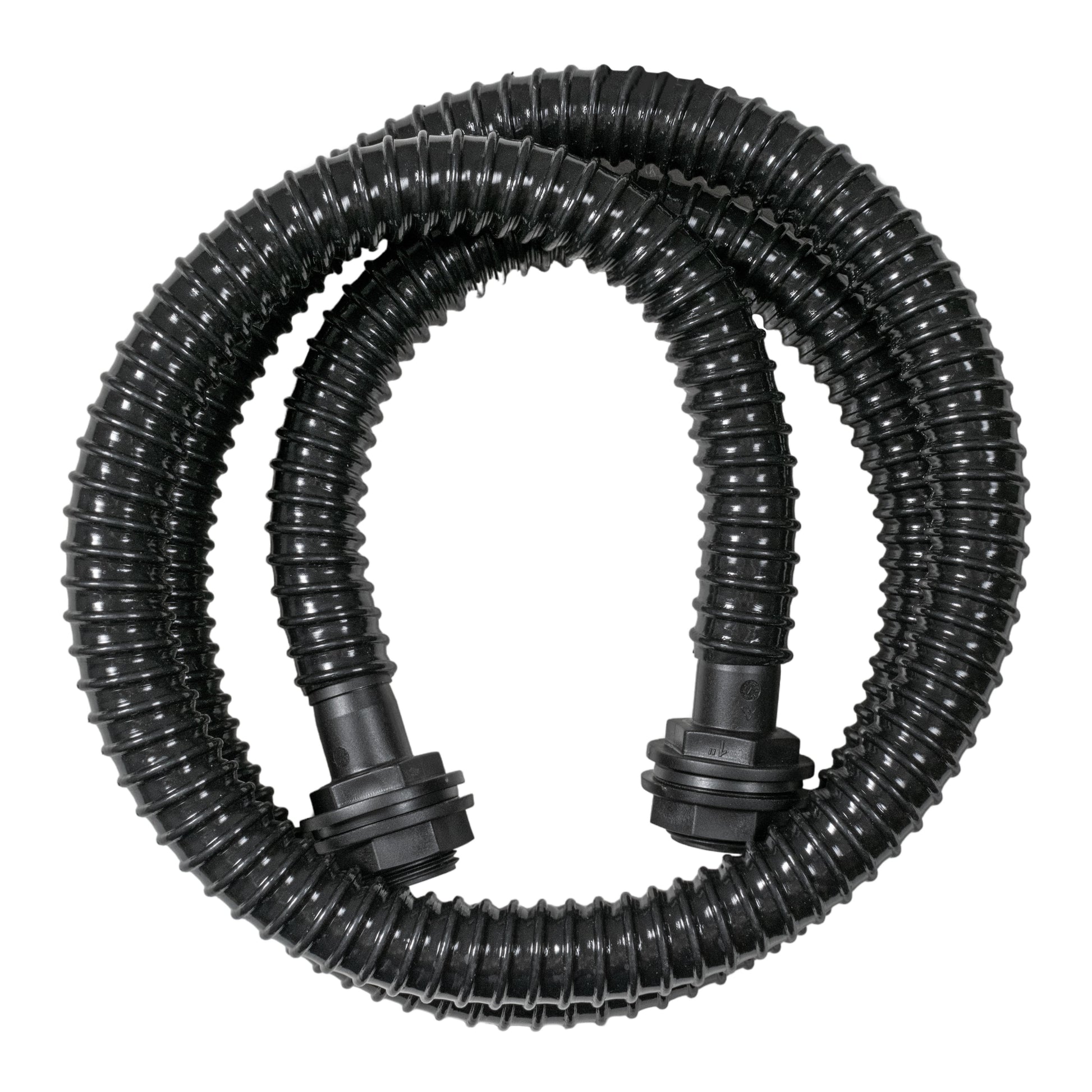

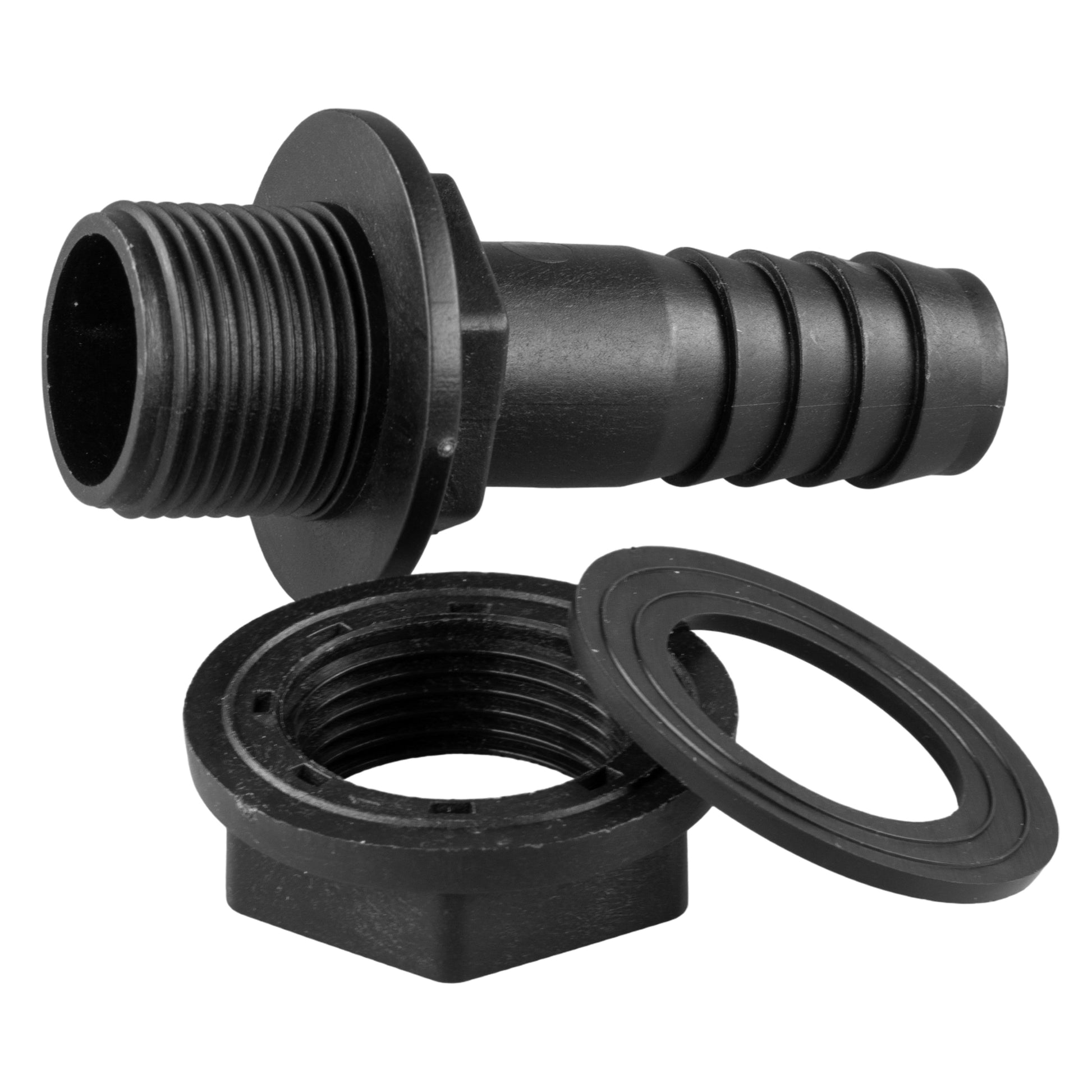

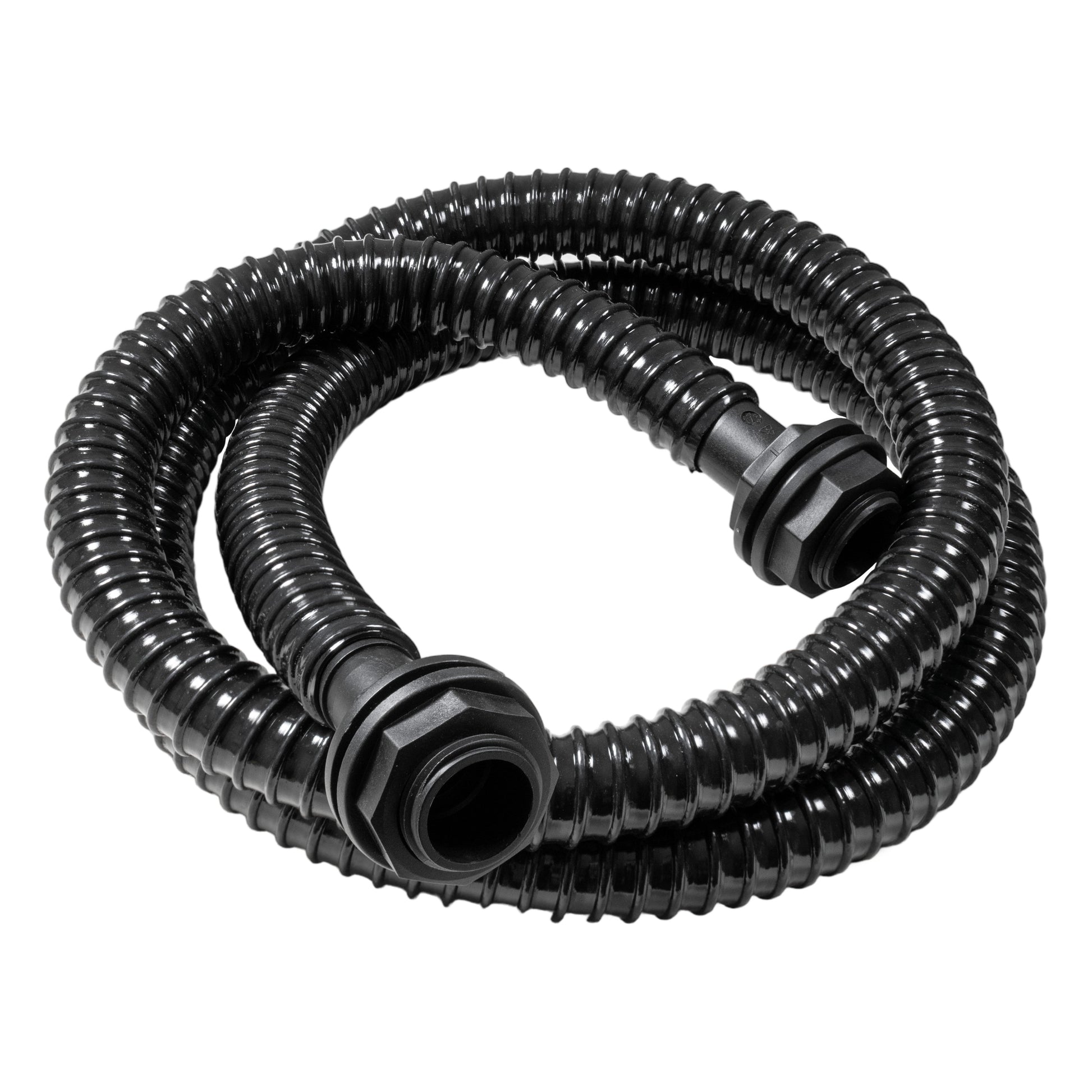

The kit contains one hose length and two matching straight tank fittings. Each fitting connects the tank to the hose: a male 1.5-inch BSP thread at one end, a barbed hosetail at the other, plus its nut and sealing washer.
The hose is flexible PVC with a corrugated outer profile. It is described as smooth-bore hose, but the inside is still profiled: its ridges are smoothed rather than forming a completely flat inner wall.
The photograph shows the actual kit components. The hose length you receive follows your selection. Hose clips and drilling tools are not listed as included parts.
Measure the route, then choose the length
Follow the path the hose will take rather than measuring only the gap between the tanks.
Check the mounting points
Make sure both tanks have suitable surfaces for the fittings and room inside for the nuts. Check the opening against the actual fitting before drilling: 1.5-inch BSP is a thread designation, not a hole-saw size.
Allow for bends and slack
Measure between the chosen mounting positions, allowing for the hose ends, bends and slack. Choose from the five offered lengths and avoid a route that forces a tight turn immediately beside a fitting.
Support and water-test
Check the fit at each hosetail and select any clips to suit the actual assembly. Support the hose so it does not pull on the tank wall. Test both tank seals and hose joints before leaving the connection in use.
Questions about this 1.5-inch kit
What changes when I choose a different length?
Only the selected hose length: 1m, 2m, 3m, 4m or 5m. Every option includes two straight 1.5-inch BSP fittings, two retaining nuts and two sealing washers.
Is the supplied hose 38mm or 40mm?
The hose component used in this kit is nominal 40mm, commonly labelled 1.5-inch. The tank fitting has a separate 1.5-inch BSP thread designation. Check the actual components for installation measurements rather than converting the inch label into a drilling size.
Is the inside of smooth-bore hose completely flat?
No. This corrugated hose has profiled internal ridges with a smoothed surface. Smooth bore is the description for this hose type, rather than a claim that it has a flat, unprofiled inner wall.
Does this include the tanks and hose clips?
No. You receive the chosen hose length, two straight tank fittings, two nuts and two washers. Tanks, clips and drilling tools are separate. Check the connection fit and test for leaks before leaving the assembly in service.
Product information & technical details
| SKU | WB15LINK-001M |
|---|---|
| Product type | |
| Length | 1m, 2m, 3m, 4m, 5m |
| Internal diameter | 40mm (1.5") |
| BSP thread size | 1.5" |
| Thread gender | Male |
| Barb size | 38mm (1.5") |
| Kit parts | Corrugated Hose, Overflow Fitting |
| Colour | Black |
|---|---|
| Material | Plastic |
| Available options | Hose lengths listed are available choices. Each kit supplies one continuous selected hose length and two fittings in the chosen BSP size. |
| Supplied parts | 1 hose length, 2 straight fittings, 2 nuts and 2 washers |
| Hose construction | Corrugated PVC; smooth-bore type with profiled inner ridges |
| Pack quantity | 1 kit in the selected hose length |
| Not included | Water butts, hose clips and drilling tools |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
