Description
Fit a smaller tap
Fit a ½-inch BSP male tap or fitting to a suitable tank outlet with this compact black plastic reducer.

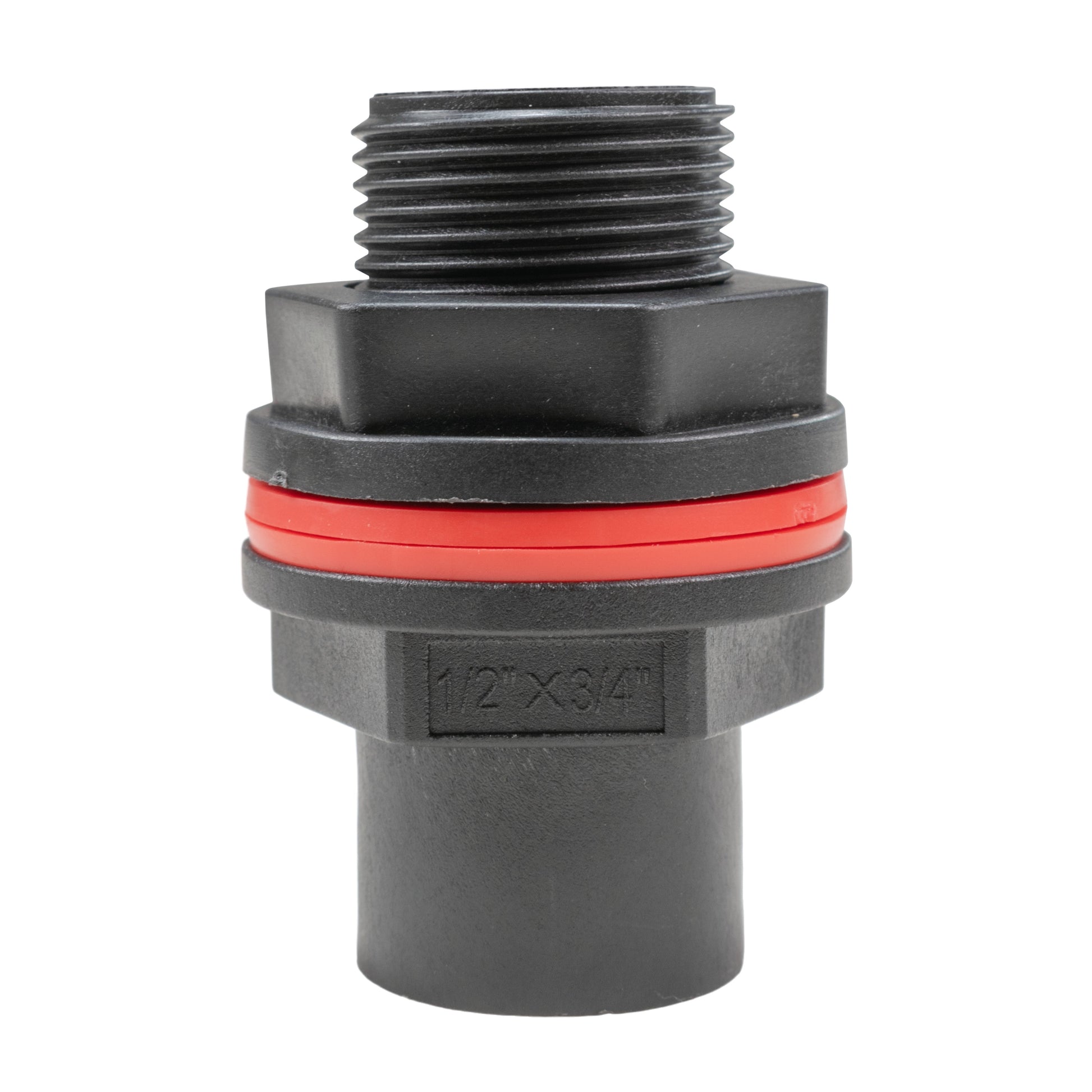

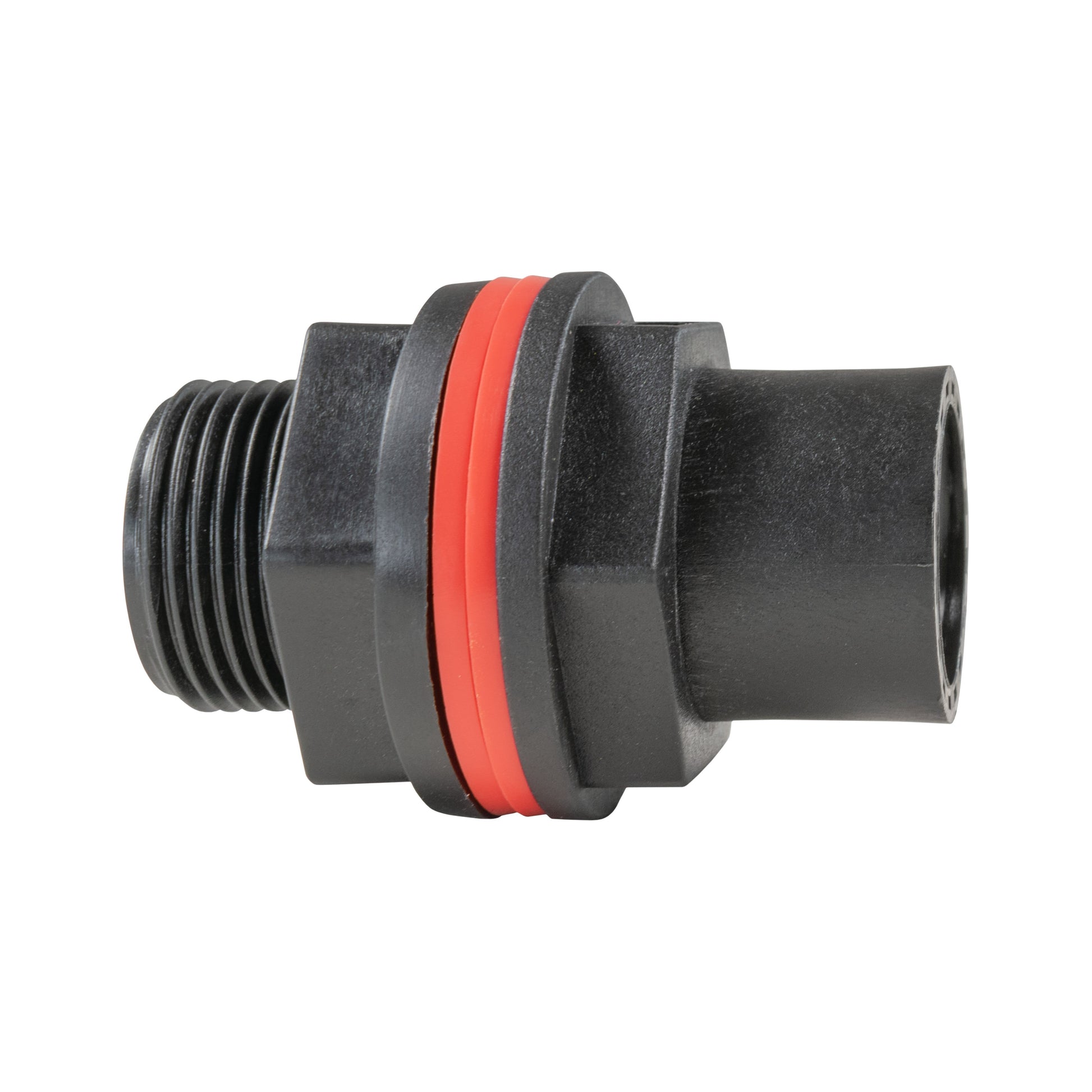

The adapter combines a ¾-inch BSP male thread with a ½-inch BSP female socket. Its back nut and two washers also provide mounting parts for an appropriate tank-wall installation.
One adapter with mounting parts supplied. Tap, hose, tank and additional sealing materials are separate.
Check how it will mount

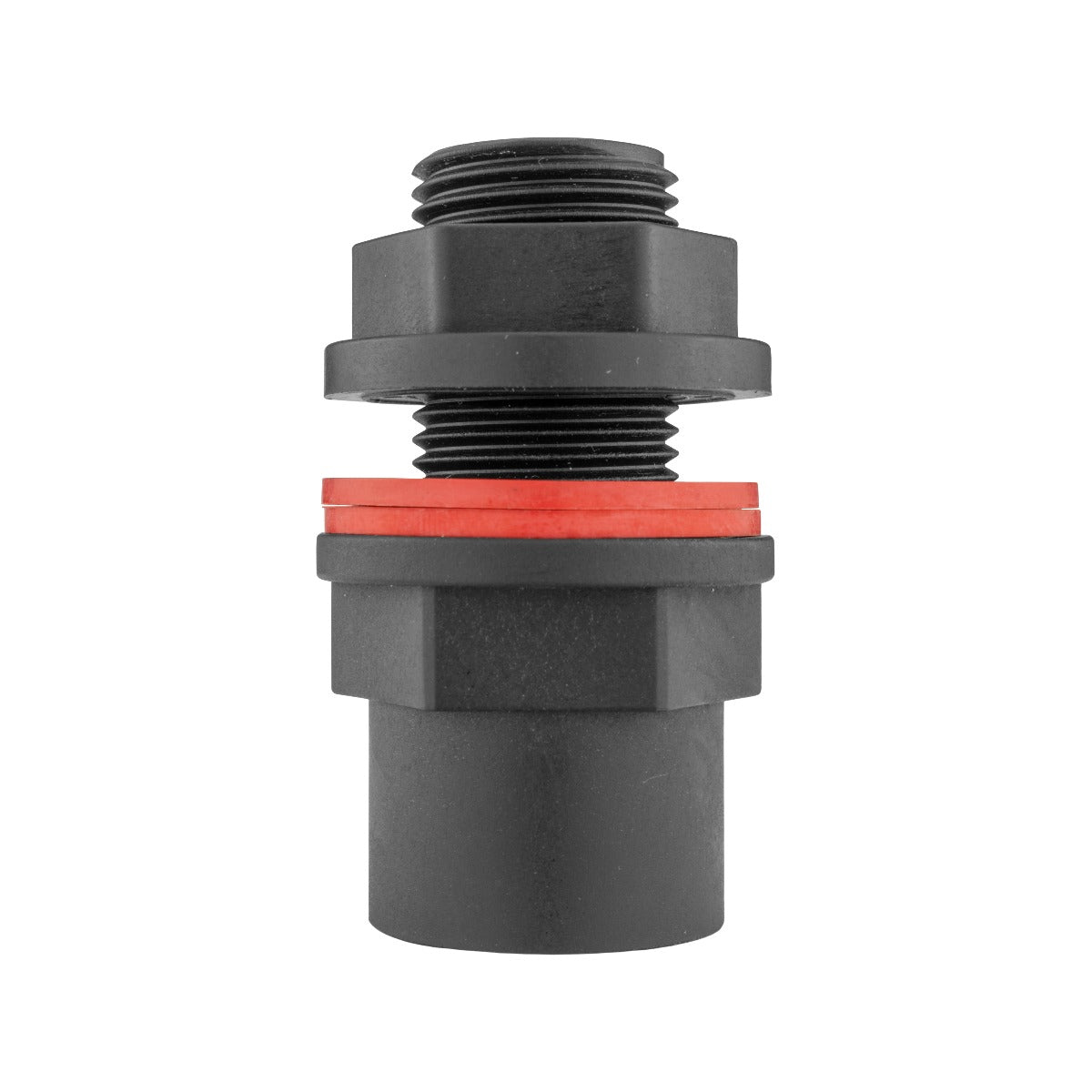

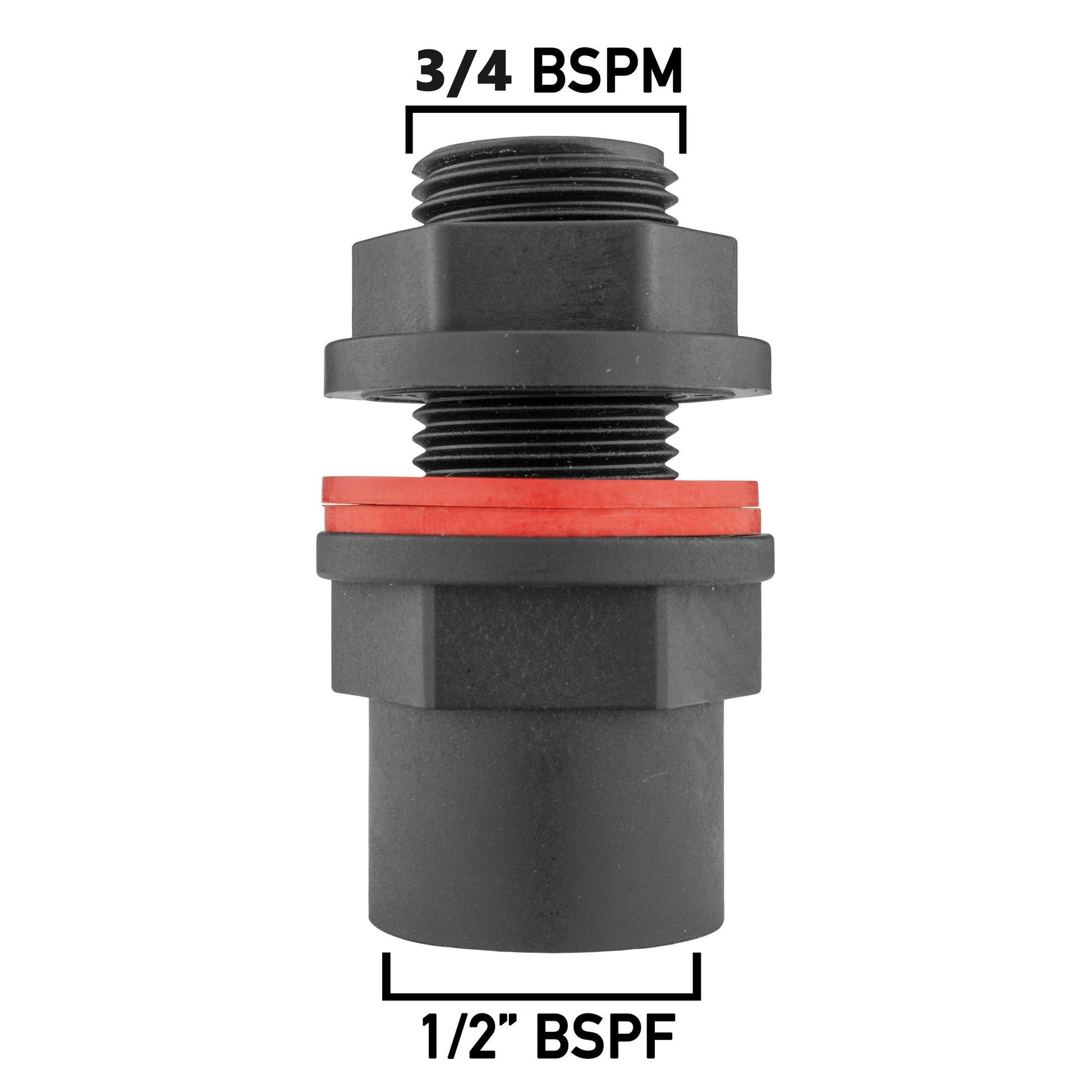

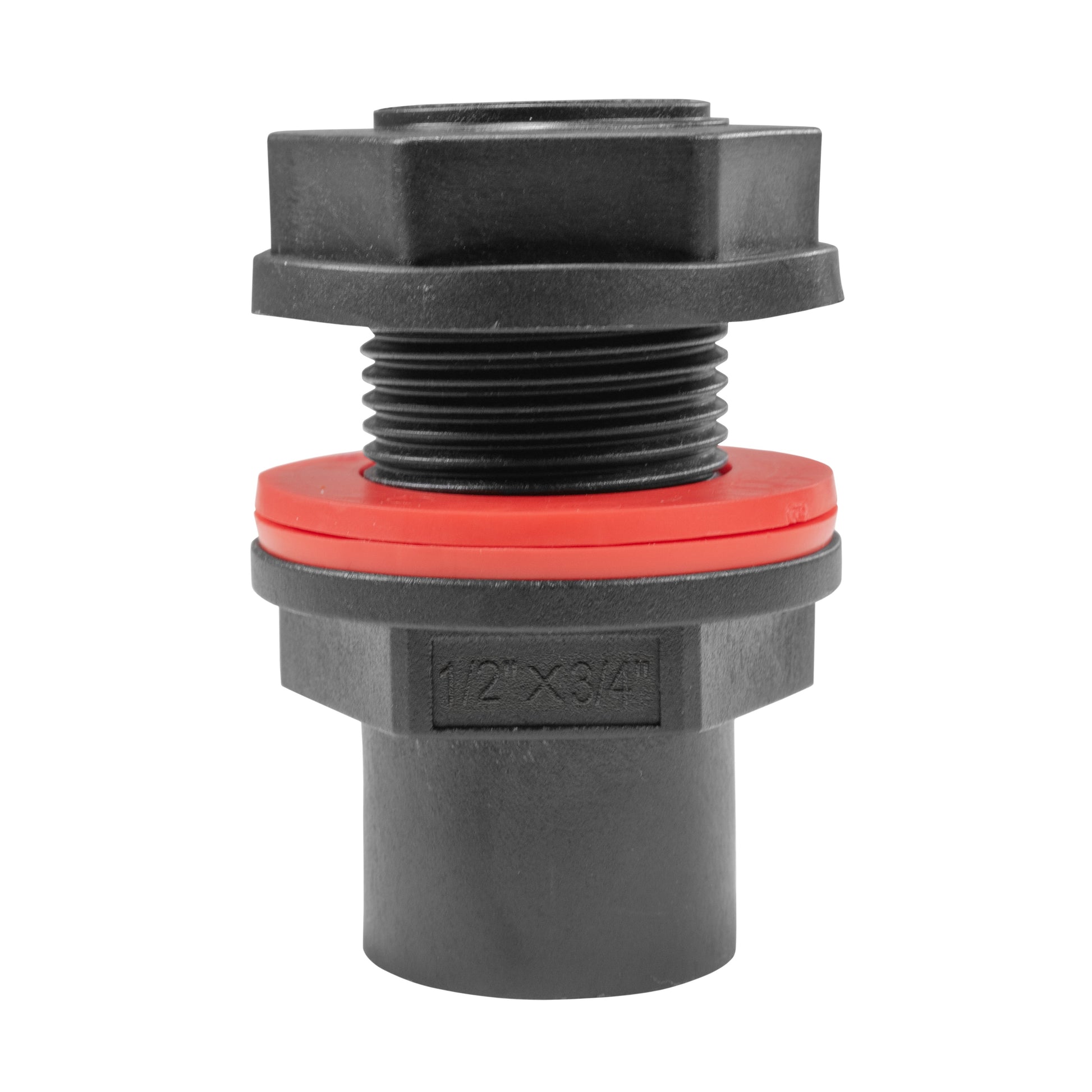

The photograph shows the retaining nut loosened on the male thread, with two mounting washers beside the fixed flange.

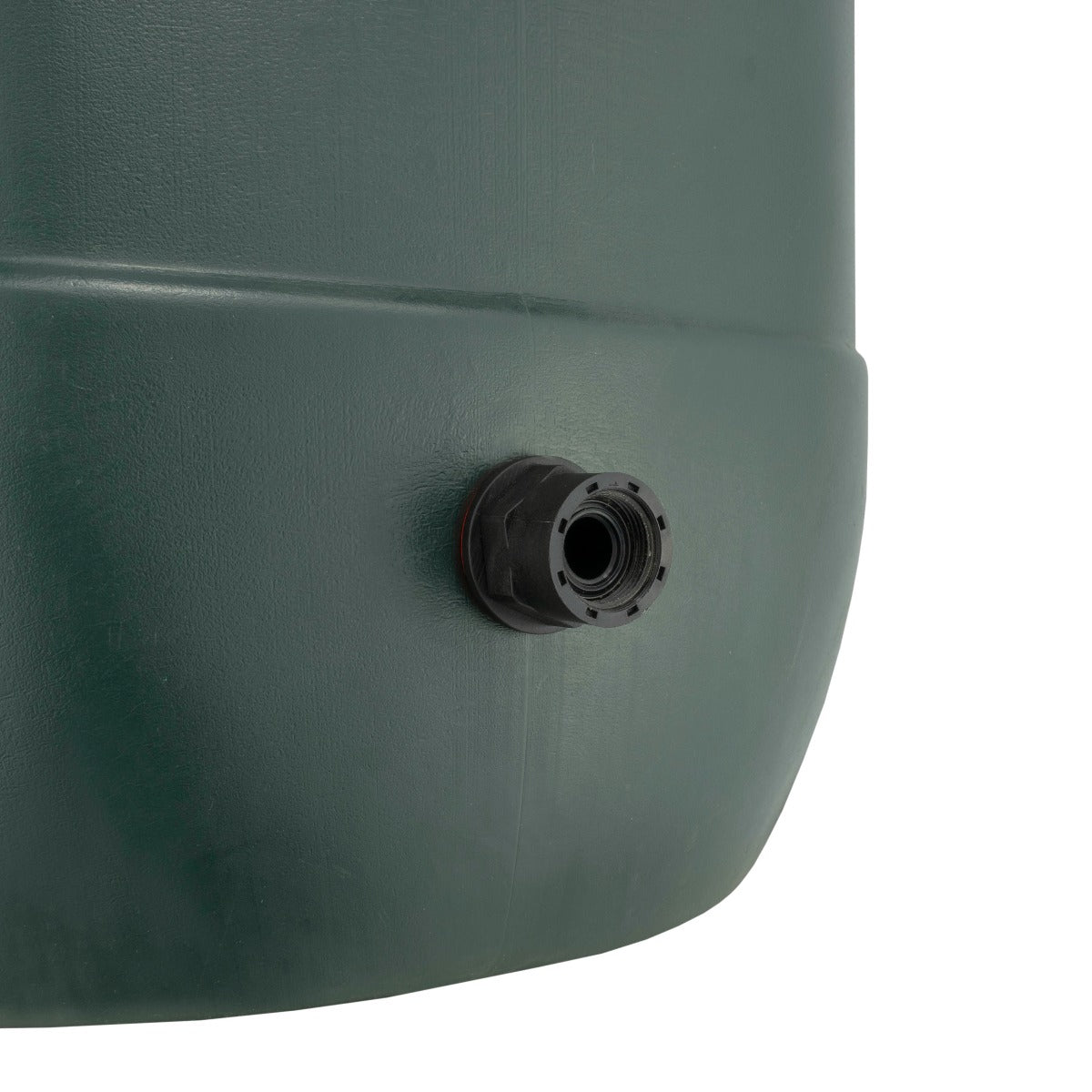

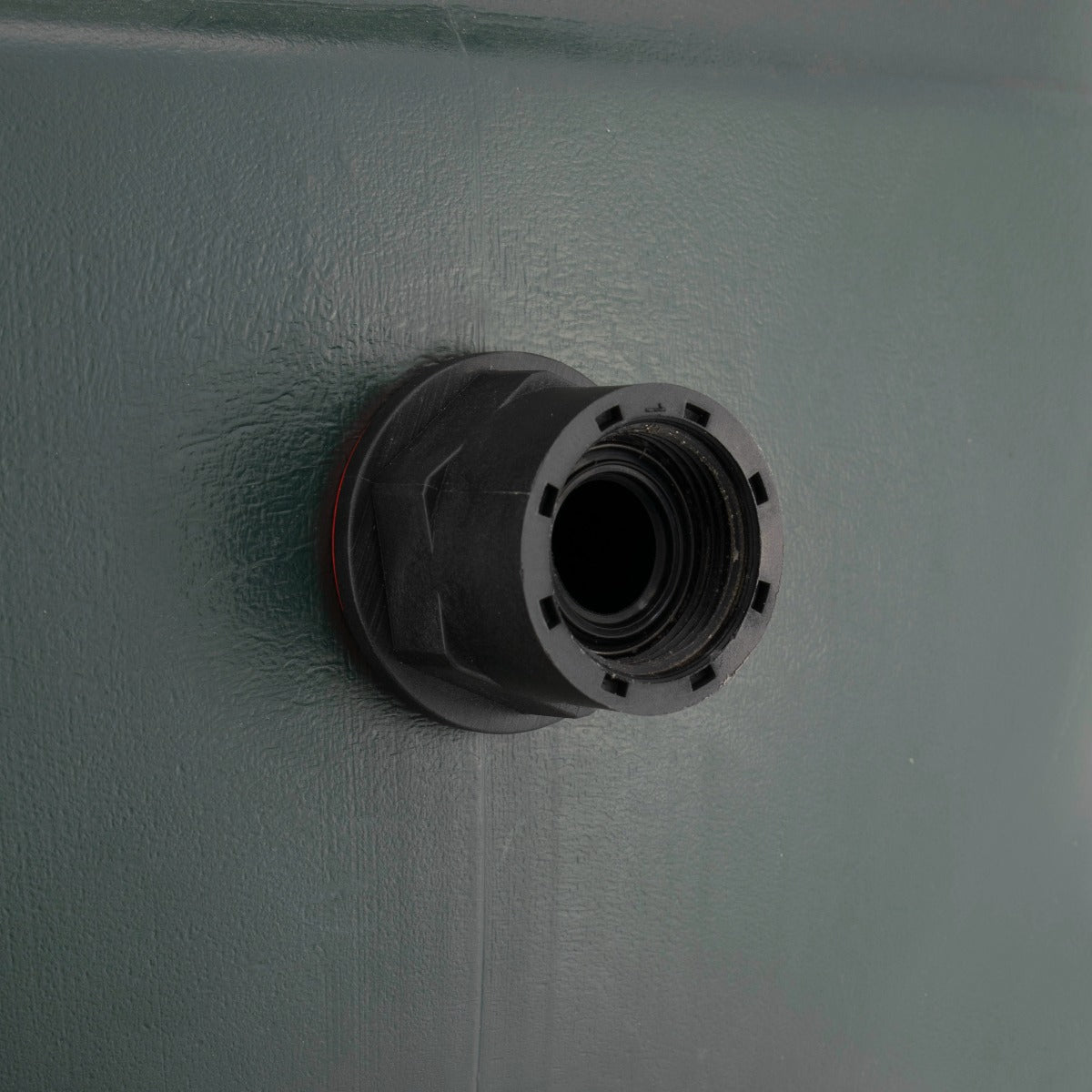

For a suitable through-wall installation, remove the nut and one washer. Seat the remaining washer against the flange, pass the male stem through the prepared opening, then refit the other washer and nut on the opposite side.
Check the actual fitting against the wall thickness and opening before cutting. Make sure you can reach the retaining nut and that the washers have a clean, even seating surface. Tighten with care to avoid damaging the plastic.
If you are using an existing threaded outlet instead, it must match the adapter’s ¾-inch BSP male thread. That screw joint needs its own appropriate seal; the mounting washers do not automatically seal it.
Choose a matching outlet
The reducer provides the connection. Your chosen tap or fitting determines how you use it.
Match the male inlet
The female socket takes a ½-inch BSP male thread. A separately sold ½-inch BSP brass quick-connect tap is one option for adding on/off control and a hose connection.
Leave room to use it
Check clearance for a tap handle and hose fitting, plus access around the tank. A compact reducer changes the thread size; it does not provide a long extension away from the tank wall.
Check each seal
Use an appropriate seal for the attached fitting. Check the wall mounting, any existing threaded tank outlet and the tap joint with water after assembly. Avoid putting unsupported hose strain on the adapter.
Questions about this adapter
Which thread is male and which is female?

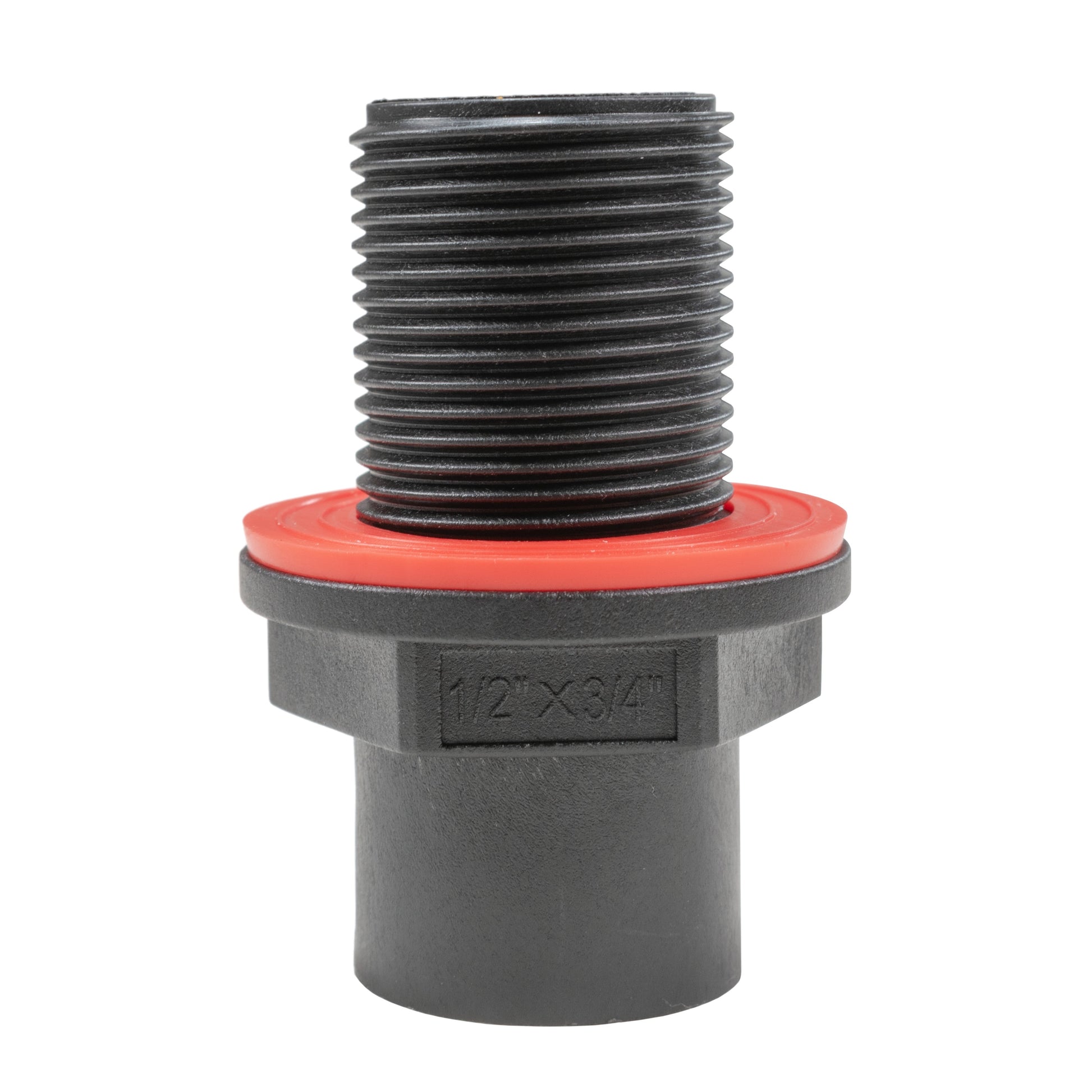

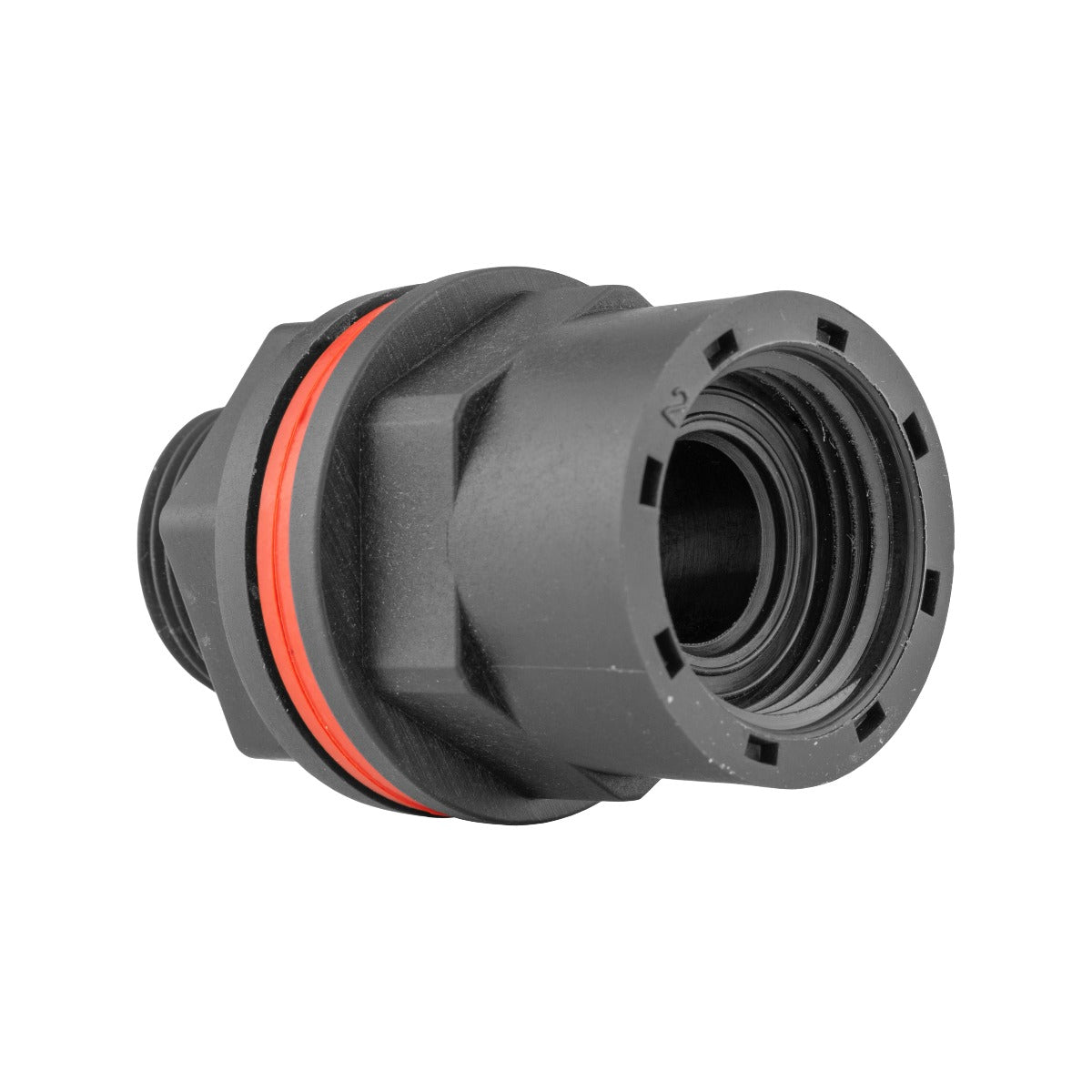

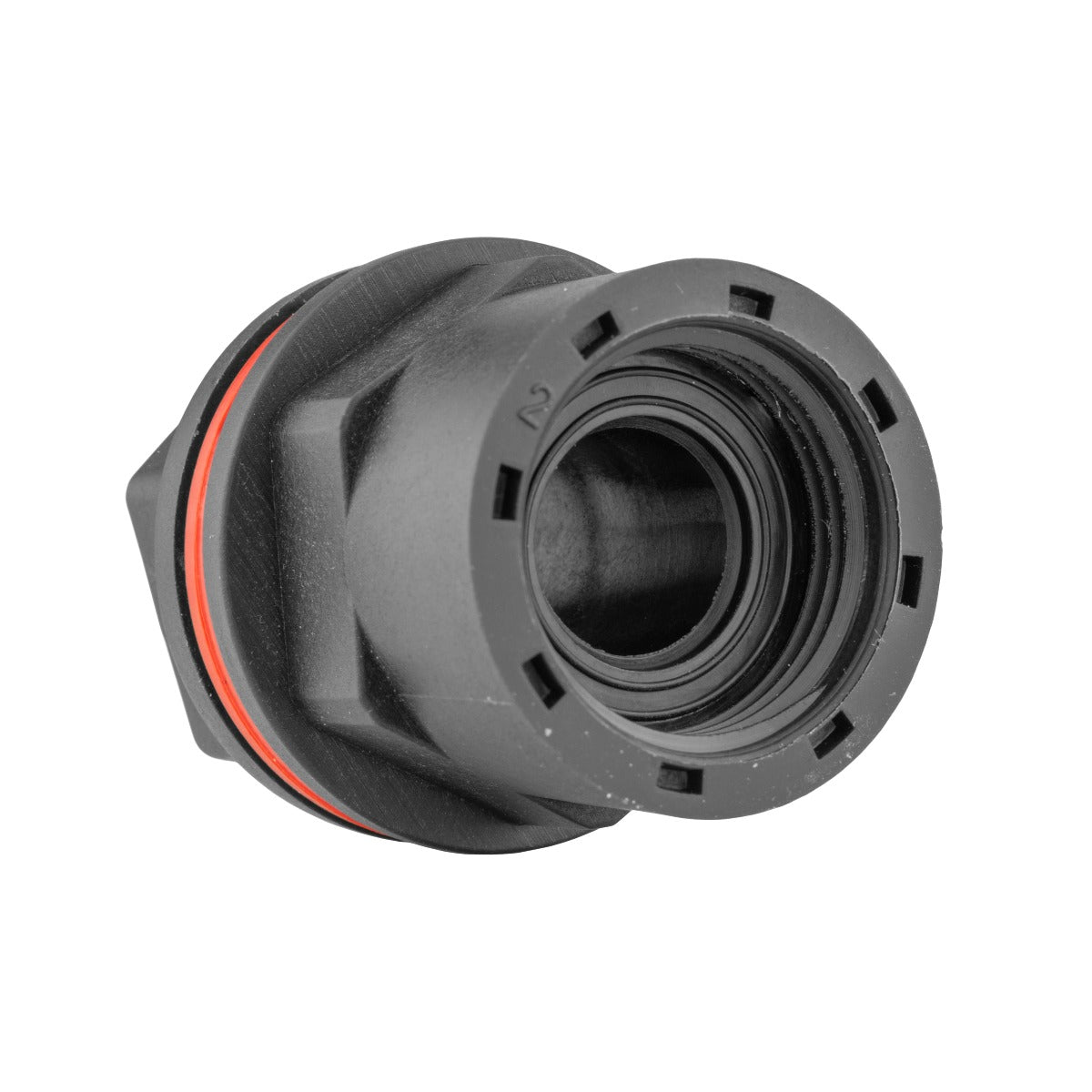

The larger external stem is ¾-inch BSP male. The smaller internally threaded socket is ½-inch BSP female, ready for a matching ½-inch BSP male fitting. These are nominal BSP thread sizes, not the required diameter of a drilled tank opening.
Can it fit an unthreaded water butt?
It has a back nut and two washers for an appropriate through-wall mounting. Check wall thickness, shape, seating area and internal access against the actual adapter before preparing an opening. It is not a promise of fit for every container.
Is a tap or hose connector included?
No. You receive one reducing adapter with its retaining nut and two mounting washers. Choose a matching ½-inch BSP male tap or other outlet separately, and check any hose connection that your chosen fitting requires.
Do I need to seal the tap connection separately?
Yes. The mounting washers are for seating the adapter on a suitable tank wall. The tap-to-adapter screw joint needs an appropriate seal of its own, as does an existing threaded tank connection if used. Test all joints with water after fitting.
Product information & technical details
| SKU | BUTT-R-34BSPM-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1/2" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| External connection | ¾-inch BSP male |
|---|---|
| Internal connection | ½-inch BSP female |
| Adapter form | Compact reducing body |
| Mounting parts | 1 back nut and 2 mounting washers |
| Supplied quantity | 1 adapter with mounting parts |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
