Description
From your water butt to a 1-inch hose
This straight water-butt adapter provides a threaded connection at the tank and a ribbed outlet for hose, without adding a change of direction.
It pairs a ¾-inch BSP male thread with a 1-inch barbed hosetail. One retaining nut and one sealing washer are supplied with the black plastic body.
Choose it for a suitable tank mounting and matching hose. Hose and securing clips are separate items.
Two sizes for two different connections
¾ inch refers to the BSP thread. This is the tank-side end, secured using the retaining nut and washer on a suitable mounting surface. Allow space to reach the nut and check that the threaded section suits your container wall.
1 inch refers to the hosetail. Matching hose fits over the ribs at this end. Check the hose’s internal size and fit, and select any securing clip to suit the assembled hose connection.

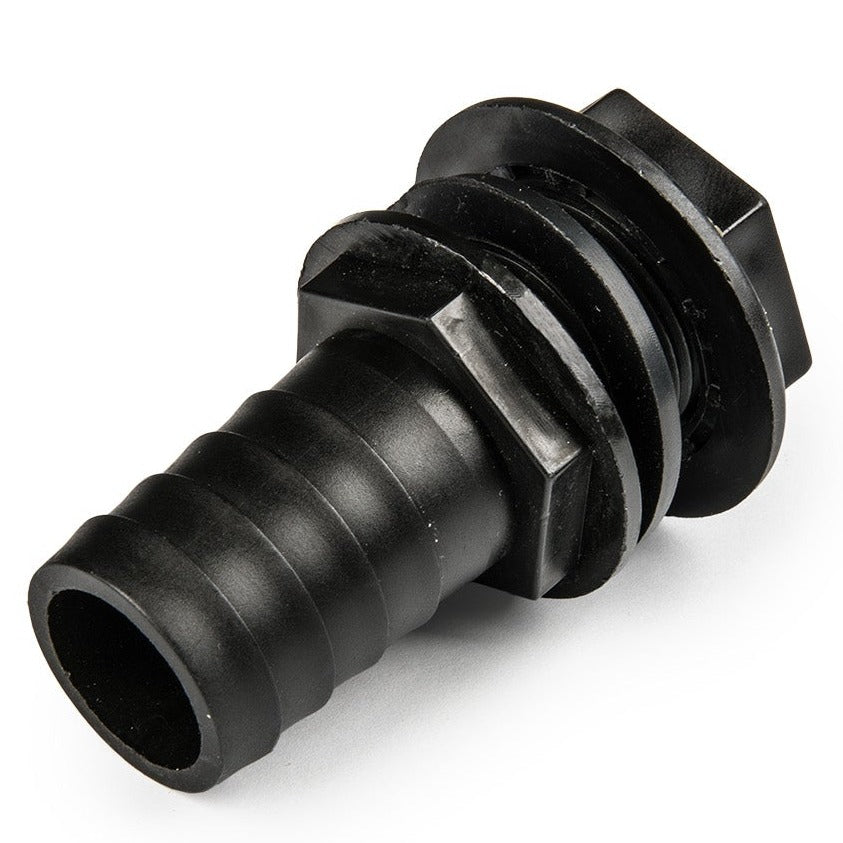

The parts photo shows the complete fitting set: one body, one nut and one washer. No second washer, hose or clip is supplied.
Match the tank, the fitting and the hose
Check each connection separately before you make the opening in your container.
Tank mounting
Choose a suitable sealing surface and check the wall thickness and nut access. Measure the actual fitting before cutting; a ¾-inch BSP designation is not a mounting-hole measurement.
Hose selection
Use hose matched to the 1-inch hosetail. Our 25mm (1-inch) corrugated pipe is an option to consider for a garden water run; choose the length and check the fit and suitability for your installation.
Final checks
Route and support the hose without side-loading the tank fitting. After assembly, test with water and check the seal and hose connection before leaving the system in use.
Questions about this tank adapter
Is this ¾ inch or 1 inch?
Both sizes describe this fitting: it has a ¾-inch BSP male threaded tank end and a 1-inch barbed hose end. It is not a ¾-inch hosetail and does not have a 1-inch BSP thread.
Does it come with hose?
No. Quantity one supplies one adapter, one retaining nut and one sealing washer. Choose hose, clips and any other installation parts separately.
What size opening should I make in the tank?
Confirm the opening against the actual threaded section and your container before drilling. The nominal BSP thread size does not specify a hole-saw diameter. Check the sealing surface and access for the nut as well.
Does the adapter turn the hose through a right angle?
No. This is a straight fitting: the thread and hosetail are in line. Leave space for a suitable hose route, or choose an appropriate elbow fitting if your installation needs the turn at the tank.
Product information & technical details
| SKU | BUTT34BSPM-1B001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Fitting configuration | Straight |
| Supplied parts | 1 adapter, 1 retaining nut and 1 sealing washer |
| Pack quantity | 1 fitting set |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
