Description
Straight out to 19mm hose
A ¾-inch BSP male tank connector with a ribbed hosetail for suitable nominal 19mm flexible pipe.

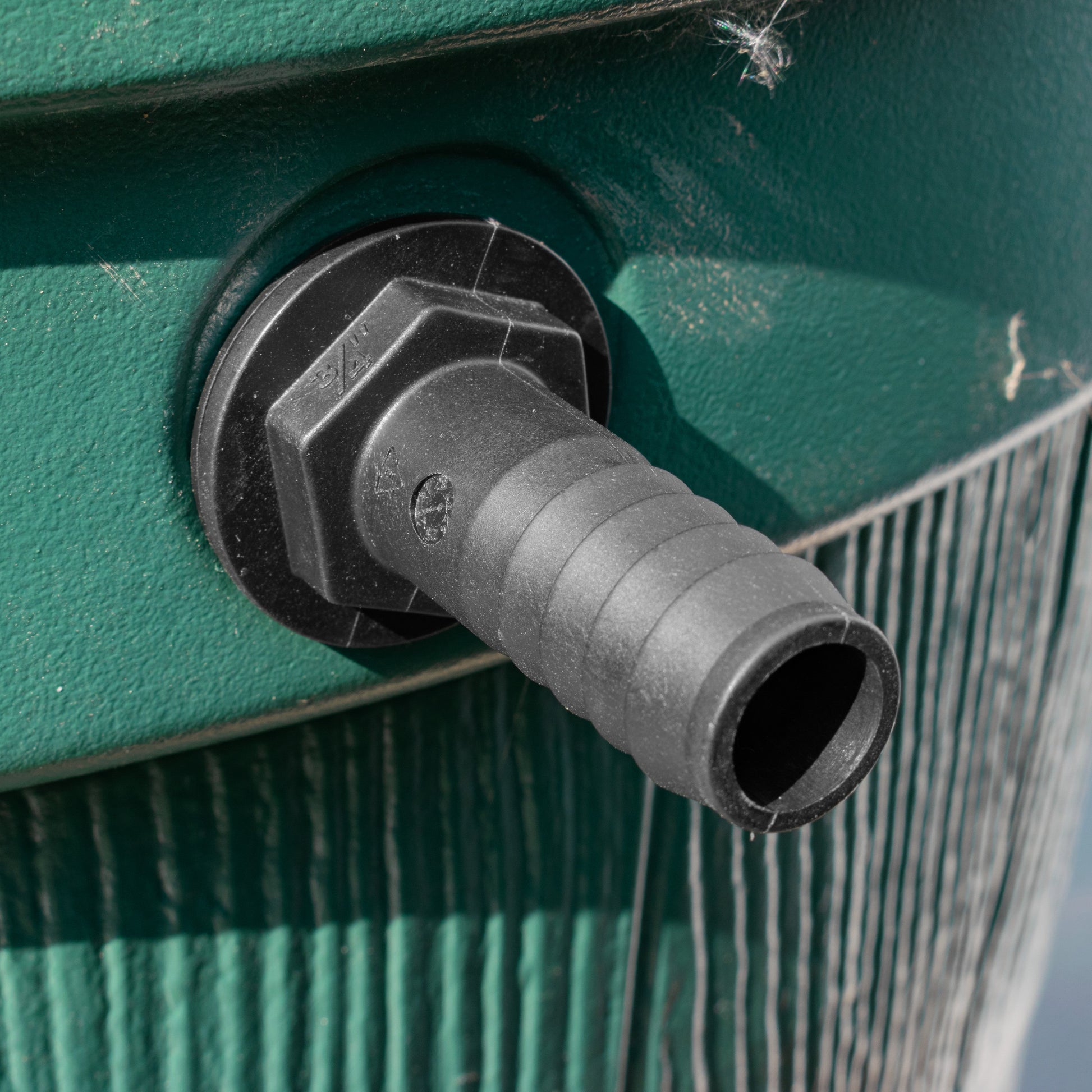

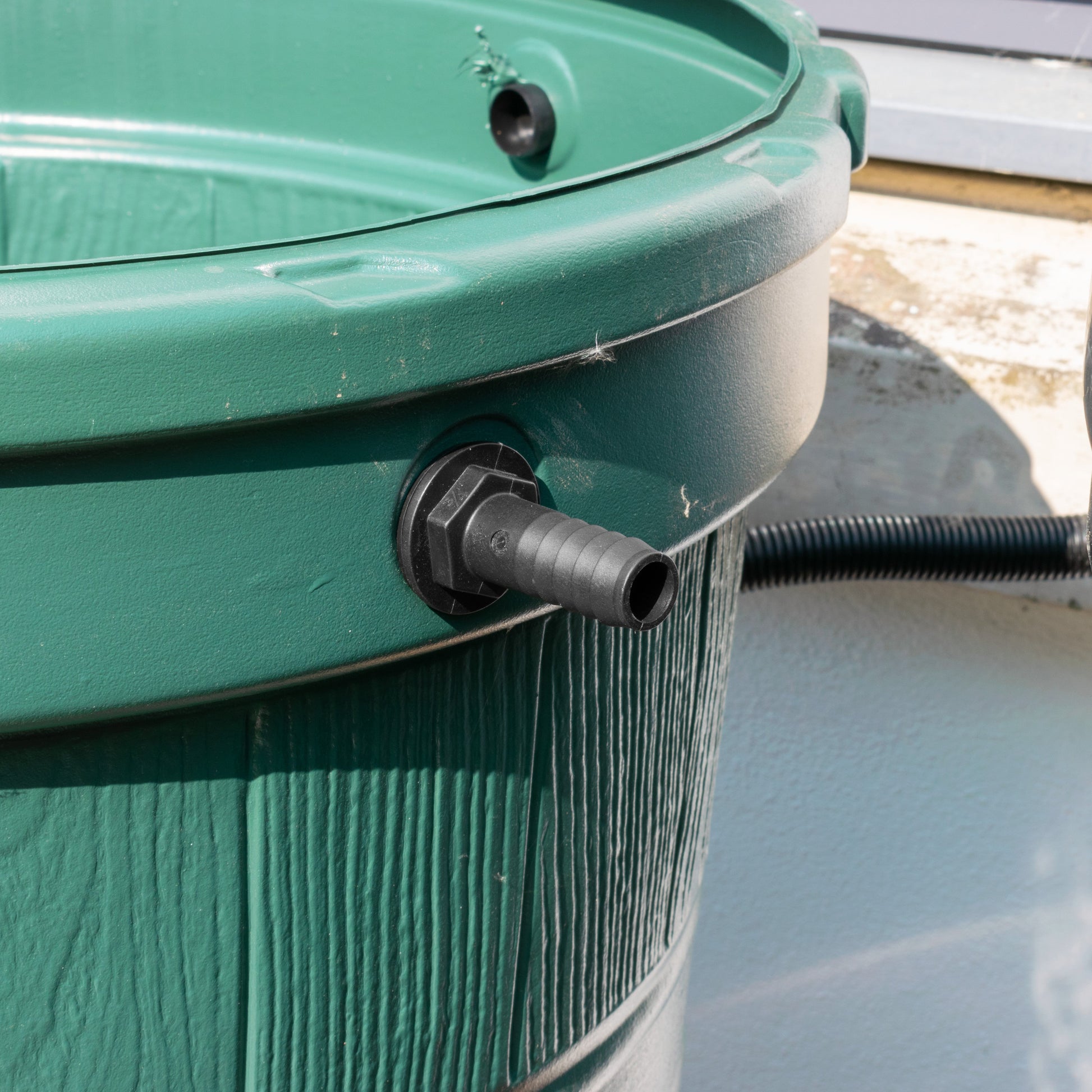

Use the inline outlet where the pipe can leave directly away from your water butt or tank wall.
One connector, nut and washer. Hose and clips separate.
Know what connects at each end

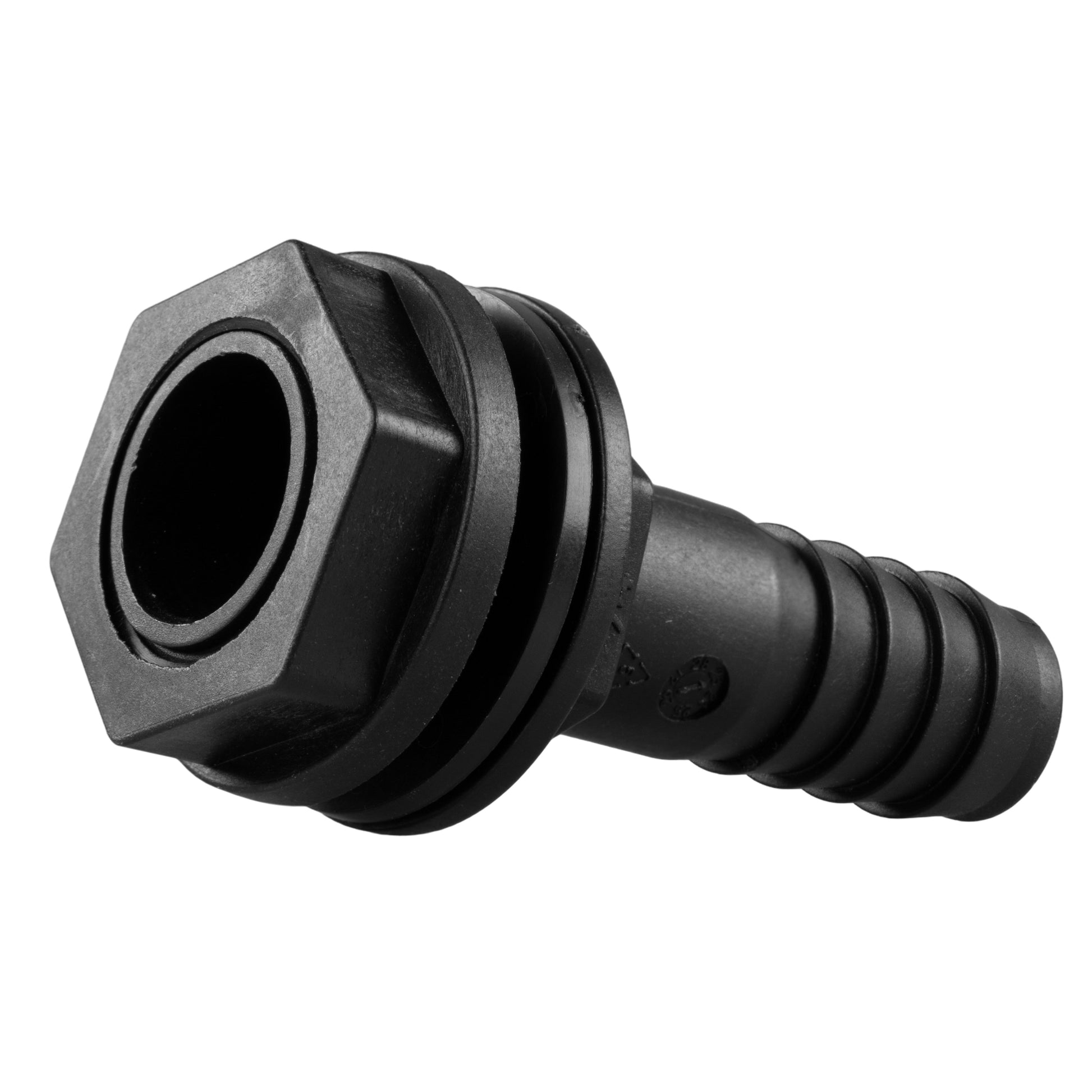

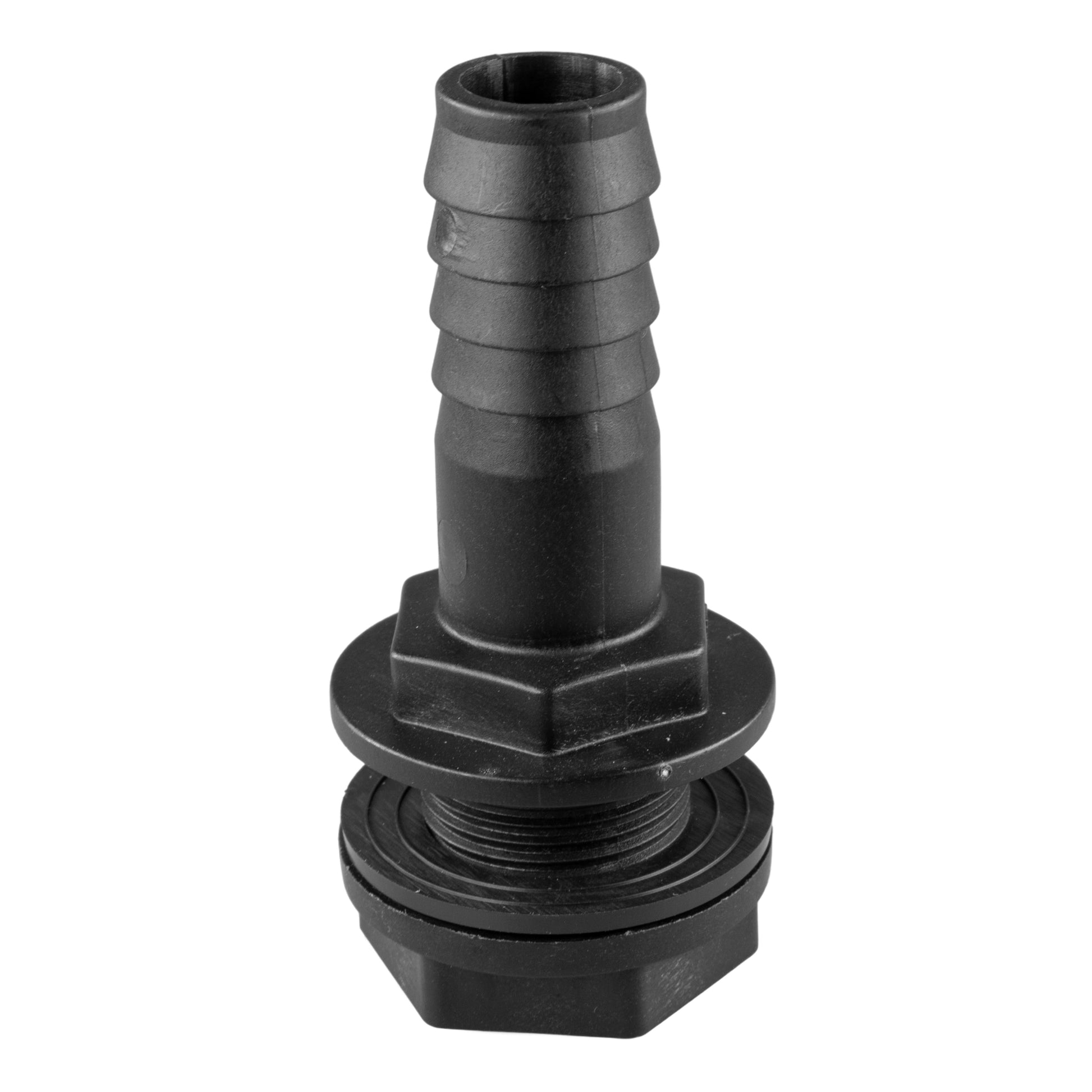

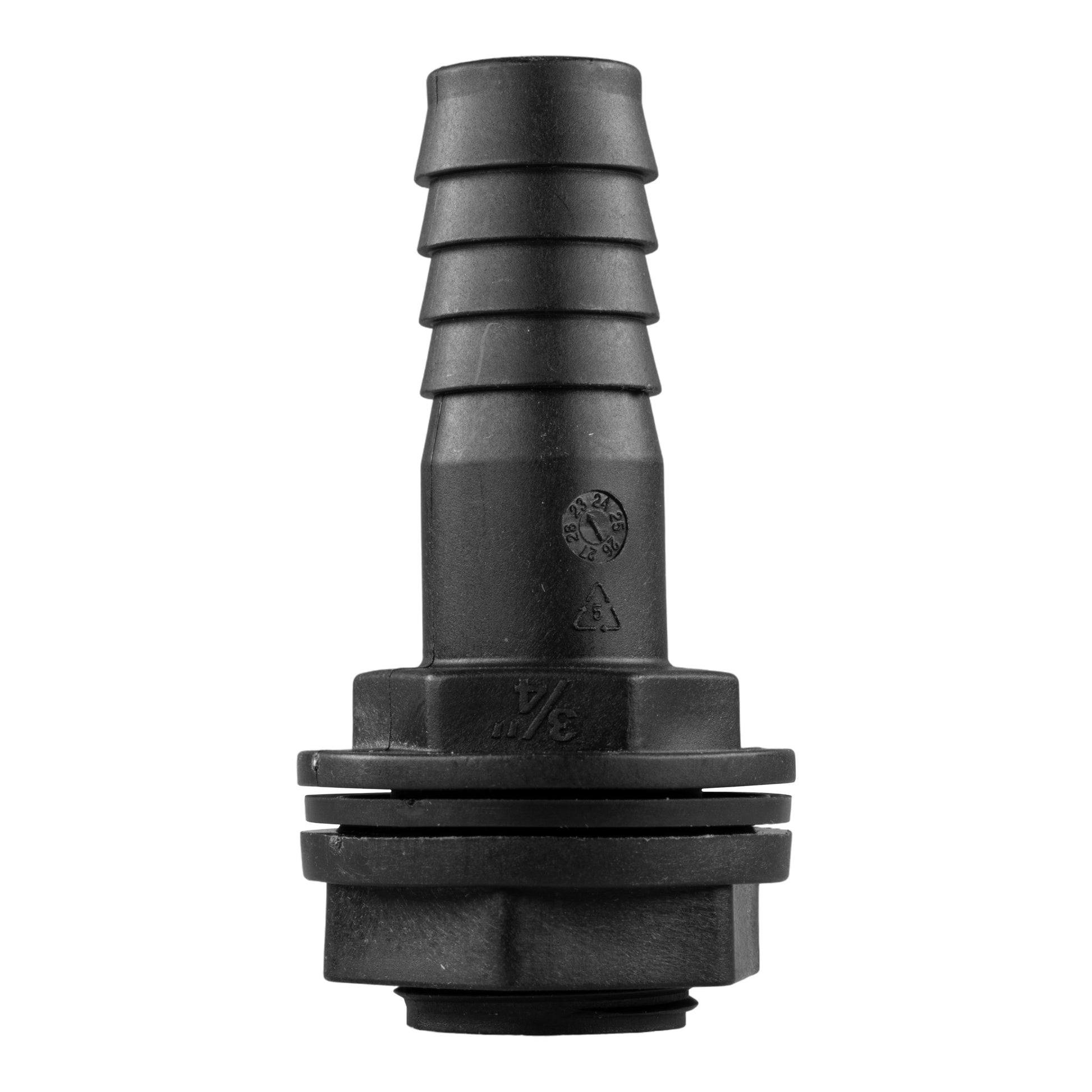

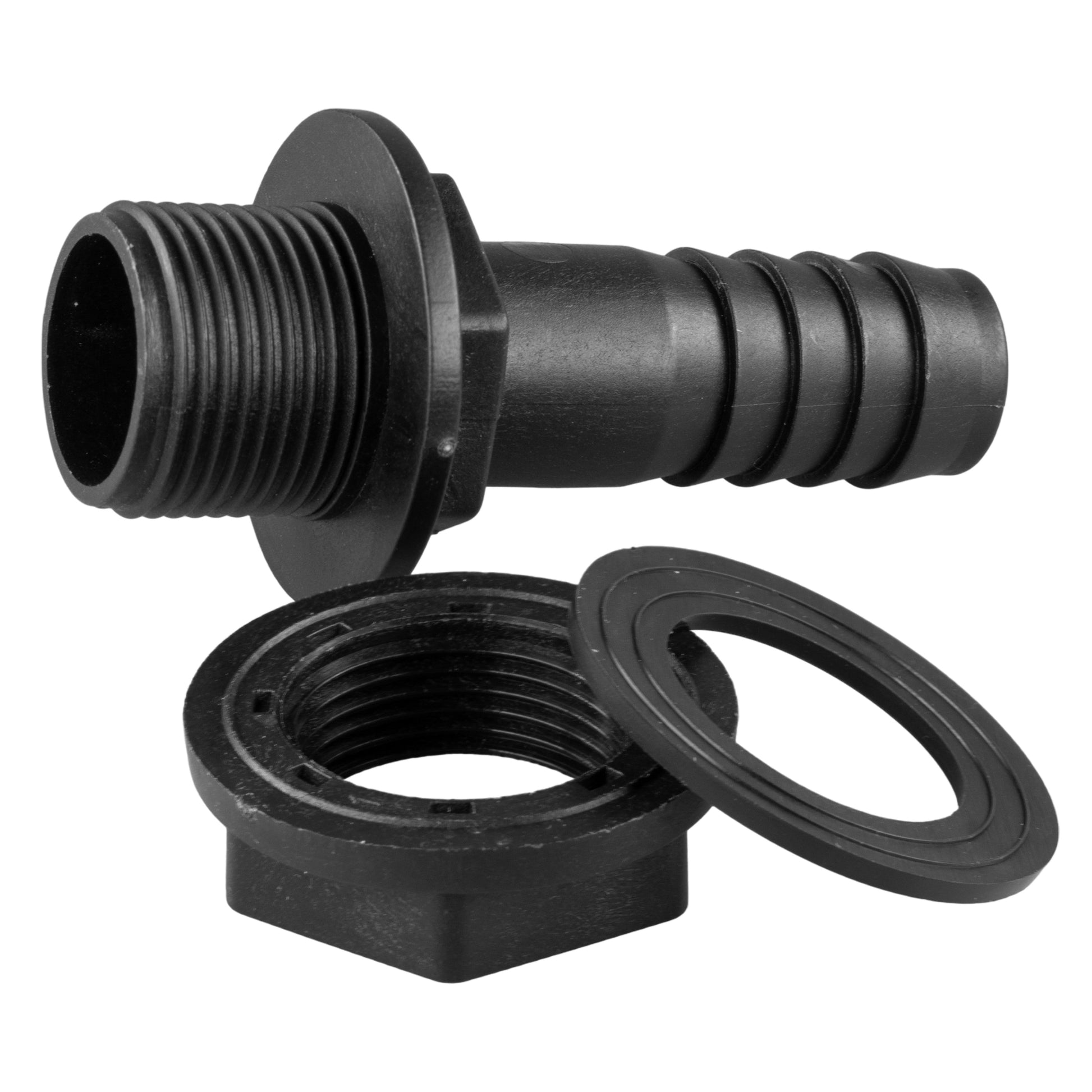

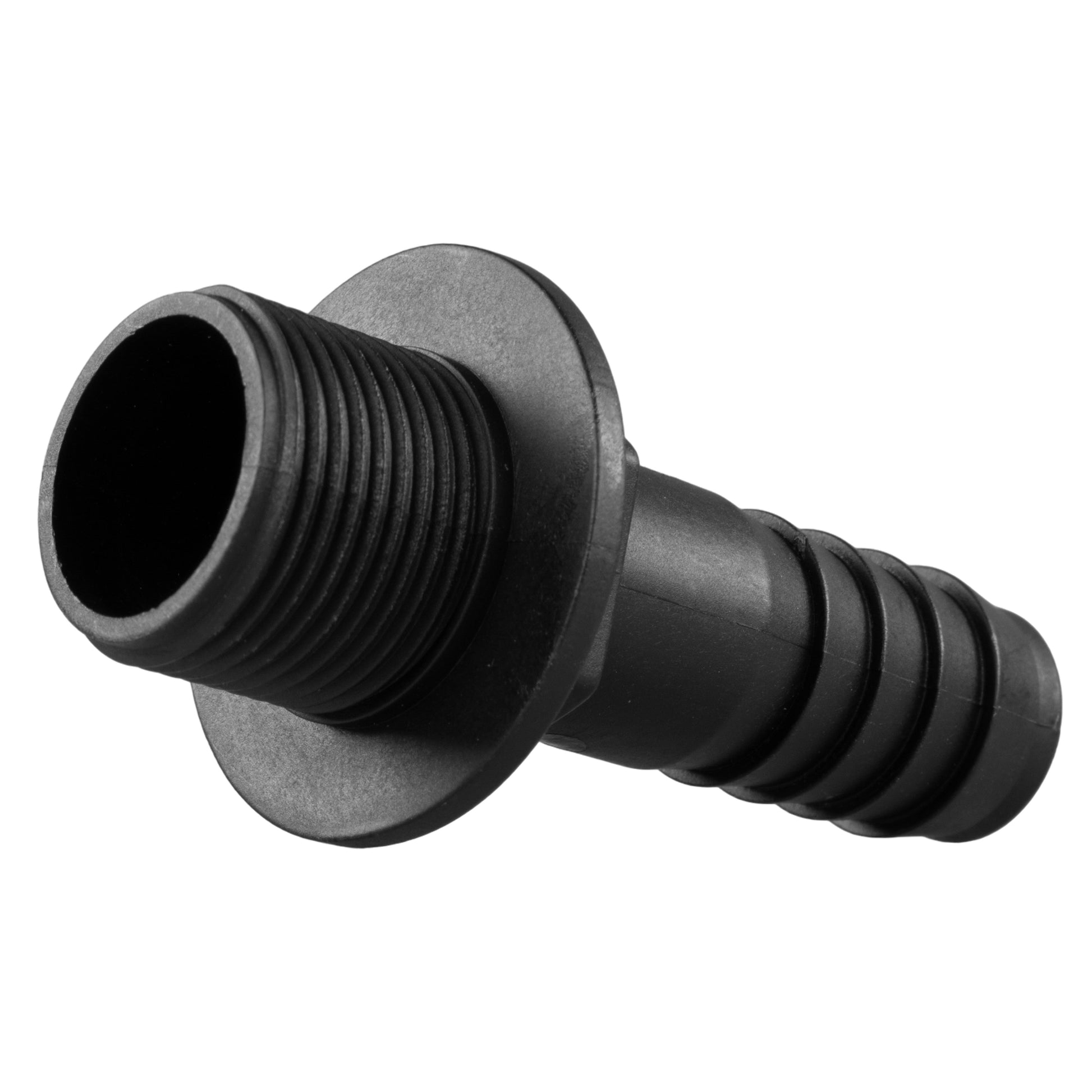

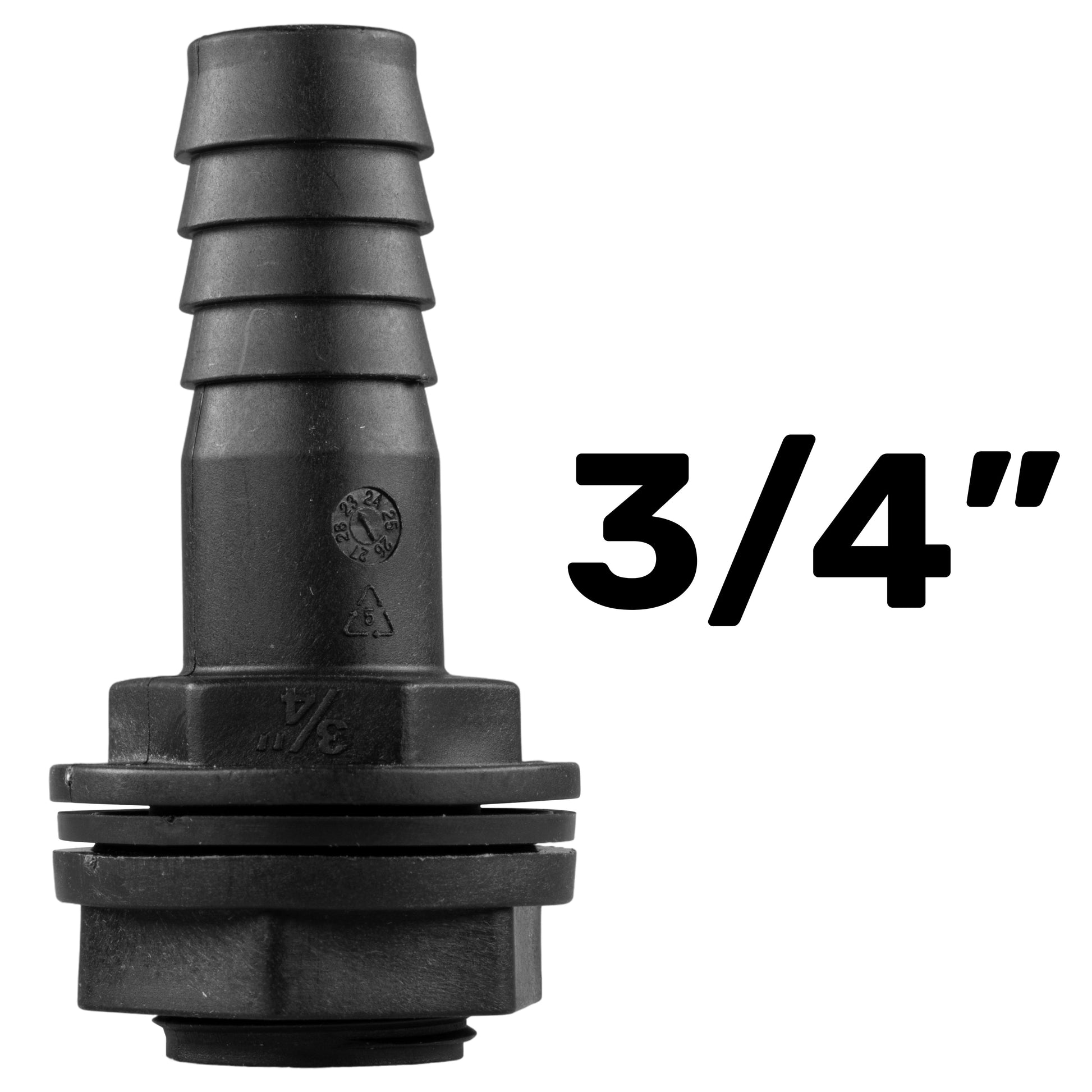

The photograph shows the actual connector, retaining back nut and single washer supplied. The threaded stem fixes at a suitable tank connection; the ribbed hosetail sits inside matching flexible pipe.

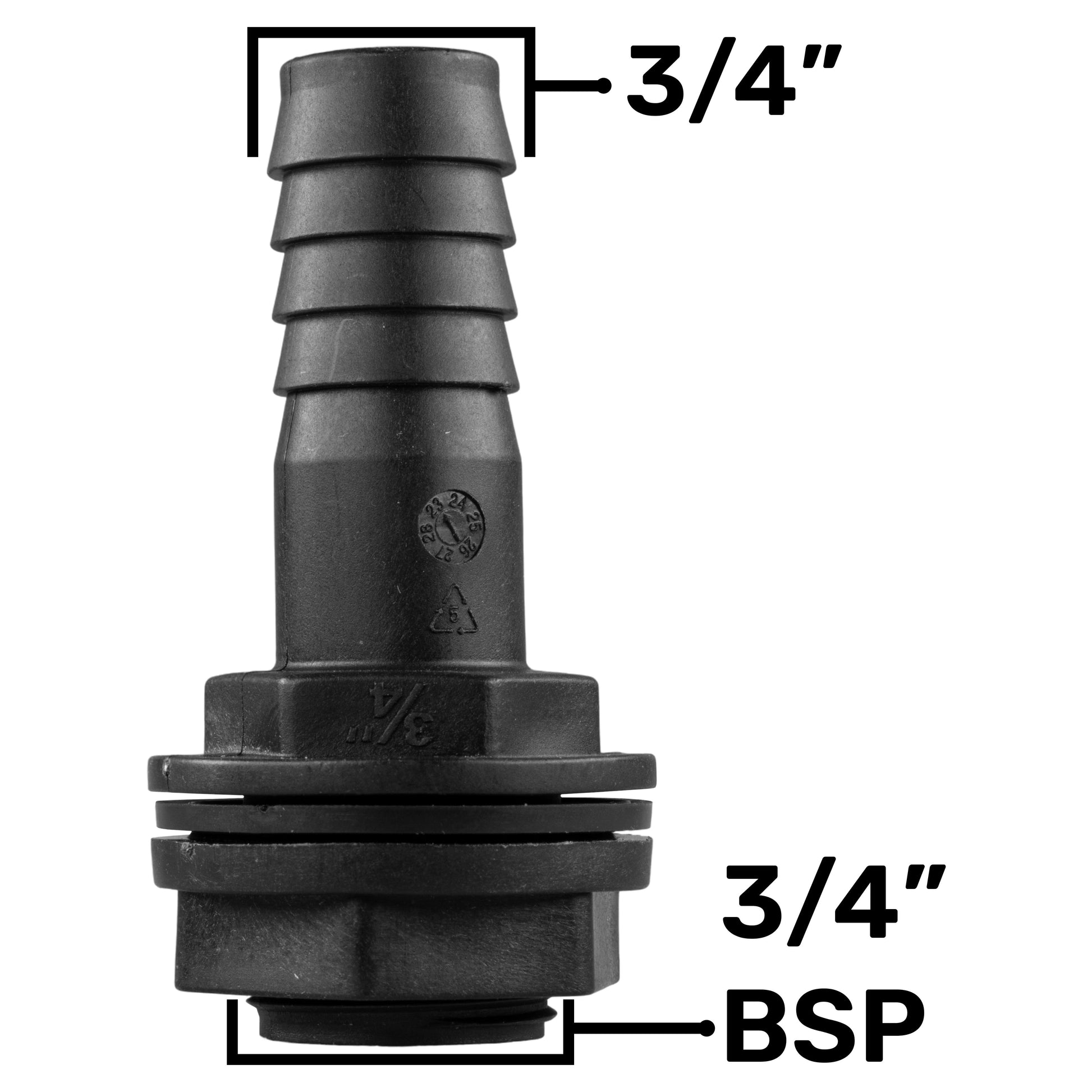

The tank side is ¾-inch BSP male. The hose side takes suitable pipe with a nominal 19mm internal diameter, also commonly described as ¾ inch. Check both interfaces rather than treating the inch labels as measured diameters.

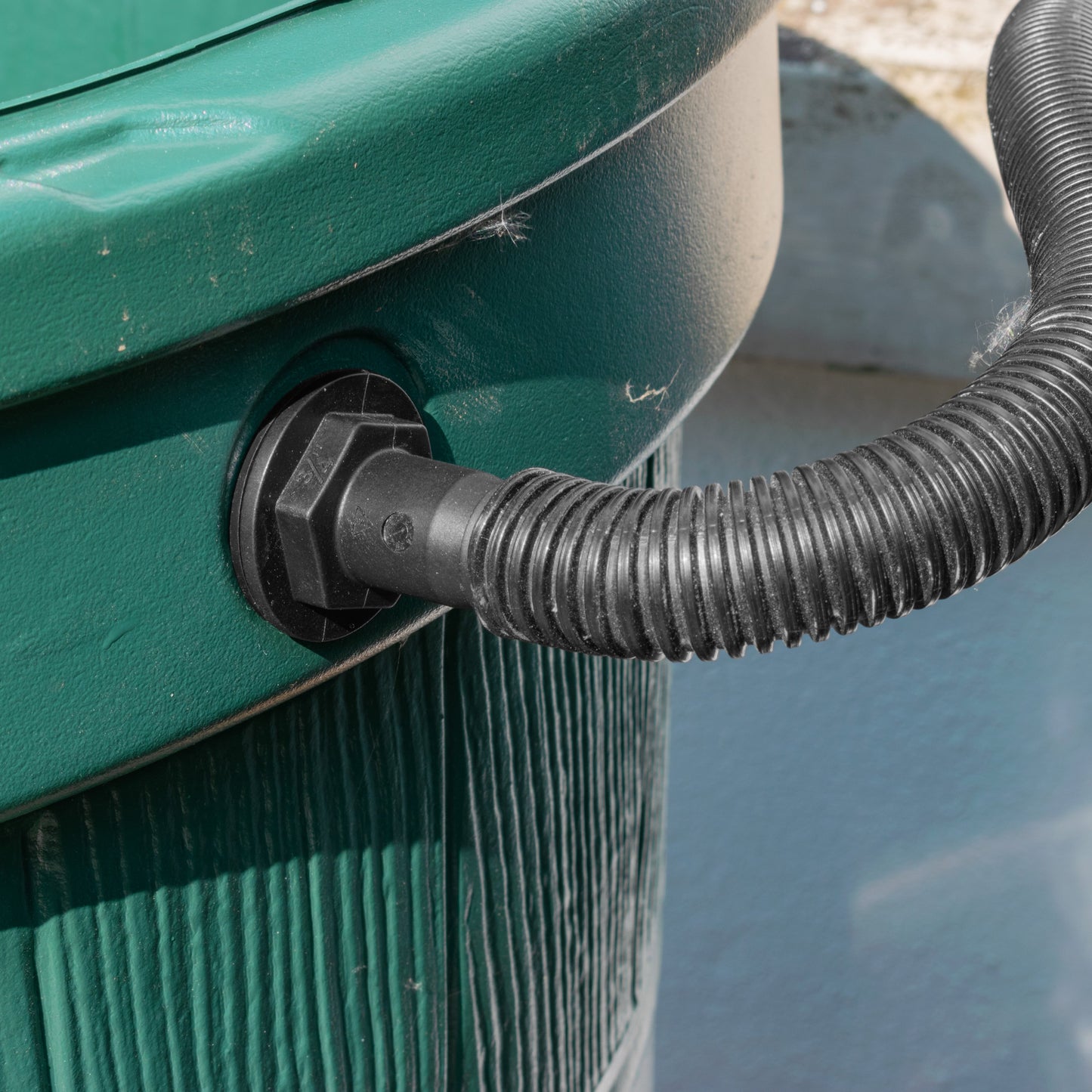

19mm flexible corrugated pipe is available in several lengths. Check the fit over the barb and allow enough length for a supported route.
Choose clips after measuring the outside of the assembled hose joint. 16-27mm hose clips are an option where that measured diameter falls within their range. Hose and clips are separate from this single connector.
Make room for the complete connection
Check access at the tank as well as the space needed by the hose.

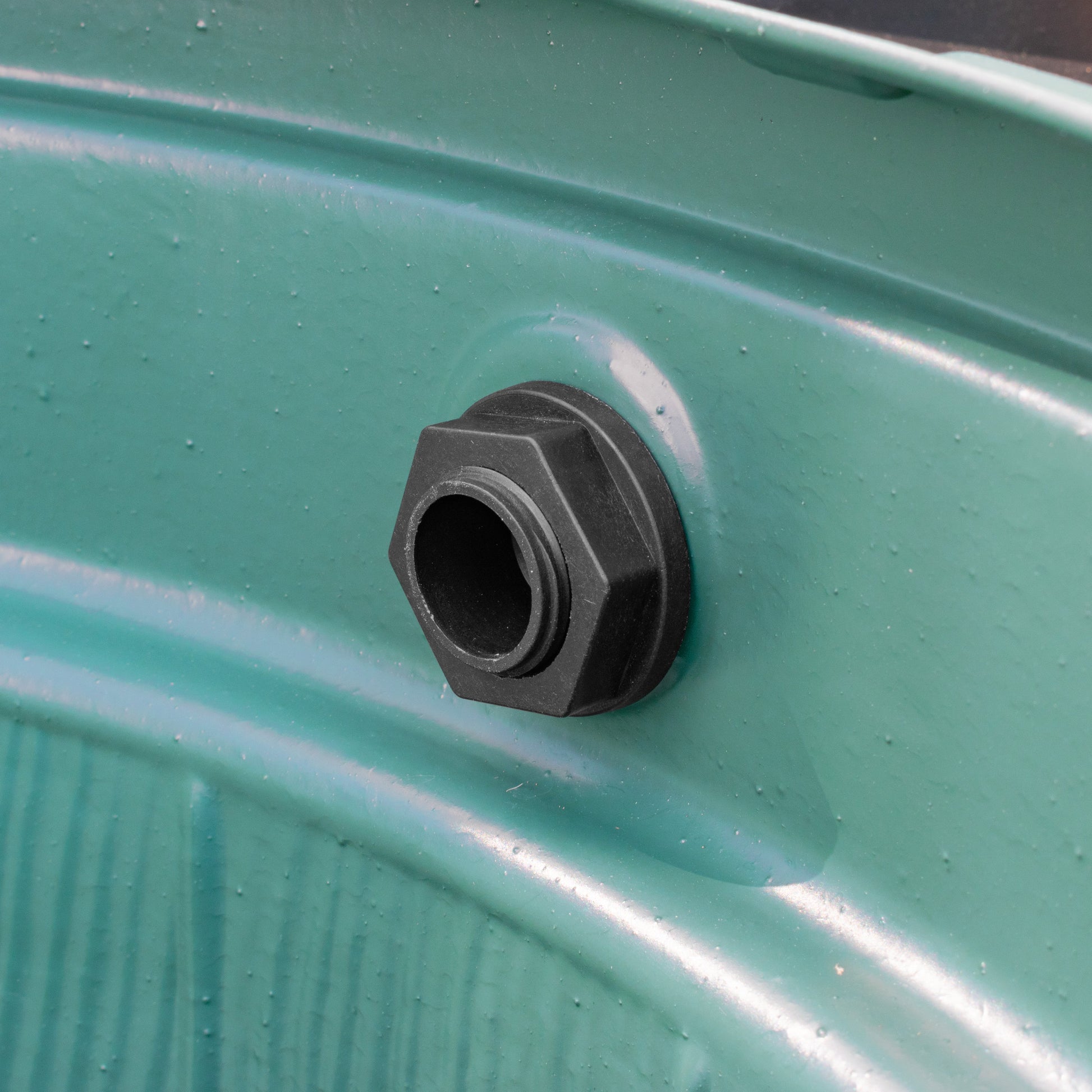

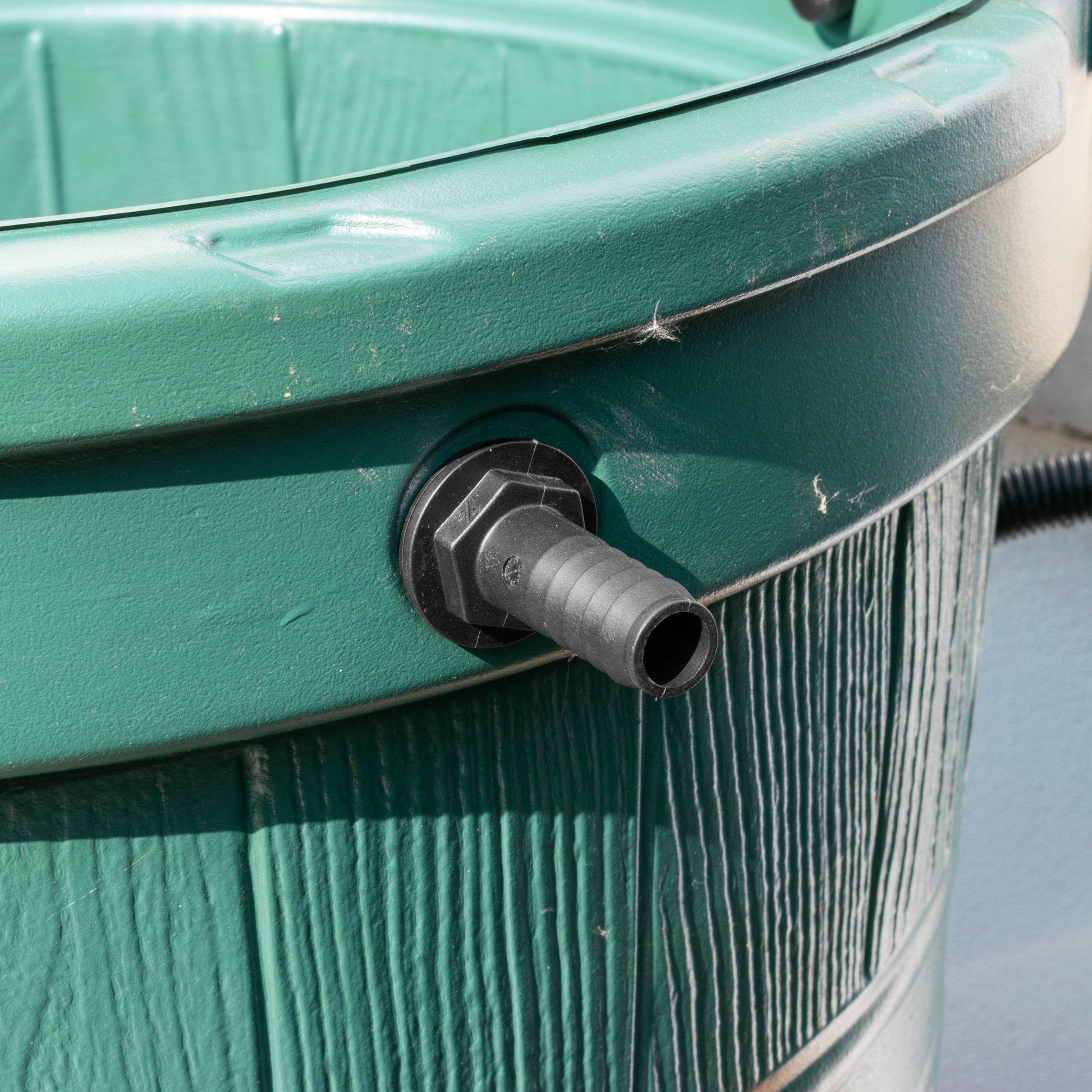

At the tank wall
Check the wall thickness, washer seating and room to reach the nut. An existing threaded outlet must match the ¾-inch BSP male stem. For a new opening, establish the size from the actual fitting and mounting parts rather than the nominal thread name.

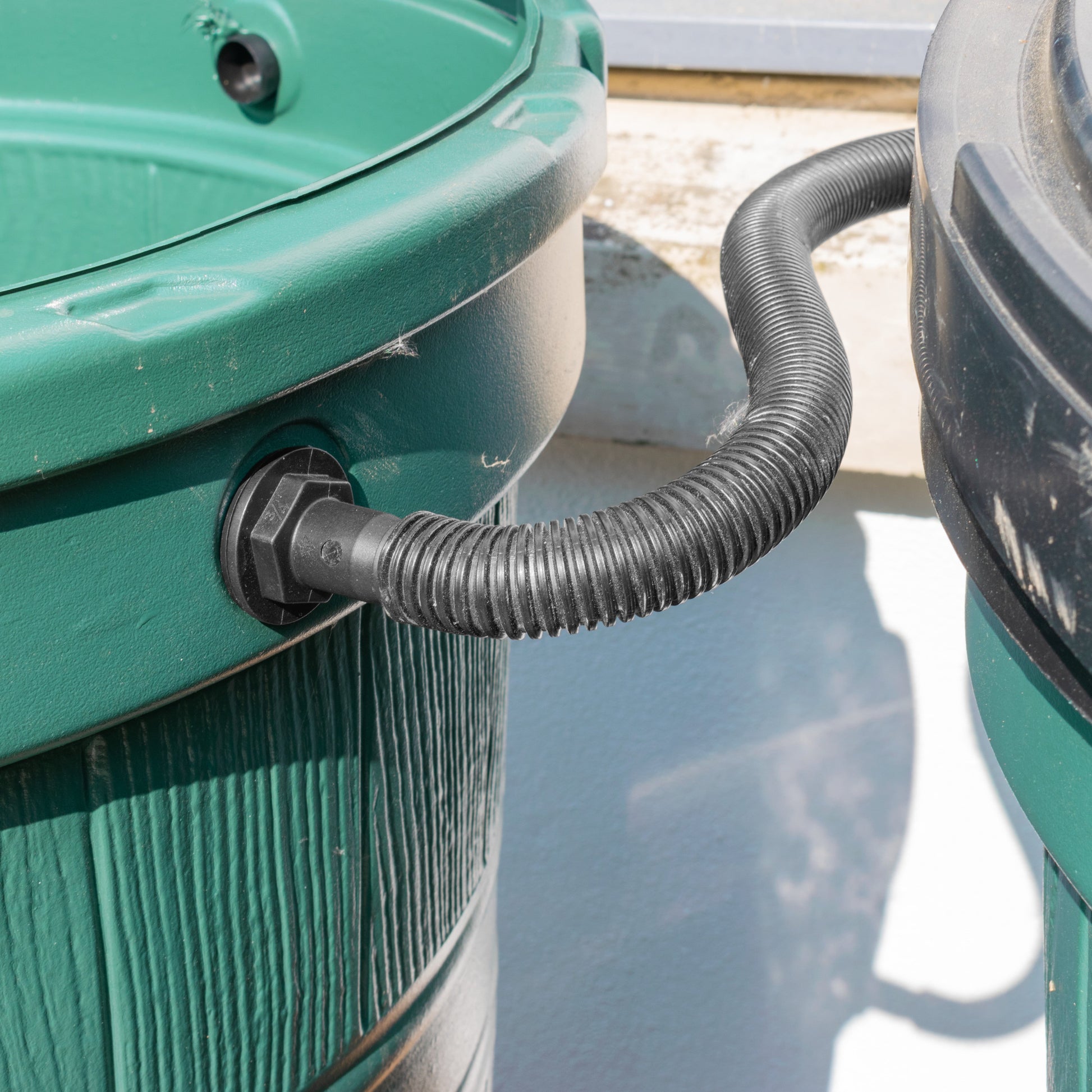

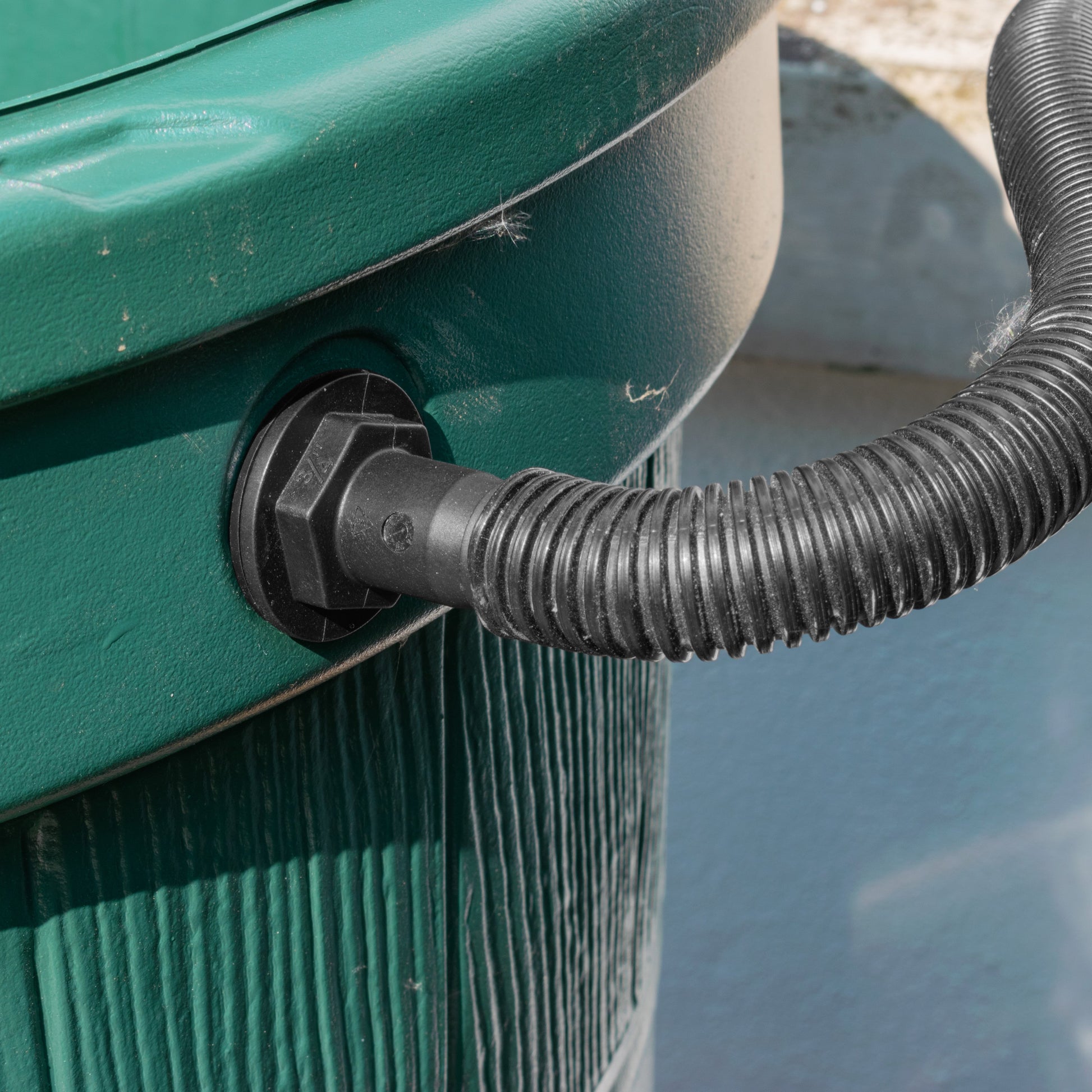

Beyond the outlet
Leave space for the barb, securing clip and any hose bend. Support the pipe so its weight and movement do not strain the plastic fitting, and avoid an abrupt change of direction immediately after the hosetail.
Before use
For overflow duty, lead the pipe to an appropriate discharge point and keep the route clear. Check the completed mounting seal and hose joint with water, then inspect them again with the hose settled in its final supported position.
Questions about this straight adapter
Does it fit any water butt with a ¾-inch outlet?
Check the actual outlet before ordering. The tank stem on this fitting is ¾-inch BSP male, so an existing threaded connection must match its size and gender. Wall thickness, washer seating and access to the nut also matter where the fitting passes through a tank wall.
Can I choose a drill size from the BSP label?
No. The ¾-inch BSP designation identifies a nominal thread size, not the diameter of a hole to drill. Check the actual stem, mounting parts and tank wall before choosing an opening. Allow a suitable seating surface for the washer and enough access to fit and tighten the nut.

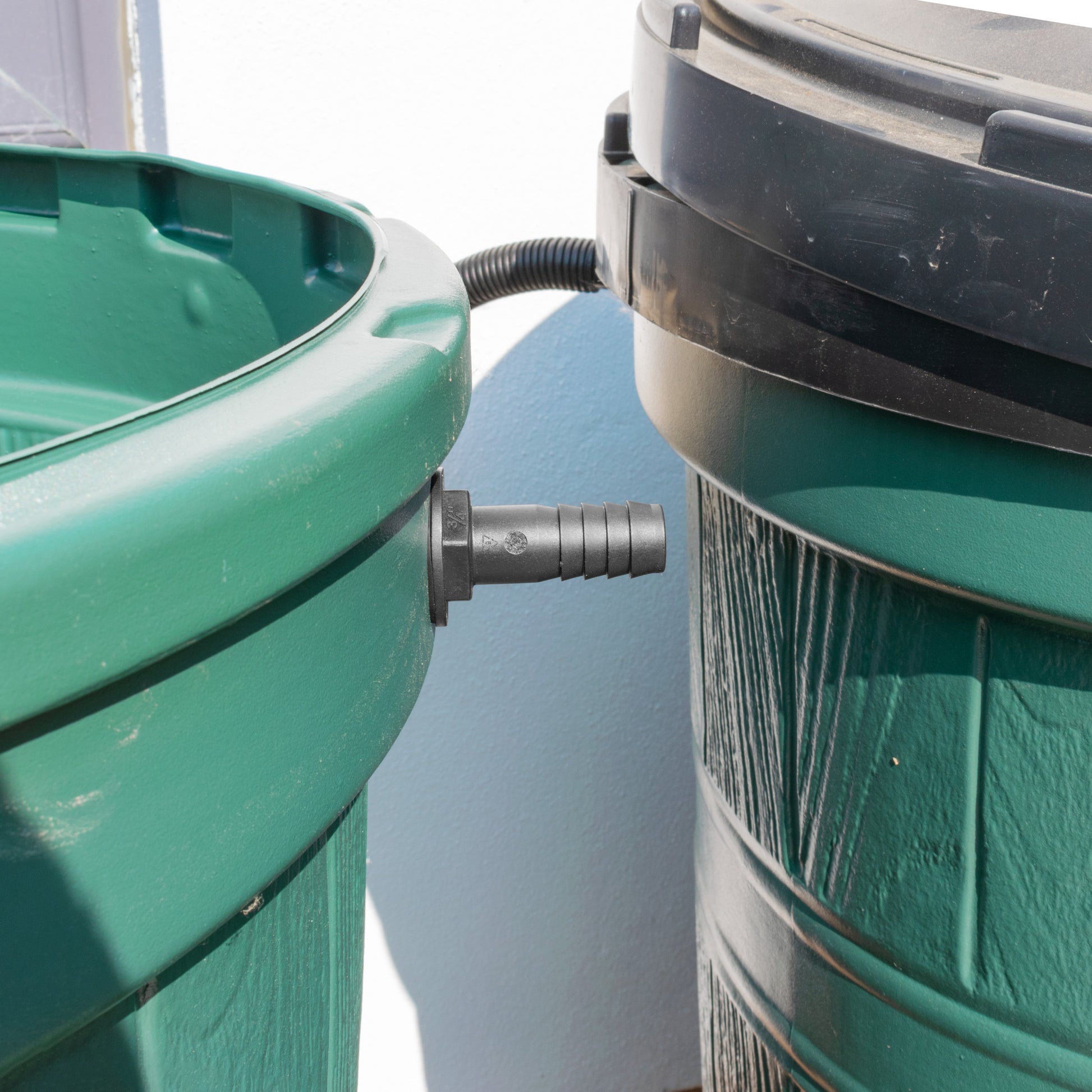

Is this a complete kit for linking two water butts?
No. You receive one straight connector, one back nut and one mounting washer. Linking two containers also needs a suitable connection at the other end, matching hose and securing clips. Plan the positions, pipe length and support for the complete route before ordering the parts.
Is it rated for mains water or pump pressure?
No pressure rating is specified for this fitting. Do not assume it is suitable for mains water or a pressurised pump outlet; those connections require components with confirmed ratings. For water butt use, support the hose and check both the tank seal and hose joint with water.
Product information & technical details
| SKU | BUTT34BSPM-34B001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 19mm (3/4") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection configuration | Straight |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 straight connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
