Description

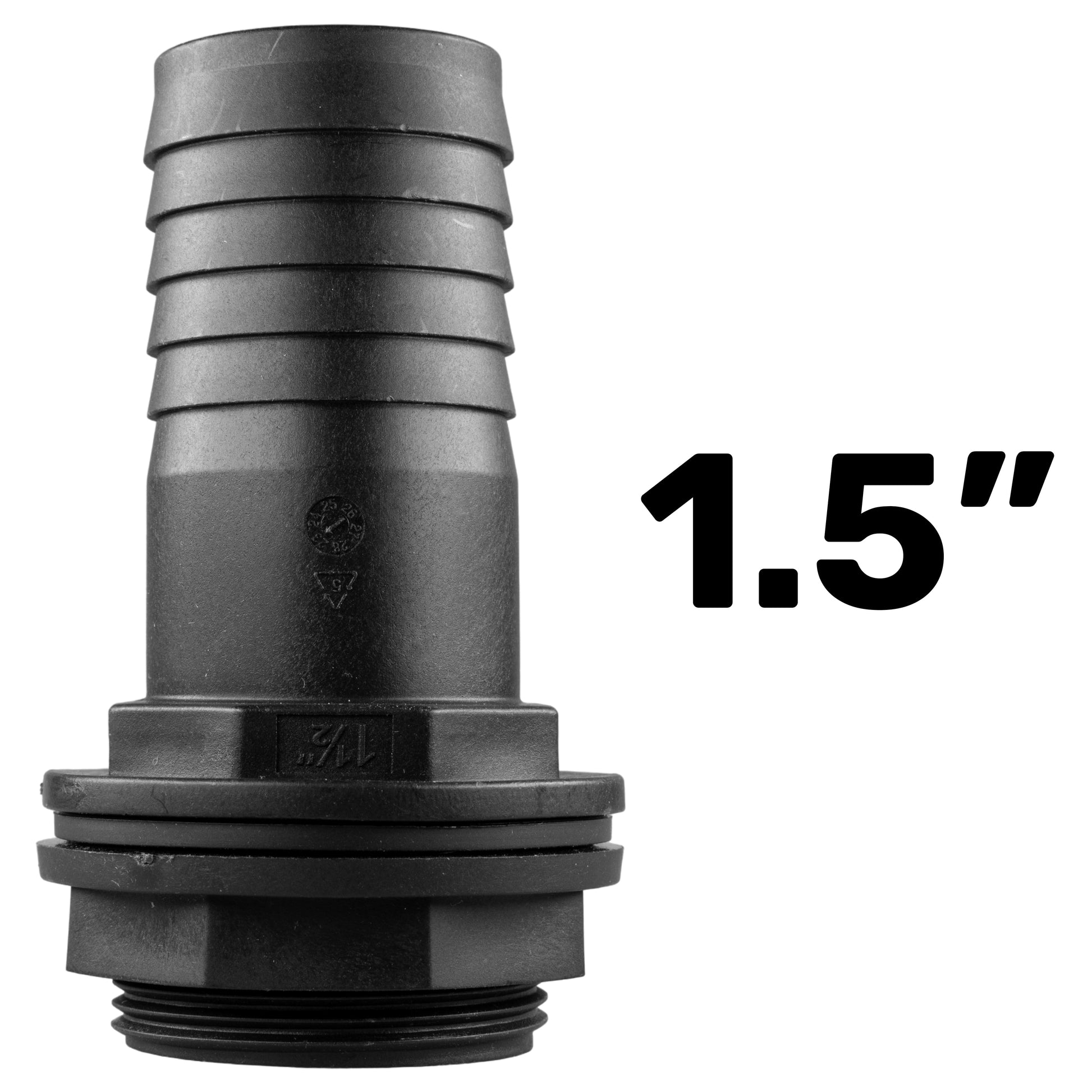

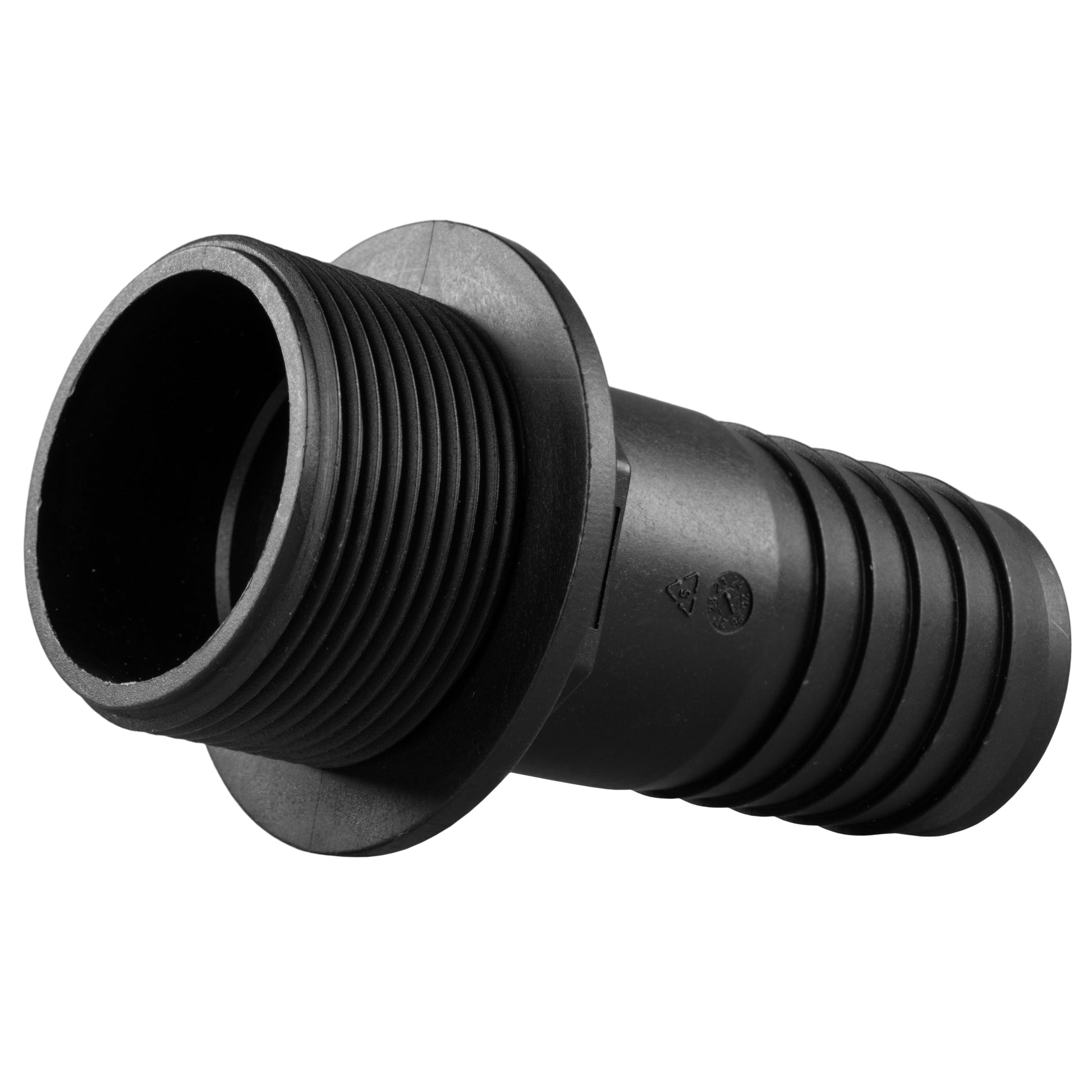

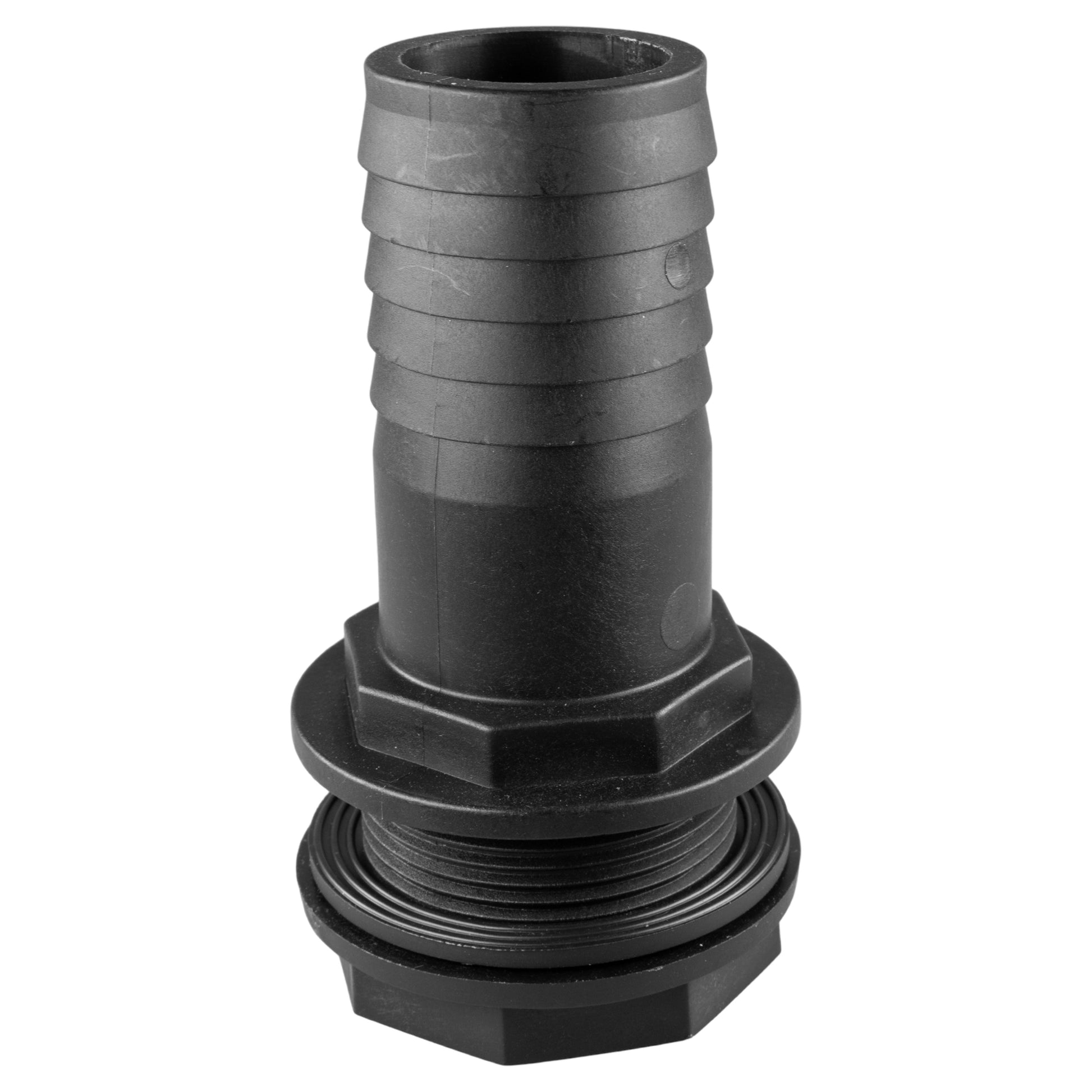

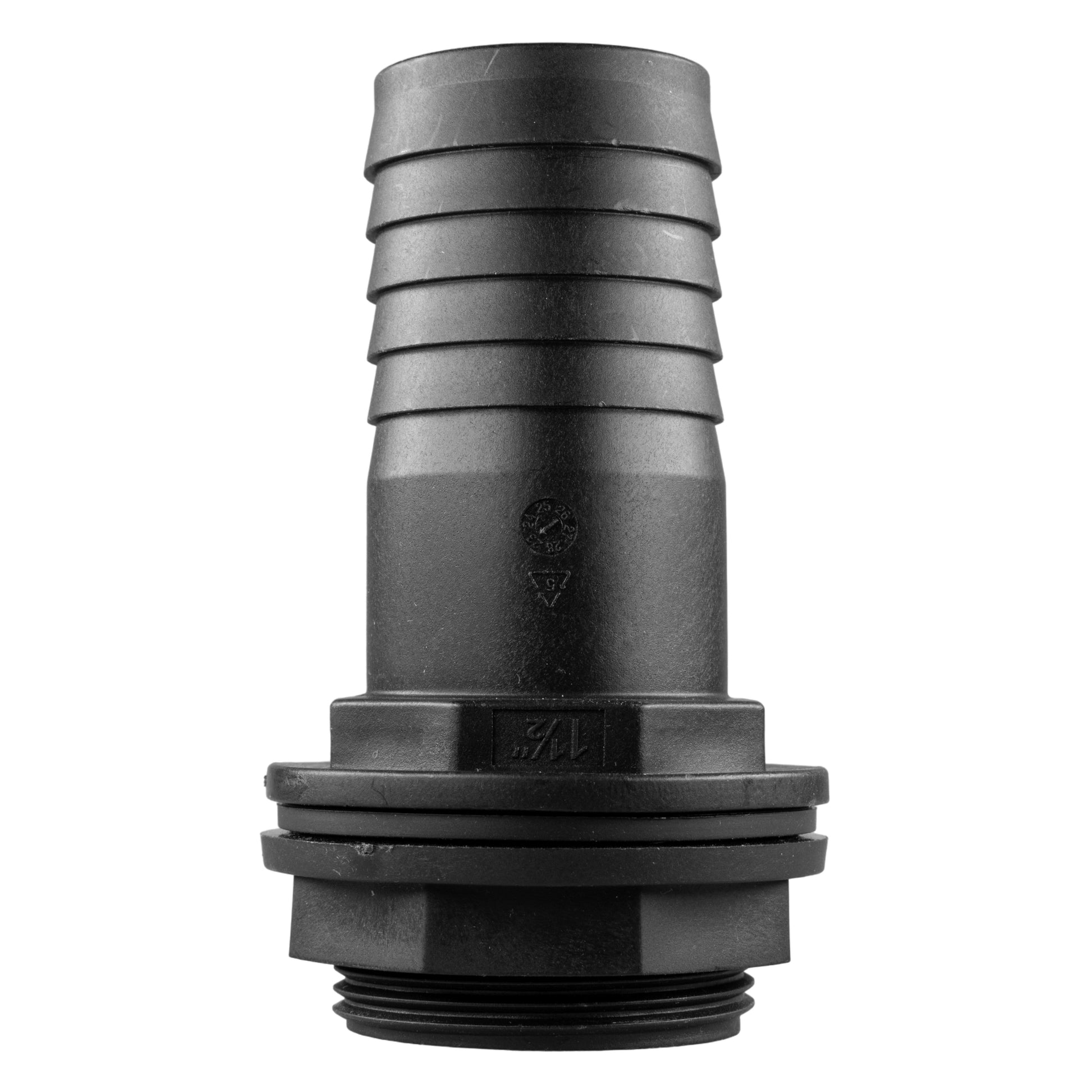

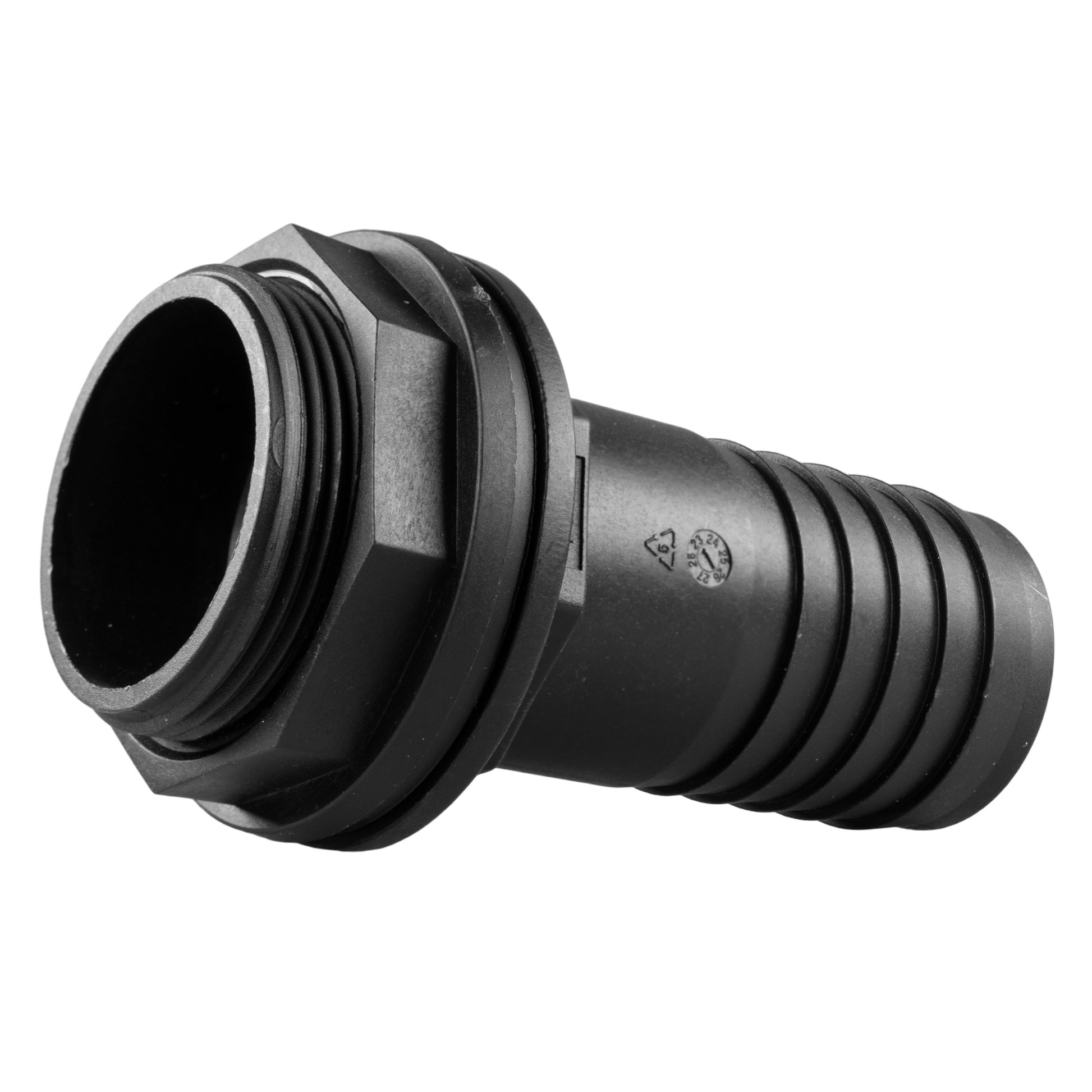

A straight 38mm outlet
A straight black plastic connector for a suitable water butt or tank.
1½-inch BSP male thread with a ribbed hosetail for nominal 38mm flexible pipe.
One fitting, back nut and washer. Hose and clips sold separately.
Know which size to match

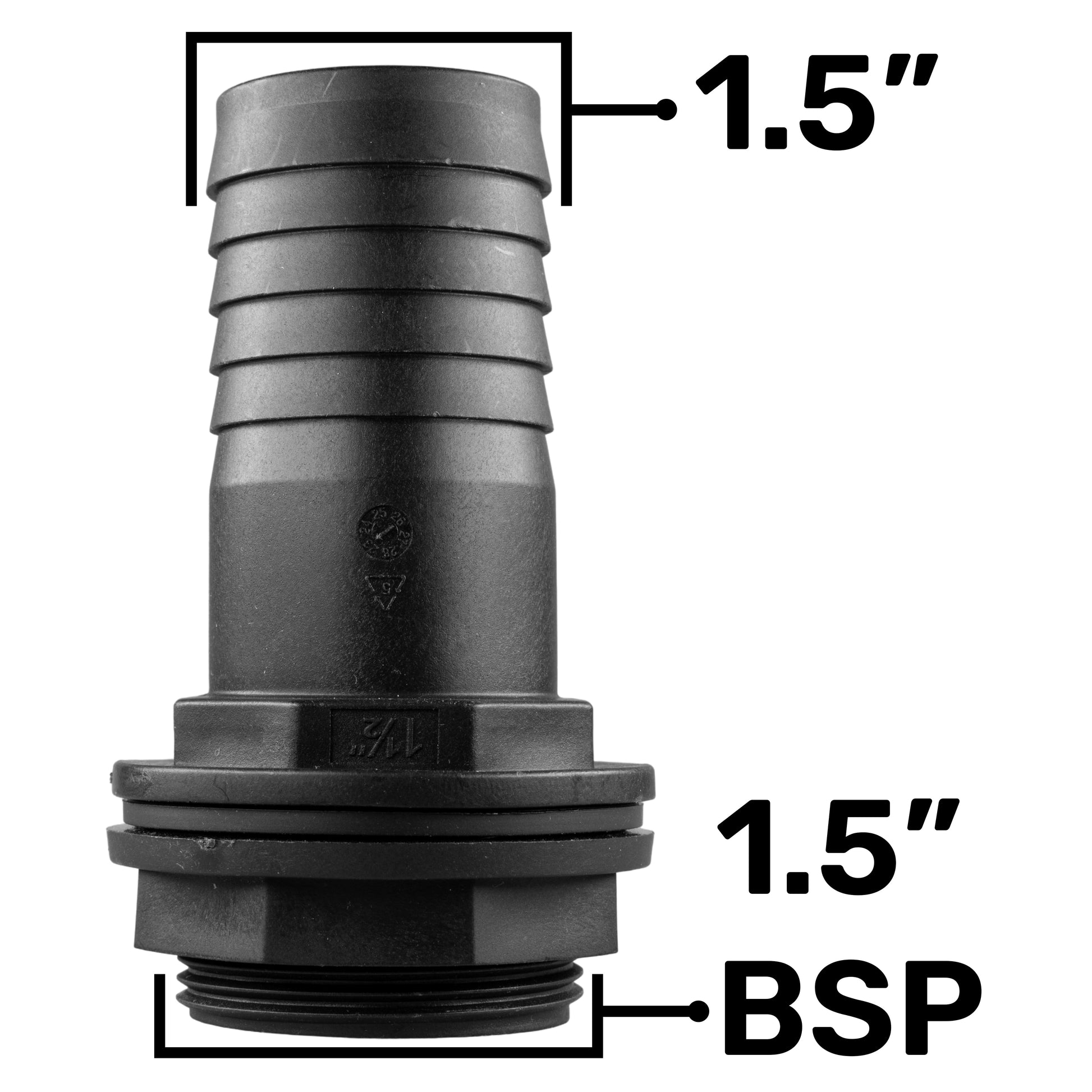

The threaded end is a 1½-inch BSP male tank connection. At the other end, the ribbed hosetail takes suitable nominal 38mm internal-diameter hose, often described as 1½ inch pipe.

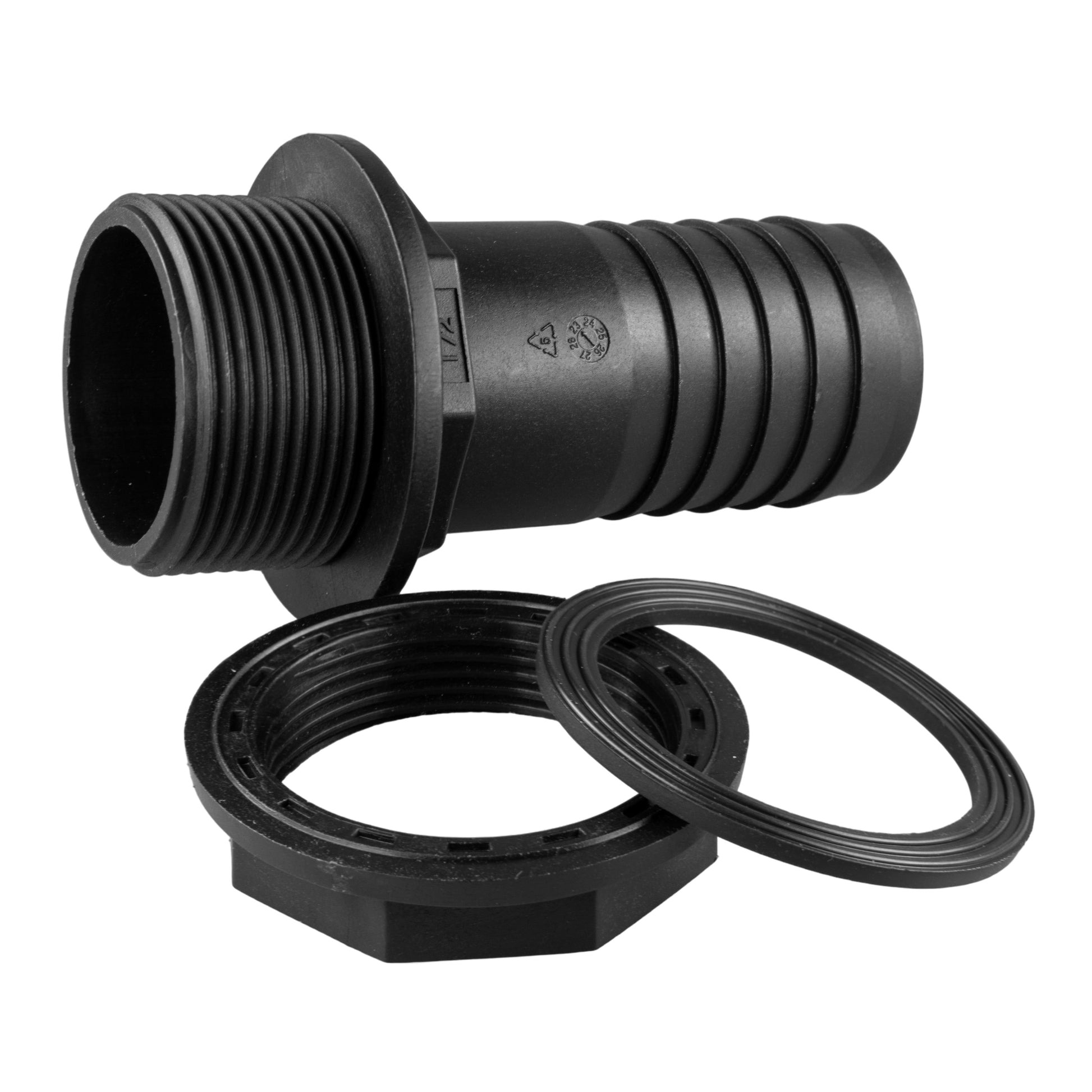

The actual photograph shows one straight connector, one back nut and one mounting washer. Hose, clips, tools and any additional sealing materials are separate.
BSP is a nominal thread designation, not a measurement for drilling the tank. Likewise, the 38mm hose bore is not the outside diameter of the completed hose joint. Check the actual fitting, mounting area and pipe before selecting an opening or clip.
38mm corrugated flexible hose is available separately. 38-43mm double-wire hose clips are one option where the measured outside diameter of the assembled joint is within their range. Check current availability and suitability before ordering.
Plan the straight hose route
Allow room at the tank and support the pipe beyond the outlet.
Check the mounting area
Match an existing threaded outlet to the 1½-inch BSP male stem. For a plain opening, check the actual connector, mounting parts, wall thickness and washer seating before choosing a hole size. Leave access to secure the nut.
Leave space for the pipe
The hose leaves in line with the connector. Allow clearance for the hosetail and clip, with gentle bends beyond the fitting. Support the hose so its weight and movement do not pull on the tank wall.
Inspect the completed joints
Lead an overflow to a suitable discharge point and keep its route unobstructed. Check the tank-wall seal and hose connection with water after fitting, then inspect both again once the hose has settled into position.
Fitting and hose questions
Is 1½-inch BSP the same as a 38mm tank hole?
No. BSP is a nominal thread designation, while 38mm here describes the nominal internal diameter of the hose. Check the actual connector and mounting parts, tank wall thickness and washer seating before selecting an opening. Do not drill from the BSP name alone.
Do I receive one fitting or a pair?
This listing supplies one straight black plastic connector with one retaining back nut and one mounting washer. It is not a pair or a complete two-tank linking kit. Hose, securing clips, other connections and tools are separate, so plan the complete installation before ordering.
How do I choose the hose and clip?
Choose suitable flexible pipe with a nominal 38mm internal diameter and check its actual fit over the ribbed barb. Measure the outside of that assembled hose joint to select a clip range. The pipe’s nominal bore is not enough to establish the required clip size.
Can it be connected to mains water or a pressurised pump?
No pressure rating is specified for this fitting, so do not assume suitability for mains water or a pressurised pump outlet. Those systems need components with confirmed ratings. For a water butt connection, support the pipe and check both finished joints with water.
Product information & technical details
| SKU | BUTT15BSPM-15B001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Male |
| Barb size | 38mm (1.5") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection configuration | Straight |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 straight connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
