Description
Connect a 32mm hose
A straight black plastic adapter for a suitable water butt or tank connection.
1¼-inch BSP male thread and a hosetail for nominal 32mm flexible pipe.
One connector with back nut and washer. Hose and clips separate.
Check the complete connection
Match the tank mounting, hose and securing clip before fitting.
At the tank
Check the 1¼-inch BSP male thread against an existing threaded outlet. For a plain opening, check the actual stem, mounting parts, wall thickness and washer seat before choosing a hole size. Leave access to secure the nut.
At the hose
Choose suitable flexible pipe with a nominal 32mm internal diameter. It needs room to fit over the barb, with clearance for a securing clip and a gentle bend beyond the straight outlet.
Along the route
Support the hose so its weight and movement do not strain the adapter. Keep an overflow route clear to a suitable discharge point, then check both the tank-wall seal and hose joint with water after installation.
What comes with the adapter

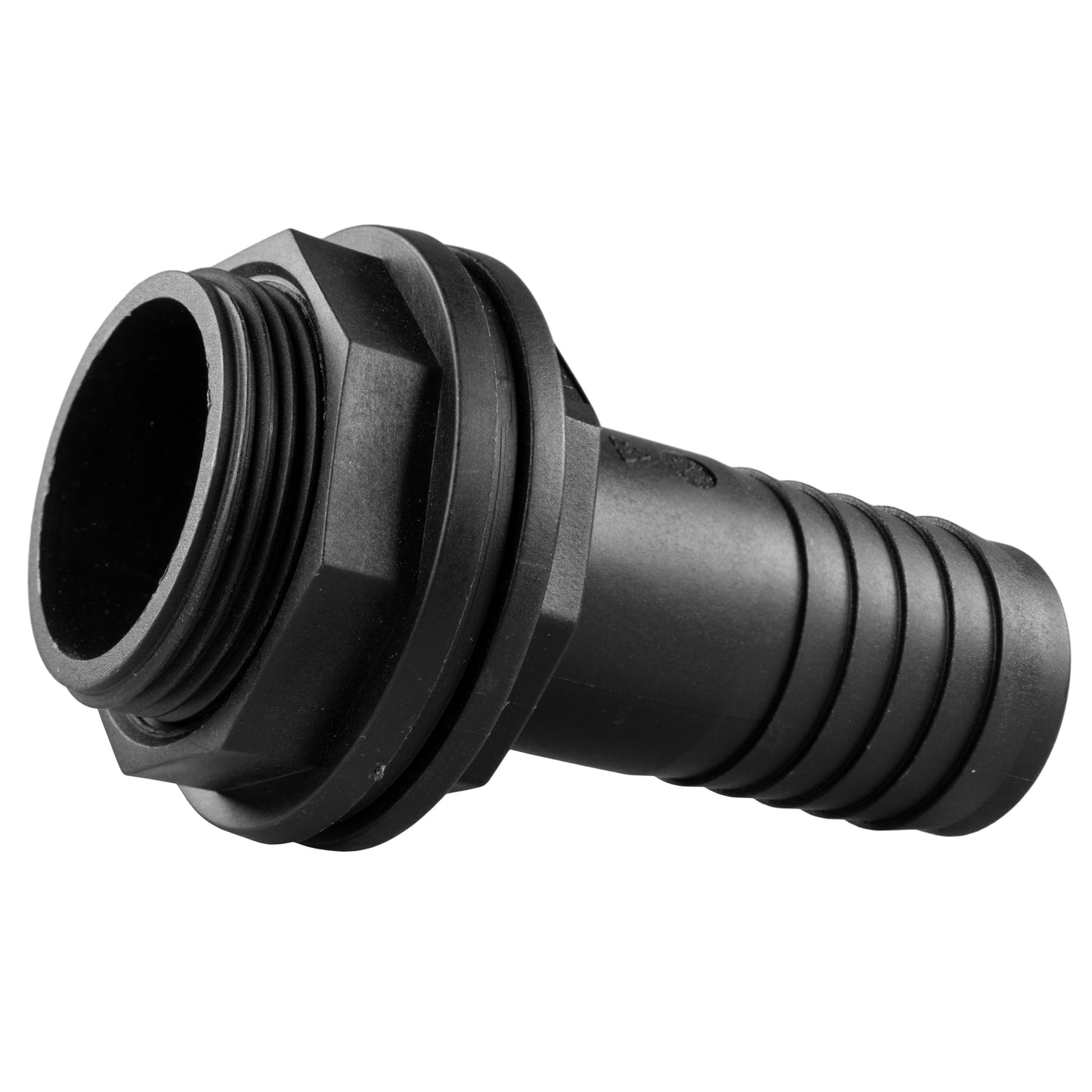

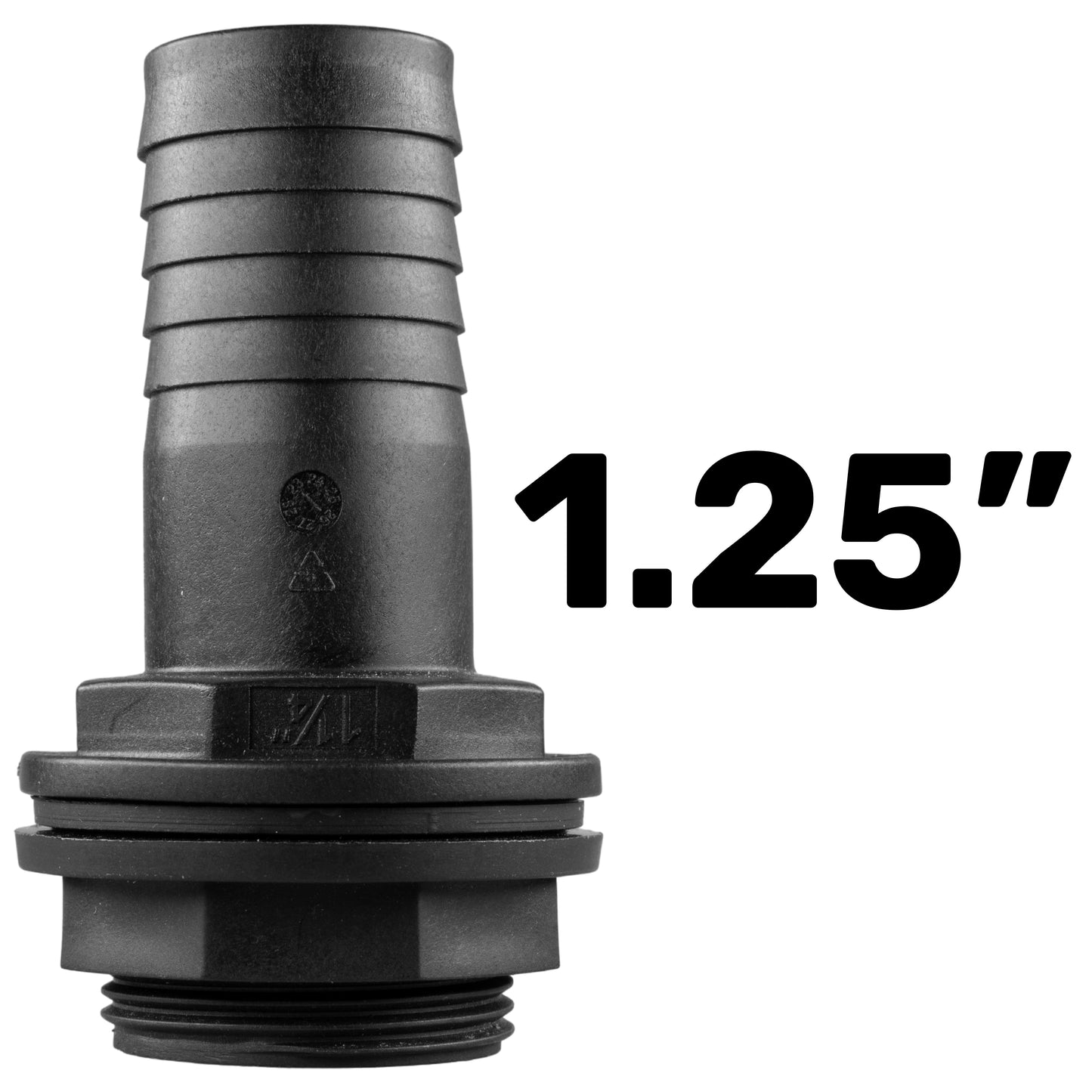

The photograph shows one straight connector, one back nut and one washer. Hose, clips, tools and any additional sealing materials are separate.
The ribbed end takes suitable nominal 32mm internal-diameter hose, often called 1¼ inch pipe. The other end is a 1¼-inch BSP male tank thread. These describe different connections; neither is an instruction for cutting a tank opening.
32mm corrugated flexible hose is available in several lengths. Plan your actual pipe run with enough clearance to avoid a tight bend at the outlet, and keep its weight supported.
Choose a clip from the outside diameter of the hose fitted over the barb. 32-36mm double-wire hose clips are an option where that assembled diameter is within their range. Check fit before tightening, and avoid crushing the pipe or straining the plastic.
Before ordering and fitting
Does it include the 32mm hose?
No. This item contains one straight black plastic adapter with a back nut and single mounting washer. Suitable nominal 32mm flexible hose and securing clips are sold separately. Choose the hose length for your route and match clips to the measured outside of the assembled joint.
Does 1¼-inch BSP mean a 32mm hole in the tank?
No. BSP is a nominal thread designation, while 32mm here is the nominal internal diameter of the hose. Check the actual threaded stem, mounting parts, wall thickness and washer seating before selecting an opening size. Do not drill using the BSP designation alone.
Will the straight connector suit a tight corner?
The hosetail and tank thread are in line, so the hose leaves directly away from the mounting surface. Allow room for the fitting, clip and the pipe’s bend beyond the outlet. Check that layout against the available space before choosing a straight connection instead of an elbow.
Is it suitable for a pressurised pump outlet?
No pressure rating is specified for this adapter, so do not assume suitability for a pressurised pump outlet or mains-pressure water. Those applications need components with confirmed ratings. For a water butt connection, support the pipe and check both completed joints with water.
Product information & technical details
| SKU | BUTT125BSPM-125B001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Male |
| Barb size | 32mm (1.25") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection configuration | Straight |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 straight connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
