Description
A straight 13mm connection
A ½-inch BSP male tank connector with a ribbed hosetail for nominal 13mm flexible pipe.

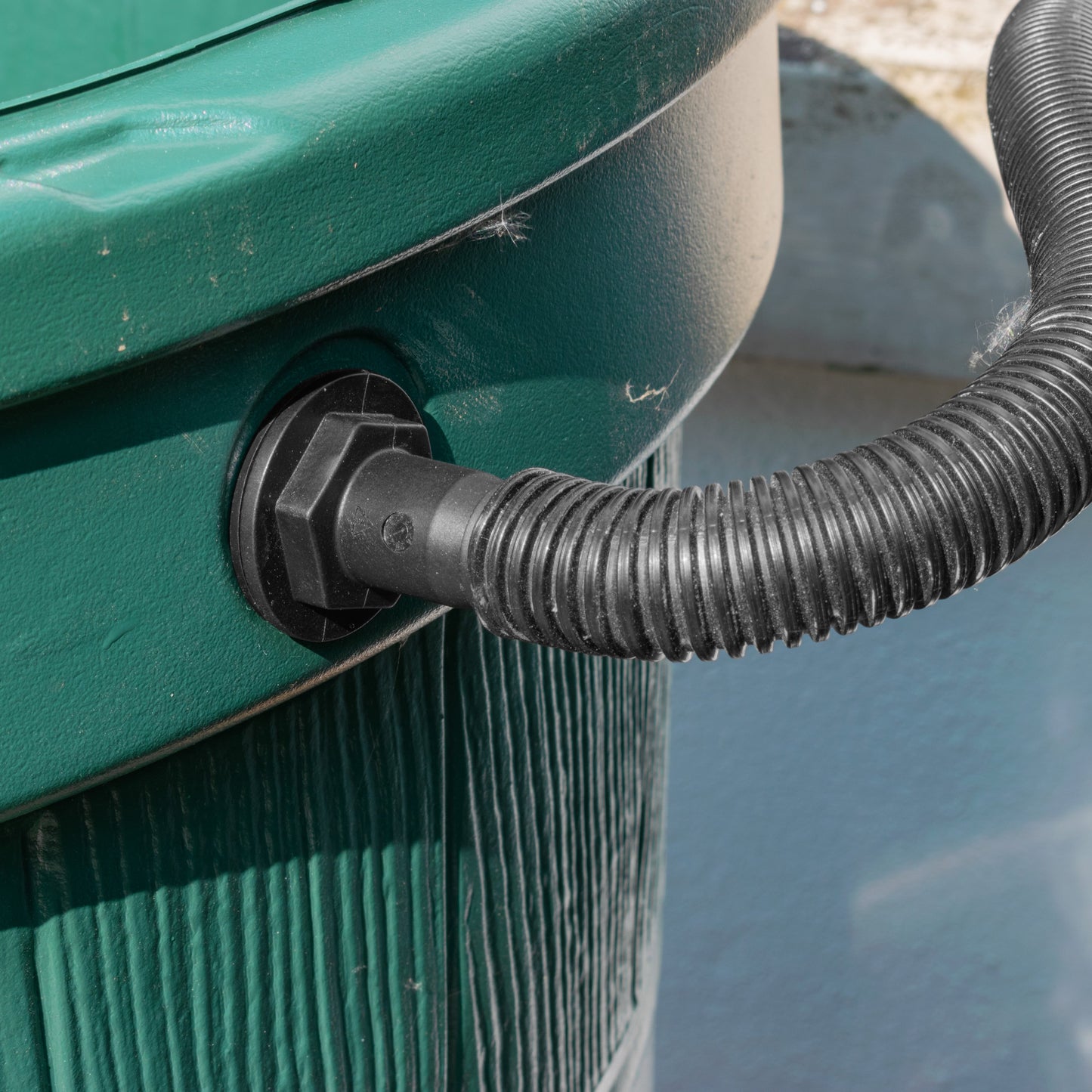

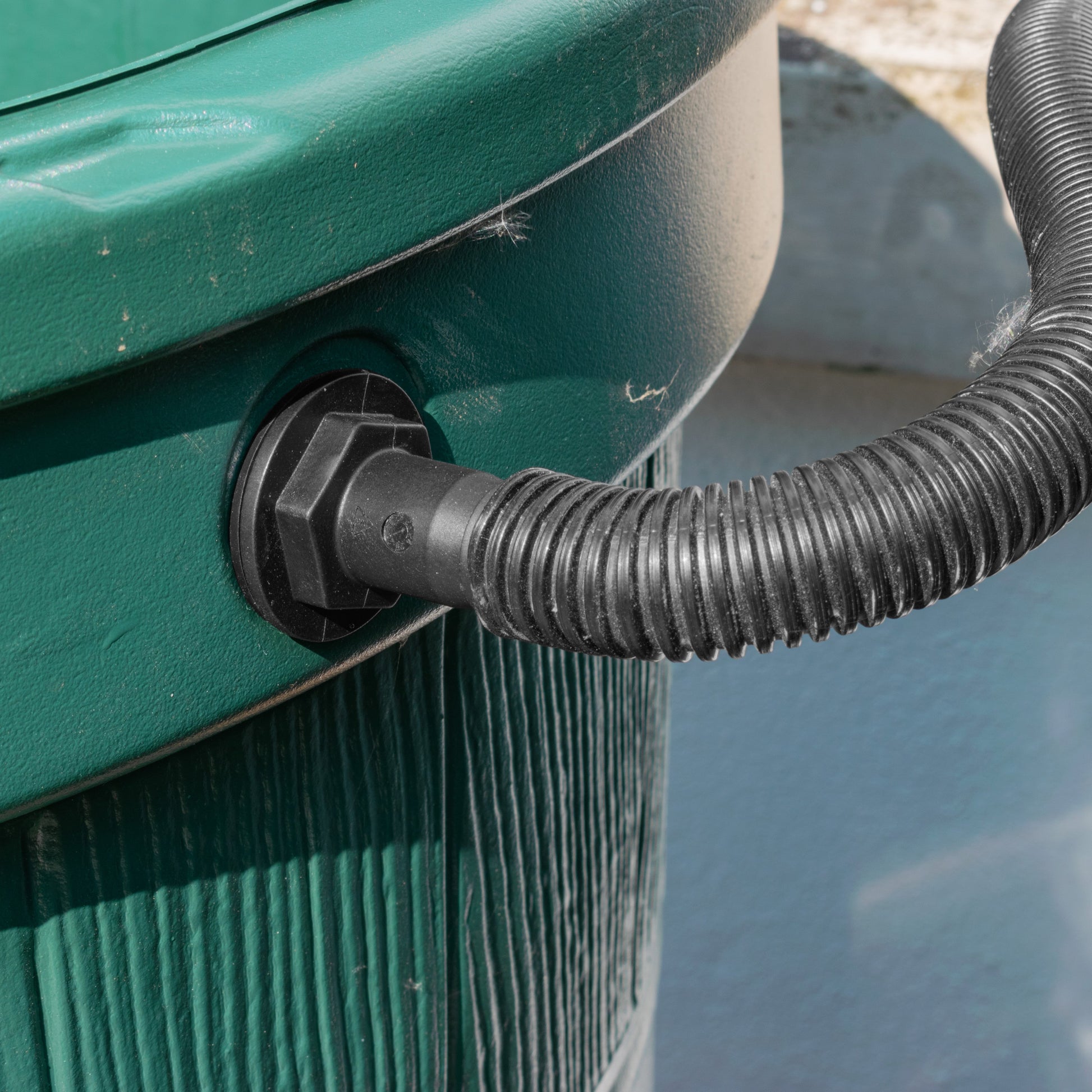

The straight body takes the hose directly away from a suitable water butt or tank wall.
One black plastic fitting, nut and washer. Hose and clips separate.
Match the thread and hose separately

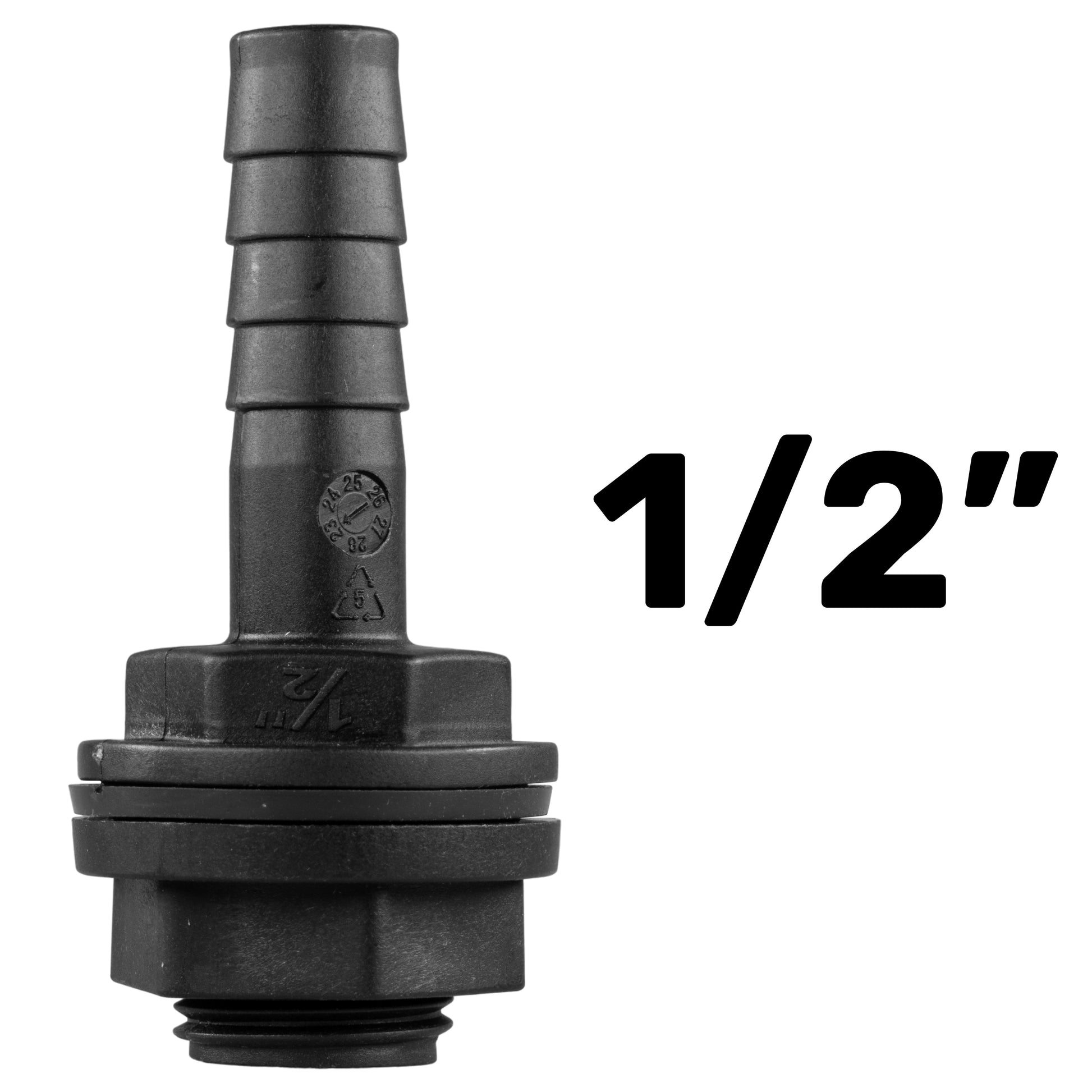

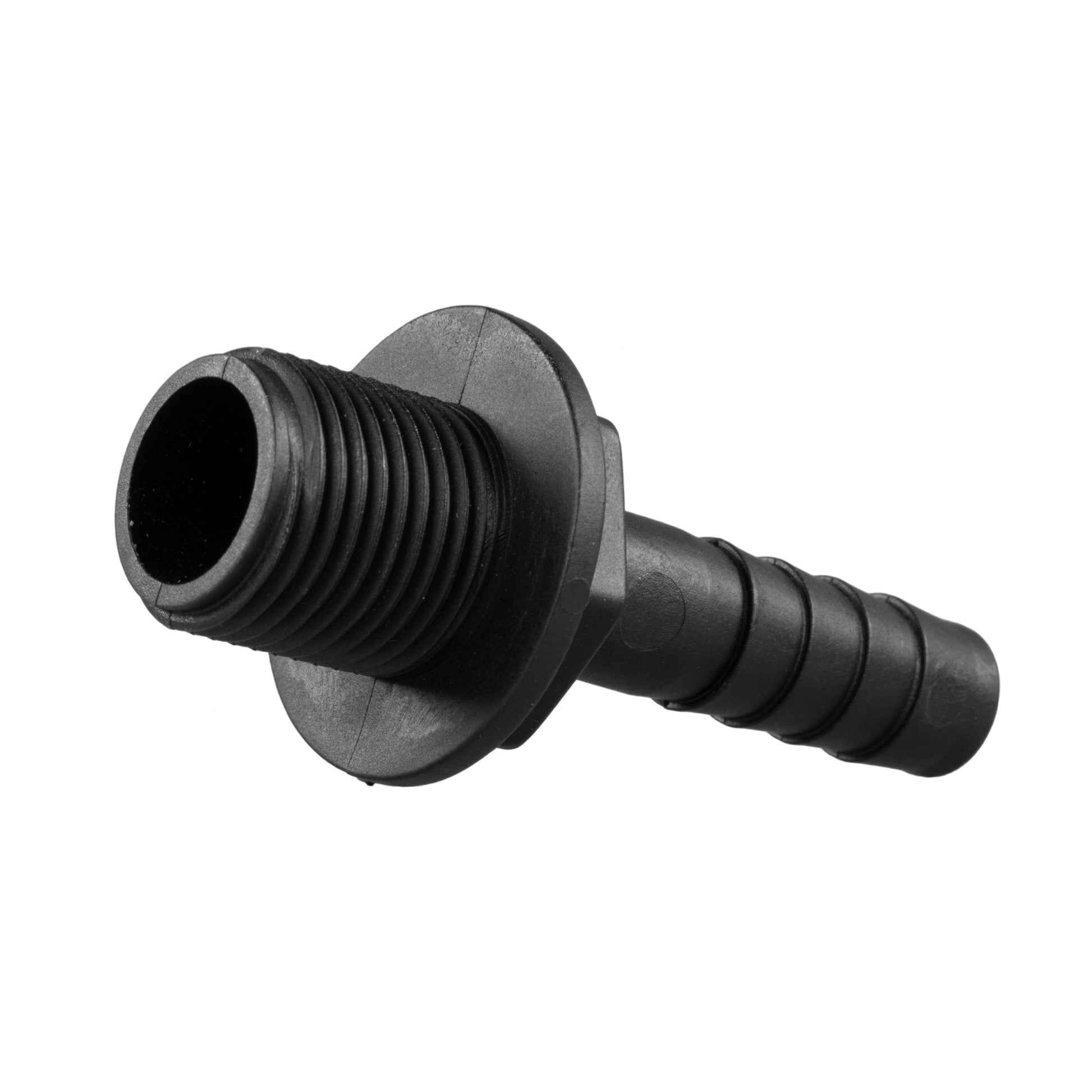

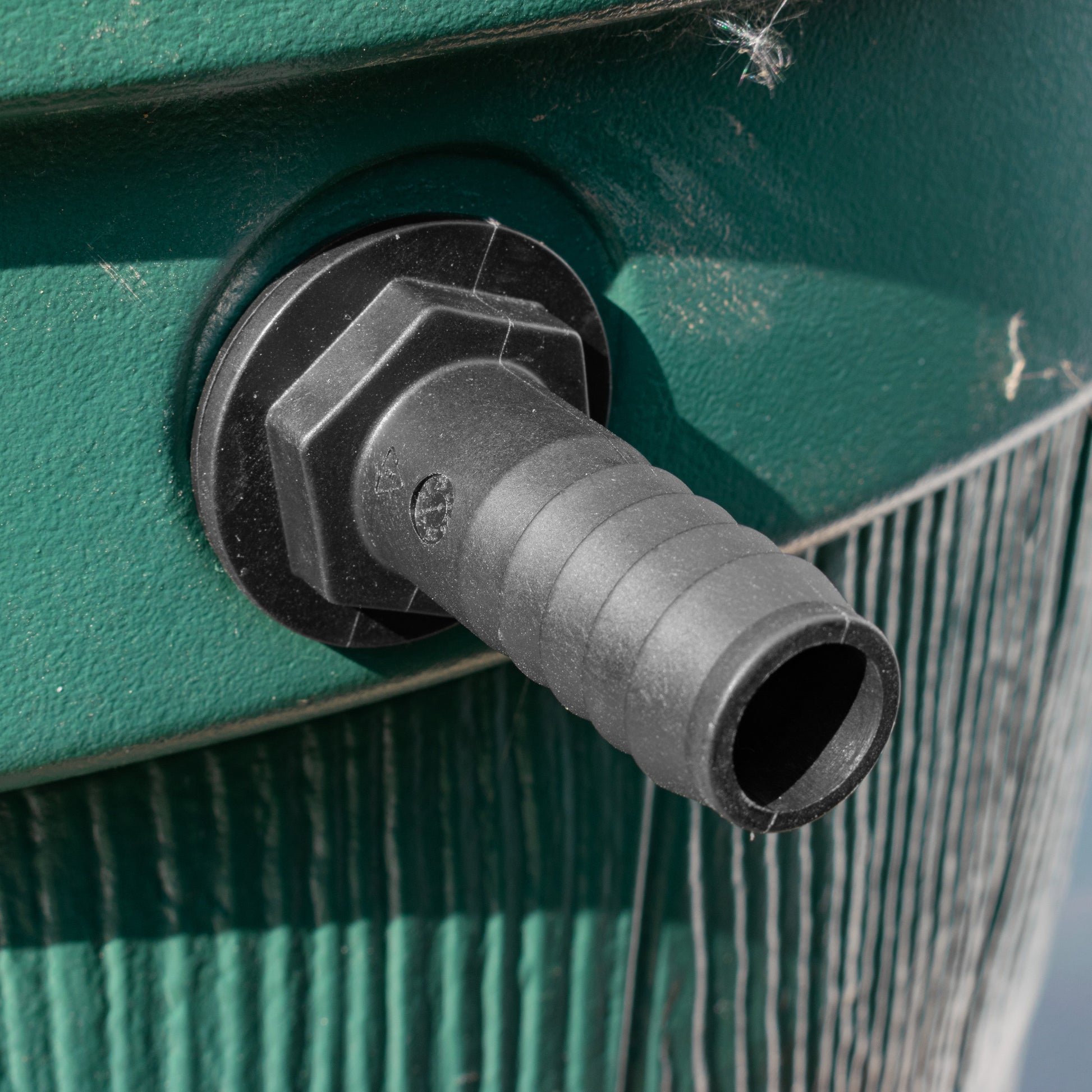

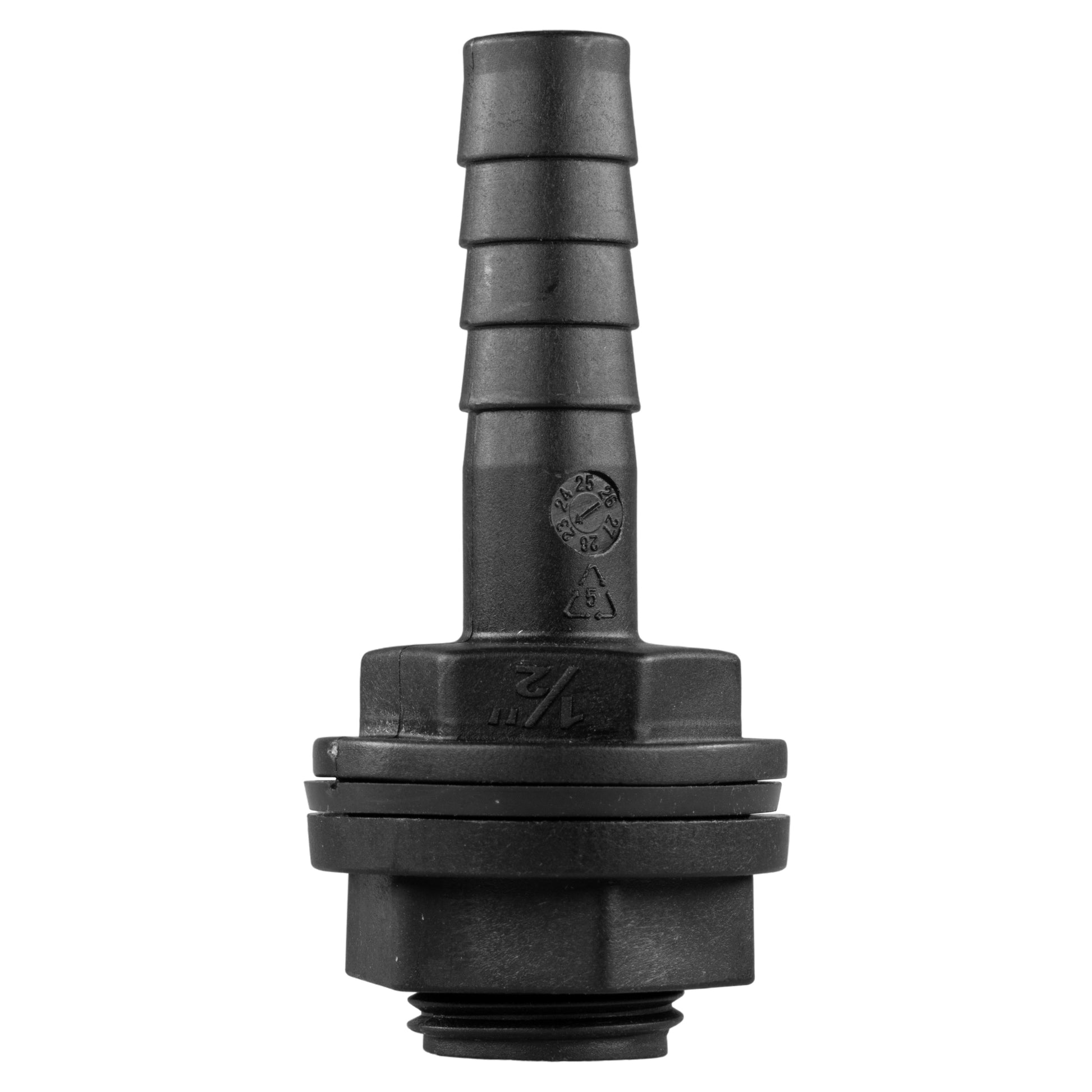

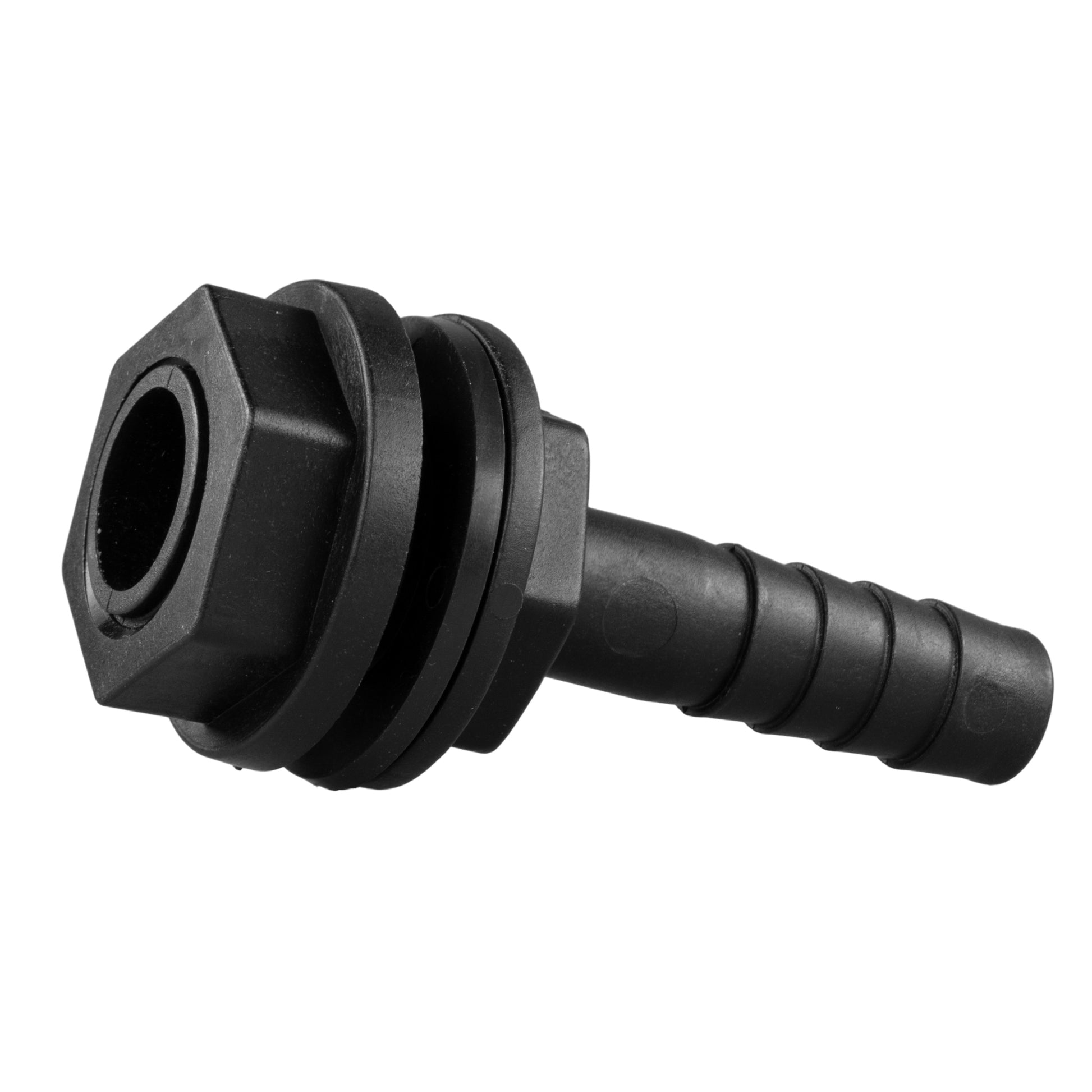

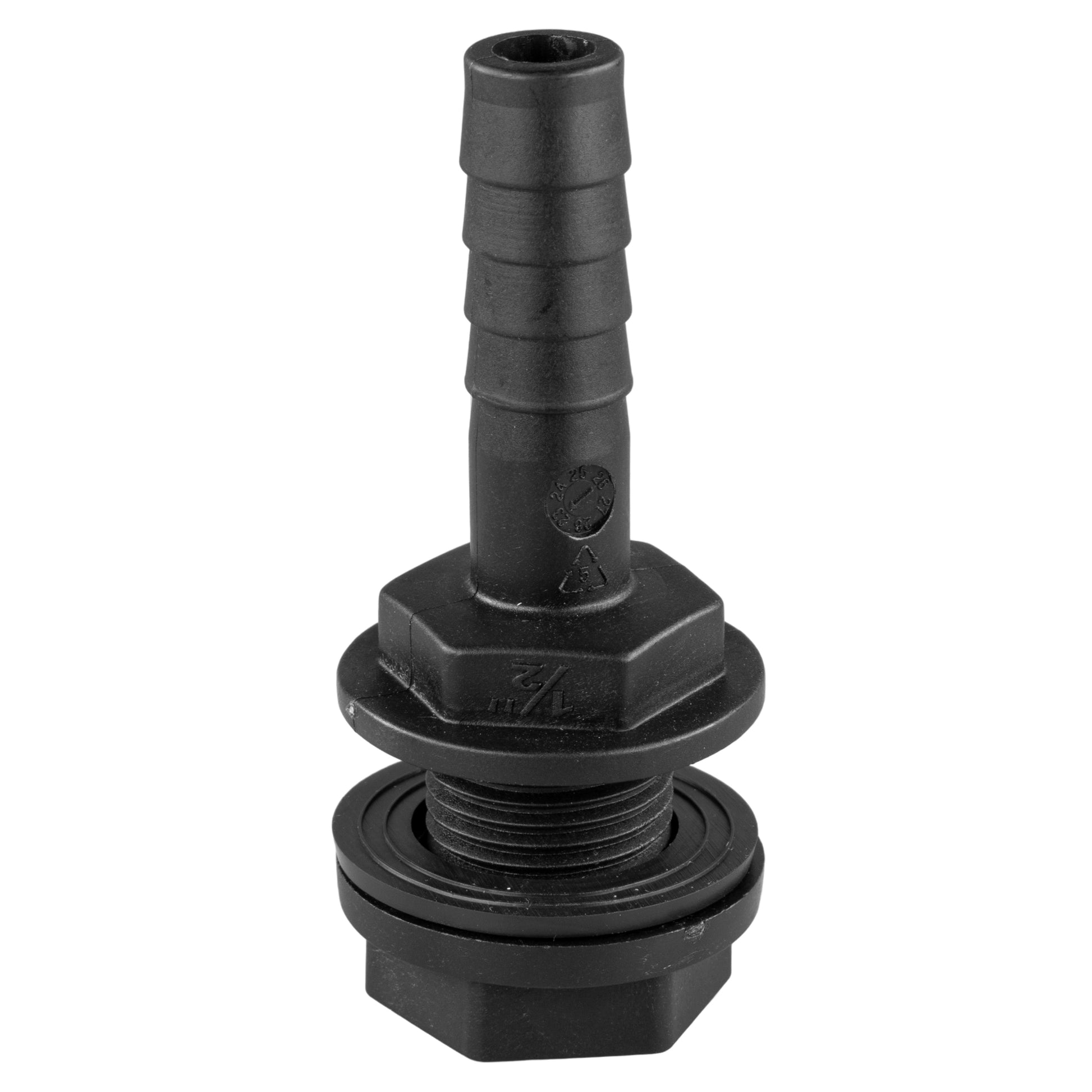

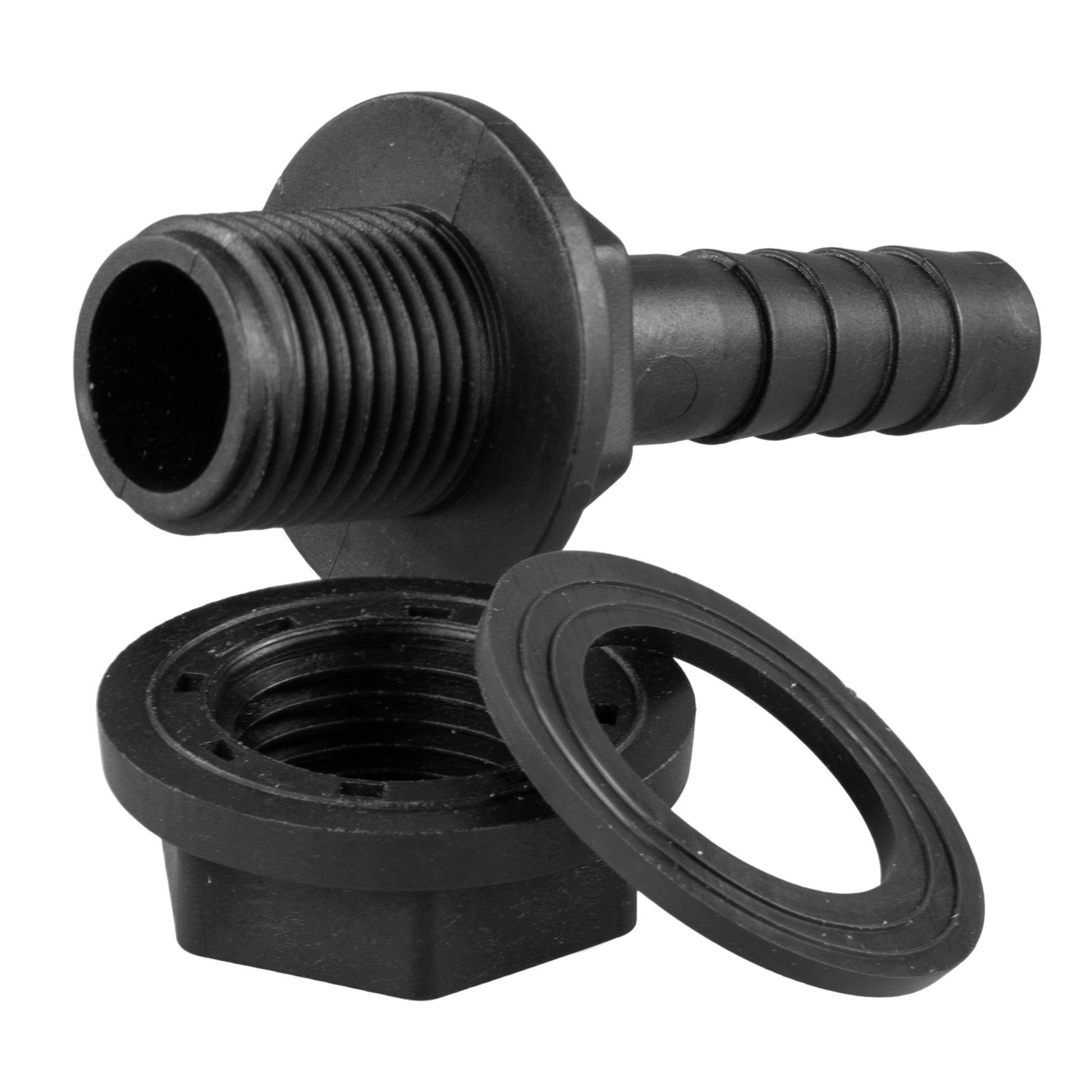

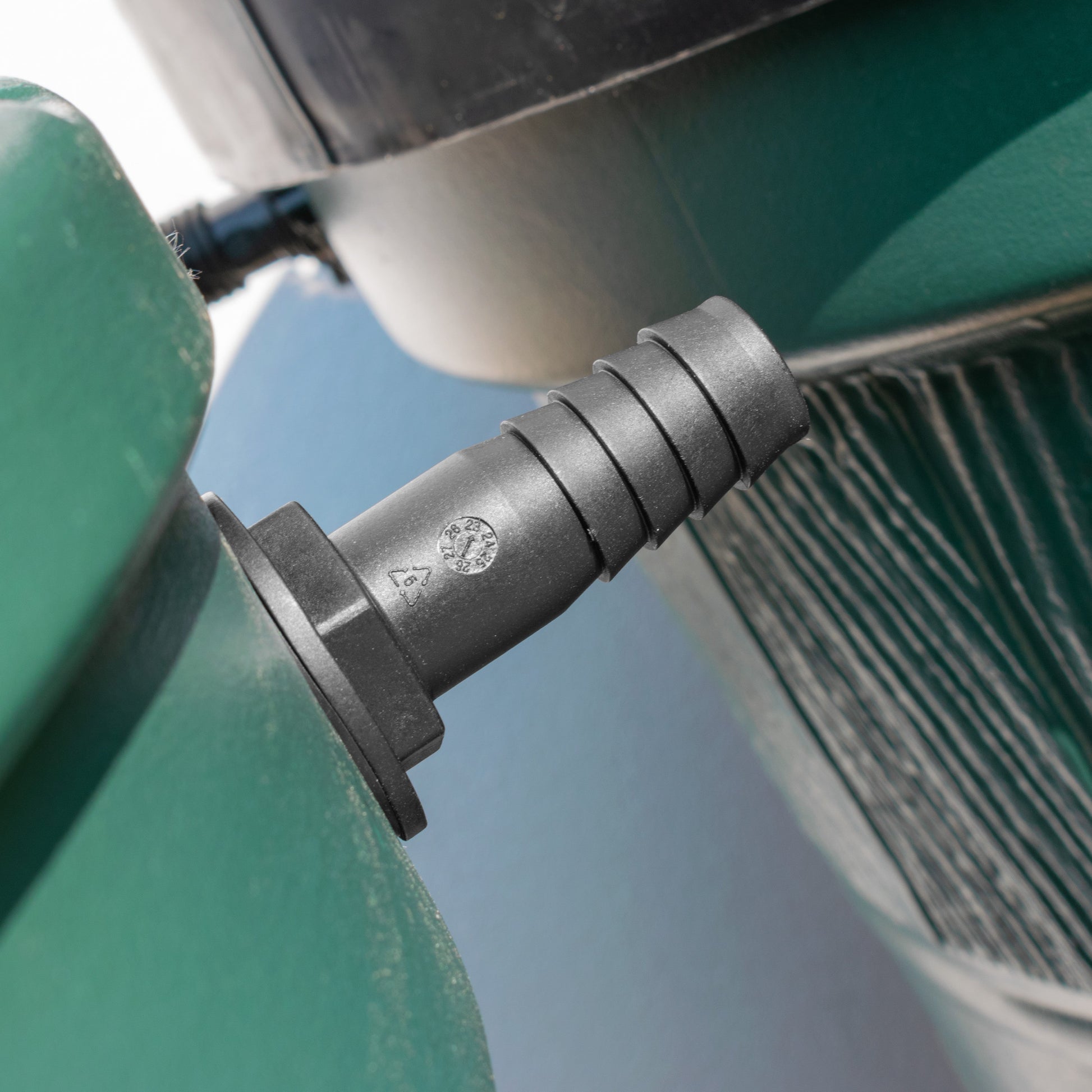

The photograph shows the actual straight connector, back nut and single mounting washer. The male threaded stem fixes at a suitable tank connection; the ribbed hosetail takes matching flexible pipe.

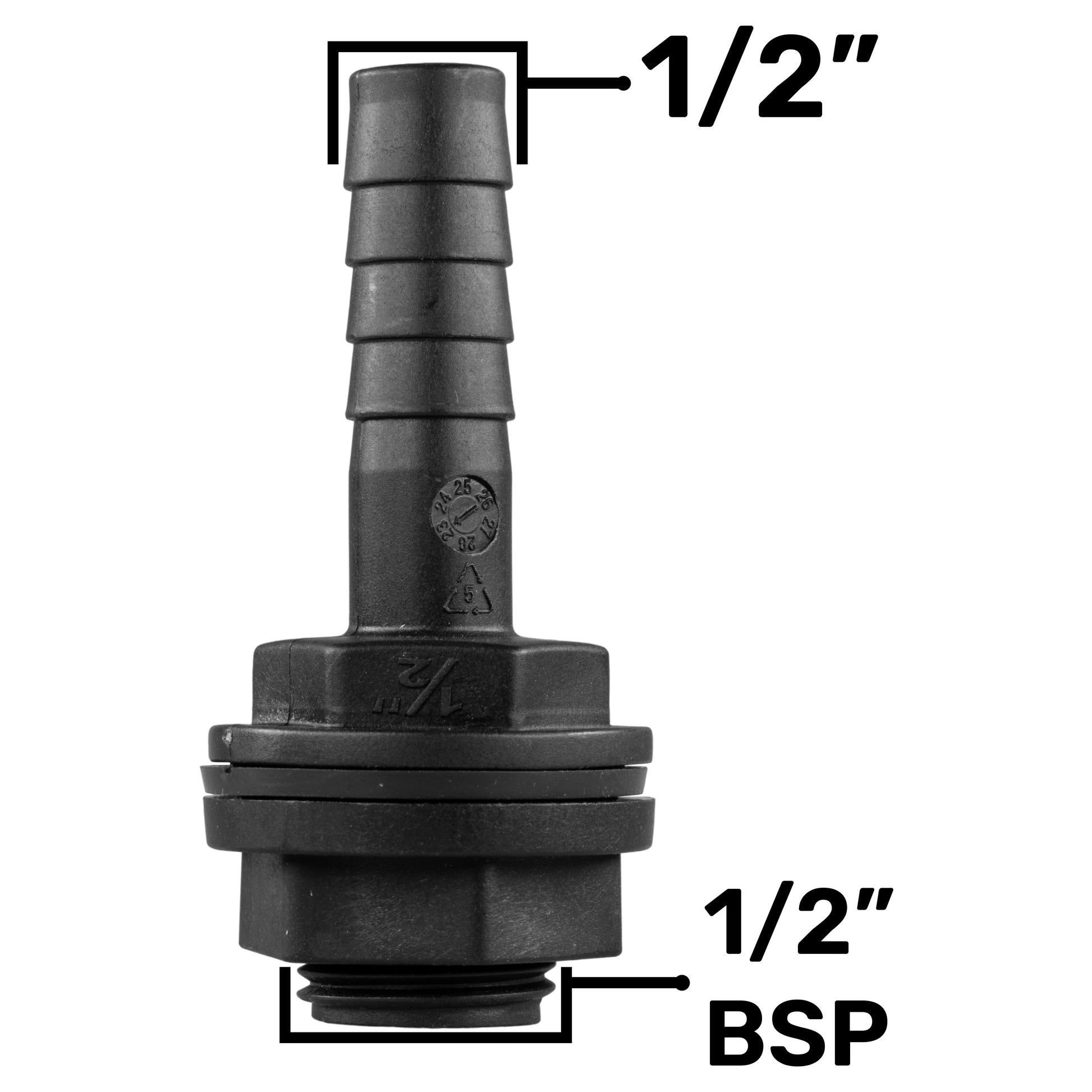

½-inch BSP identifies the tank thread. The hose end is for suitable pipe with a nominal 13mm internal diameter, commonly described as ½ inch. Neither designation gives the outside diameter of the hose fitted over the barb.
½-inch corrugated pond hose is available separately. Check its actual fit on the hosetail and support the pipe so its weight does not strain the connector.
Measure the outside of the assembled hose joint before choosing clips. 12-20mm hose clips are an option where that measured diameter is within their range. Check current suitability and availability before ordering.
Check the space around the outlet

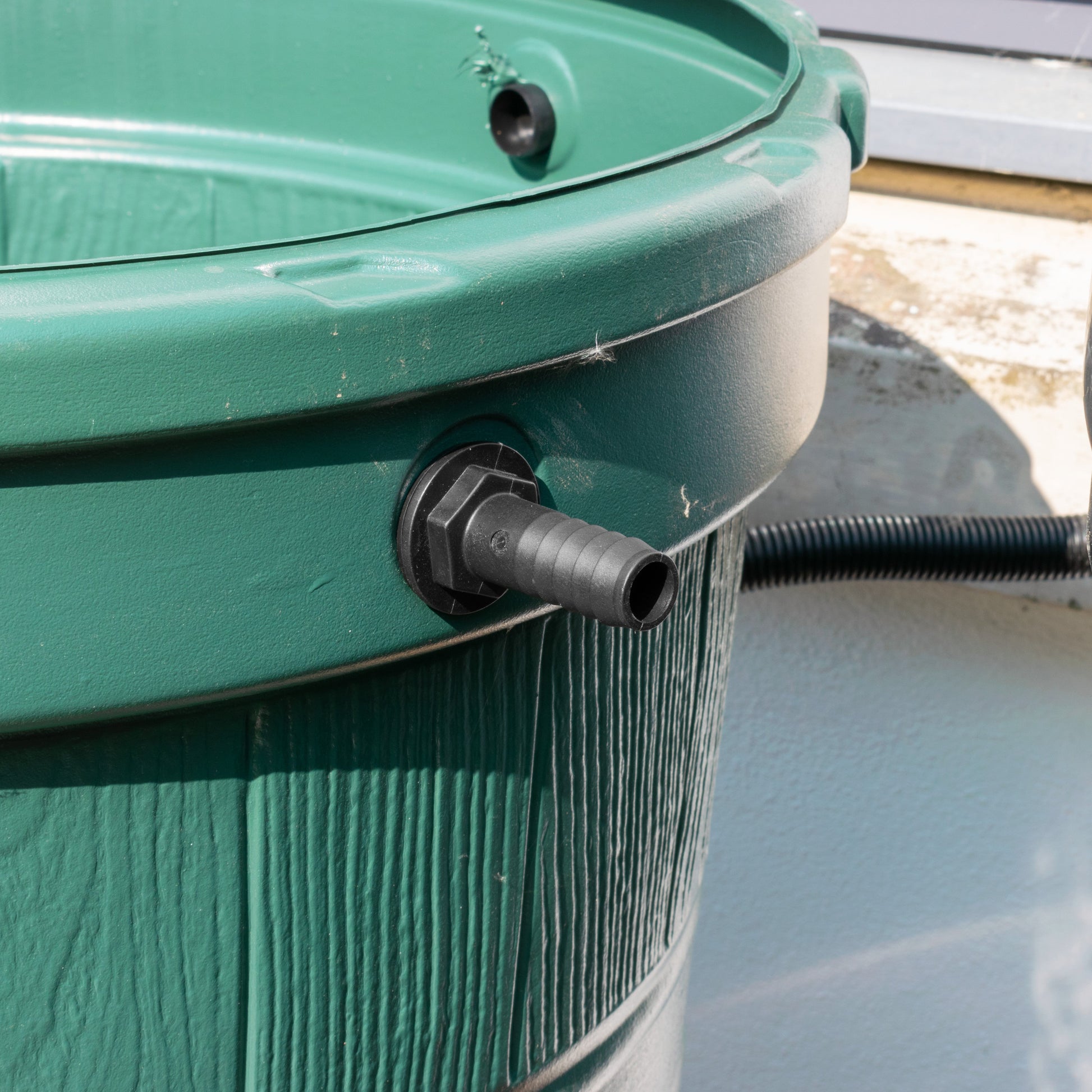

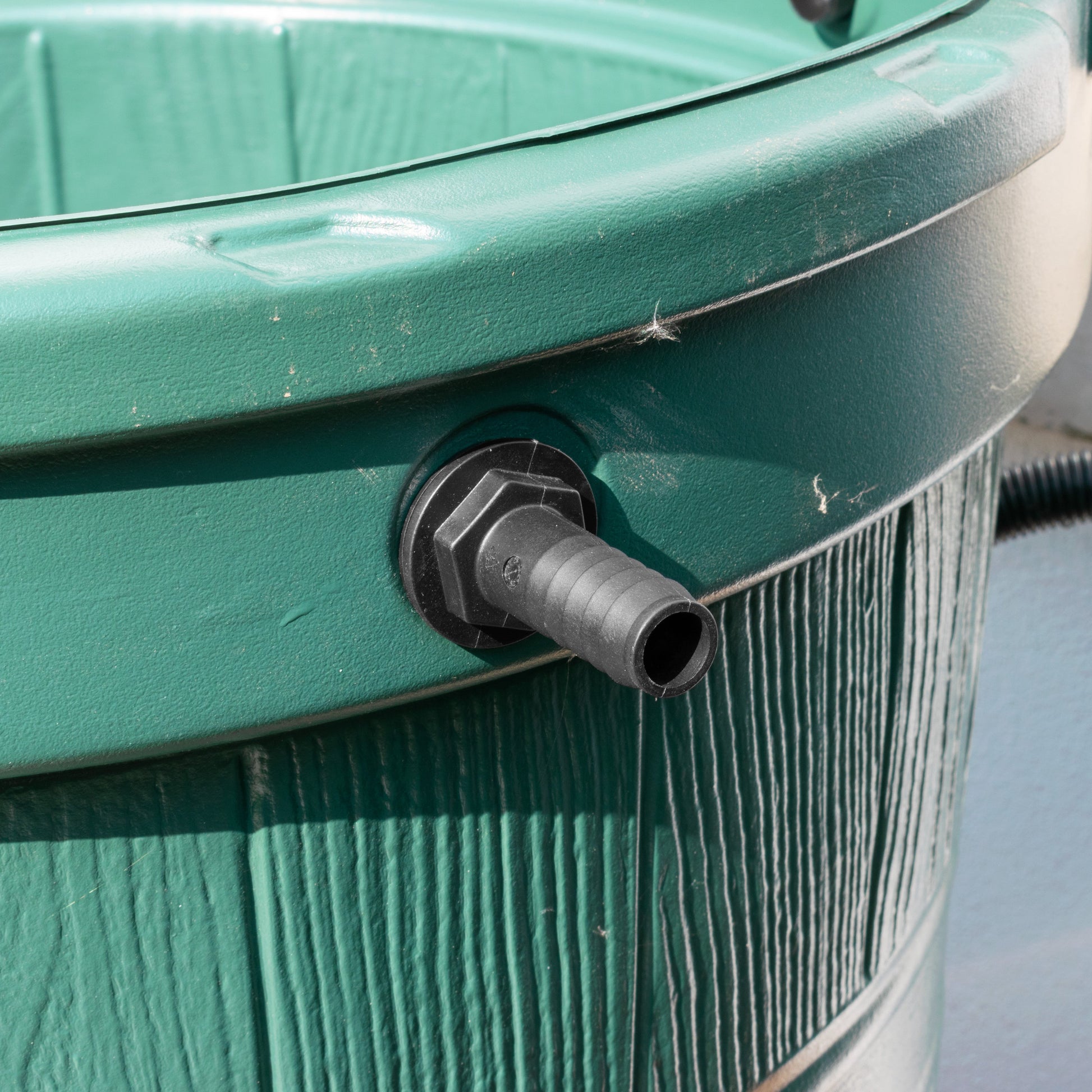

A straight connector needs clearance for the hose beyond the tank wall.
At the mounting surface

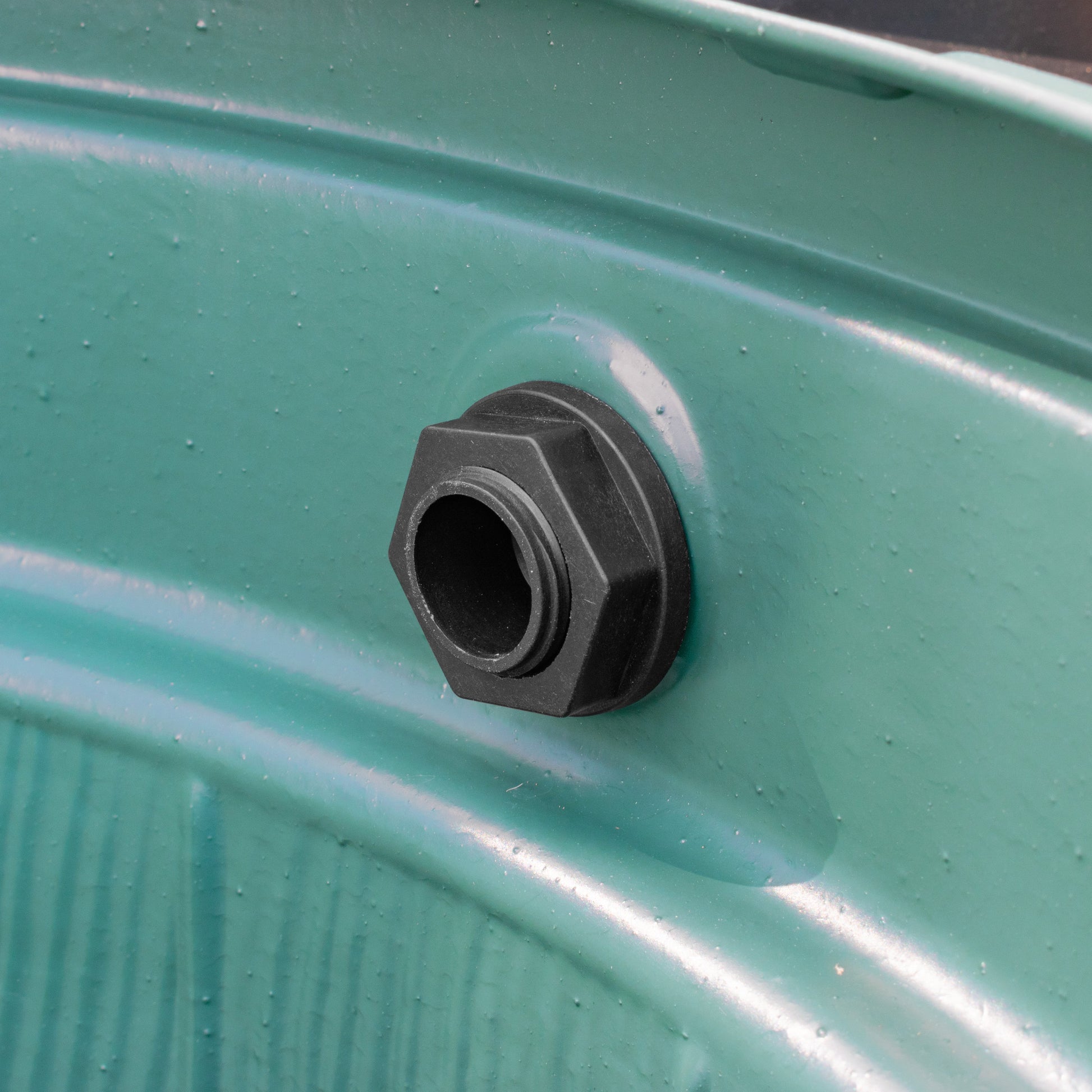

Check wall thickness, washer seating and access to the back nut. An existing threaded outlet must match the ½-inch BSP male thread. For a plain opening, check the actual connector and mounting parts before selecting a hole size.
Along the hose
Allow room for the barb and securing clip, then a gentle bend if the route changes direction. Keep the hose supported so movement and pipe weight do not pull on the plastic fitting.
After installation
Lead an overflow to a suitable discharge point and keep its route clear. Check the tank-wall seal and hose connection with water, then inspect both again after the pipe has settled into its final position.
Questions about this connector
Does ½-inch BSP mean a 13mm hole in the tank?
No. BSP is a nominal thread designation, while 13mm here describes the nominal internal diameter of the hose. Check the actual fitting, mounting parts, tank wall thickness and washer seating before choosing an opening. Do not drill from the BSP name alone.
Is this a straight connector or an elbow?
This is a straight connector: the tank thread and hose barb are in line. The attached pipe leaves directly away from the mounting surface, so allow space for the fitting, clip and a gentle bend beyond the hosetail where needed. Check the available clearance before ordering.
What is included in the pack?

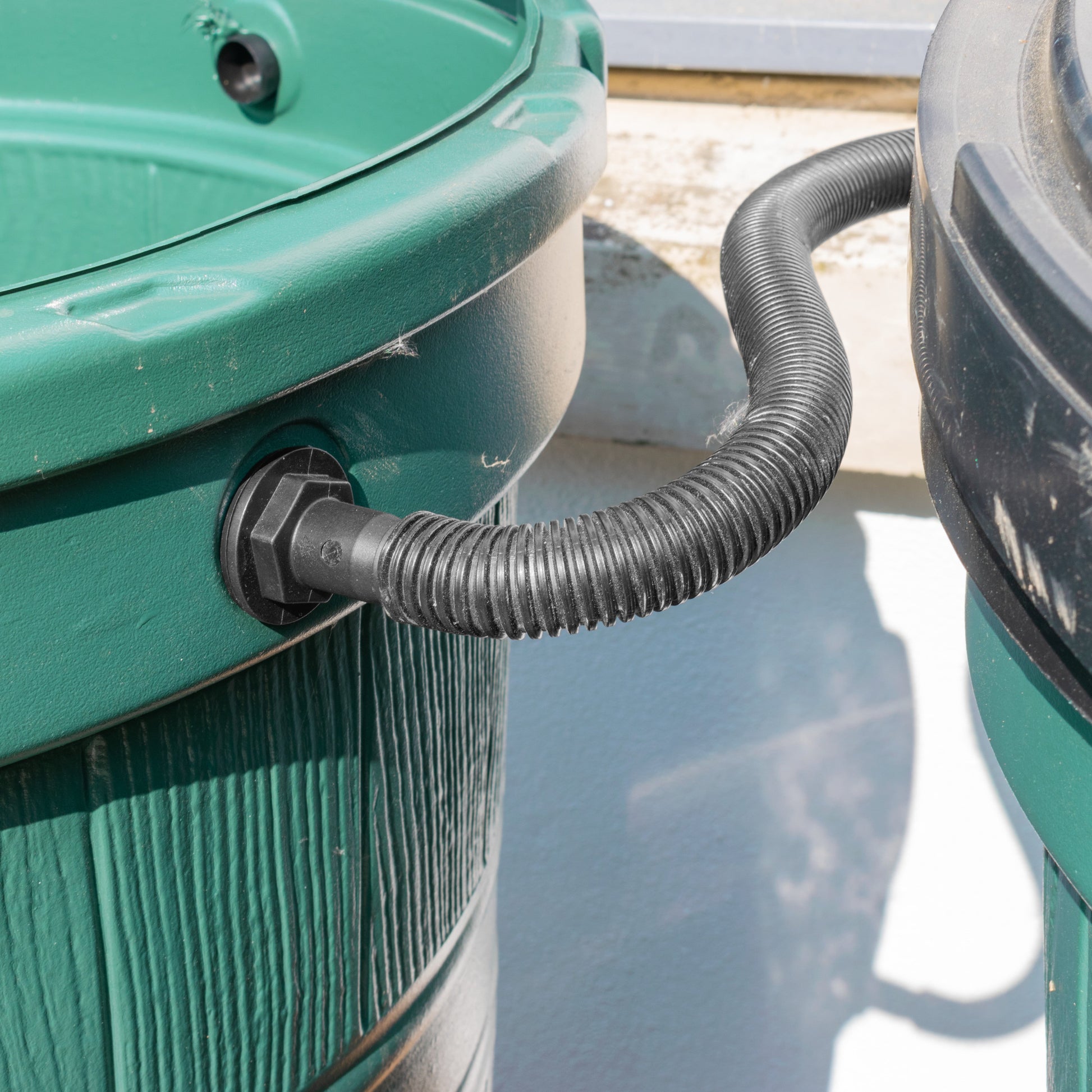

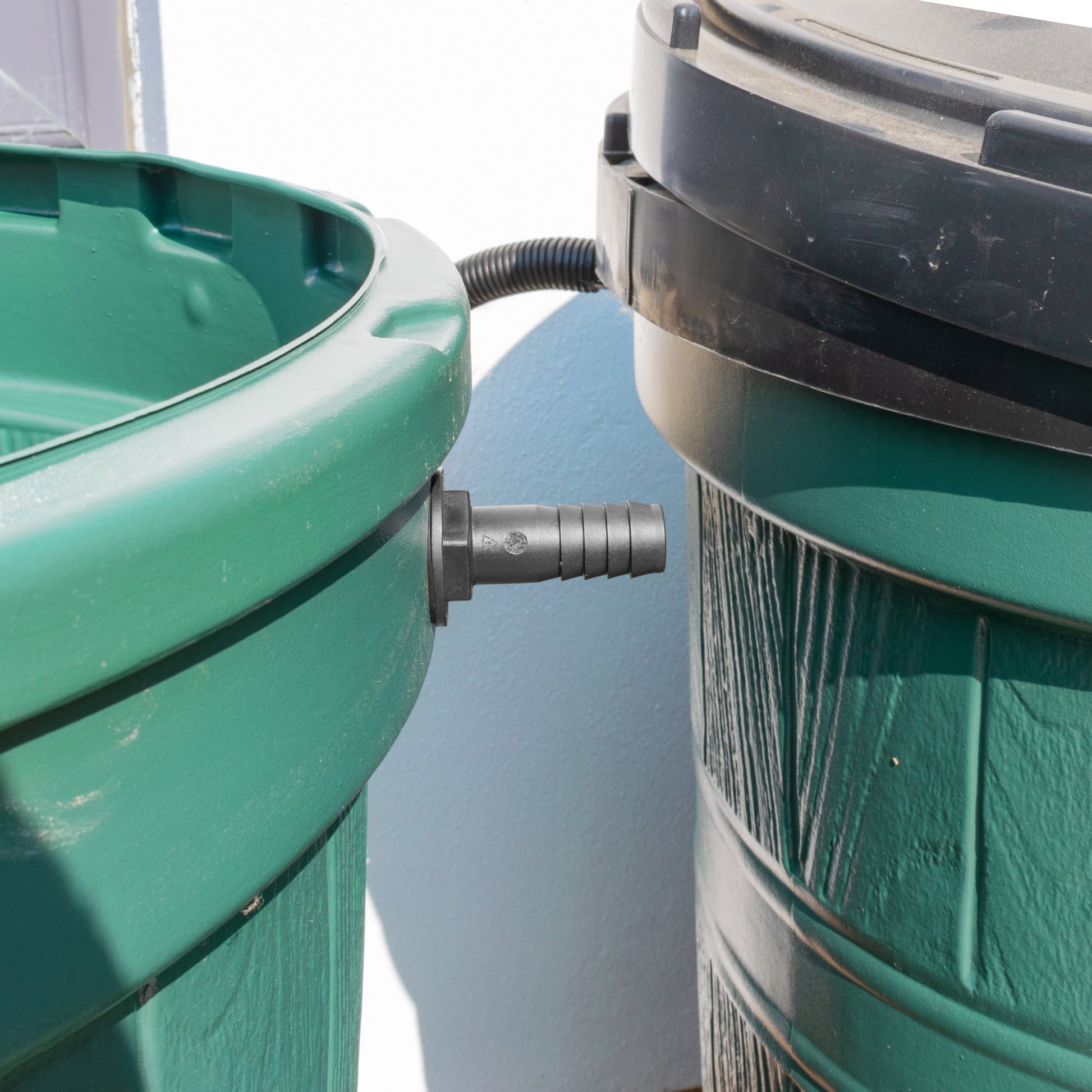

You receive one black plastic straight connector, one retaining back nut and one mounting washer. Suitable nominal 13mm hose, securing clips, tools and any additional sealing materials are separate. A two-container linking installation needs compatible connections at both ends.
Can I use it with mains-pressure water?
No pressure rating is specified for this fitting, so do not assume suitability for mains water or a pressurised pump outlet. Those systems need components with confirmed ratings. For a water butt connection, support the hose and check both completed joints with water.
Product information & technical details
| SKU | BUTT12BSPM-12B001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Barb size | 13mm (1/2") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection configuration | Straight |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 straight connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
