Description
Straight out to the hose
A straight tank connector for a suitable water butt outlet or hose connection.
1-inch BSP male thread at one end; a ribbed barb for nominal 25mm flexible hose at the other.
One black plastic connector, nut and washer. Hose and clips separate.
Two ends, two checks

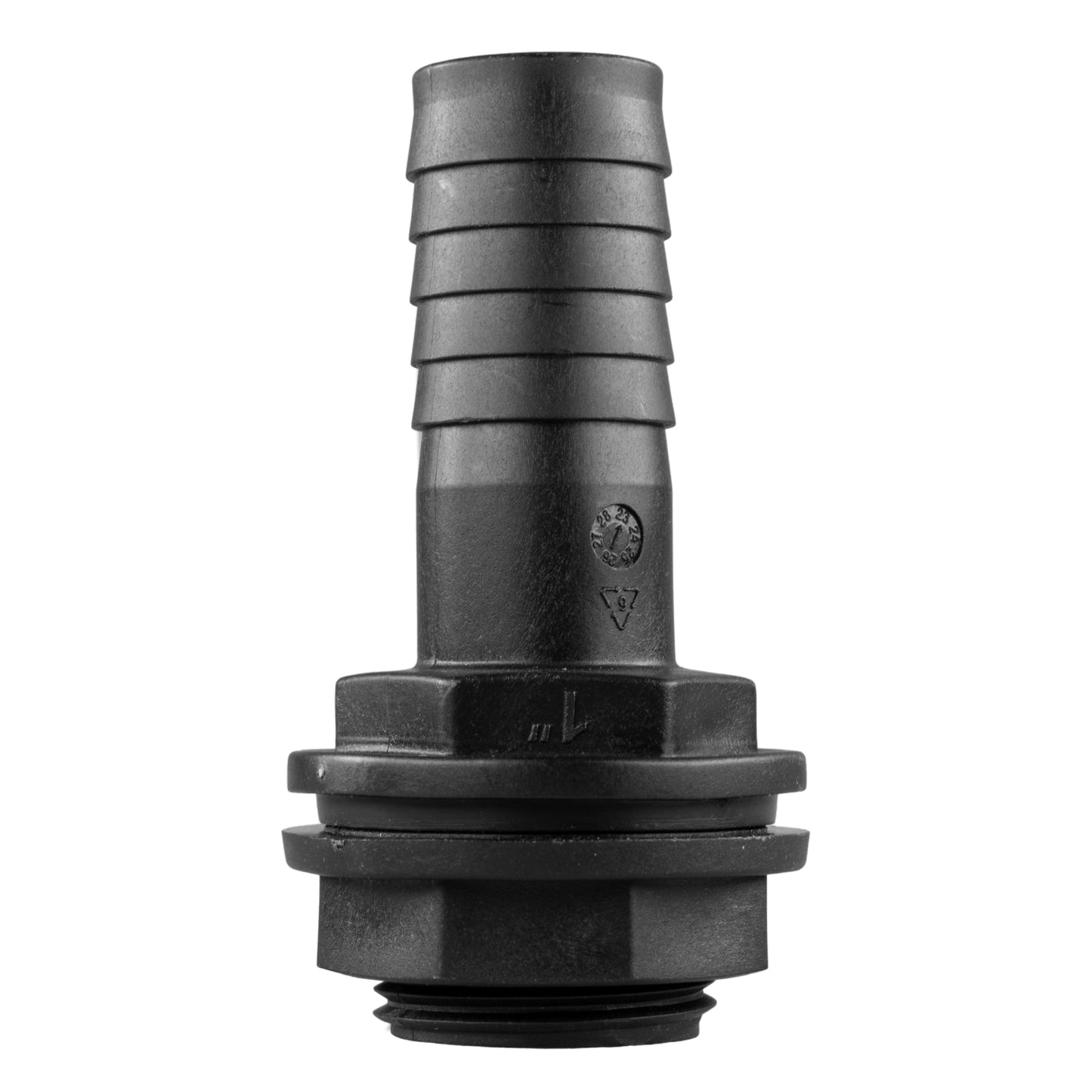

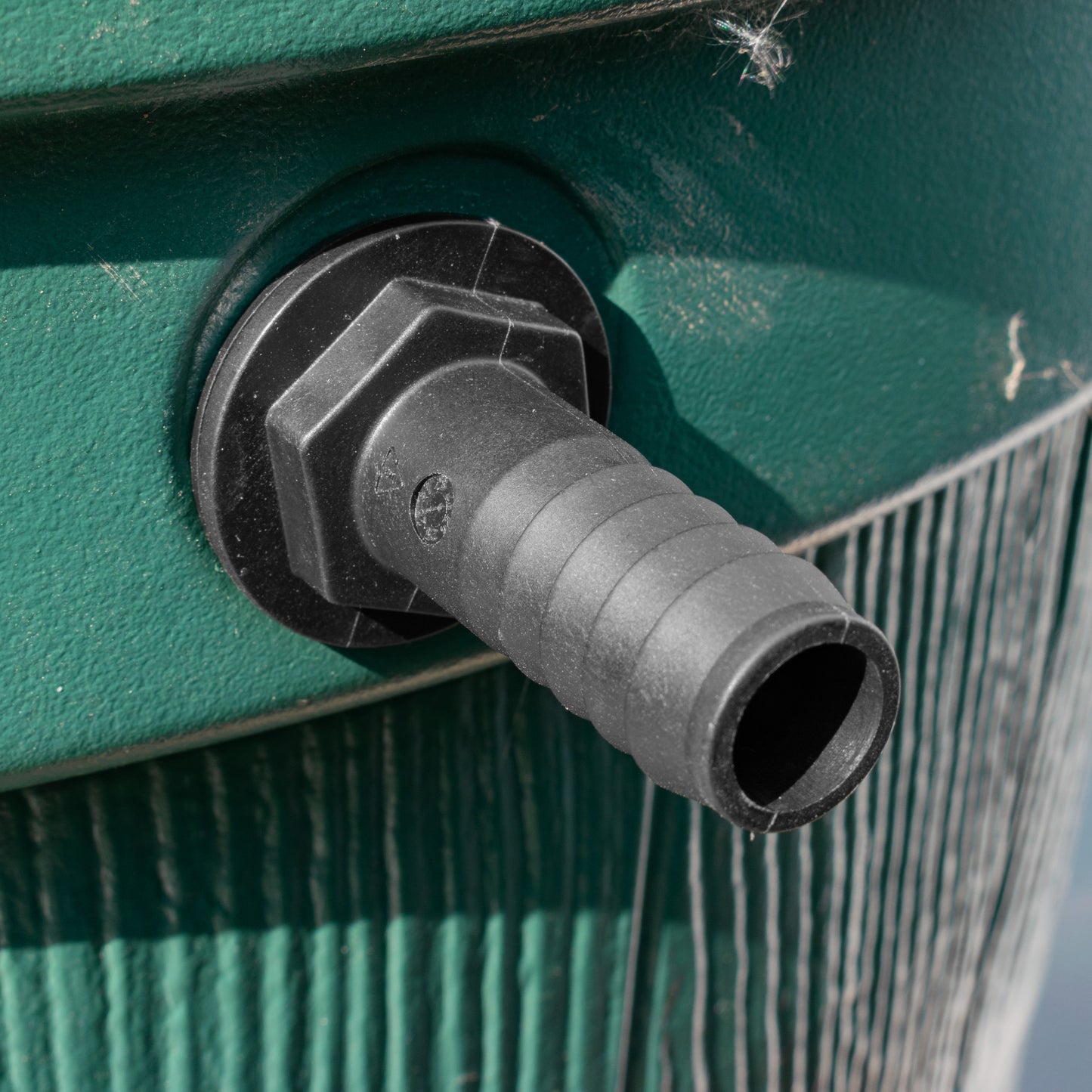

The threaded stem is the 1-inch BSP male tank connection. The ribbed hosetail takes suitable flexible pipe with a nominal 25mm internal diameter, commonly described as 1 inch.

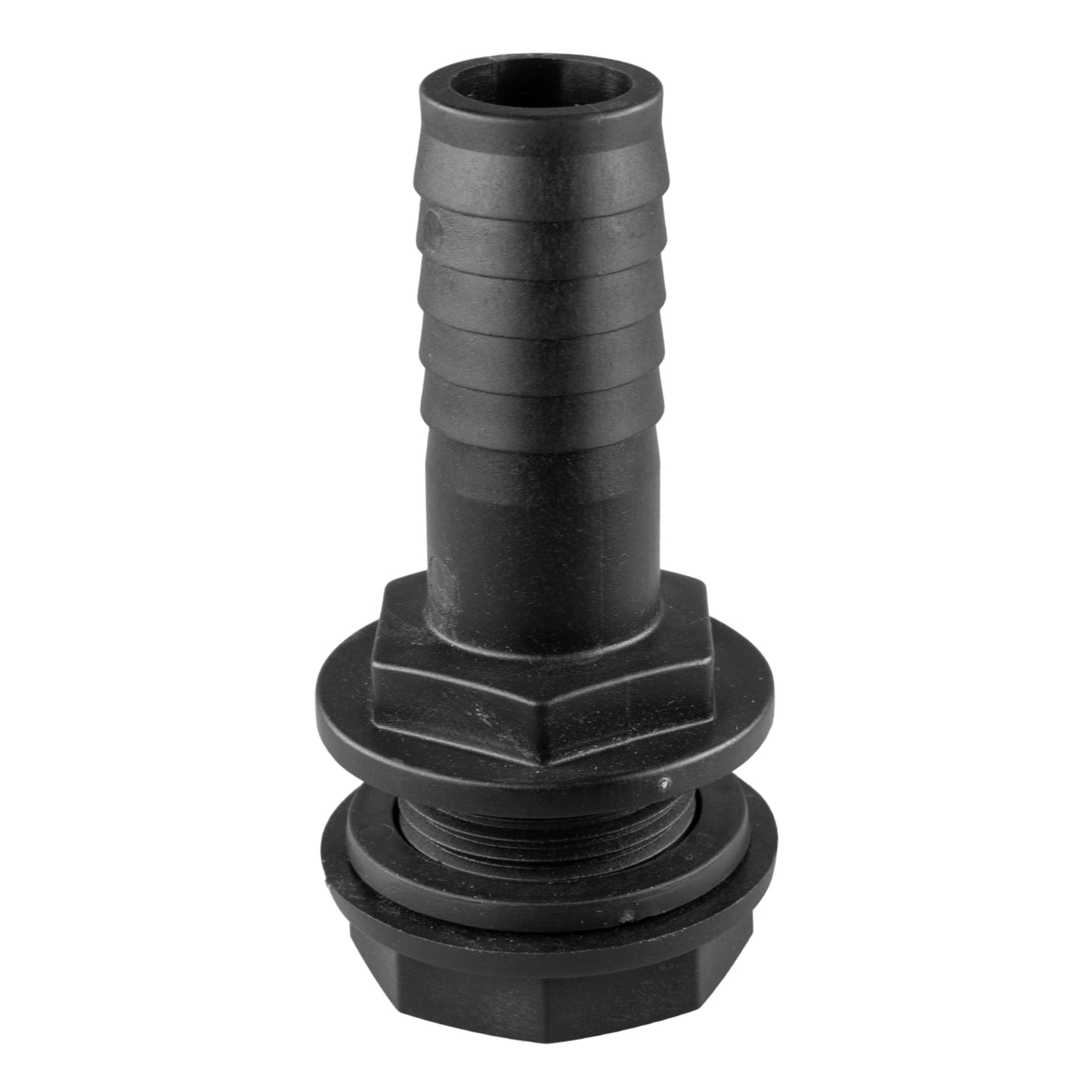

The actual parts photograph shows the straight connector, one back nut and one mounting washer. Check the tank wall thickness, an even seating area and access to the nut before installing it.
Thread size, hose bore and clip size are different measurements. BSP does not specify a drilling diameter, and 25mm is not the outside diameter of the hose fitted over the barb. Check the actual components before making a tank opening or selecting a clip.

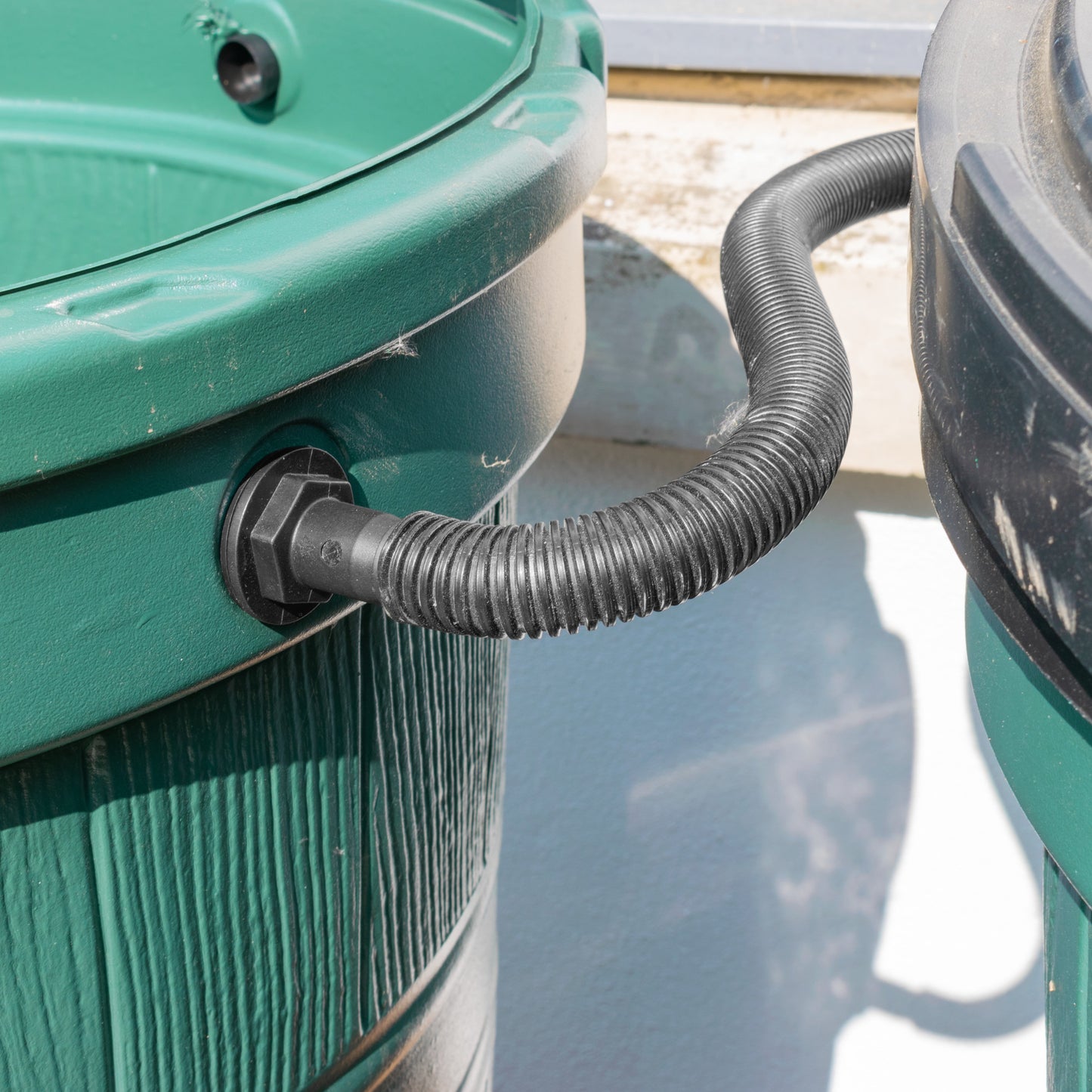

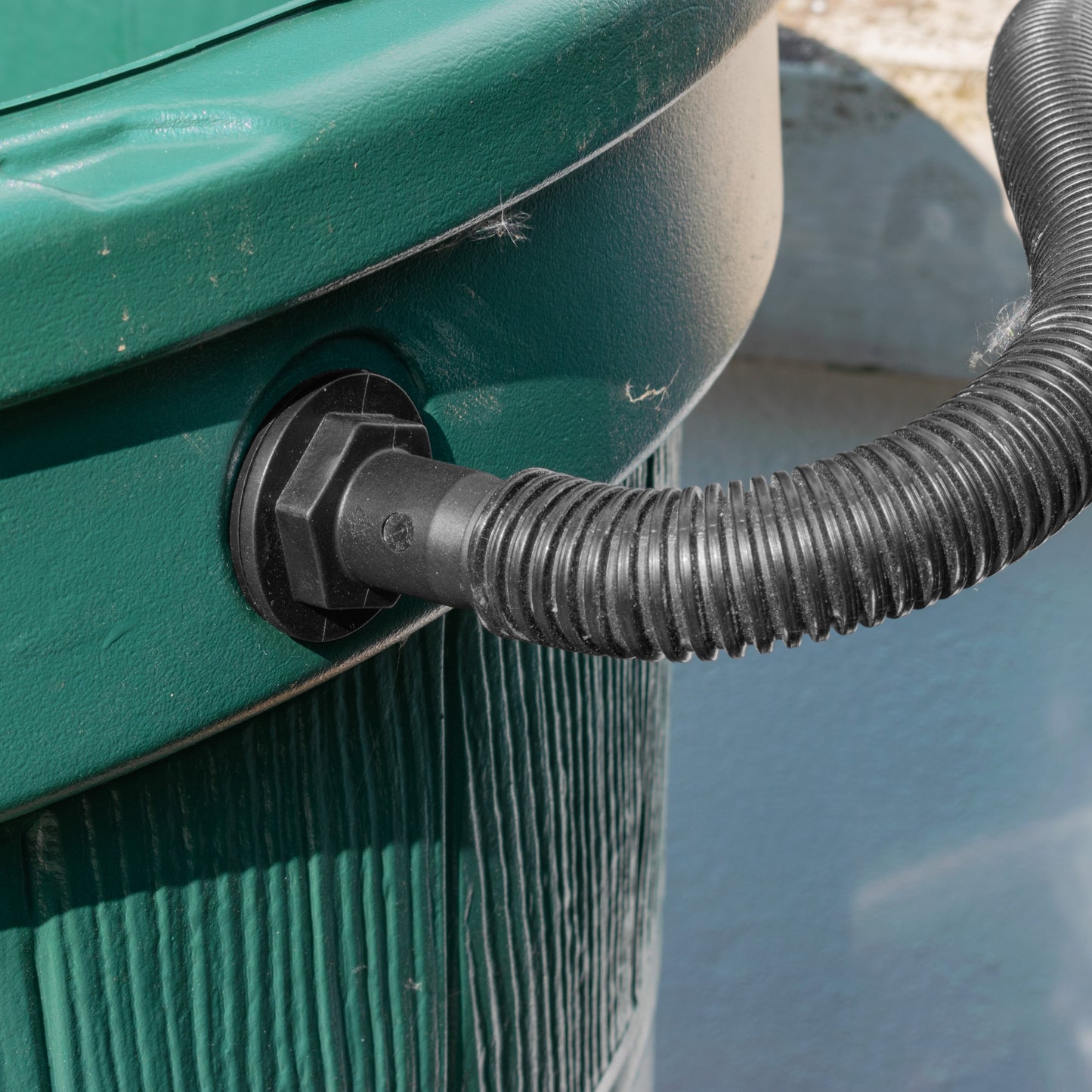

25mm corrugated flexible pipe is available separately. 25-40mm butterfly-grip hose clips are an option where the measured outside diameter of the assembled hose joint falls within their range. Check the pipe and clip fit before tightening.
Allow space for a straight outlet
Plan the mounting surface and hose route as one installation.
Match the mounting

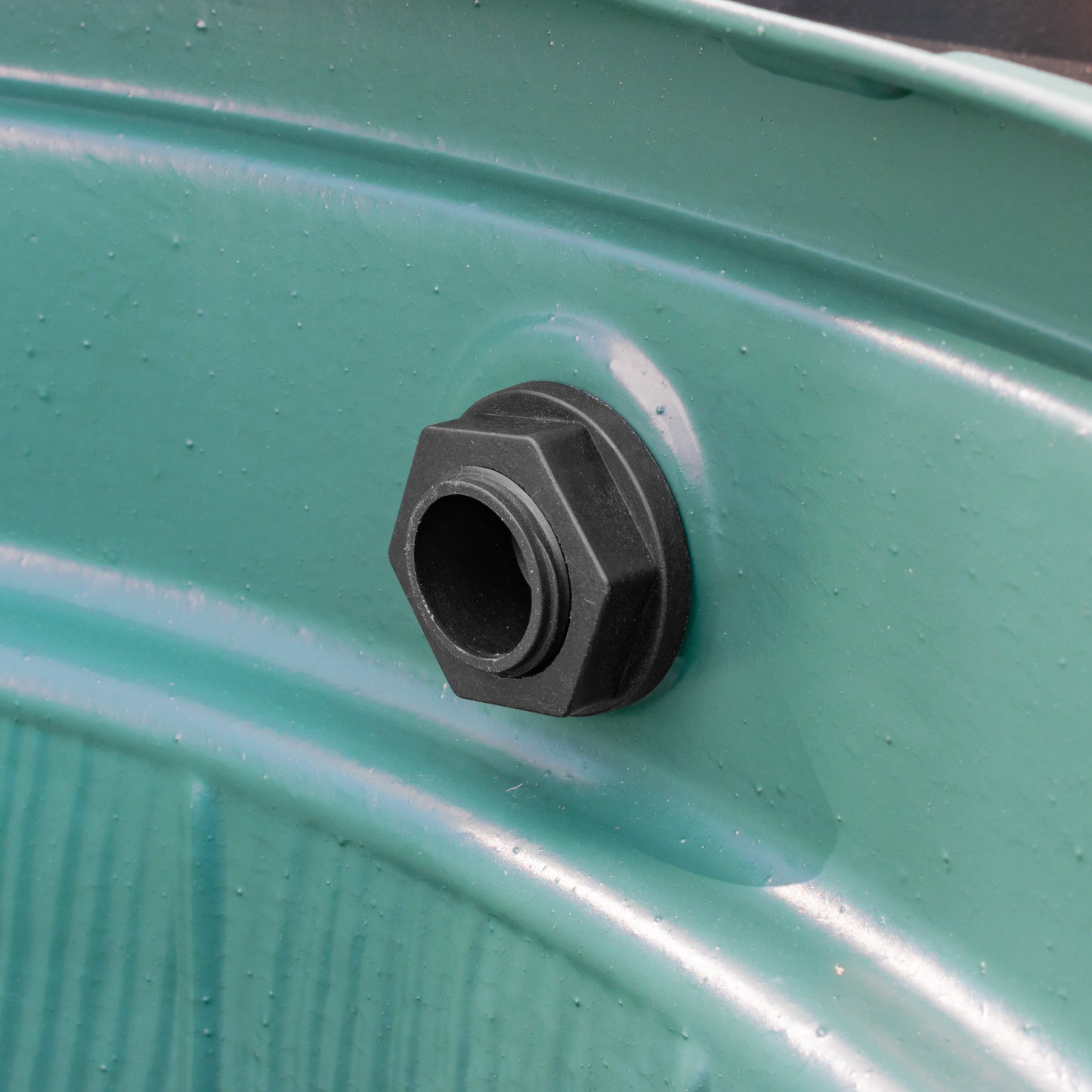

An existing threaded outlet must match the 1-inch BSP male stem. For a plain opening, inspect the actual fitting and mounting parts before choosing a hole size. Check wall thickness, washer seating and room to secure the nut.
Support the hose run

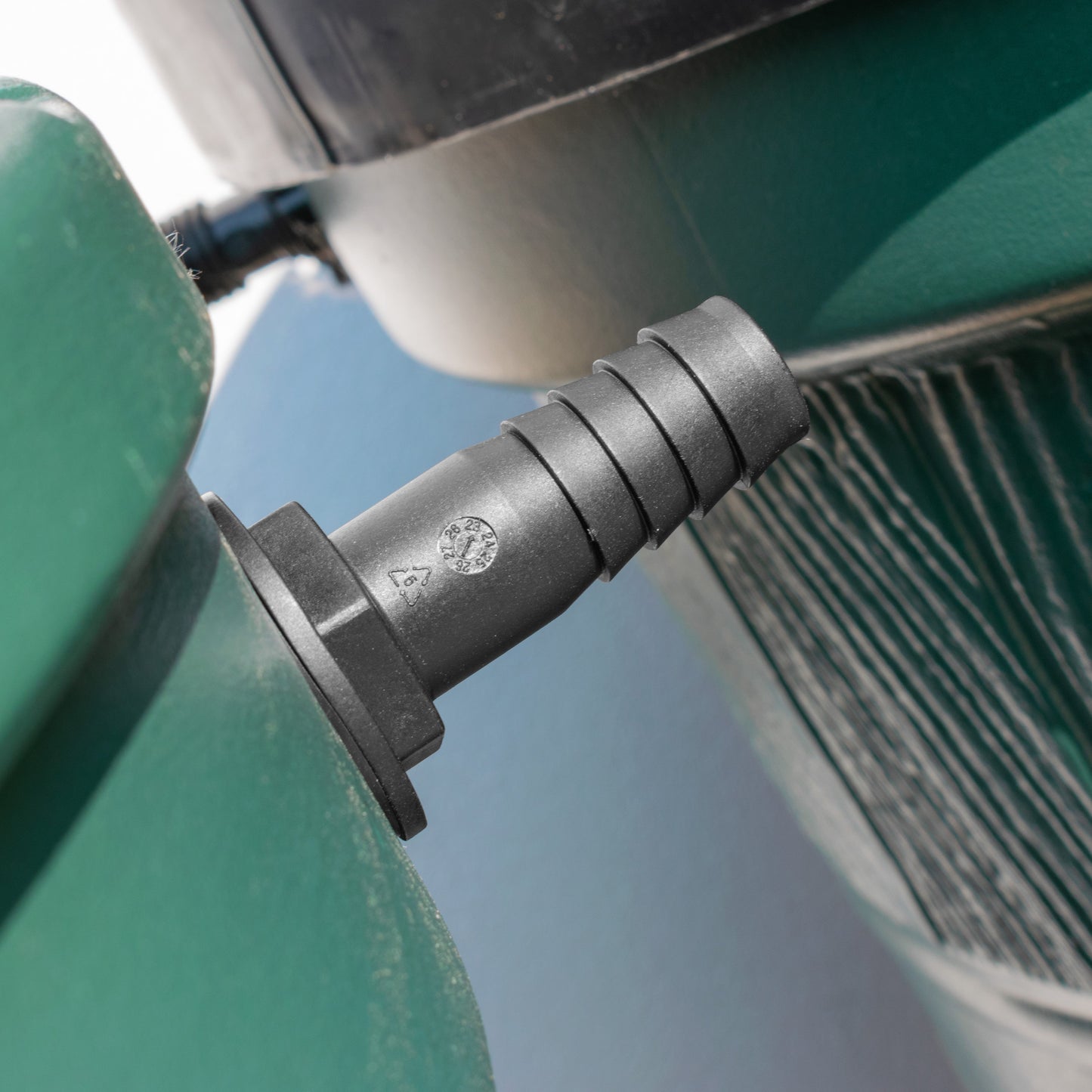

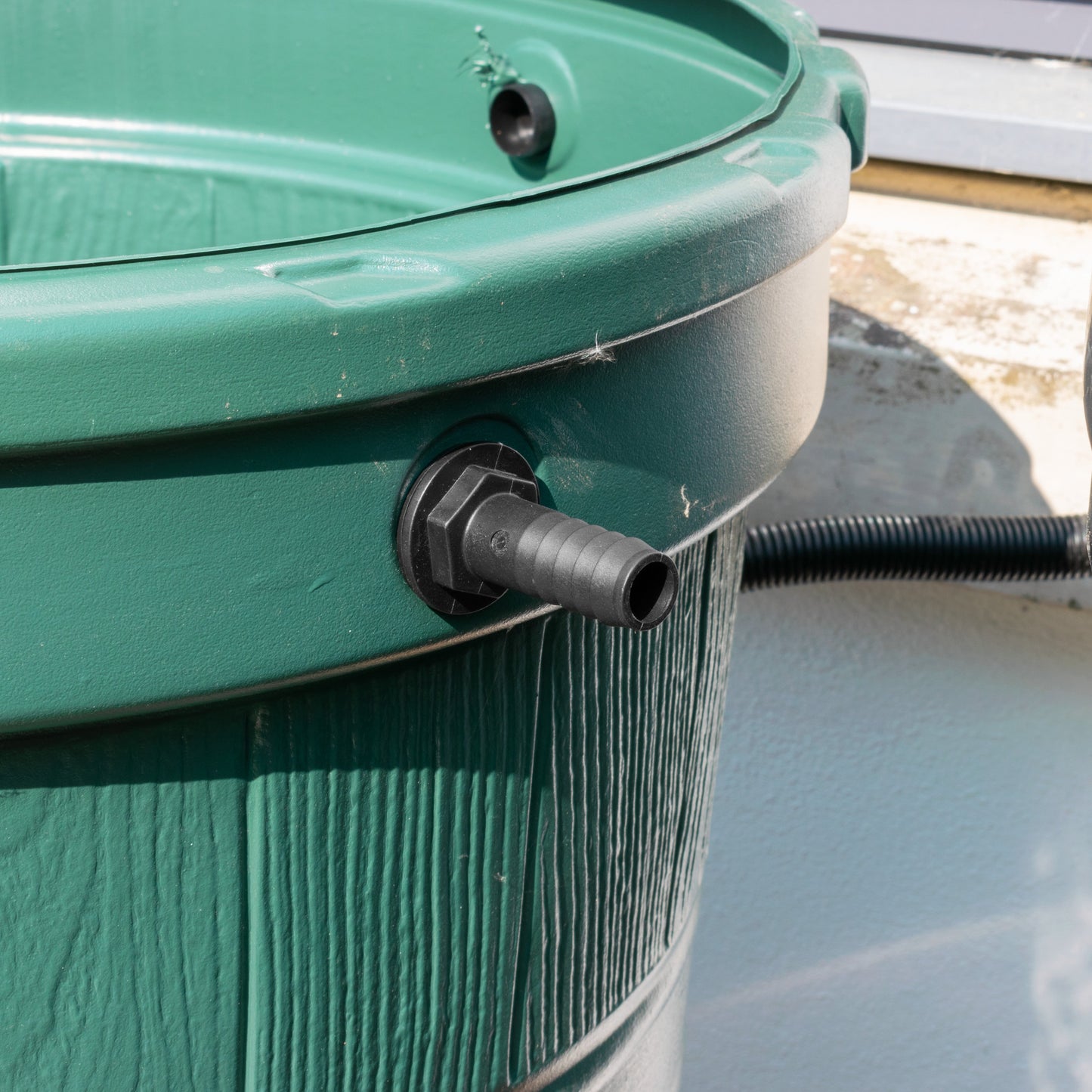

The pipe leaves in line with the connector, so allow clearance beyond the hosetail before any bend. Keep the hose supported rather than letting its weight or movement pull on the tank wall.
Check both joints
Use a suitable discharge point for an overflow and keep the route clear. Check the tank-wall seal and hose joint with water after fitting, then inspect them again once the hose has settled into position.
Connection questions
Does 1-inch BSP mean I should drill a 25mm hole?
No. BSP is a nominal thread designation; 25mm here describes the nominal internal diameter of the hose. Check the actual threaded stem, mounting parts, tank wall thickness and washer seating before selecting an opening size. Do not use the BSP name alone as a drilling measurement.
Is this a straight or angled fitting?
This is a straight connector. Its tank thread and hose barb are in line, so the hose leaves directly away from the mounting surface. Allow room for the attached pipe and clip, plus a gentle bend beyond the barb if your hose route needs to change direction.
Is it a complete water-butt linking kit?
No. The pack contains one straight black plastic connector with a back nut and single washer. A two-container link needs compatible connections at both ends, suitable hose and securing clips. Check the mounting area on each container and support the hose between them.
Can it be used with mains-pressure water?
No pressure rating is specified for this connector, so do not assume suitability for mains pressure or a pressurised pump outlet. Those systems require components with confirmed ratings. For a water butt connection, support the hose and test both completed joints with water.
Product information & technical details
| SKU | BUTT1BSPM-1B001 |
|---|---|
| Product type | |

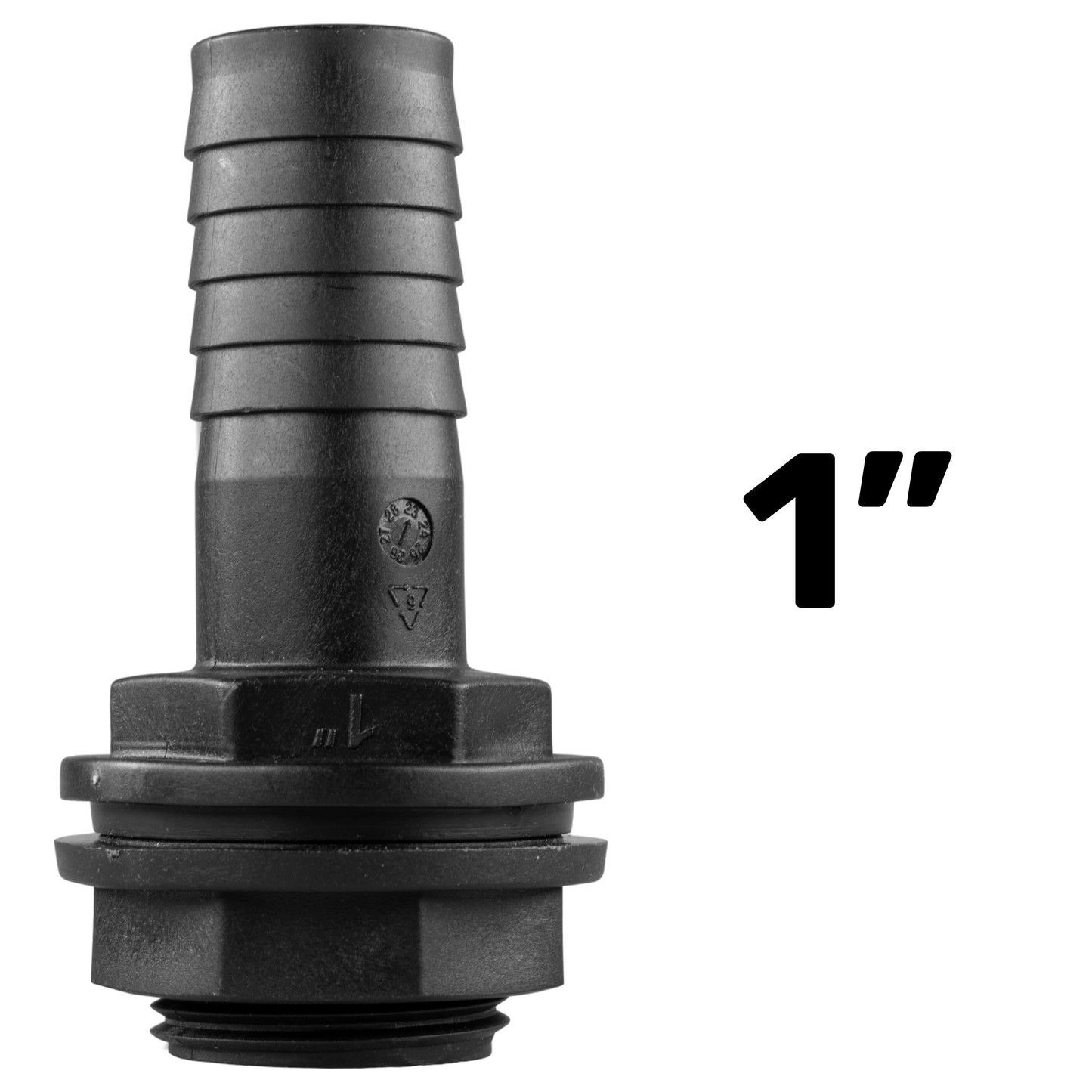

| BSP thread size | 1" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection configuration | Straight |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 straight connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
