Description

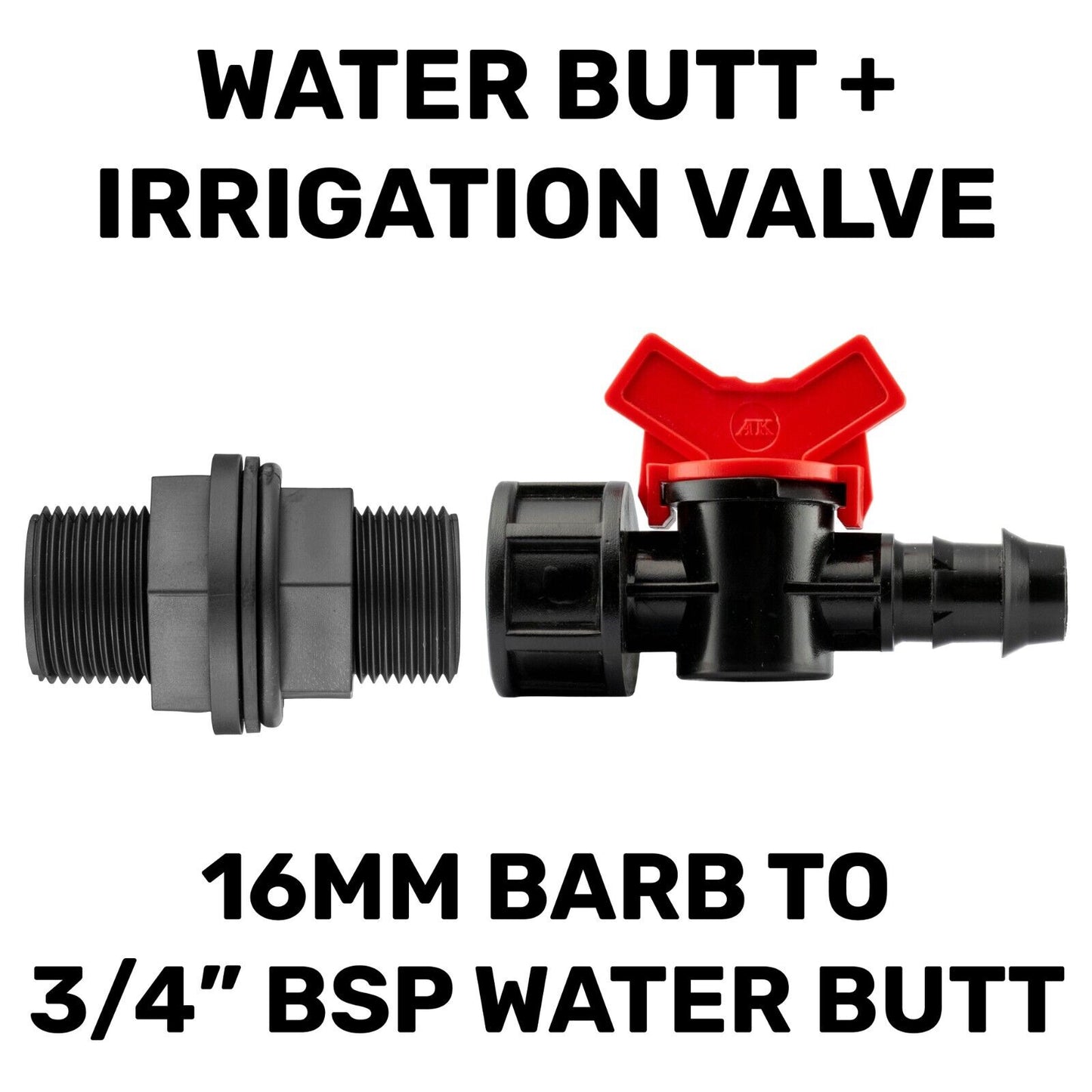

Put a shut-off valve at your water butt
A ¾-inch BSP tank connector and separate irrigation valve create a controlled outlet for a compatible barbed pipe connection.
The valve screws onto the connector. Its hosetail accepts the familiar 13/16mm irrigation pipe sizing: nominal 13mm inside and 16mm outside.
One connector and valve kit supplied. Pipe and installation accessories are separate.

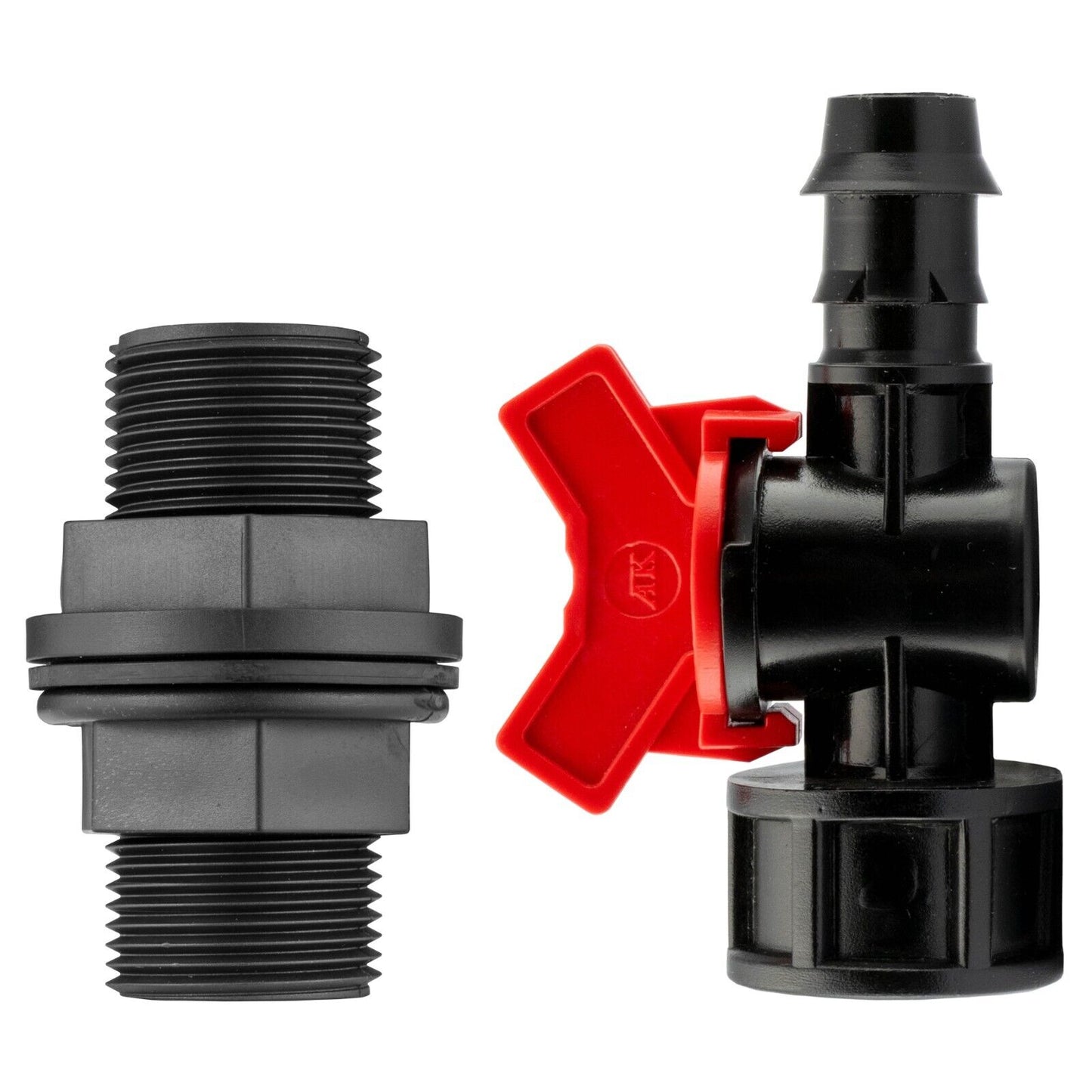

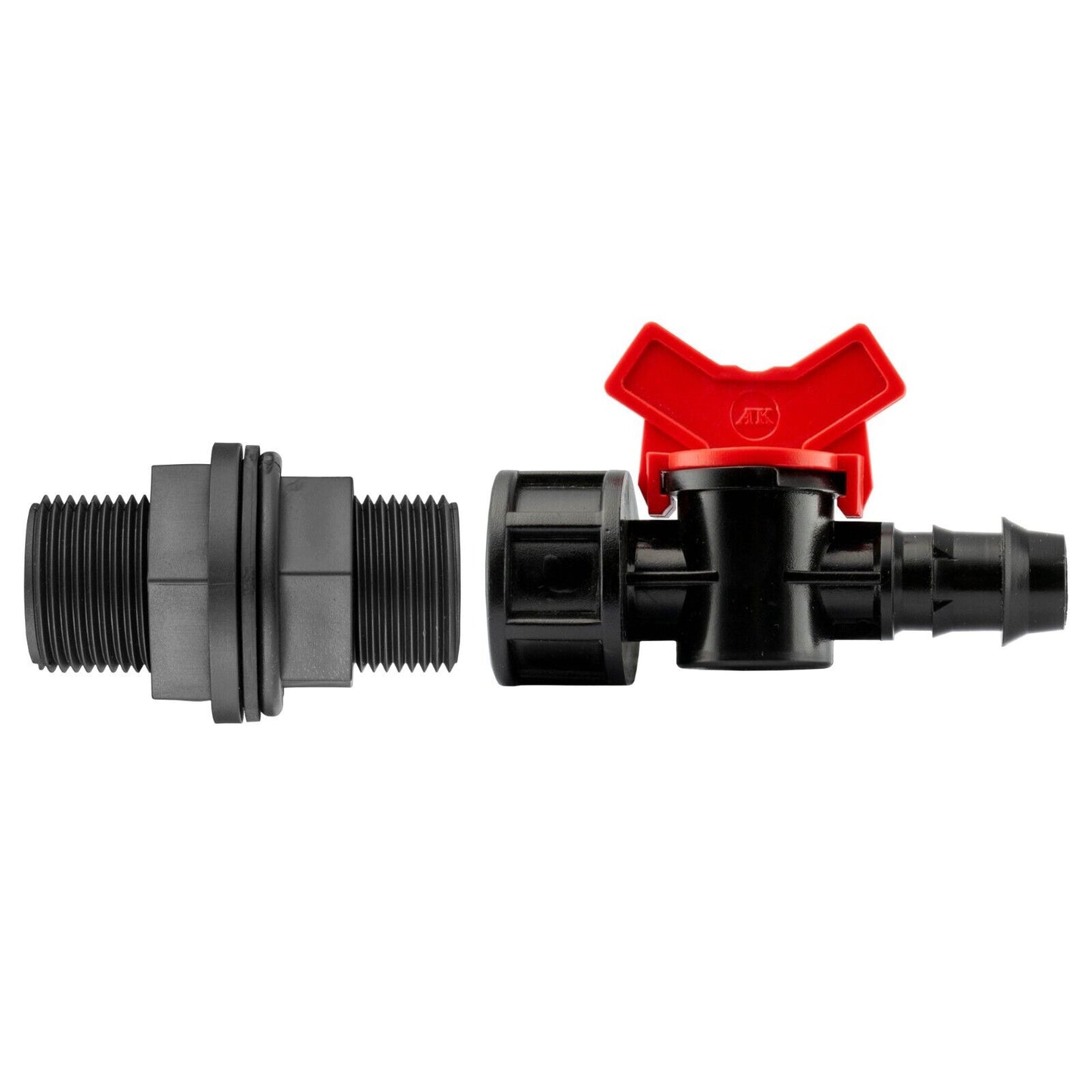

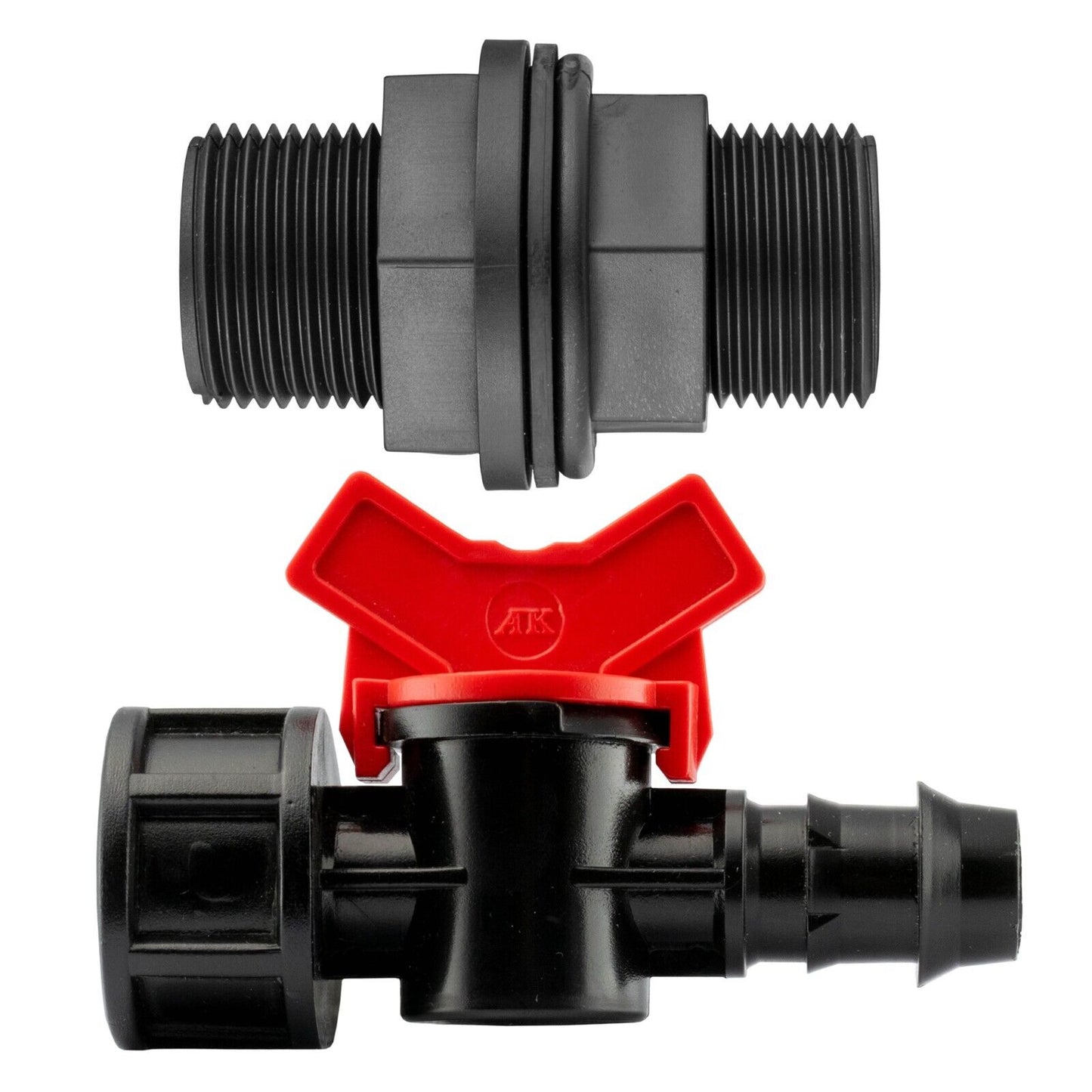

Two parts with a threaded joint

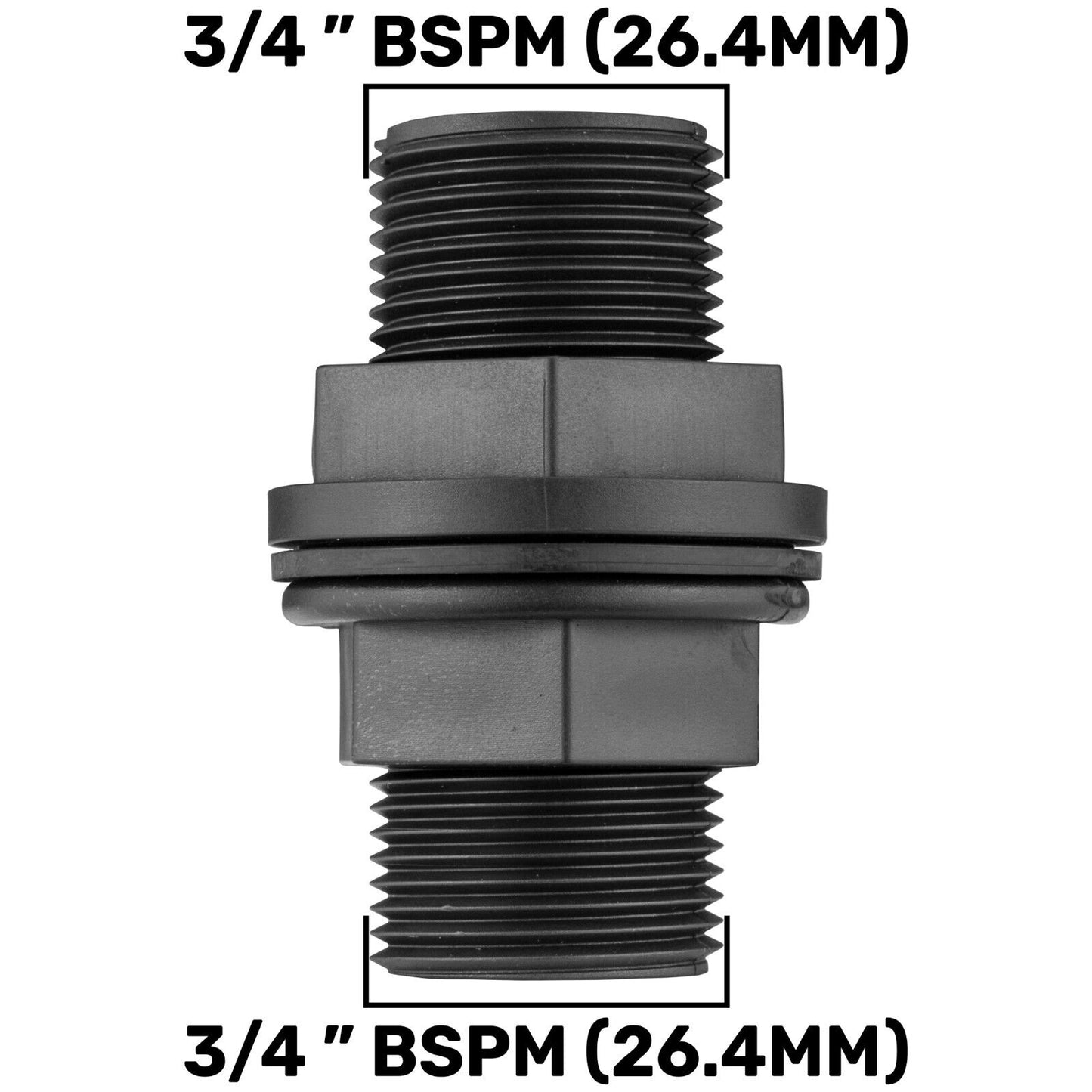

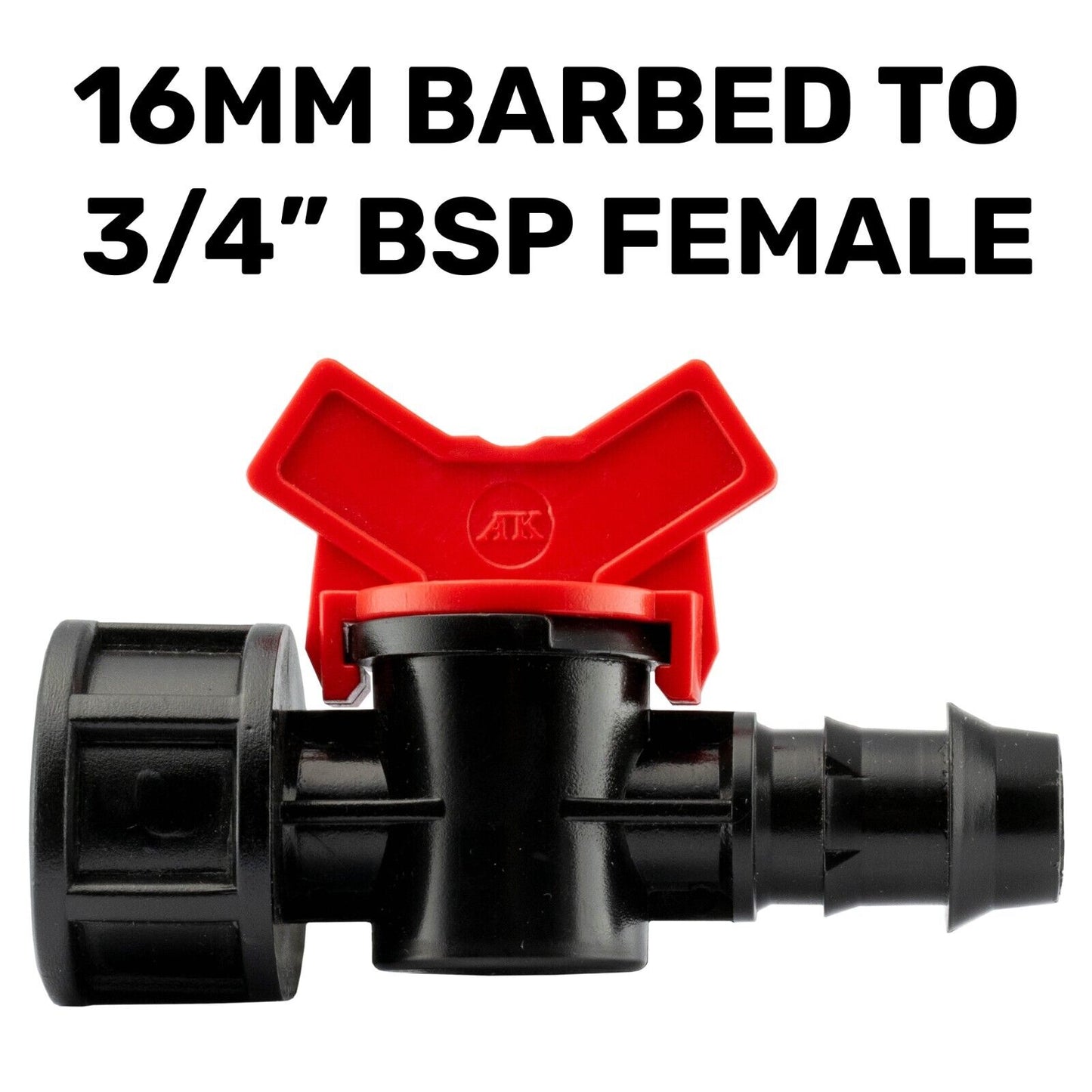

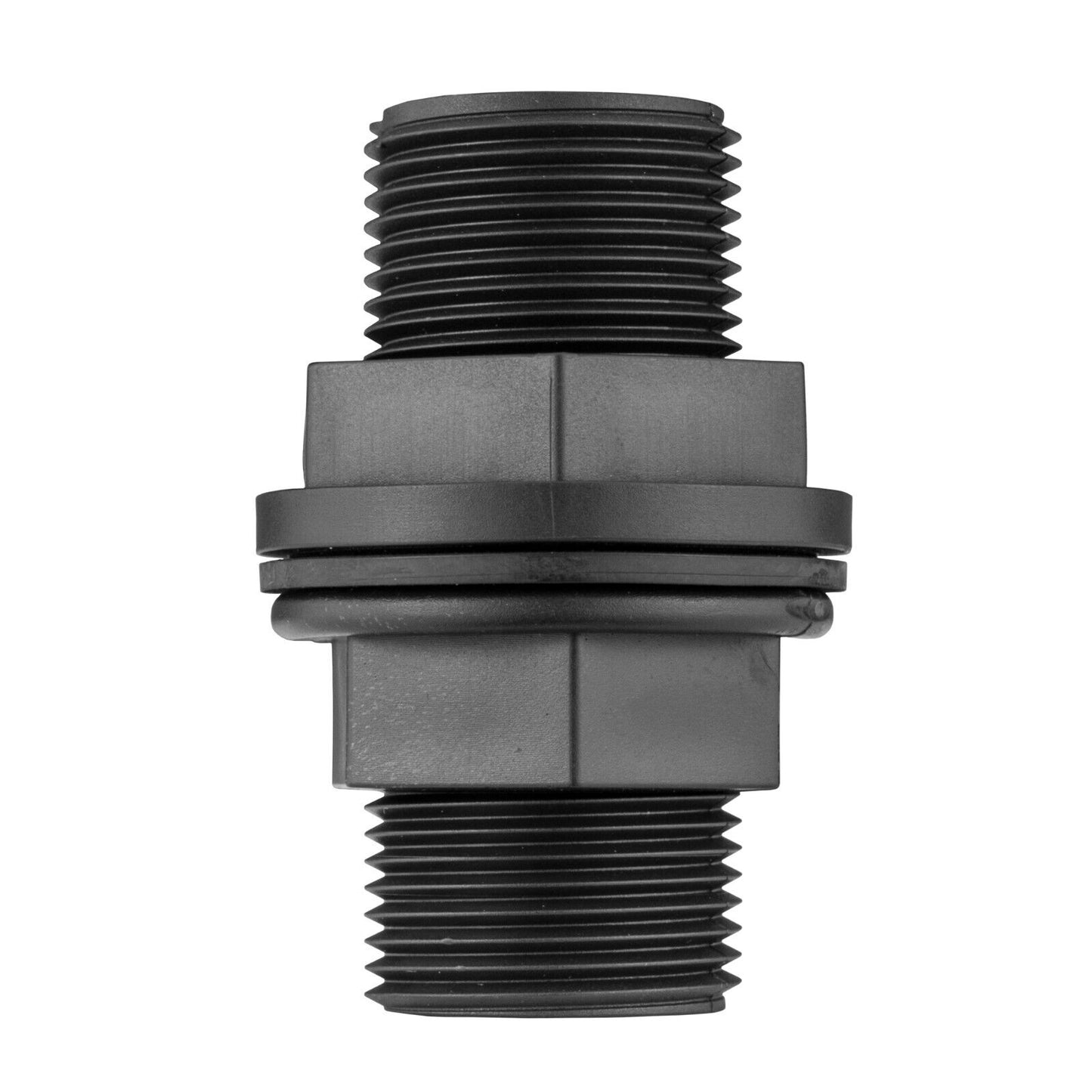

The tank connector has ¾-inch BSP male threads at both ends. The valve’s ¾-inch BSP female collar screws onto the exposed connector thread, leaving its barbed end ready for the pipe.

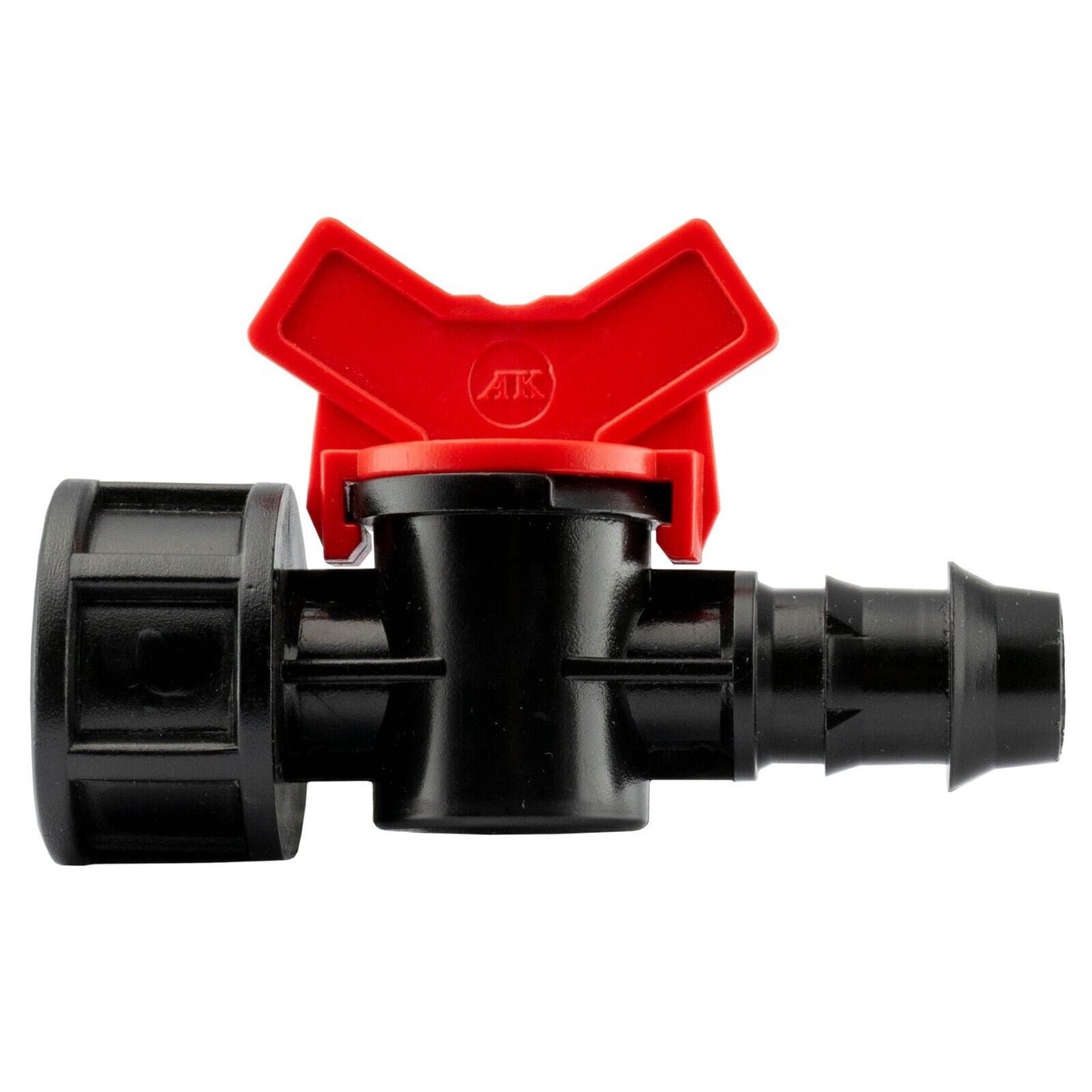

The valve is a separate component, rather than a mechanism moulded into the tank fitting. The supplied connector has its own nut and washer for mounting. This kit does not contain a Standard/Extended adapter pair or an additional loose hosetail.

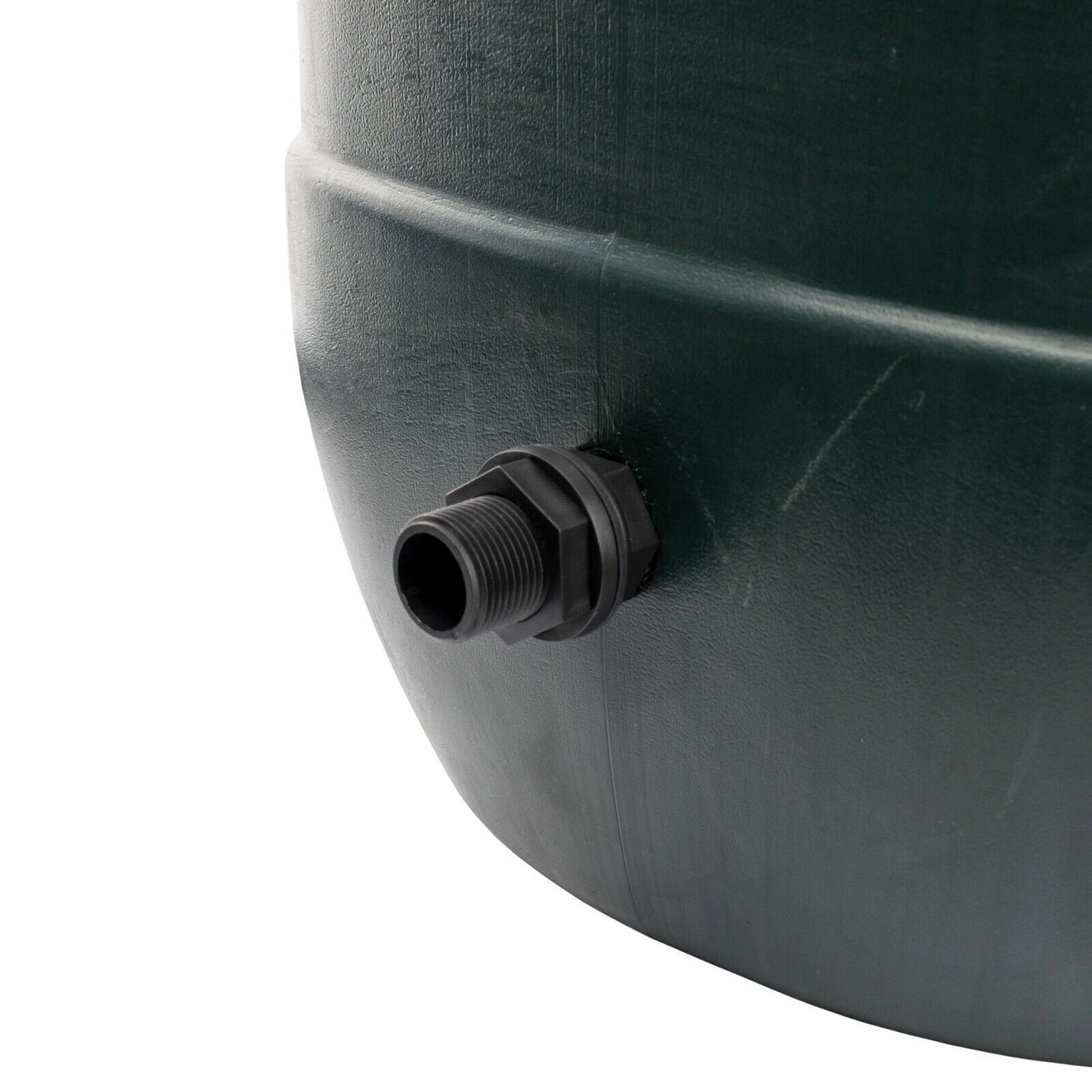

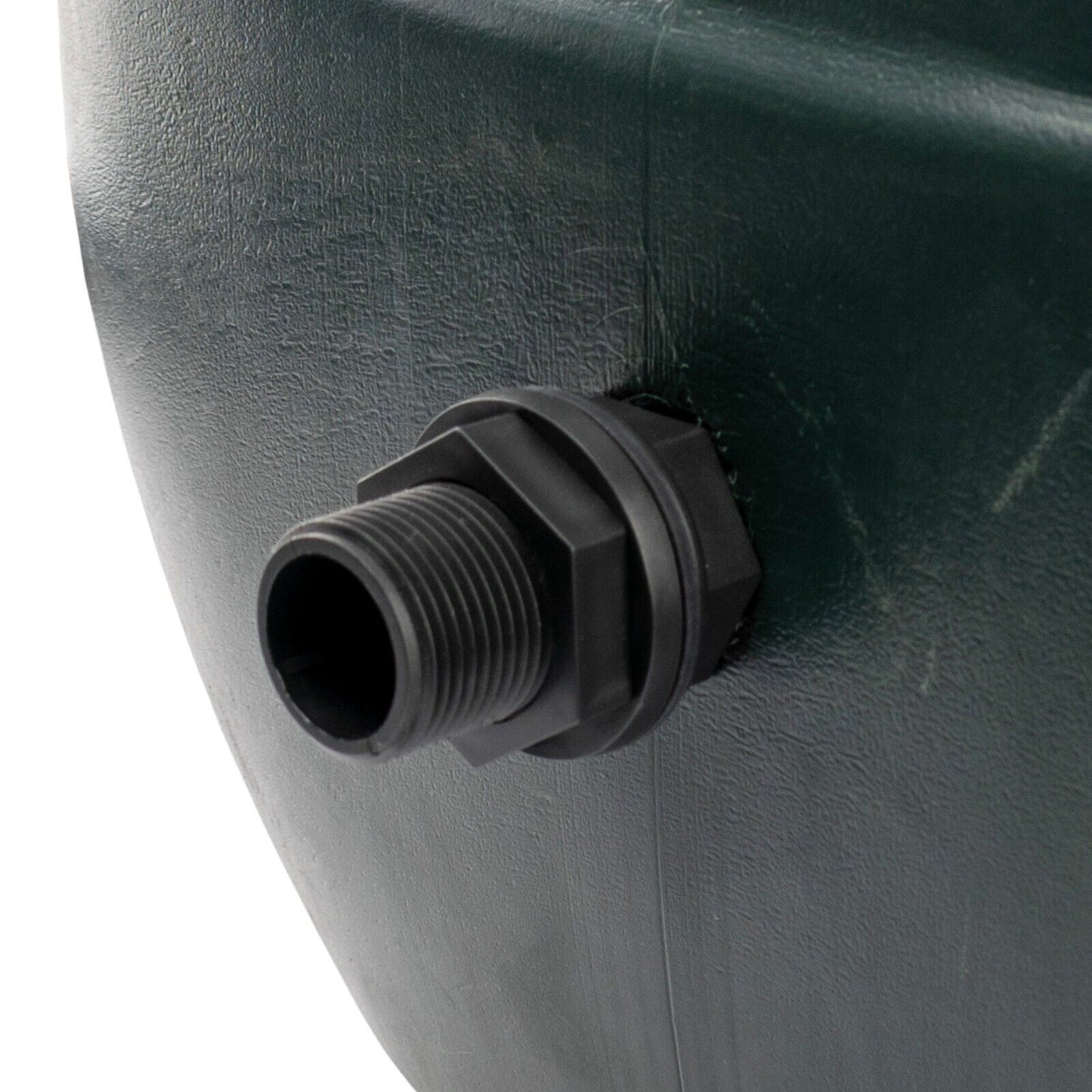

Check an existing outlet’s size and gender first. For an unthreaded mounting, confirm the tank wall is suitable, the washer can seat flat and you can reach the nut. Plan the opening from the fitting’s requirements, not from the nominal BSP size.
What does 13/16mm mean here?
Match the pipe bore as well as its outside diameter.
13mm inside
The nominal ½-inch hose bore is commonly rounded to 13mm. It is the inside of the compatible pipe that fits over the barbed tail.
16mm outside
Irrigation pipe is often sold as 16mm by its outside diameter. The combined 13/16mm description distinguishes the inside and outside sizes; it does not describe two different valve options.
Check your pipe
LDPE and porous pipe labels vary. Check the actual bore, outside size and suitability for a barbed connection. Secure and support the pipe appropriately; do not rely on the product name alone to establish a fit.
Keep the control within reach
Position the installation so you can operate the valve without the pipe pulling on the tank fitting. The hosetail is a direct pipe-on-barb connection, not a click-on garden-hose nipple.
Use a suitable clip where needed for your pipe, and support the run rather than hanging its weight from the connector. After assembly, test the tank mounting, connector-to-valve joint and pipe connection with water.
One tank connector with nut and washer and one barbed valve are supplied. Pipe, clips, PTFE tape and tools are separate. A valve controls the outlet; it does not create extra water pressure for an irrigation system.
Questions about this irrigation outlet
Is the valve built into the tank connector?
No. The kit contains a separate male-to-male tank connector and an irrigation valve with a female threaded collar. The valve screws onto one of the connector’s ¾-inch BSP male ends. The connector includes its mounting nut and washer. There is no separate Extended adapter in this kit, and the hose barb is part of the valve.
Does 16mm mean a 16mm internal hose diameter?
No. In this irrigation sizing convention, 16mm refers to the pipe’s outside diameter. The matching nominal ½-inch inside diameter is commonly rounded to 13mm, giving the familiar 13/16mm description. Check both dimensions and the pipe’s suitability for a barbed fitting before ordering; a pipe with a 16mm bore is a different size.
Can I clip a garden-hose connector onto it?
The outlet is a tapered hose barb for a direct connection to compatible pipe. It is not a male click-on nipple, so a female garden-hose quick connector will not clip straight onto it. Select the pipe by its internal diameter and fitting suitability, secure it appropriately and support the run so it does not pull against the tank mounting.
Will this make a gravity-fed watering system work?
The valve lets you start or stop water at the outlet, but it does not add pressure. Whether a gravity-fed setup works depends on the tank height, pipe run and the pressure or head needed by the porous hose, drippers or other equipment. Check those requirements for your watering system, then test the assembled connections before leaving it in use.
Product information & technical details
| SKU | BUTT34+VALVE16B34BSPF |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Barb size | 13mm (1/2") |
| Kit parts | Plastic Male-to-male Tank Connector, Separate Irrigation Valve, Integral Half-inch Hose Barb, Nut, Washer |
| Colour | Black |
| Material | Plastic |
|---|---|
| Tank connector | Plastic ¾-inch BSP male-to-male tank fitting with nut and washer |
| Valve thread | ¾-inch BSP female; screws onto the tank connector |
| Pipe connection | Integral barb for nominal ½-inch / 13mm internal-diameter hose, commonly 13/16mm irrigation pipe |
| Control | Separate plastic irrigation valve with turn-operated on/off handle |
| Kit contents | 1 tank connector with nut and washer; 1 barbed irrigation valve |
| Connection style | Threaded connector-to-valve joint; direct pipe-on-barb hose connection |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
