Description
Two ways to connect

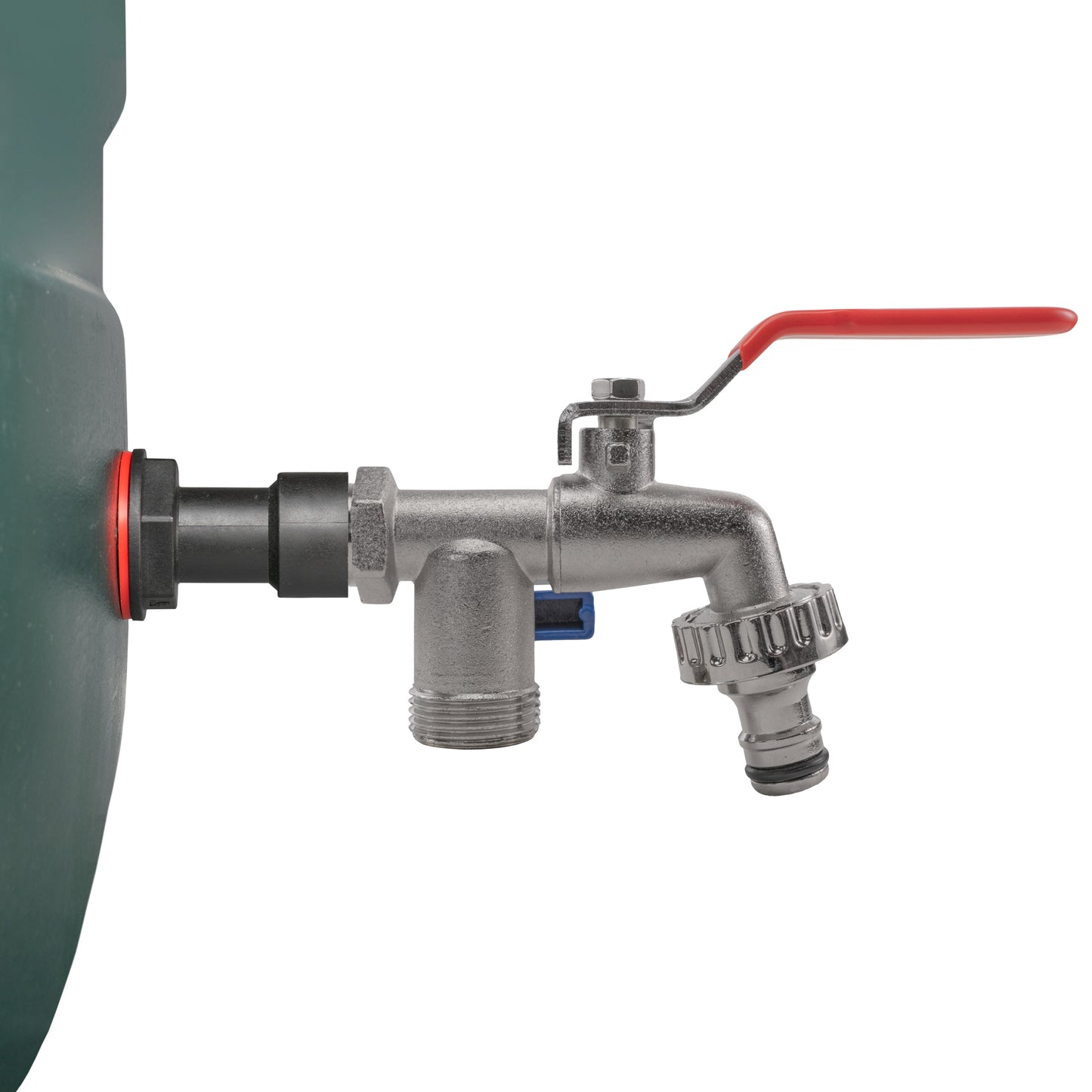

A double-outlet lever tap with a click-lock hose connection and a separately controlled threaded outlet.
Pair the nickel-plated metal tap with the plastic adapter that suits your water butt.
½-inch or ¾-inch tank-side BSP. Standard or Extended reach.
Choose how each line connects
The curved spout has a male click-lock connector for a compatible female garden-hose quick connector. The main lever controls this outlet, making it convenient to connect and disconnect a hose with its own suitable end fitting.
The second outlet is BSP-threaded and has its own valve. It gives you a separate connection for a matching fitting or accessory. The ½-inch tap is pictured from the control side so you can see both the large lever and the smaller auxiliary control.
Check that second outlet’s actual thread before buying an accessory. The product’s BSP option describes the tank connection; it is not a specification for every thread on the tap. Hoses, hose-end connectors and additional threaded fittings are separate.
Match the tank and reach
Both ½-inch BSP choices pair a ½-inch male/female tank connector with a ½-inch BSP male-inlet tap. Choose Standard for the shorter connector, or Extended for the longer one shown here.
For ¾-inch BSP Standard, the tank fitting reduces from ¾-inch male to ½-inch female and accepts a ½-inch tap. ¾-inch BSP Extended uses a ¾-inch male/female extension with a ¾-inch tap inlet.
The Extended connector is 50mm overall, with about 40mm usable projection. This describes the connector rather than the full assembly. Check the tank wall, lever movement and space beneath both outlets before selecting the reach.
Before you fit the kit
Check the mounting point and plan both outlet connections.
Check the tank wall
Match the size and gender of an existing threaded outlet. For a new opening, check wall suitability, washer seating and access for the back nut. Each selected kit includes one nut and two washers. Nominal BSP size is not a drill-bit measurement.
Allow operating space
Leave room for the long lever, the auxiliary valve and any hose connectors or threaded accessories. Route hoses without sharp bends and support them so their weight does not strain the tap or plastic tank adapter.
Test with water
Check the mounting seal and each threaded connection after installation. Two outlets share the supply available from the water butt; they do not create extra pressure. Confirm that your connected equipment can work with the available flow and water level.
Questions about the double-outlet kit
Are both outlets quick-connect fittings?
No. One outlet is supplied with a male click-lock hose connector, which accepts a compatible female garden-hose quick connector. The second outlet is BSP-threaded and has its own valve. A hose-end quick connector and any fitting needed for the threaded outlet are separate from this kit, so plan the two connections individually.
Does the ¾-inch Standard kit have a ¾-inch tap inlet?
No. That option uses a ¾-inch BSP male to ½-inch BSP female reducing tank adapter, paired with a ½-inch BSP male-inlet tap. The ¾-inch Extended option uses a ¾-inch male/female extension and a ¾-inch tap. The option name describes the tank-side thread, while the technical details explain the tap paired with it.
Is PTFE tape included with the kit?
No. These kits contain one selected plastic tank adapter, one metal double tap with its click-lock outlet connector, one back nut and two washers. PTFE tape, hoses, hose-end connectors and extra threaded accessories are separate. The mounting nut and washers are included with either the Standard or Extended adapter.
How far does the Extended connector project?
The Extended connector measures 50mm overall, with about 40mm usable projection. This is the plastic connector’s measurement, not the complete adapter-and-tap length. Check the tank shape and leave space for the lever, auxiliary control and both outlet connections, including any hose-end fitting you plan to add.
Product information & technical details
| SKU | WB12MF-KIT005 |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4" |
| Thread gender | Male, Female |
| Kit parts | Selected Plastic Tank Adapter, Nickel-plated Metal Double Tap, Click-lock Outlet Connector, Back Nut, 2 Washers |
| Colour | Black, Silver |
| Material | Metal, Plastic |
| ½-inch BSP options | Standard: ½-inch BSP male/female adapter; Extended: ½-inch BSP male/female extension; both with ½-inch BSP male tap inlet |
|---|---|
| ¾-inch BSP Standard option | ¾-inch BSP male to ½-inch BSP female reducing adapter; ½-inch BSP male tap inlet |
| ¾-inch BSP Extended option | ¾-inch BSP male/female extension; ¾-inch BSP male tap inlet |
| Extended connector dimensions | 50mm overall connector length; about 40mm usable projection |
| Tap outlets | 1 male click-lock outlet; 1 BSP-threaded outlet with its own valve |
| Included in each selected kit | 1 plastic tank adapter, 1 nickel-plated metal double tap with click-lock connector, 1 back nut and 2 washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
