Description
Choose your connection
A brass tank adapter and inline valve, with an outlet to suit the way you connect your hose.
Use the short lever to control water at the tank. Choose the adapter size and outlet separately.

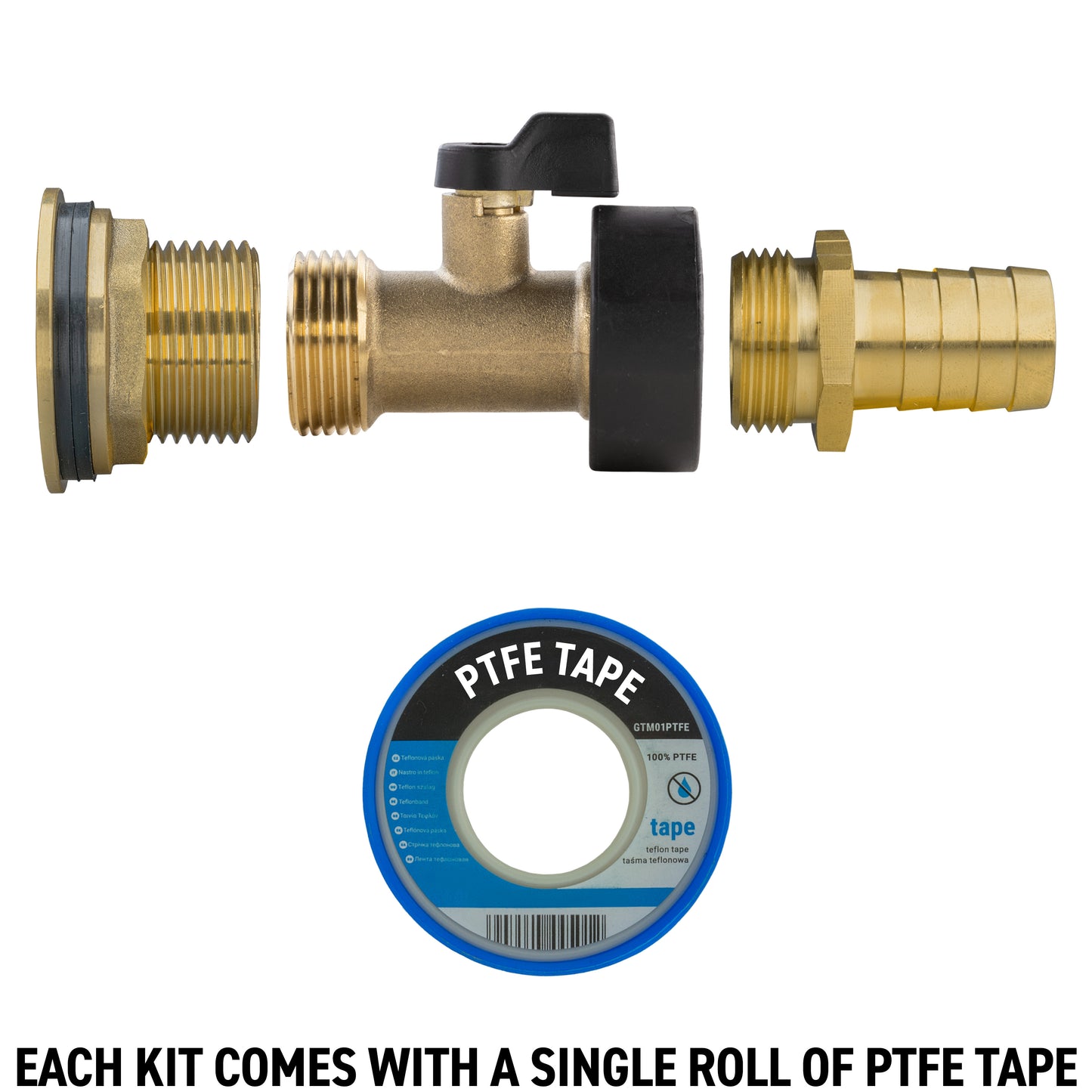

One selected kit, including PTFE tape.

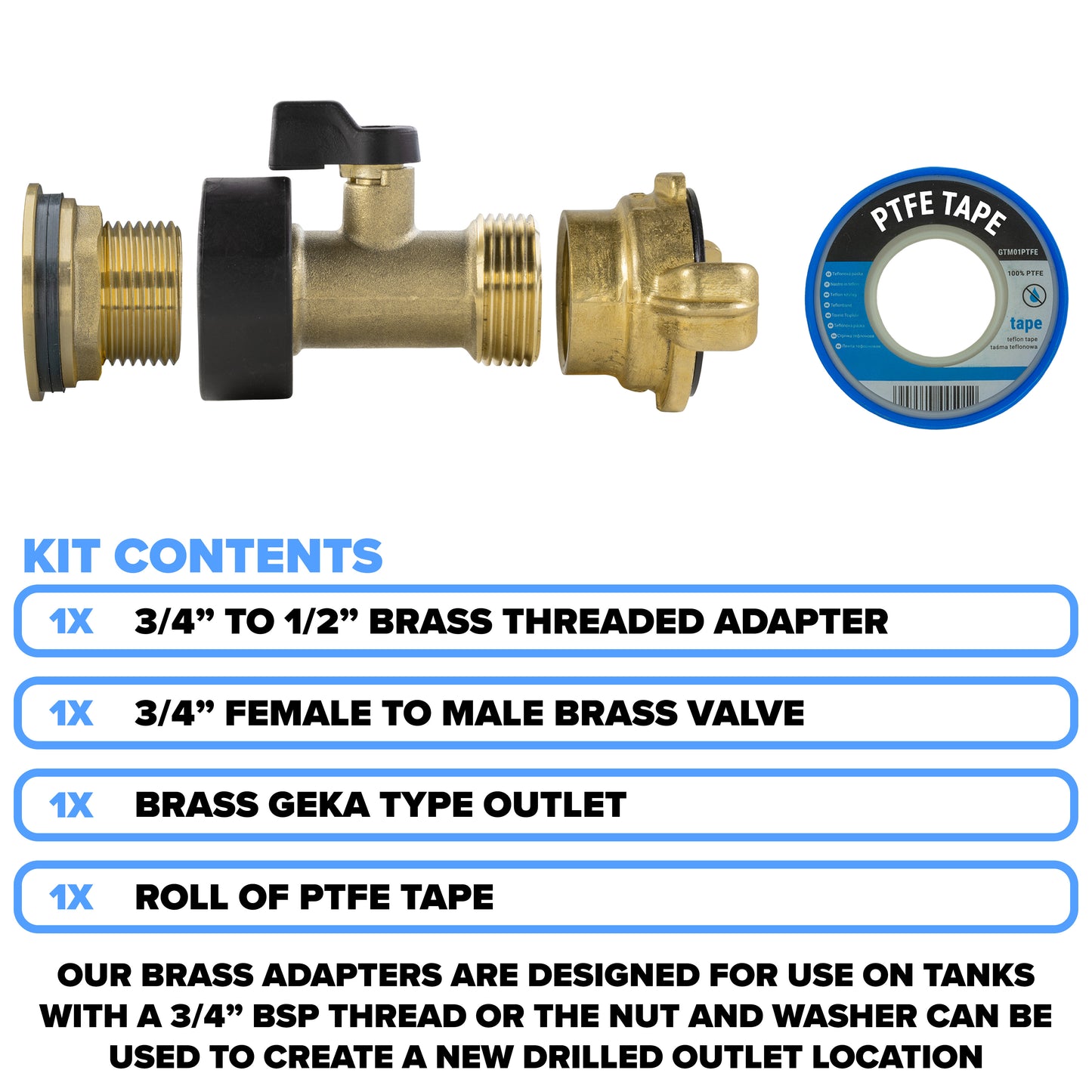

The ¾-inch adapter kits

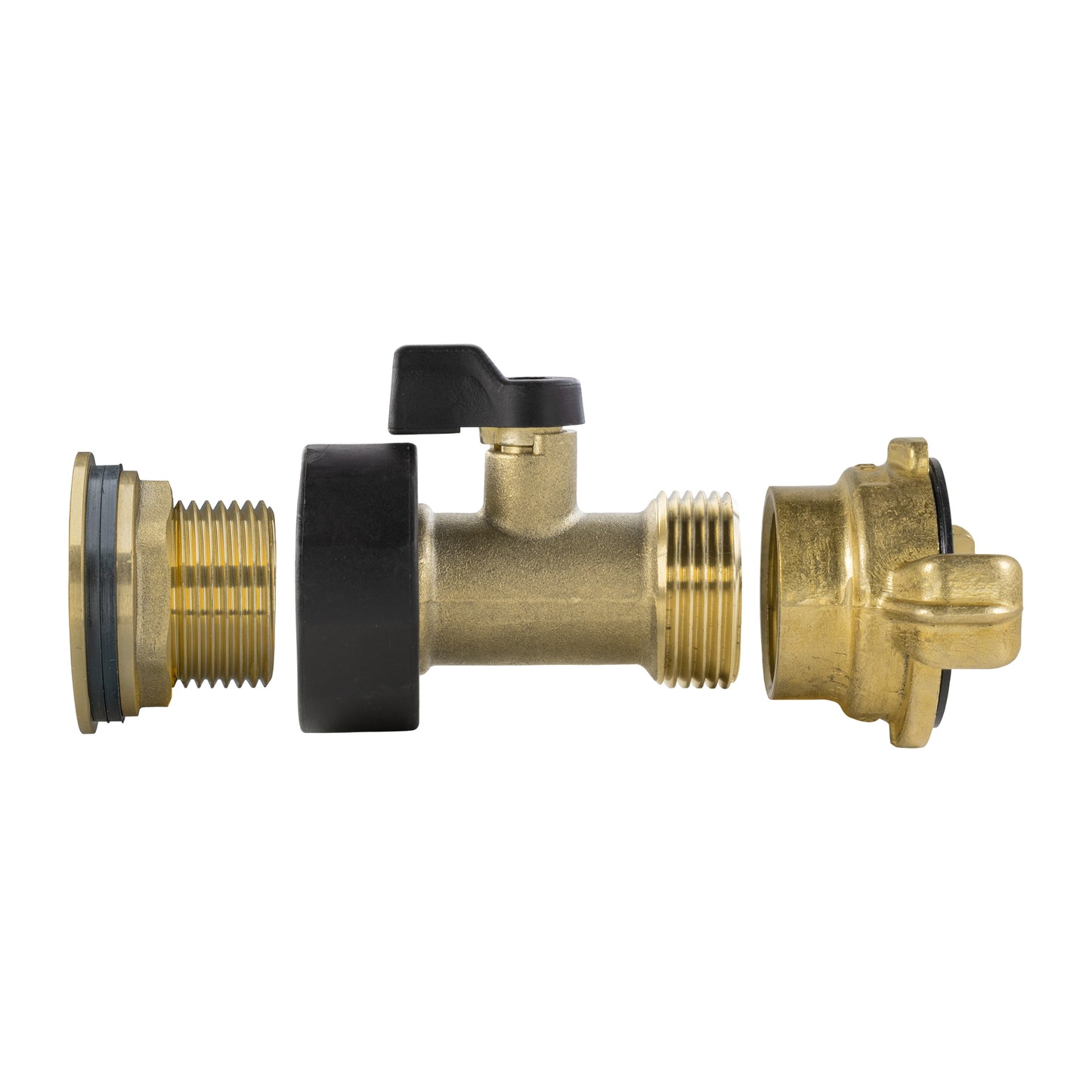

The smaller brass tank fitting has a ¾-inch BSP male external thread and a ½-inch BSP female internal thread. In these kits, the valve’s ¾-inch BSP female collar fits over the adapter’s external thread.
That leaves a ¾-inch BSP male outlet on the valve. Select Valve Only to keep that thread exposed, or choose the quick connector, ½-inch barb, ¾-inch barb or GEKA outlet.

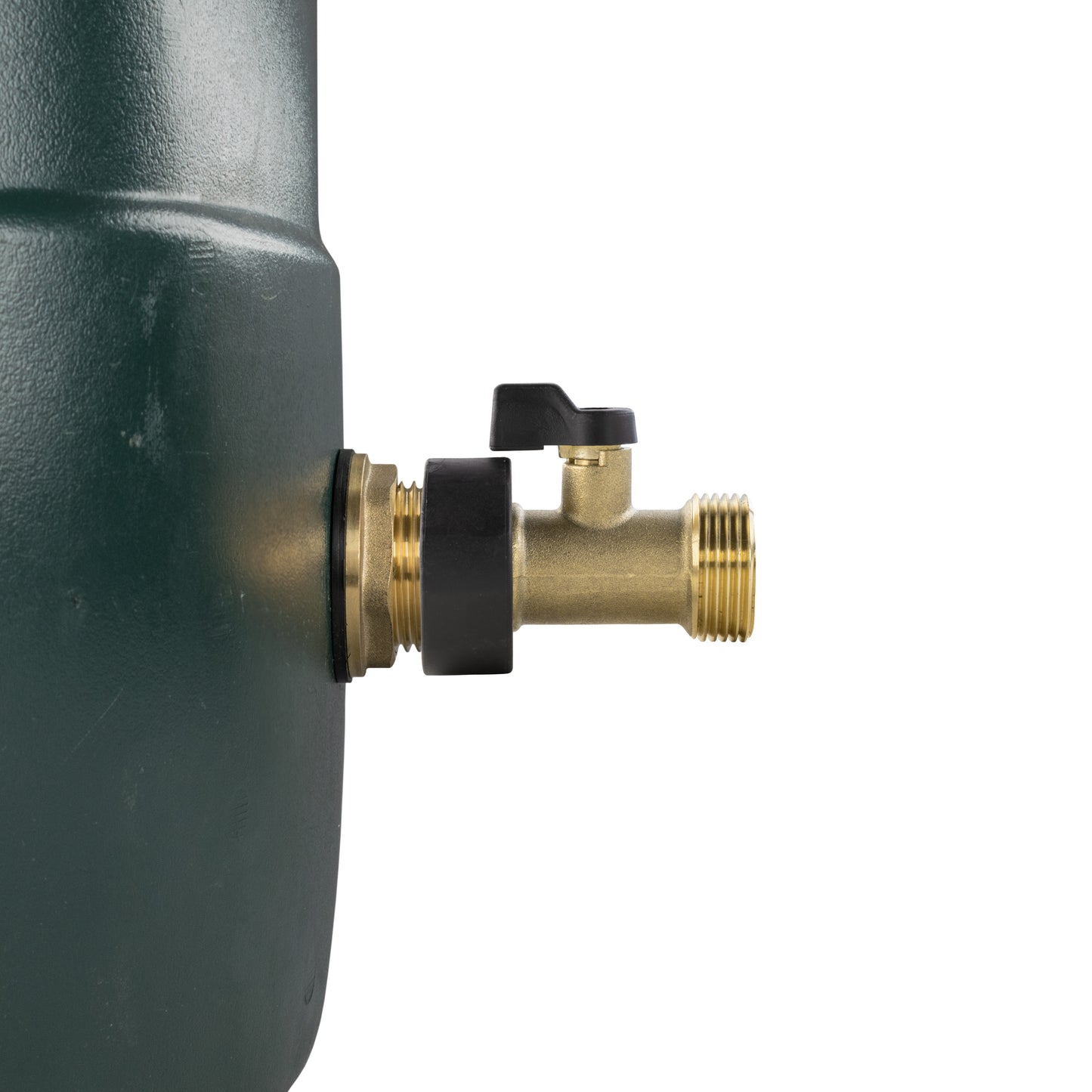

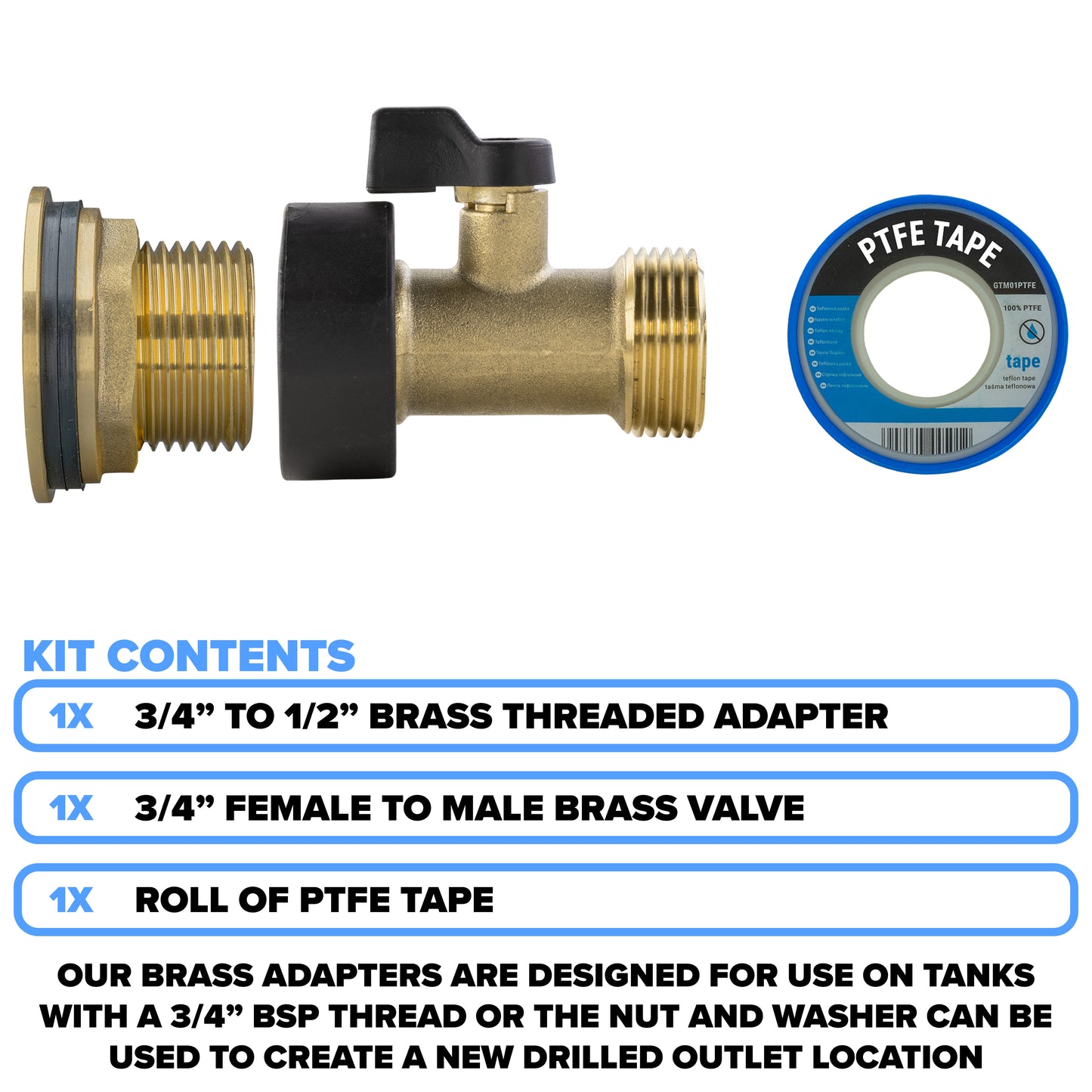

The actual Valve Only kit is pictured here. Every kit includes the adapter with back nut and two washers, the valve and one PTFE roll. Other outlet fittings are supplied only with the corresponding option.

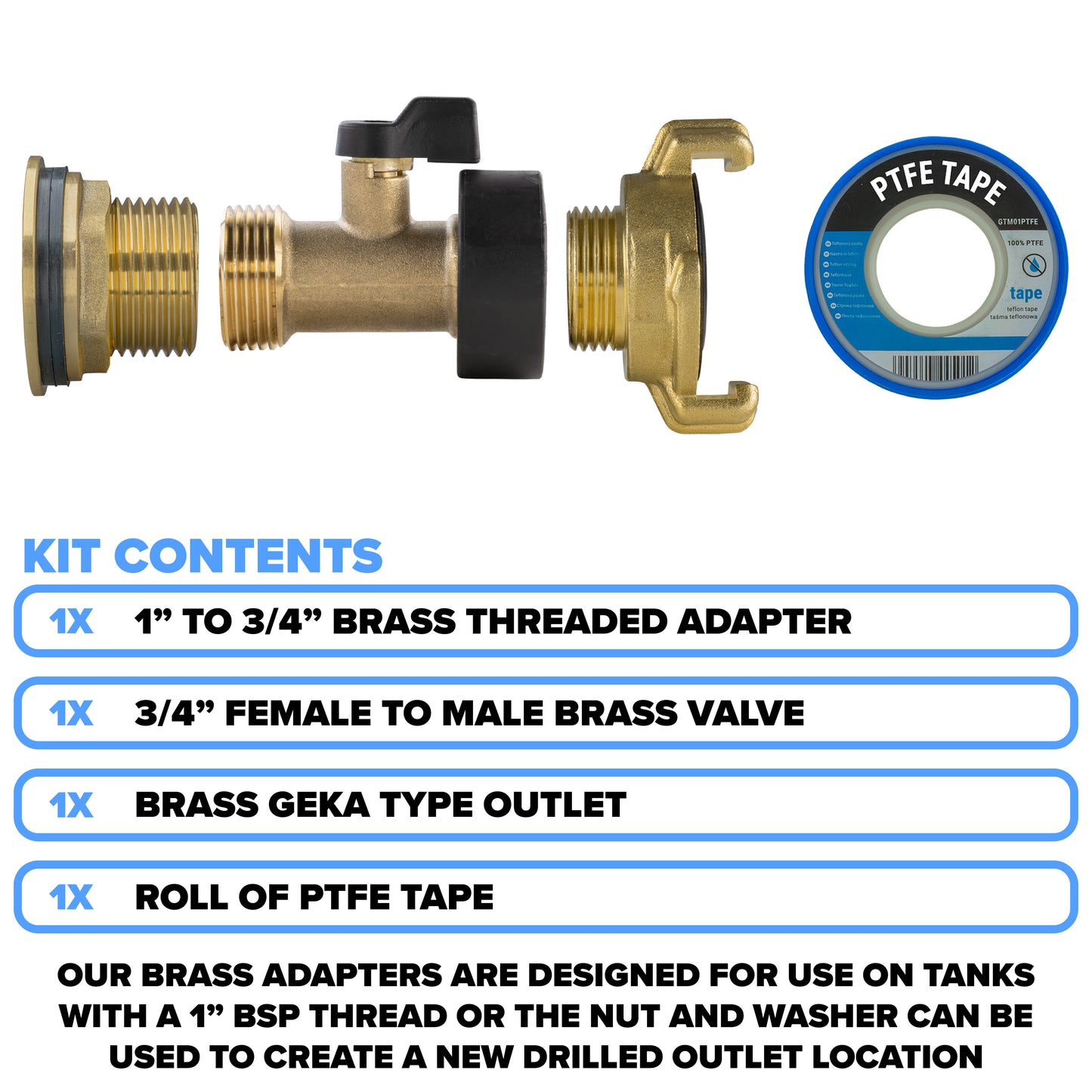

The 1-inch adapter kits

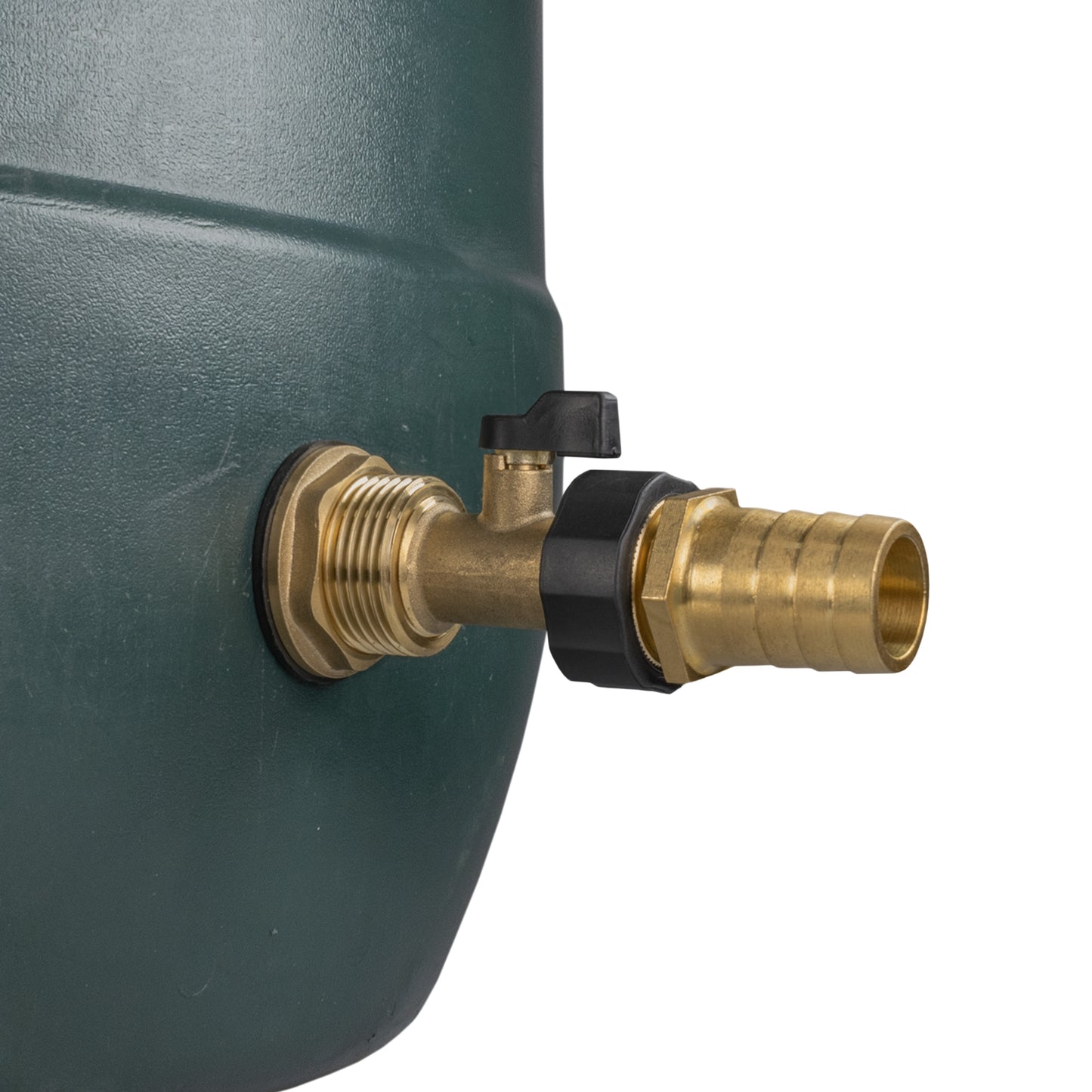

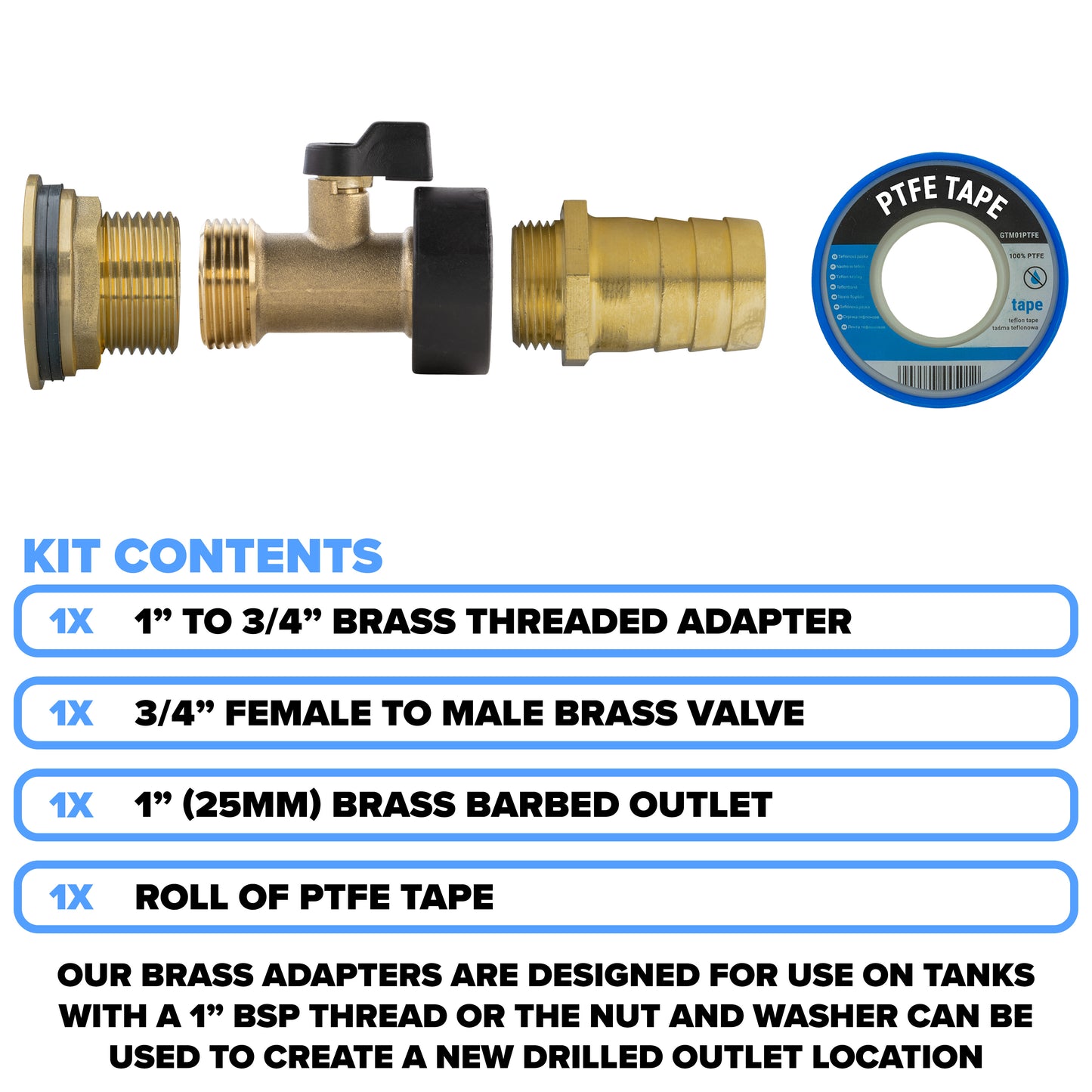

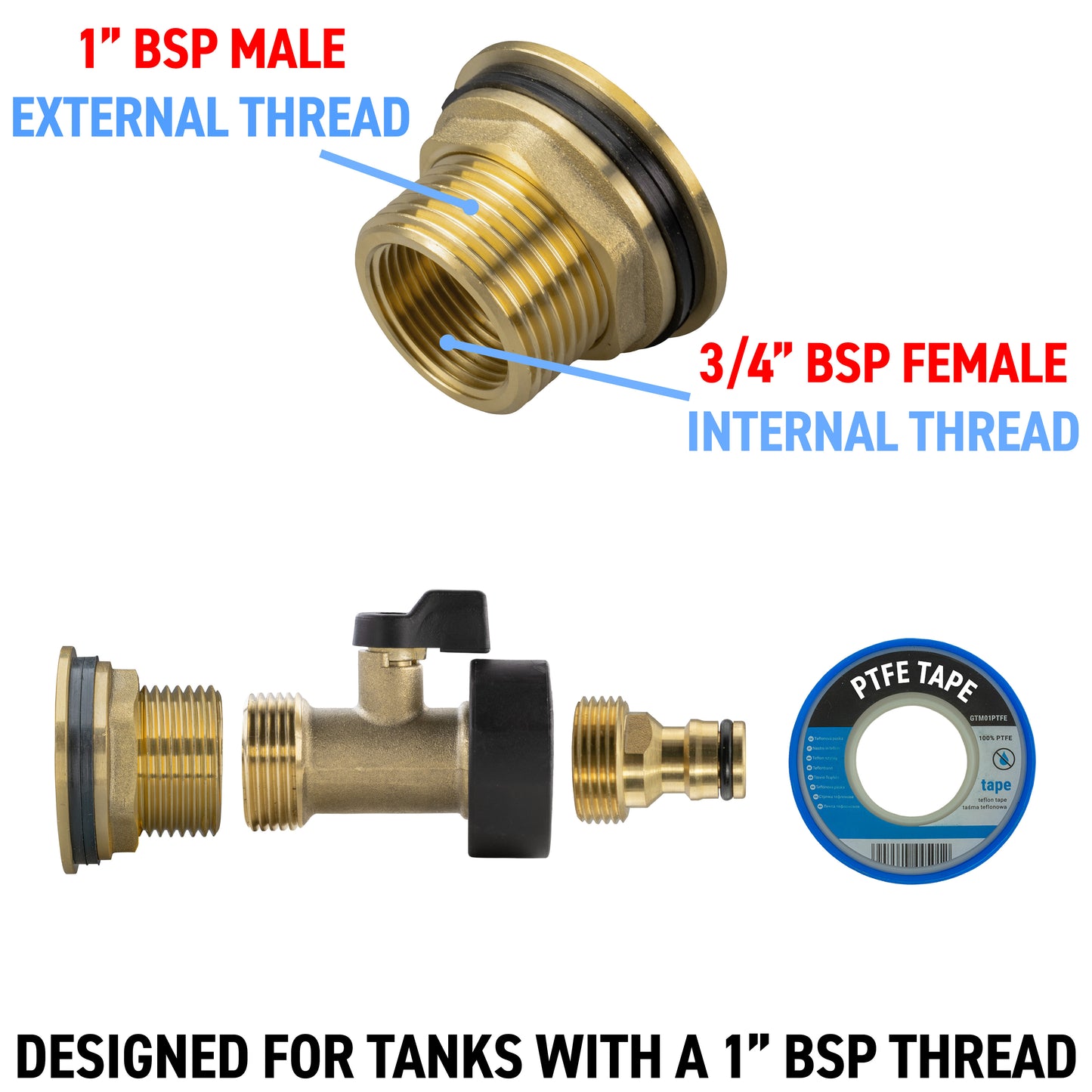

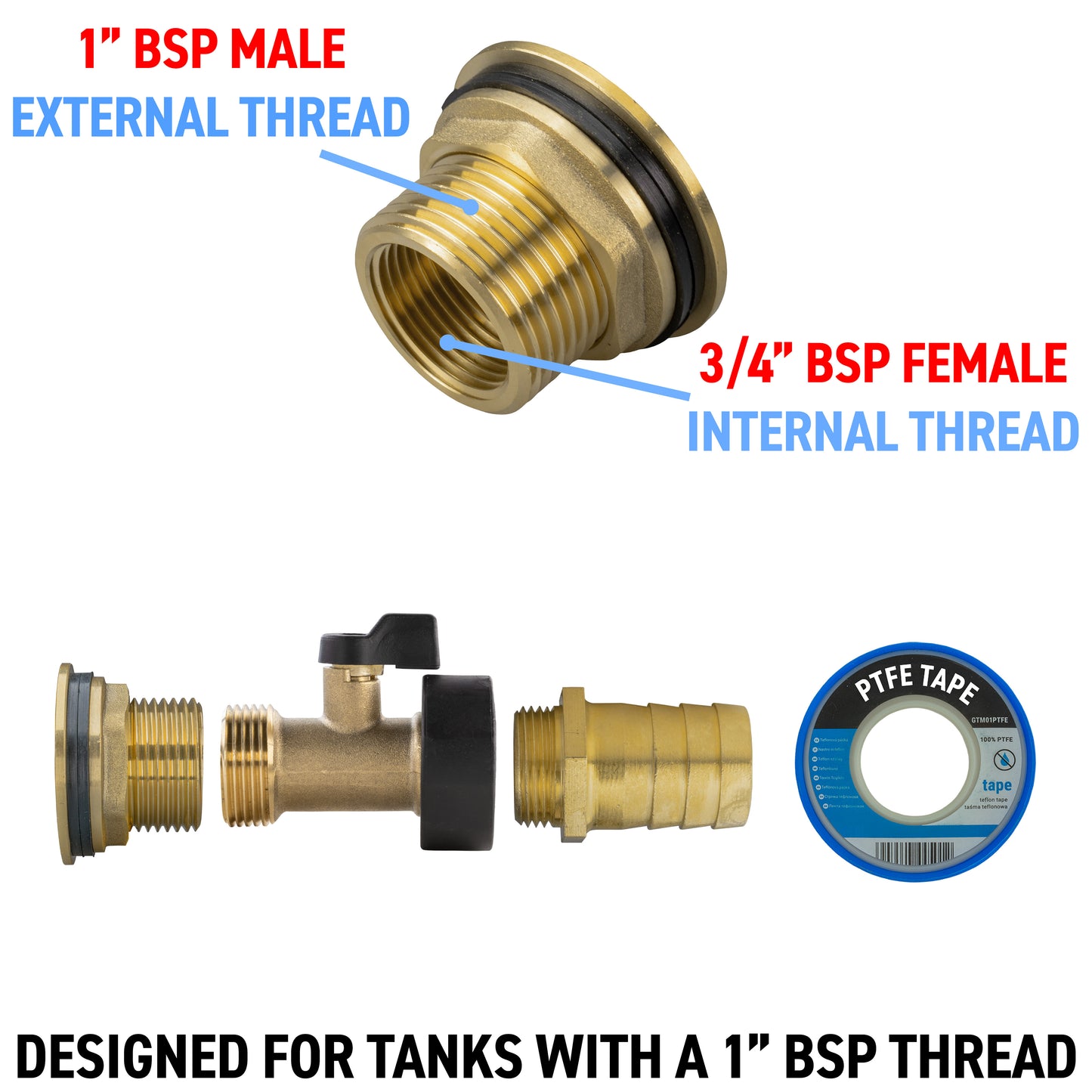

The larger brass tank fitting has a 1-inch BSP male external thread and a ¾-inch BSP female internal thread. Here, the same valve is fitted the other way round: its ¾-inch BSP male end screws into the adapter.

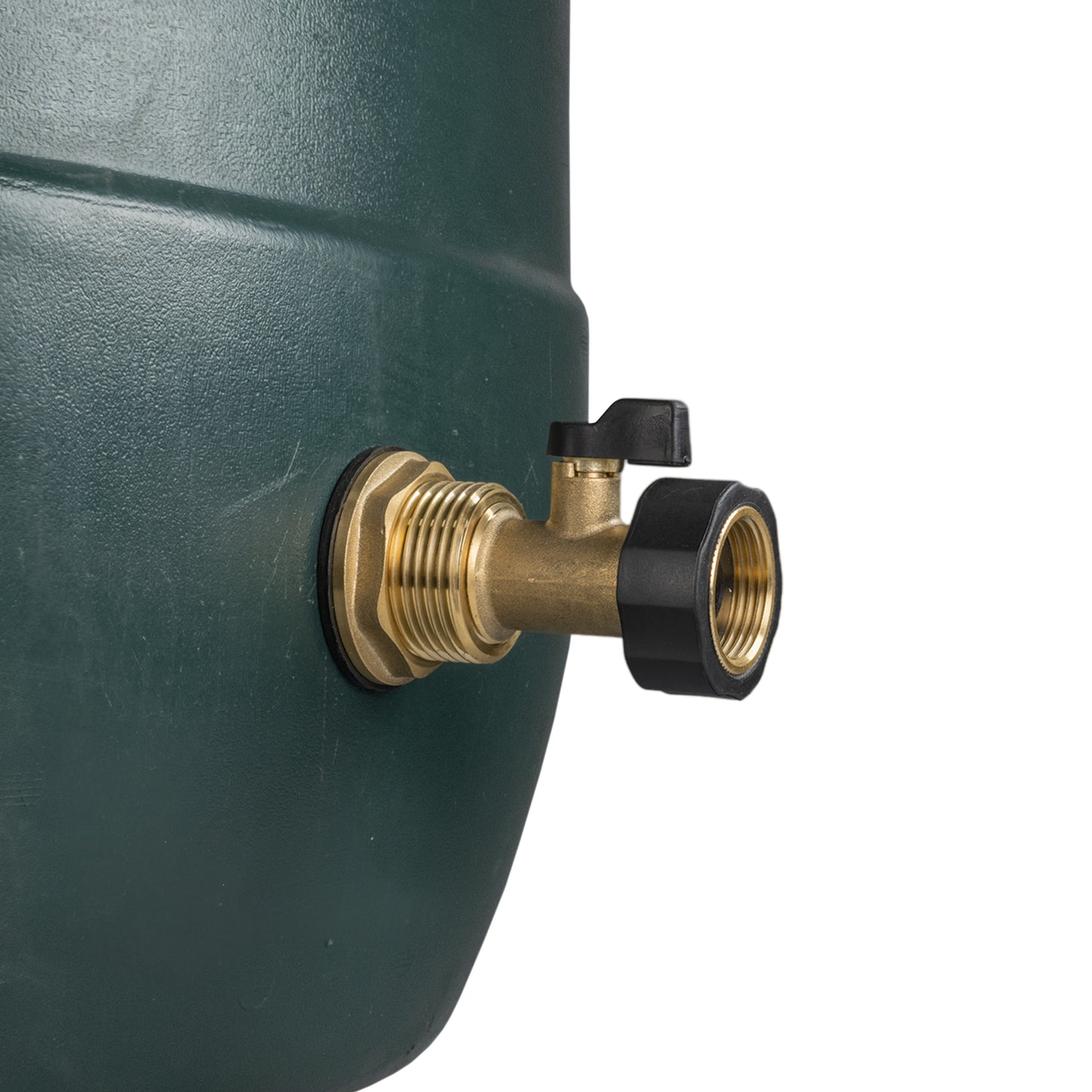

The exposed valve outlet is therefore ¾-inch BSP female before an outlet fitting is added. Choose Valve Only, a quick connector, a ½-inch or ¾-inch barb, GEKA, or the additional 1-inch barb option.
The adapter size refers to its male external thread. It does not mean that every connection in the kit, or the hose you attach, is 1 inch.
Choose the hose end
Each kit supplies one selected outlet arrangement. Match it to your hose system.

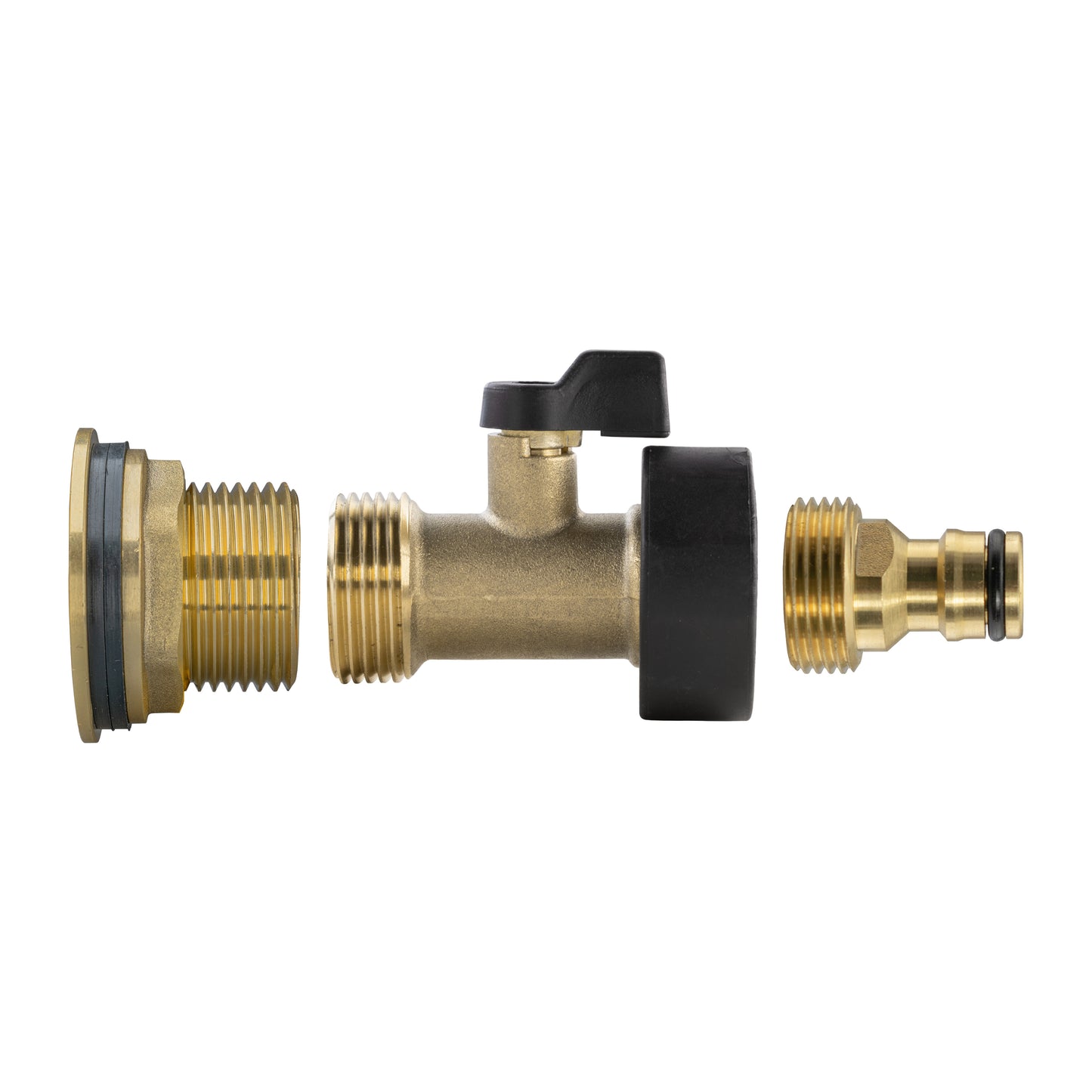

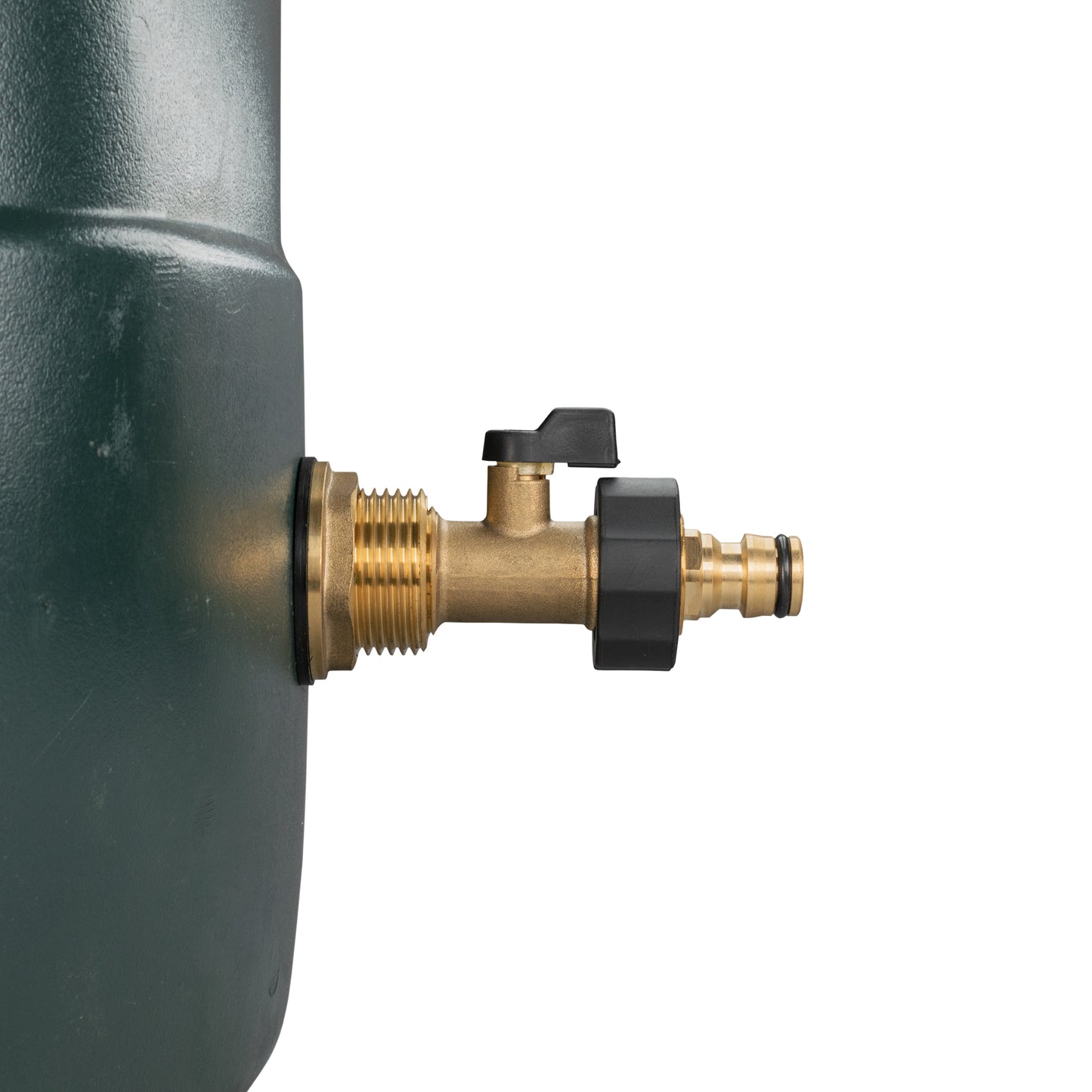

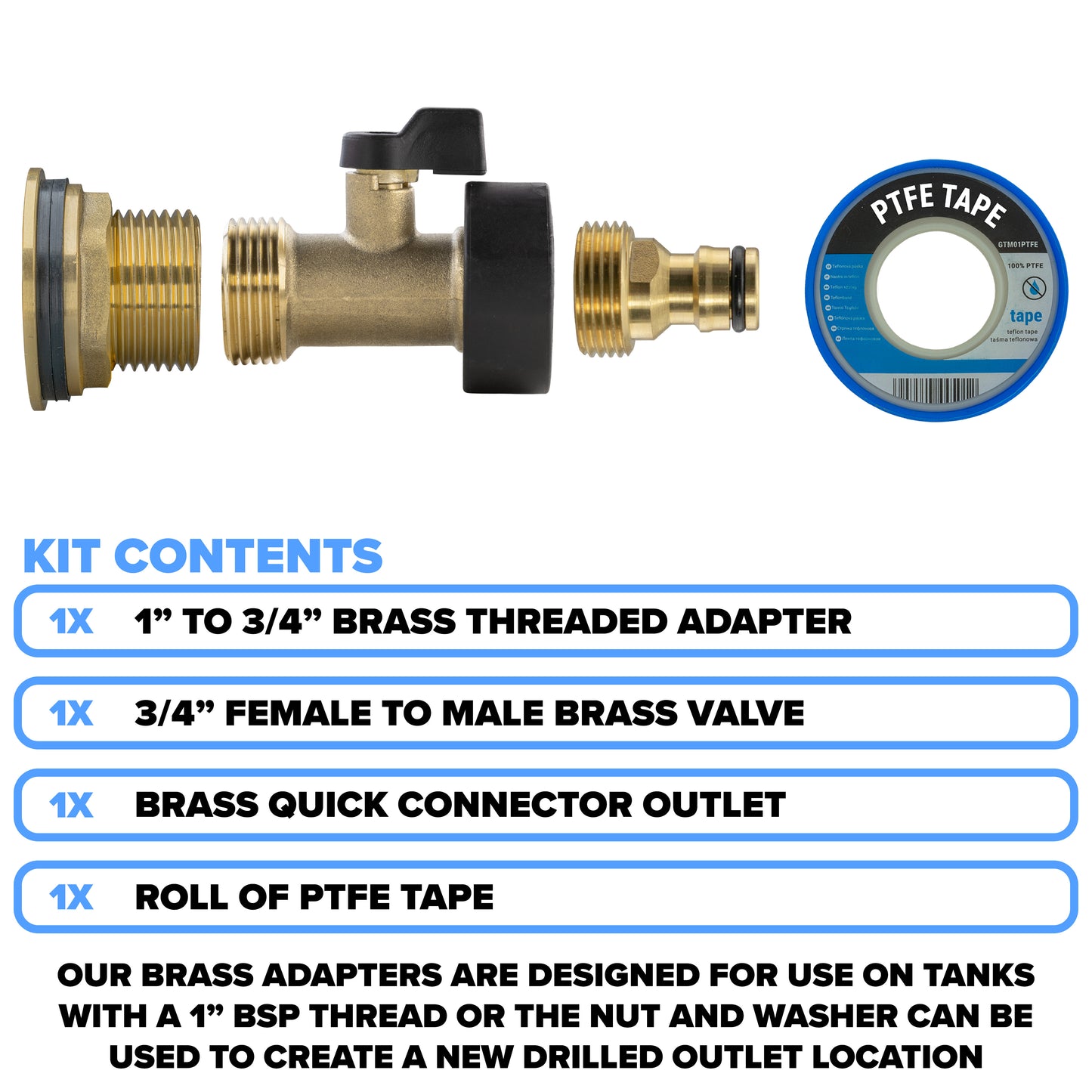

Quick Connector

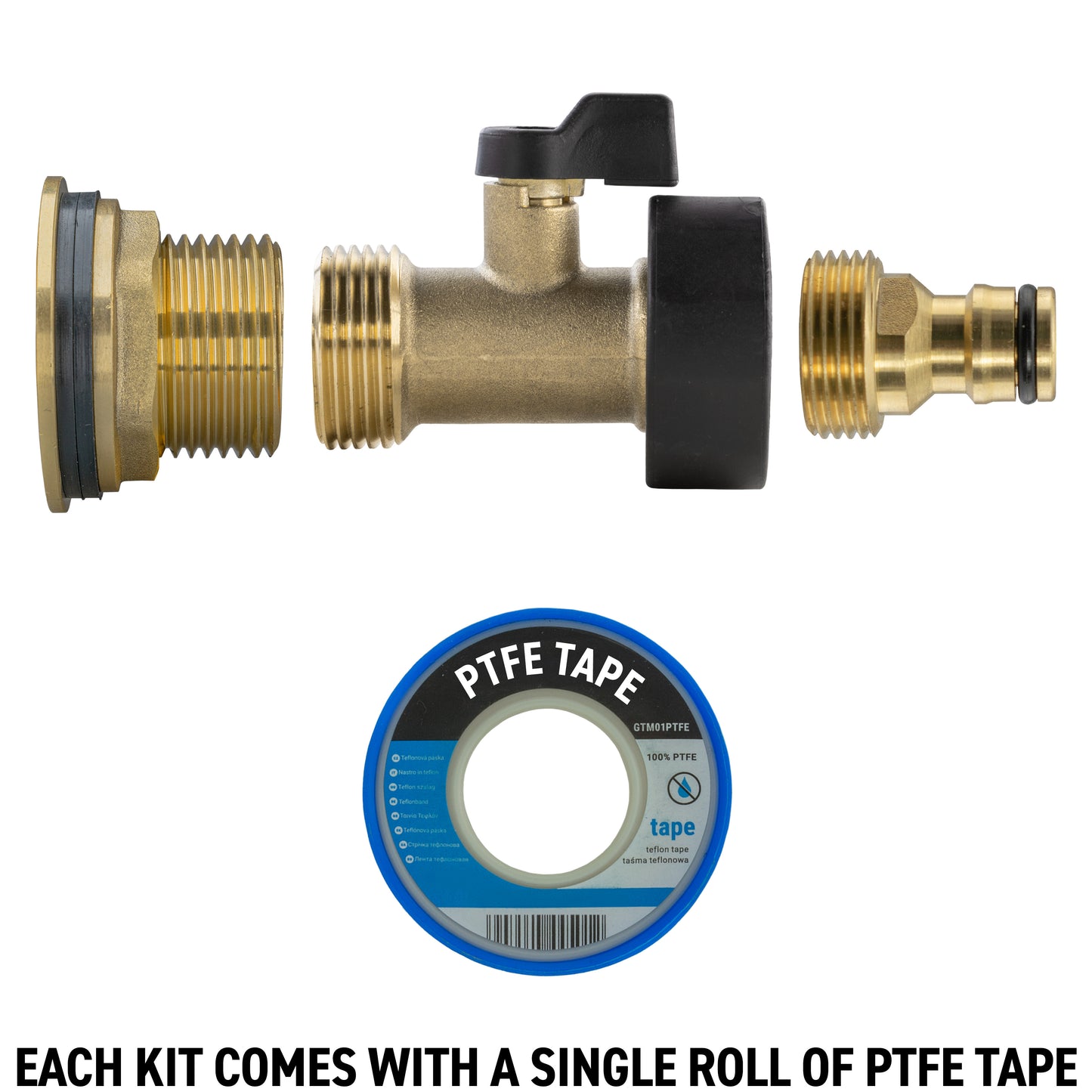

A male quick-connect nipple for a matching female connector on your hose. The hose-side receiving connector is separate. Close the valve before releasing the hose; this outlet is not a bare-hose barb.

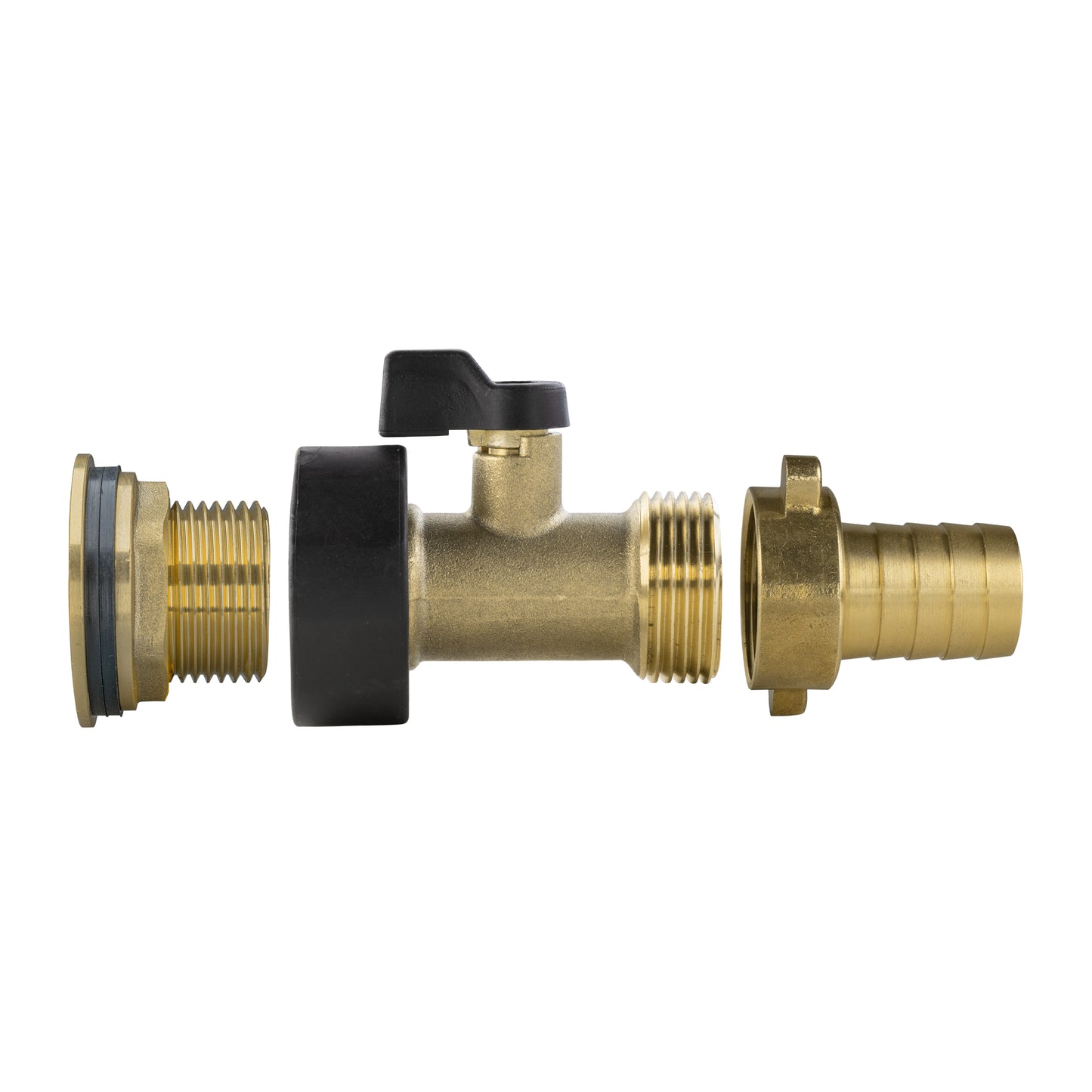

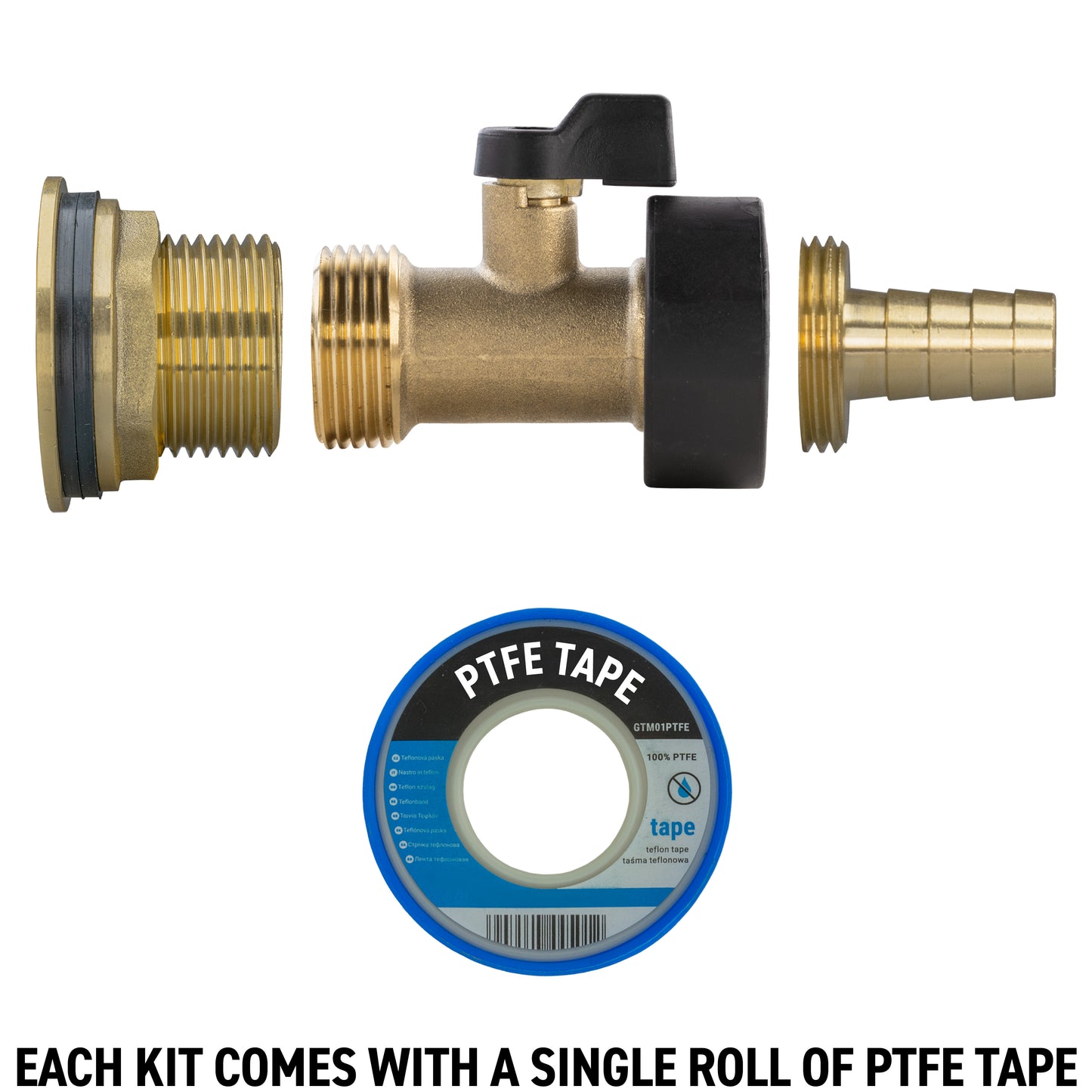

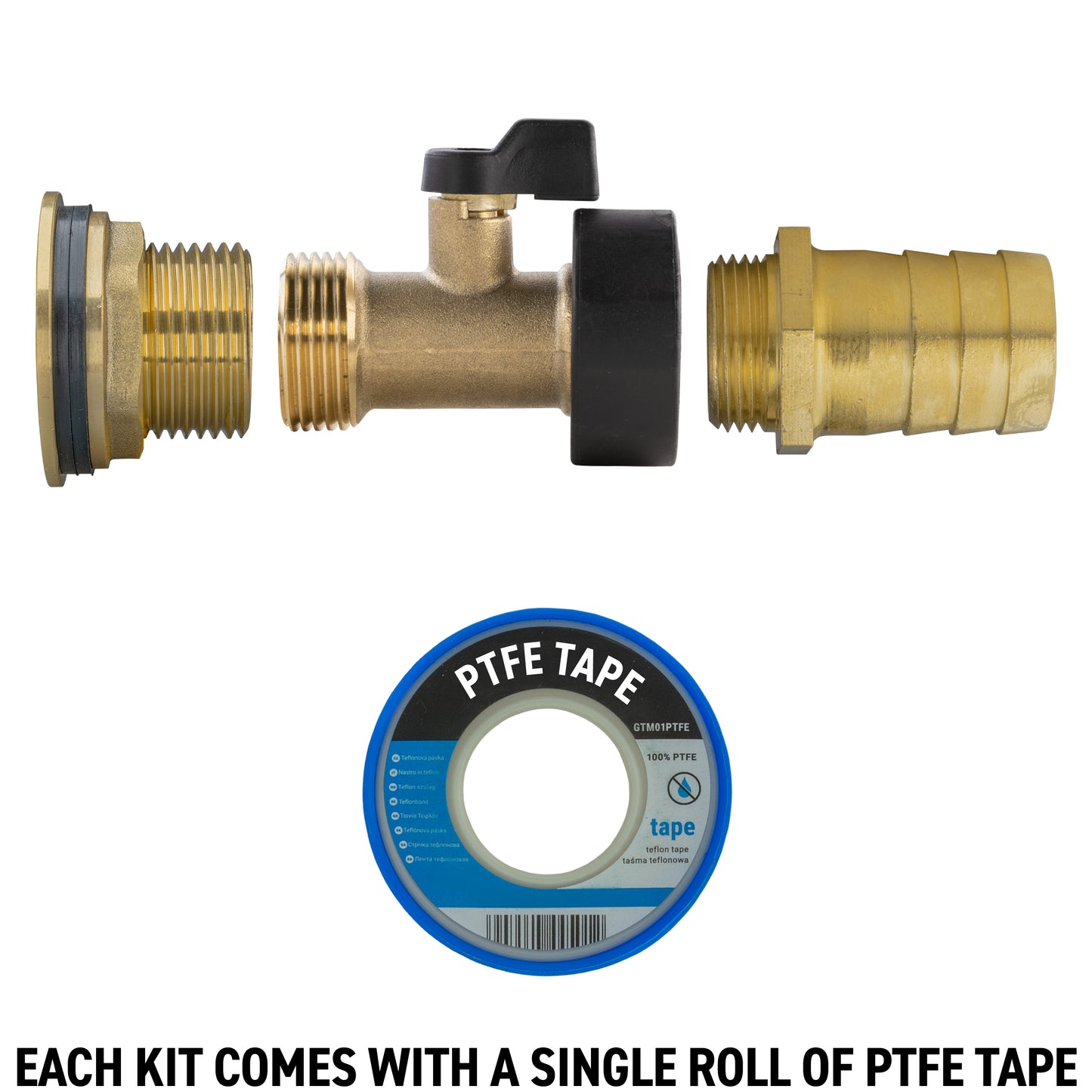

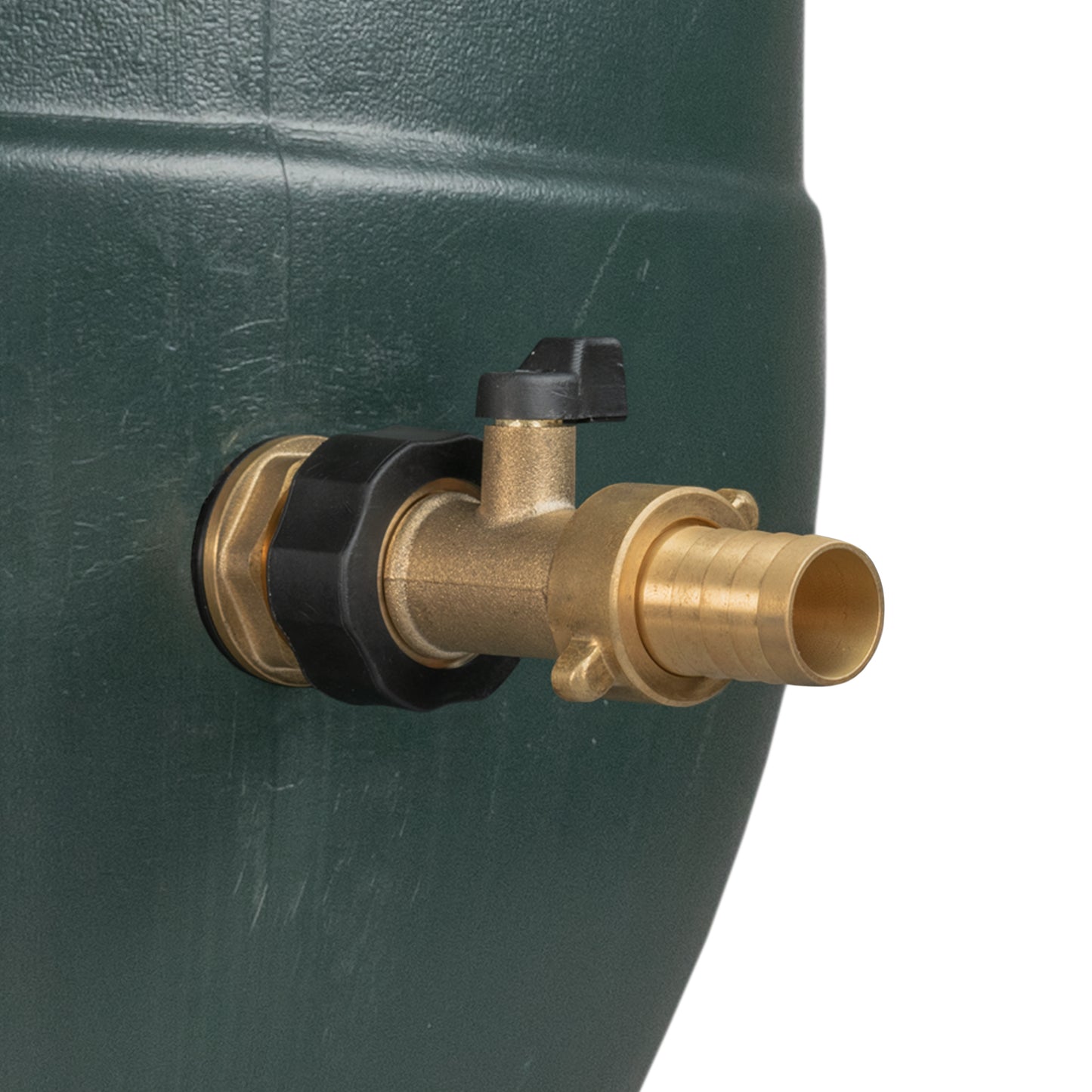

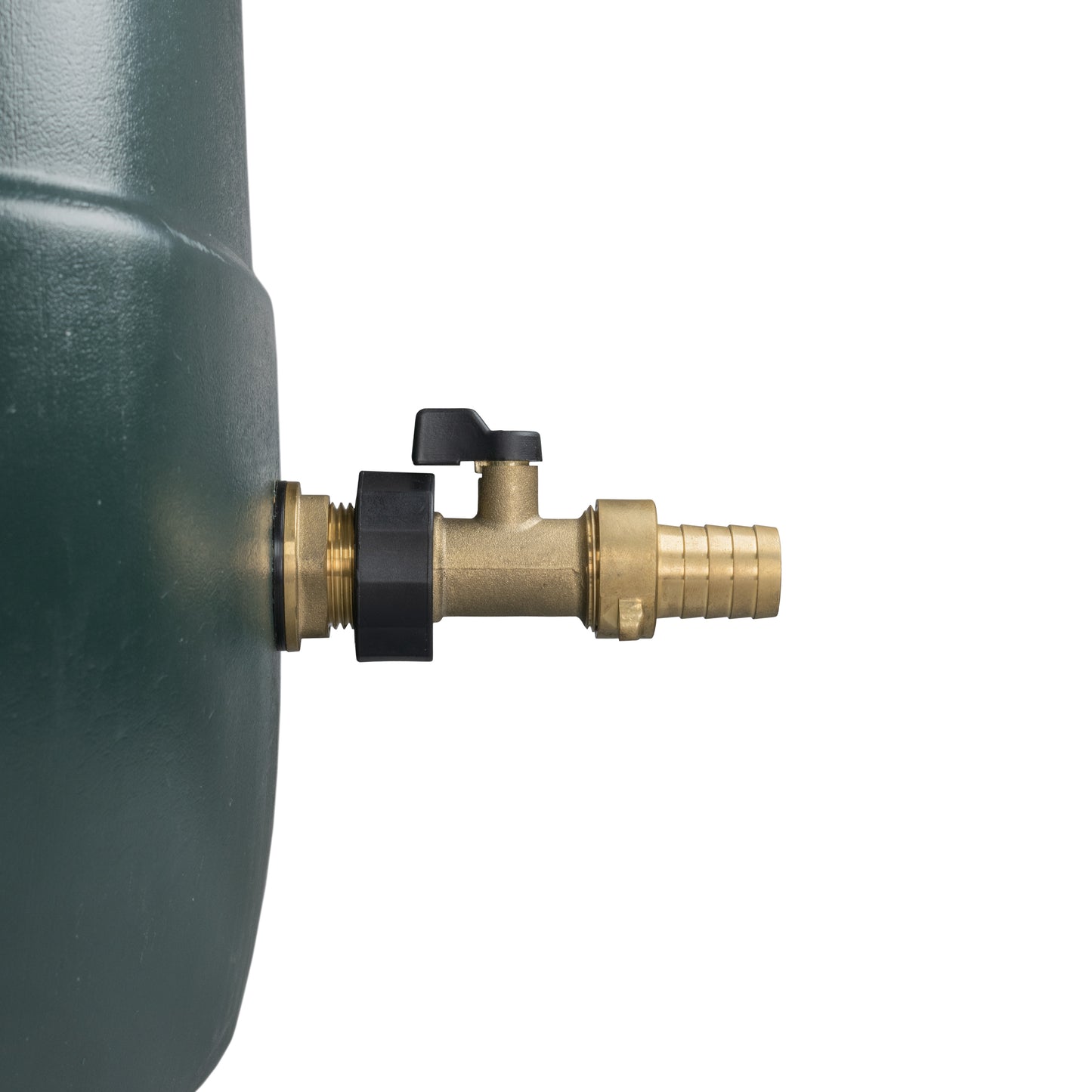

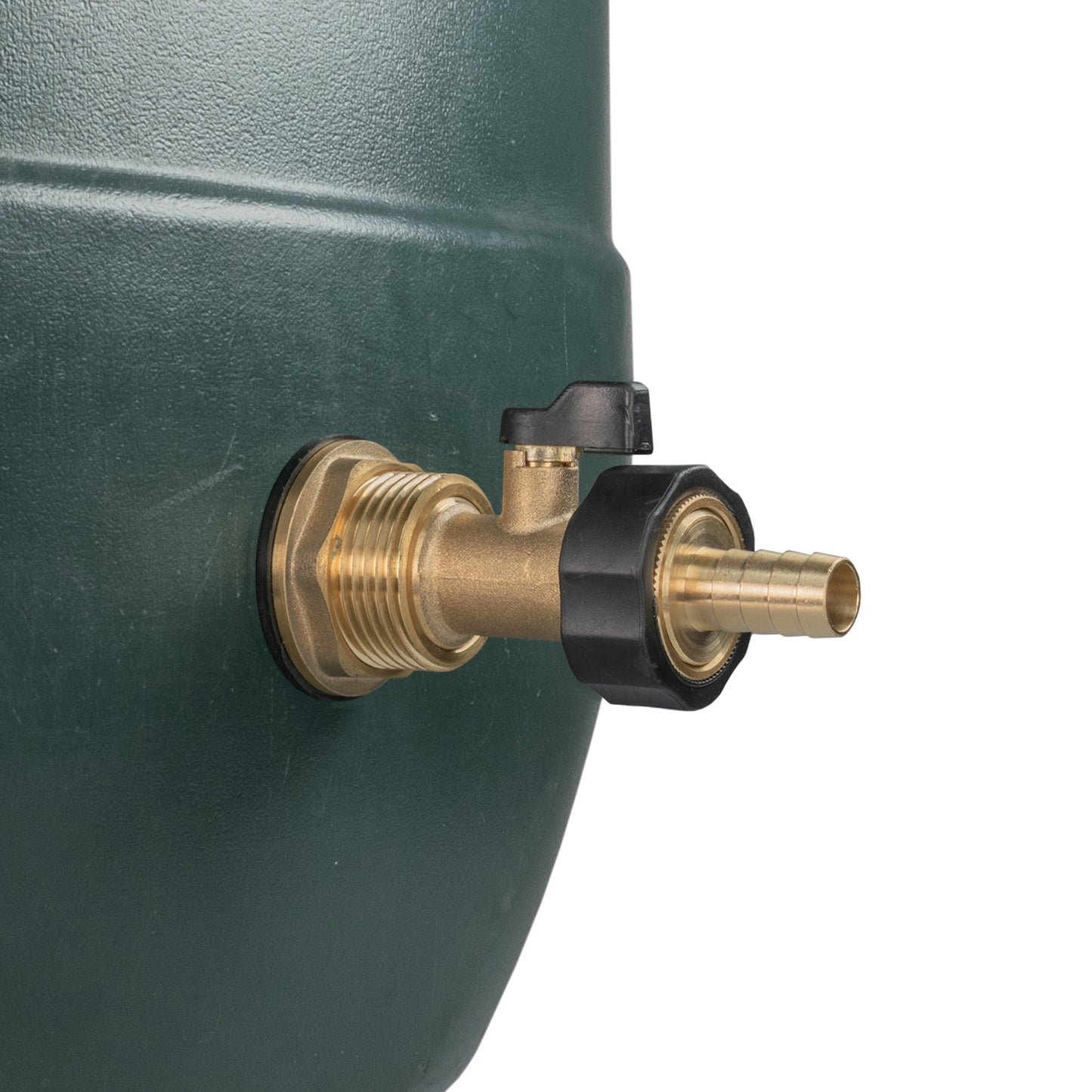

Barbed hosetail

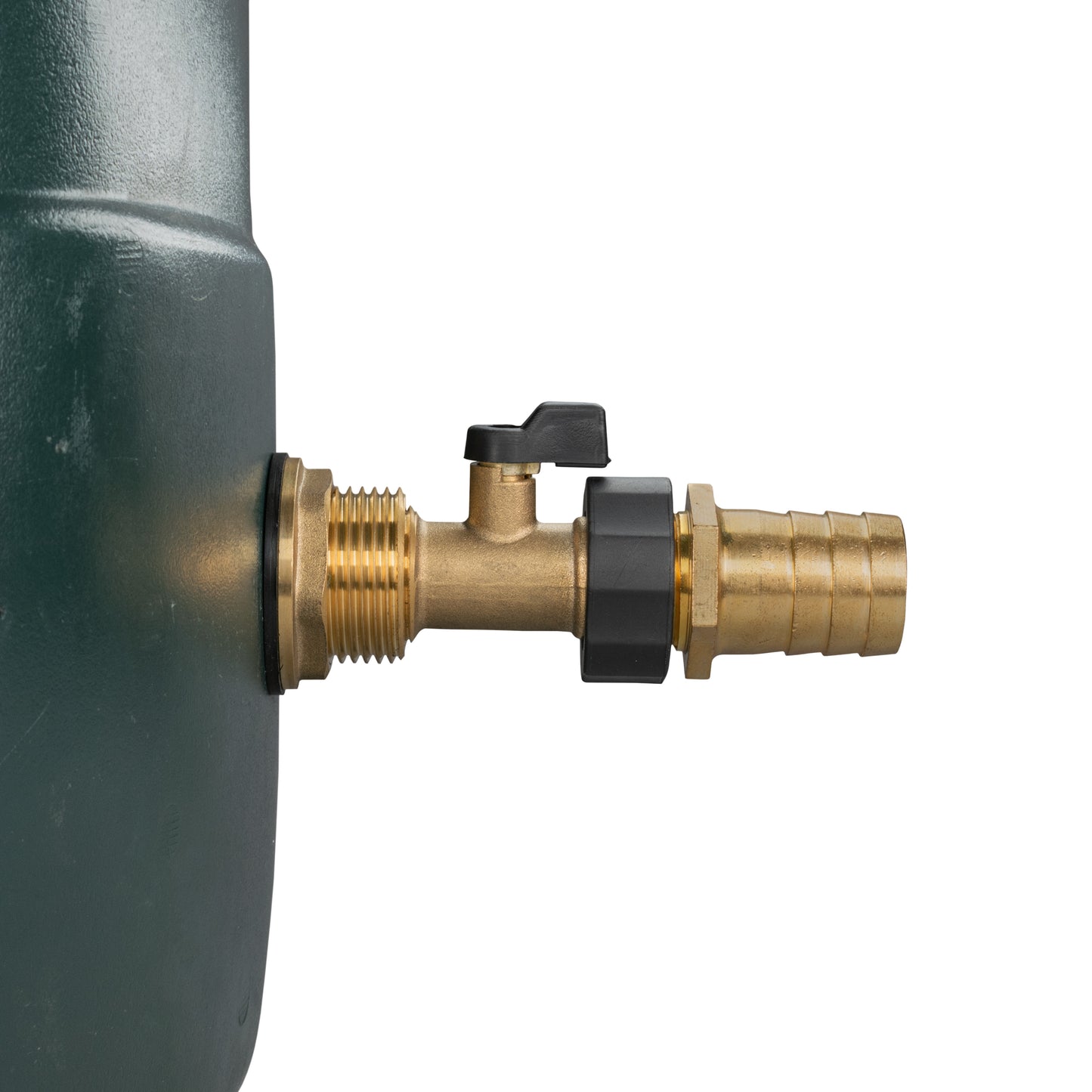

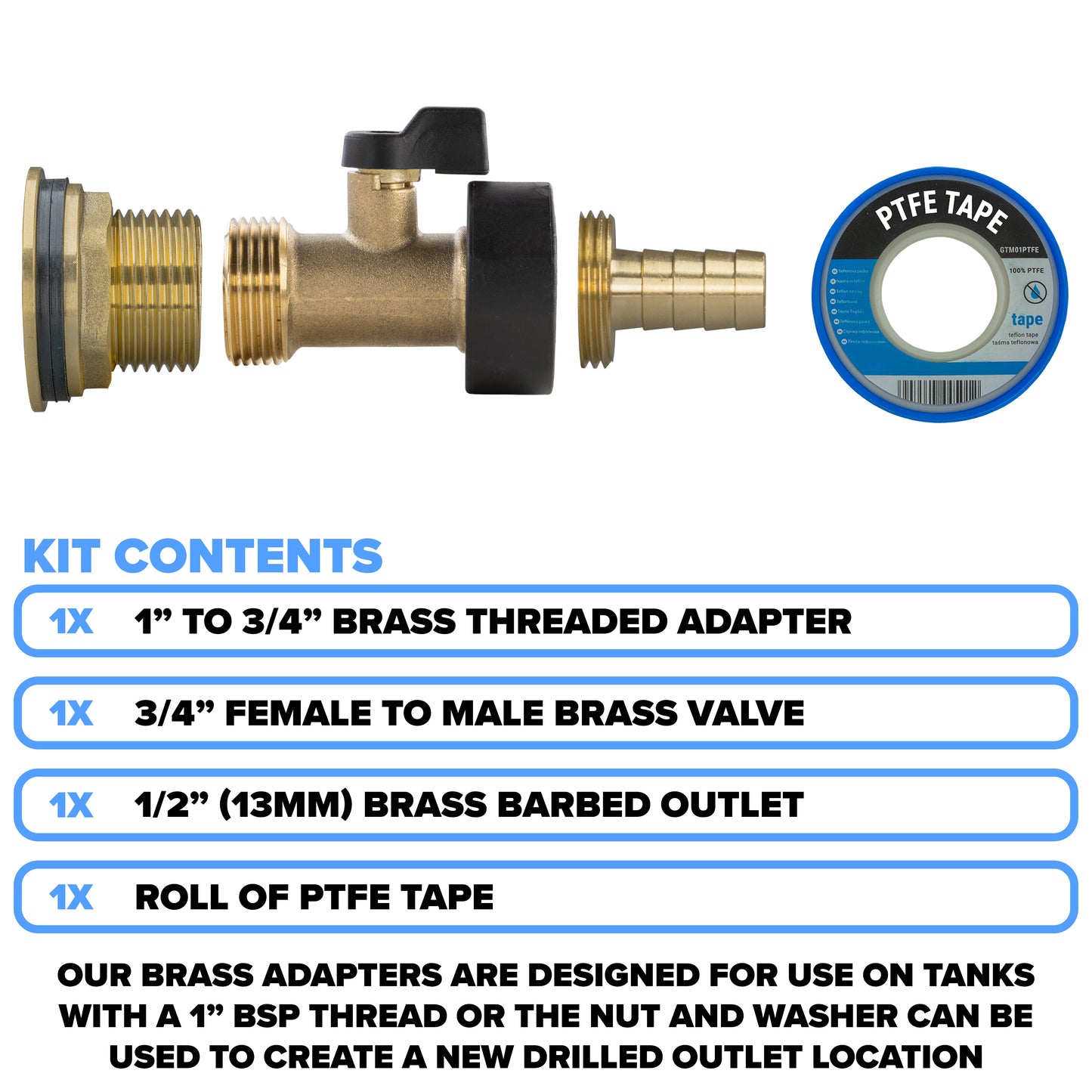

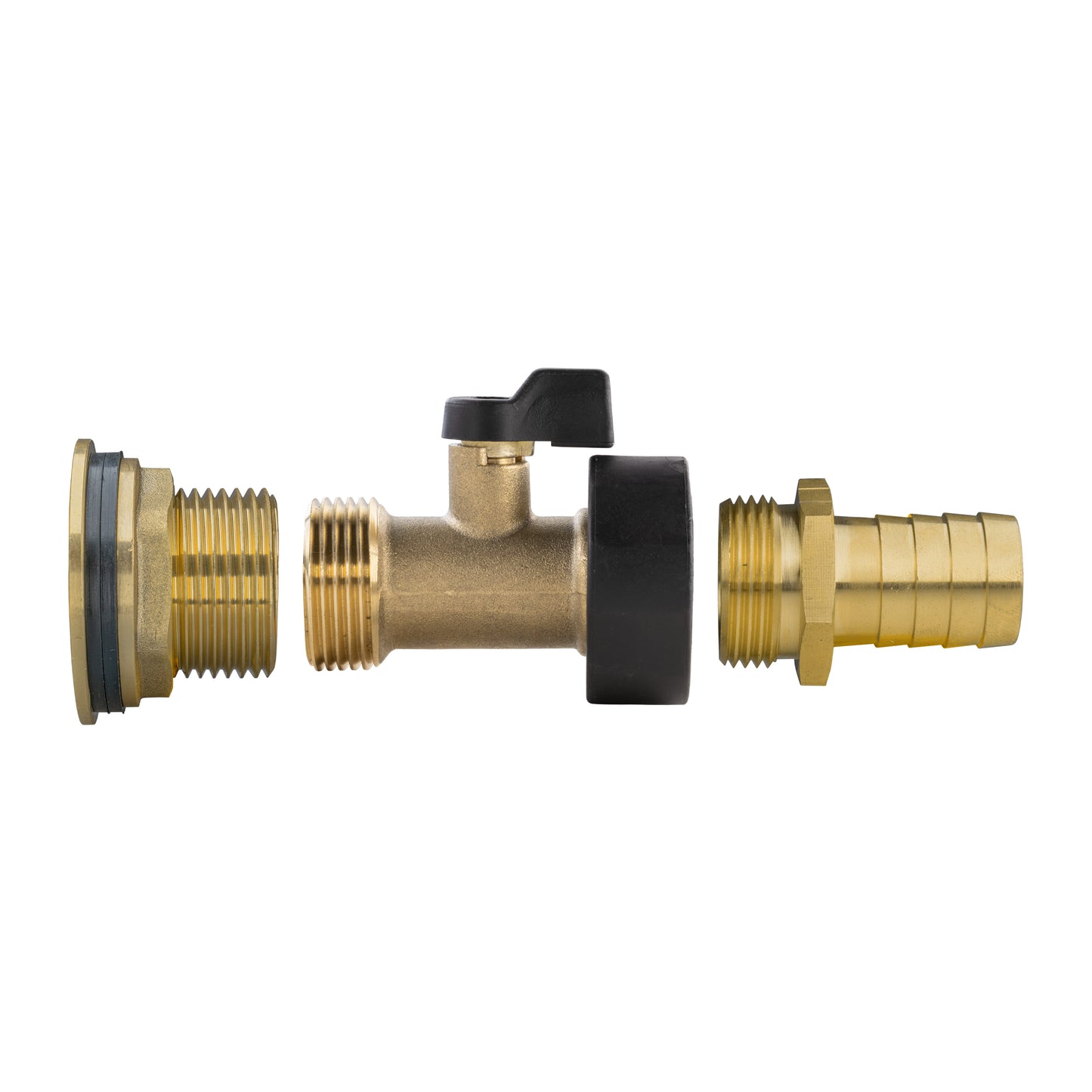

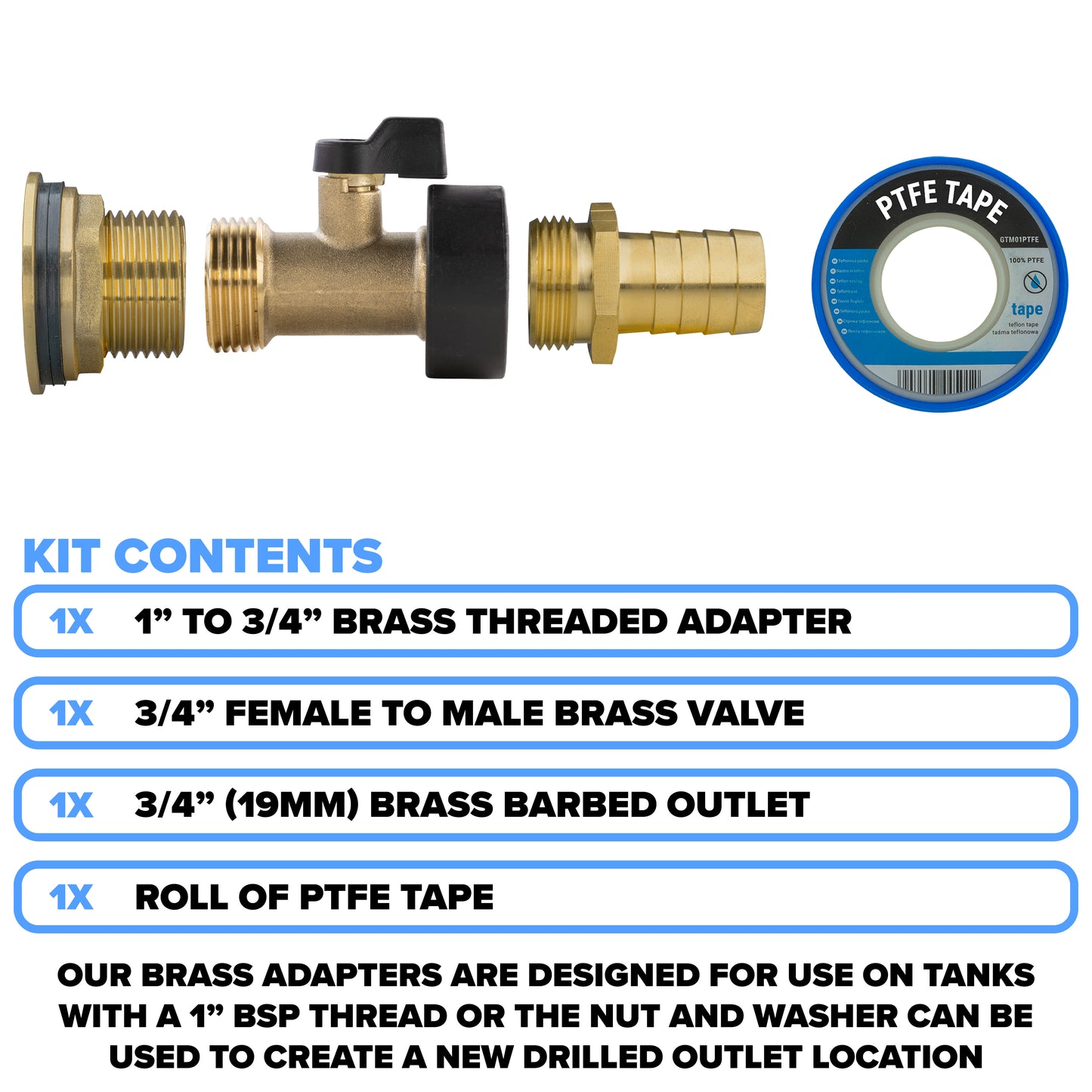

Match the hose’s inside diameter: ½-inch is the nominal 13mm barb, ¾-inch is 19mm, and 1-inch is 25mm. The 25mm option is available only with the larger adapter. Use suitable hose retention; hose and clips are separate.

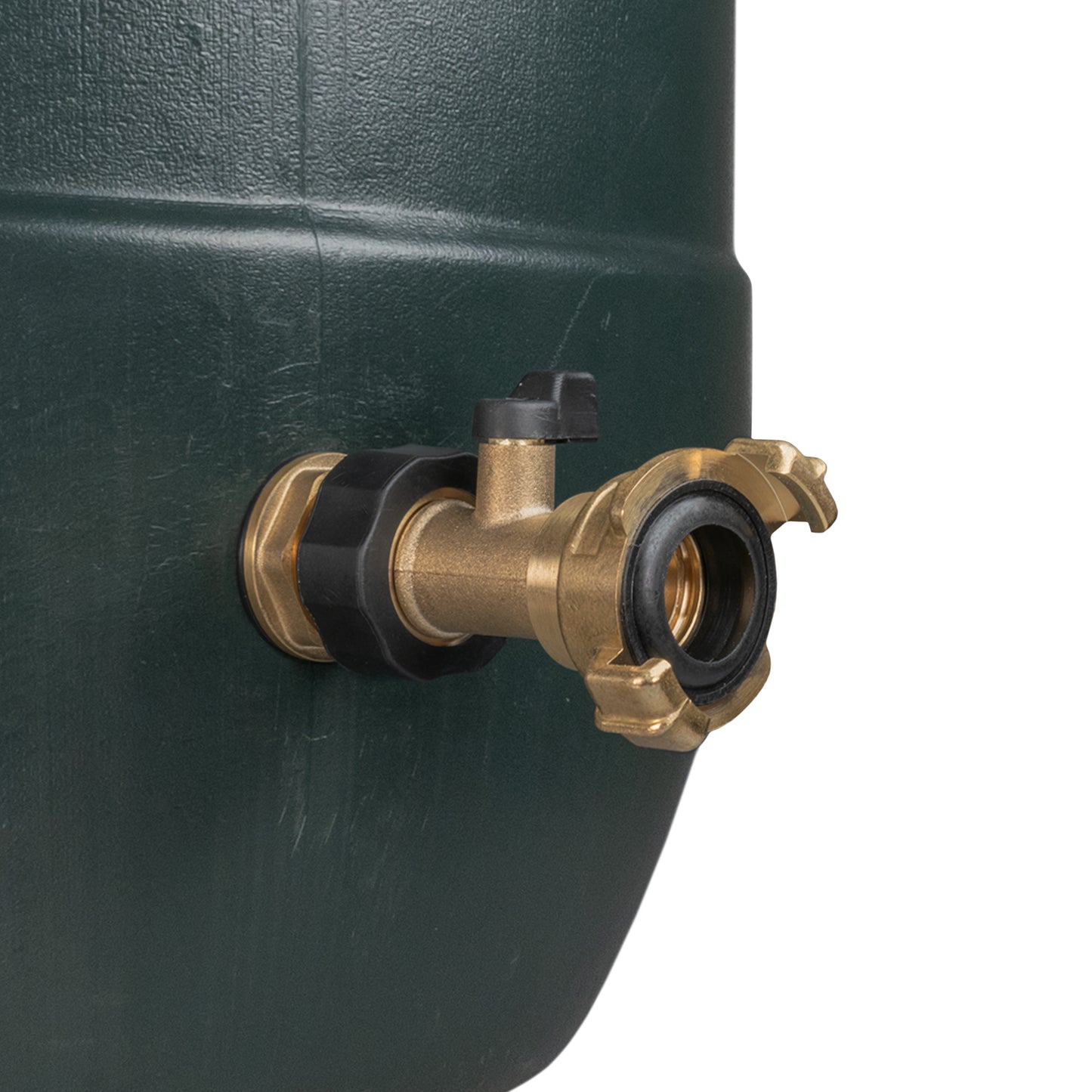

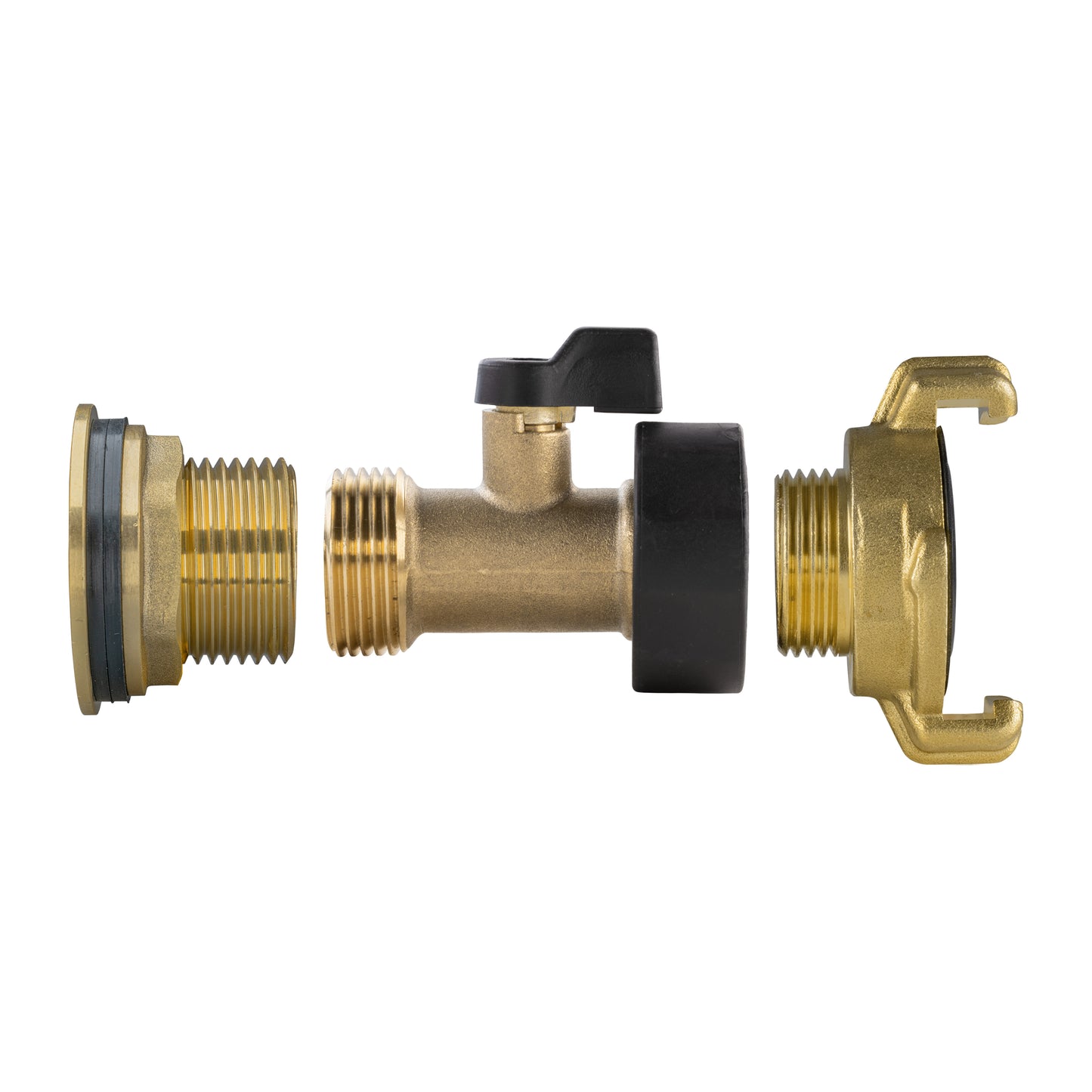

GEKA-type coupling
A brass claw-style outlet for a matching GEKA-type hose coupling. It is a different connection from a click-on garden-hose nipple. Check the mating coupling and seal; the hose-side half is not included.
Questions about the adapter and valve kits

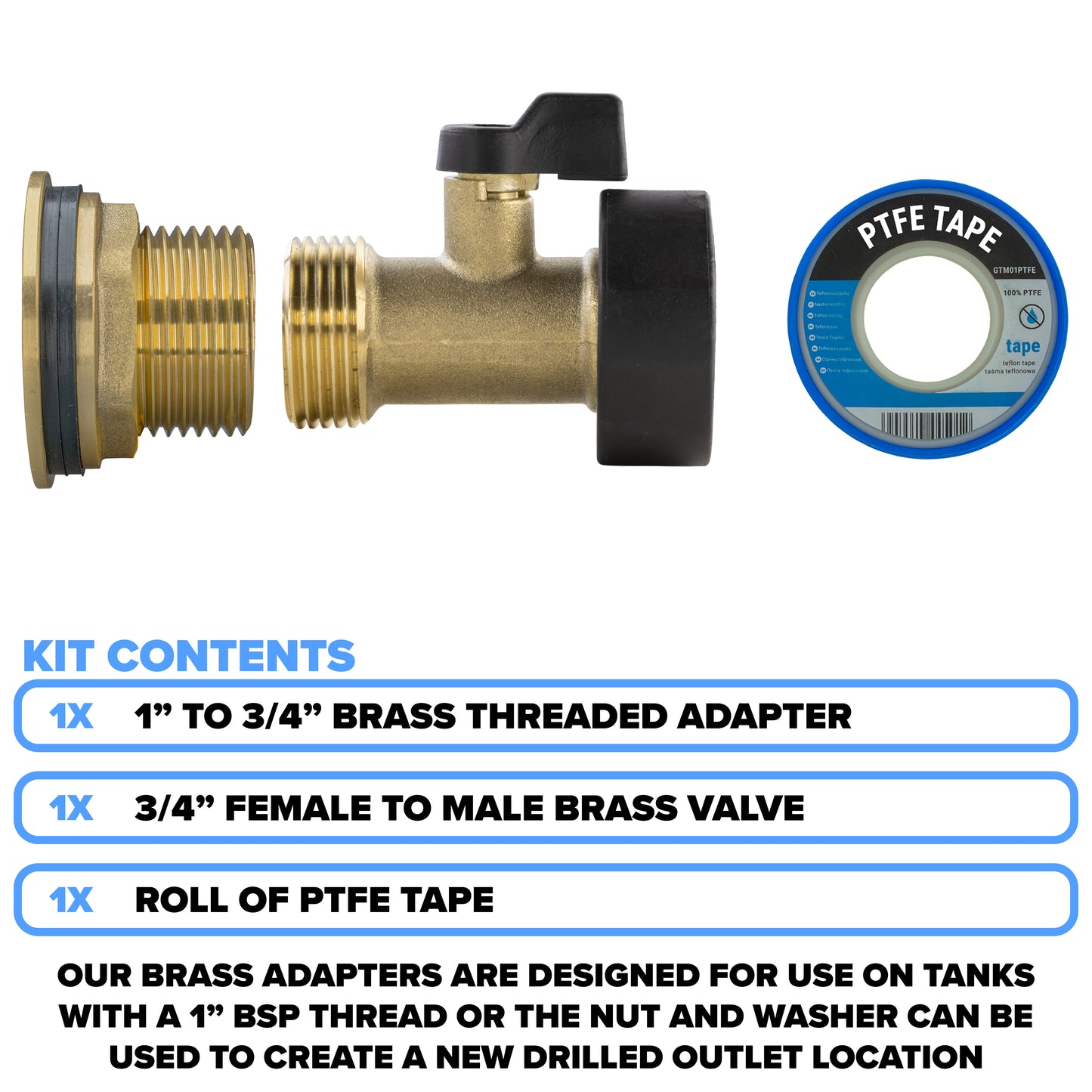

What does Valve Only leave me with?
You still receive the brass tank adapter, its back nut and two washers, the valve and PTFE tape, but no extra hose outlet fitting. With the ¾-inch adapter, the exposed valve outlet is ¾-inch BSP male. With the 1-inch adapter, it is ¾-inch BSP female. Choose a compatible accessory for that thread.
Is the valve ½ inch in the smaller kit?
No. Both adapter sizes use the same ¾-inch BSP male/female valve. The smaller adapter has a ½-inch female internal thread, but the valve fits over its ¾-inch male external thread. With the larger adapter, the valve’s male end instead screws into the adapter’s ¾-inch female thread.
Are the barb sizes inside or outside hose diameters?
Choose the barbed hosetail by the hose’s inside diameter: nominal ½-inch / 13mm, ¾-inch / 19mm or 1-inch / 25mm. The hose’s outside diameter depends on its wall thickness. The 25mm barb is offered only with the 1-inch adapter; the other two barb sizes are offered with both adapters.
Does the kit include every pictured connector?
No. You receive one kit in the adapter size and outlet option selected. Every kit includes the adapter with back nut and two washers, valve and one PTFE roll. Quick Connector, Barb and GEKA options add the selected outlet fitting; Valve Only does not. Tank, hose, clips, mating hose couplings and drilling tools are separate.
Product information & technical details
| SKU | WB12-BRASS-KIT-018+ |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1" |
| Thread gender | Male, Female |
| Barb size | 13mm (1/2"), 19mm (3/4"), 25mm (1") |
| Kit parts | Brass Tank Adapter, Brass-bodied Inline Valve, PTFE Tape, Selected Outlet Fitting (except Valve Only) |
| Colour | Brass |
| Material | Brass |
|---|---|
| ¾-inch adapter / Valve Only | ¾-inch BSP male / ½-inch BSP female adapter; valve leaves a ¾-inch BSP male outlet |
| 1-inch adapter / Valve Only | 1-inch BSP male / ¾-inch BSP female adapter; valve leaves a ¾-inch BSP female outlet |
| Valve threads and control | ¾-inch BSP male and female; brass body with black lever and black female connection collar |
| Outlets with ¾-inch adapter | Valve Only, Quick Connector, 13mm (½-inch) Barb, 19mm (¾-inch) Barb, GEKA |
| Outlets with 1-inch adapter | Valve Only, Quick Connector, 13mm (½-inch) Barb, 19mm (¾-inch) Barb, 25mm (1-inch) Barb, GEKA |
| Included in each selected kit | 1 brass tank adapter with back nut and two washers, 1 valve, 1 PTFE roll; selected outlet fitting if applicable |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
