Description
Control the line
Connect an irrigation line to your water butt with a plastic tank adapter and Antelco valve.
Choose a compact Standard fitting or an Extended connector for more clearance from the tank.
¾-inch BSP threads. Straight 13mm hose barb.
Standard: keep the fitting compact
The Standard option, SKU WB34MF-KIT020, uses the shorter tank connector. Its ¾-inch BSP male thread connects at the tank, while the valve’s ¾-inch BSP male inlet screws into the adapter’s female socket.
The valve’s straight 13mm barb forms the hose connection. Turning the valve operates the water supply directly at the tank, without removing the tubing.
The actual parts are shown here. One connector, back nut, two washers and one Antelco valve are supplied; hose, tubing, clips and the tank are separate.
Extended: bring the valve forward

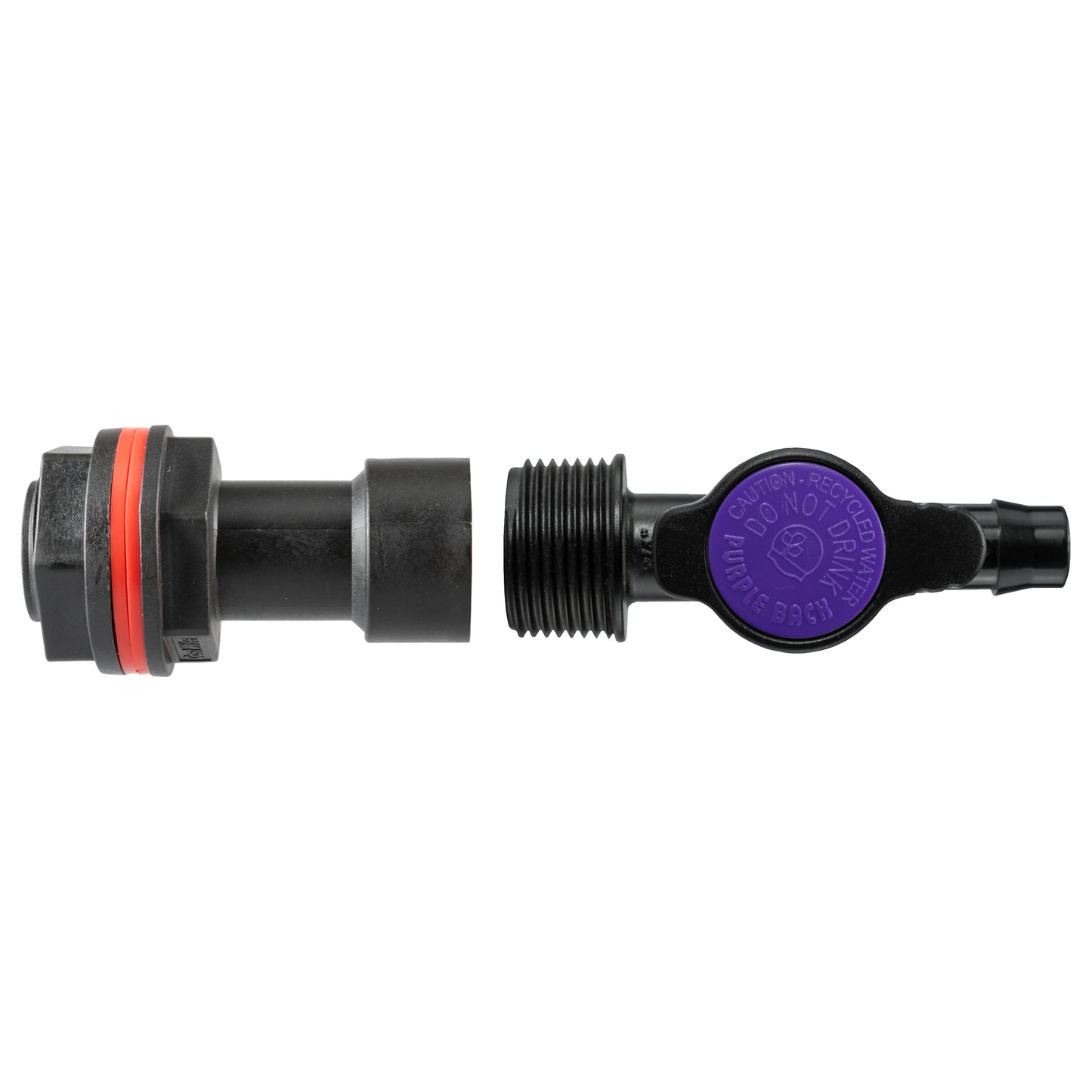

The Extended option, SKU WBEX34MF-KIT020, has the same ¾-inch BSP male/female threads and the same Antelco valve, with a longer connector between the tank and valve.
The connector measures 50mm overall, with about 40mm usable projection. These describe the connector, rather than the complete adapter-and-valve assembly.
Use the extra reach where the tank shape makes a close-mounted valve awkward to operate. Check the full fitting and hose route against the available space, and support the tubing so it does not pull on the connector.
Plan the tank and tubing connection
Thread size, hose fit and operating space are separate checks.
Match the tank fitting
Both options use a ¾-inch BSP male tank connection. Check the thread size and gender of an existing outlet. For a new opening, check the wall, washer seating and back-nut access; BSP size is not a drilling diameter.
Match the tubing
The valve has a 13mm barb, which fits inside compatible tubing. Check the tube’s internal fit and secure it appropriately. A tube sold by its outside diameter needs its bore checked too; do not choose it by the BSP thread size.
Leave room to operate
Make sure you can reach and turn the valve without the tank or hose getting in the way. The purple-cap version is for irrigation and recycled water, not drinking water. Check the mounting seal and threaded joint with water after fitting.
Questions about the irrigation valve kits
Do Standard and Extended have different thread sizes?
No. Both adapters have a ¾-inch BSP male thread at the tank and a ¾-inch BSP female socket for the valve. Both use the same Antelco 46705 valve with a ¾-inch BSP male inlet and 13mm barb. The difference is the connector’s reach: the Extended tube is 50mm overall, with about 40mm usable projection.
Does 13mm describe the tank thread?
No. It describes the barbed hose outlet on the valve, which fits inside compatible tubing. The tank connection and valve inlet are ¾-inch BSP threaded connections. Check the tubing’s internal fit separately from its outside diameter and use suitable retention for the particular tube you choose.
Can I use the purple-cap valve for drinking water?
This Purple Back valve is the recycled-water version and is marked not for drinking water. Use it for a suitable irrigation or recycled-water line. It gives manual on/off control; it does not treat water, regulate pressure or provide automatic timed watering.
What is included in the selected kit?
You receive one Standard connector or one Extended tube, according to your selection, together with one back nut, two washers and one Antelco 46705 barbed valve. The tank, tubing, hose, securing clips and drilling tools are separate. Check access to the nut and washer seating before mounting the fitting.
Product information & technical details
| SKU | WB34MF-KIT020 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Barb size | 13mm (1/2") |
| Kit parts | Selected Plastic Tank Adapter, Back Nut, 2 Washers, Antelco 46705 Barbed Valve |
| Colour | Black |
| Material | Plastic |
|---|---|
| Adapter threads (both styles) | ¾-inch BSP male tank connection / ¾-inch BSP female valve socket |
| Valve model and inlet | Antelco 46705 Purple Back; ¾-inch BSP male |
| Valve outlet | 13mm straight hose barb |
| Extended adapter dimensions | 50mm overall connector length; about 40mm usable projection |
| Water use | Irrigation / recycled water; not drinking water |
| Kit contents | 1 selected plastic adapter, 1 back nut, 2 washers and 1 Antelco valve |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
