Description
Two sizes. One elbow.

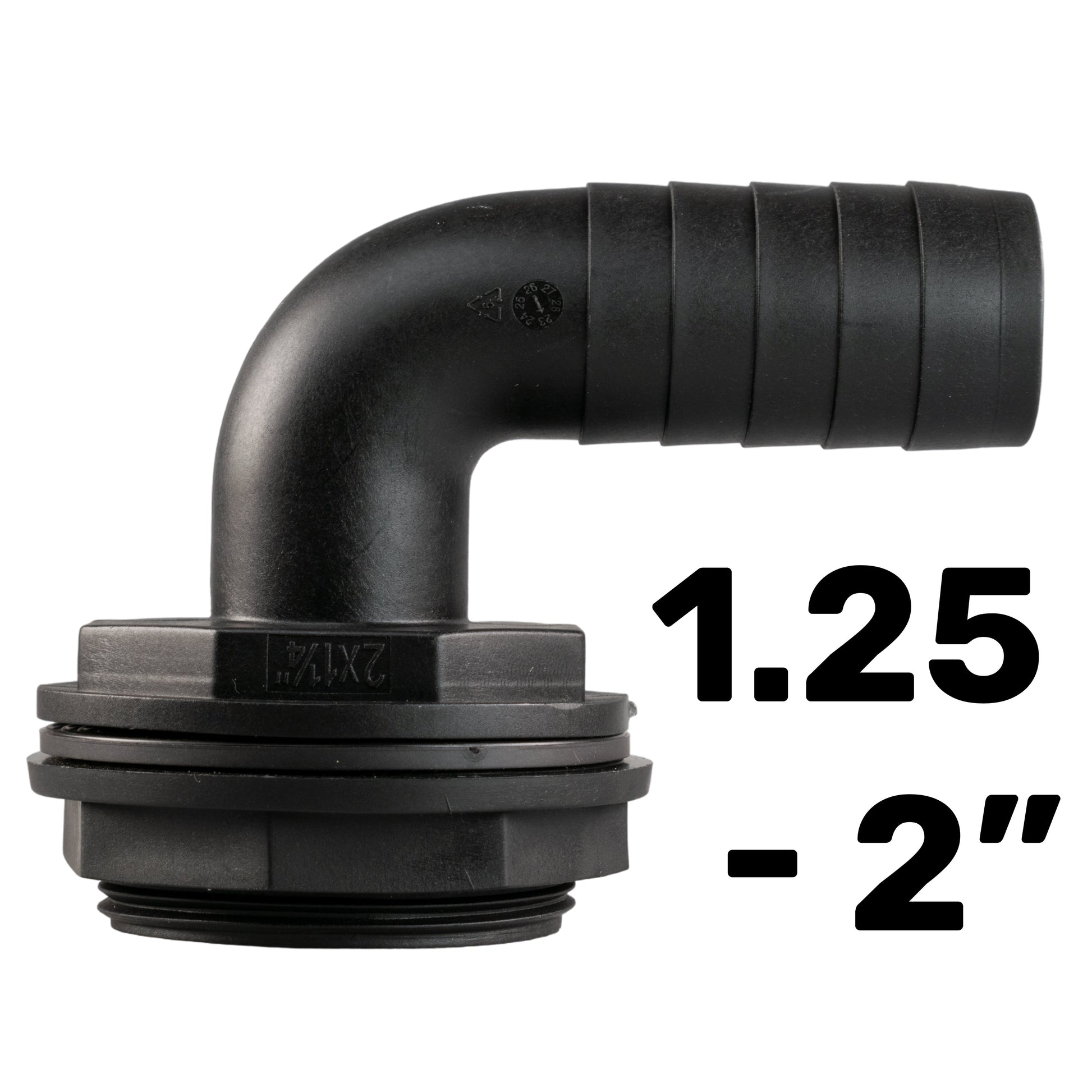

A 2-inch BSP male tank thread with a narrower 1¼-inch hose barb for nominal 32mm pipe.
The 90° body turns the outlet direction at a suitable water butt or tank.
One black plastic fitting, back nut and washer. Hose and clips separate.
Match each end separately

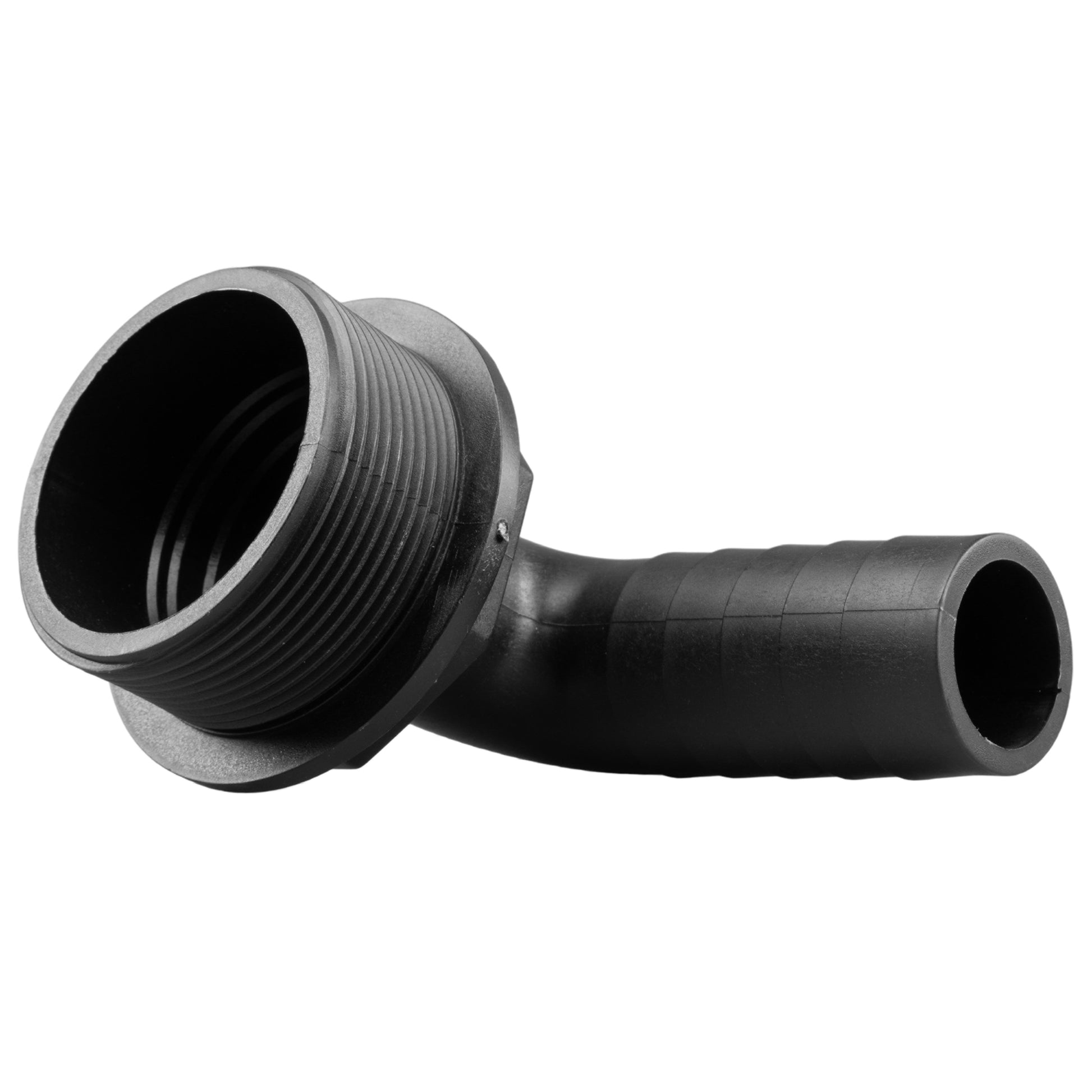

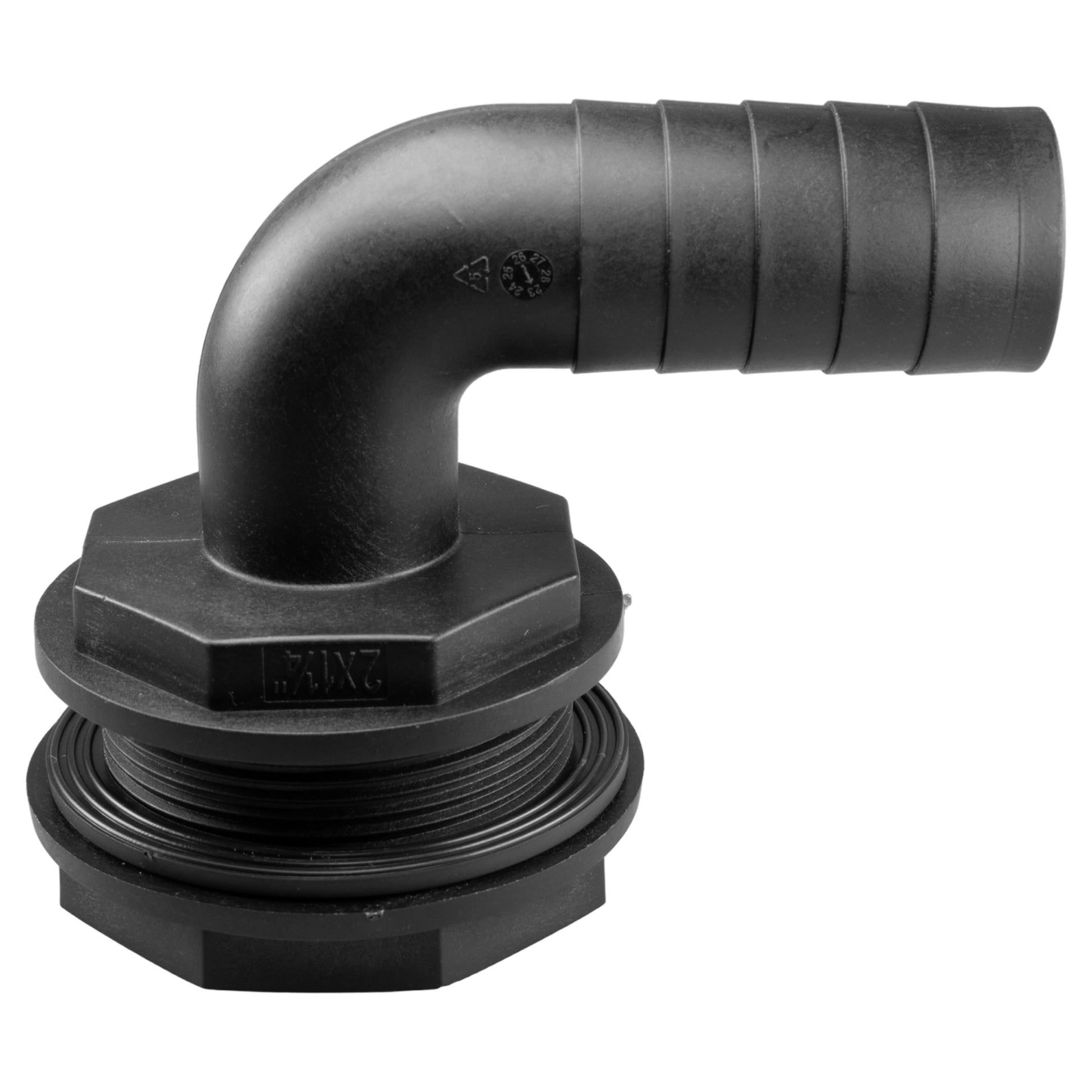

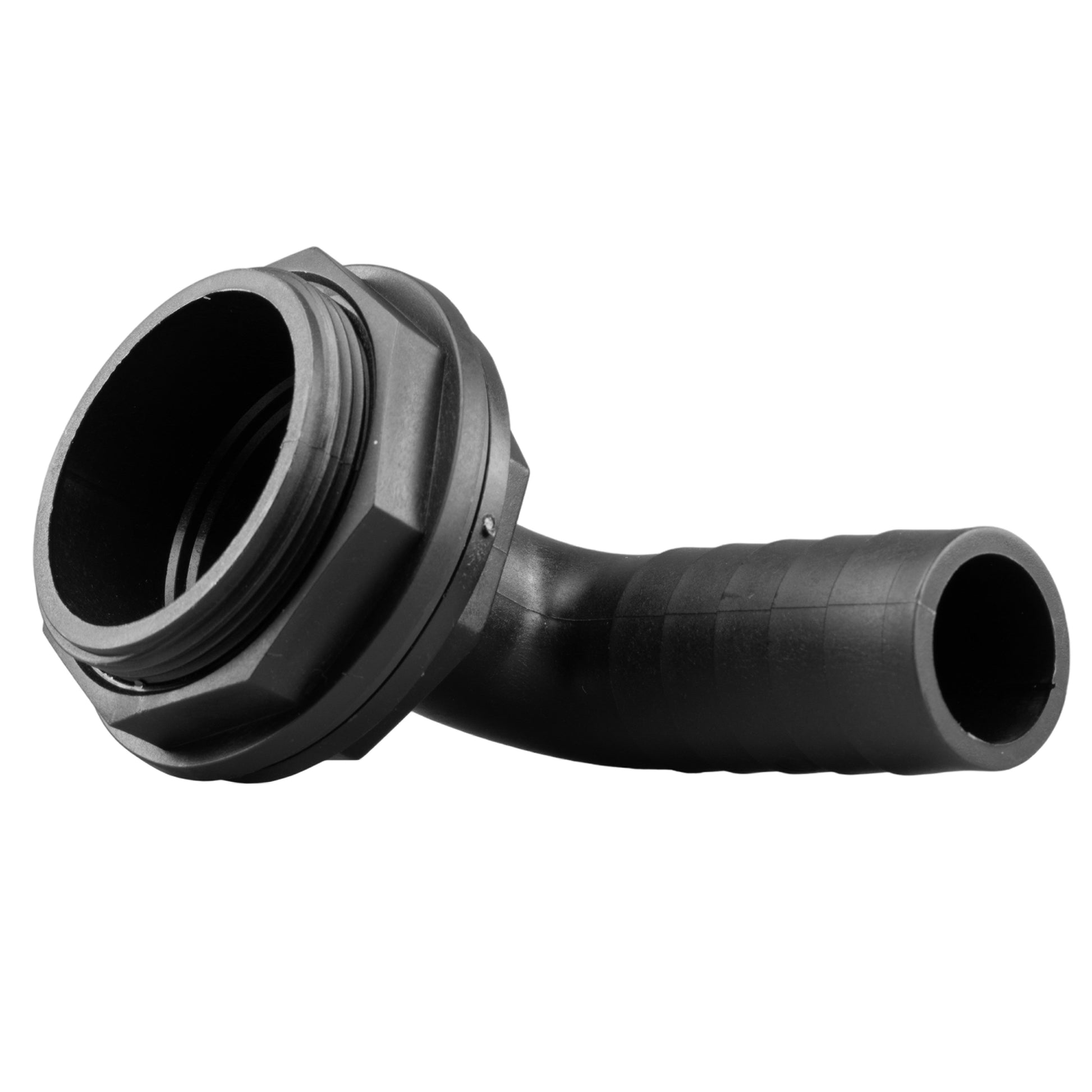

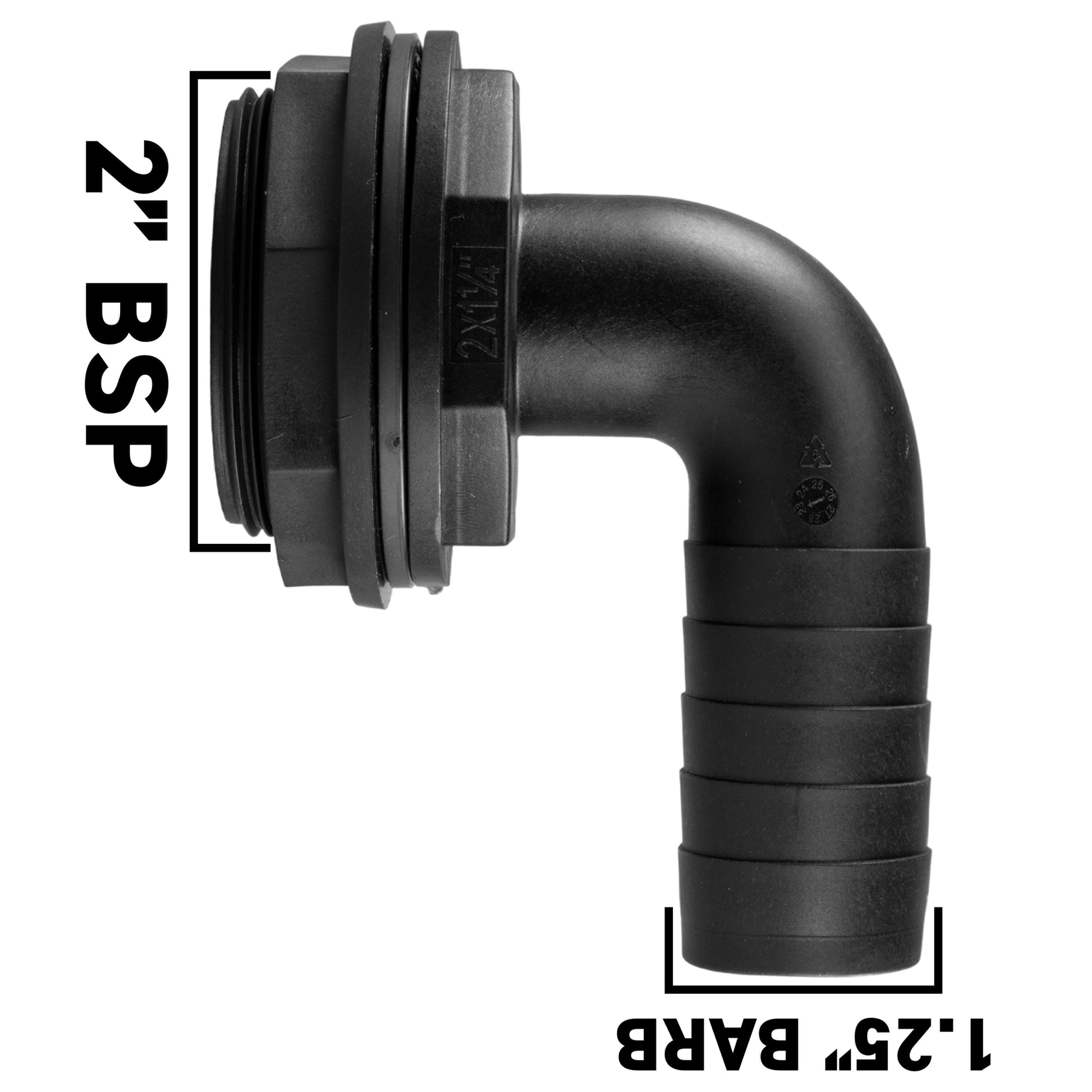

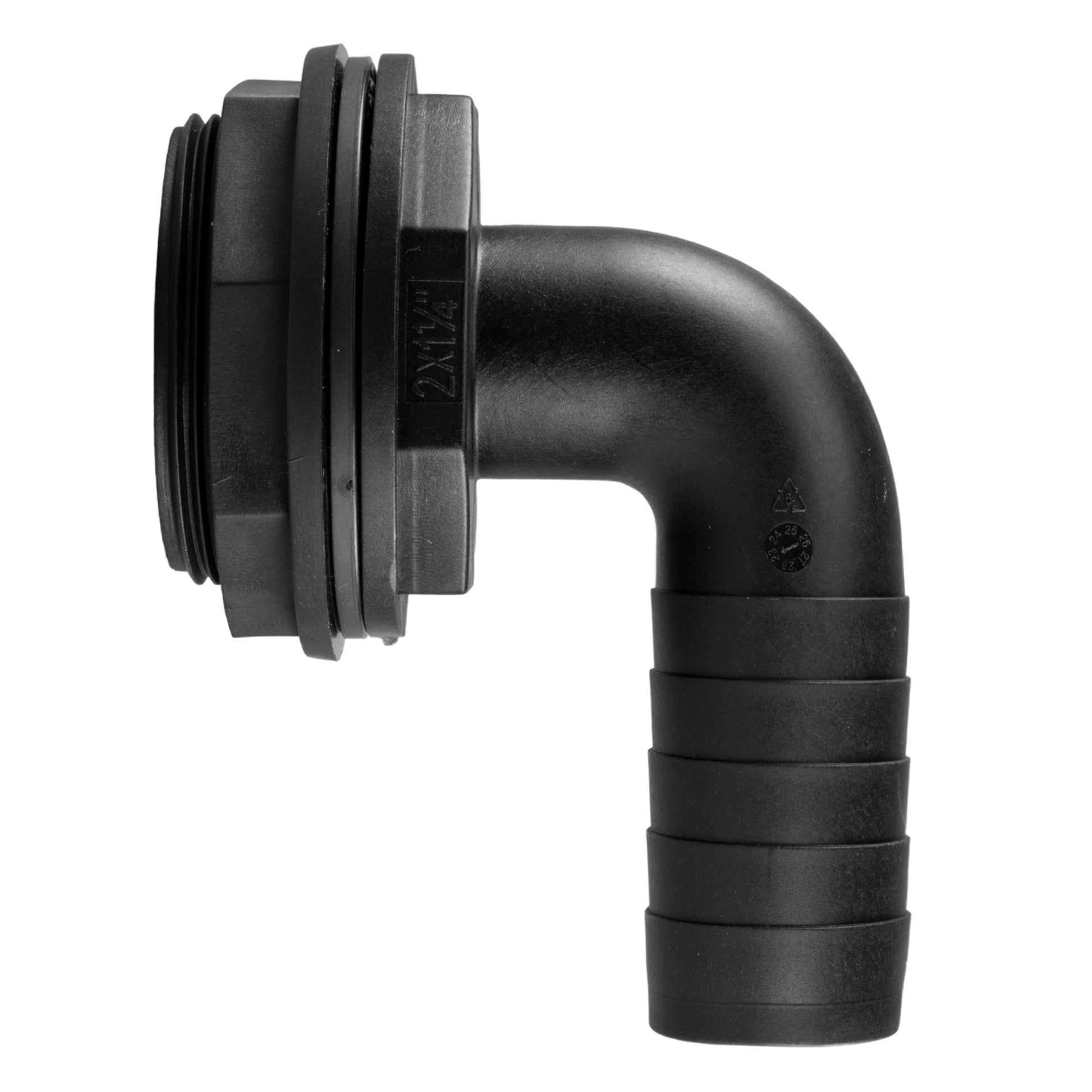

The broad threaded stem is the 2-inch BSP male tank connection. The other end is a ribbed hosetail for suitable nominal 32mm internal-diameter flexible pipe, commonly described as 1¼ inch.

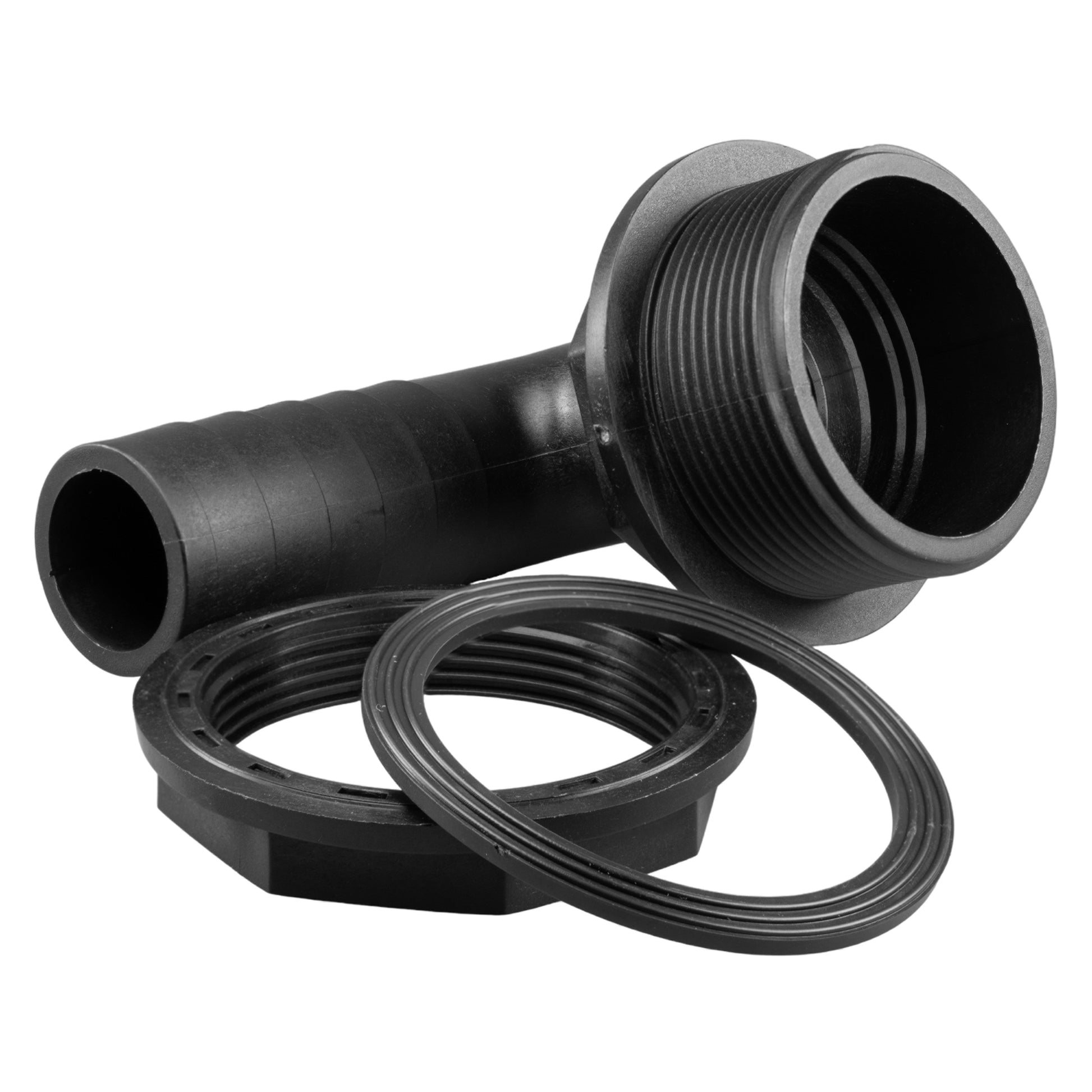

The parts photograph shows the connector with its back nut and one mounting washer. Check the tank wall and seating area before fitting, and allow access to secure the nut without straining the plastic.
BSP describes a nominal thread size. It is not the diameter of a hole to drill, and the 32mm hose size is not the outside diameter of the finished joint. Check the actual components and mounting arrangement before making an opening.
32mm corrugated pond hose is available separately. Measure the outside of the hose fitted over the barb when choosing a clip. 32-36mm double-wire clips are an option only where that assembled diameter is within their range.
Plan the tank connection
Check the mounting, hose route and discharge point together.
Confirm the tank end
An existing threaded outlet must match the 2-inch BSP male stem. For a plain opening, check the actual connector, wall thickness, washer seat and nut access before selecting the hole size. Do not use the nominal thread designation as a drilling measurement.
Leave room beyond the elbow
The outlet turns through a right angle, but the hose still needs clearance for a clip and gentle bends. Support the pipe so its weight and movement do not pull on the connector or distort its mounting.
Check the completed joints
Lead the pipe to a suitable overflow discharge point and keep the route clear. Check the tank-wall seal and hose joint with water after installation, then inspect them again once the hose has settled.
Choosing and fitting this elbow
Is the hose outlet also 2 inches?
No. The tank end has a 2-inch BSP male thread, while the hose end is a 1¼-inch barb for suitable nominal 32mm internal-diameter flexible pipe. This fitting has different connection sizes at its two ends, so check both the tank mounting and hose before ordering.
What hole size should I make in the tank?
Check the actual connector and mounting parts before choosing an opening. The 2-inch BSP designation is a nominal thread size, not a drilling diameter. Tank wall thickness, washer seating and access to the retaining nut also need checking before you alter the container.
What is supplied with the elbow?
You receive one black plastic 90° elbow with a back nut and single mounting washer. Suitable hose, securing clips, tools and any additional sealing materials are separate. Match the pipe to the nominal 32mm hose barb, then choose clips around the measured outside of the assembled joint.
Is it suitable for mains water pressure?
No pressure rating is specified for this fitting, so do not assume suitability for a mains-pressure supply or pressurised pump outlet. Those applications need components with confirmed ratings. For a water butt outlet, support the hose and check both completed joints with water.
Product information & technical details
| SKU | BUTT-ELB-2BSPM-125B001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male |
| Barb size | 32mm (1.25") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection angle | 90° elbow |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 elbow connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
