Description
Turn the hose route at the tank

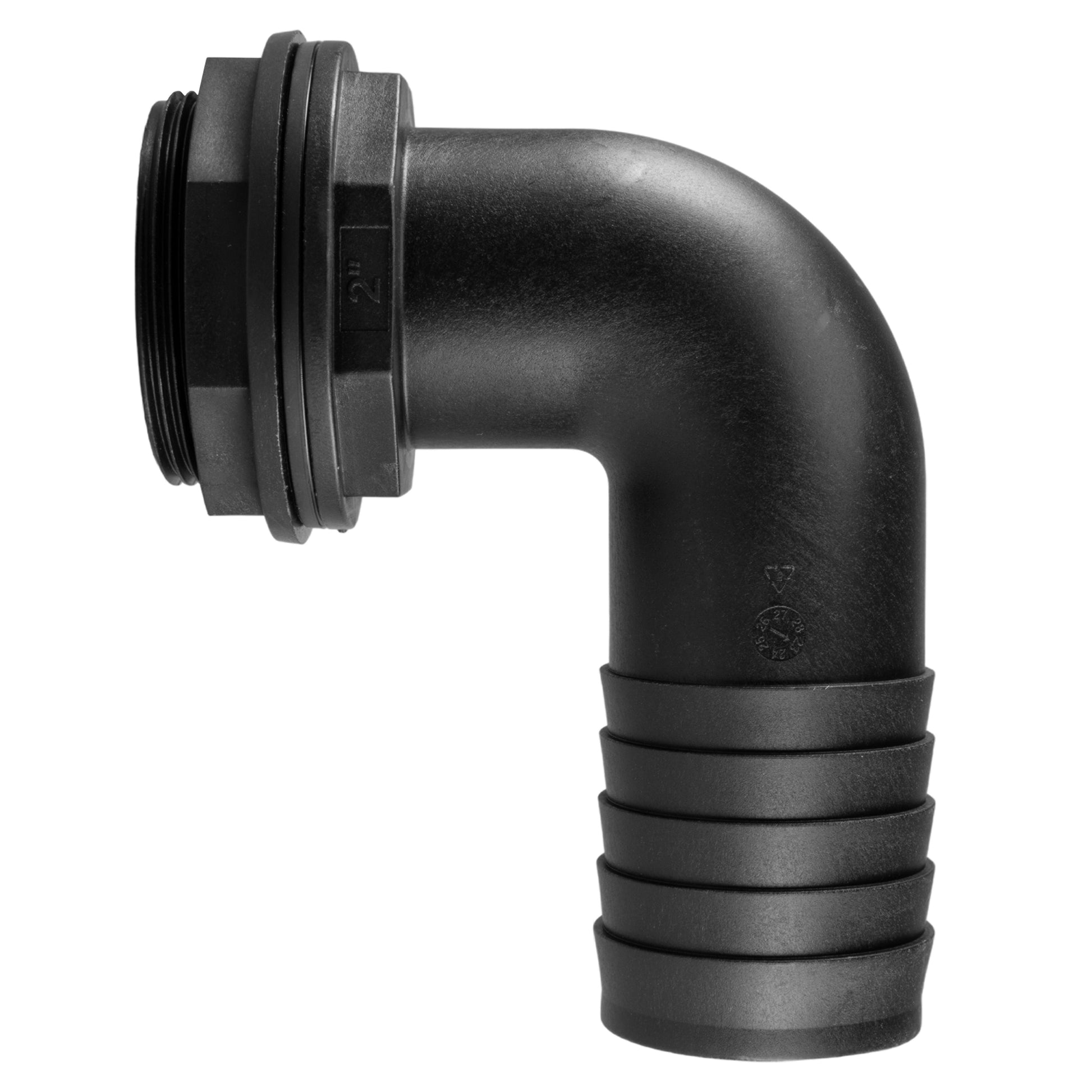

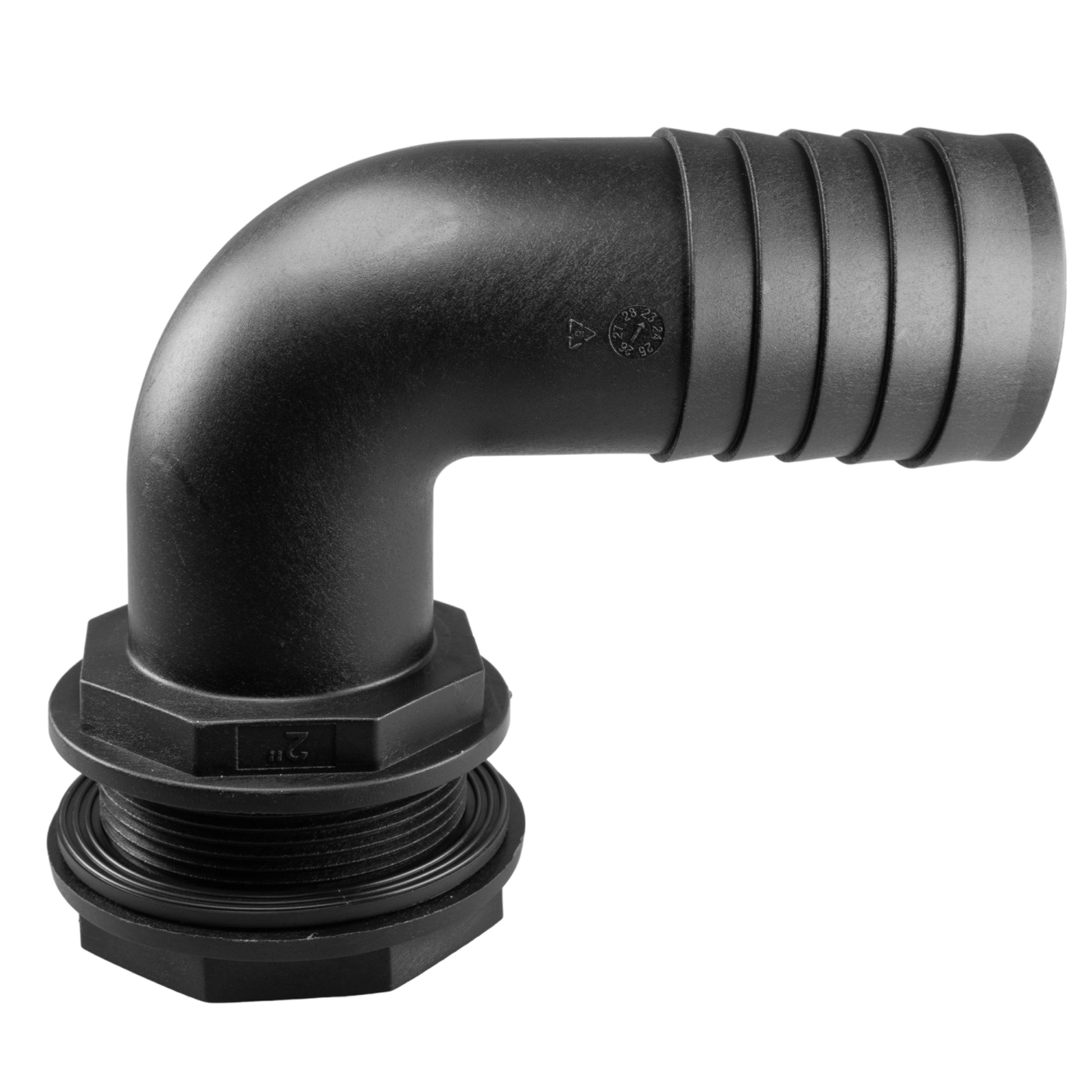

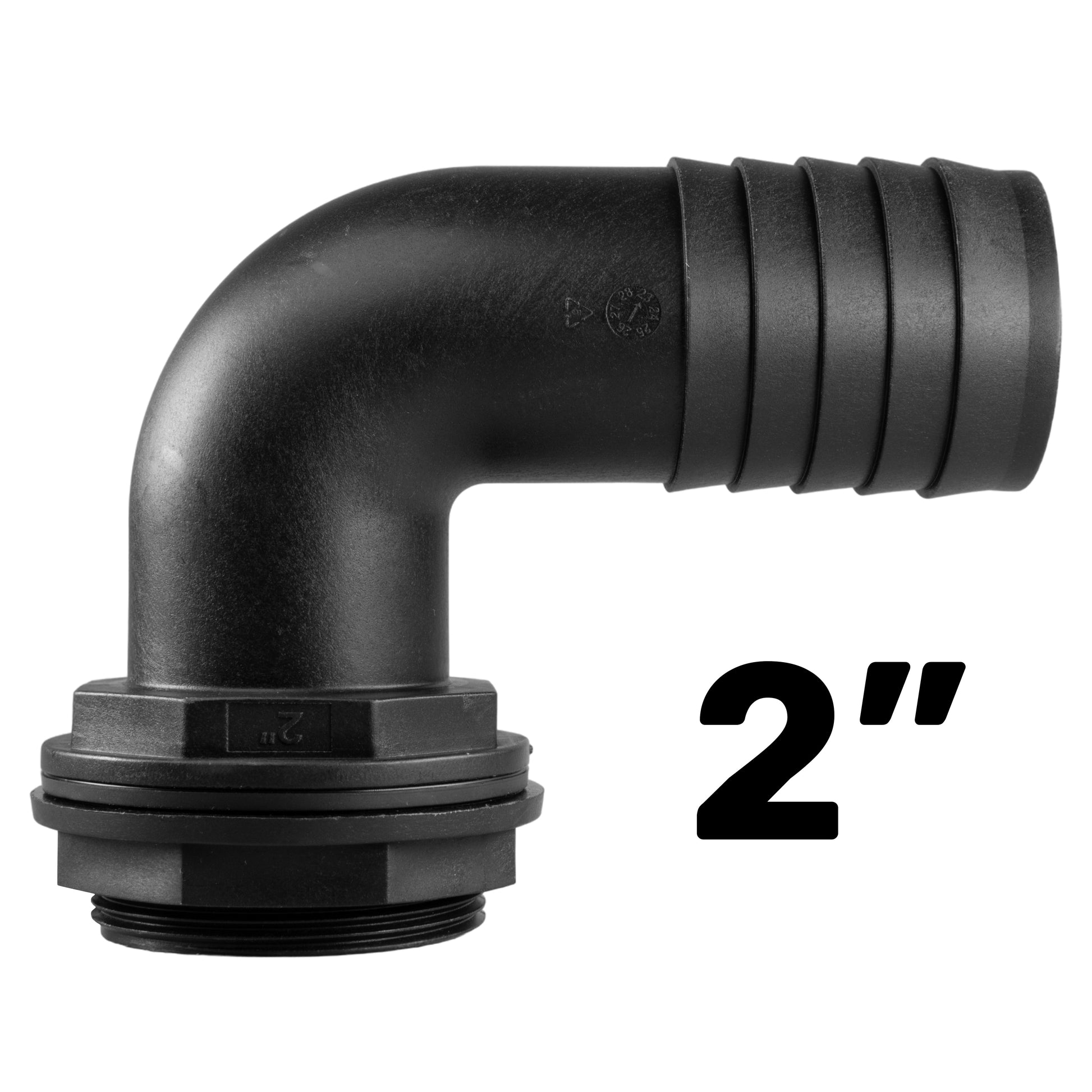

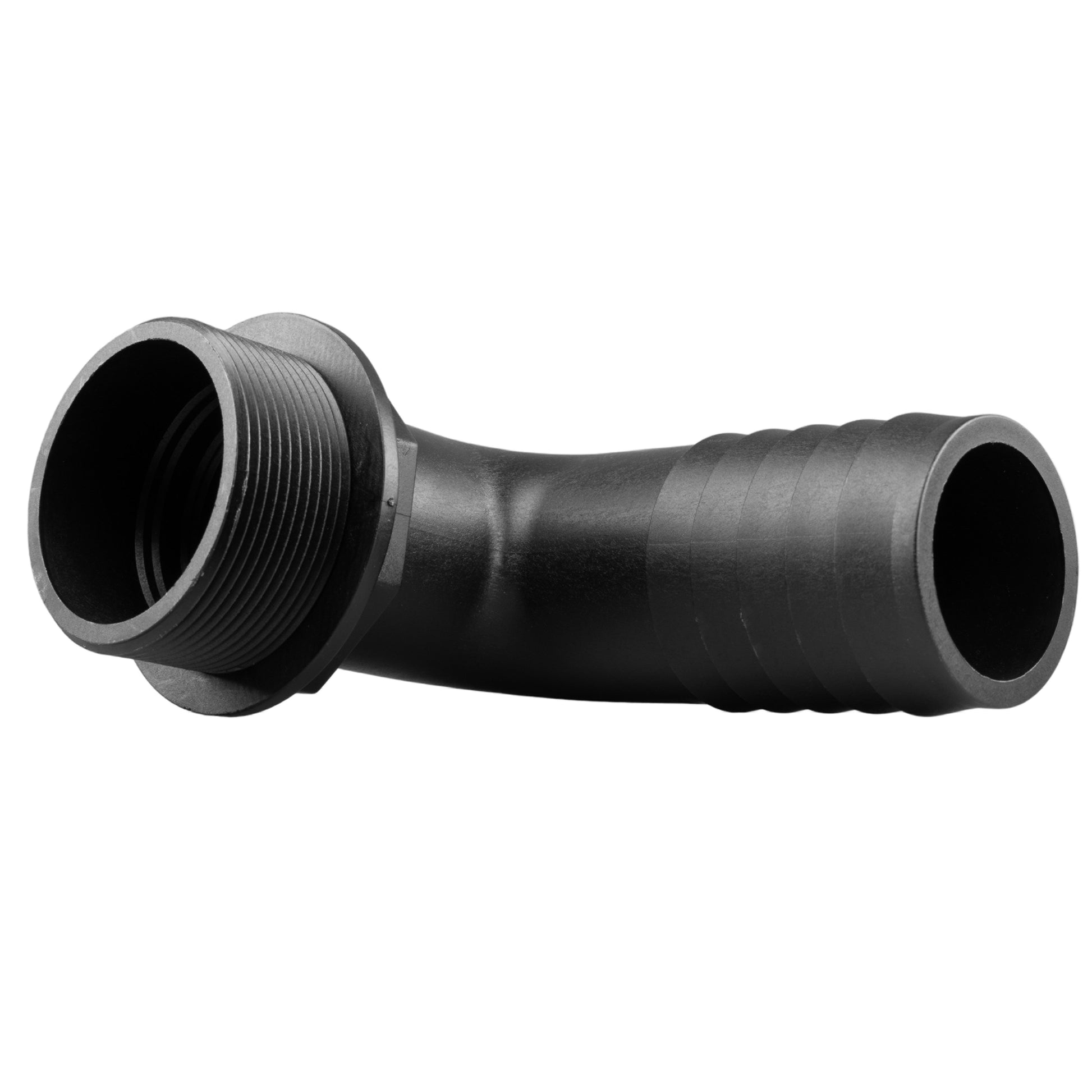

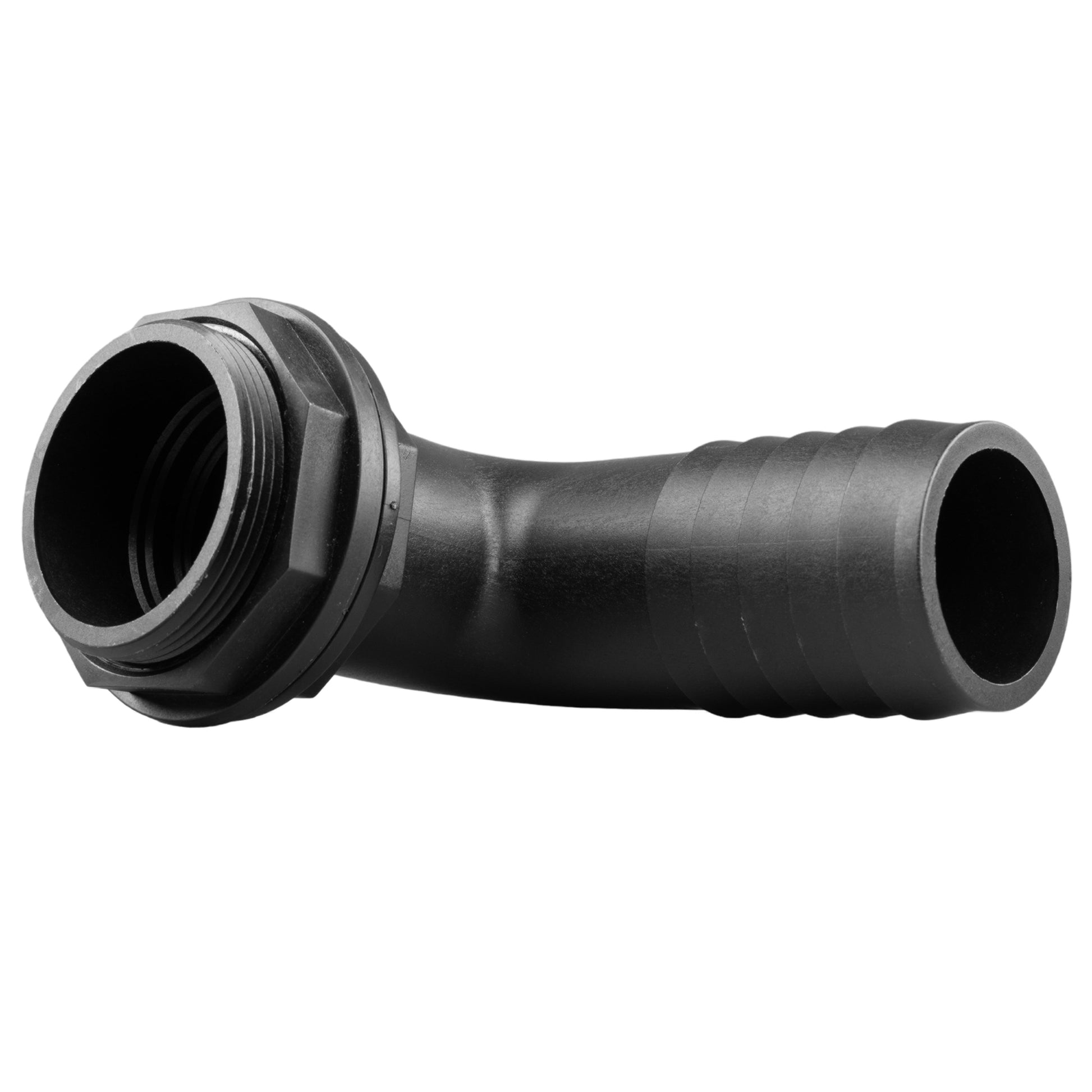

This 90° water-butt overflow elbow brings a threaded tank connection and a barbed hose outlet together in one right-angle fitting.
The black plastic elbow has a 2-inch BSP male thread and 2-inch hosetail, supplied with a retaining nut and one sealing washer. Use it where your container and hose are suitable for these connections.
One fitting set supplied. Hose, clips, tank and tools are separate.
Two connections, each with a different job
The threaded end provides the tank-side connection. Its retaining nut and washer secure and seal the fitting on a suitable mounting surface. Check clearance inside the container for positioning the nut.
The barbed end goes inside matching hose. The ribs form the hosetail; this is not a second threaded outlet. Select hose and any securing clip to suit the actual connection and installation.
The parts photo shows what is supplied: one elbow, one nut and one washer. There is no second washer, hose or hose clip in this pack.
Check the fit before making a hole
Nominal connection sizes do not specify the hole to cut in your water butt.
Plan the outlet position
Check the tank wall, sealing surface and room for the elbow and nut. Leave space for the hose to leave the fitting without pulling sideways on it.
Measure the fitting
Confirm the required opening against the actual threaded section and your container before drilling. The 2-inch BSP designation is a thread size, not a mounting-hole measurement.
Check the finished connection
Match the hose to the barbed outlet and support its route. Once fitted, test with water and check the tank seal and hose connection before leaving the overflow in service.
Choosing the overflow elbow
Are both ends threaded?

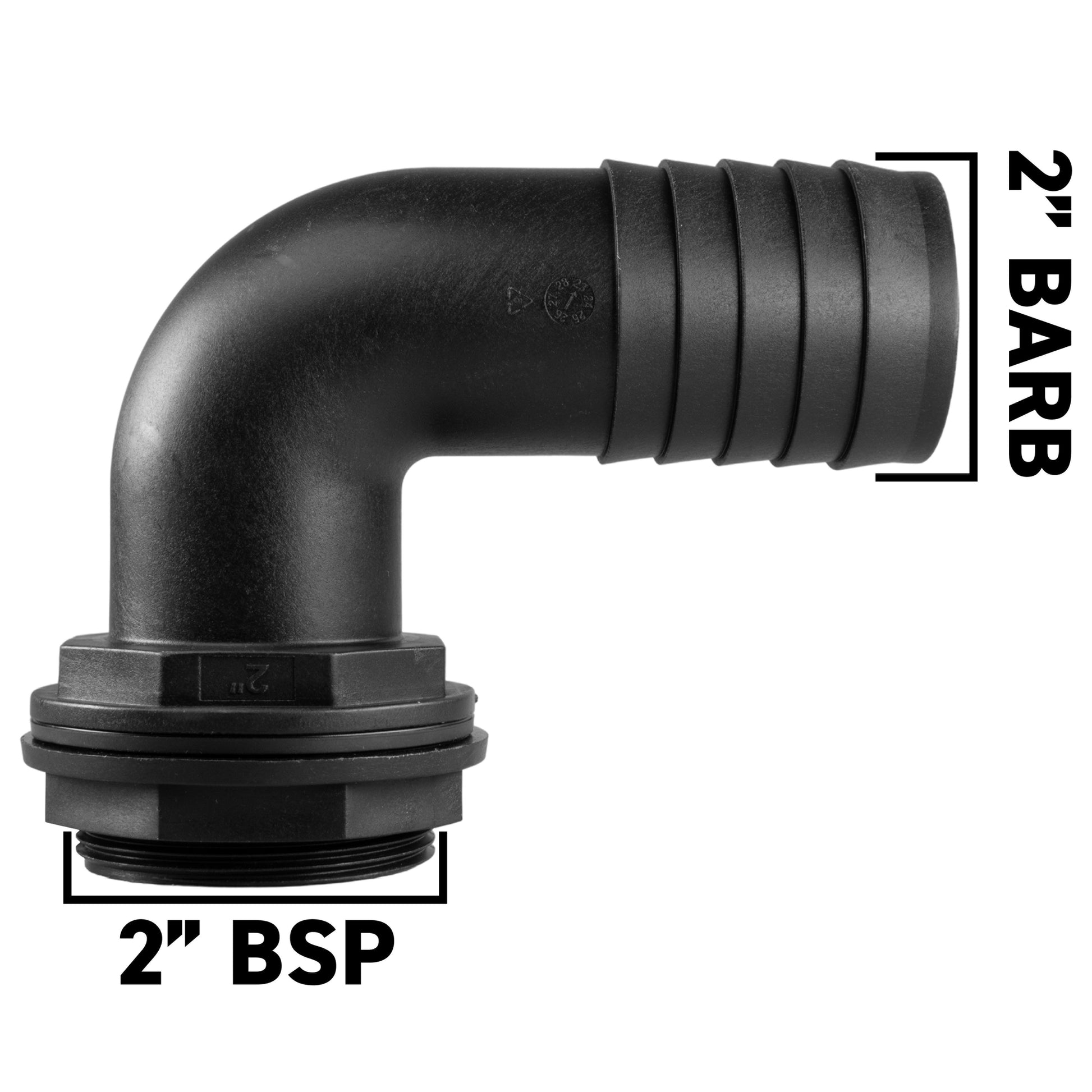

No. One end has a 2-inch BSP male thread and the other is a 2-inch barbed hosetail. Check both connections when matching it to your tank and hose.
What hole size should I drill?
Confirm the opening against the actual fitting and tank before cutting. Do not use the nominal 2-inch thread or barb label as a drilling measurement. The wall must also provide a suitable sealing surface and access for the retaining nut.
How many washers are included?
One sealing washer and one retaining nut are supplied with the elbow. The actual parts photo shows the components separately. Hose and hose clips are sold separately.
Is this a complete water-butt linking kit?
No. Quantity one supplies one elbow fitting with its nut and washer. Choose any hose, clips and additional tank fittings separately to suit your planned installation.
Product information & technical details
| SKU | BUTT-ELB-2BSPM-2B001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male |
| Barb size | 50mm (2") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Fitting angle | 90° |
| Supplied parts | 1 elbow, 1 retaining nut and 1 sealing washer |
| Pack quantity | 1 fitting set |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
