Description
A 38mm hose outlet
Start the hose route with a 90° turn at a suitable water butt or tank connection.
This black plastic elbow combines a 1½-inch BSP male thread with a 38mm hose barb. Back nut and washer included.
One elbow supplied. Hose, clips and tools are separate.
Plan the outlet position
Check the tank mounting and hose route together before fitting.
Allow room at the wall
Check wall thickness, washer seating and access to the retaining nut. An existing threaded outlet must match the 1½-inch BSP male connection. For a new opening, check the actual fitting and mounting arrangement rather than drilling from the nominal thread size.
Leave room for the hose
The elbow sets the direction at the tank, but the hose still needs space for gentle bends. Choose suitable flexible pipe with a nominal 38mm internal diameter and support it so it does not pull on the connector.
Keep the overflow clear
Plan a suitable discharge point and keep the route unobstructed. This is an outlet fitting, not a complete overflow kit or an automatic control. Check the tank-wall seal and hose connection with water after installation.
Two connections to check

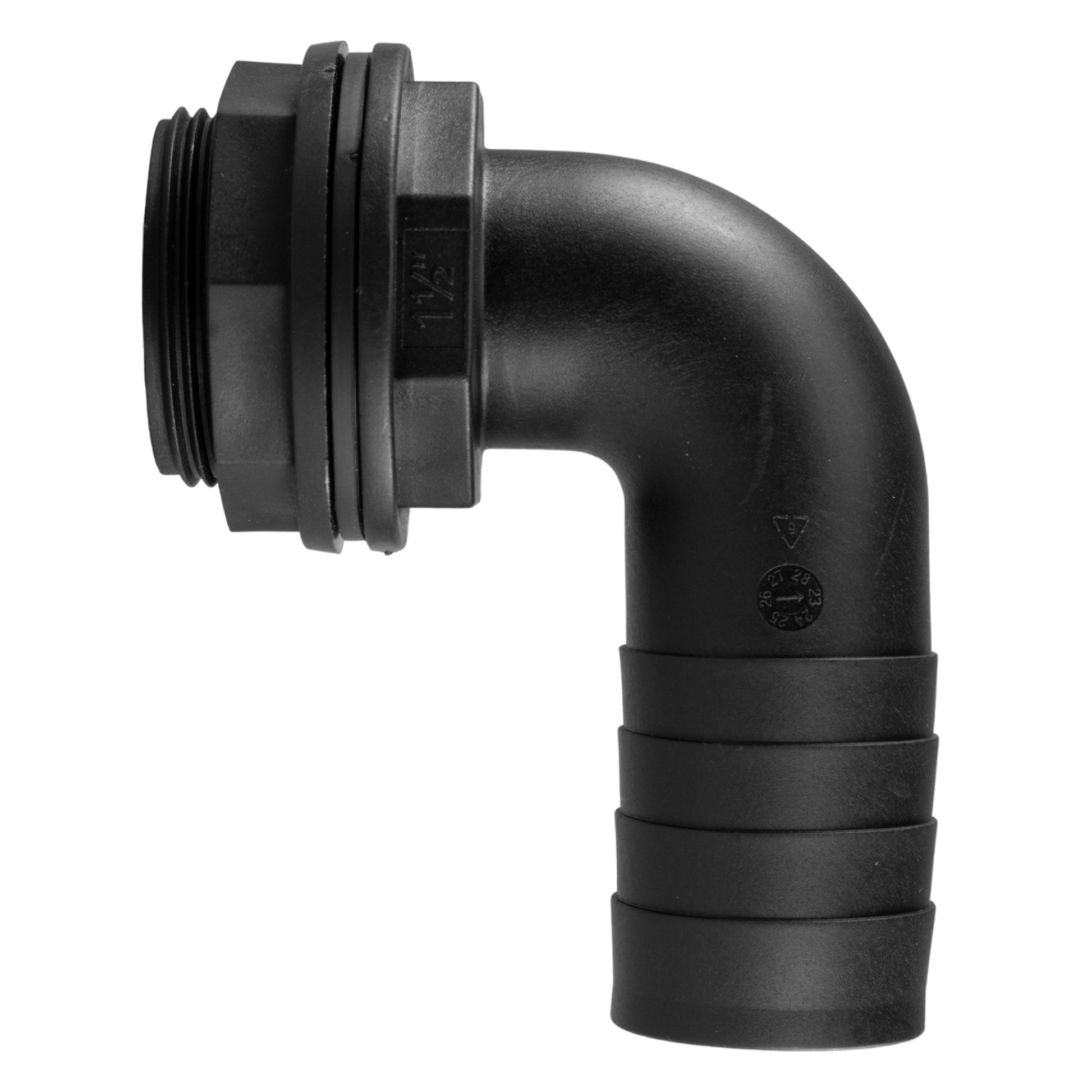

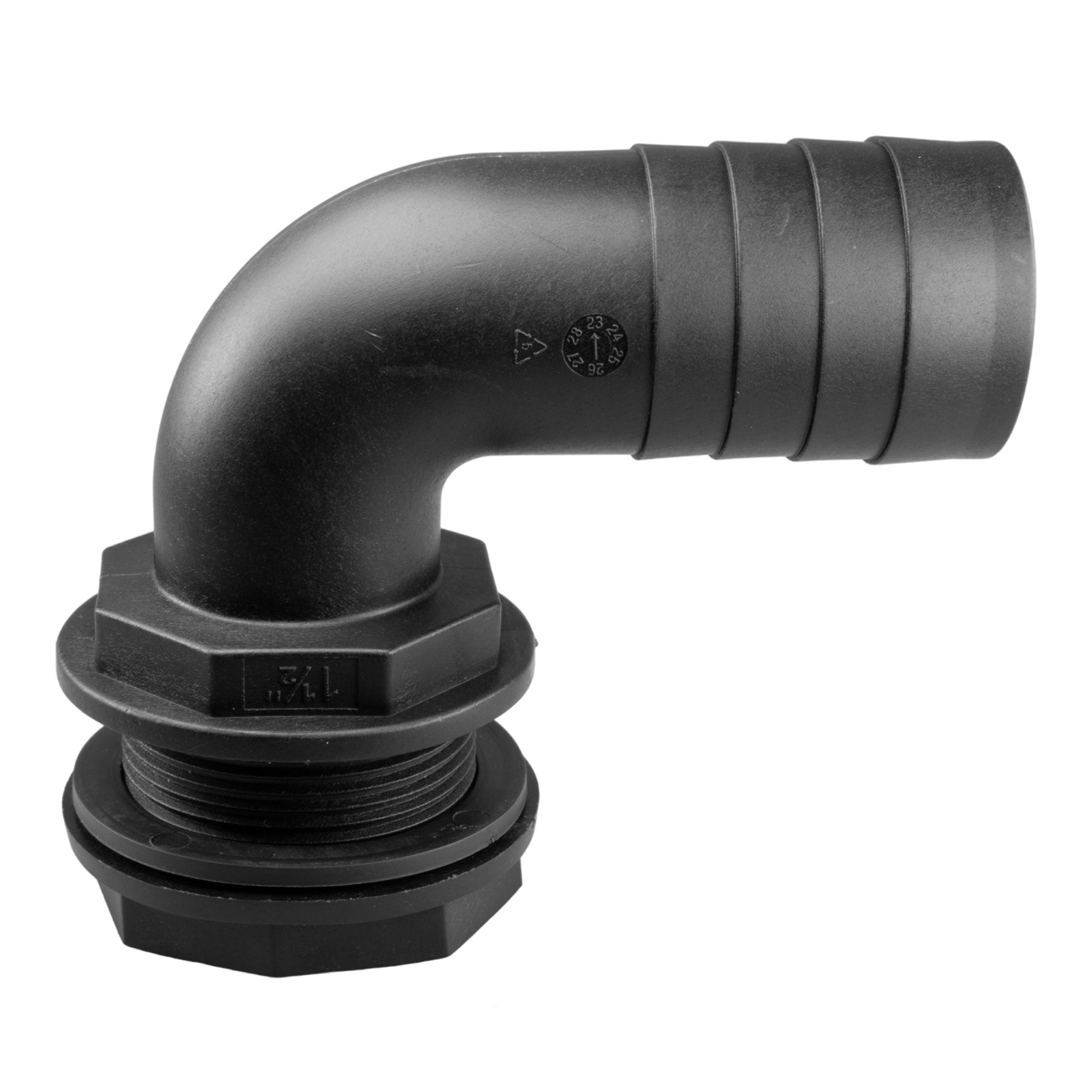

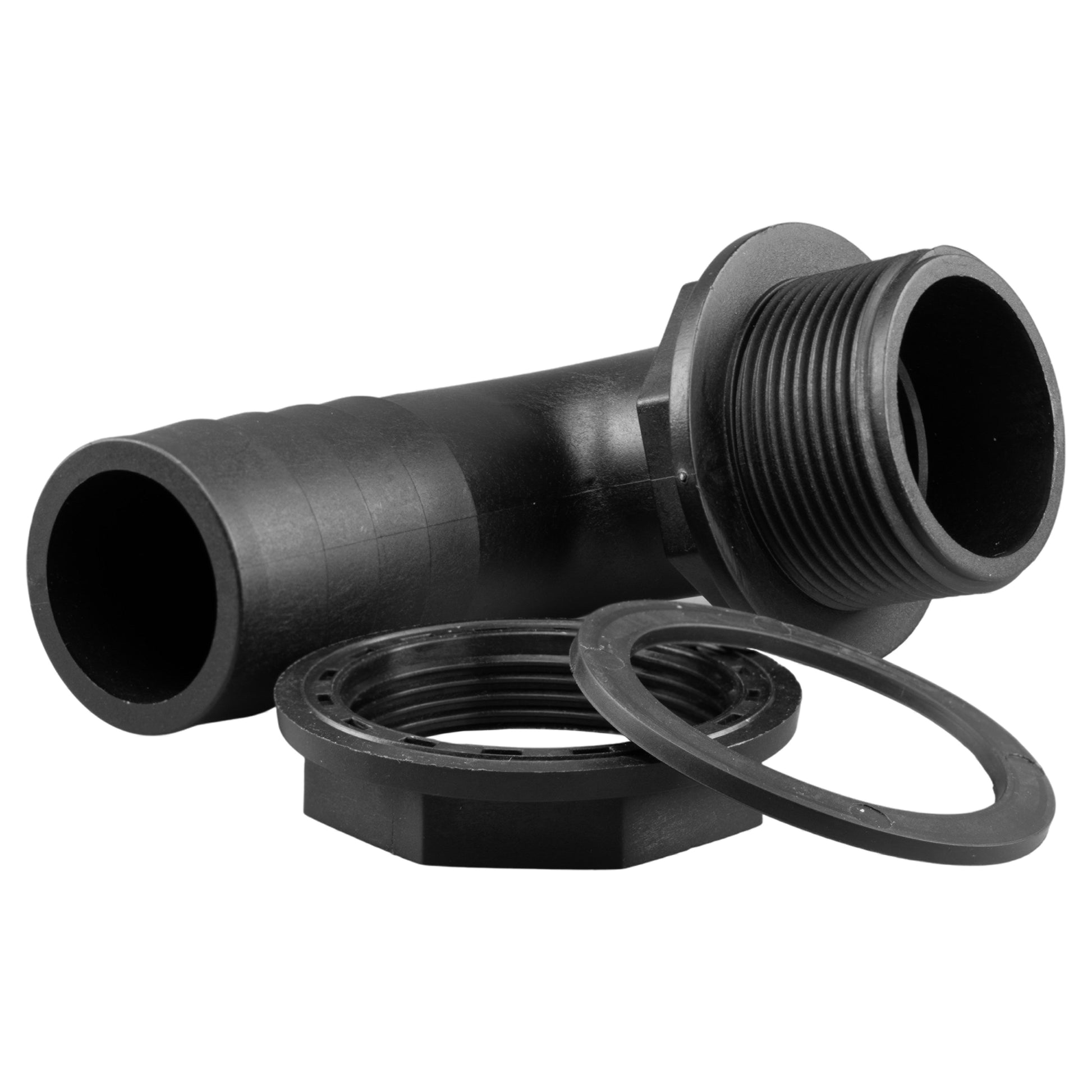

The parts photograph shows the male threaded stem, retaining nut and mounting washer. The other end is the hose outlet, turned through a right angle.

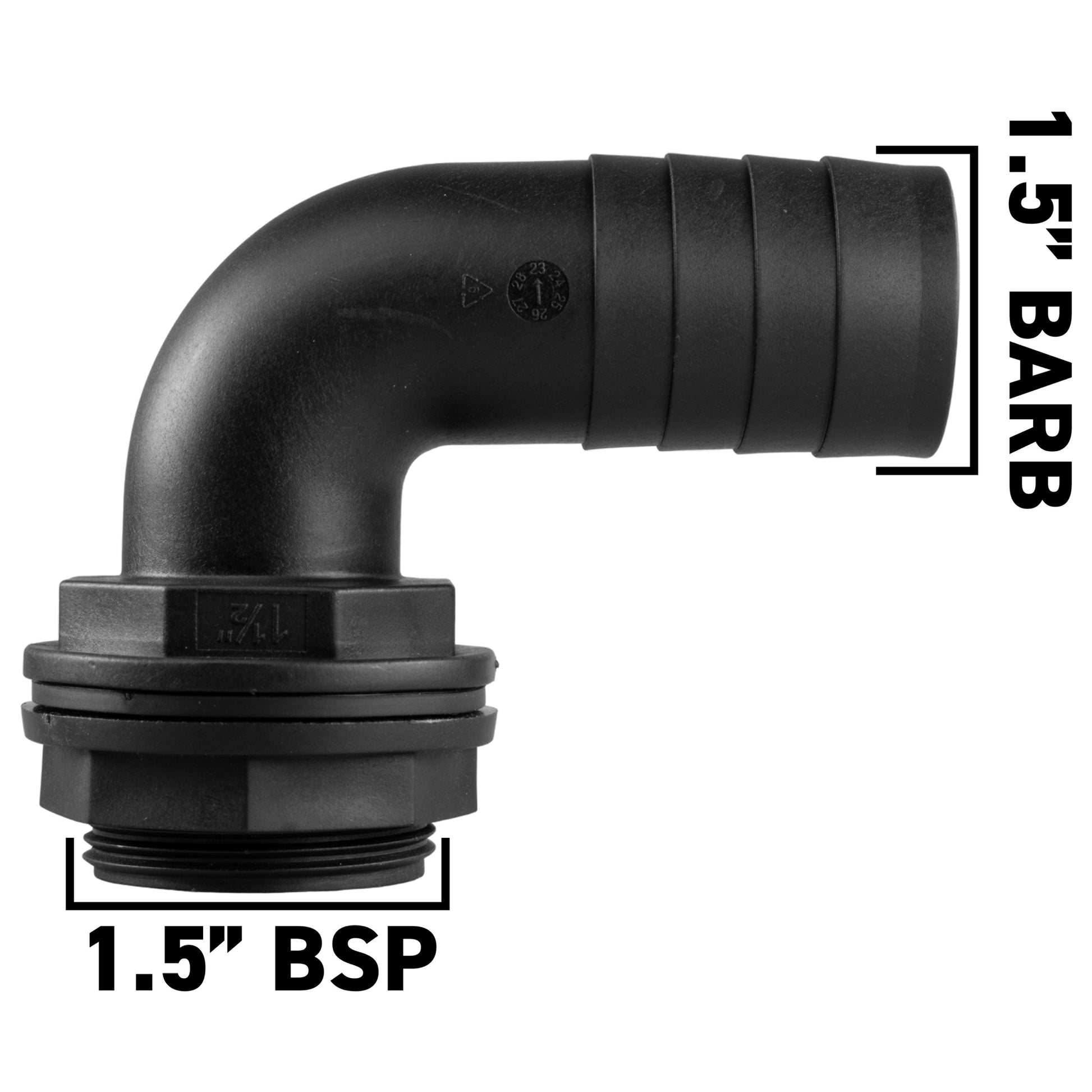

1½-inch BSP describes the tank thread; 38mm describes the nominal hose bore. Neither is a measurement of the outside of an assembled hose connection or an instruction for cutting a tank opening.
38mm corrugated PVC hose is available separately. Check the actual hose fit on the ribbed barb and choose a clip using the outside diameter once assembled.
38-43mm double-wire hose clamps are one option where that measured diameter is within their range. Check current availability and suitability before ordering; do not force an undersized clip or crush the pipe.
Keep the washer seated evenly on a suitable surface, avoid excessive force on the plastic and inspect the completed joints after the hose has settled.
Fitting questions
Does 1½-inch BSP mean I should drill a 38mm hole?
No. BSP is a nominal thread designation. The 38mm figure here describes the hose's nominal internal diameter at the other end of the fitting. Check the actual threaded stem, mounting parts, tank wall and washer seating before choosing an opening size.
What comes with this connector?
One black plastic 90° elbow is supplied with its retaining back nut and mounting washer. It has a 1½-inch BSP male tank thread and a barb for suitable nominal 38mm flexible hose. Hose, securing clips, tools and any additional sealing materials are separate.
Will this fit my water butt's existing outlet?
Check the actual outlet and mounting area first. A threaded connection must match the 1½-inch BSP male thread. A plain opening must suit the connector and mounting parts, with appropriate wall thickness, an even washer seat and access to the nut. Water butt designs vary.
Can it be used on a pressurised water supply?
No pressure rating is specified for this fitting, so do not assume suitability for mains pressure or a pressurised pump outlet. Use components with confirmed ratings for those systems. For a water butt outlet, support the hose and test both the tank-wall seal and hose joint with water.
Product information & technical details
| SKU | BUTT-ELB-15BSPM-15B001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Male |
| Barb size | 38mm (1.5") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection angle | 90° elbow |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 elbow connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
