Description
Turn the hose route
A 90° elbow for bringing a hose connection around a corner at a suitable water butt or tank.
One black plastic fitting with a 1¼-inch BSP male thread, a 32mm hose barb, back nut and washer.
Hose, securing clip, tools and extra sealing materials are separate.
Thread at the tank

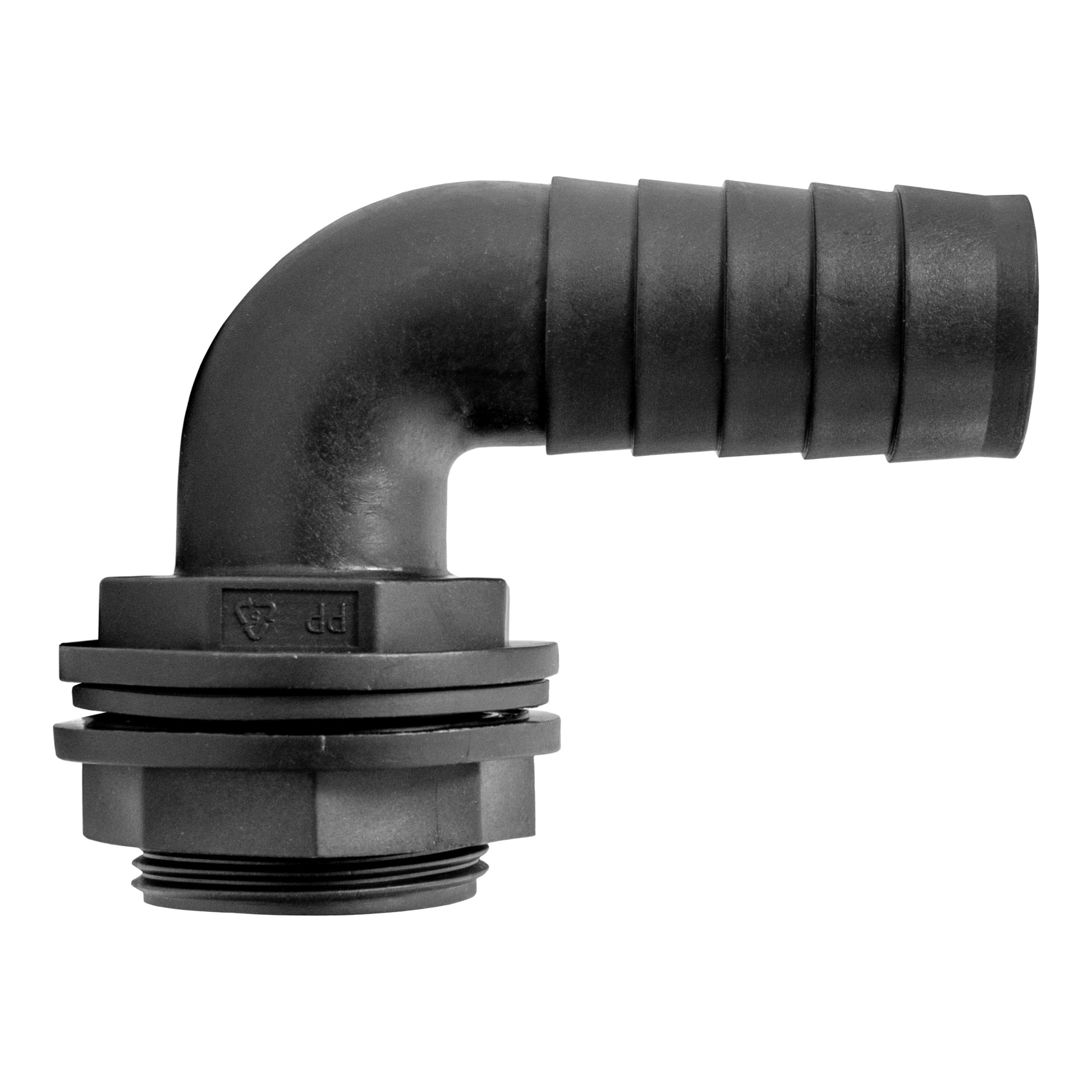

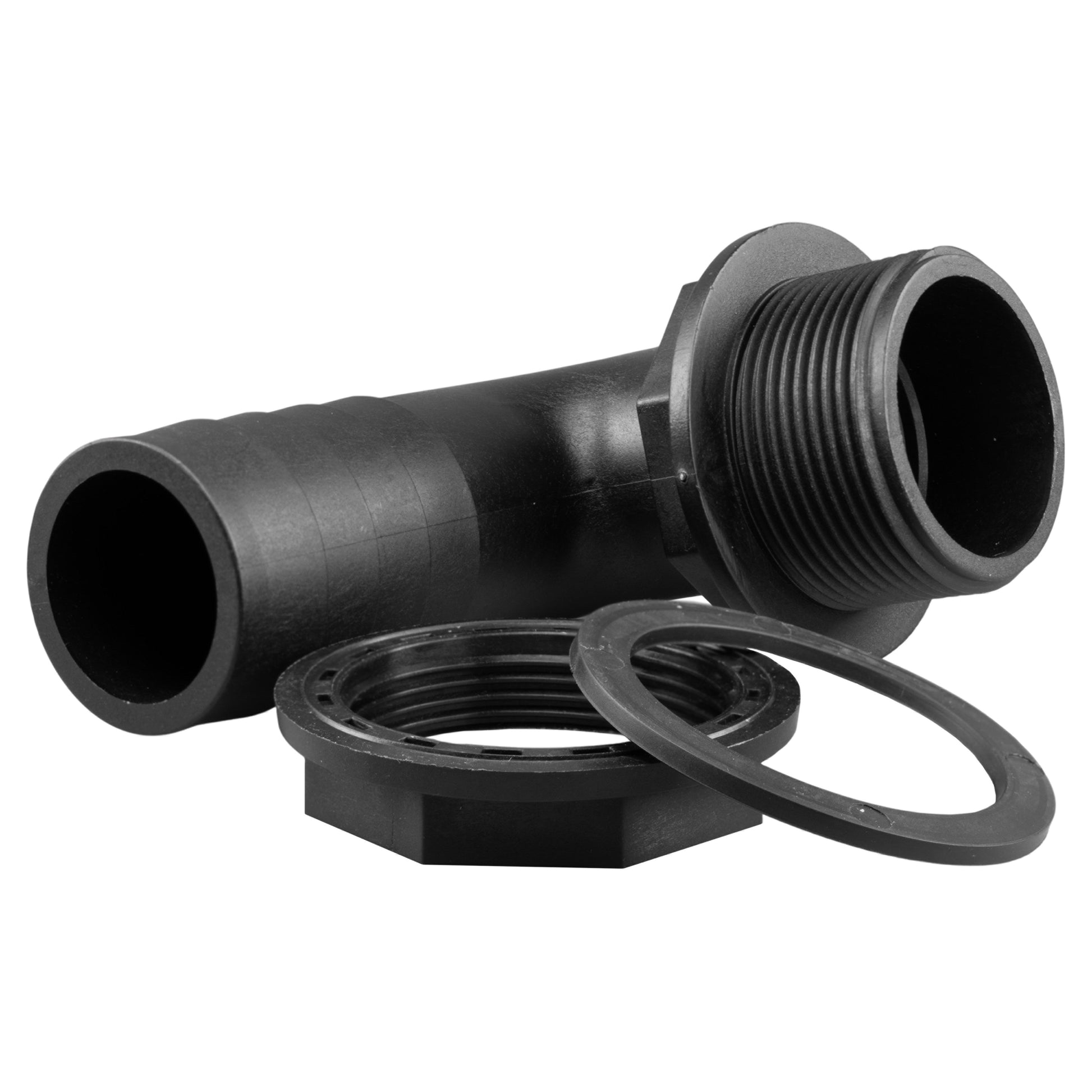

The actual parts photograph shows the male threaded stem and its separate mounting nut and washer. The hose outlet turns through a right angle from the tank connection.

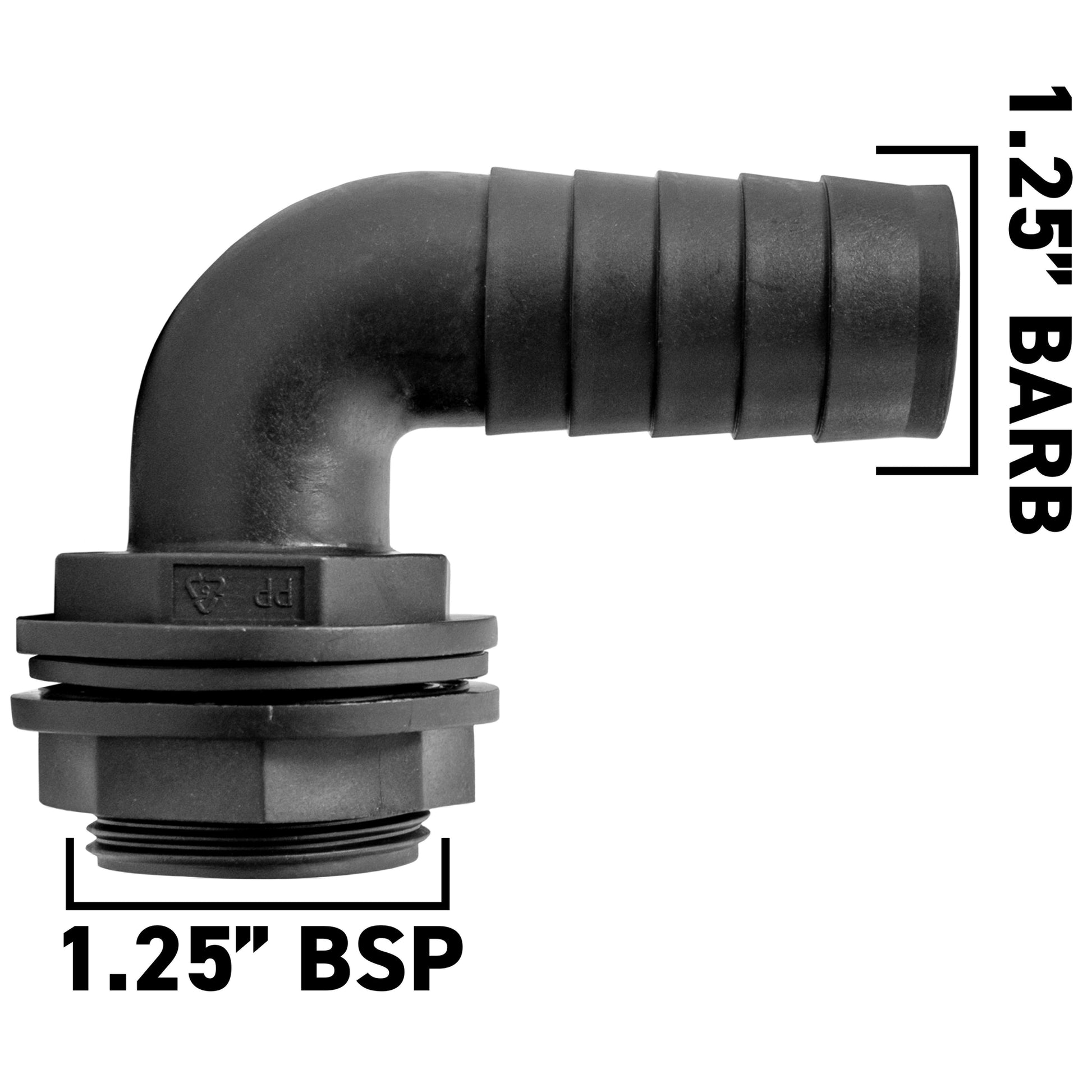

The 1¼-inch BSP thread and the 32mm hose size describe different ends of the fitting. BSP is a nominal thread designation, while the hose size refers to the pipe's internal diameter. Neither tells you the correct hole size for your tank by itself.
Check the actual fitting, wall thickness, seating area and access before cutting an opening. The washer needs a suitable surface to seat against, and the retaining nut must be accessible. Do not tighten with excessive force on the plastic or tank wall.
One elbow, one back nut and its mounting washer are supplied. Pipe, securing clips and any installation tools are separate.
Check the hose connection
Leave room for the hose and support it after fitting.
Choose matching pipe
The barb is for suitable flexible hose with a nominal 32mm internal diameter. 32mm corrugated PVC hose is available separately. Check the actual hose and barb fit; a rigid 32mm pipe is not the same connection.
Secure the hose end
Choose a clip for the outside diameter of the hose assembled on the barb. 32-36mm double-wire clamps are an option where that measured diameter is within their range. Avoid crushing the pipe or forcing an unsuitable clip.
Plan the discharge
Route and support the pipe so it does not pull on the elbow. For an overflow, direct water to a suitable discharge point and keep the route clear. Test the tank-wall seal and hose joint with water, then inspect again after the pipe settles.
Before you fit the elbow
What size hole should I drill in the tank?
Check the actual connector and tank wall before choosing an opening size. The 1¼-inch BSP designation identifies the thread; it is not a drilling measurement. Allow for the mounting arrangement, washer seating and wall thickness, and make sure you can reach the retaining nut inside.
Does it come with a hose and clip?
No. The pack contains one black plastic elbow with its back nut and mounting washer. Suitable flexible hose and a securing clip are separate. The hose should match the nominal 32mm barb size; choose the clip for the outside diameter of the hose once fitted.
Will it fit every water butt outlet?
No. Check the tank design and mounting area. An existing threaded outlet must match the 1¼-inch BSP male thread, while a plain opening must suit the actual connector and mounting parts. Wall thickness, washer seating and access to the nut also affect suitability.
Can I use it on a pressurised supply?
No pressure rating is specified for this elbow. Do not assume it is suitable for mains pressure or a pressurised pump outlet. Choose fittings with confirmed ratings for those systems. For a water butt connection, support the hose and check the completed seal and joint with water.
Product information & technical details
| SKU | BUTT-ELB-125BSPM-125B001 |
|---|---|
| Product type | |

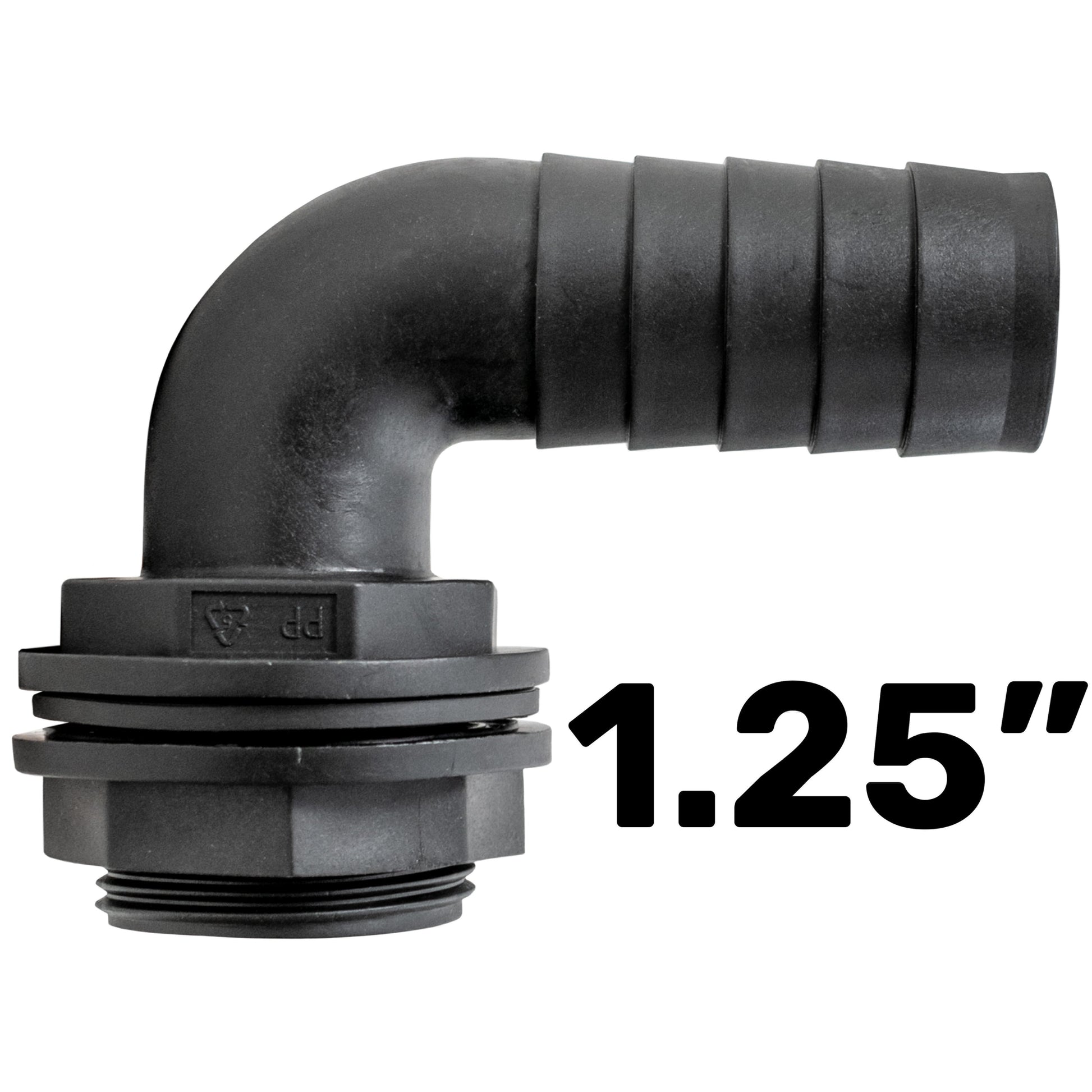

| BSP thread size | 1.25" |
| Thread gender | Male |
| Barb size | 32mm (1.25") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection angle | 90° elbow |
| Supplied mounting parts | Back nut and washer |
| Quantity supplied | 1 elbow connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm

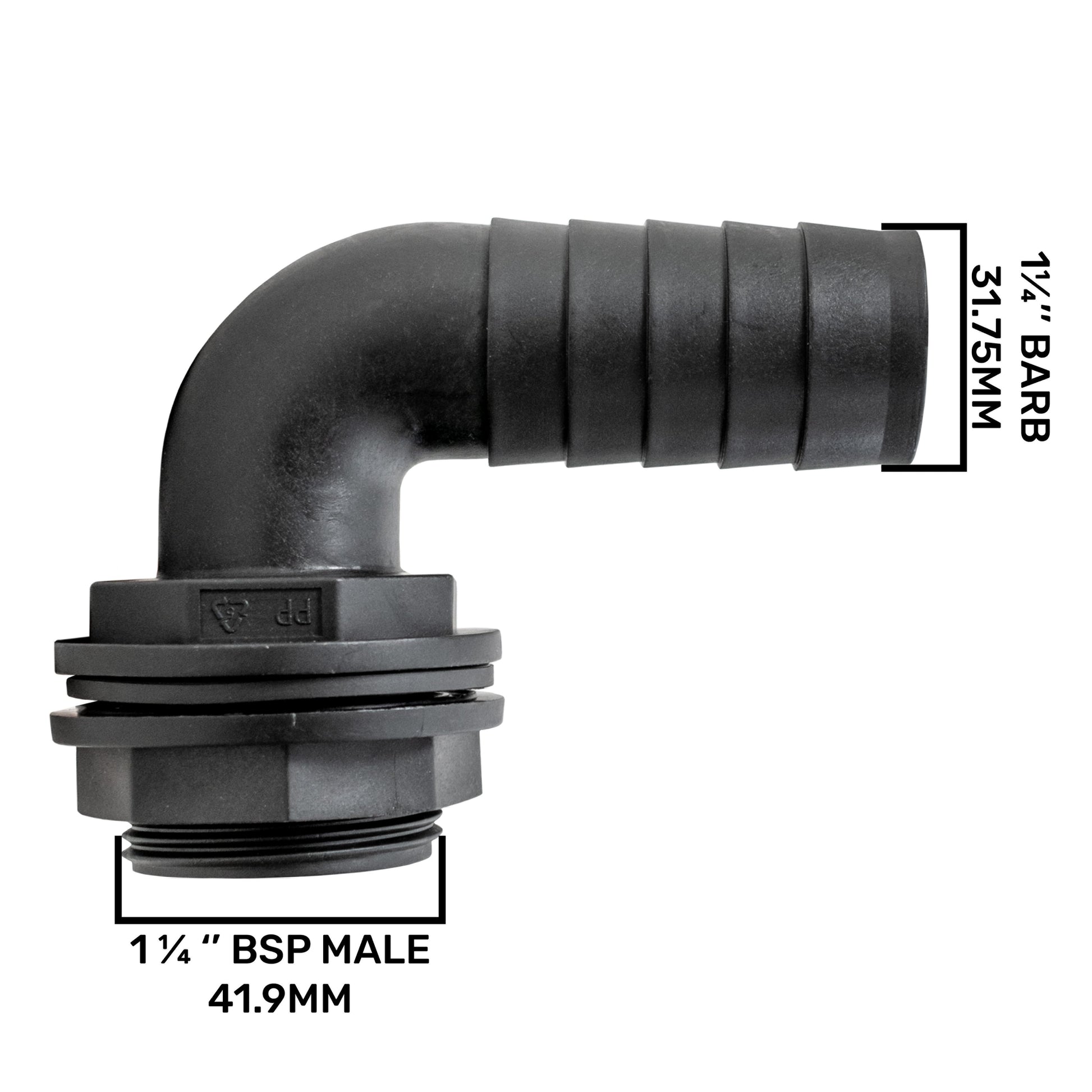

- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
