Description
A right-angle outlet for your water butt

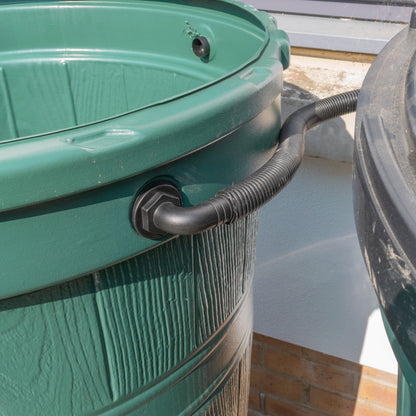

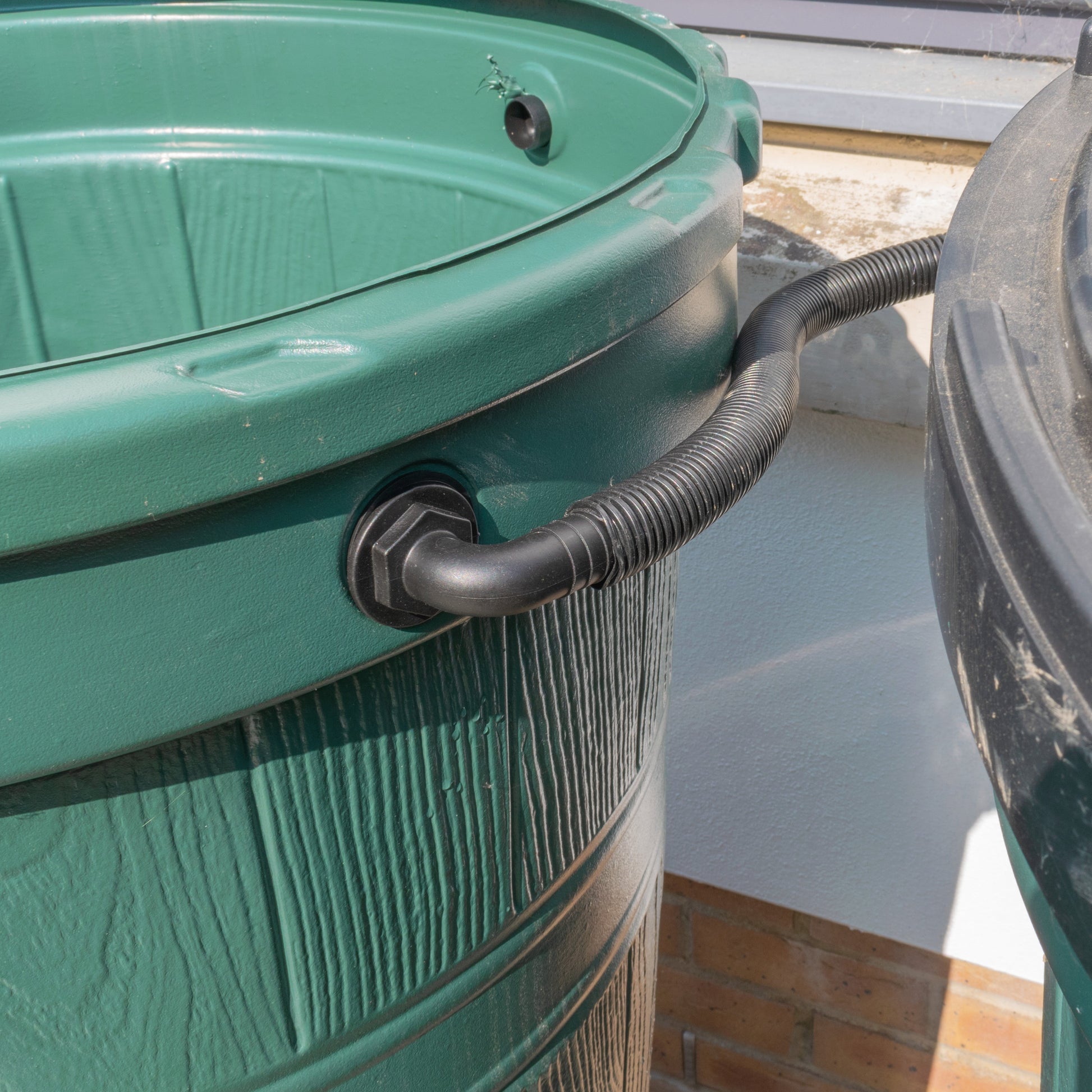

When your hose needs to leave the tank at a turn, this 1-inch water-butt overflow elbow puts the change of direction in the fitting.

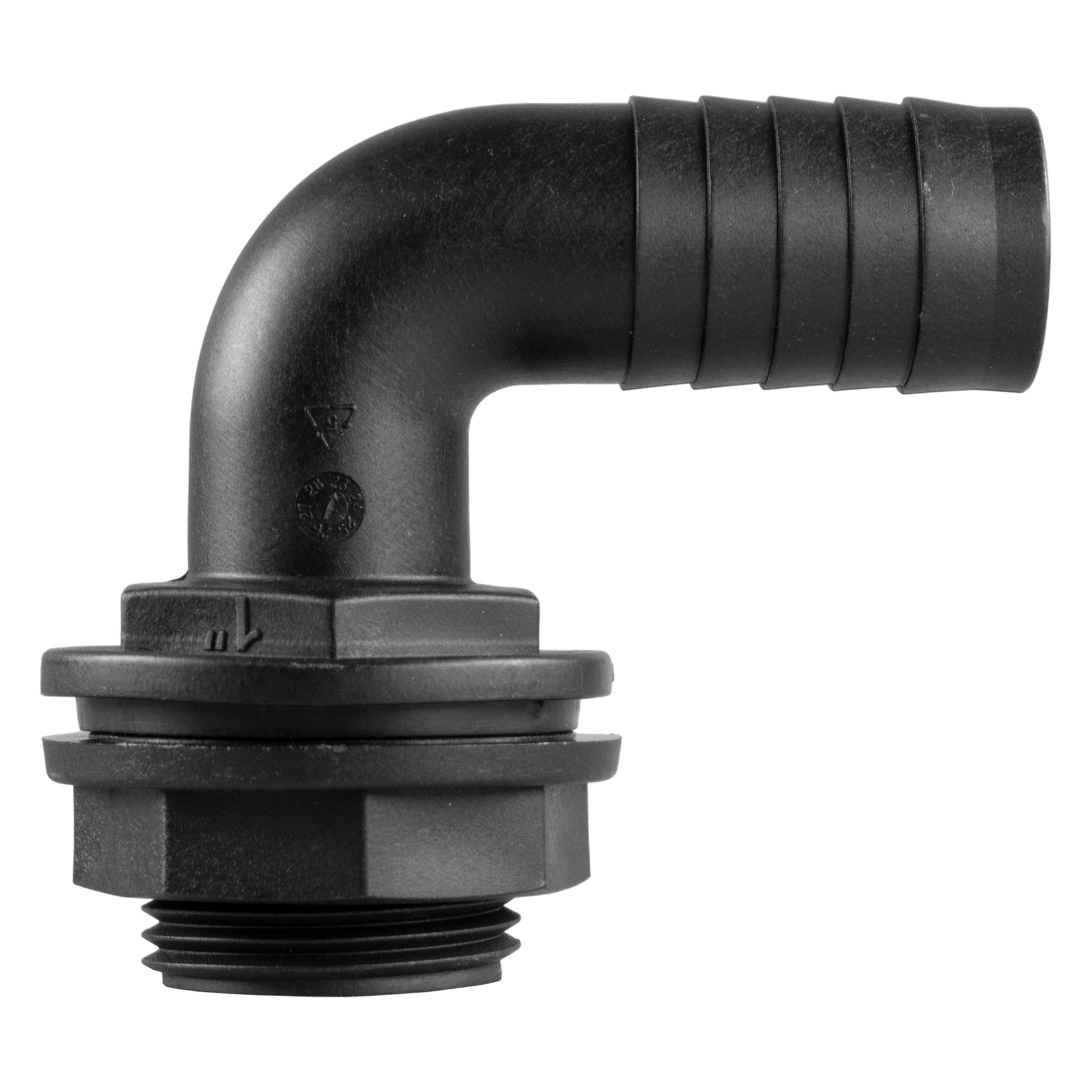

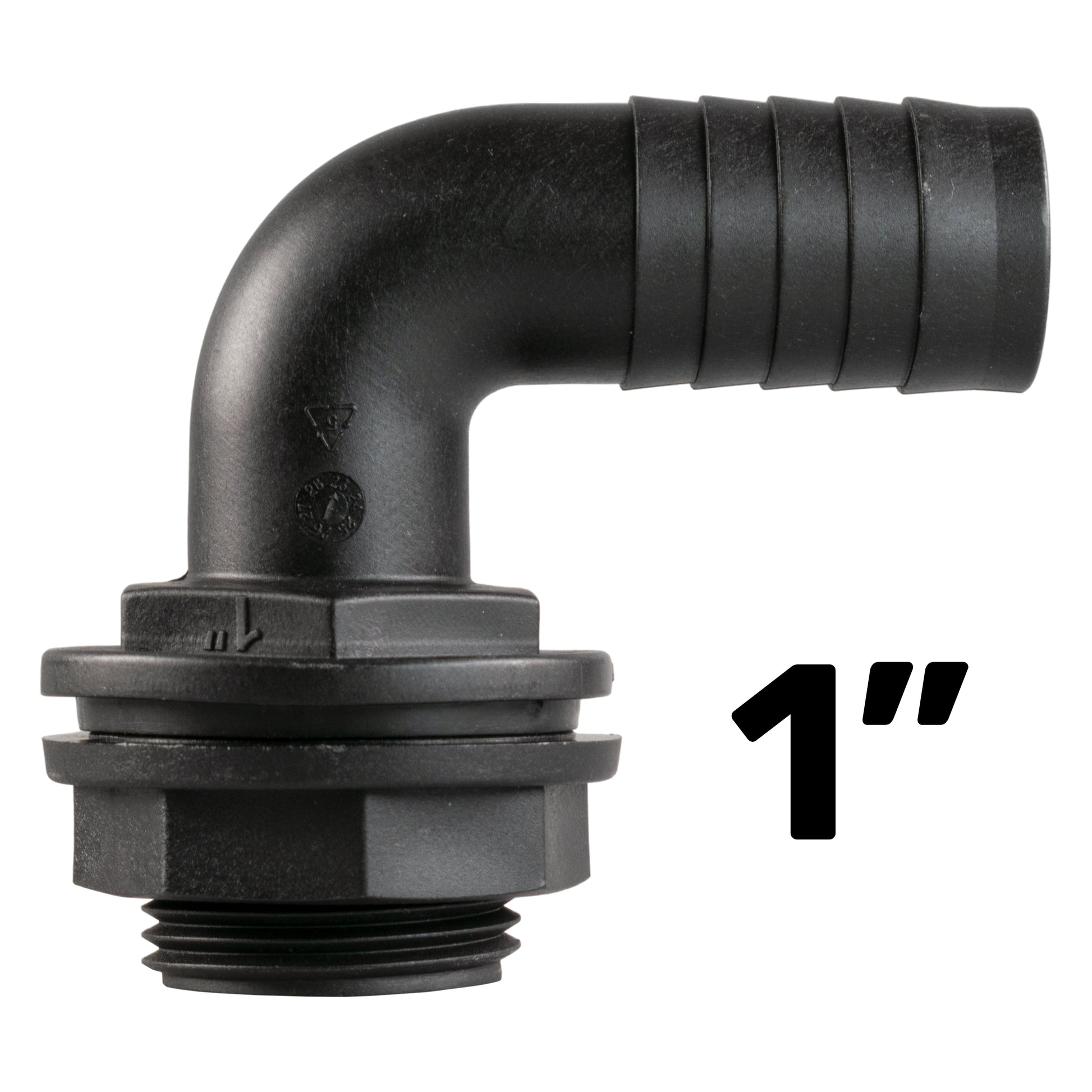

The 1-inch BSP male thread forms the tank-side connection, while the 1-inch barbed hosetail takes matching hose. A retaining nut and one sealing washer are included with the black plastic elbow.
Check both connection sizes and your tank’s mounting surface before ordering. Hose and clips are sold separately.
Know which end connects where

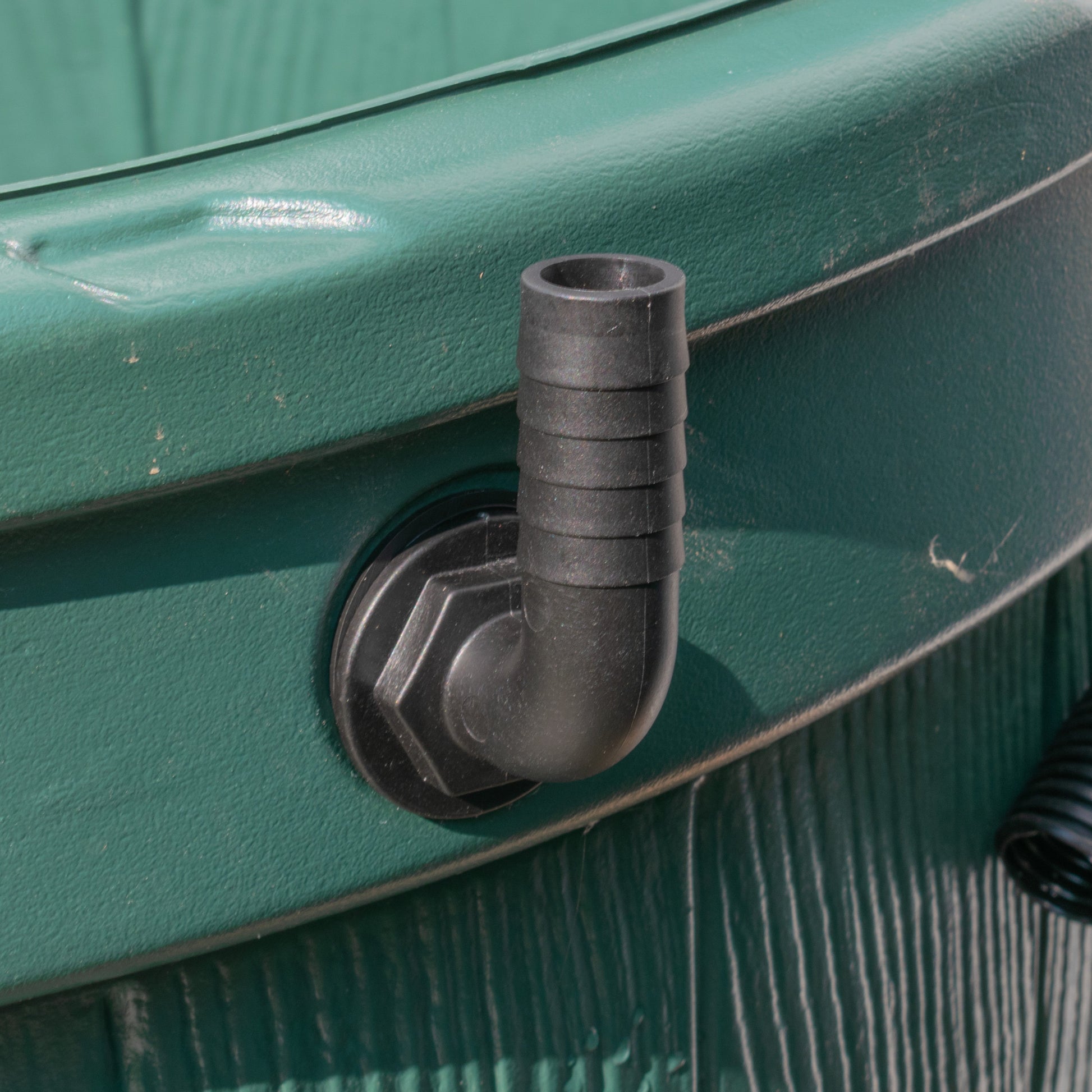

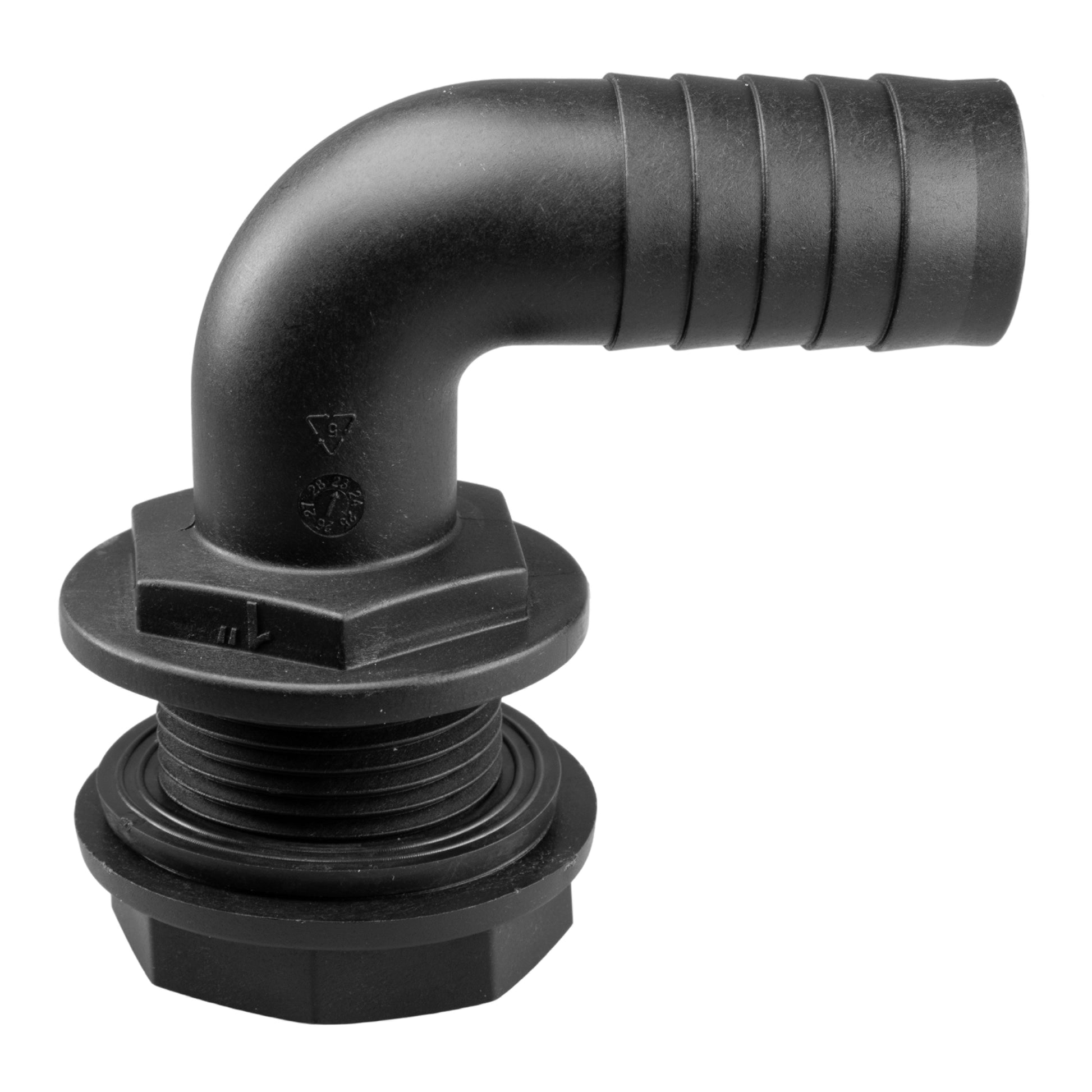

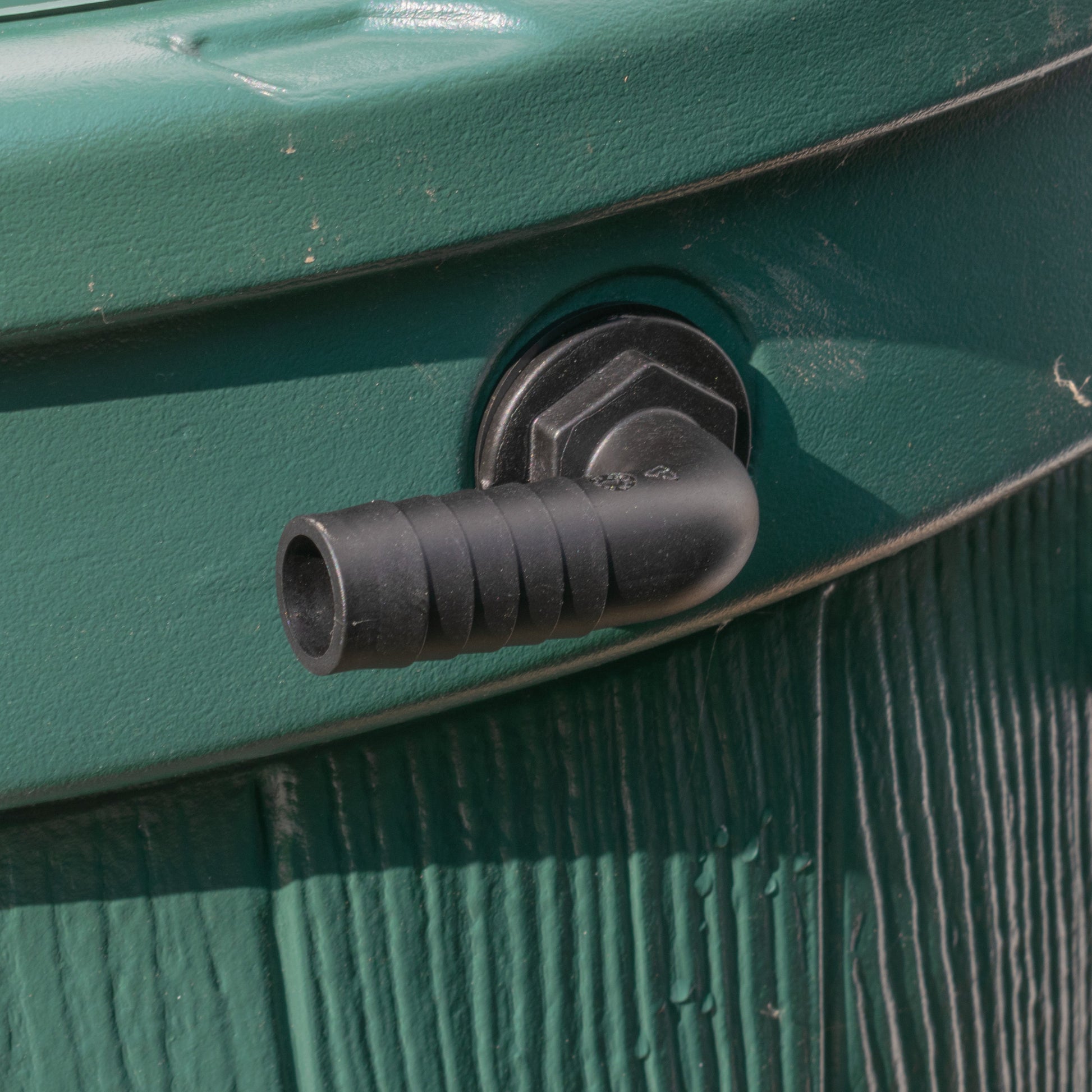

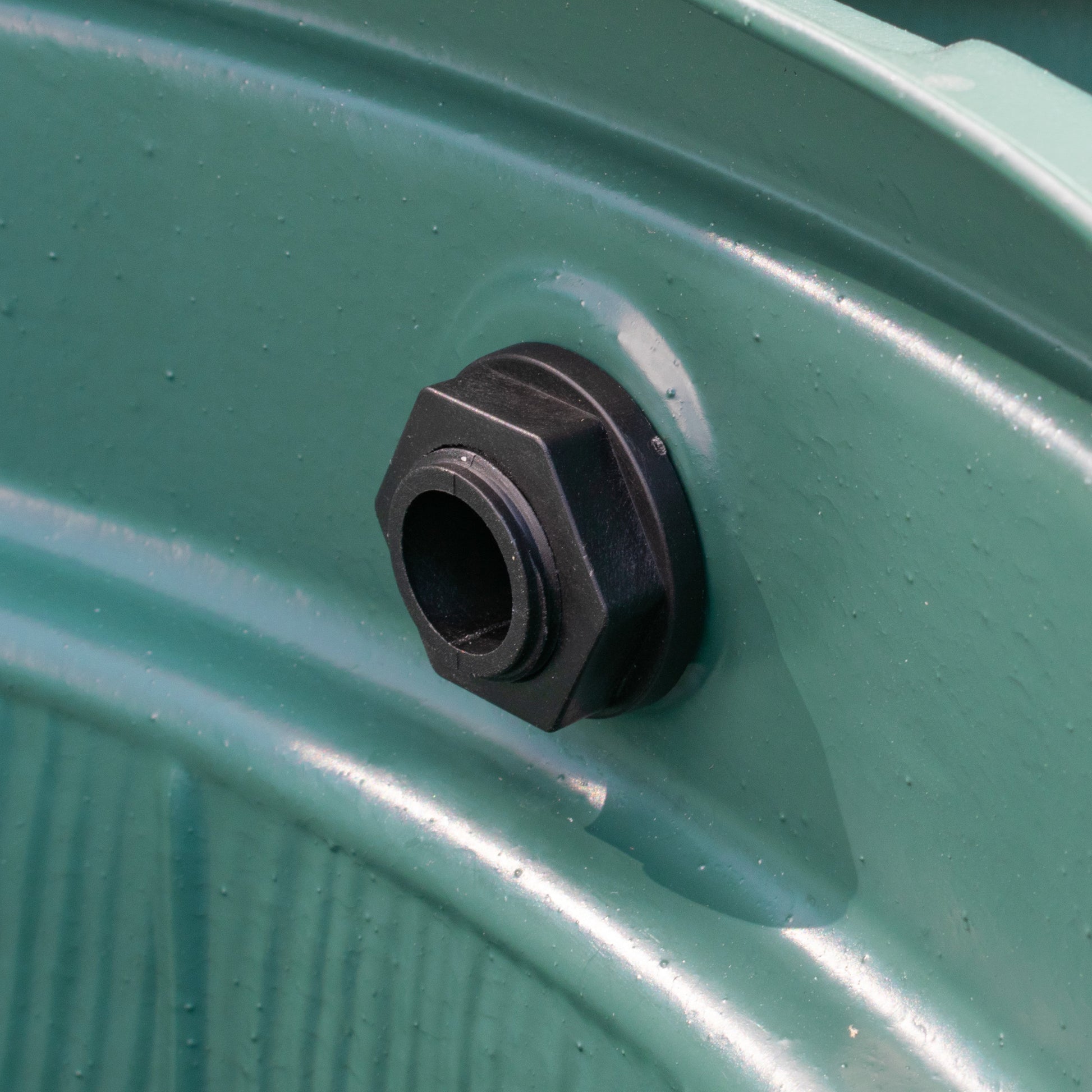

The male BSP thread and retaining nut are on the tank side. The washer seals against a suitable surface; leave enough room to position and tighten the nut without the tank wall or nearby fittings obstructing access.

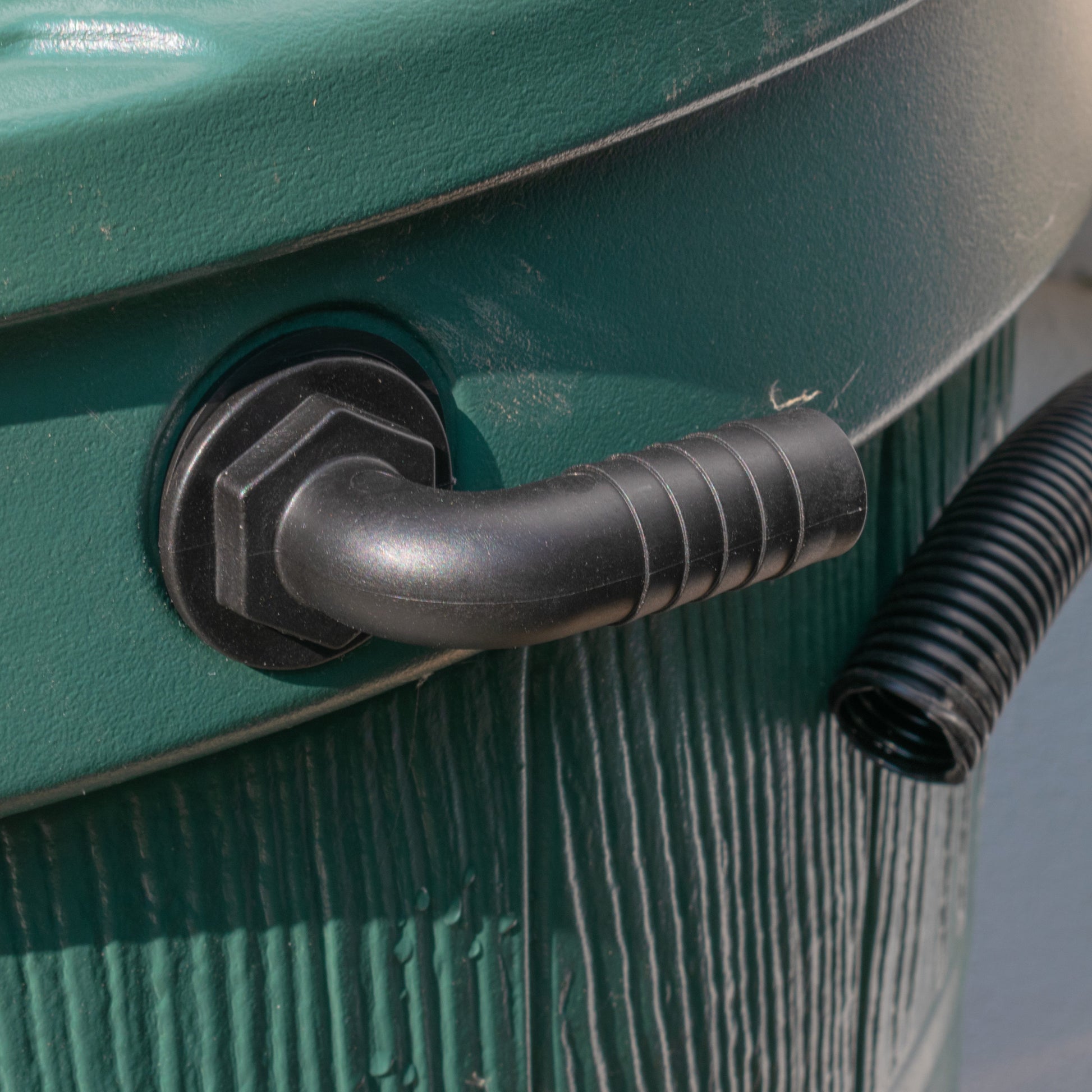

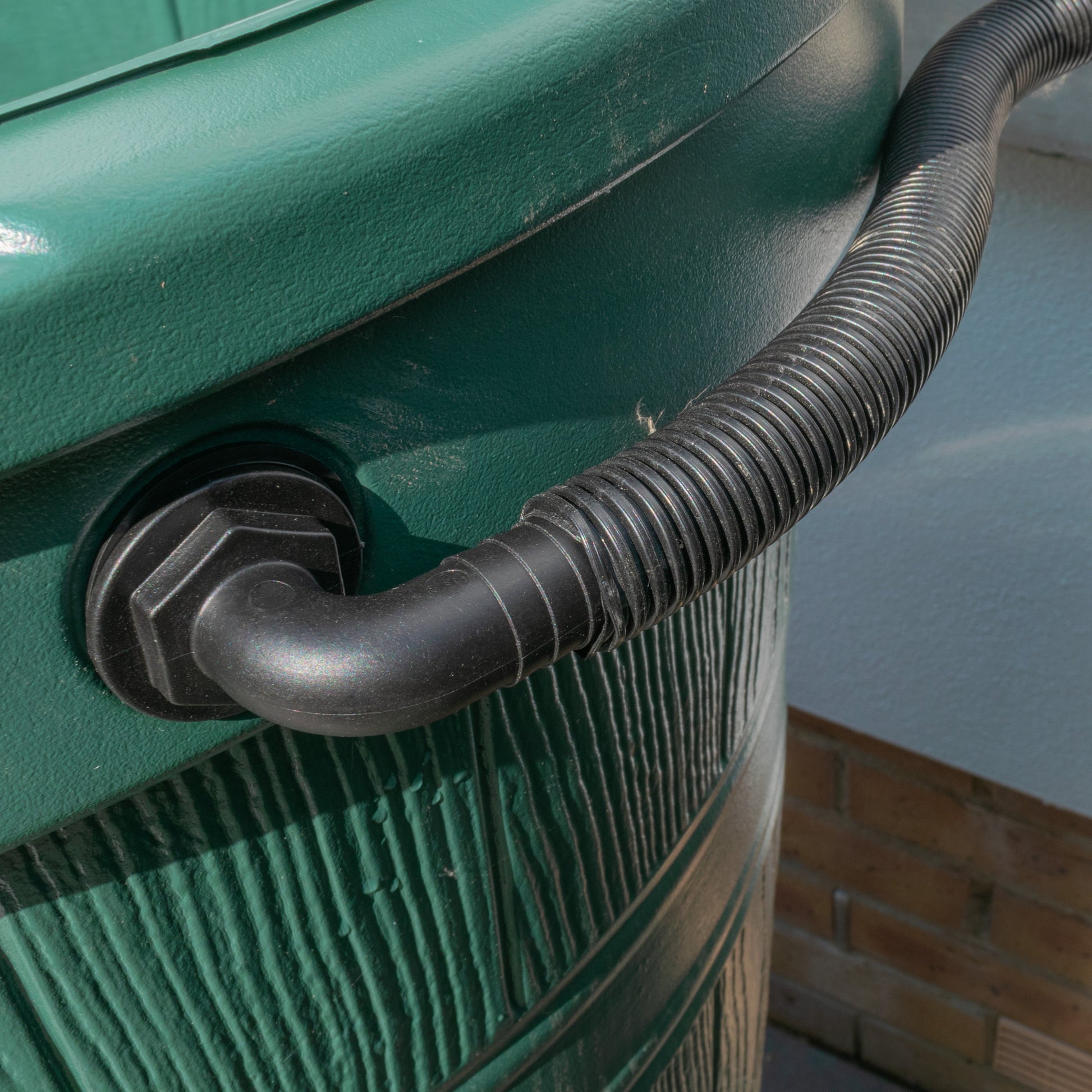

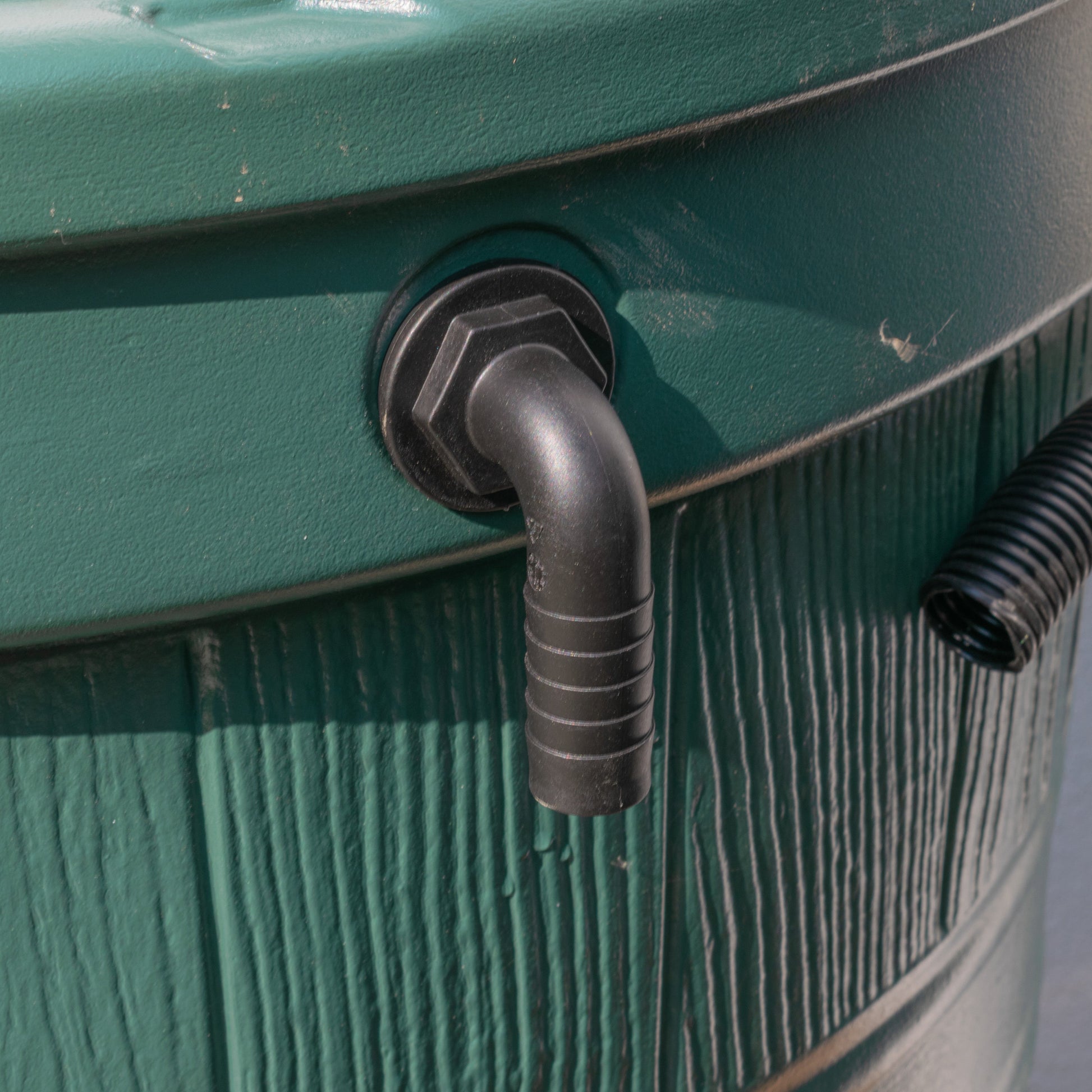

The ribbed hosetail is the hose side. Choose hose to match this outlet and check its fit rather than comparing the hose with the outside of the BSP thread. A hose clip, if required for your installation, is a separate item.

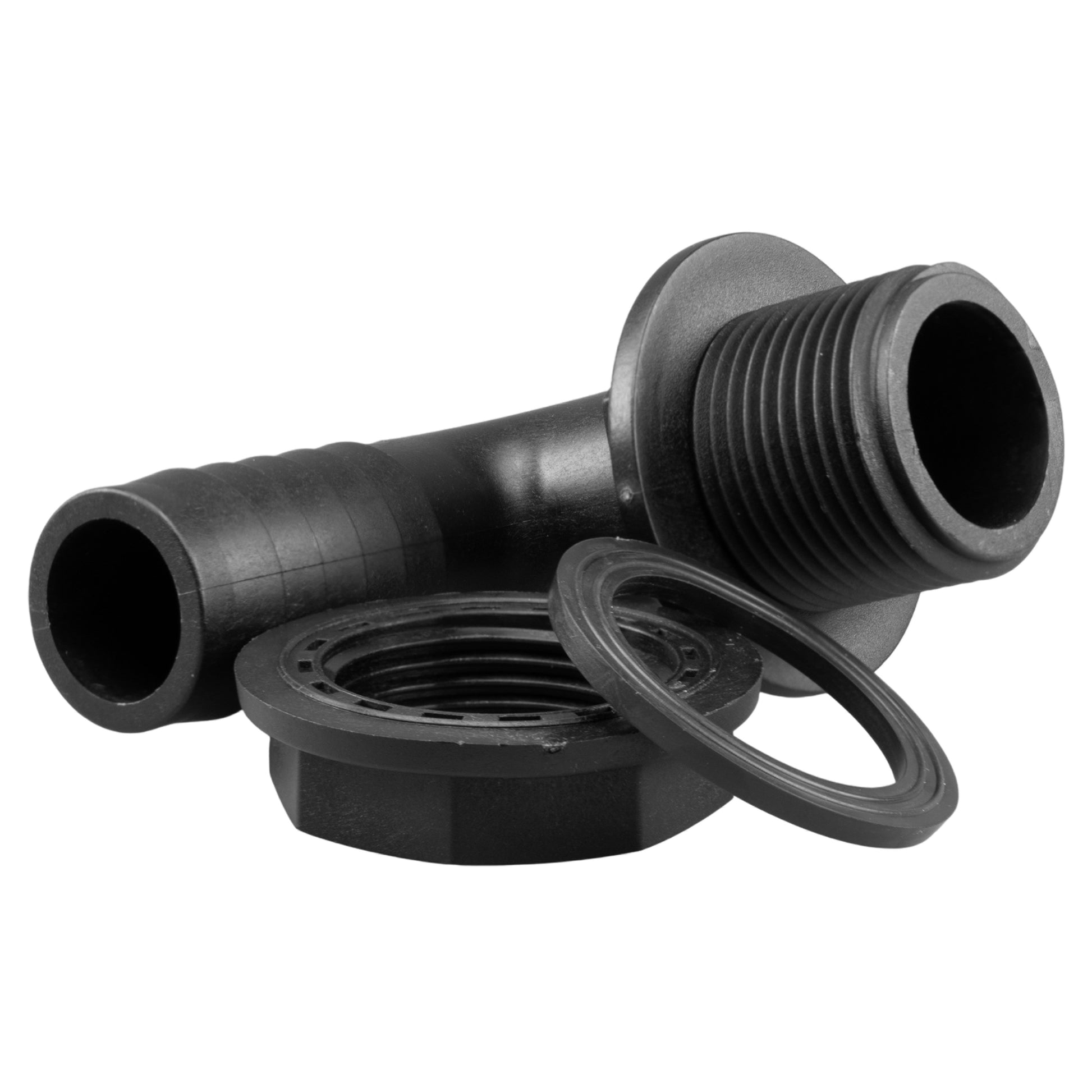

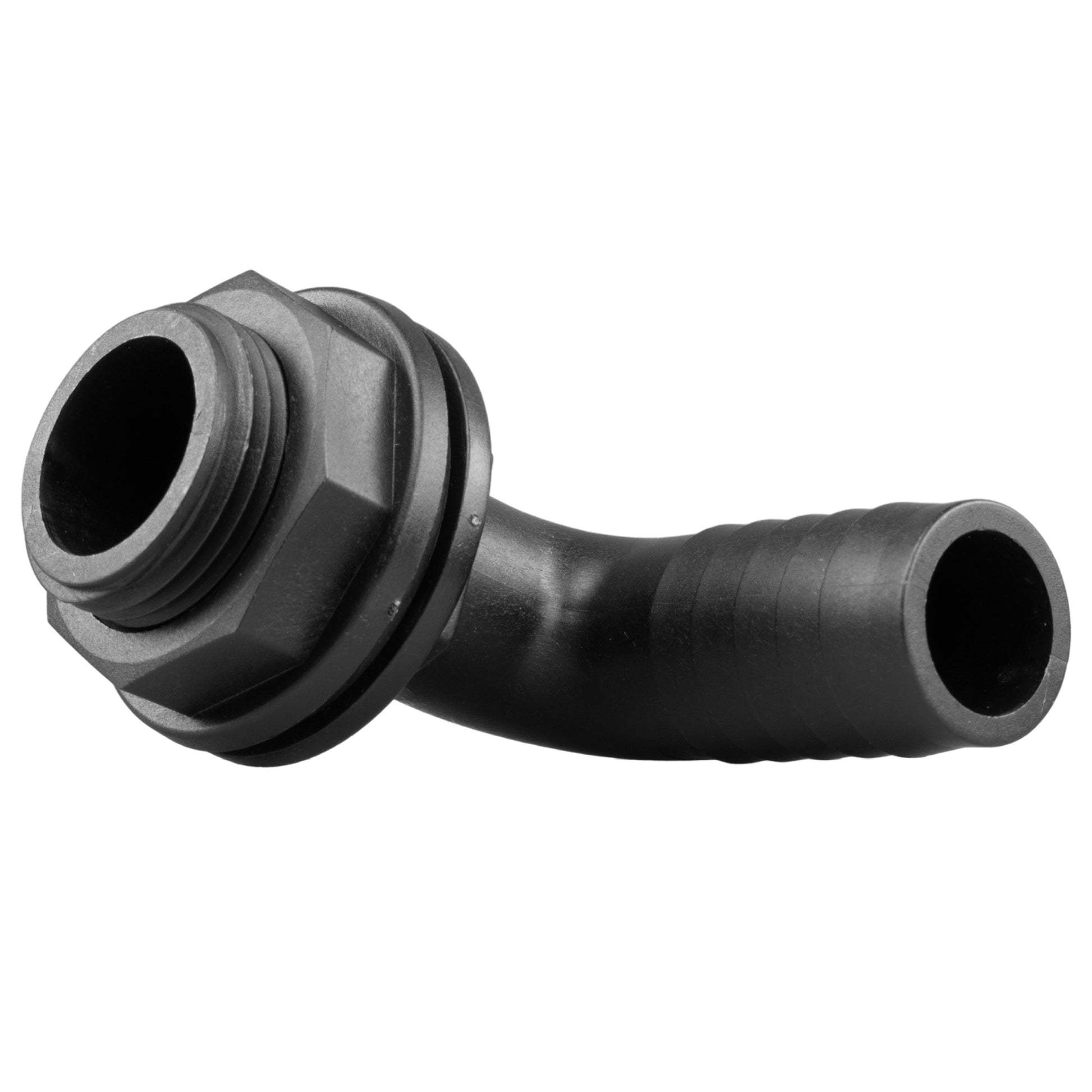

The parts photo shows the pack contents: one elbow, one nut and one washer. This is an individual fitting, not a complete hose or linking kit.
Plan the connection before cutting
A few checks help you position the outlet and avoid an unsuitable opening.
Check the tank wall
Choose a suitable sealing surface and check the available thread length, room for the nut and clearance for the elbow. The hose should have a supported route away from the tank.
Measure the actual fitting
The 1-inch BSP label describes the thread standard; it does not mean a 1-inch mounting hole. Confirm the opening against the fitting and your container before drilling.
Fit, then test with water
Match the hose to the barbed end and secure it as needed for the installation. Check both the tank seal and hose connection for leaks before leaving the overflow in use.
Questions about the 1-inch elbow
Does this fit any connection described as 1 inch?

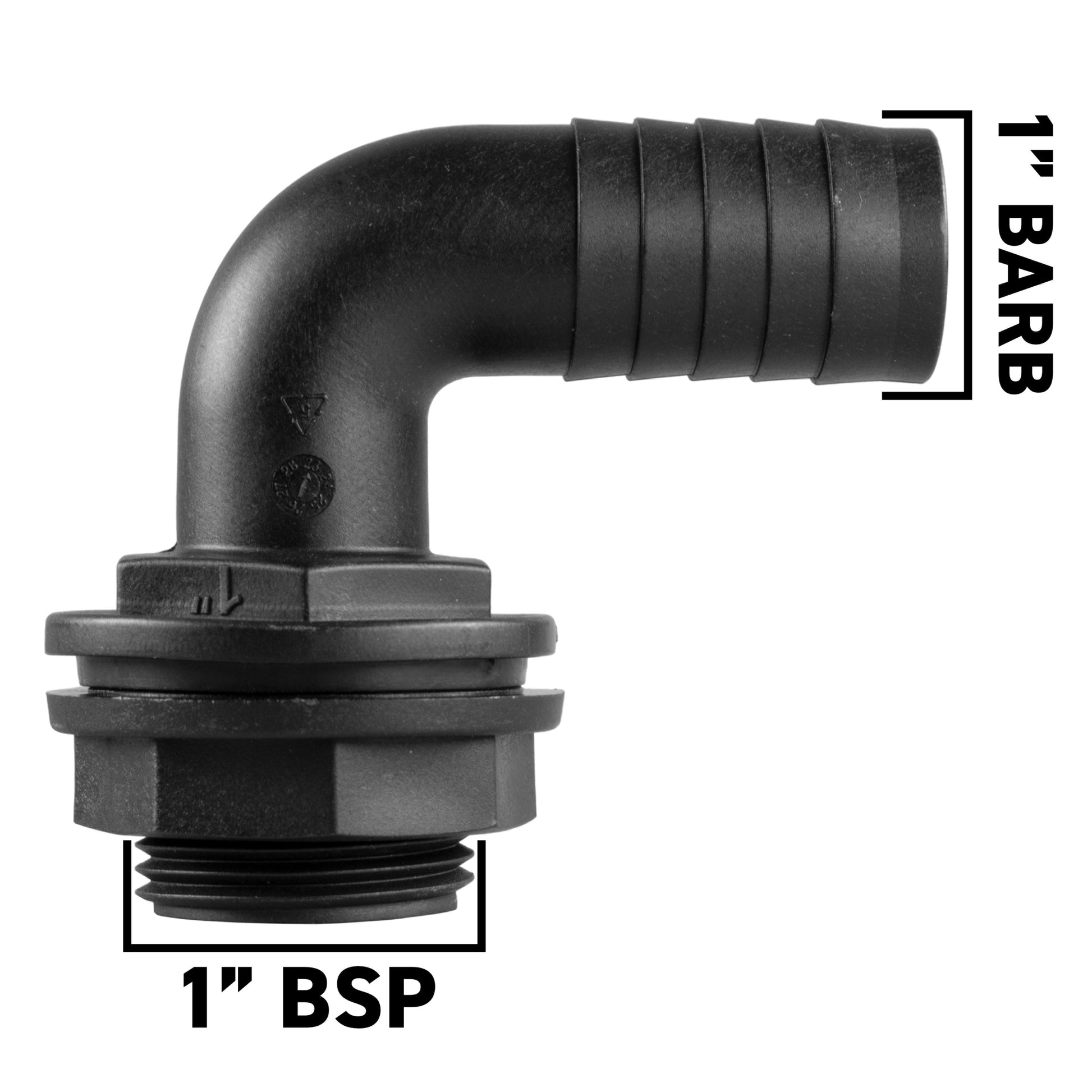

No. The tank end is a 1-inch BSP male thread and the hose end is a 1-inch barb. These labels describe different connection types. Check the thread standard, hose fit and tank mounting rather than treating every 1-inch connection as interchangeable.
What is included with quantity one?
One black plastic 90° elbow, one retaining nut and one sealing washer. The hose, hose clip and water butt are not included.
What size hole does my tank need?
Measure the actual threaded section and confirm the opening and sealing surface for your container before cutting. The nominal BSP size is not a drill size; this page does not specify a universal hole-saw diameter.
Can I connect the hose directly to the threaded end?
The hose belongs on the barbed outlet. The male threaded end is for the suitable tank-side connection with the nut and washer. Match each end separately and check the assembled installation with water.
Product information & technical details
| SKU | BUTT-ELB-1BSPM-1B001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Fitting angle | 90° |
| Supplied parts | 1 elbow, 1 retaining nut and 1 sealing washer |
| Pack quantity | 1 fitting set |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
