Description
Give your hose a camlock connection.

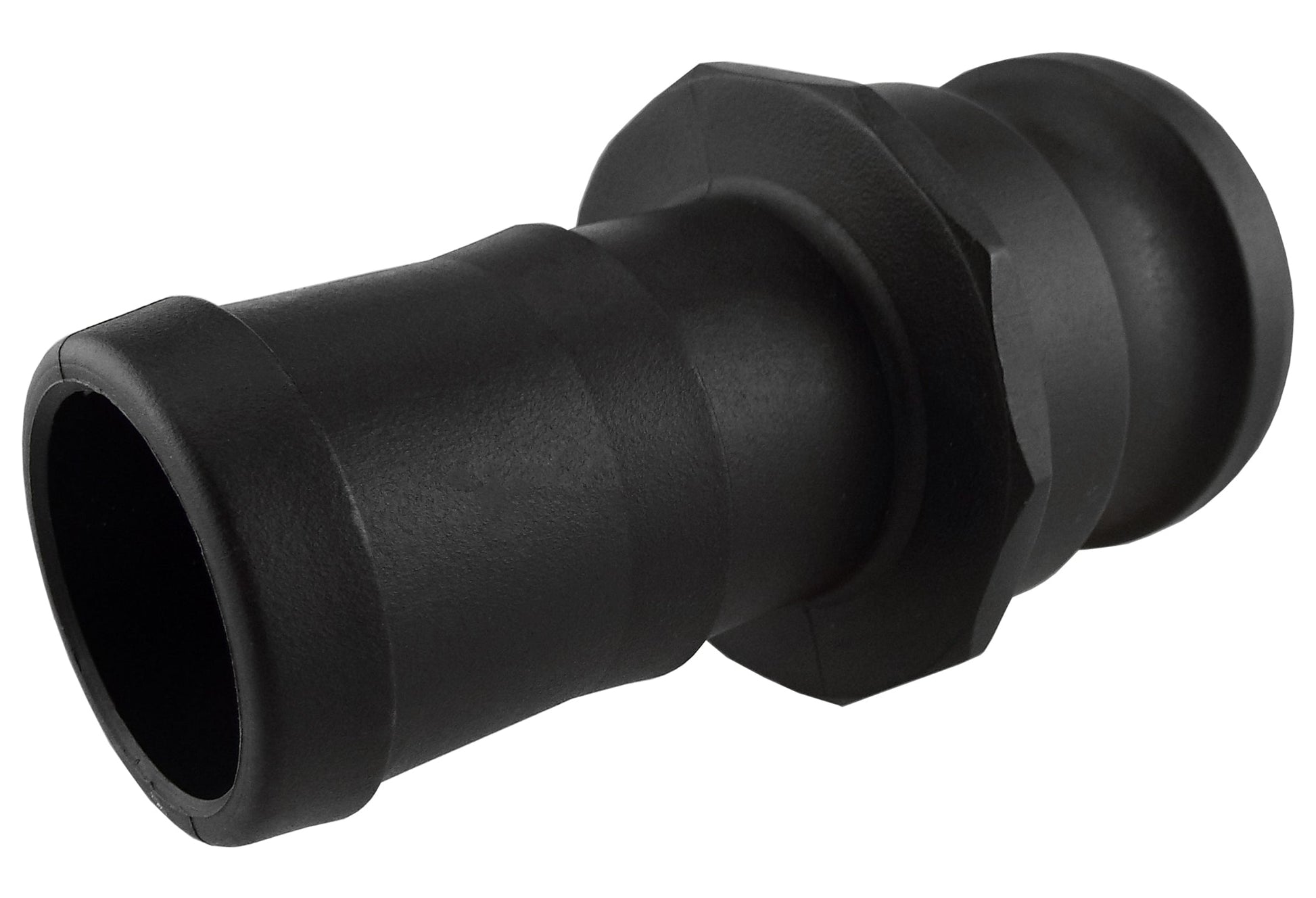

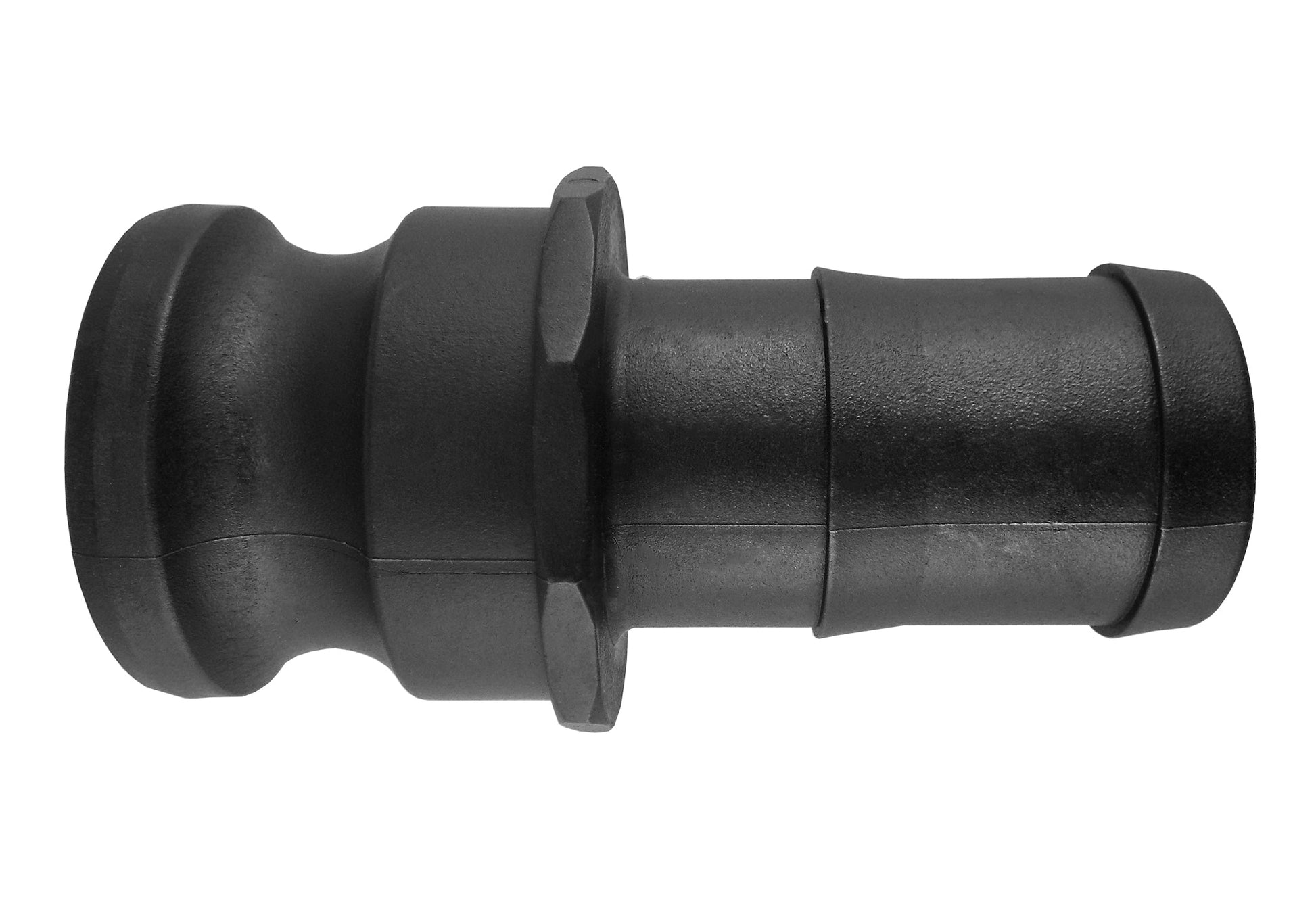

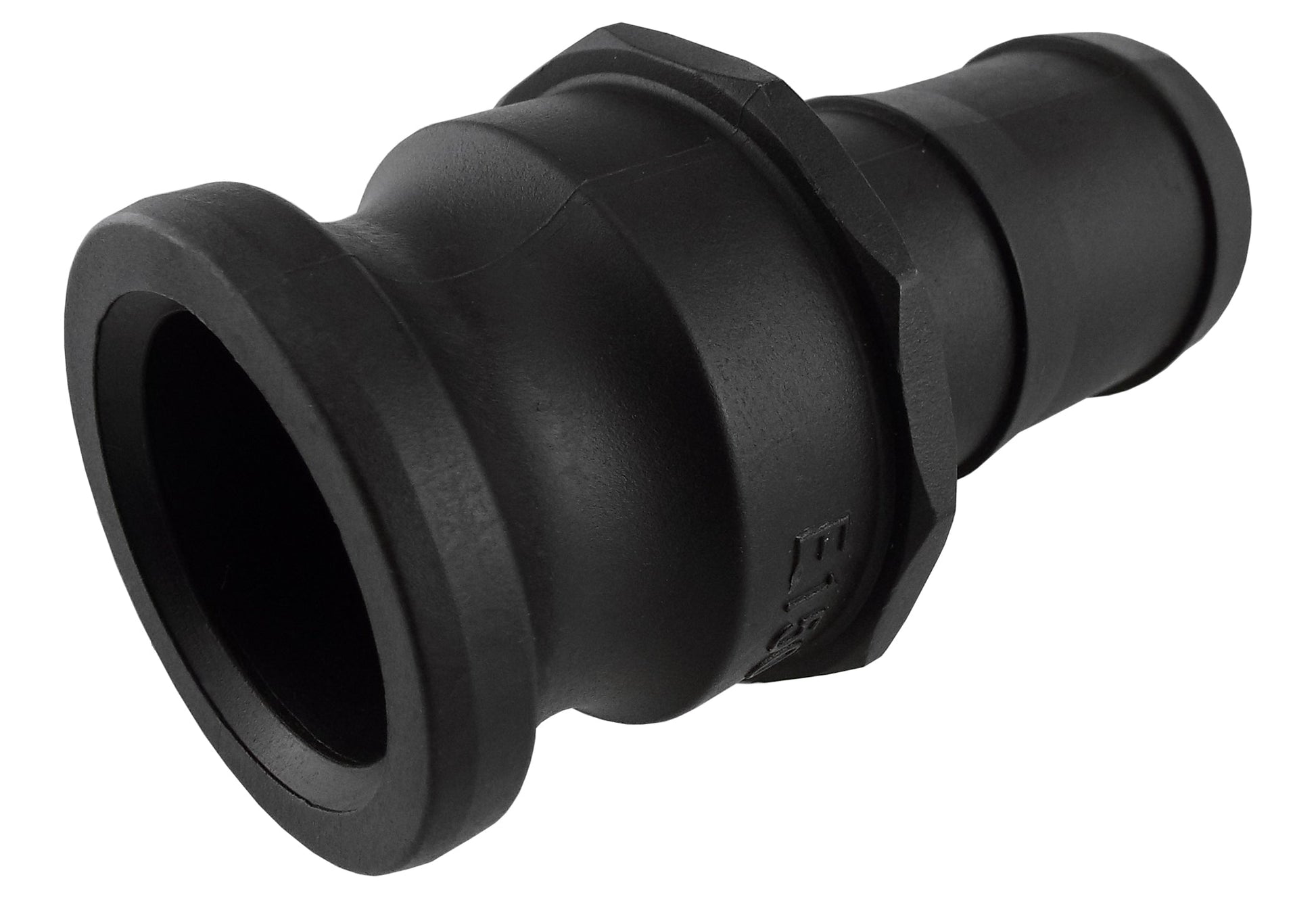

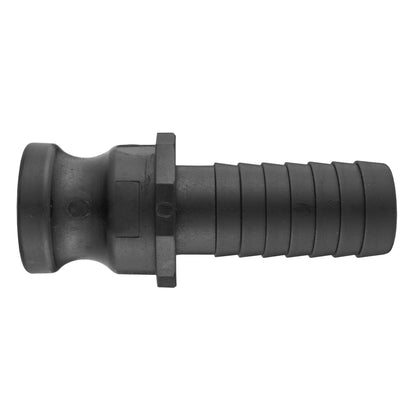

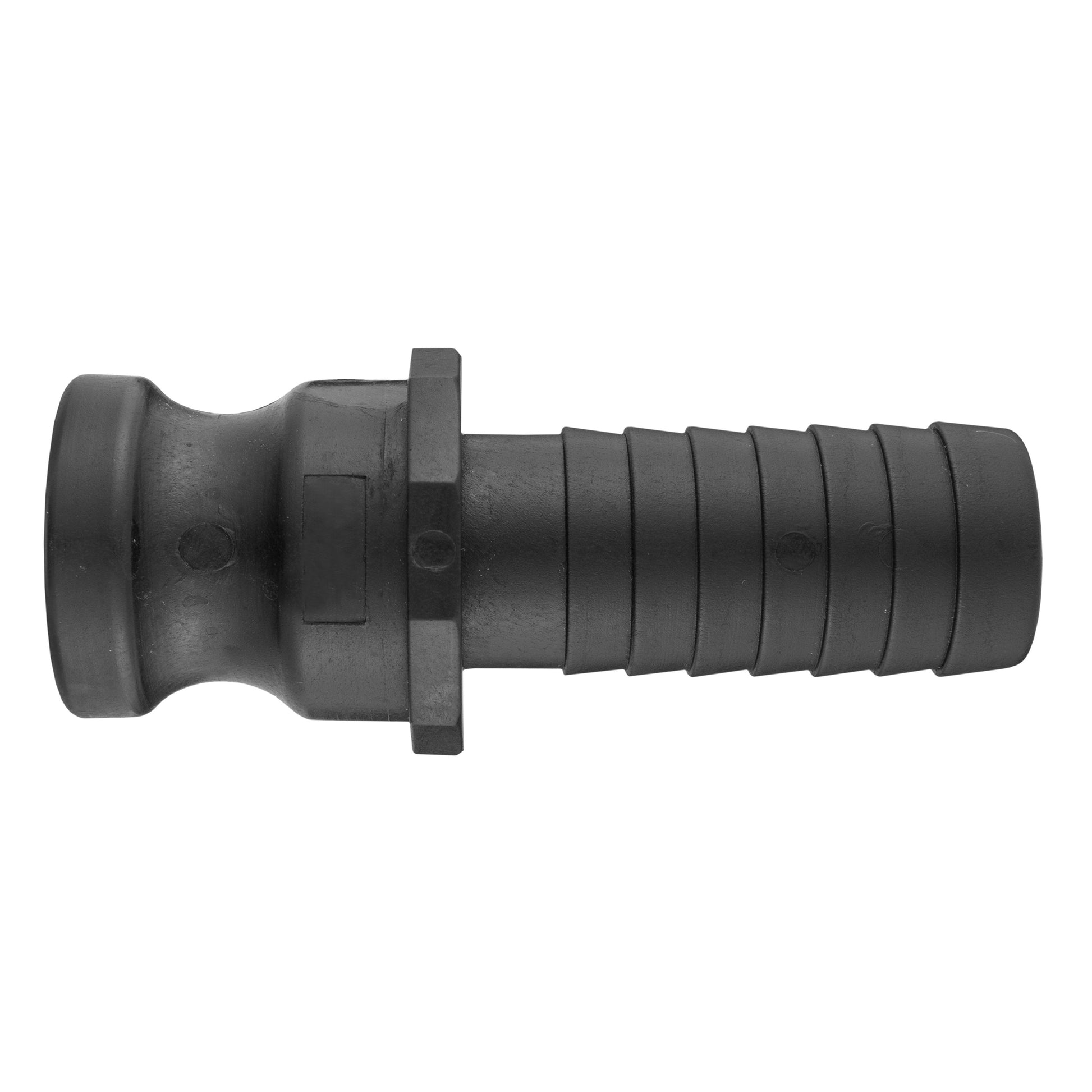

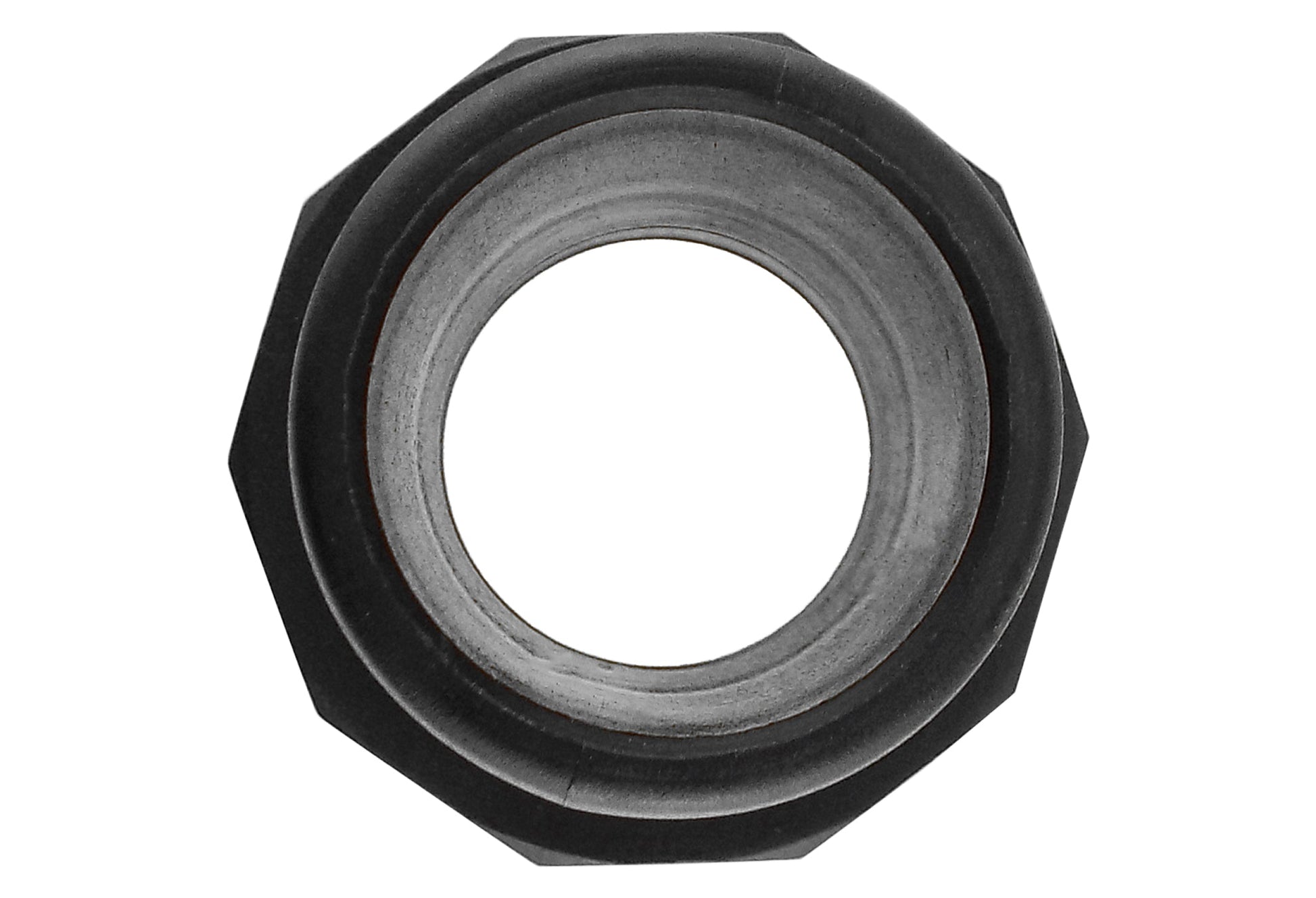

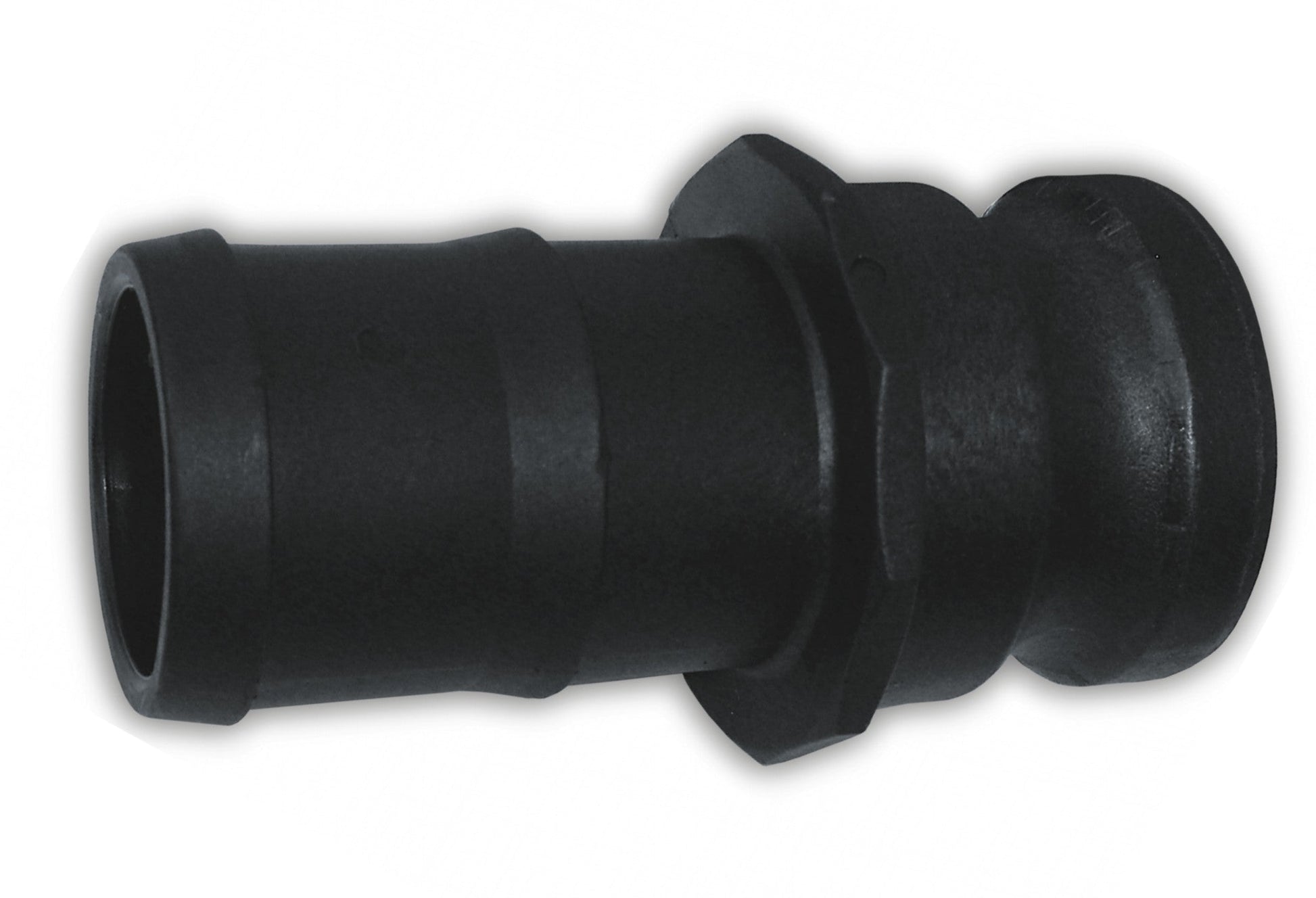

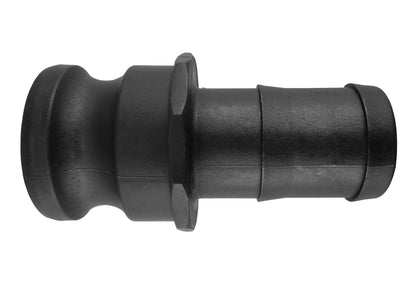

This 1-inch Type E adapter turns a suitable hose end into the male half of a cam-and-groove connection.
Secure the barbed tail inside the hose, then connect the grooved nose to a compatible 1-inch female camlock coupler. When you need to separate the line, release the camlock joint rather than remove the hose from its tail.
The arms belong on the other half
Type E is the male adapter. Its groove receives the cams on a separate female coupler.
Choose the female fitting to suit the rest of your installation:
- Type C: a hose tail on the other side, for a removable hose-to-hose connection.
- Type B: a male BSP thread on the other side.
- Type D: a female BSP thread on the other side.
Use a compatible 1-inch camlock in each case. The Type E adapter supplied here has no arms and no screw thread; you receive one fitting, not a two-piece coupling kit.
Fit the tail once. Disconnect at the groove.
Keep the clamped hose connection in place when separating compatible equipment.
- Choose suitable 1-inch (25mm internal-diameter) hose. Insert the tail fully and secure the hose with appropriate clips over the inserted shank.
- Inspect the female coupler’s seal and the adapter’s mating surface. Open both cam arms, seat the adapter fully and close both arms evenly by hand. Fit any retaining hardware as instructed.
- Support the line and check the completed assembly before use. Stop flow, isolate and depressurise before reopening the arms.
The body is polypropylene (PP). Check its suitability, the mating seal and the complete assembly against your liquid and working conditions. This is an open-bore connector, not a shut-off valve.
A couple of sizing checks
Does 1 inch mean the outside of the fitting?
No. The camlock size is a nominal connection size. The 1-inch hose tail is selected for hose with a 25mm internal diameter; do not choose it by measuring the outside of the hose or the adapter body.
Can it screw directly onto a threaded outlet?
No. Type E has a male camlock groove and a hose tail, with no BSP or IBC thread. A threaded outlet needs an appropriate separate female camlock fitting with the correct thread on its other end.
Product information & technical details
| SKU | CAMTE1001 |
|---|---|
| Product type | |
| Barb size | 25mm (1") |
| Camlock type | Type E |
| Camlock size | 1" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type E male camlock adapter with hose tail. Female coupler, hose and clips are separate. |
| Flow control | Open-bore connector without an automatic shut-off valve. Isolate and depressurise before disconnection. |
