Description
A removable line at a threaded outlet

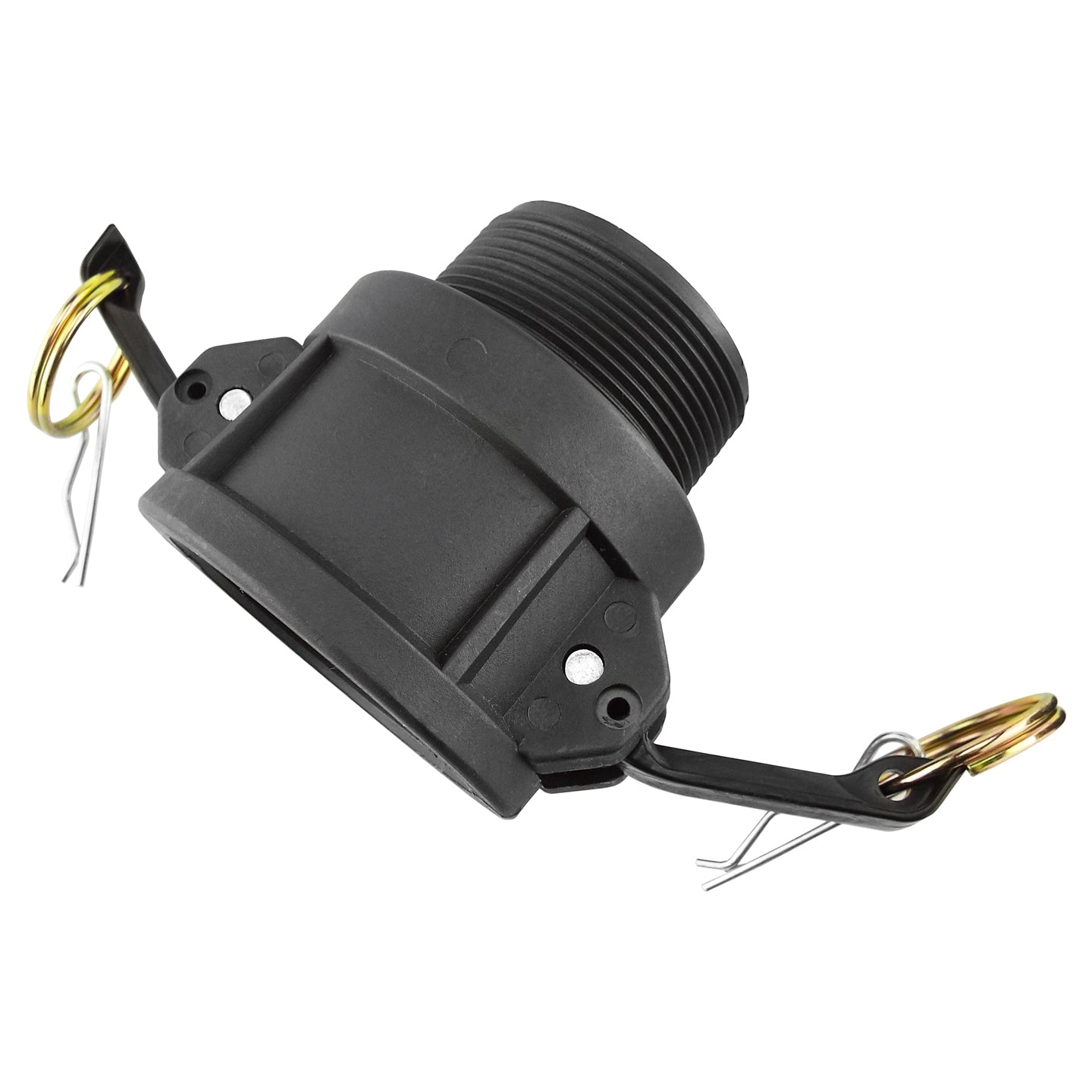

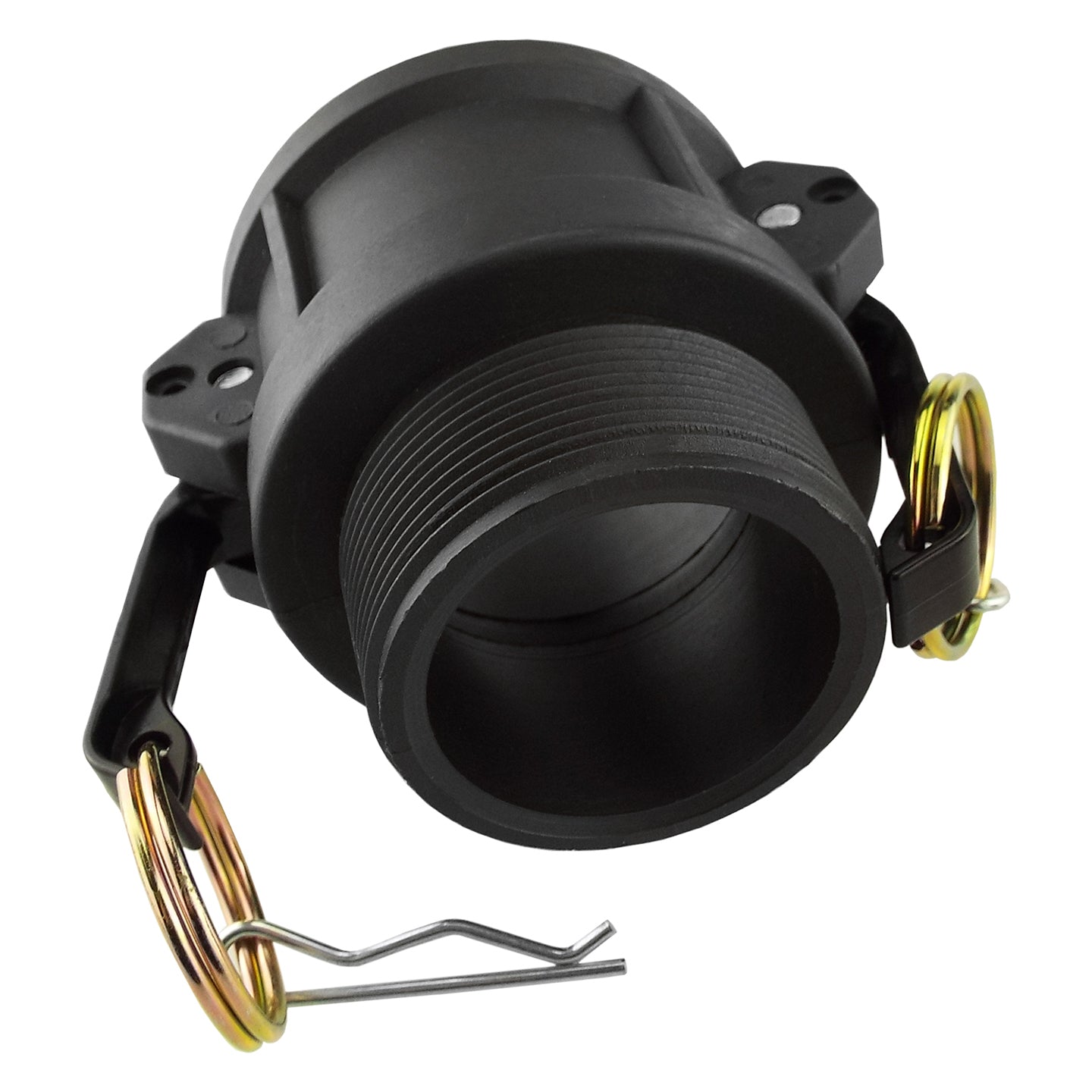

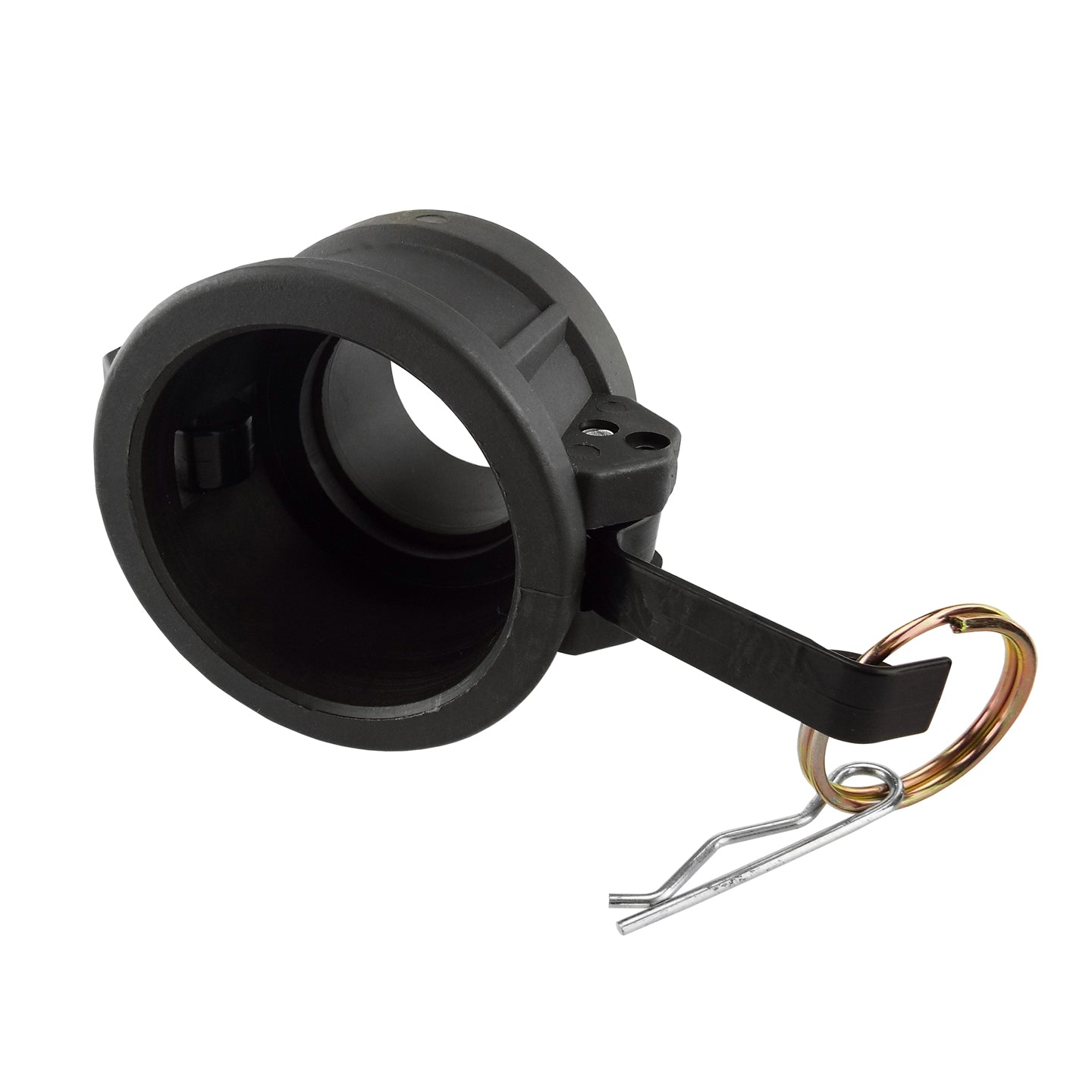

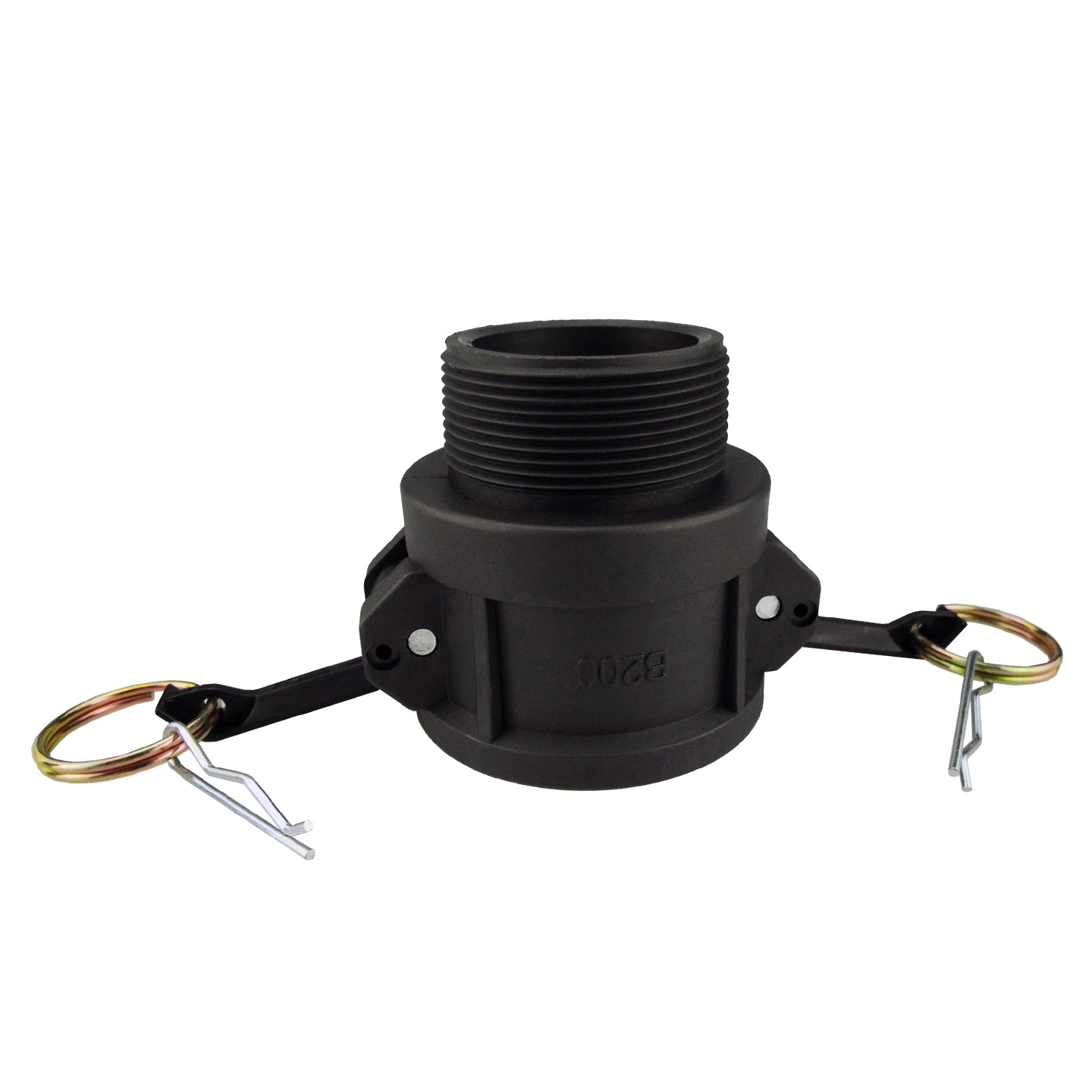

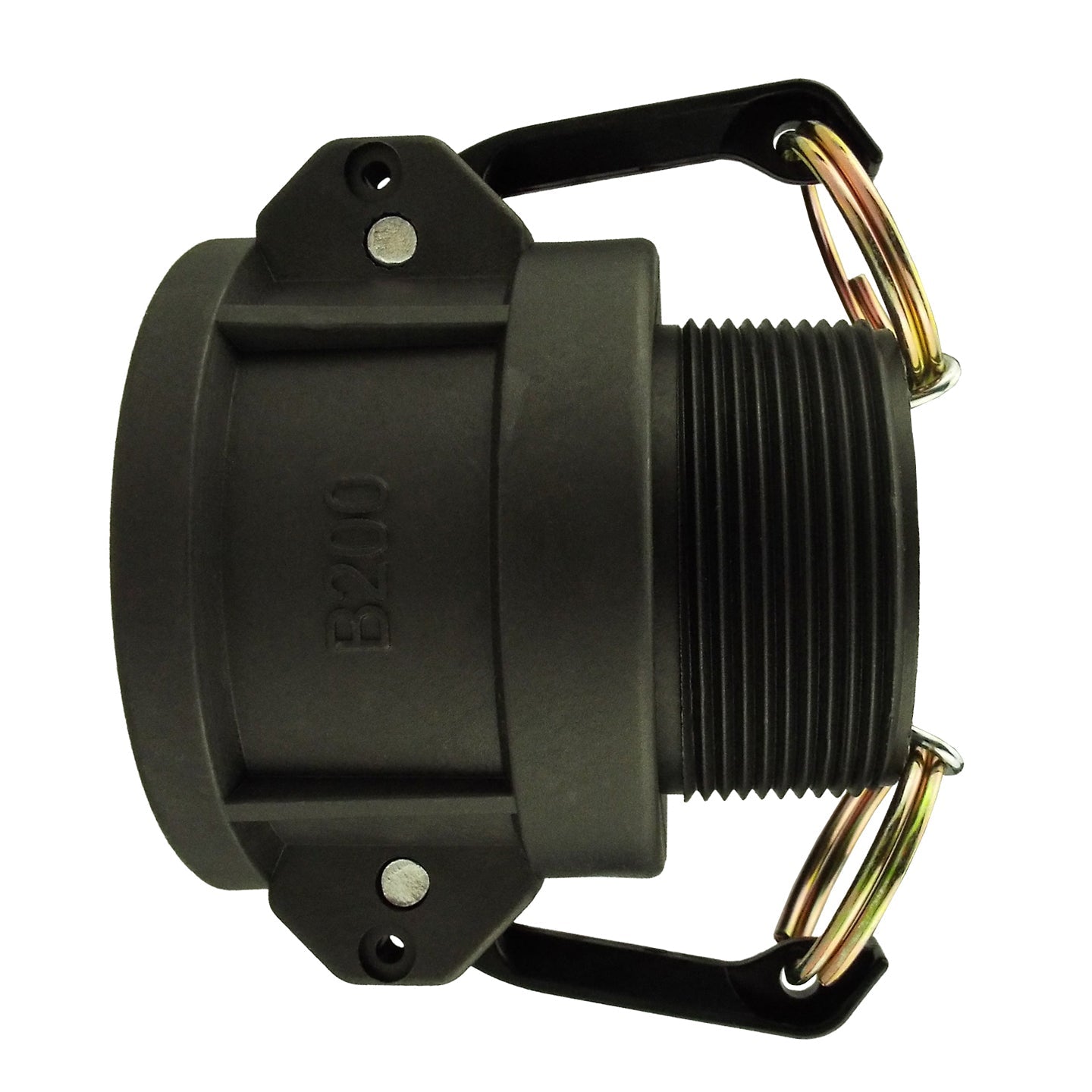

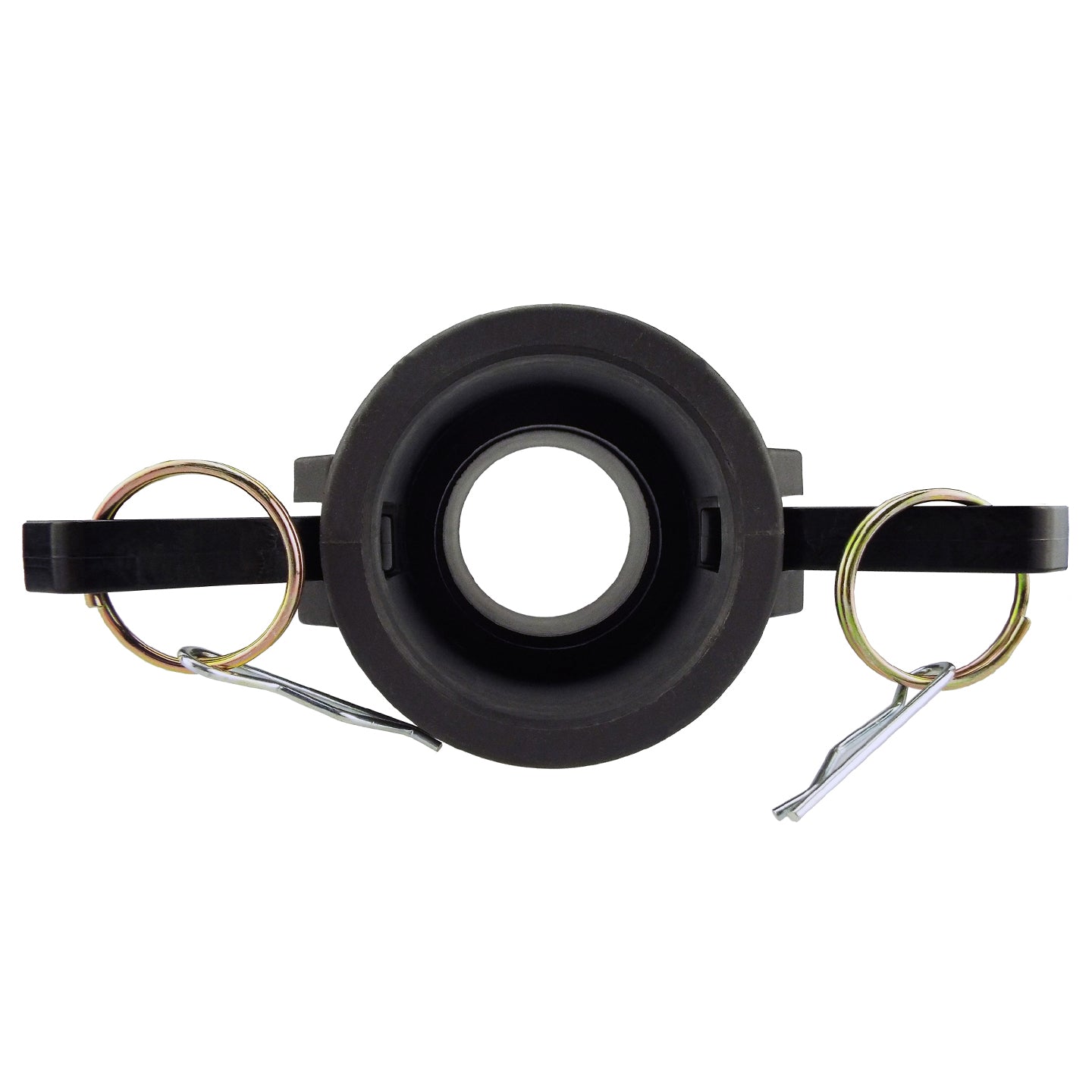

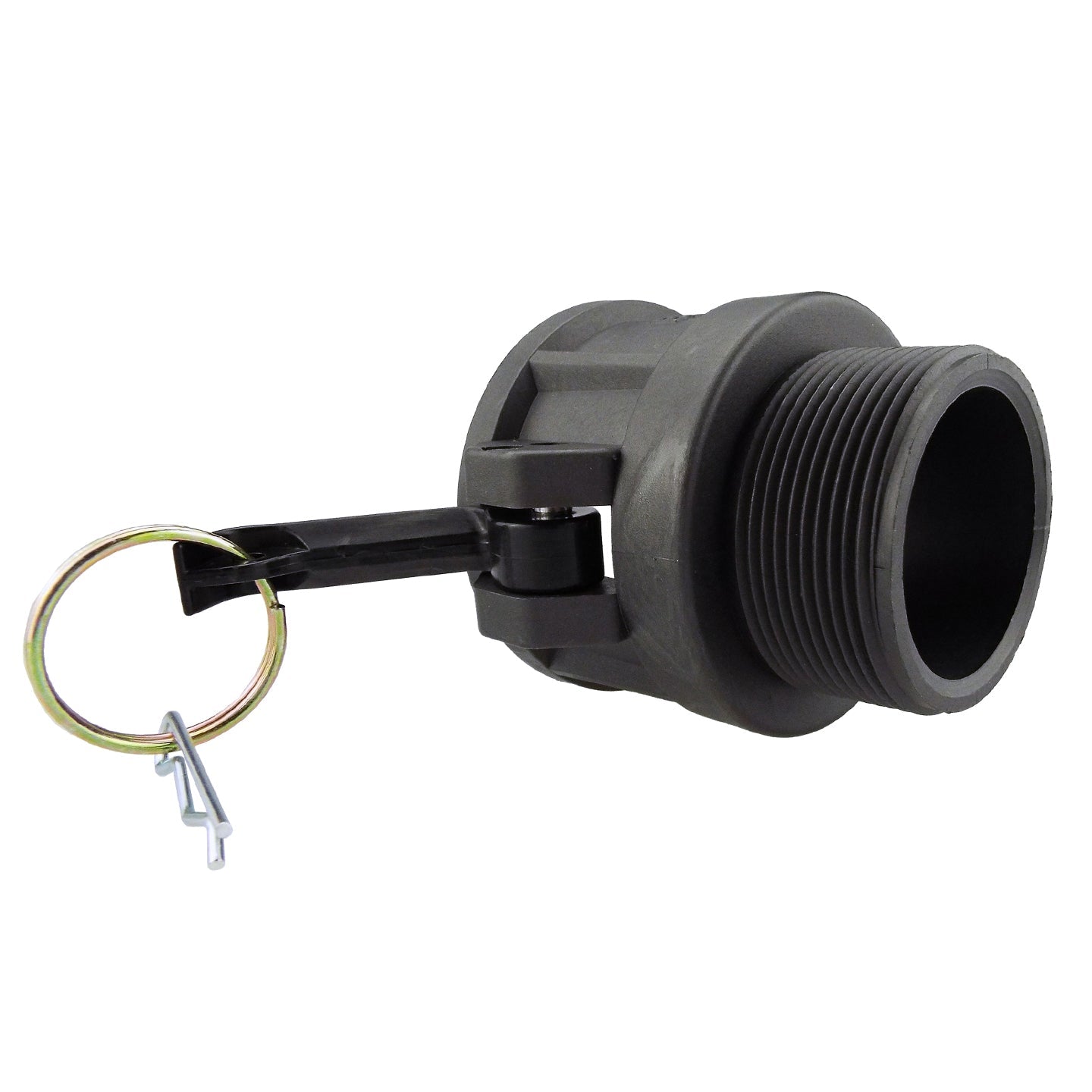

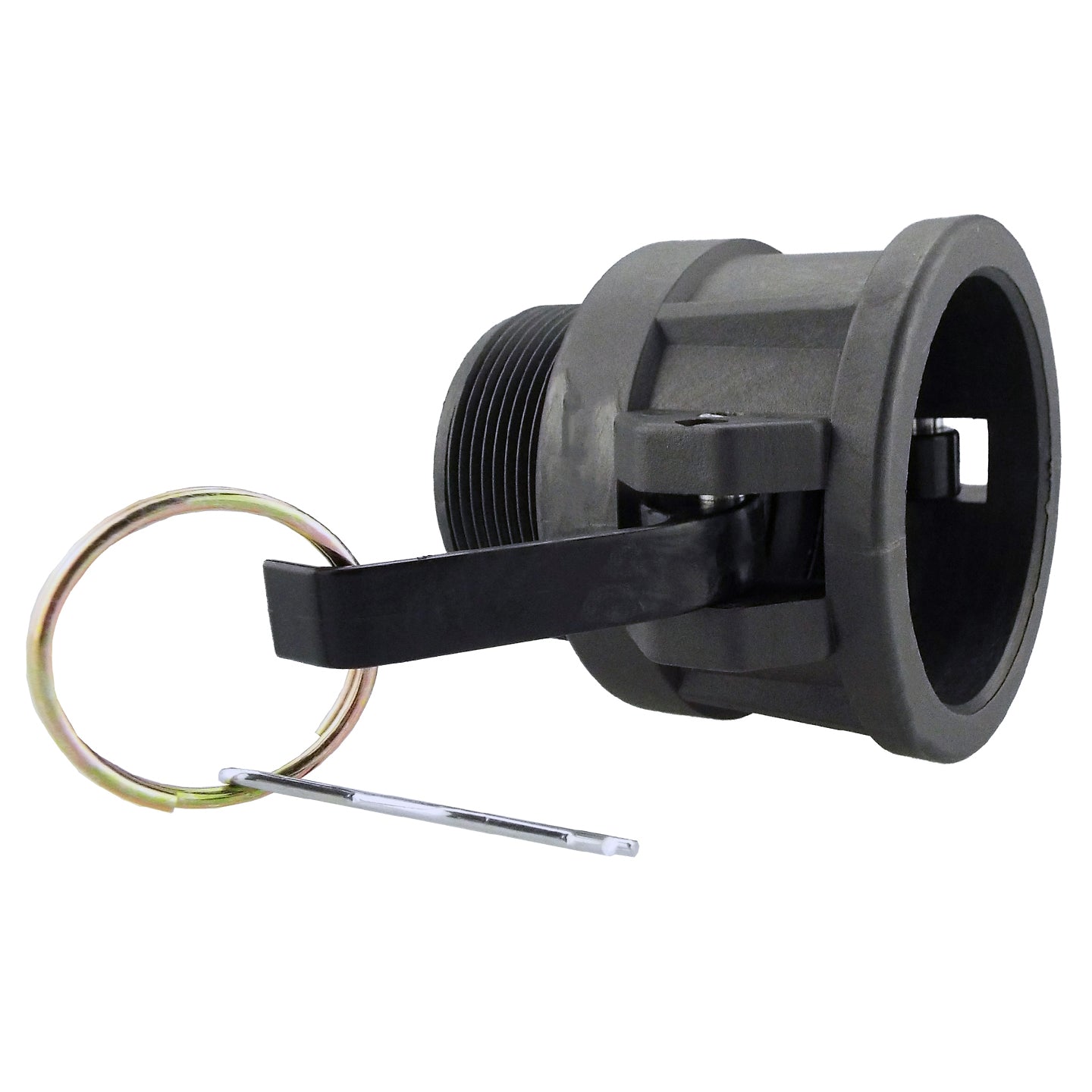

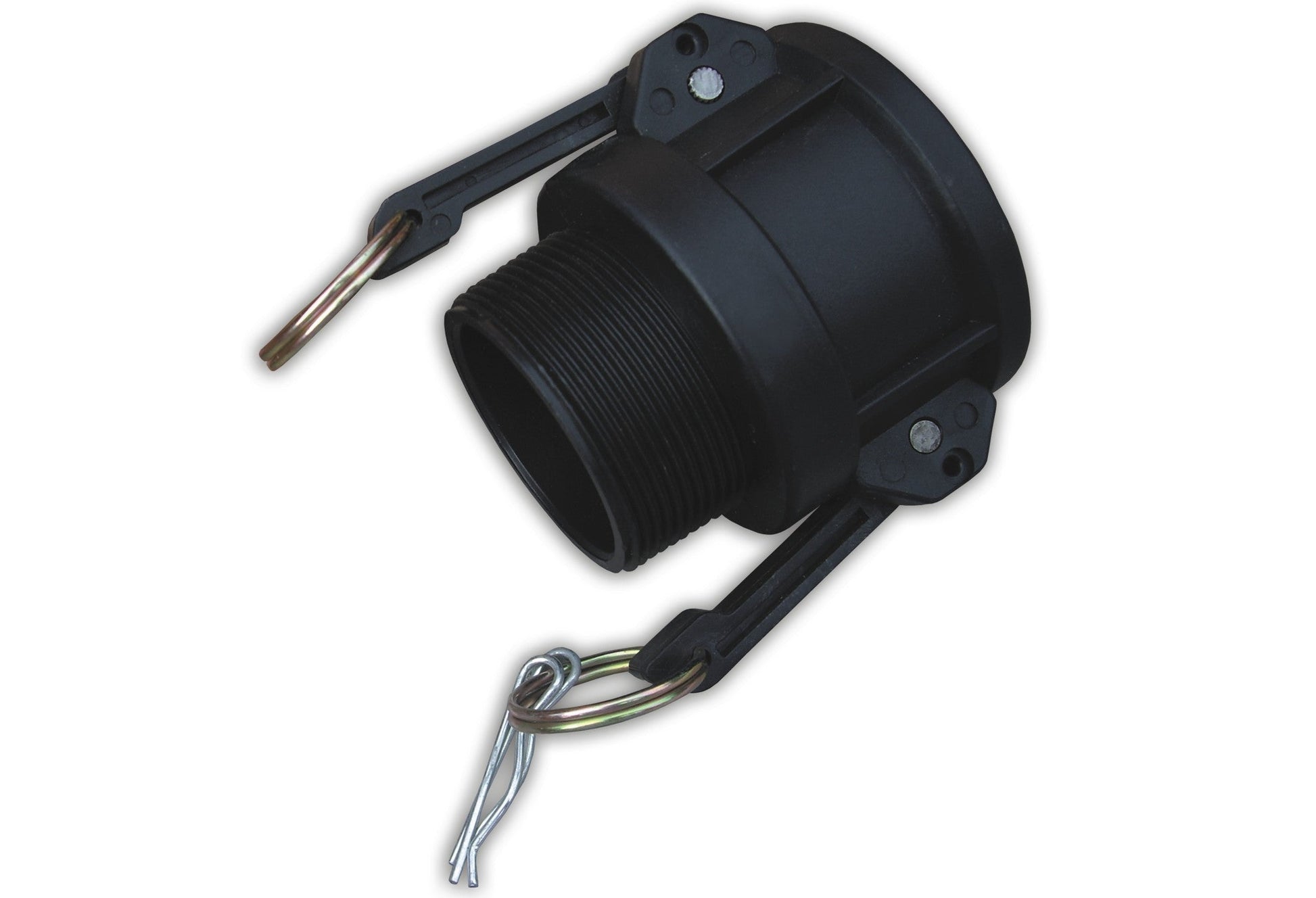

Keep your equipment’s screw connection fitted while making the line easier to remove. This 1½-inch Type B camlock coupler combines a male BSP thread with a female camlock socket.
The threaded end screws into a compatible female BSP port. At the front, a separate grooved male adapter seats inside the socket and is held by the two hand-operated cam arms.
For maintenance, storage or a change of line, separate the cam joint rather than undoing the threaded fitting.
Check the thread. Check the socket.
Both connections are nominal 1½-inch, but they work in different ways.
The external BSP thread fits a matching female screw-threaded port on your equipment. Check the thread specification and use the sealing arrangement required for that joint.
The female camlock socket receives a compatible 1½-inch grooved male camlock adapter. Closing both arms engages the groove and draws the adapter against the socket seal.
The screw thread does not fit into the camlock groove, and hose does not push over the threaded end. Choose a separate male camlock adapter with the right connection for your line.
Connect with both arms open
Install the threaded end with the supply isolated, then make the detachable joint.
- Fit and seal the male BSP thread in the matching female port. Support the connected line so its weight does not pull on the fitting.
- Inspect the seal and mating surfaces. Open both cam arms, seat the male adapter fully, then close both arms evenly by hand. Fit retaining hardware as directed for the coupling.
- Check the completed assembly before use. Stop flow, isolate and depressurise before opening the arms again.
The body is polypropylene (PP). Confirm the body and mating seal suit your liquid, temperature and working pressure. There is no shut-off valve inside this fitting, so it does not stop flow when disconnected.
Before choosing your coupler
How is Type B different from Type D?
Both have a female camlock socket and operating arms. Type B has an external male BSP thread; Type D has an internal female BSP thread. Choose the screw-thread gender that matches your equipment.
Does this include the male camlock adapter?
No. You receive one black Type B coupler with its operating arms and pictured retaining hardware. The mating grooved male adapter, hose, equipment and thread-sealing materials are separate.
Product information & technical details
| SKU | CAMTB15BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Male |
| Camlock type | Type B |
| Camlock size | 1.5" |
| Camlock gender | Female |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type B coupler with operating arms and pictured retaining hardware. Mating male adapter is separate. |
| Flow control | Open-bore connector; no automatic shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
