Description
A screw connection you can leave in place
Removing a line does not have to mean undoing the connection to your equipment. This ½-inch Type B camlock coupler adds a hand-operated cam joint in front of a male BSP screw thread.
Fit the threaded end into a compatible female equipment port. A separate grooved male camlock adapter then seats in the socket, ready to be held by the two operating arms.
It is a useful arrangement when a line needs taking off for maintenance or storage, while the threaded fitting stays installed.
Two ends. Two different connections.
Both are nominal ½-inch sizes, but each has its own job.
The male BSP thread is the screw connection to a matching female port. Check the thread specification and use the sealing arrangement required for that joint.
The female camlock socket receives a compatible ½-inch grooved male camlock adapter. Closing both arms engages the adapter’s groove and draws it against the socket seal.
This is not a hosetail: hose does not push over the screw thread. Choose the male camlock adapter separately to suit the pipe or hose on the removable side.
Connect, check and control the flow
Make the joint with the supply isolated.
- Install and seal the male BSP end in the matching port. Support the line so its weight does not pull on the coupler.
- Check the seal and mating surfaces. Open both arms, insert the male adapter fully, then close both arms evenly by hand. Fit the retaining hardware as directed for the coupling.
- Check the finished assembly before use. Stop flow, isolate and depressurise before releasing the arms.
The body is polypropylene (PP). Confirm that the body and mating seal suit your liquid, temperature and working pressure. There is no automatic shut-off valve inside this coupler.
Before you order
Is ½-inch the outside diameter of the thread?
No. BSP is a nominal pipe-thread size. A ½-inch BSP male thread measures about 21mm across its outer crests. Check the thread form and pitch as well as the nominal size; the BSP help below explains the common sizes.
What do I receive?

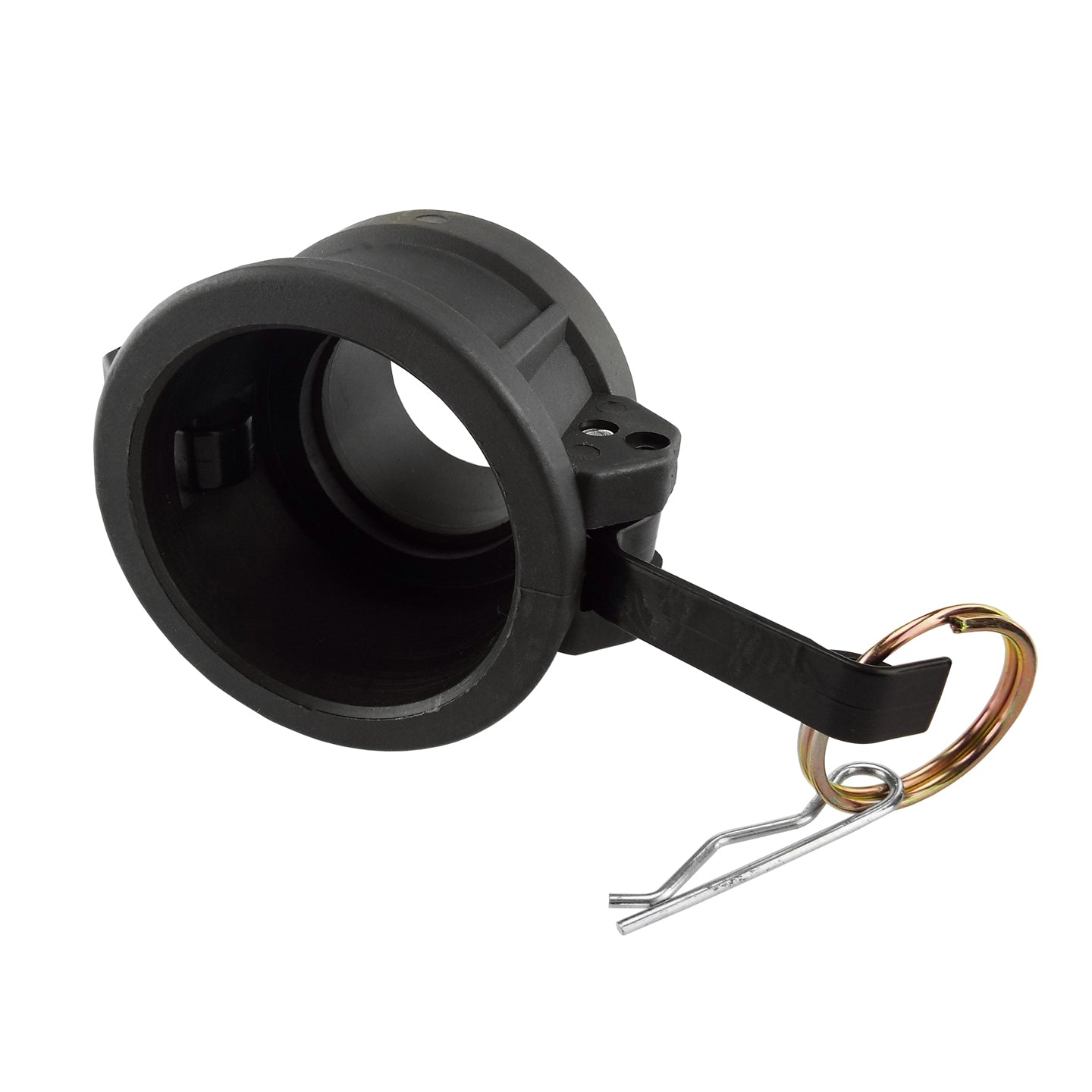

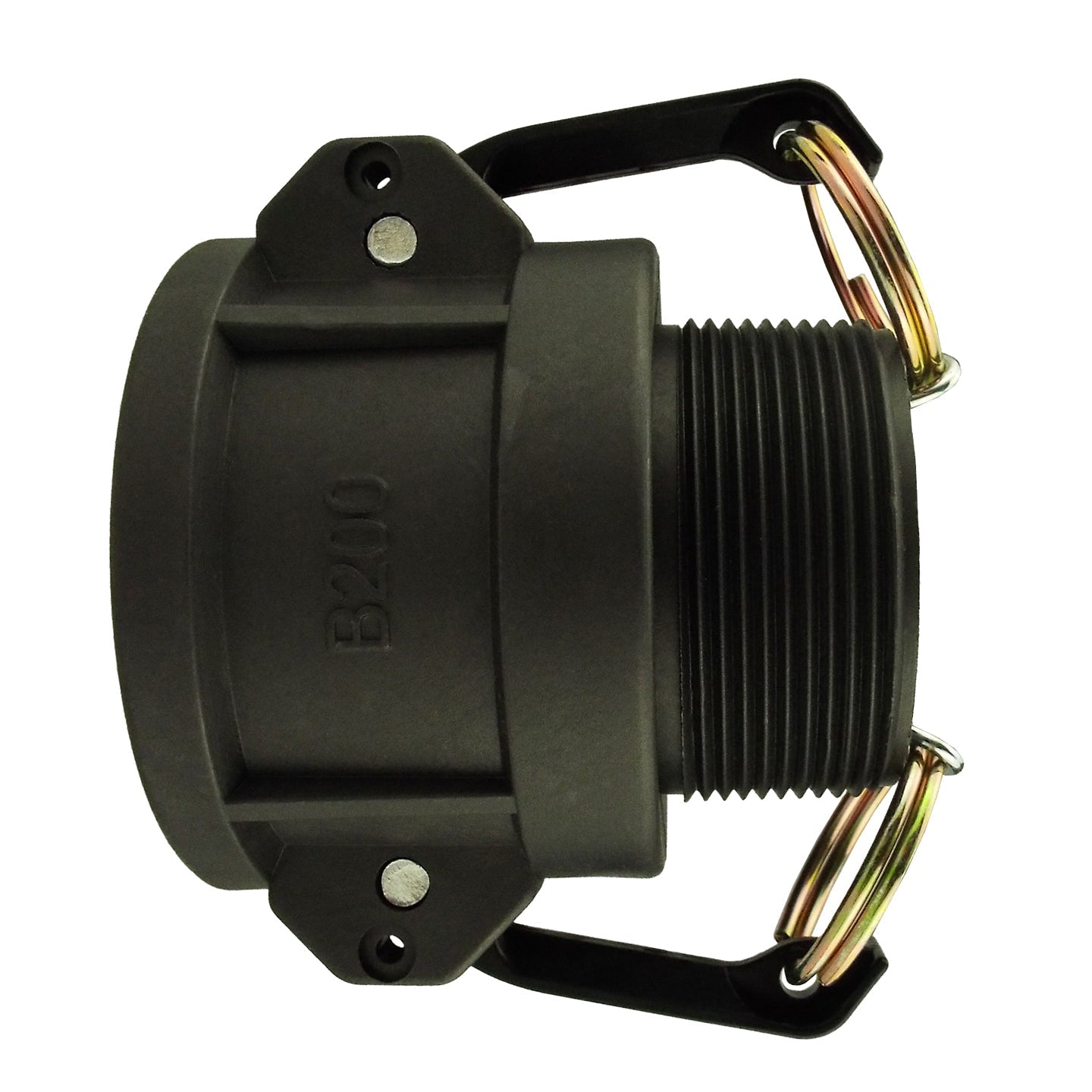

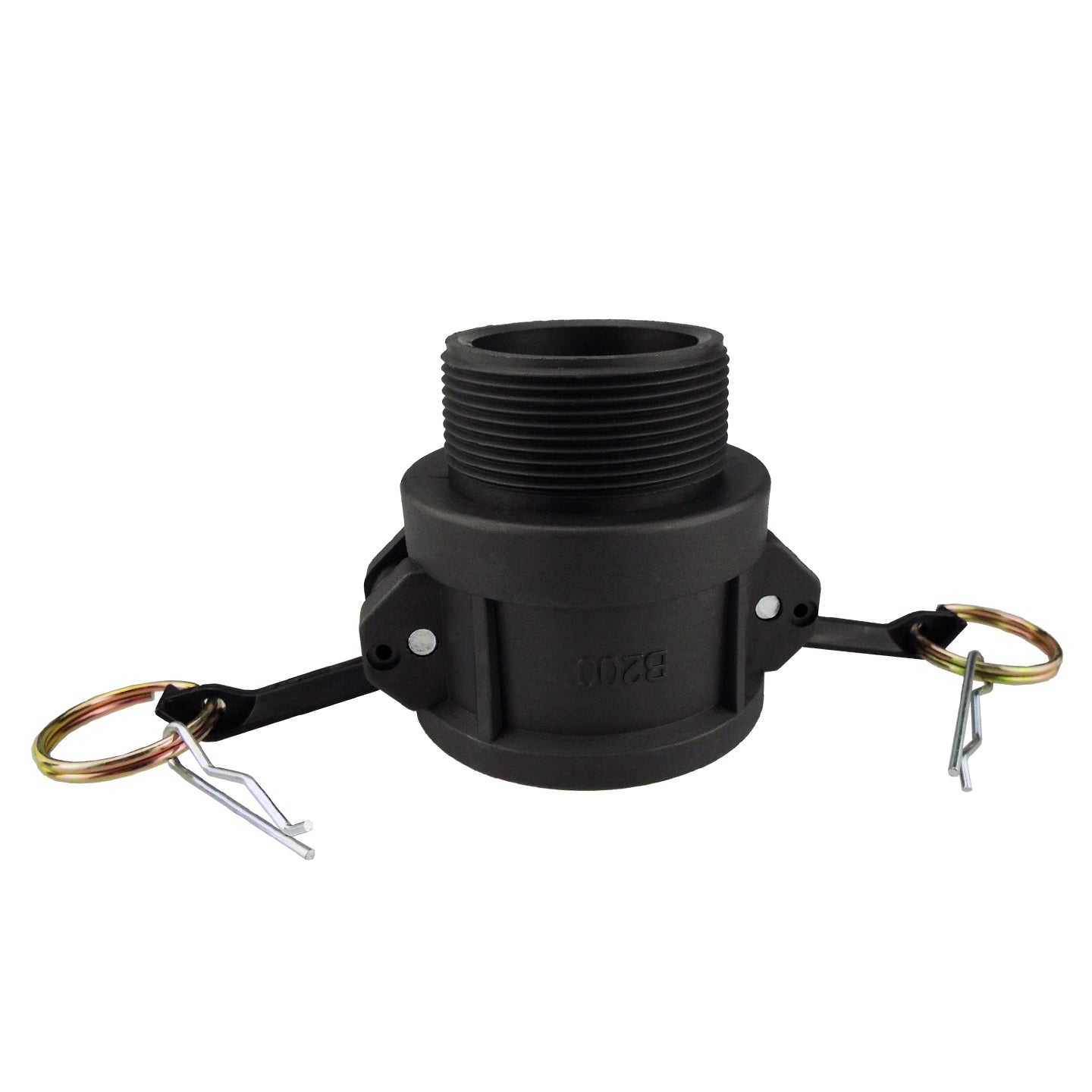

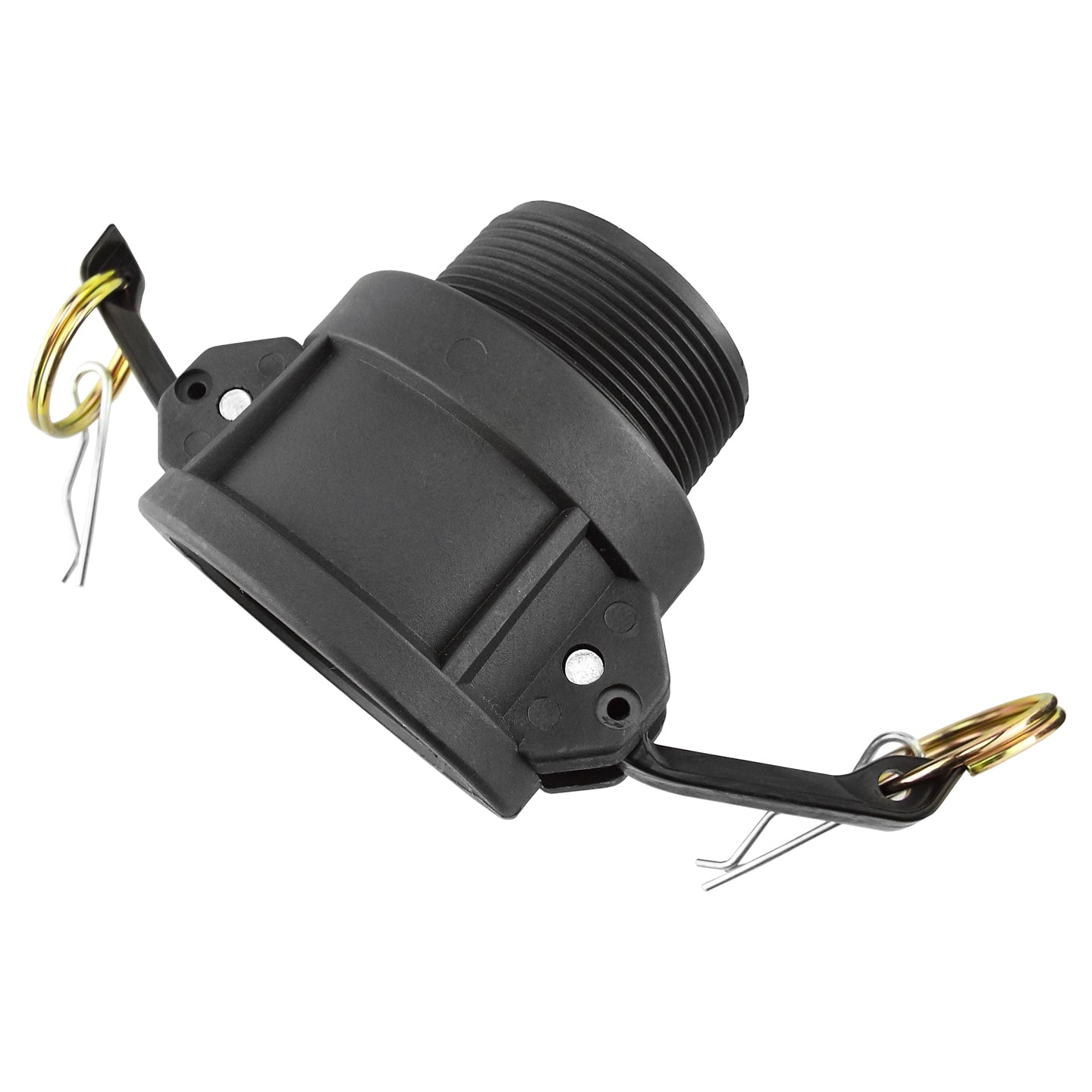

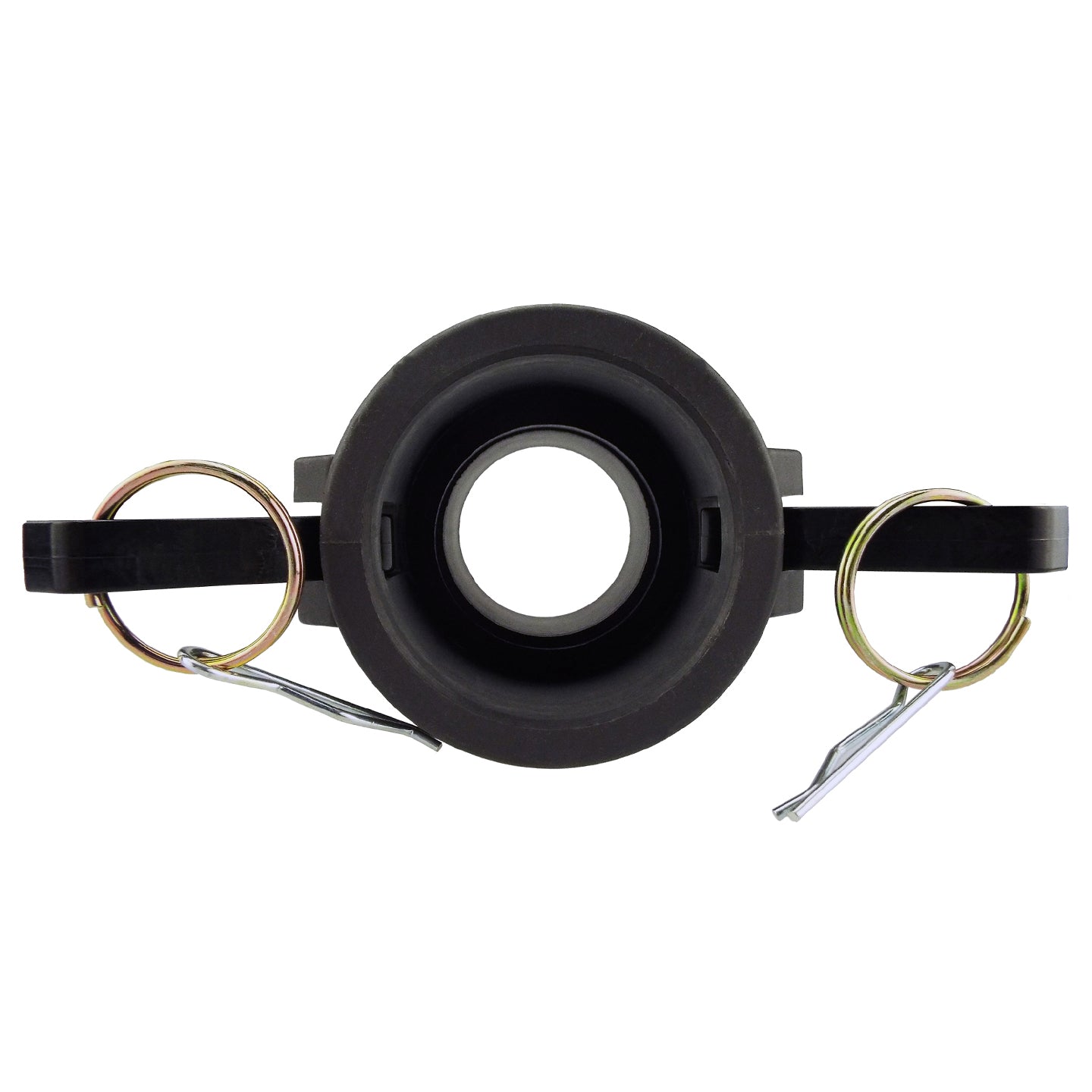

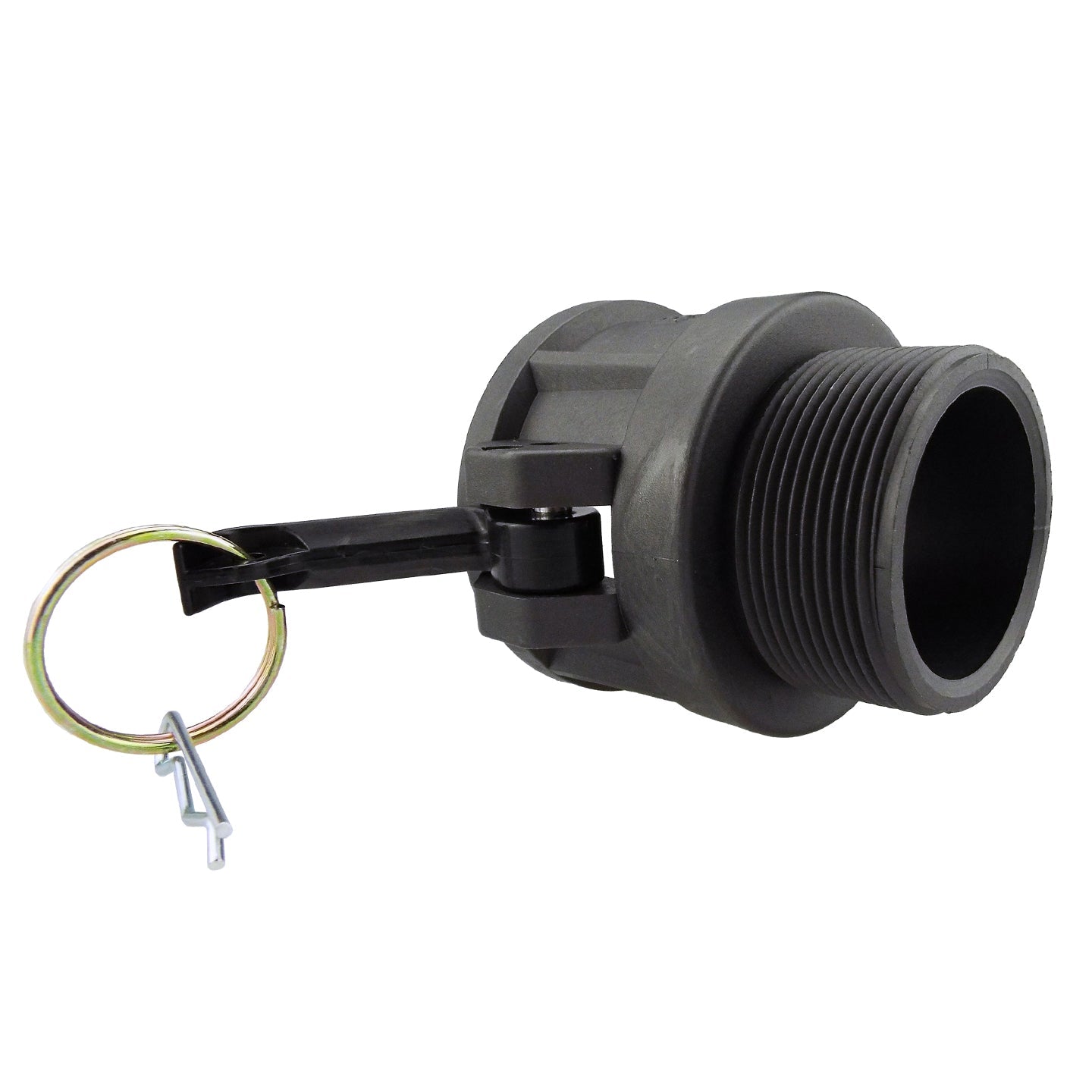

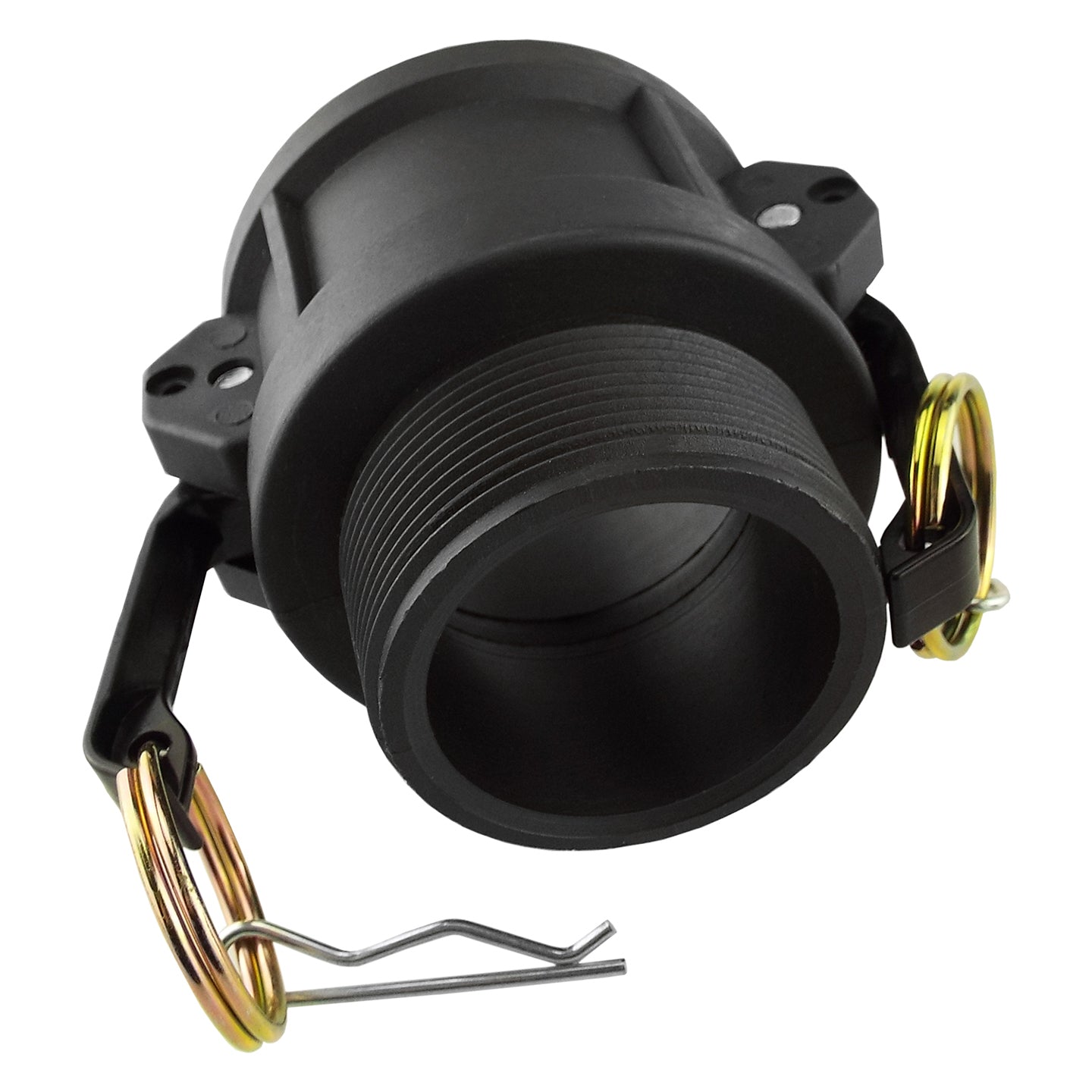

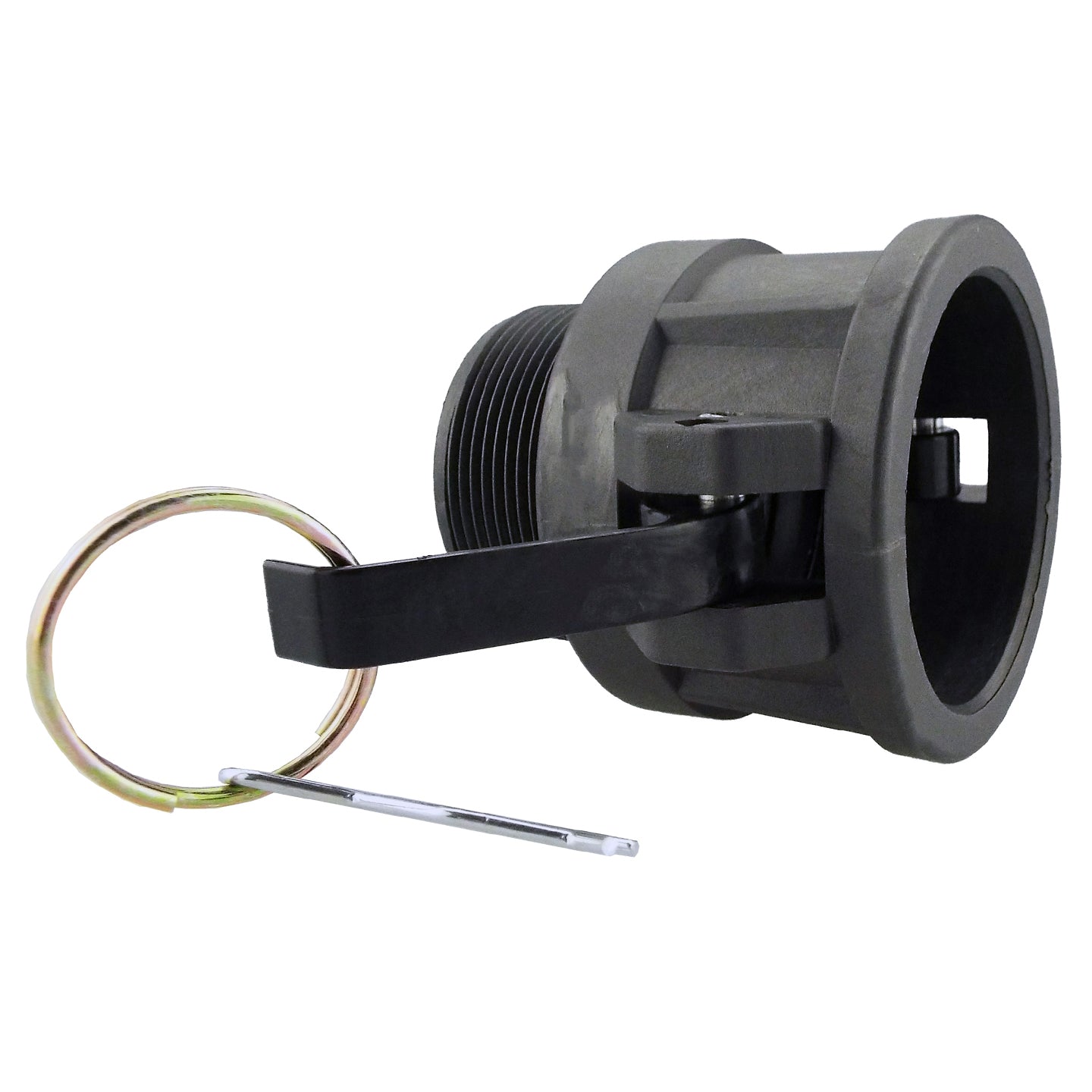

One black Type B coupler with its operating arms and pictured retaining hardware. The mating male camlock adapter, hose, equipment and thread-sealing materials are not included. The gallery shows different views of the coupler, not a set of fittings.
Product information & technical details
| SKU | CAMTB12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Camlock type | Type B |
| Camlock size | 1/2" |
| Camlock gender | Female |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type B coupler with operating arms and pictured retaining hardware. Mating male adapter separate. |
| Flow control | Open-bore connector; no automatic shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
