Description
Make the line removable at the cam joint

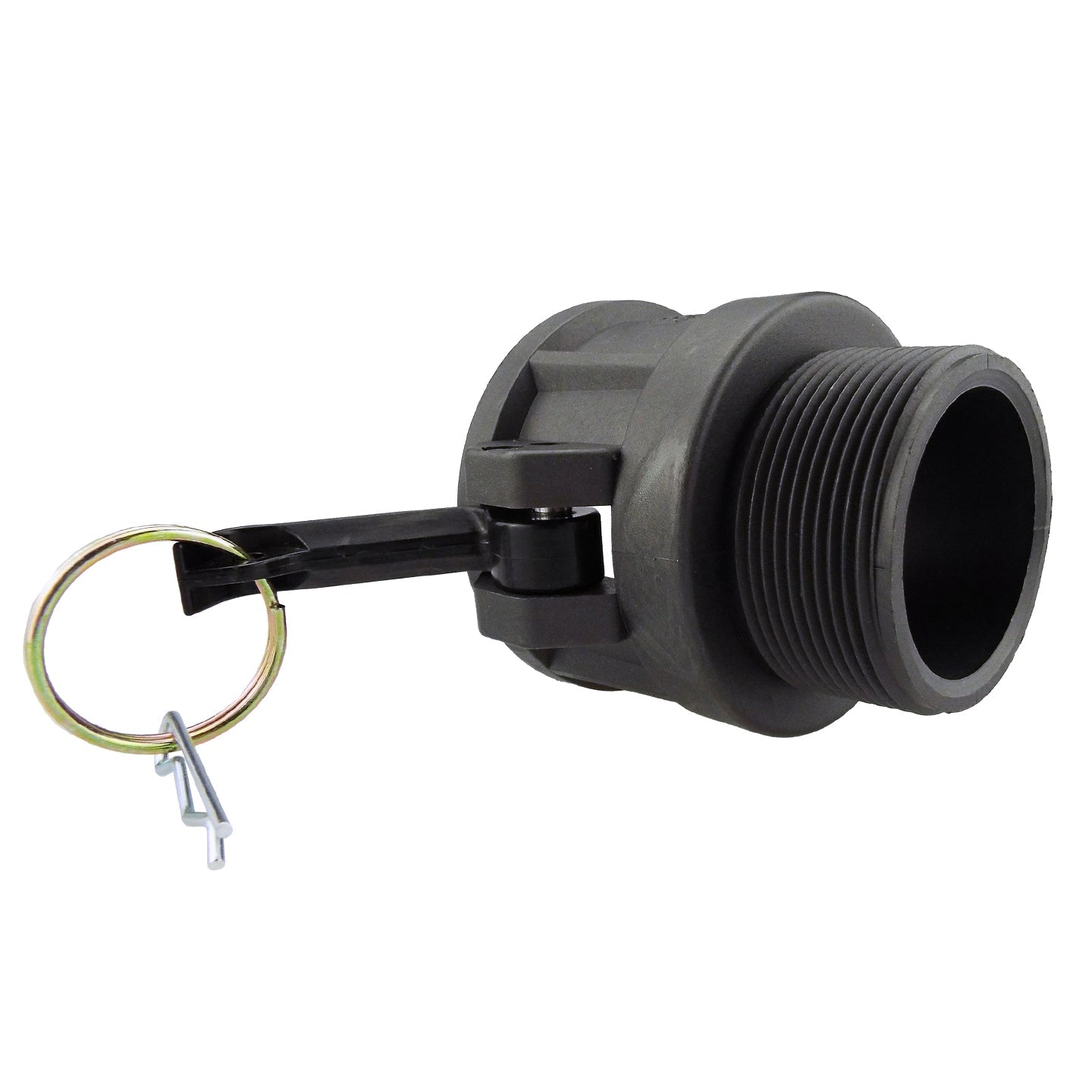

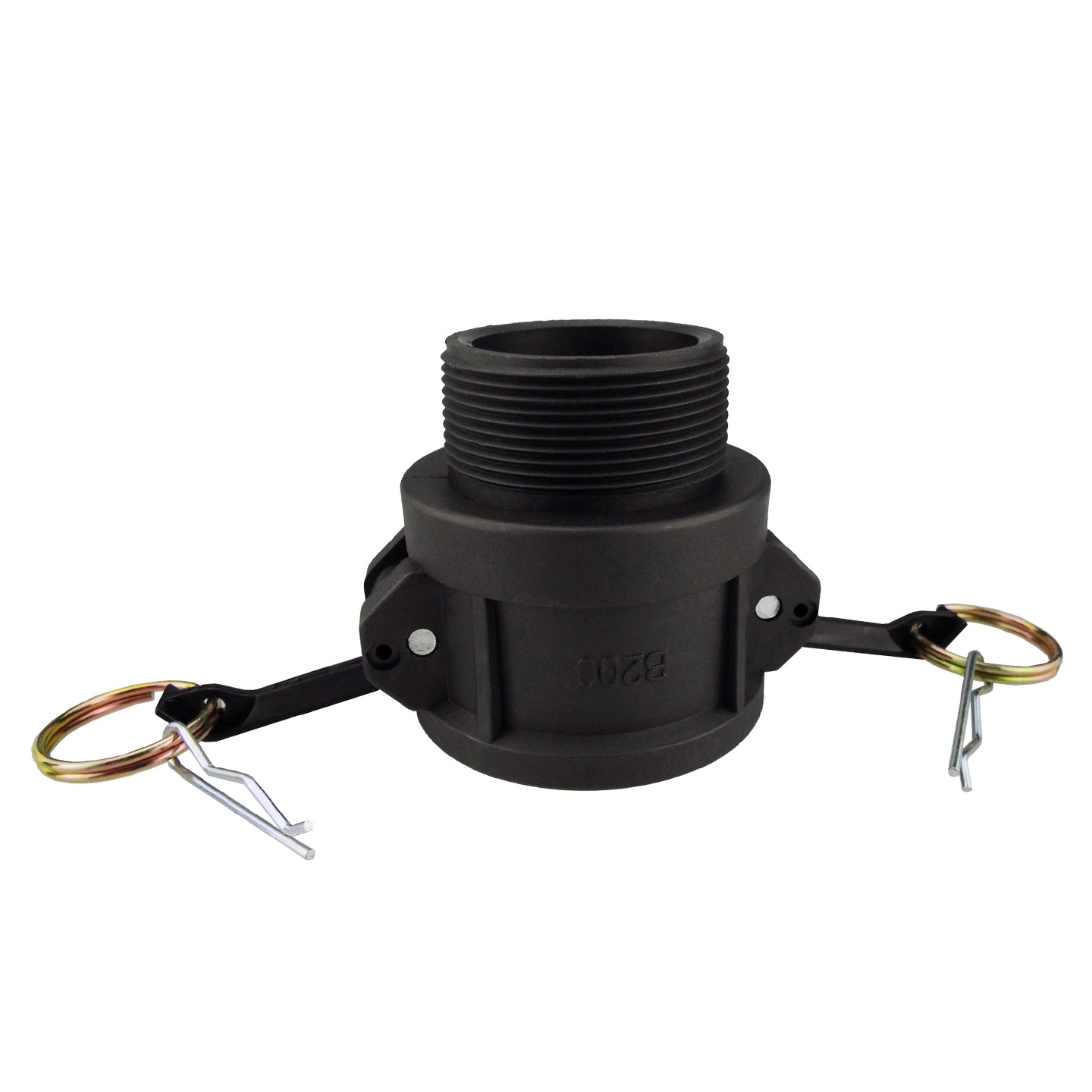

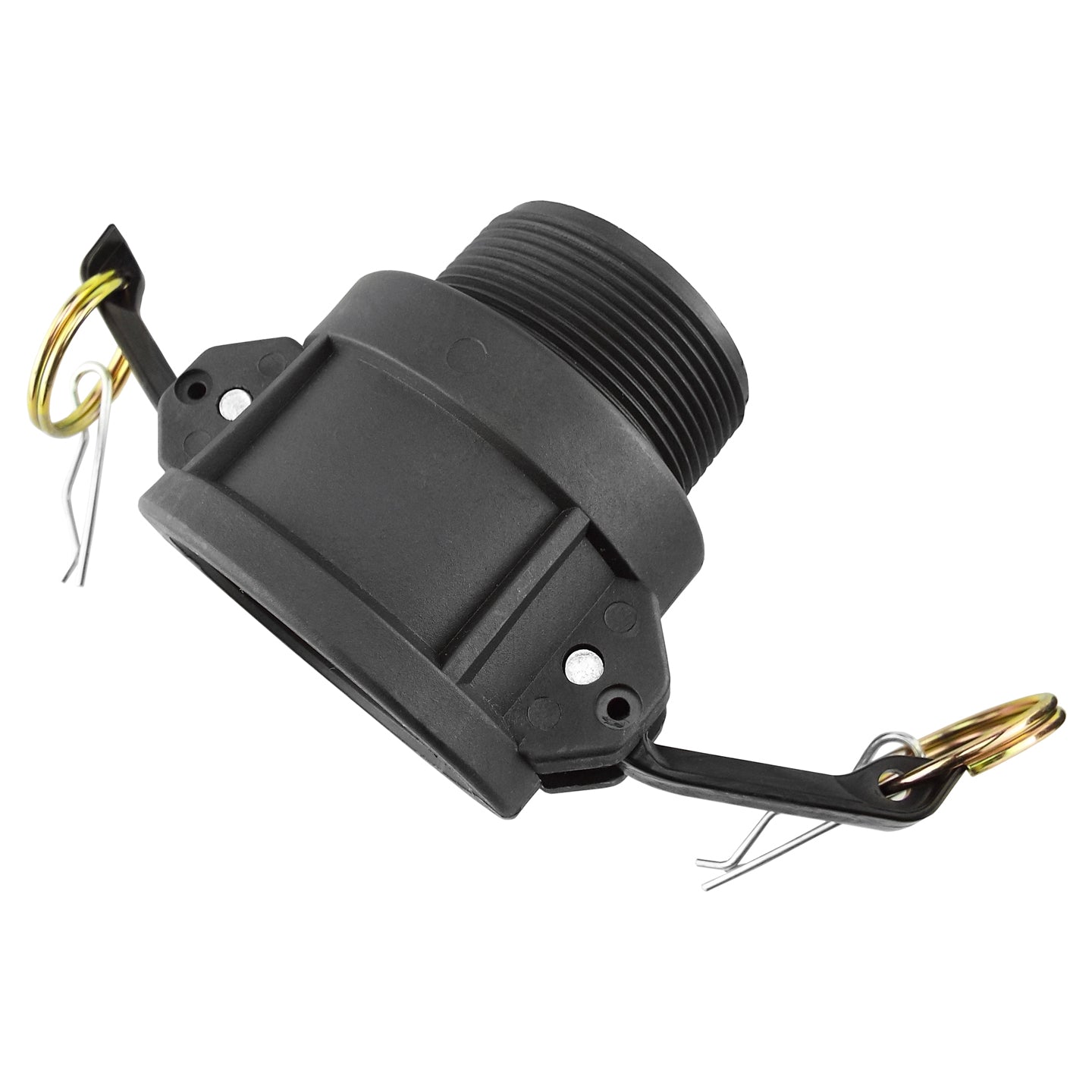

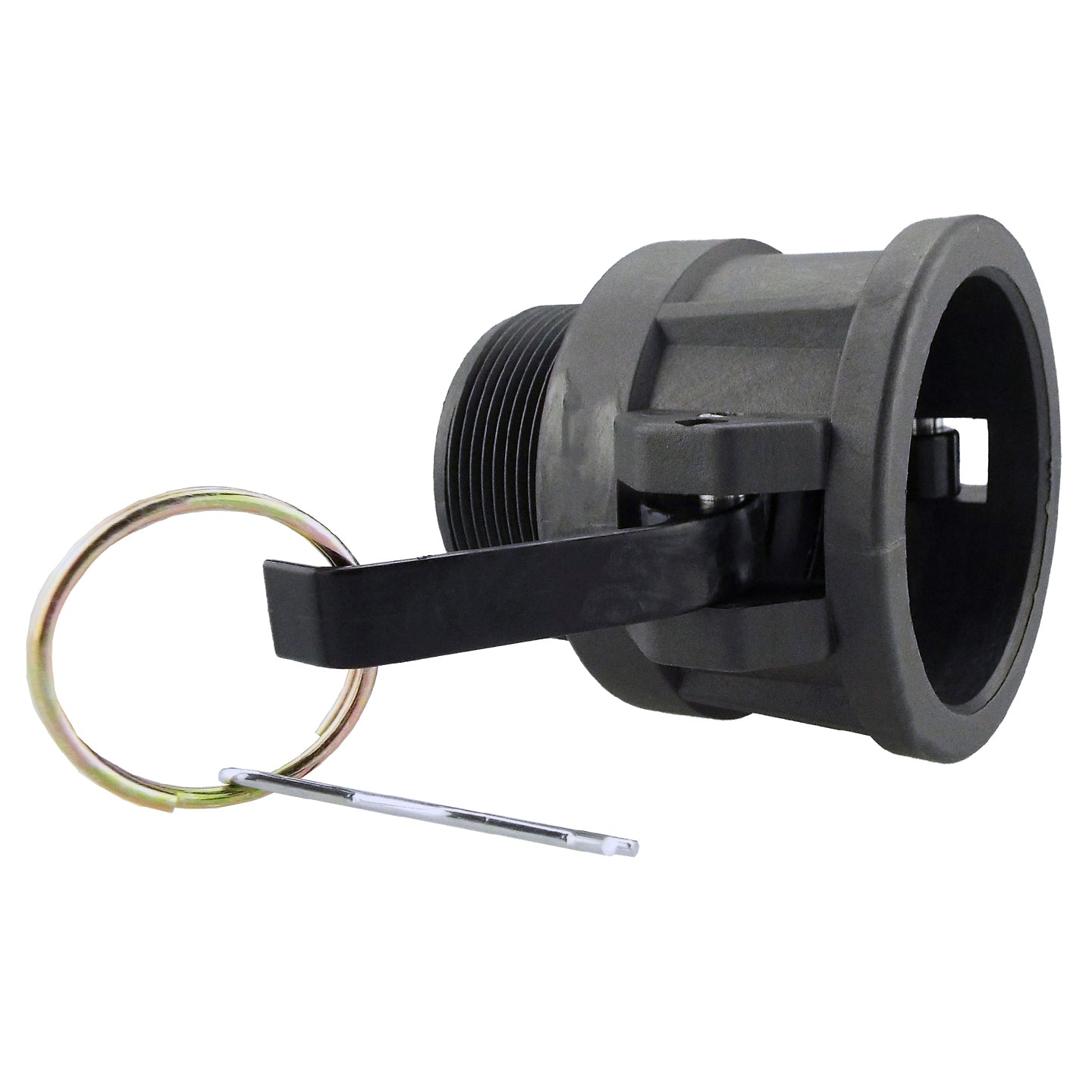

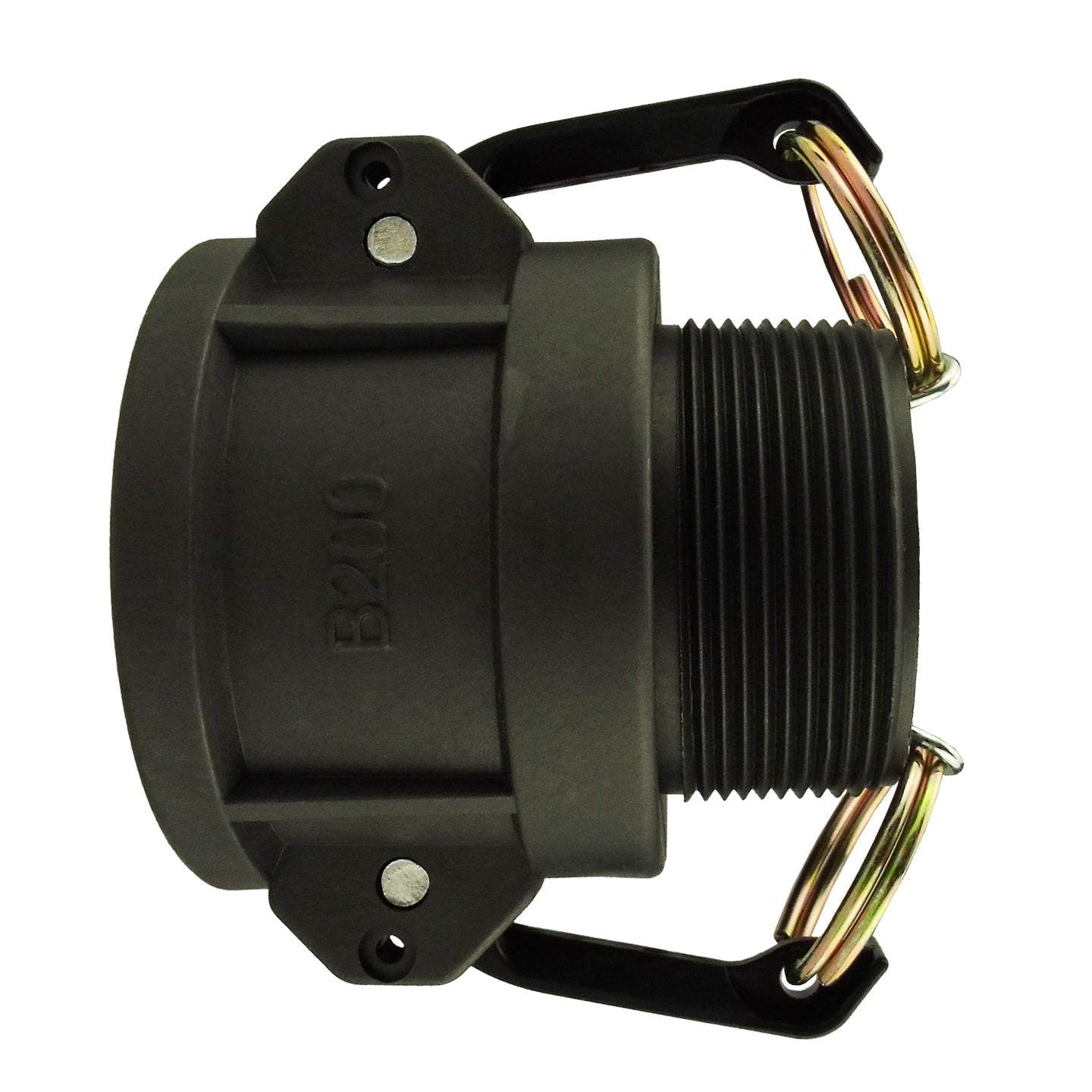

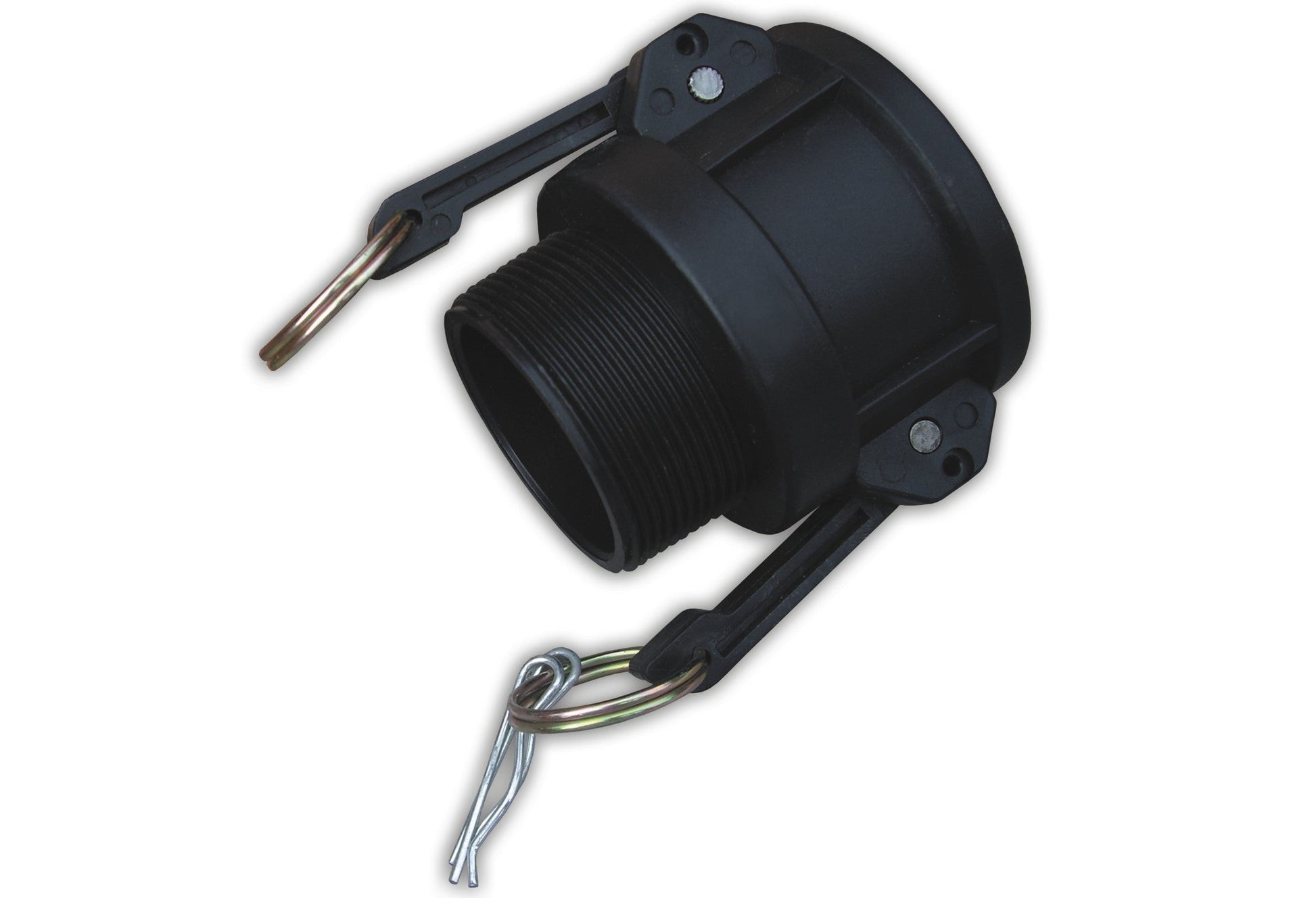

This 1-inch Type B camlock coupler adds a female camlock socket to a matching female BSP equipment port. The male screw thread fits the equipment; the socket receives a separate grooved male camlock adapter.
Leave the threaded connection in place when you remove the line for maintenance or storage. The two operating arms let you connect and release the cam joint by hand.
Supplied as one black polypropylene coupler, with its operating arms and pictured retaining hardware. Choose the mating male adapter separately for your assembly.
Two ends, two different connections
Check the equipment thread and the camlock mating fit before ordering.

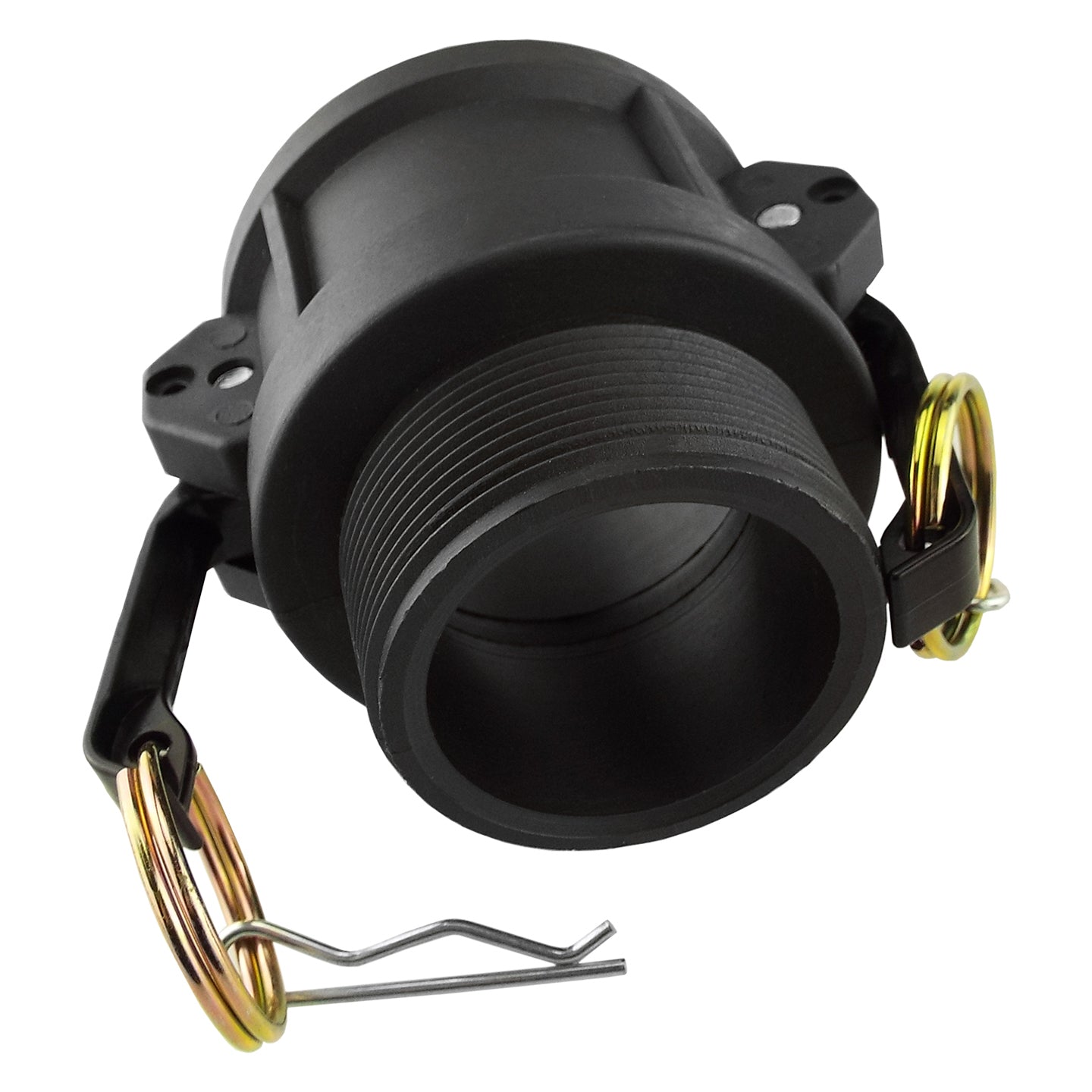

Male BSP thread: the nominal 1-inch external thread screws into a compatible female BSP port. Use the thread-sealing arrangement specified for your equipment.

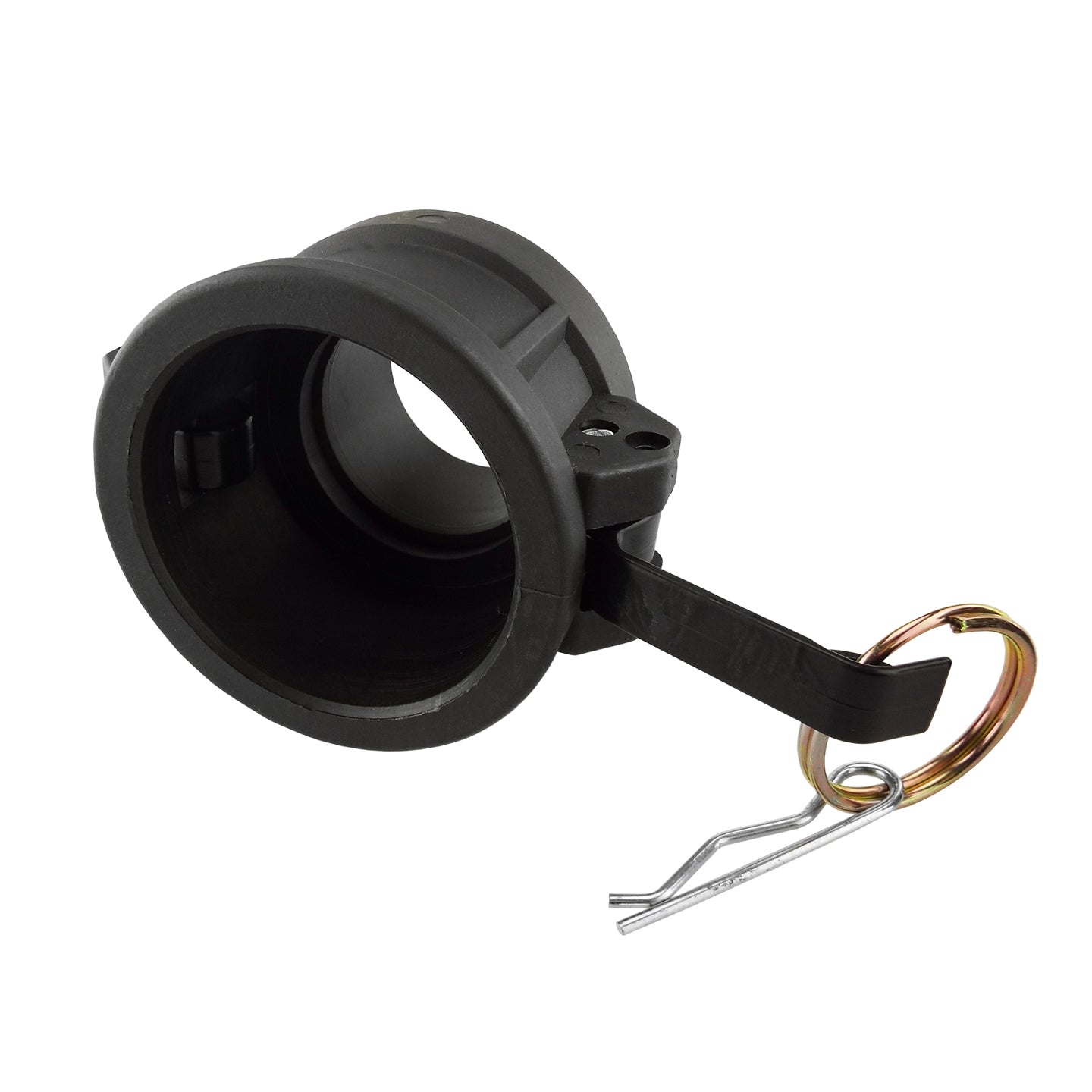

Female camlock socket: a matching nominal 1-inch grooved male camlock adapter seats inside this end. Closing both arms engages the adapter’s groove and draws it against the socket seal.
The screw thread does not engage the camlock groove. Nominal inch sizes identify the connections, rather than the outside dimensions of the complete fitting.
Open the arms. Seat the adapter. Close by hand.
Fit the screw connection first, with the system isolated.
- Install and seal the male BSP end in the matching female equipment port.
- Open both cam arms and seat the separate male camlock adapter fully in the socket. Close both arms evenly by hand, then fit the retaining hardware as directed for the coupling.
- Check the completed joint before use. Stop flow, isolate and depressurise before opening it again.
This coupler has an open passage and does not stop flow when disconnected. Use separate flow control where required. Confirm that the polypropylene body and mating seal suit your liquid, temperature and working pressure.
Choosing your threaded coupler
How is Type B different from Type D?
Both have a female camlock socket with operating arms. Type B has an external male BSP thread, while Type D has an internal female BSP thread. Choose the screw-thread gender that matches your equipment.
Does this include the male camlock adapter?
No. One Type B coupler is supplied, with its operating arms and pictured retaining hardware. A compatible grooved male camlock adapter completes the detachable joint. Hose, equipment and thread-sealing materials are separate.
Product information & technical details
| SKU | CAMTB1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| Camlock type | Type B |
| Camlock size | 1" |
| Camlock gender | Female |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type B coupler with operating arms and pictured retaining hardware. Male adapter, hose and equipment are separate. |
| Connection layout | Nominal 1-inch female camlock × 1-inch male BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
