Description
Disconnect the line. Keep the outlet fitted.

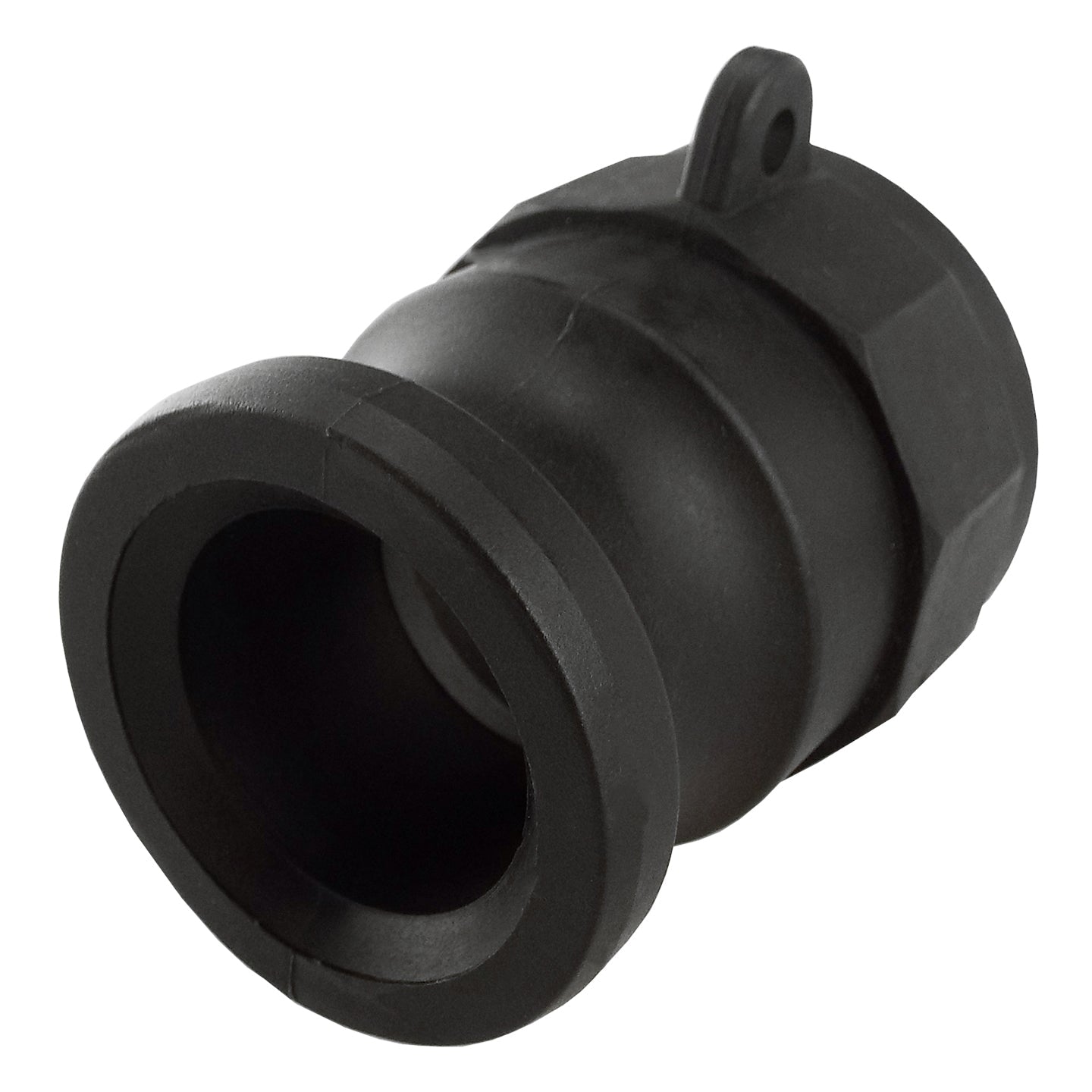

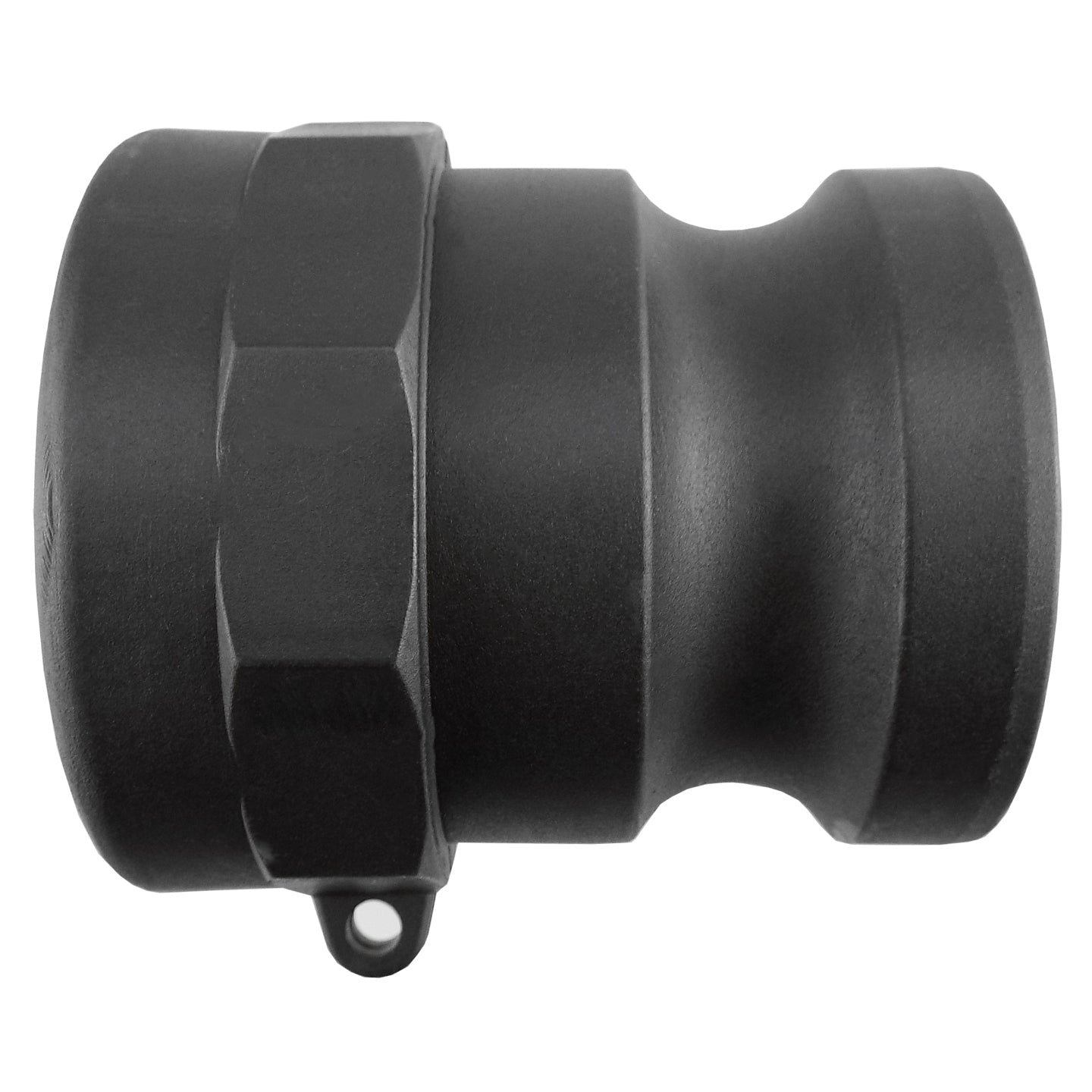

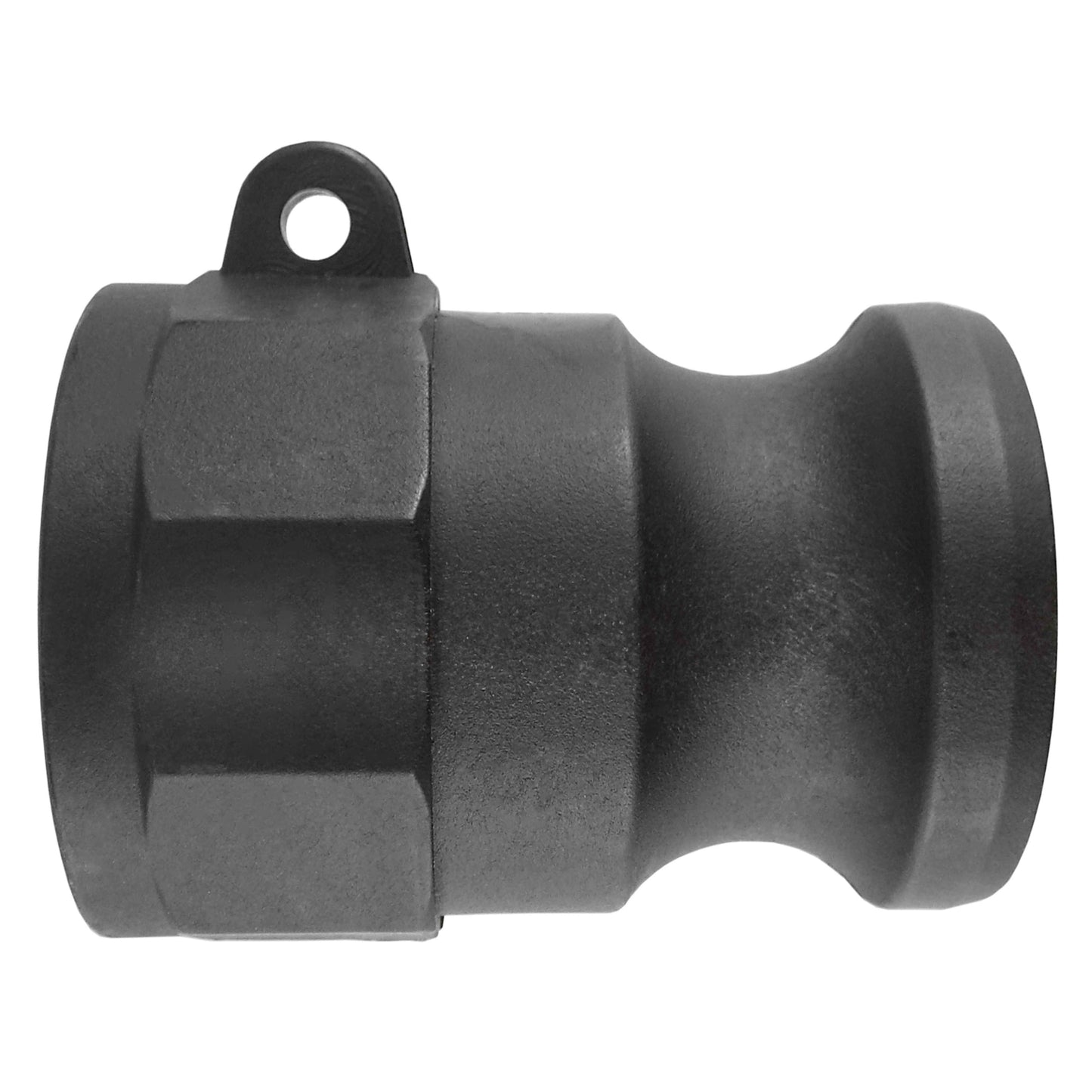

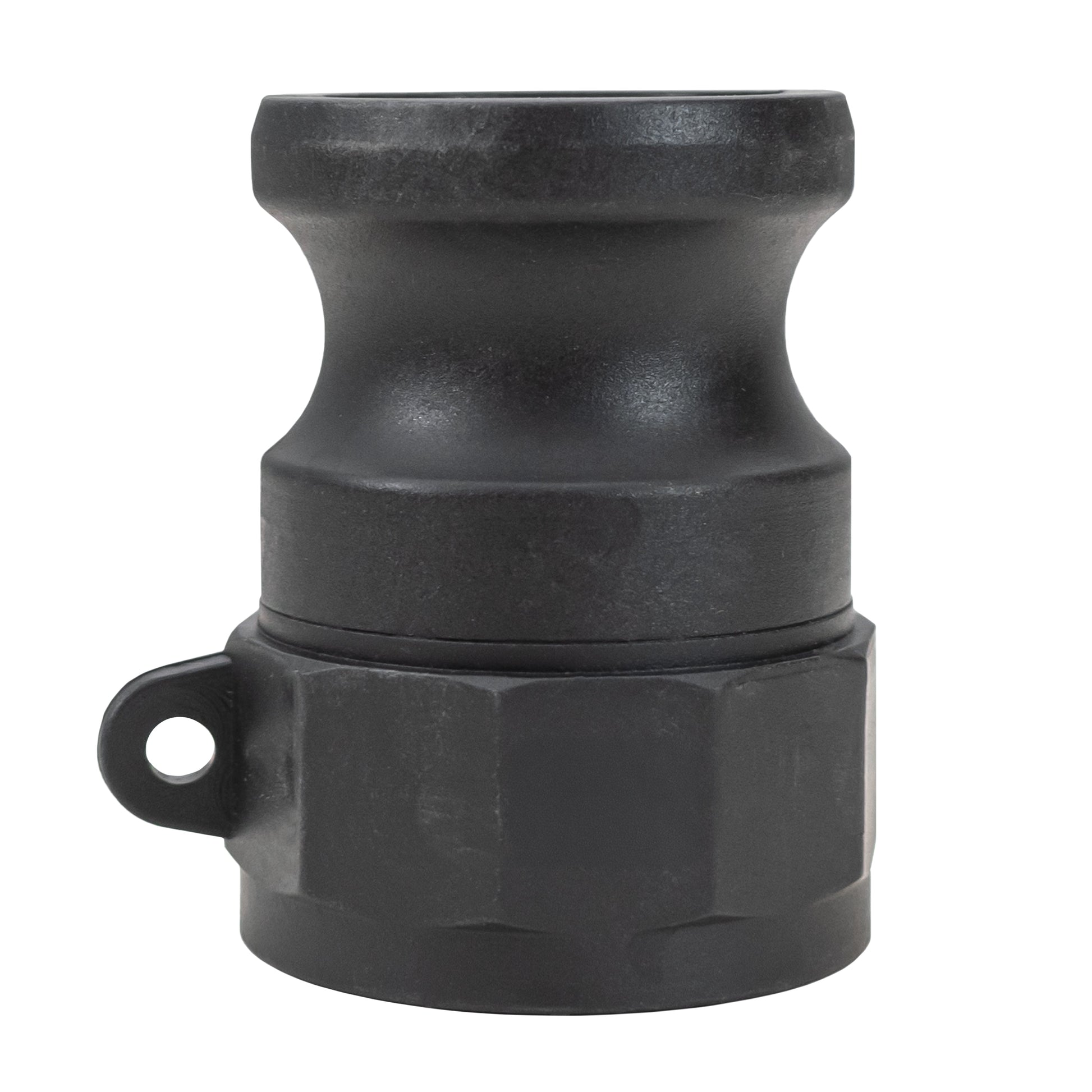

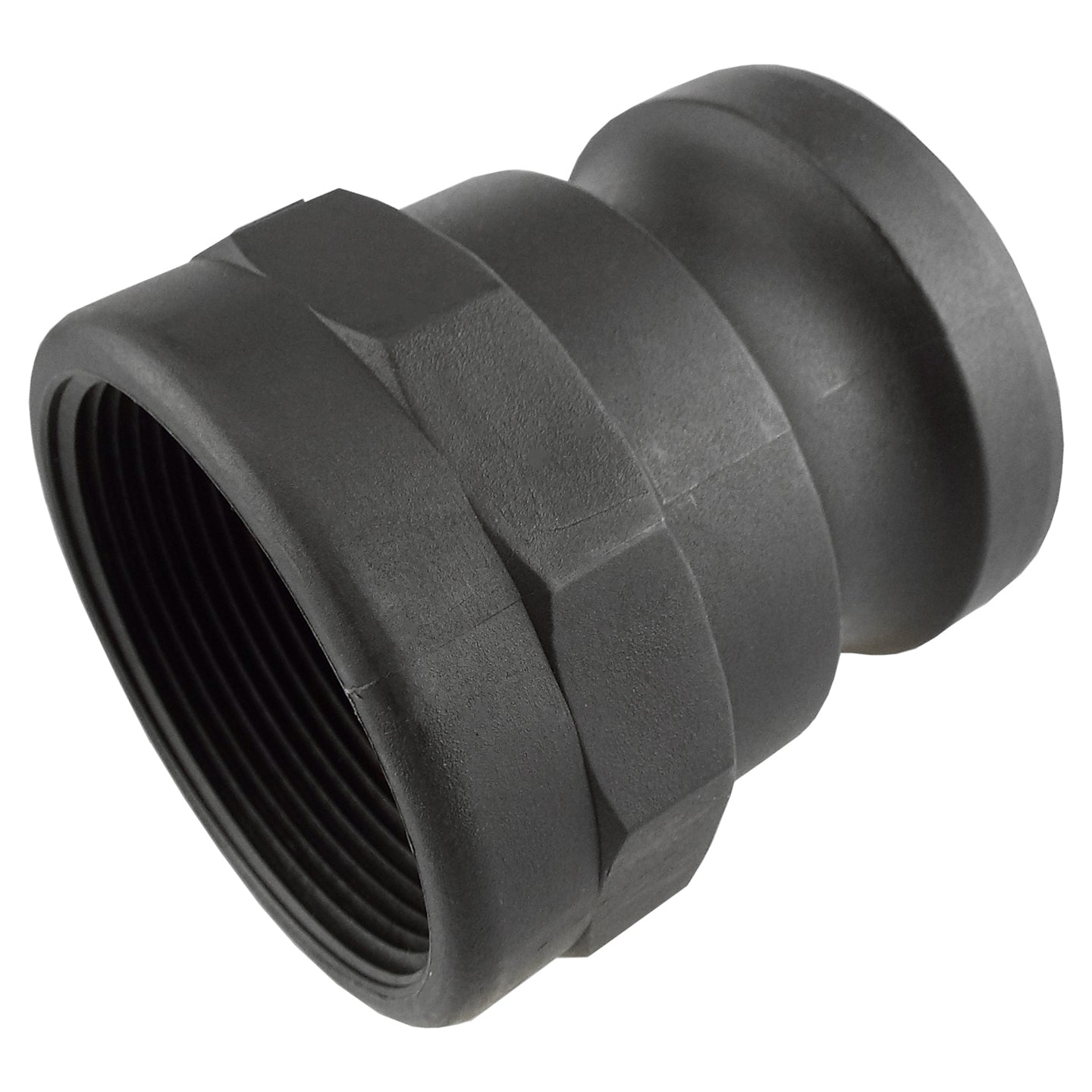

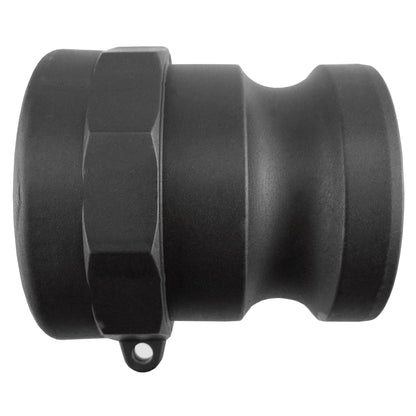

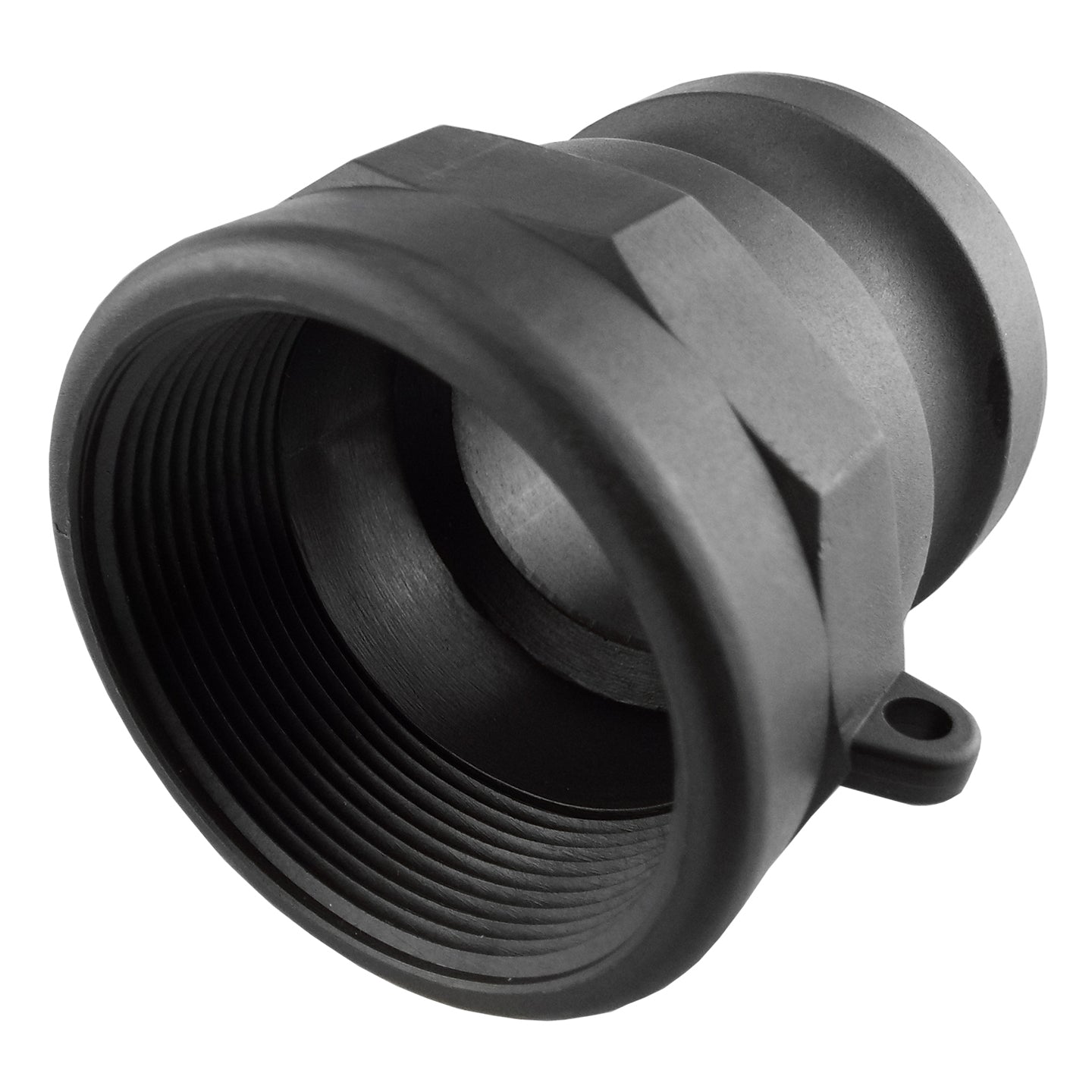

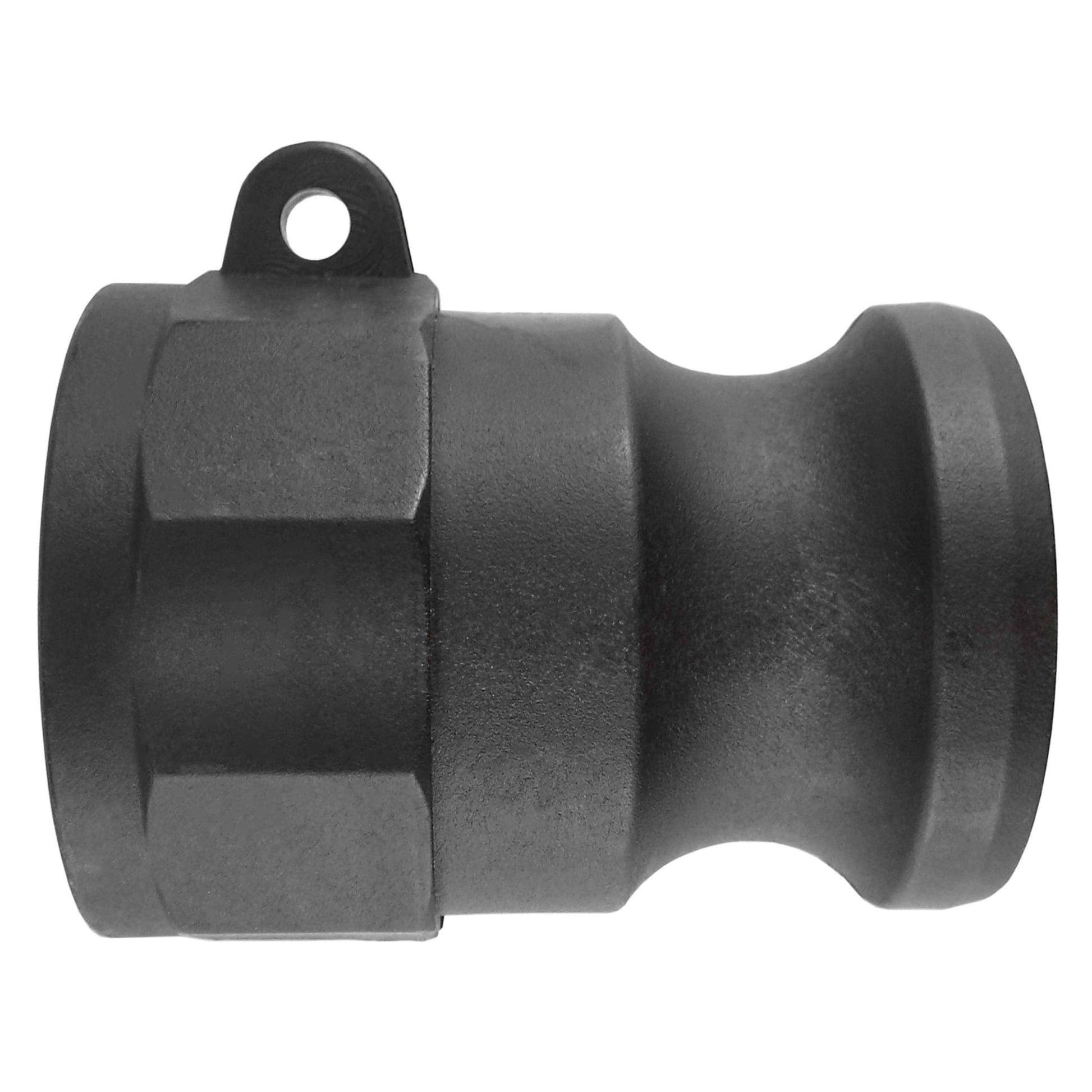

Use this 4-inch Type A camlock adapter to add a detachable line connection to a matching threaded equipment outlet. Its internal female BSP thread fits a matching male outlet, while the grooved male camlock nose accepts a separate female coupler.
When the line needs to come off for maintenance or storage, disconnect at the cam joint. The adapter can remain screwed onto the equipment, so you do not have to disturb that threaded connection each time.
Supplied as one black polypropylene fitting. Choose the mating coupler separately to suit the line you are connecting.
Check the thread as well as the camlock
A matching size needs the right connection at each end.

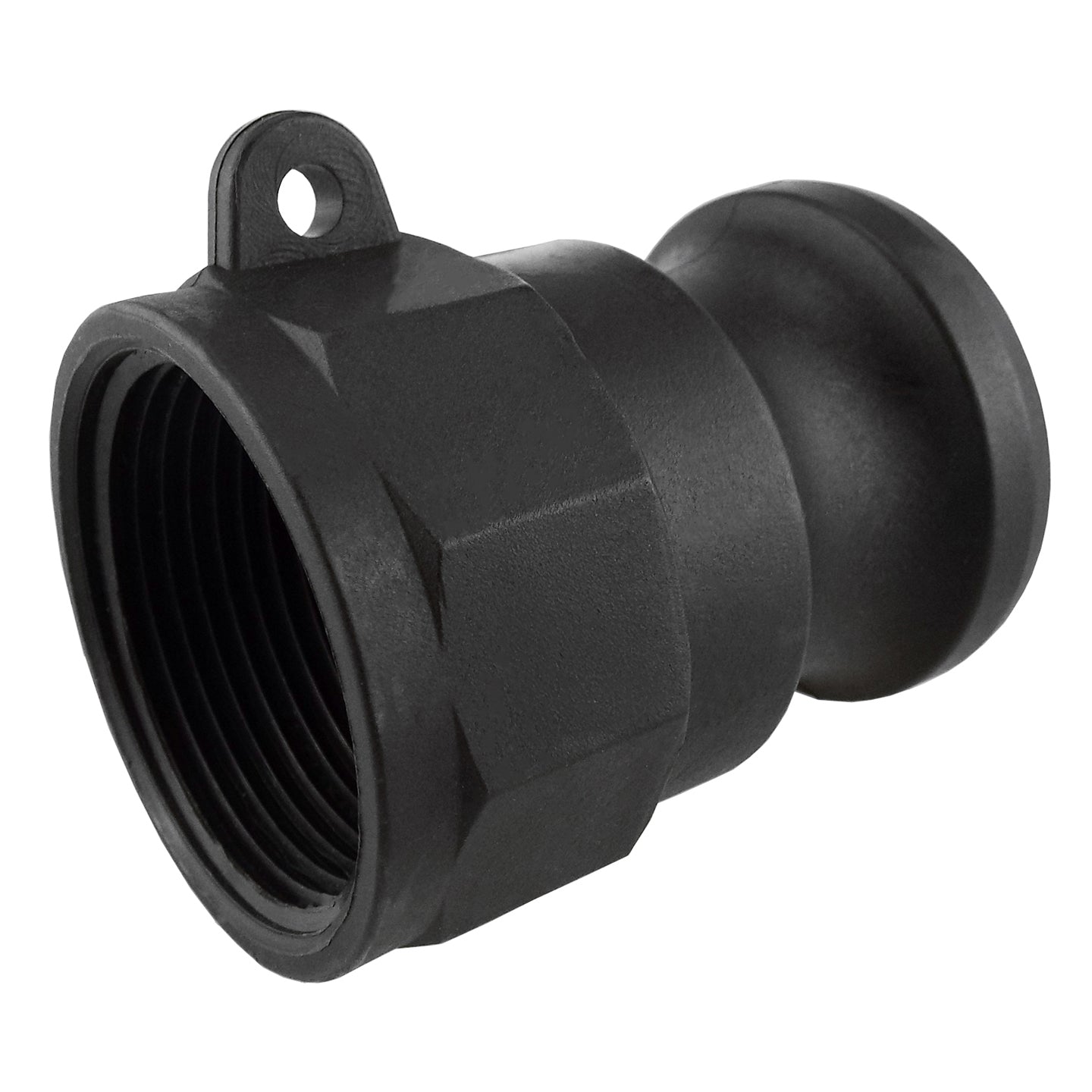

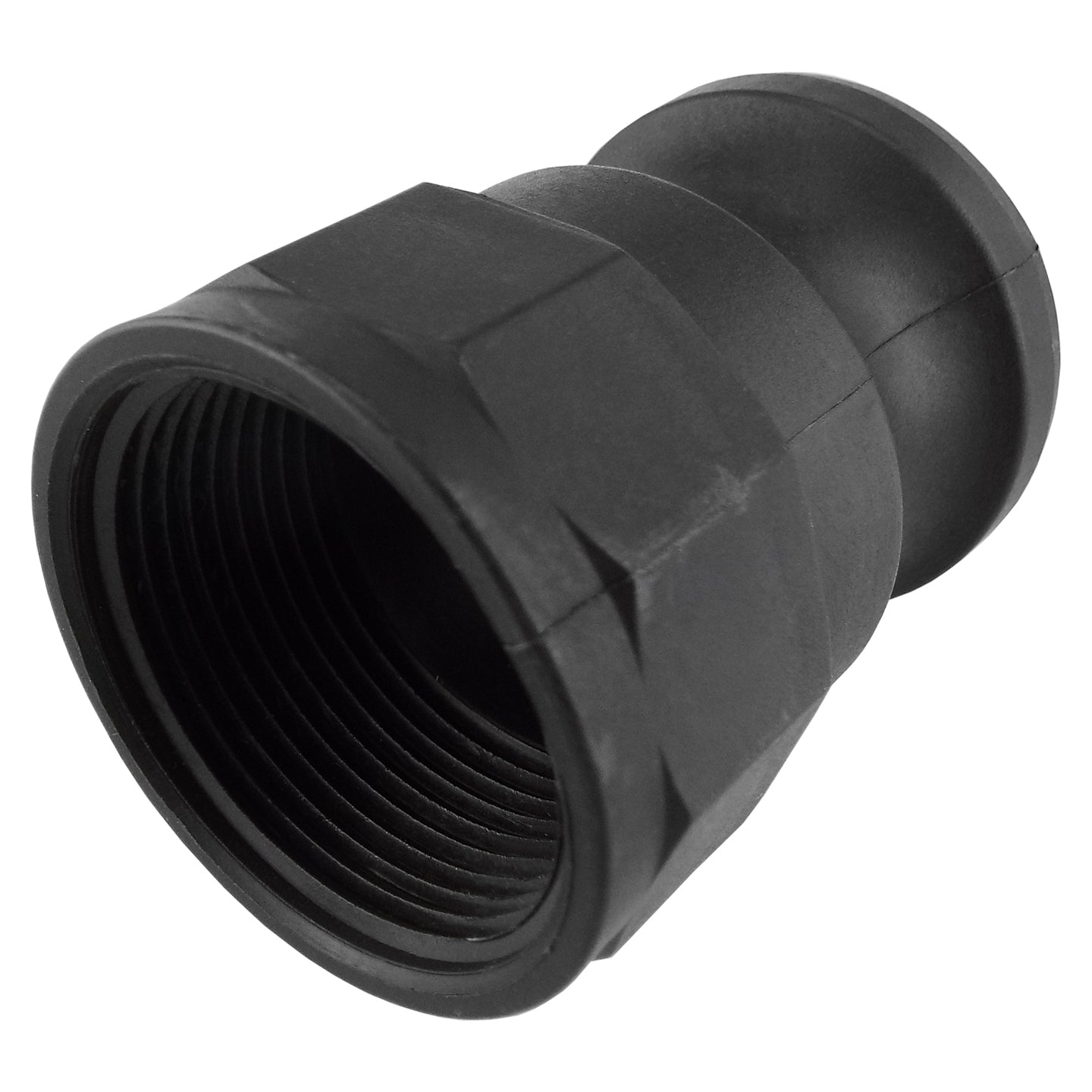

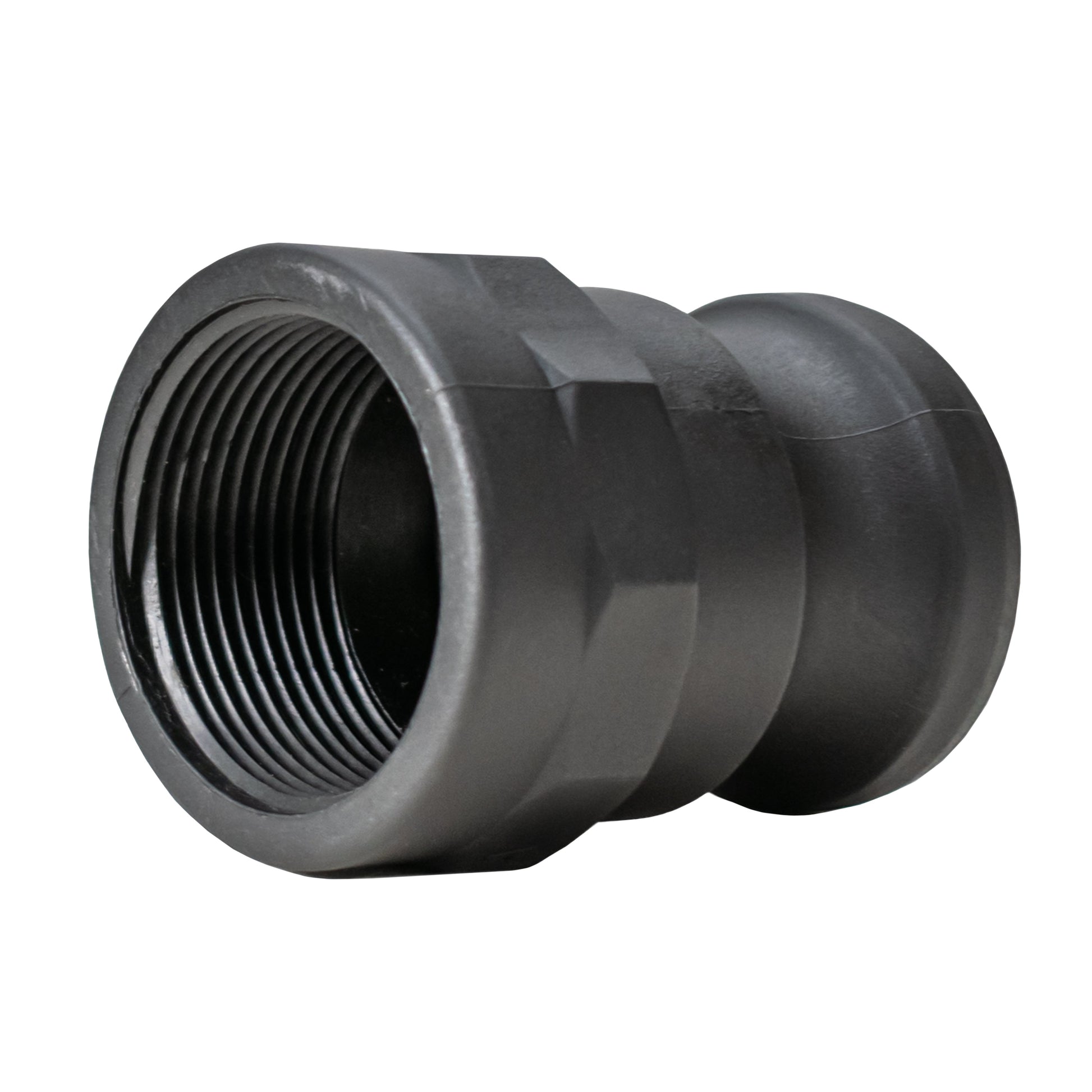

At the equipment: the 4-inch female BSP socket screws onto a matching male thread. Confirm the outlet’s thread and use the sealing arrangement required by the equipment.

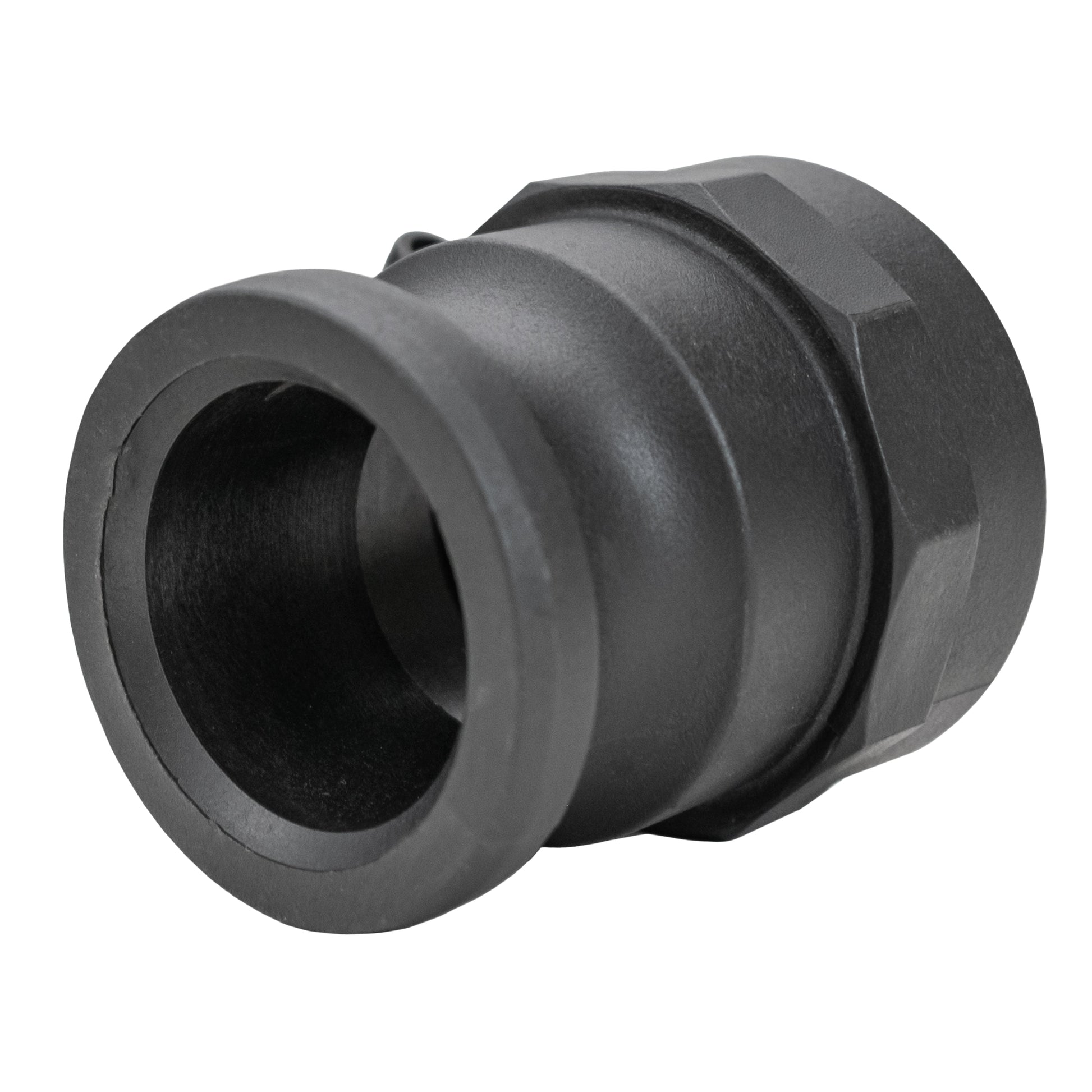

At the detachable line: the 4-inch male camlock seats in a compatible female camlock coupler. The female part carries the operating arms and joint seal; this Type A adapter has no arms.
For a hose-tail connection, the optional 4-inch Type C coupler shown above provides a nominal 4-inch/100mm hose tail. It is sold separately. Match the tail to your hose bore, secure it with a suitable clamp and check the actual cam mating fit.
Nominal size does not describe the outside width of the fitting. Identify both connections before ordering; a size label alone does not establish compatibility.
Connect at the cam joint by hand
Prepare the threaded connection first, with the system isolated.
- Install and seal the female BSP end on the matching male equipment thread.
- Open both arms on the separate female coupler and seat the male adapter fully. Close both arms evenly by hand, then fit the retaining hardware as directed for that coupler.
- Check the completed joint before use. Stop flow, isolate and depressurise before releasing the cam connection.
The fitting has an open passage and does not stop flow when disconnected. Use separate flow control where required, and check that the polypropylene body and mating seal suit your liquid, temperature and working pressure.
Choosing the right adapter
How is Type A different from Type F?
Both have a male camlock nose, but Type A has an internal female BSP thread and Type F has an external male BSP thread. Choose Type A for a matching male BSP equipment outlet; it does not screw into a female socket.
Is this a complete coupling or a single part?
One Type A adapter is supplied. A compatible female camlock coupler completes the detachable joint. Hose, clamps and thread-sealing materials are separate; no shut-off valve is built into this fitting.
Product information & technical details
| SKU | CAMTA4BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 4" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 4" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal 4-inch male camlock × 4-inch female BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
