Description
Keep the outlet fitted. Detach the line.

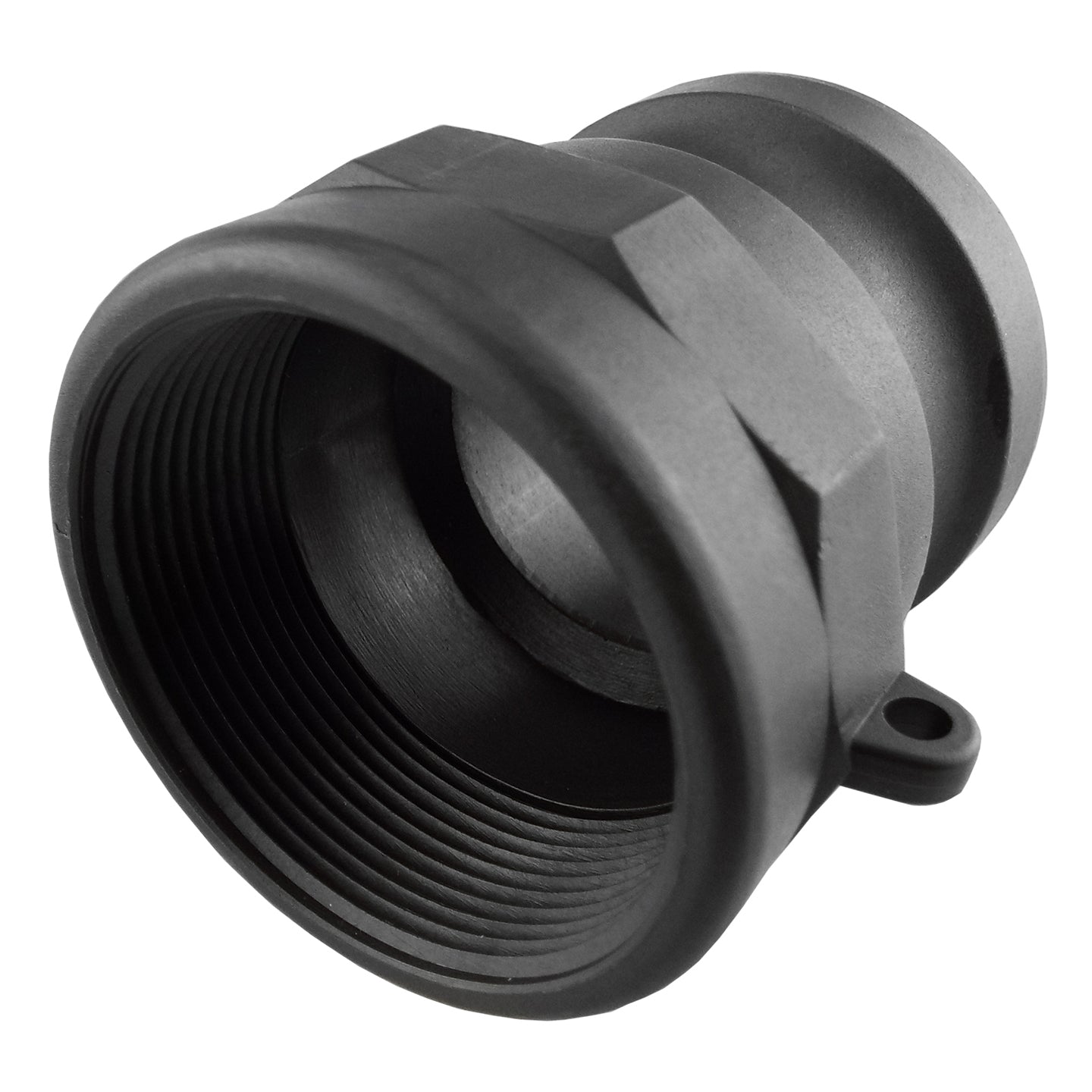

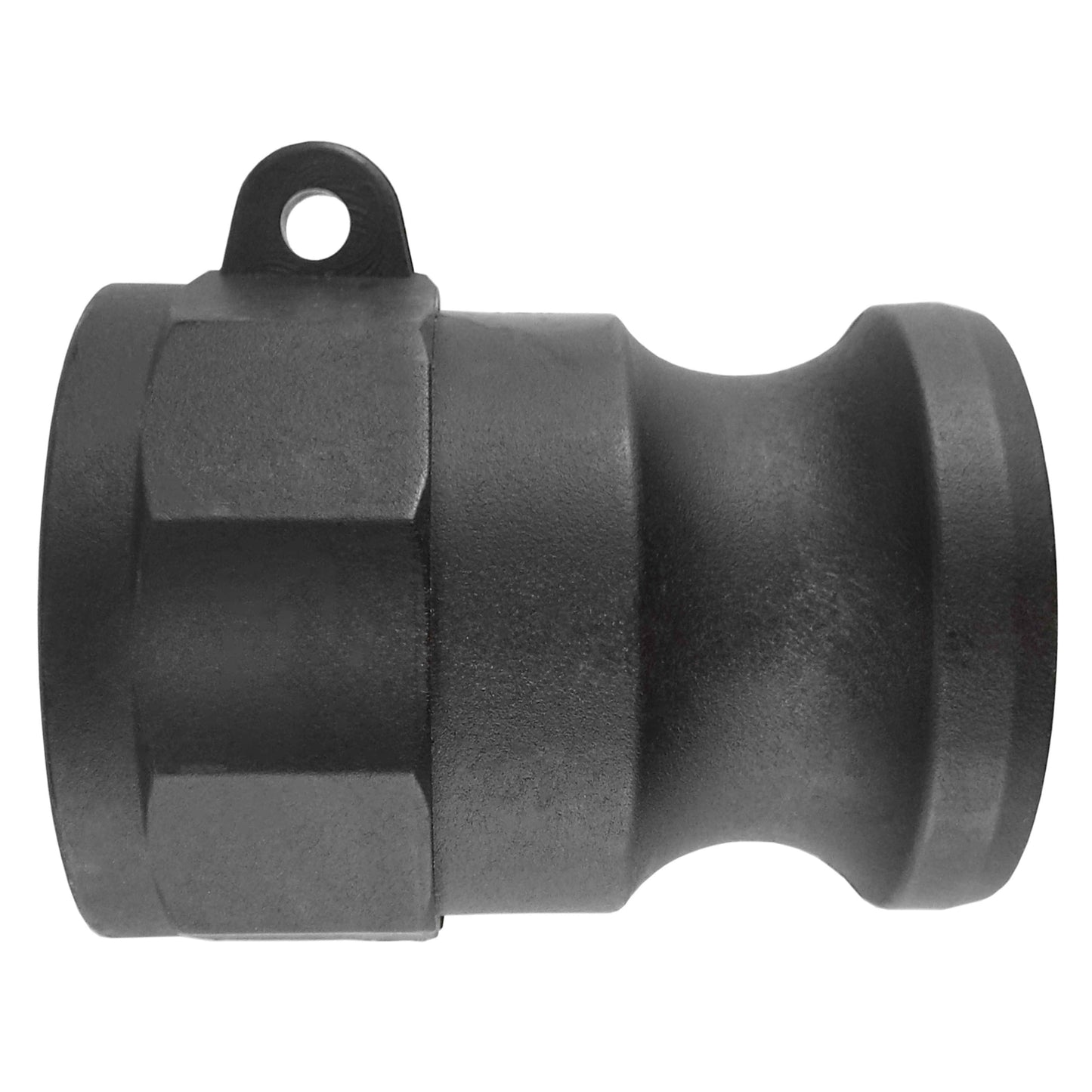

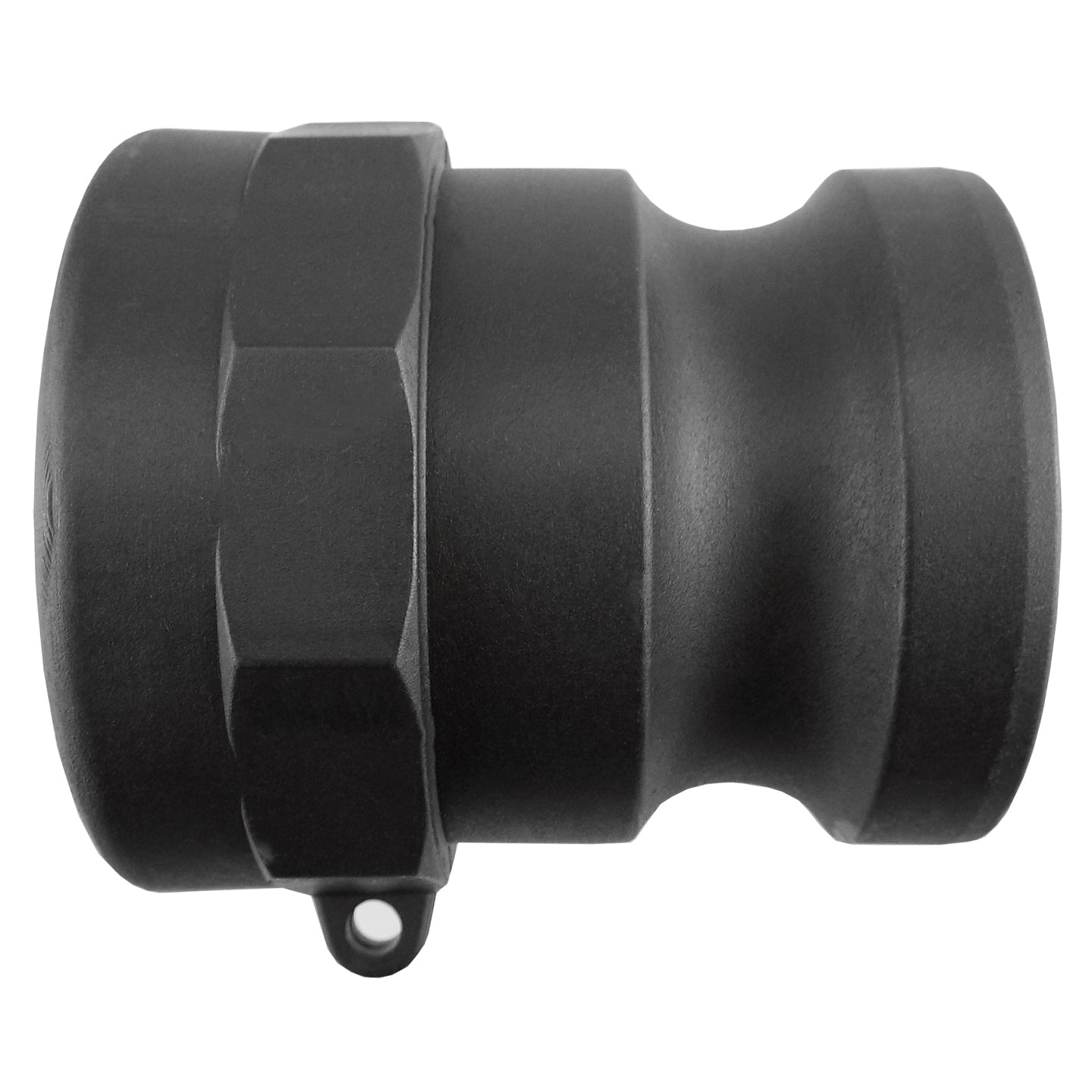

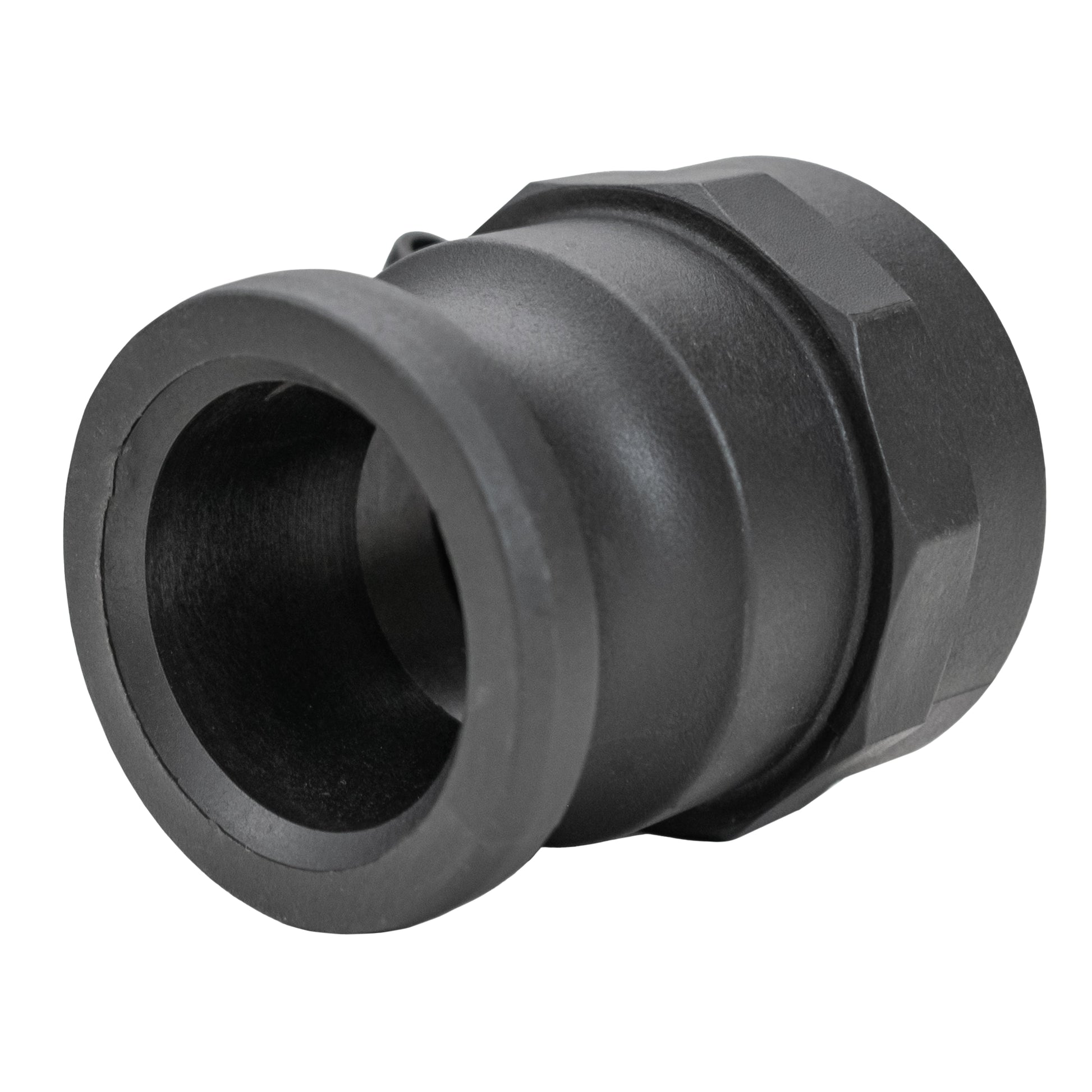

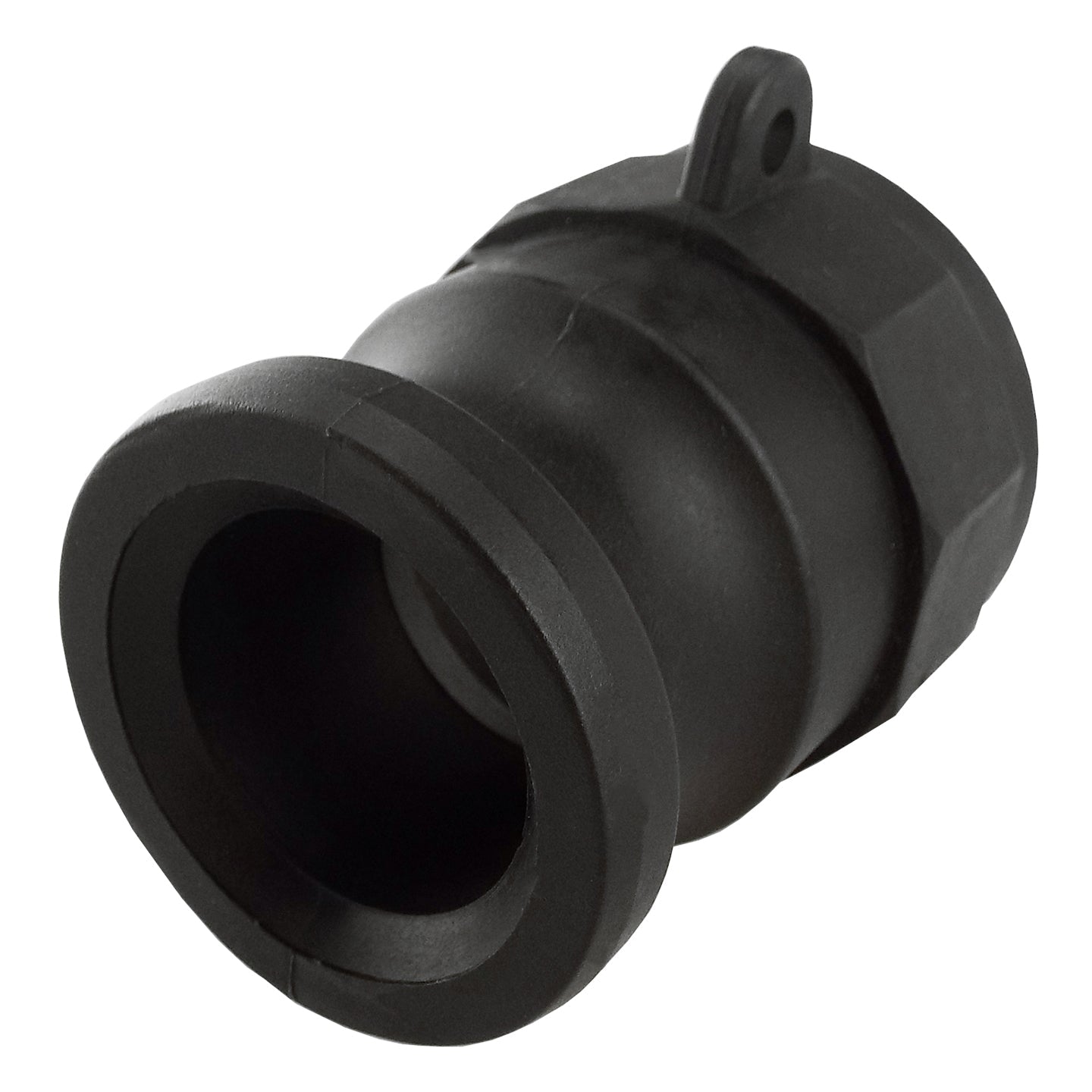

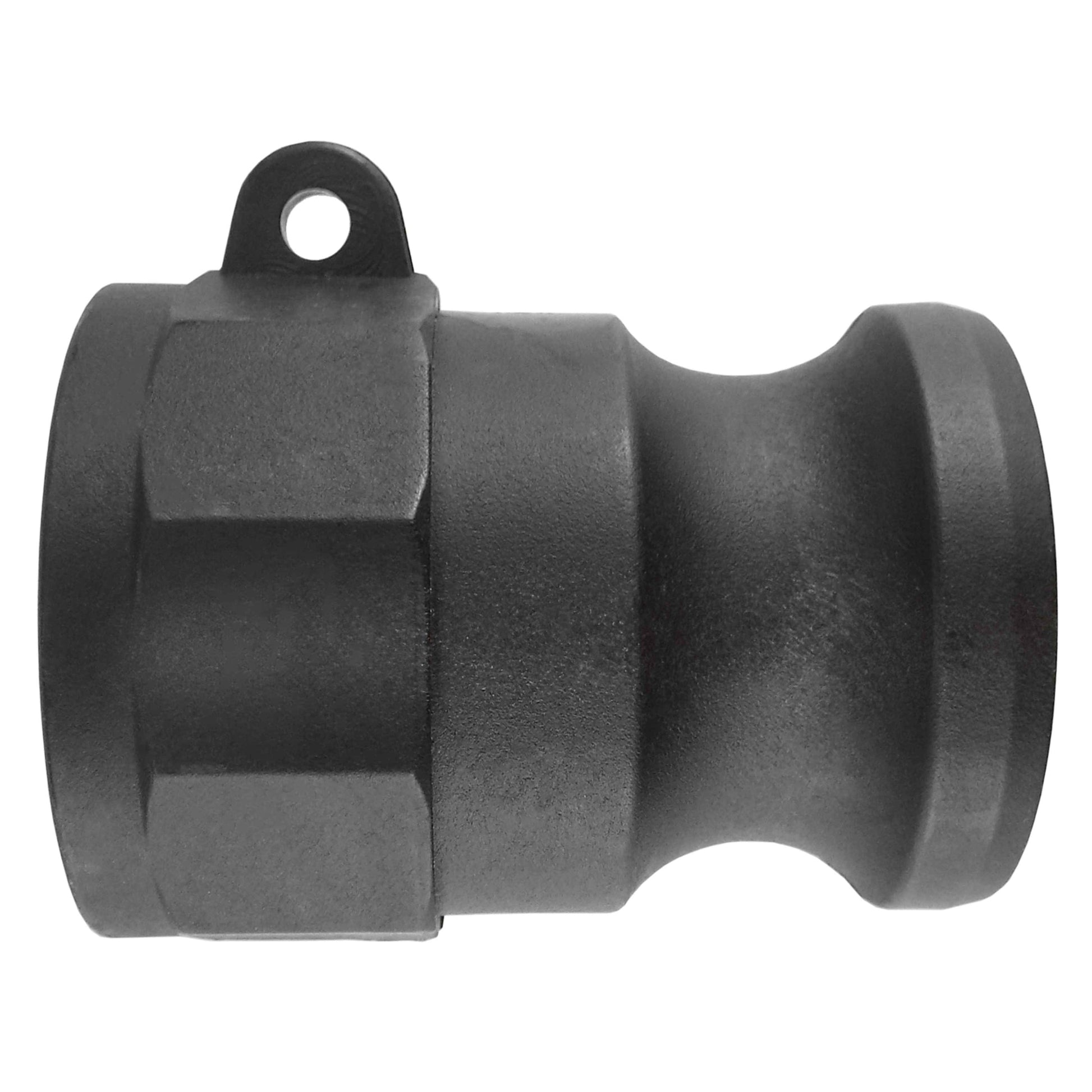

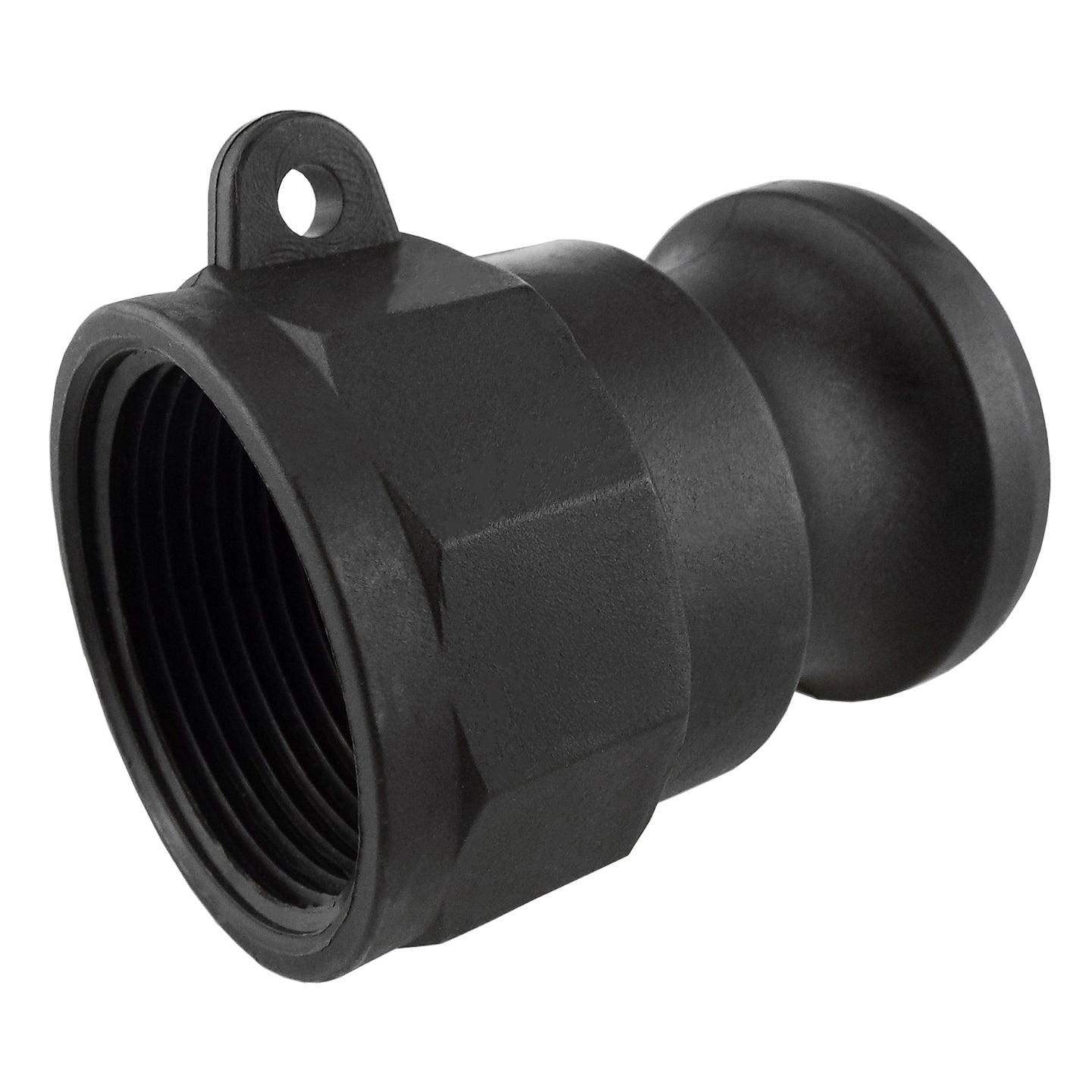

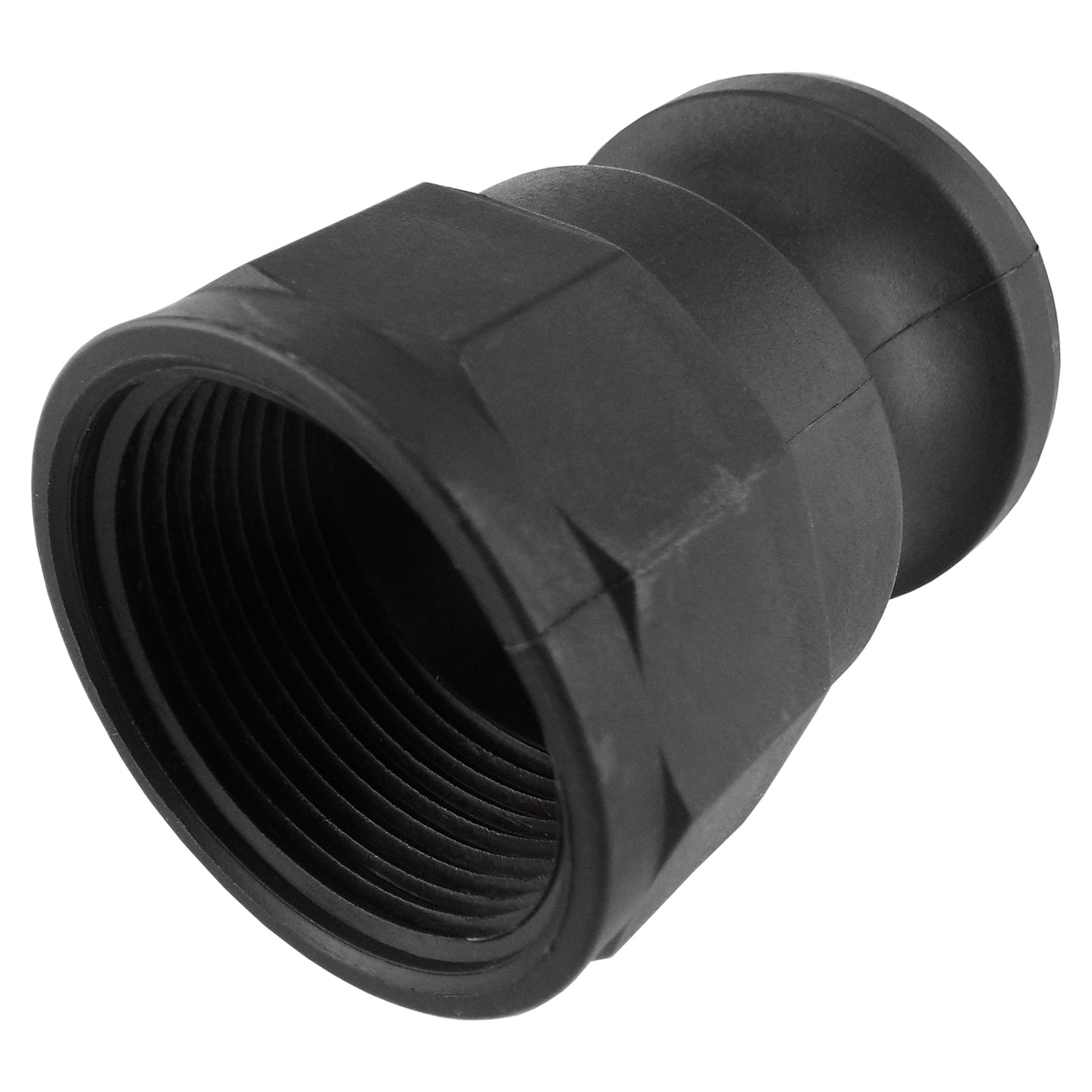

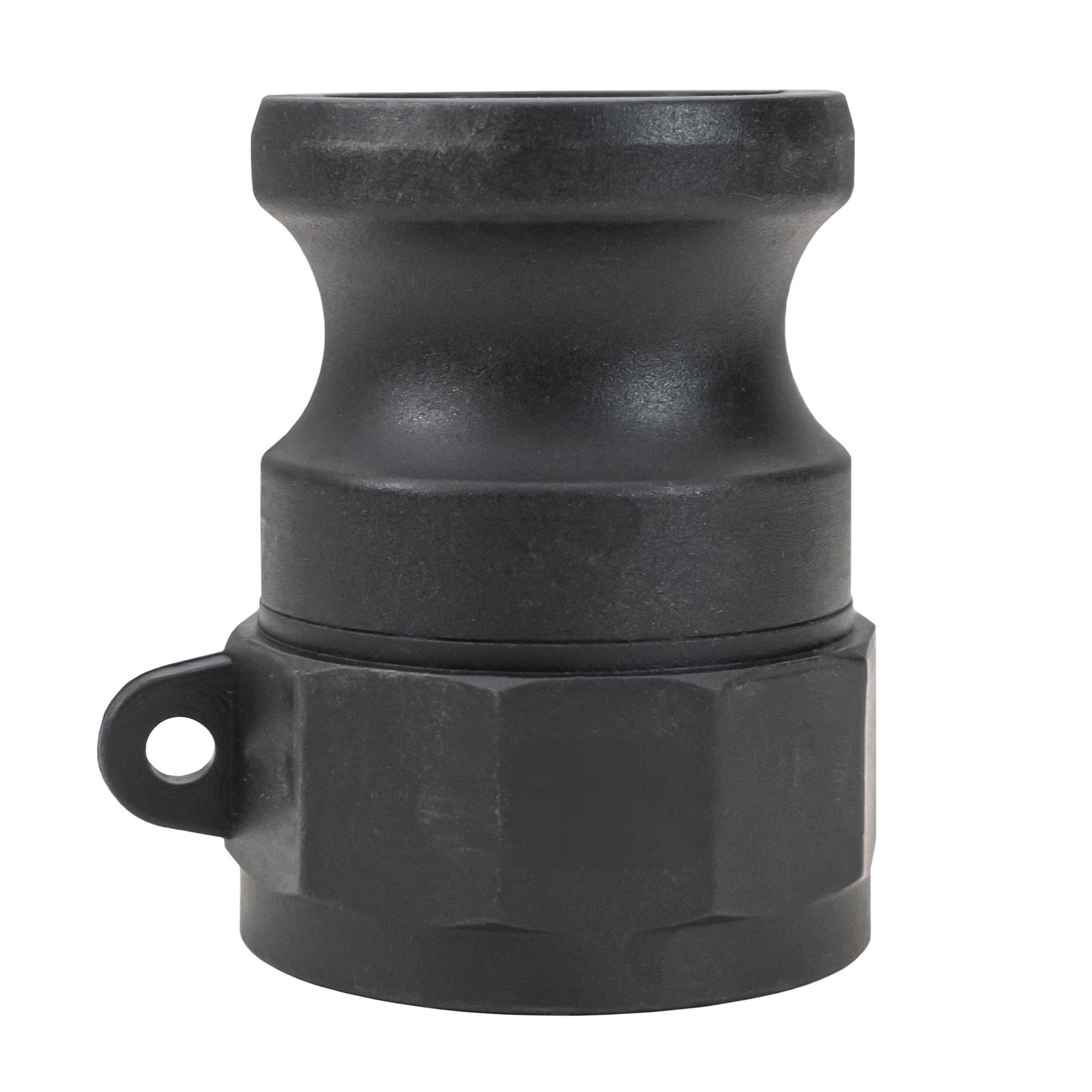

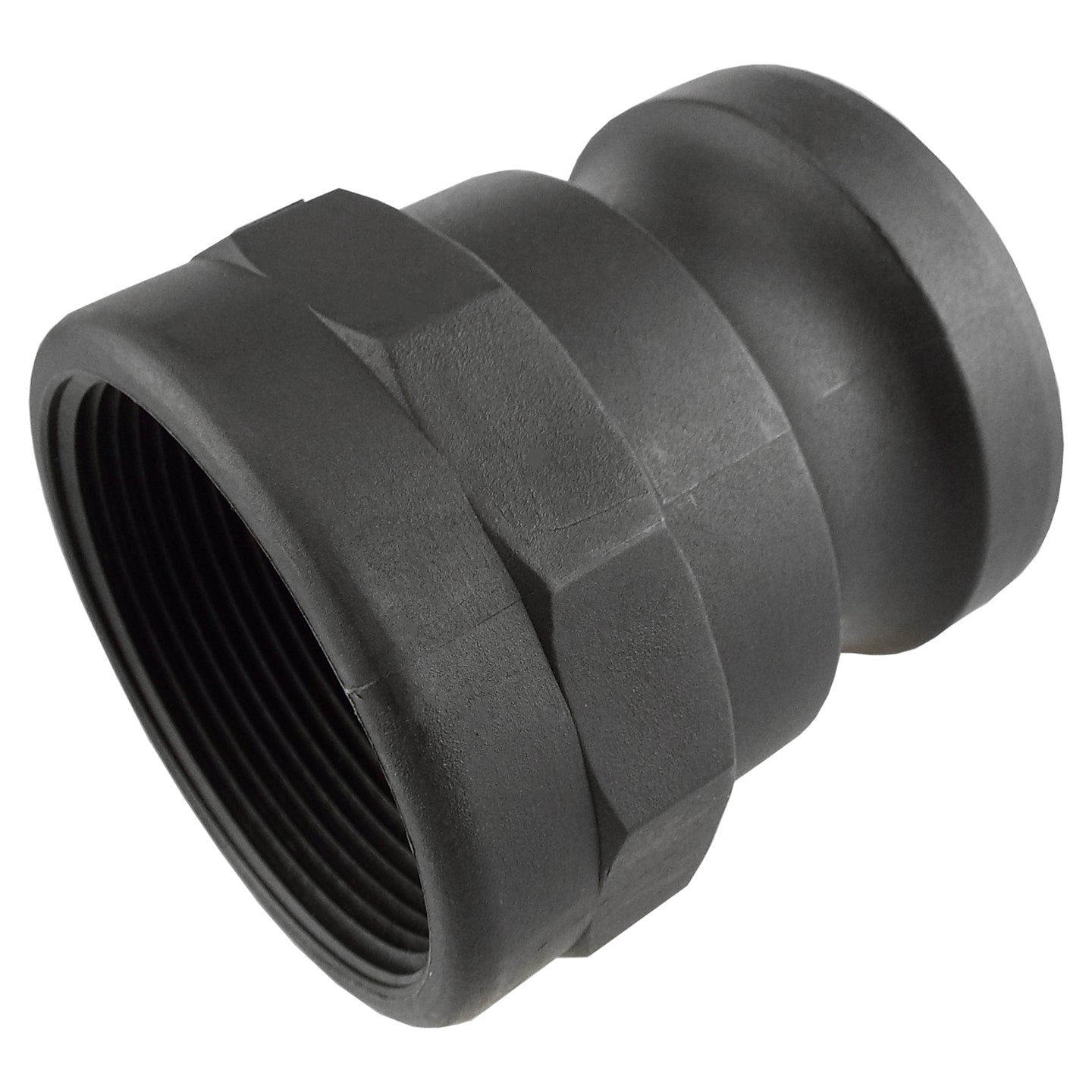

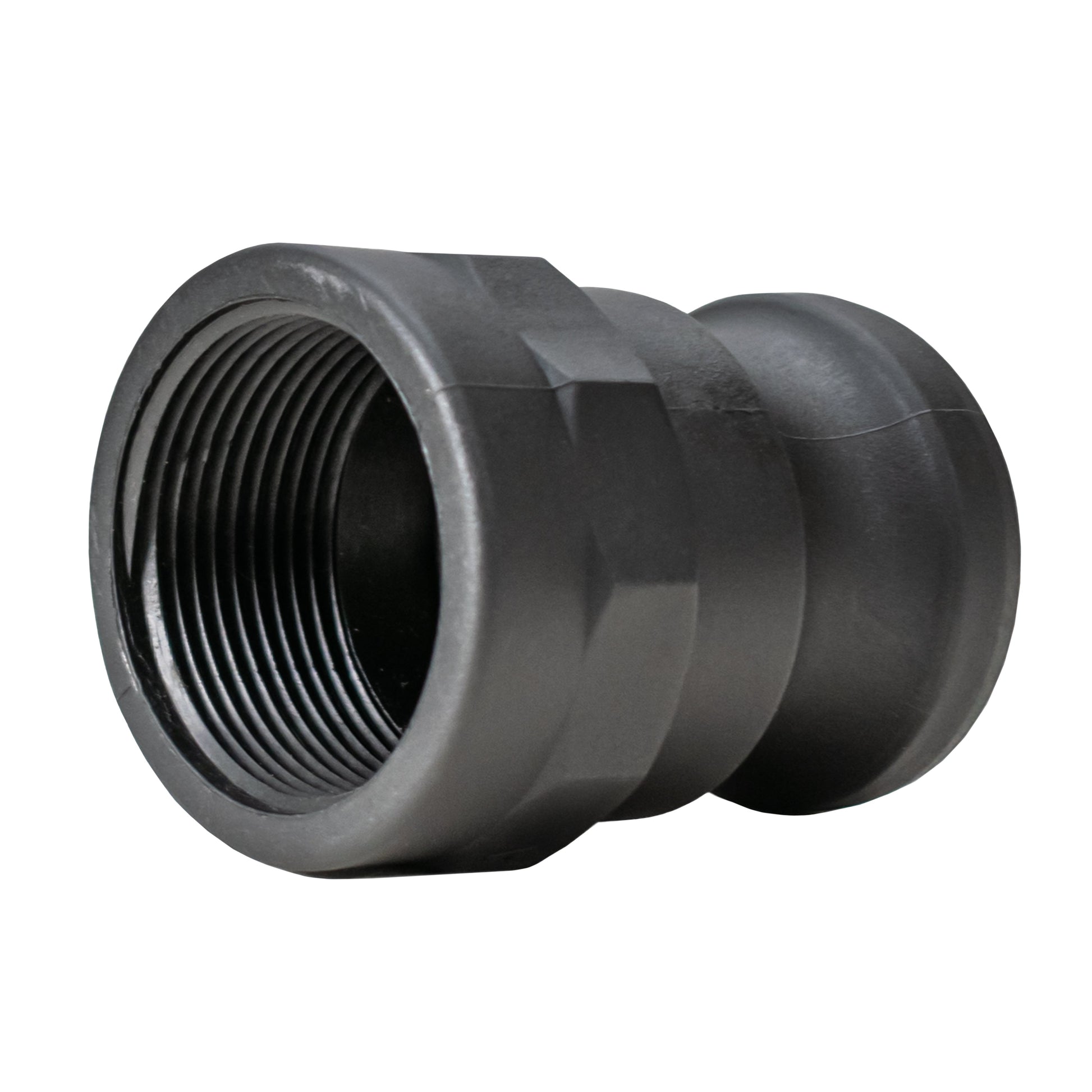

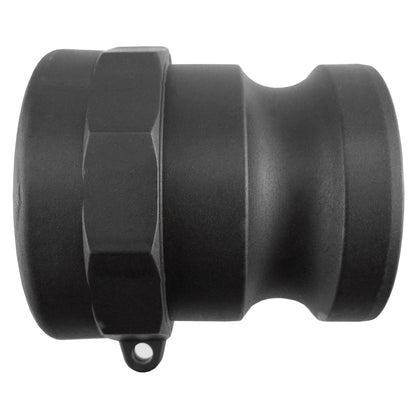

Make a removable connection at a compatible threaded outlet with this 2-inch Type A camlock adapter. The female BSP socket screws onto the equipment; the grooved male camlock end connects to a separate female coupler.
When the line needs to come off for storage or maintenance, disconnect at the cam joint and leave the threaded fitting in place. You receive one black polypropylene adapter, ready to pair with the right coupler for your setup.
Two ends. Two checks before you order.
Match the equipment thread and the removable line connection.
Female BSP socket: the internal 2-inch thread accepts a matching male BSP equipment thread. Check your outlet’s thread type and choose a suitable sealing arrangement.
Male camlock nose: the nominal 2-inch grooved end seats inside a compatible female camlock coupler. The operating arms and joint seal are on that separate female part.
For a hose connection, a matching 2-inch Type C female coupler provides a hose tail. The optional Type C shown above is sold separately; match its 2-inch/50mm tail to your hose bore, use a suitable clamp and check the actual cam mating fit.
These are nominal connection sizes, not measurements across the adapter body. In particular, a coarse IBC tank thread is different from BSP, even if both are described as 2-inch.
Make the joint with the system isolated
The screw end stays fitted; the female coupler operates the cam joint.
- Fit and seal the female BSP socket on the matching male equipment thread.
- Open both arms of the separate female coupler and fully seat the male camlock. Close both arms evenly by hand and fit the coupler’s retaining hardware as instructed.
- Check the completed assembly before use. Stop flow, isolate and depressurise before opening the cam connection.
This adapter has an open passage, with no shut-off valve. Check that its polypropylene body and the mating coupler’s seal suit your liquid, temperature and working pressure.
Before you connect
Does it fit directly onto a 2-inch IBC outlet?
Only if that outlet has a matching male BSP thread. Common coarse IBC threads are a different fitting and need the appropriate converter. Check the outlet rather than relying on the 2-inch label; no converter is included.
What else do I need for a hose connection?
A compatible female camlock coupler with a tail suited to your hose bore, plus a suitable hose clamp. One Type A adapter is supplied here; the female coupler, hose, clamp and thread-sealing materials are separate.
Product information & technical details
| SKU | CAMTA2BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 2" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal 2-inch male camlock × 2-inch female BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
