Description
A threaded outlet, ready for a removable line.
This 1½-inch Type A camlock adapter links a matching male BSP equipment thread to a separate female camlock coupler. Fit the threaded end once, then use the camlock joint when the line needs to come off for storage, maintenance or a different setup.

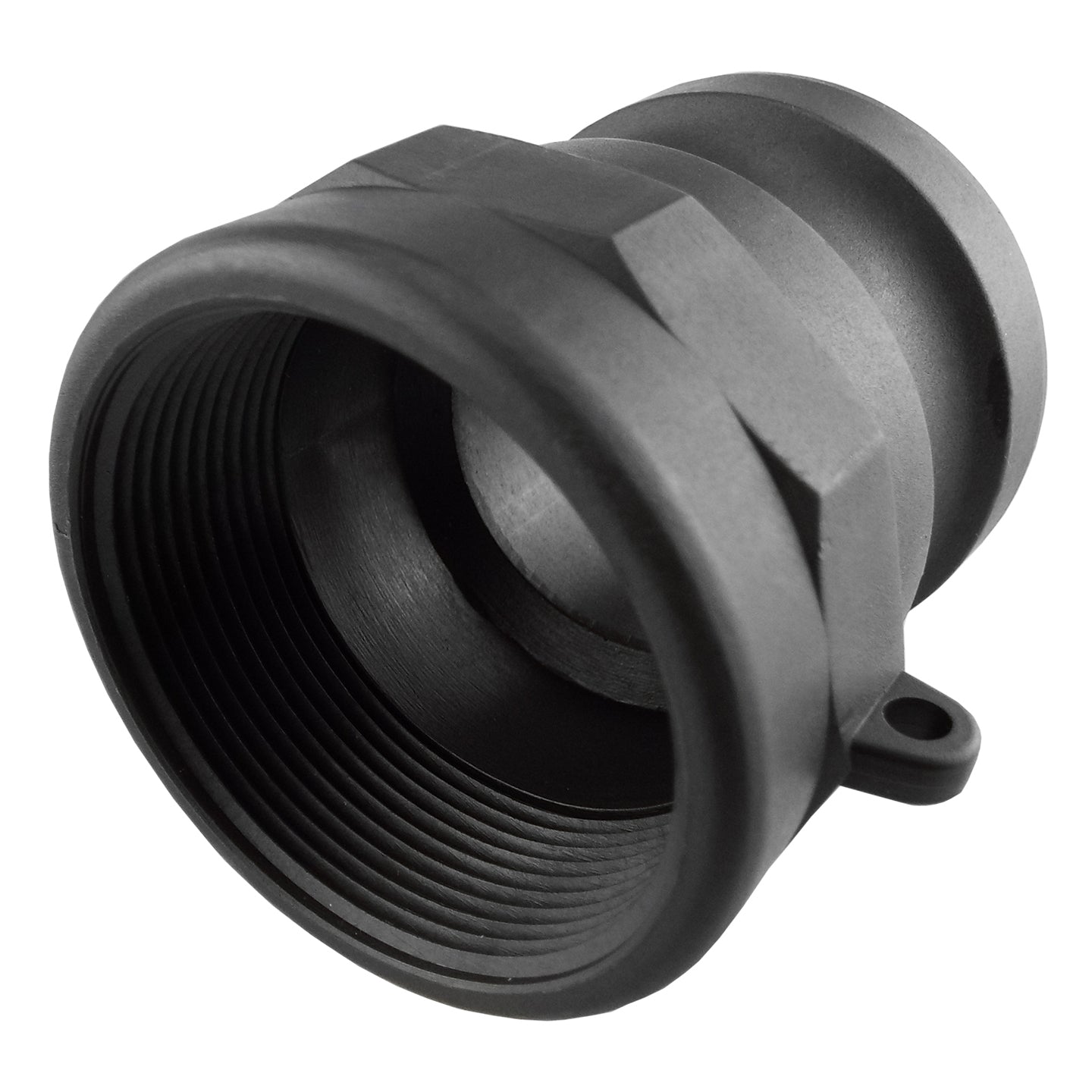

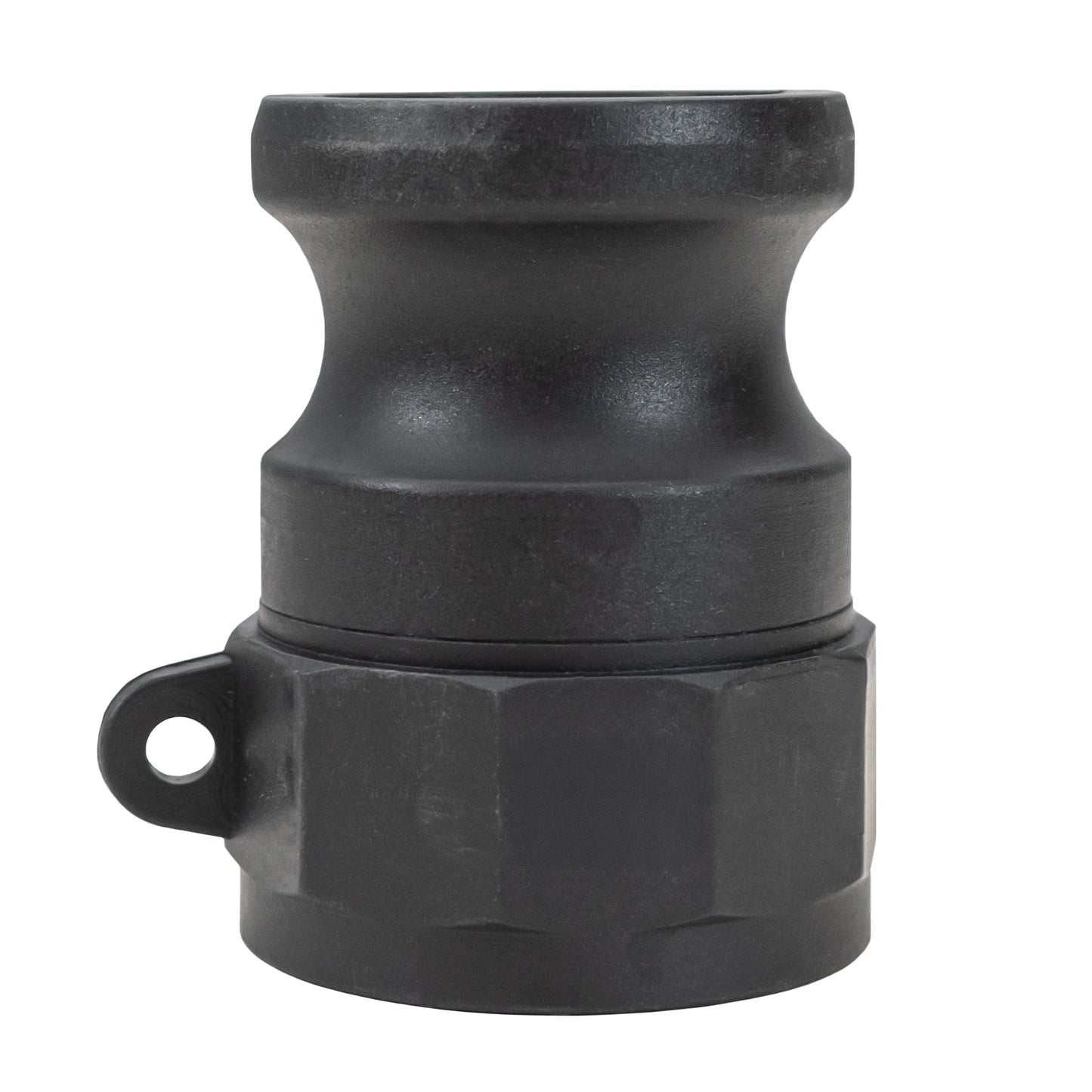

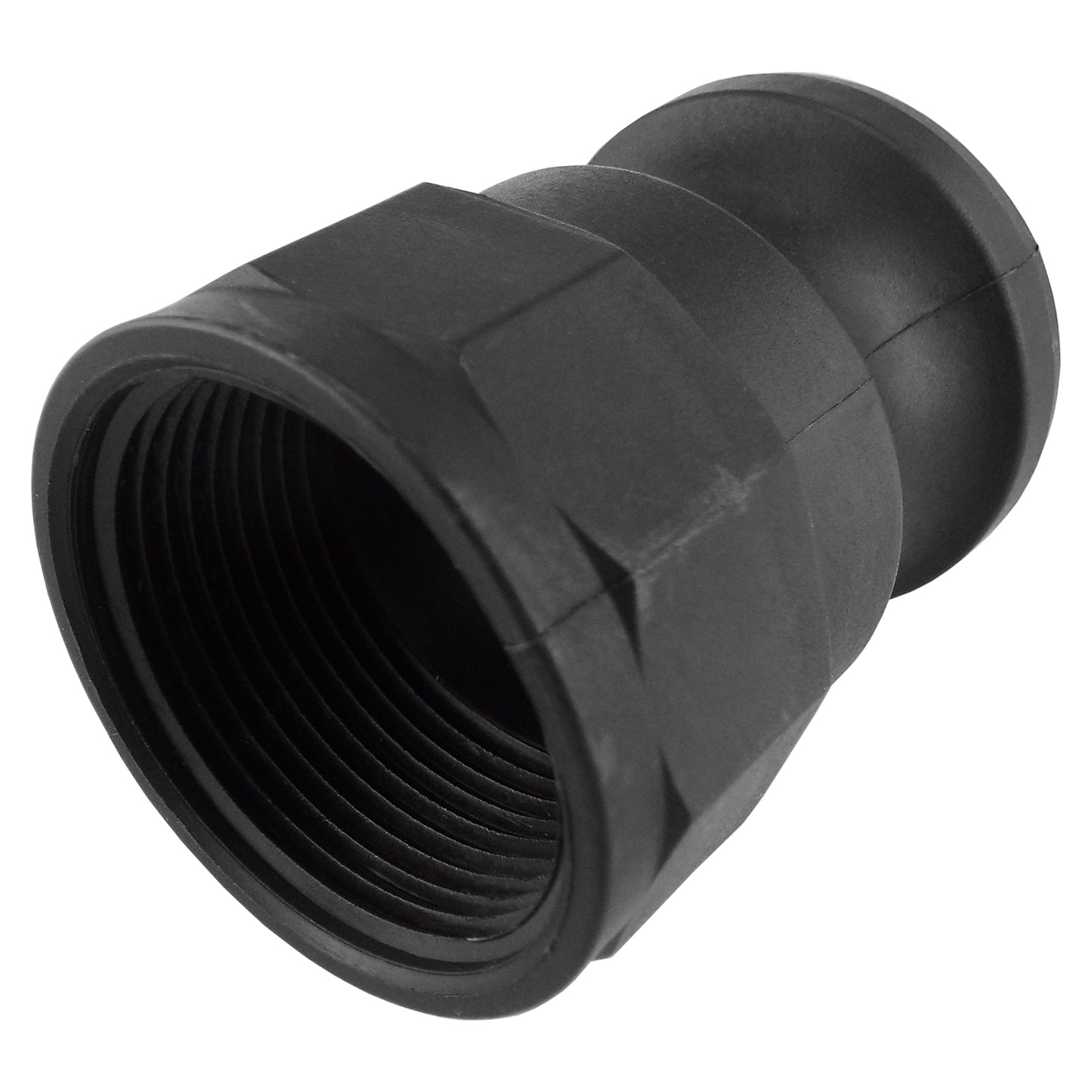

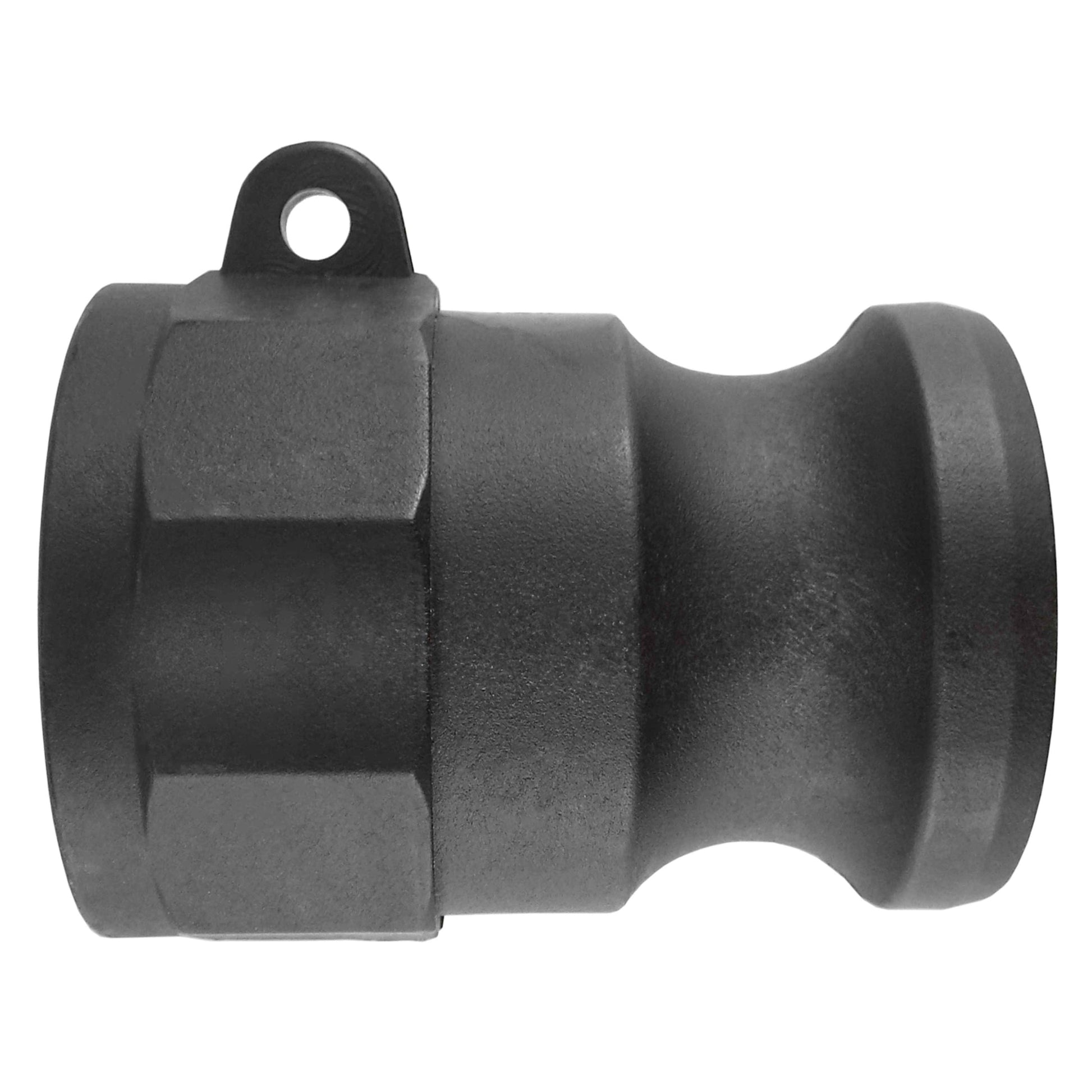

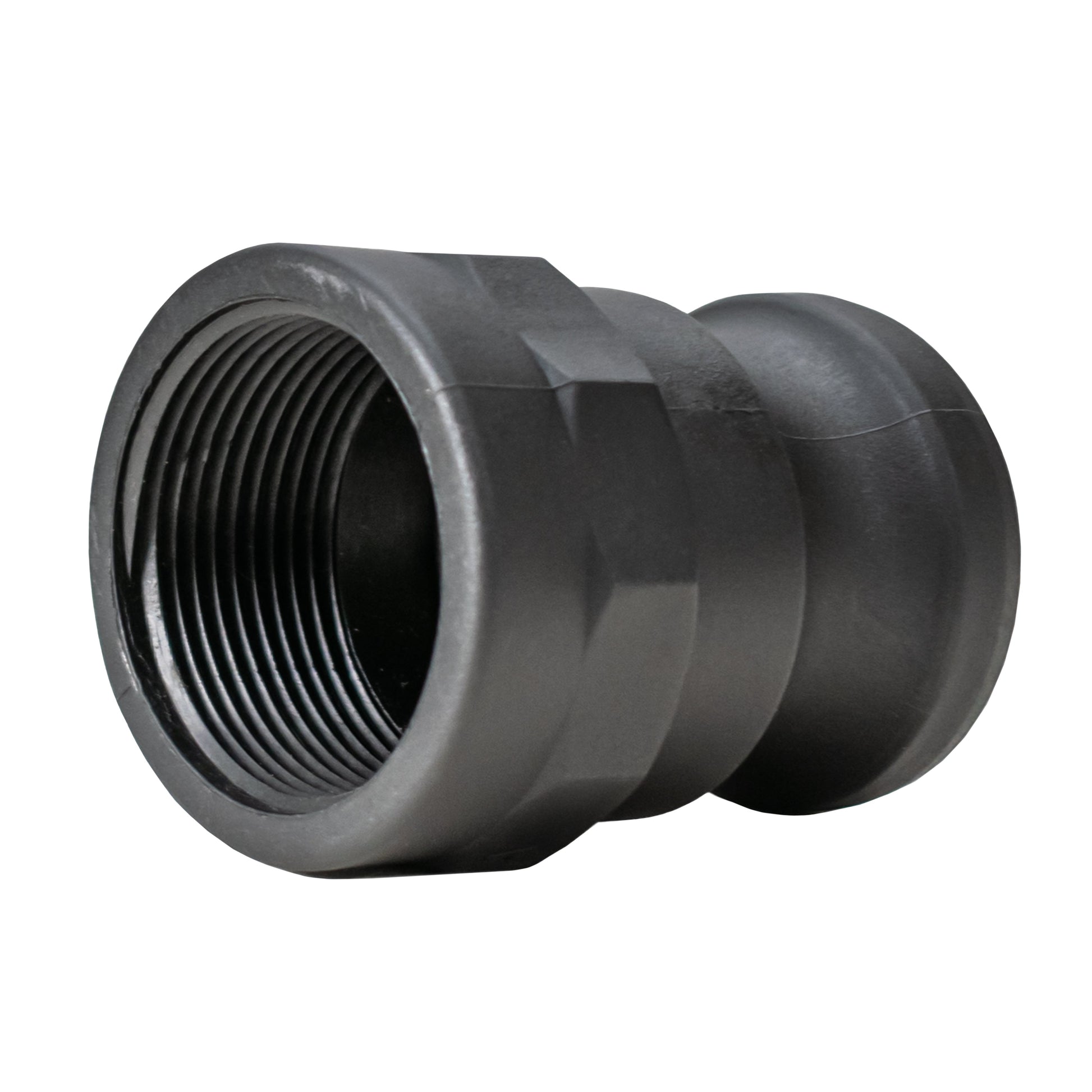

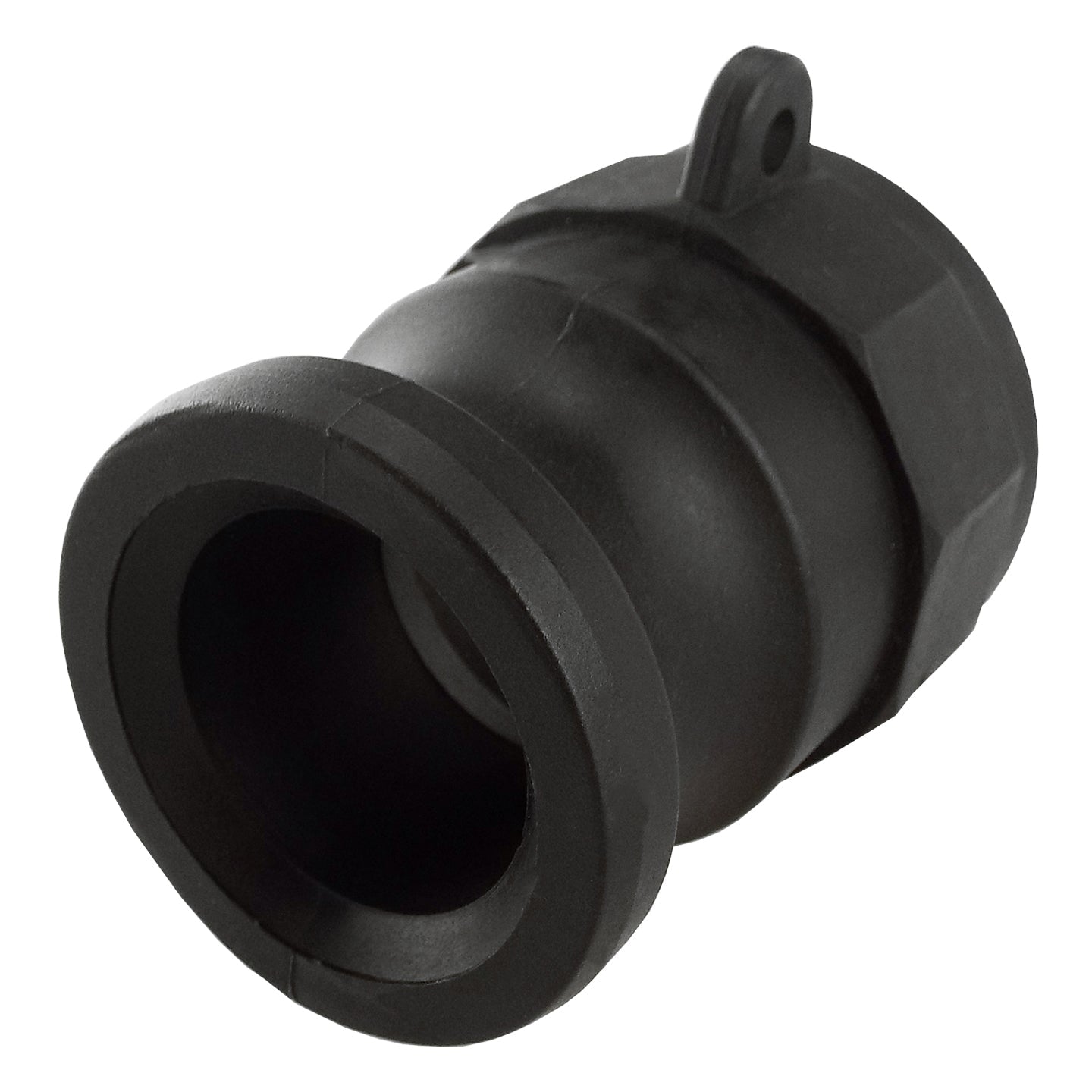

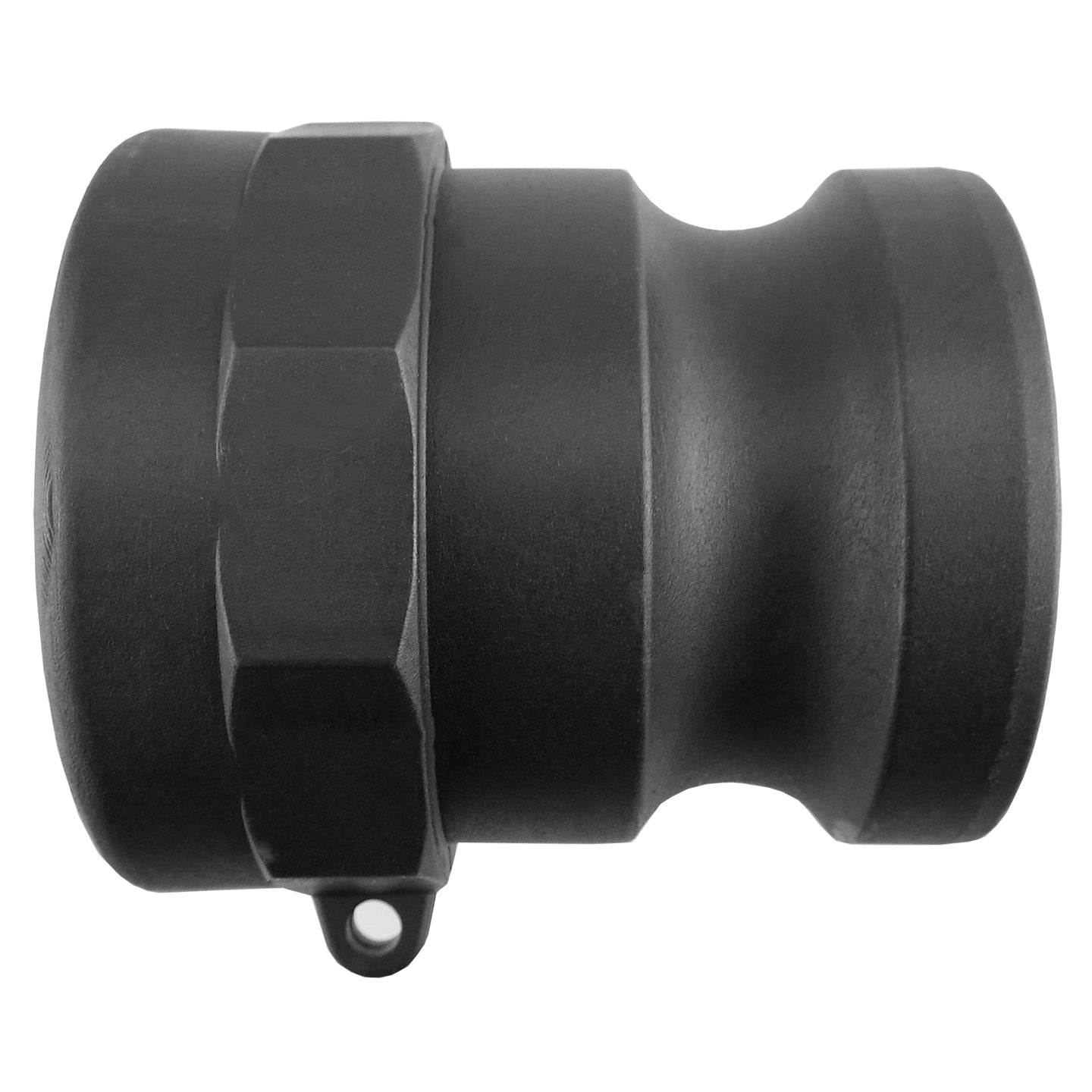

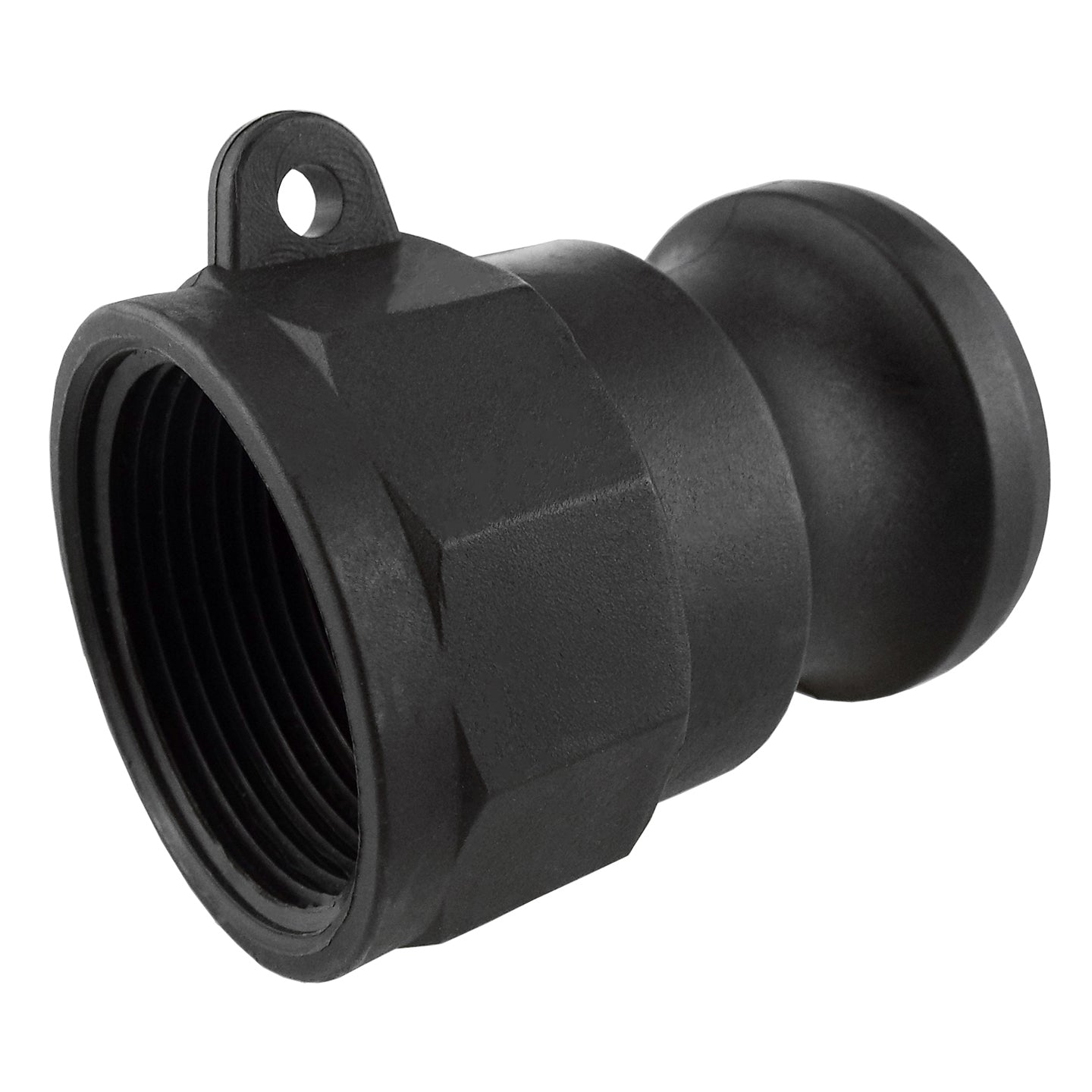

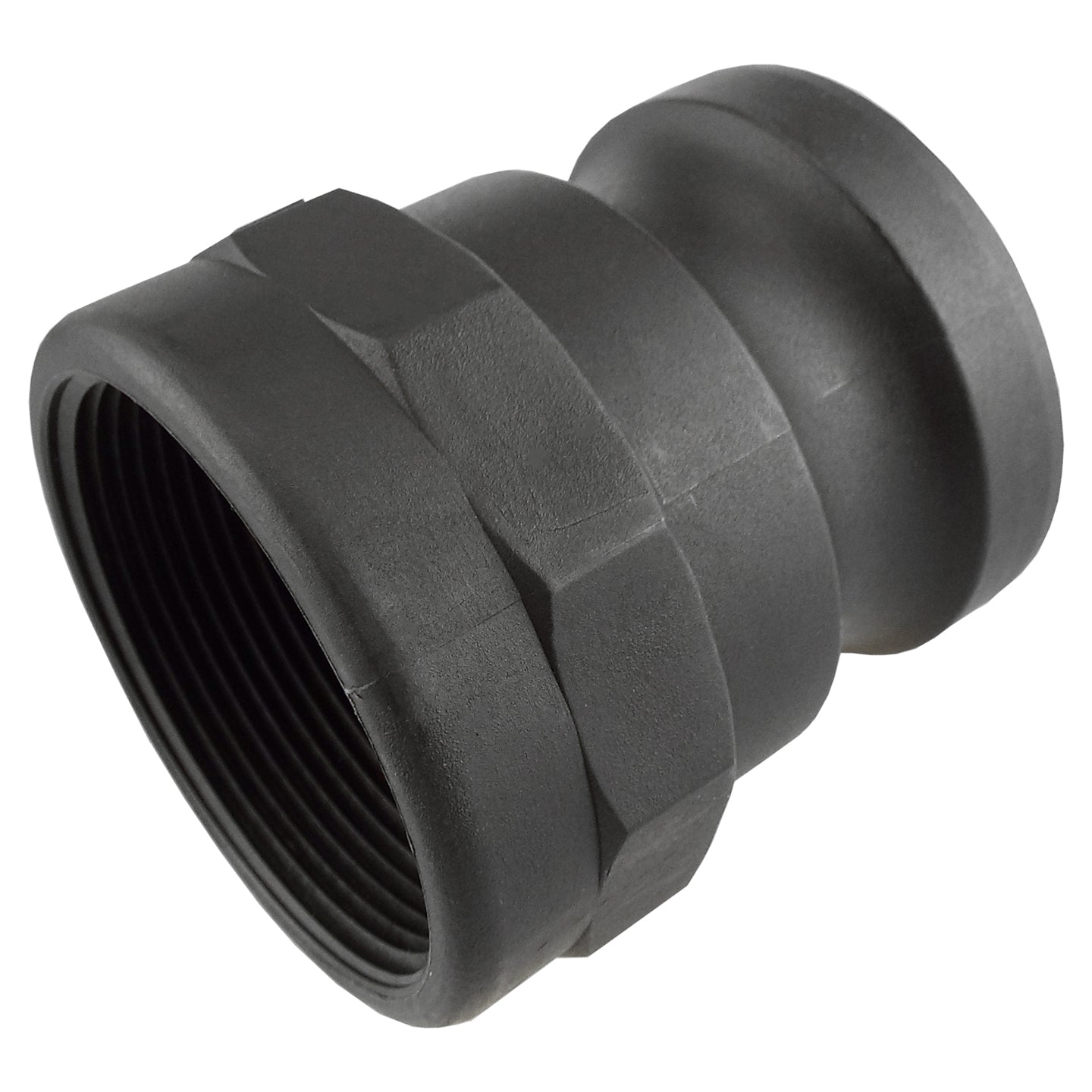

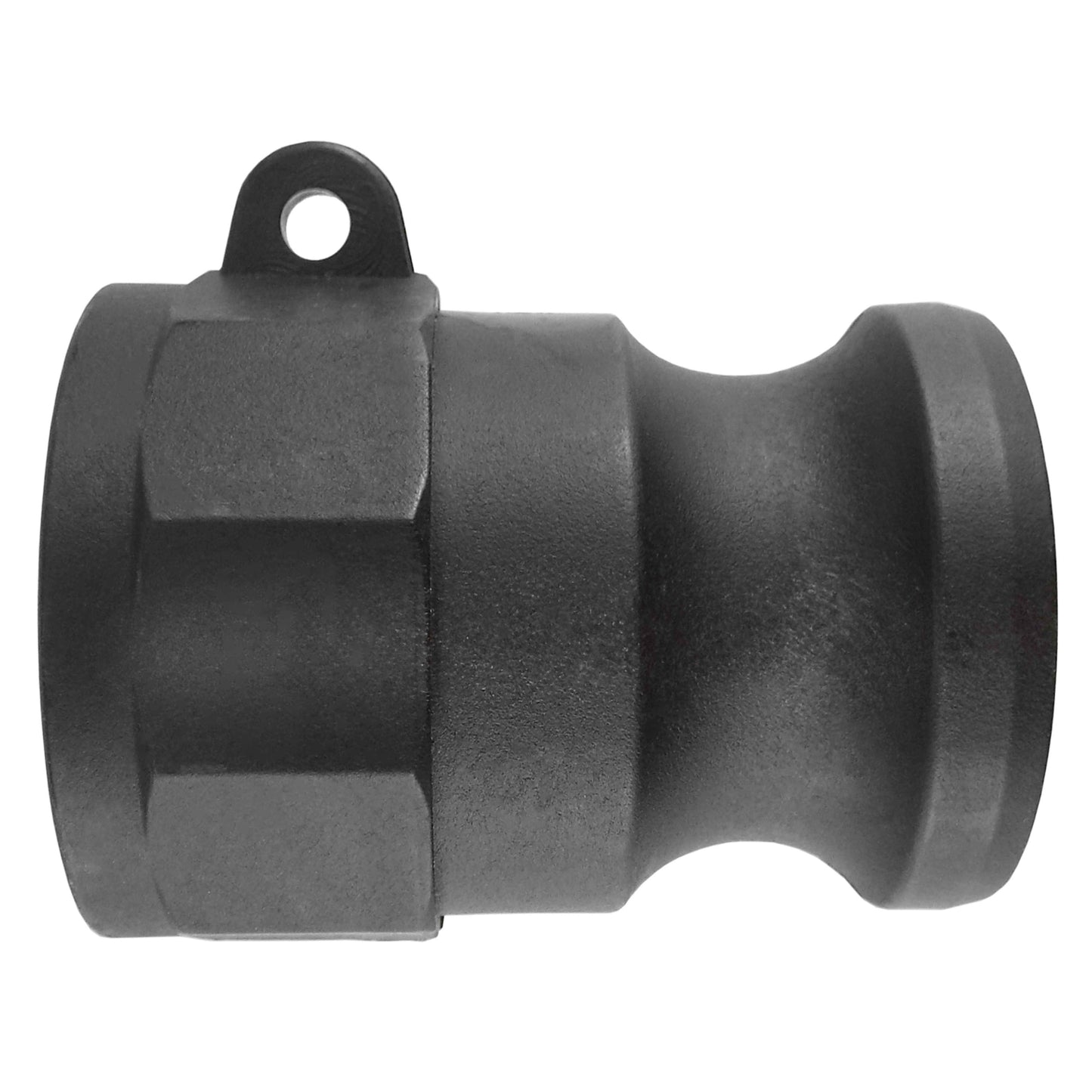

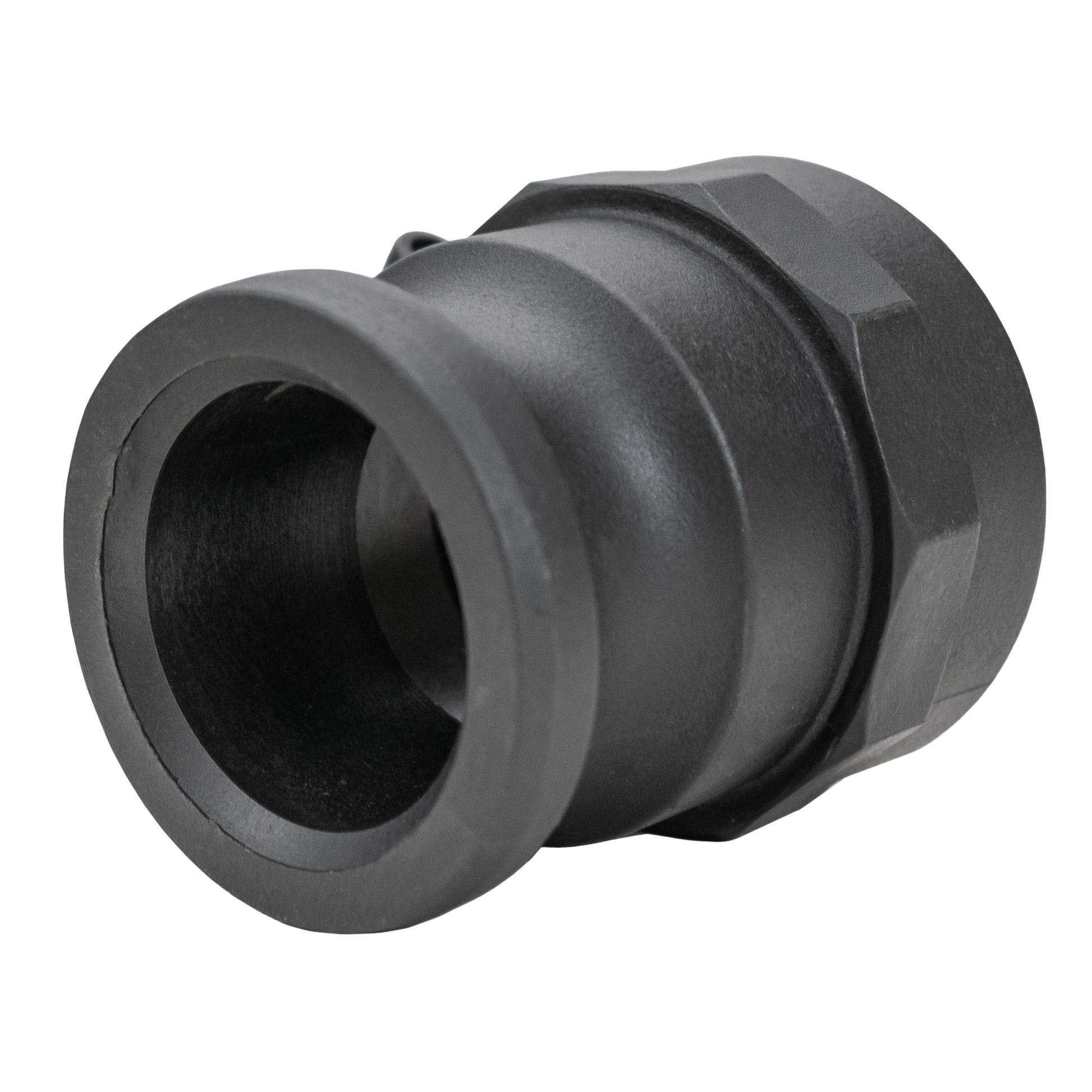

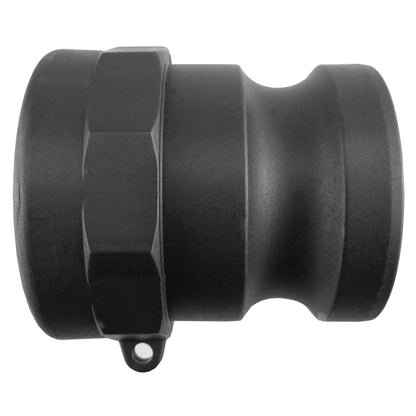

The black polypropylene body has a female screw socket at the hexagonal end and a grooved male nose at the other. One adapter is supplied; it is not a complete coupling kit.
The screw joint stays at the equipment
The camlock is the part you disconnect.
Thread the adapter’s 1½-inch female BSP socket onto a compatible male outlet, using a sealing arrangement suitable for the thread and equipment. This gives the equipment a male camlock nose ready to accept a separate female coupler.
For a removable hose, a same-size Type C female coupler provides a hose tail; check the tail against the hose bore and fit suitable clamps. The female coupler contains the operating arms and seal. There are no arms or shut-off valve on this Type A adapter.
Match the actual thread and camlock connection before buying. A tank outlet is not automatically BSP, and a different thread needs the appropriate converter.
Seat the camlock, then close both arms
Connect only with flow stopped and the system depressurised.
- Prepare and seal the threaded connection at the equipment.
- Open both arms on the separate female coupler, insert the male camlock nose fully, then close the arms evenly by hand and fit the coupler’s retaining hardware as instructed.
- Check the completed joint before use. Stop, isolate and depressurise before opening it again.
Choose a body and mating seal suitable for the liquid, temperature and working pressure of your system. The adapter makes the connection; any valve or flow control remains separate.
Check before ordering
Does 1.5 inches mean the same as 1½ inches?
Yes. Both describe the nominal size of this adapter’s camlock and BSP connections. They are not a 38.1mm measurement across the body. Match the stated connection type and size to your existing parts.
What is included?
One black polypropylene Type A adapter with a 1½-inch male camlock and 1½-inch female BSP thread. The female coupler, hose, clamps and thread-sealing materials are separate.
Product information & technical details
| SKU | CAMTA15BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 1.5" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal 1½-inch male camlock × 1½-inch female BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
