Description
Keep the thread fitted. Disconnect at the camlock.

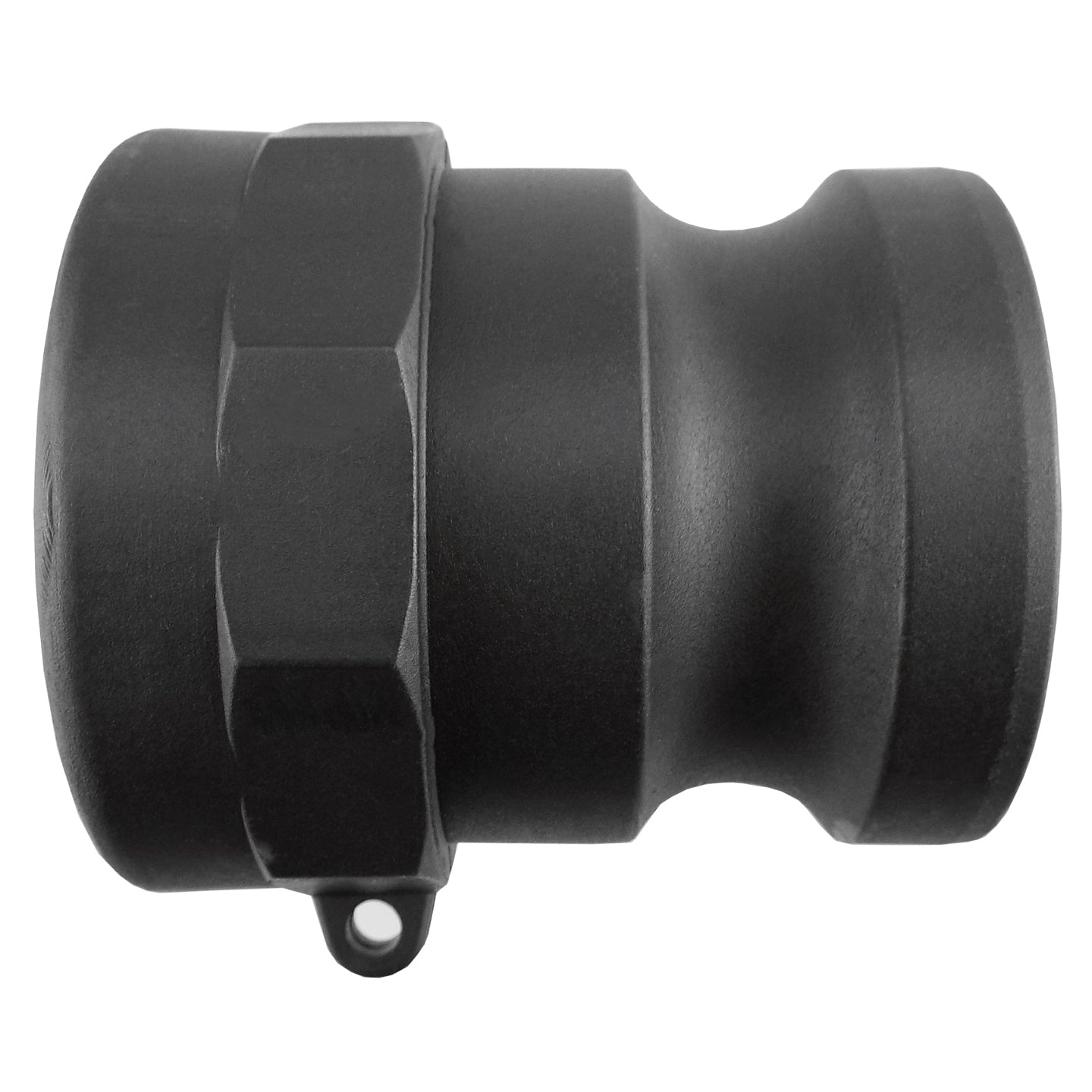

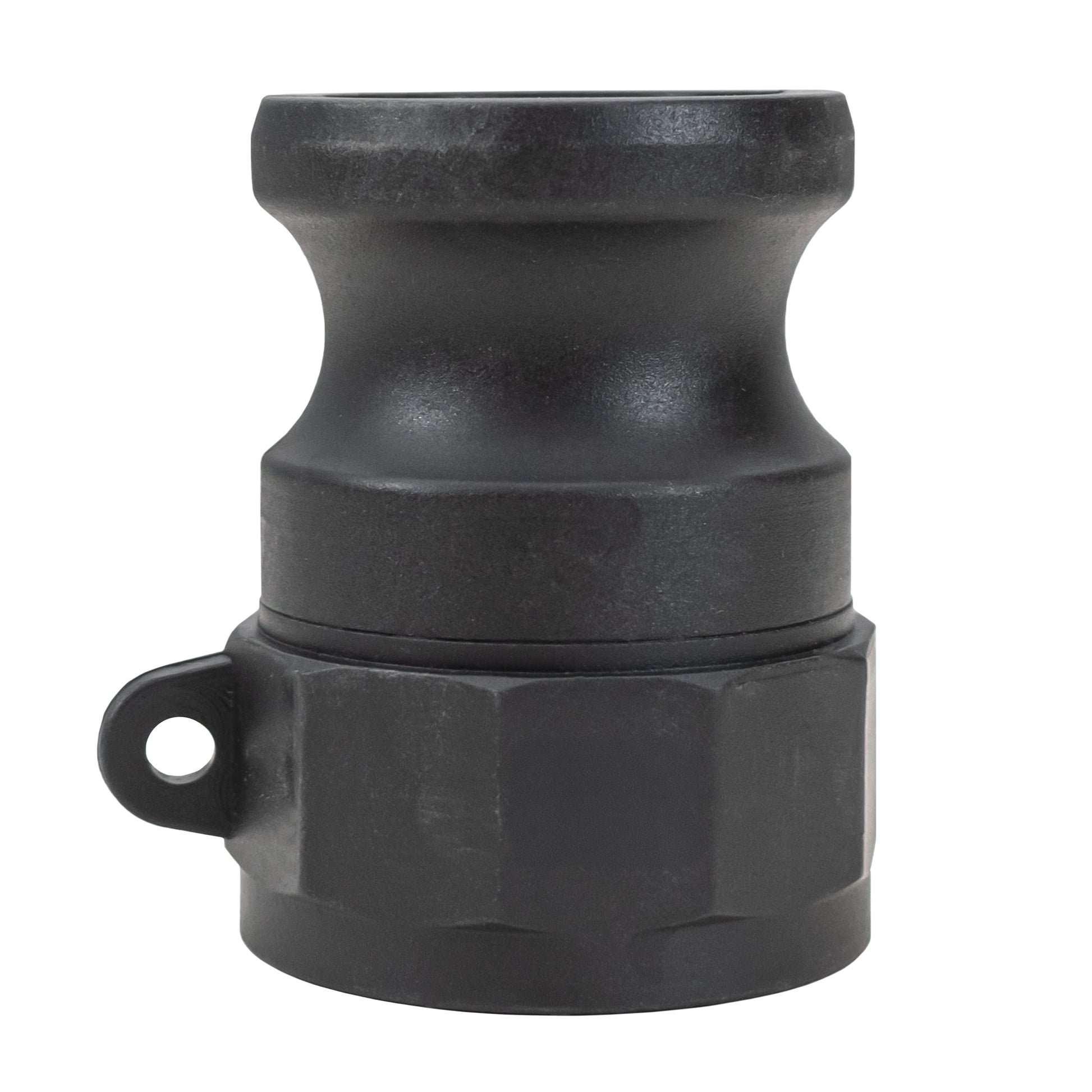

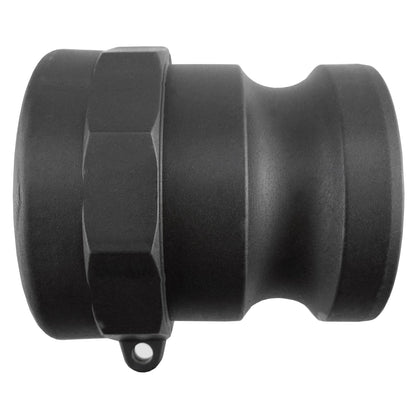

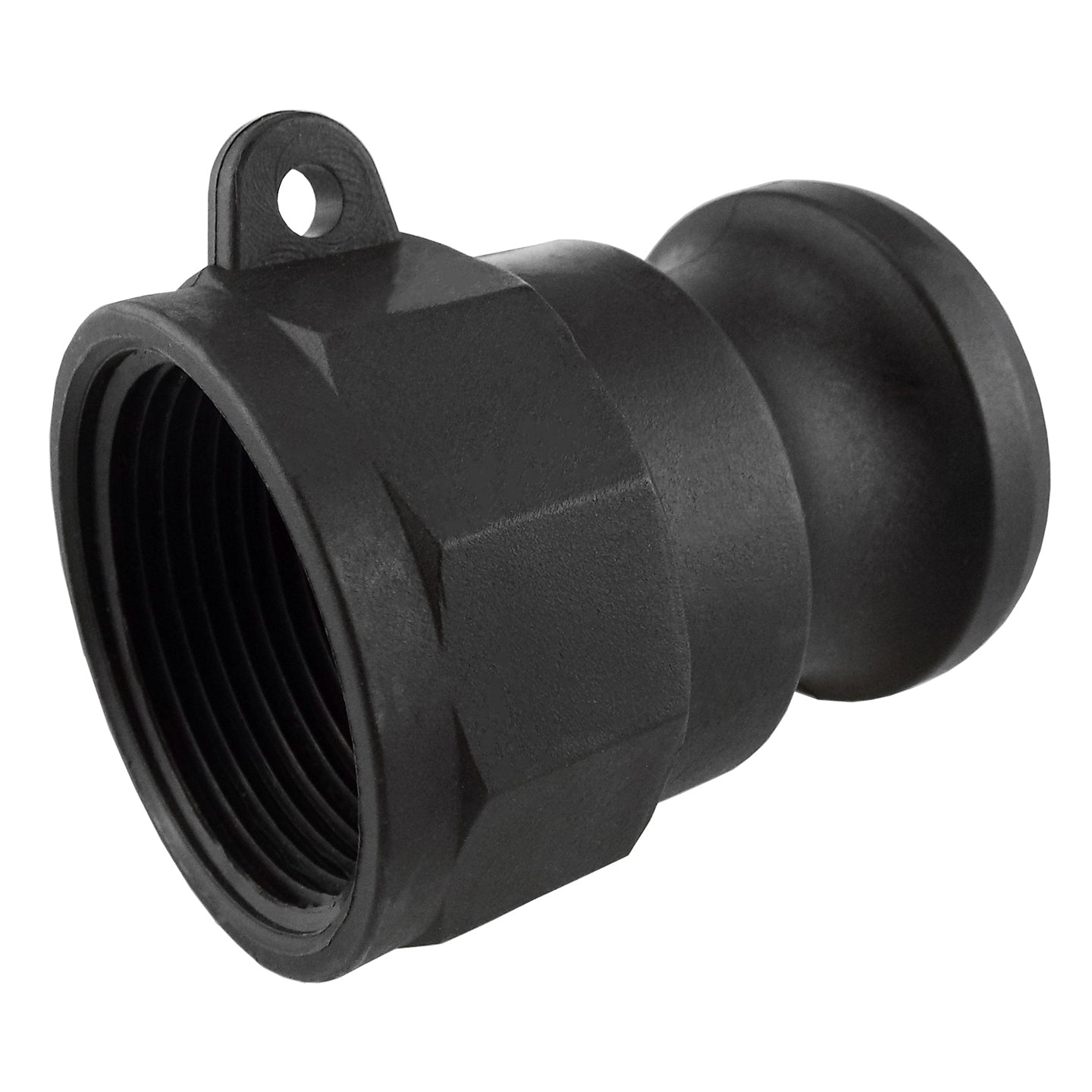

A removable hose connection does not have to mean unscrewing the equipment end every time. This 1¼-inch Type A camlock adapter adds a grooved male connection to a matching male BSP outlet, ready for a separate female camlock coupler.
The female BSP thread stays at the equipment. The camlock joint is where you attach or remove the line for storage, cleaning or a change of setup. Supplied as one black polypropylene fitting.
Two ends, one nominal size
Check the screw thread and the camlock separately.

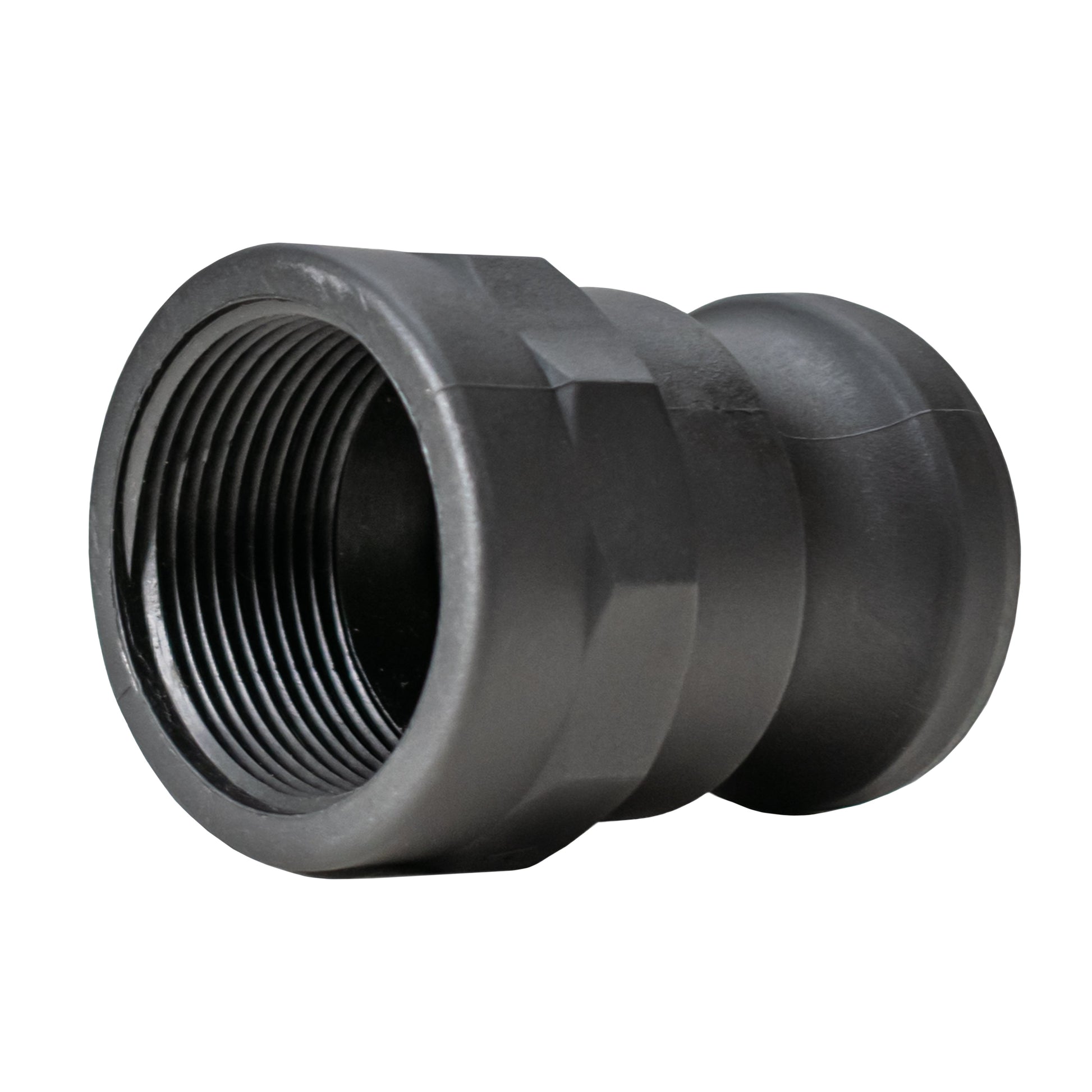

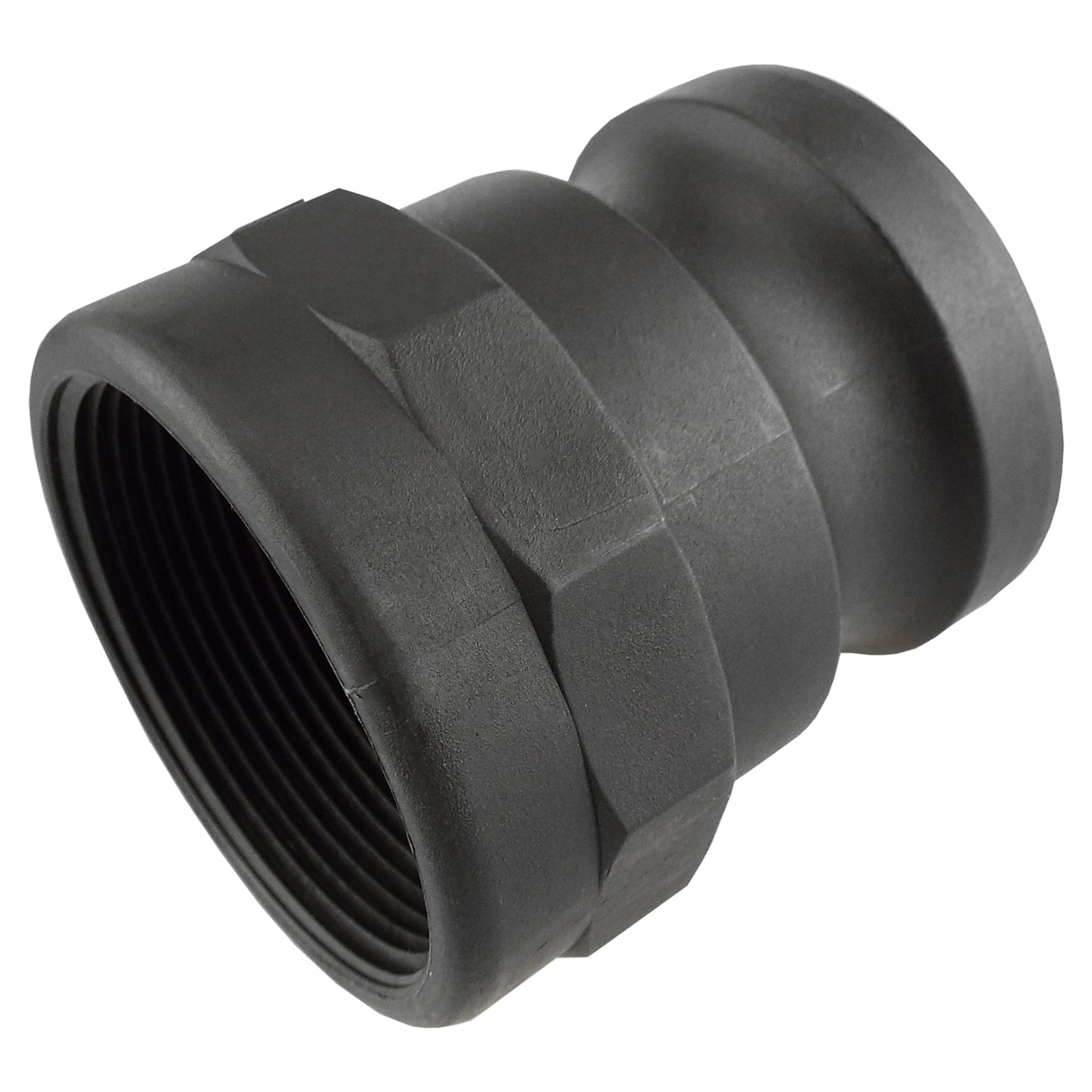

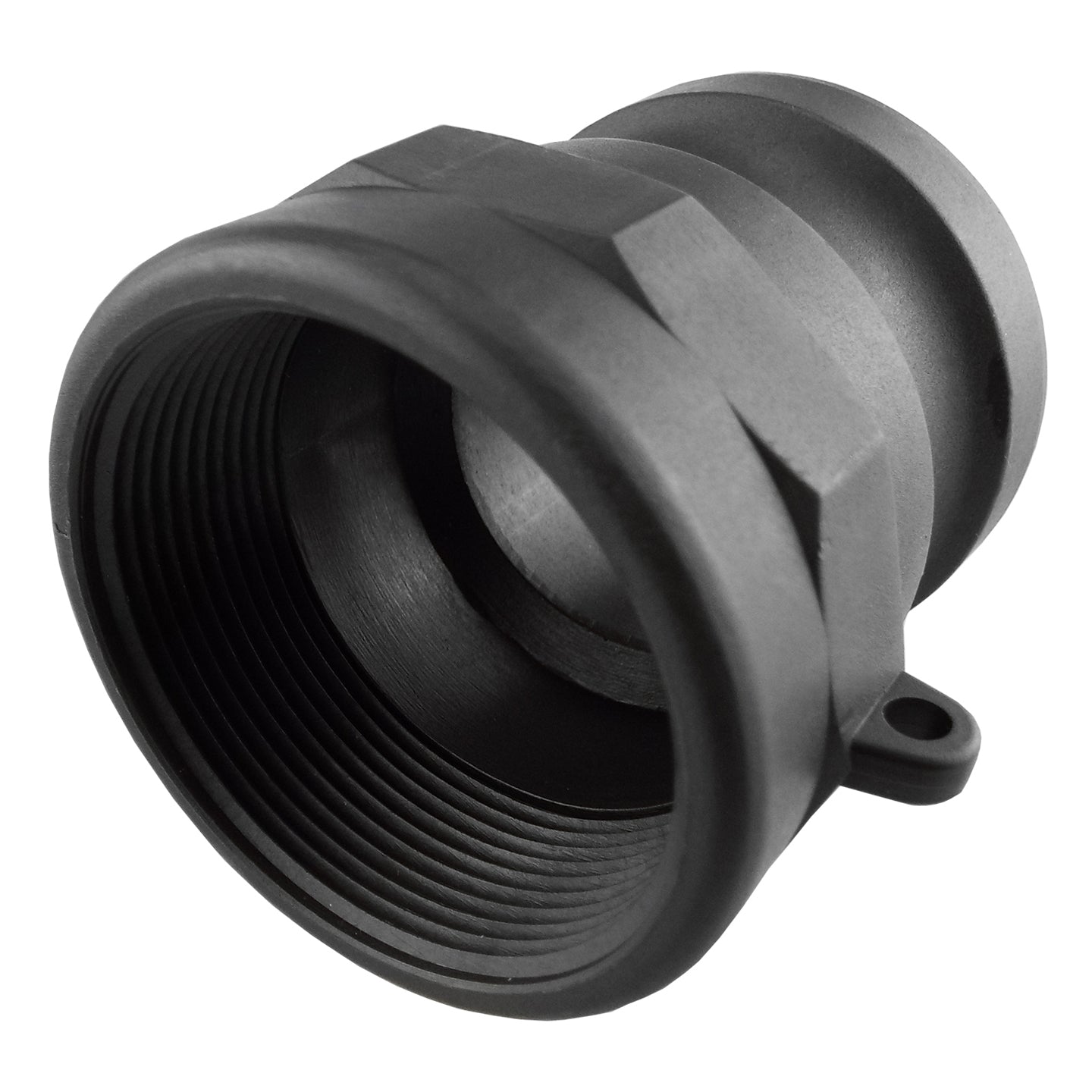

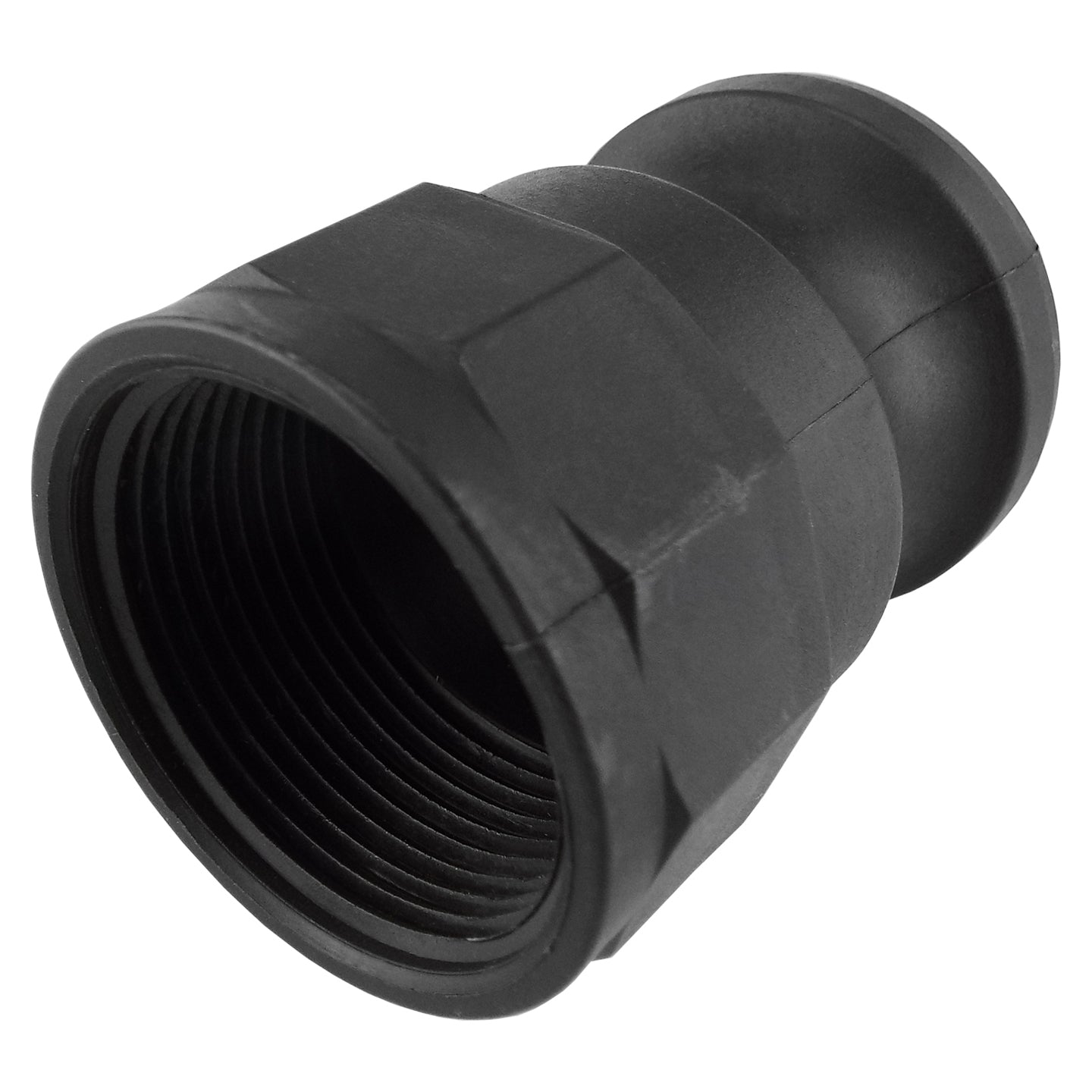

The threaded end: 1¼-inch female BSP, for a compatible male BSP pipe or equipment outlet. The thread is inside the hexagonal end of the adapter.

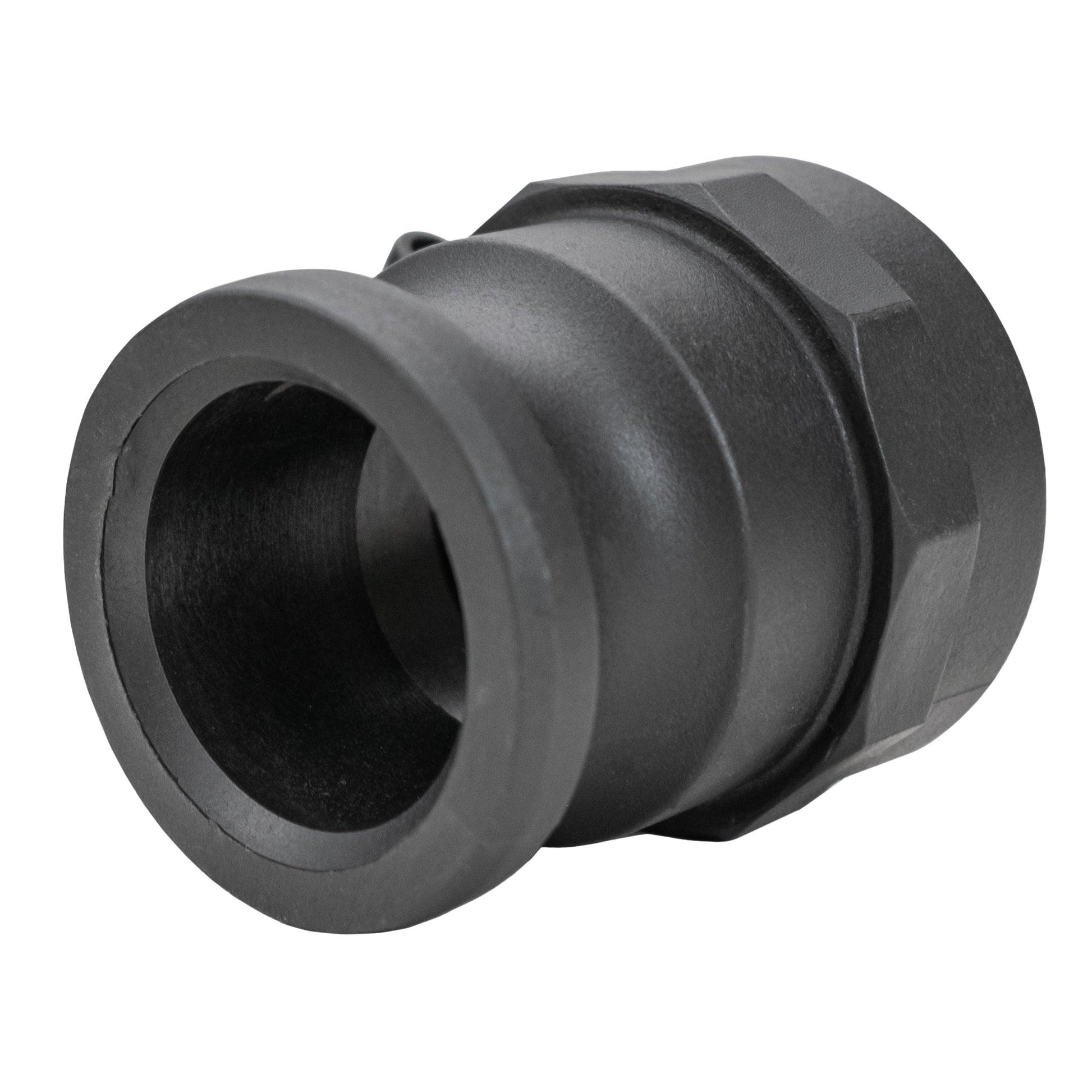

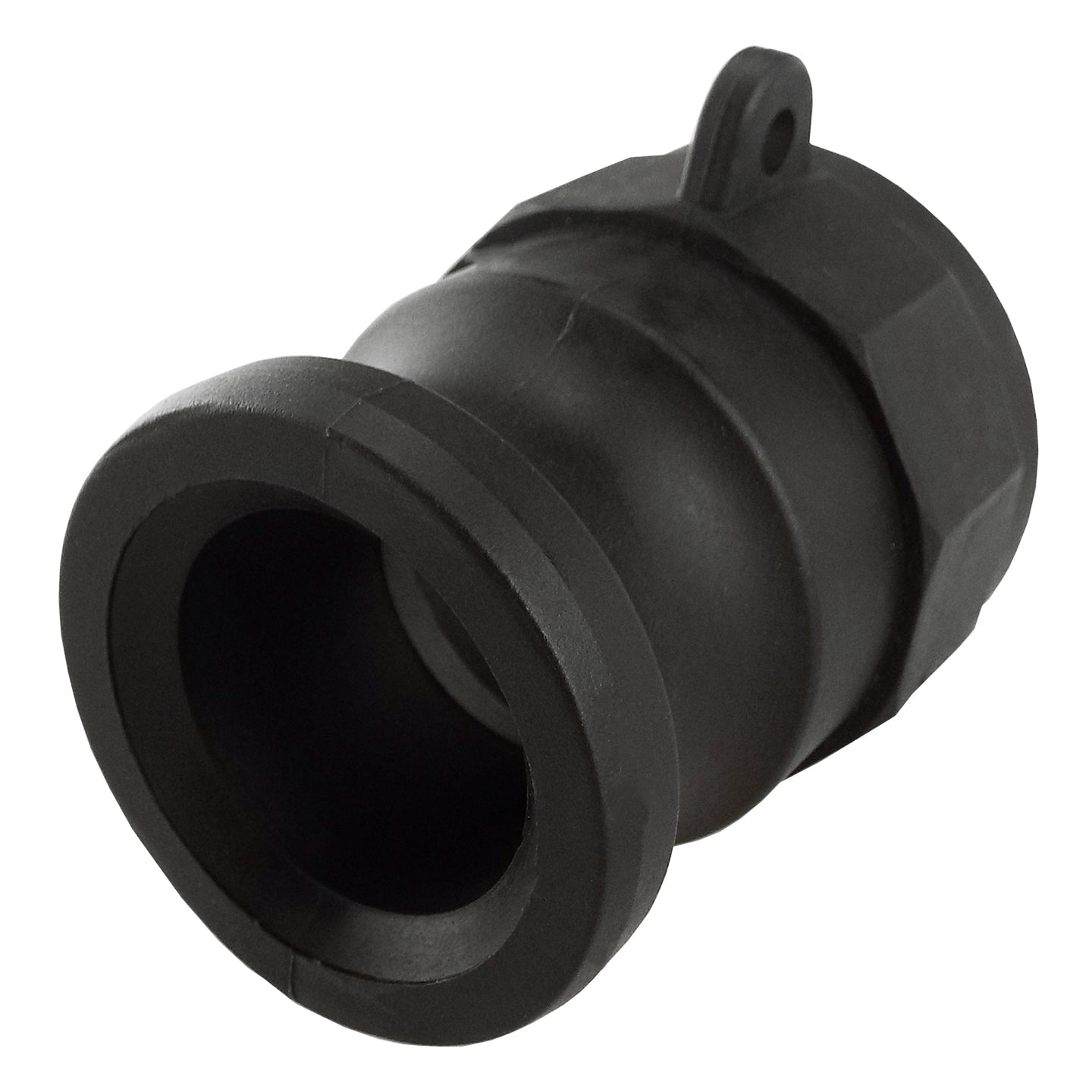

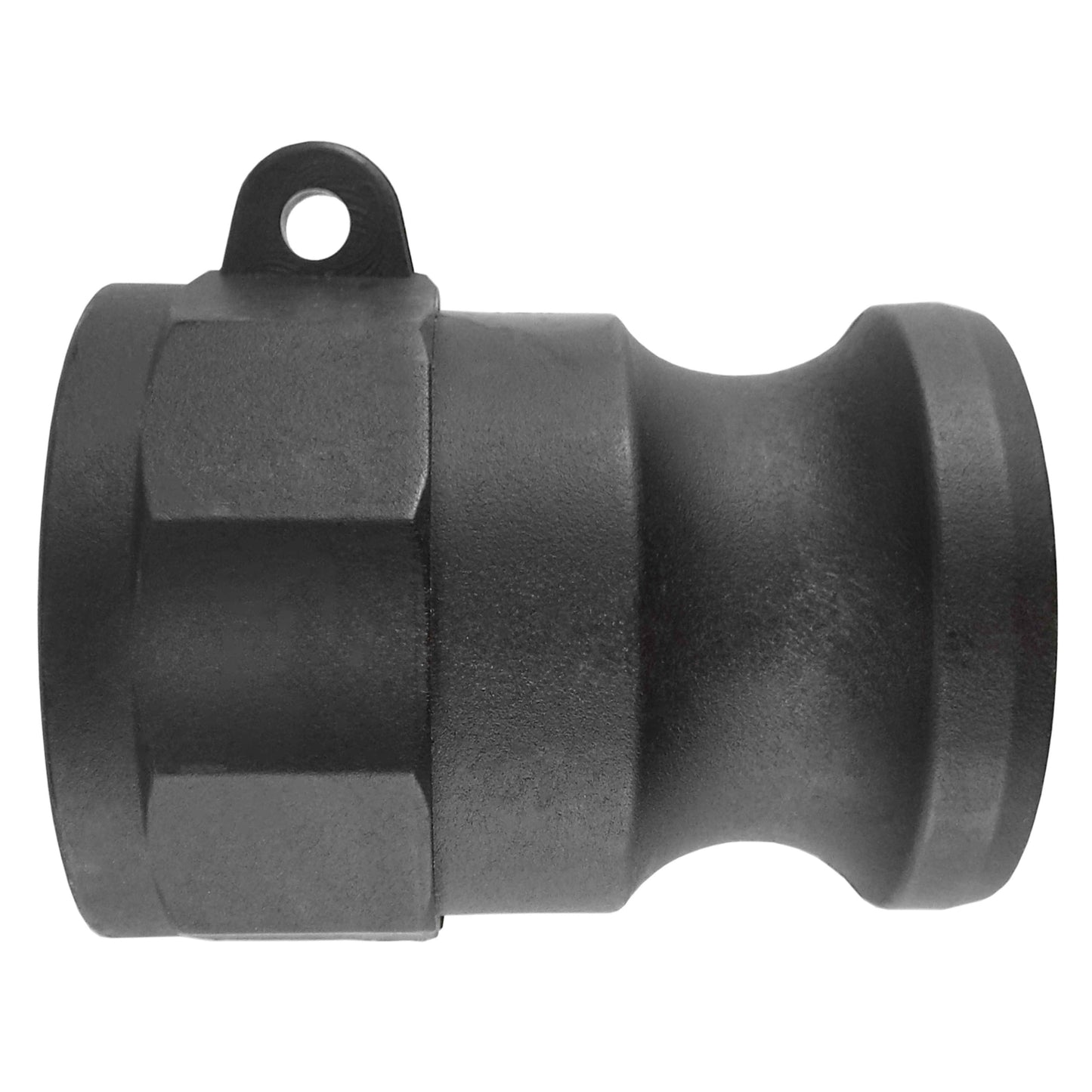

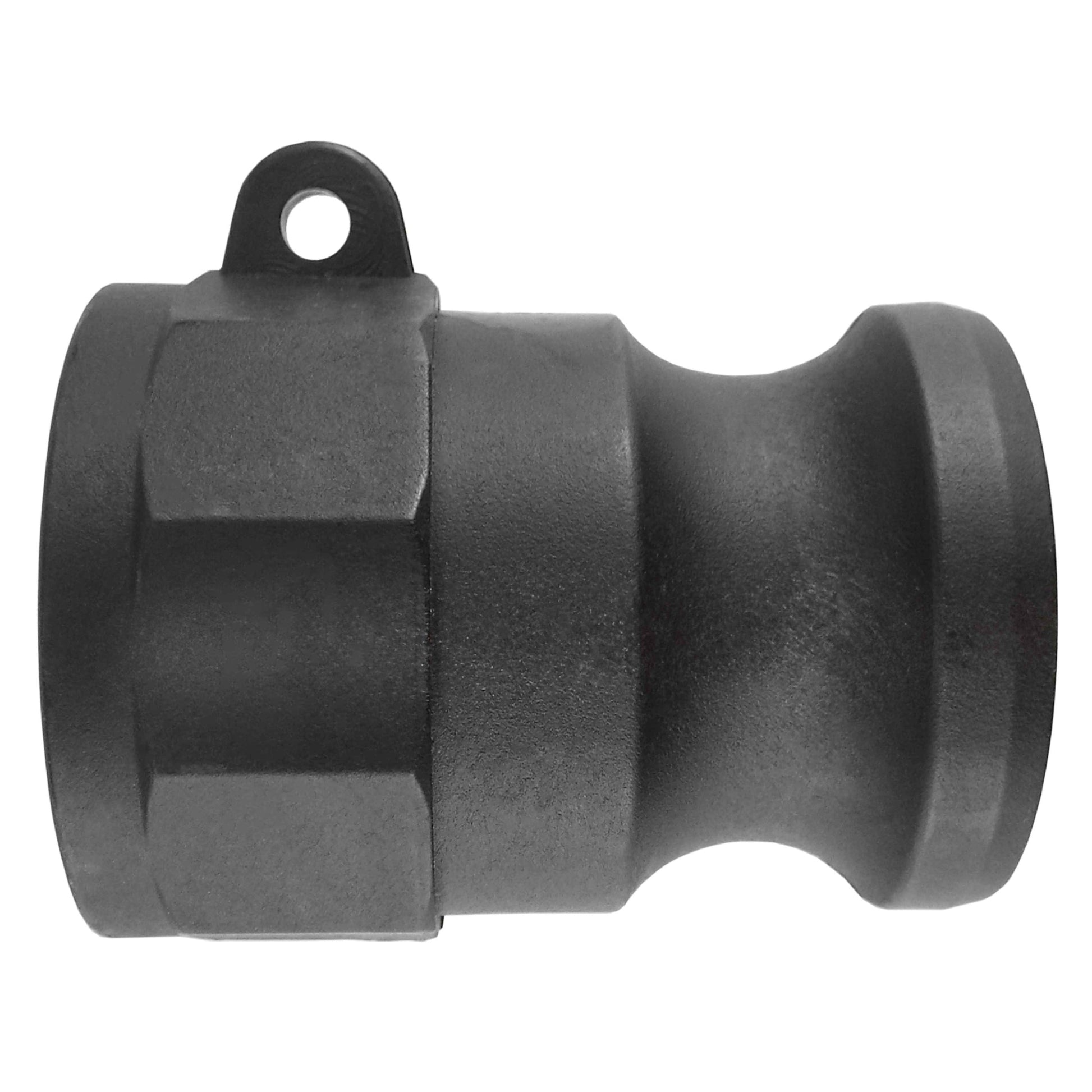

The detachable end: 1¼-inch male camlock, with a smooth nose and a groove for the arms of a compatible female coupler. This fitting has no arms of its own.
The size is also written as 1.25 inches. It is a nominal connection size, not a 31.75mm measurement across the body. Check your existing fitting’s thread and camlock size before ordering.
Make the fixed end first
Prepare the equipment connection with the system stopped and depressurised.
- Fit the female BSP socket to the matching male thread, using a sealing arrangement suitable for the equipment.
- Open both arms on the separate female camlock coupler. Insert the male nose fully, close both arms evenly by hand and fit the coupler’s retaining hardware as instructed.
- Check the completed connection before use. Isolate and depressurise again before releasing the camlock.
Choose the mating coupler to suit the line: a same-size Type C provides a hose tail, while a Type D provides a female BSP thread. Both are separate purchases. The adapter is open through its centre; it does not turn the flow off.
Choosing this adapter
Is it the same as a Type F fitting?
No. Both have a male camlock nose, but Type A has a female BSP thread and Type F has a male BSP thread. Choose the version that matches the connection on your equipment.
What comes with it?
One 1¼-inch Type A polypropylene adapter. Hose, female camlock coupler, clamps and thread-sealing materials are not included. Check that the polypropylene body and the mating coupler’s seal suit your liquid and operating conditions.
Product information & technical details
| SKU | CAMTA125BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 1.25" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal 1¼-inch male camlock × 1¼-inch female BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
