Description
A camlock connection for your threaded outlet.

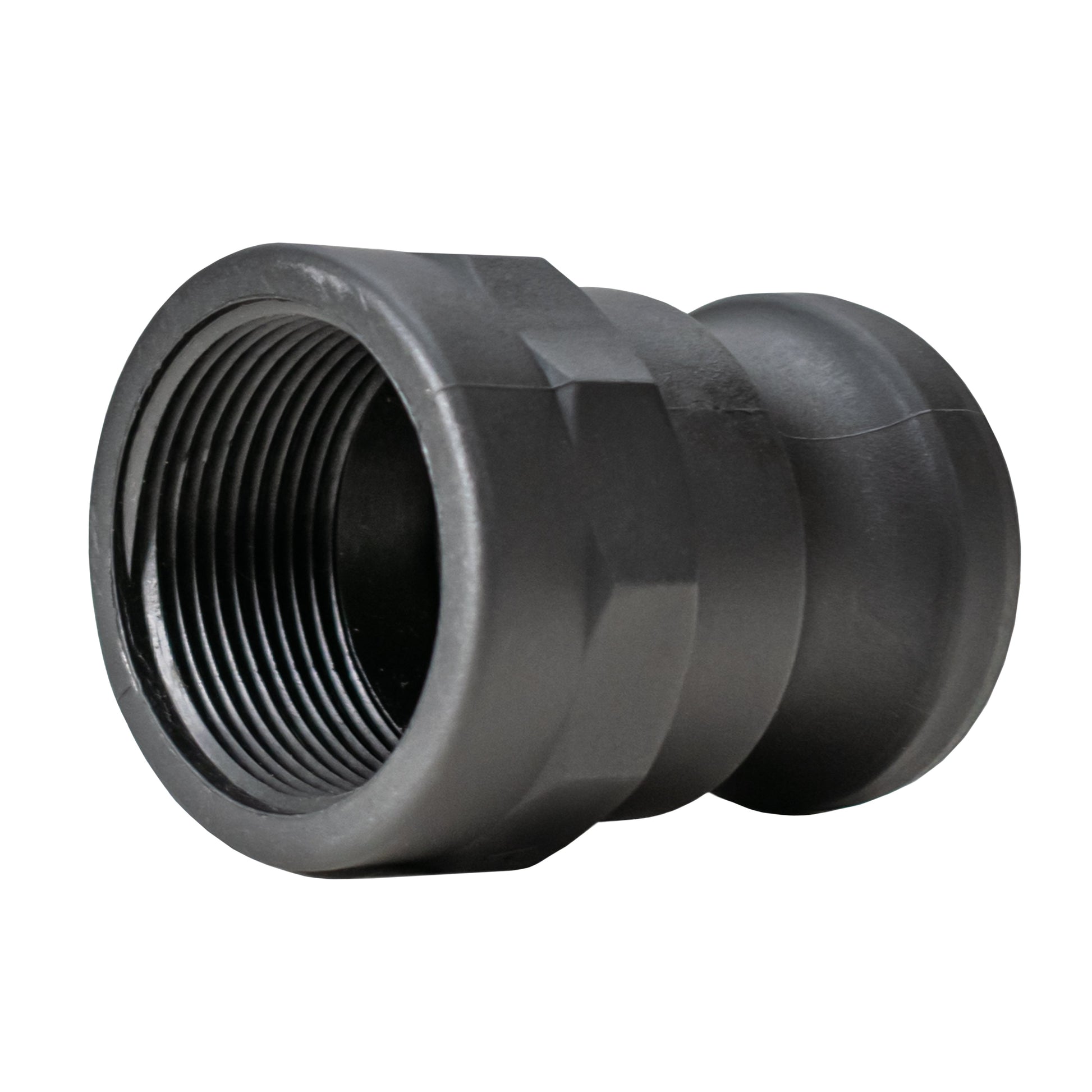

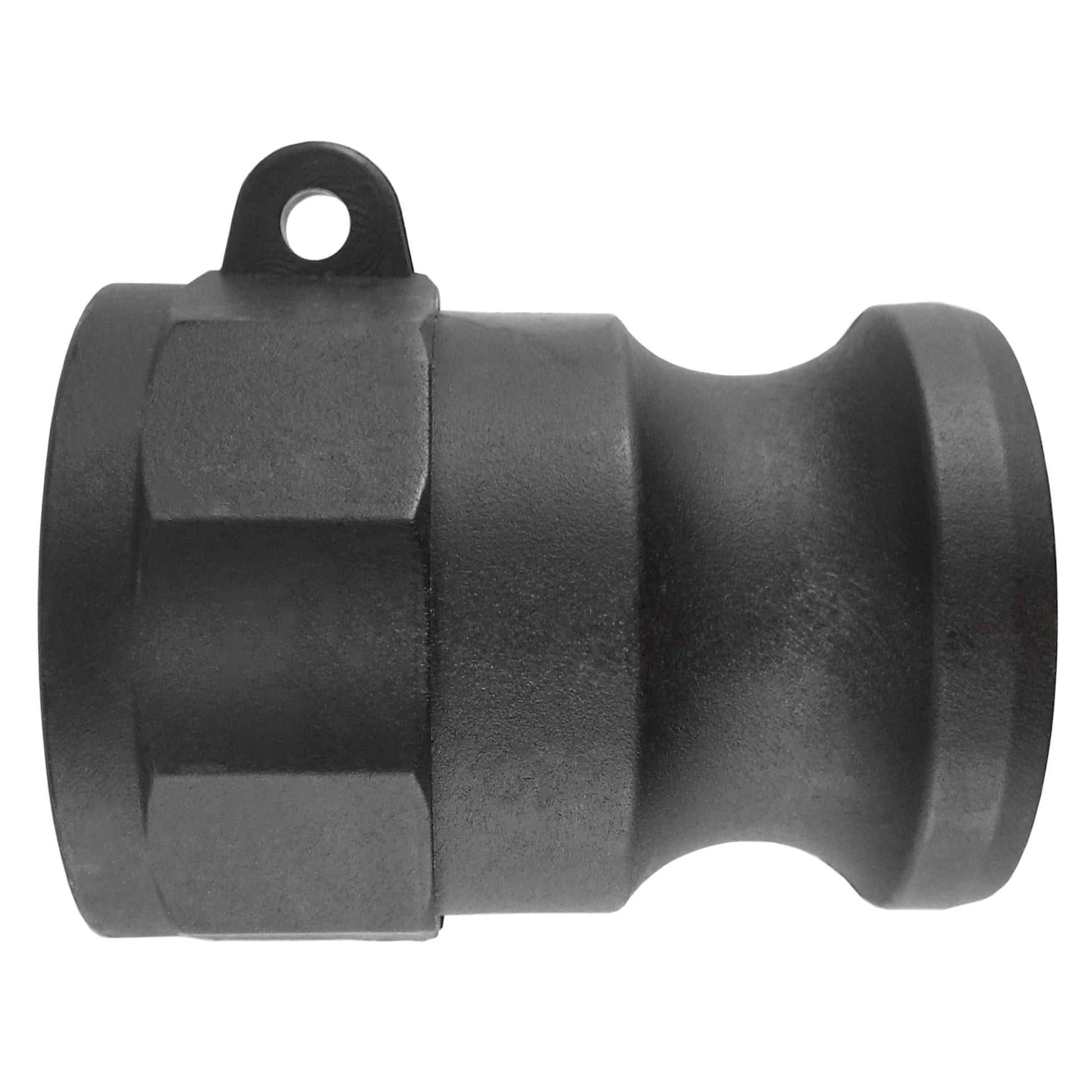

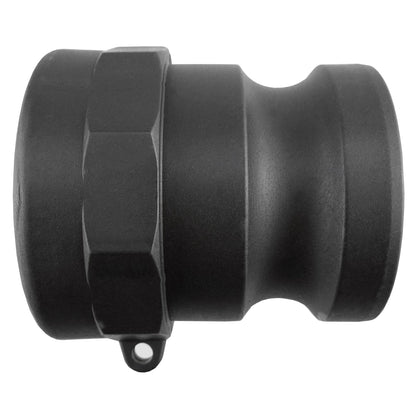

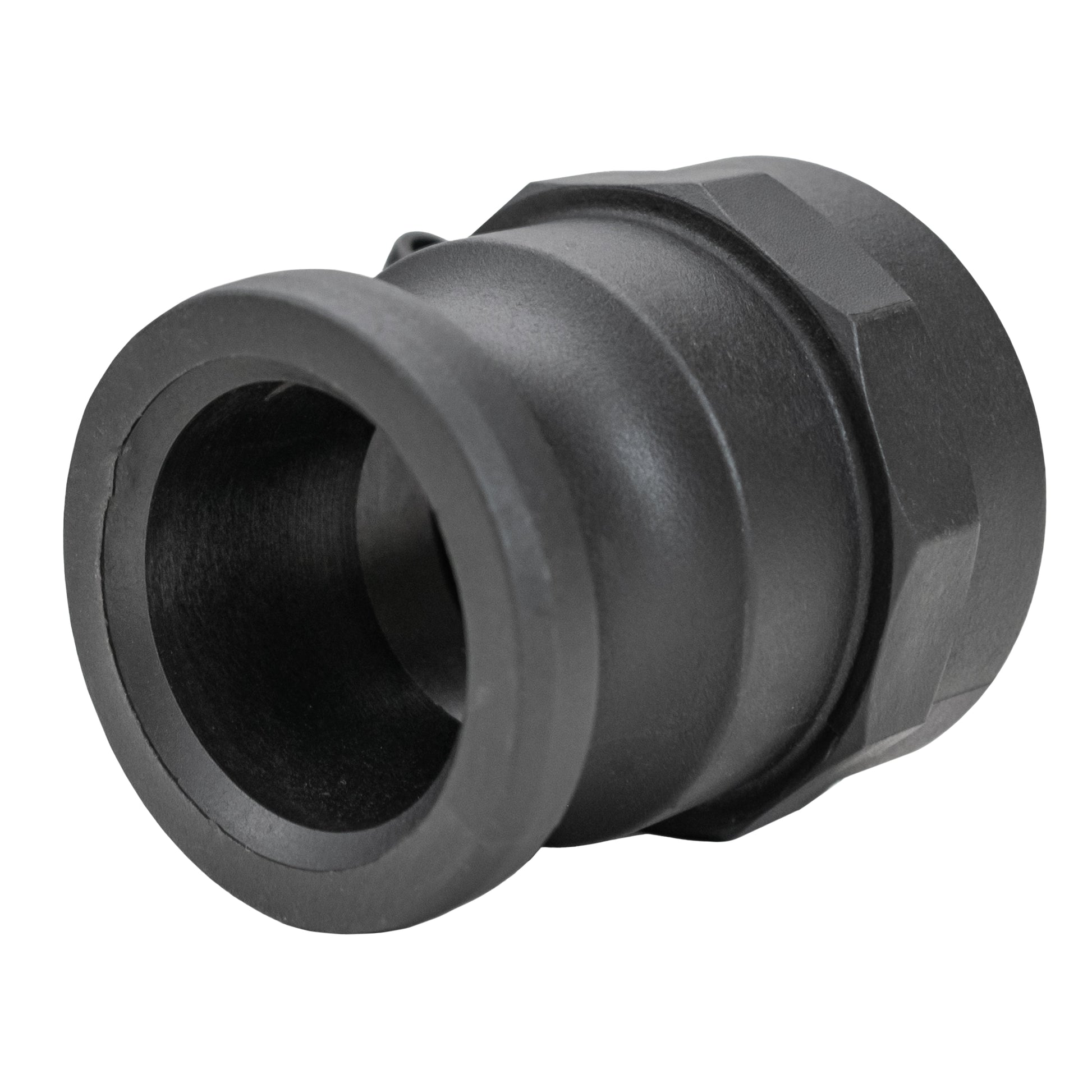

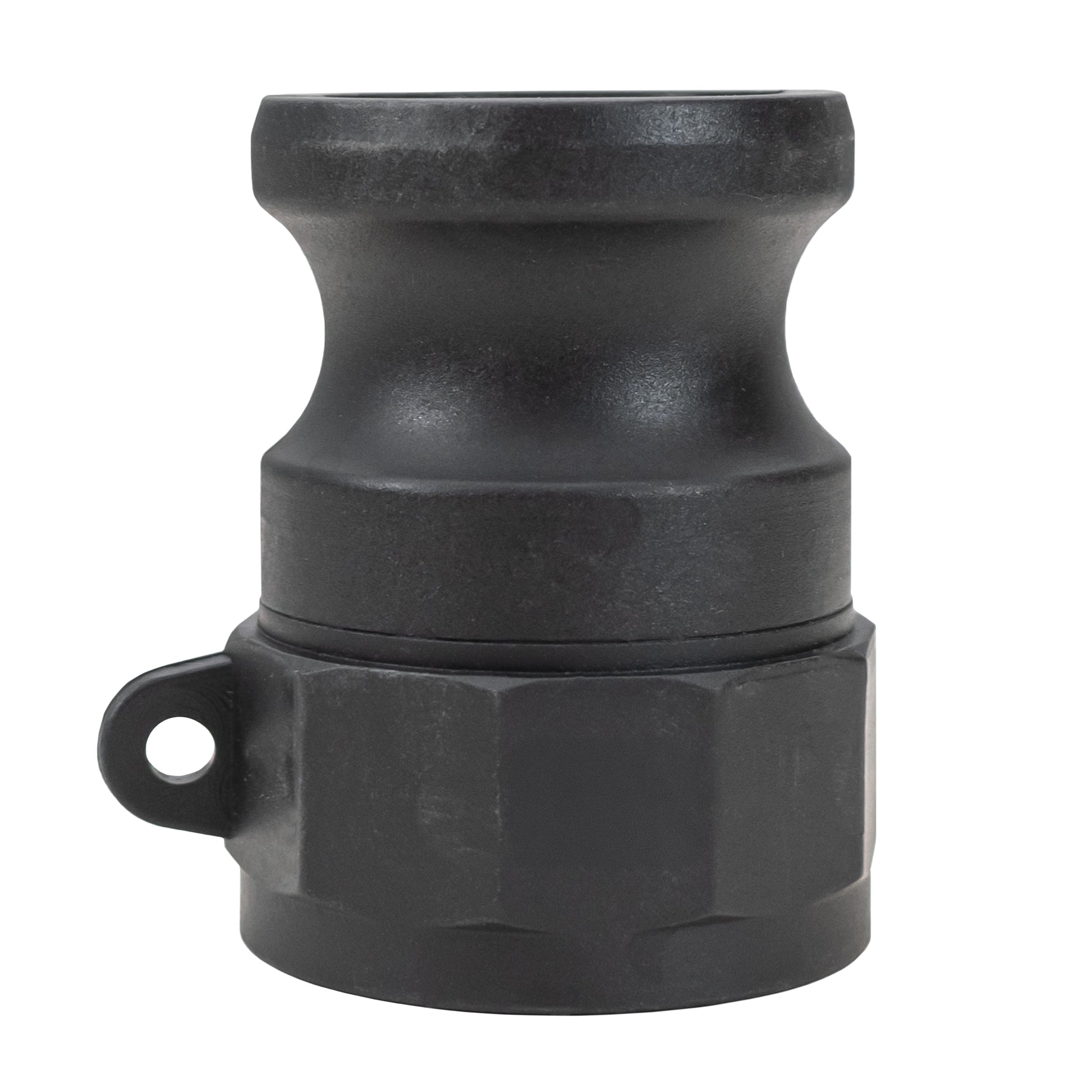

Add a removable connection to compatible pipework with this ½-inch Type A camlock adapter. Its female BSP socket screws onto a matching male outlet, leaving a grooved male camlock nose ready for a separate female coupler.
Keep the screw connection at the equipment and disconnect the line at the cam joint when you need to change or store it. You receive one black polypropylene adapter, rather than a mating pair.
Identify each end before you connect
The camlock and screw thread do different jobs.
At the equipment: the internal ½-inch female BSP thread accepts a compatible male BSP thread. Check the thread on your existing outlet and use the correct sealing arrangement for the equipment.
At the removable line: the ½-inch male camlock has a groove for the arms of a suitable female coupler. Those arms and the joint’s seal belong to the separate female part; this adapter has neither arms nor a shut-off valve.

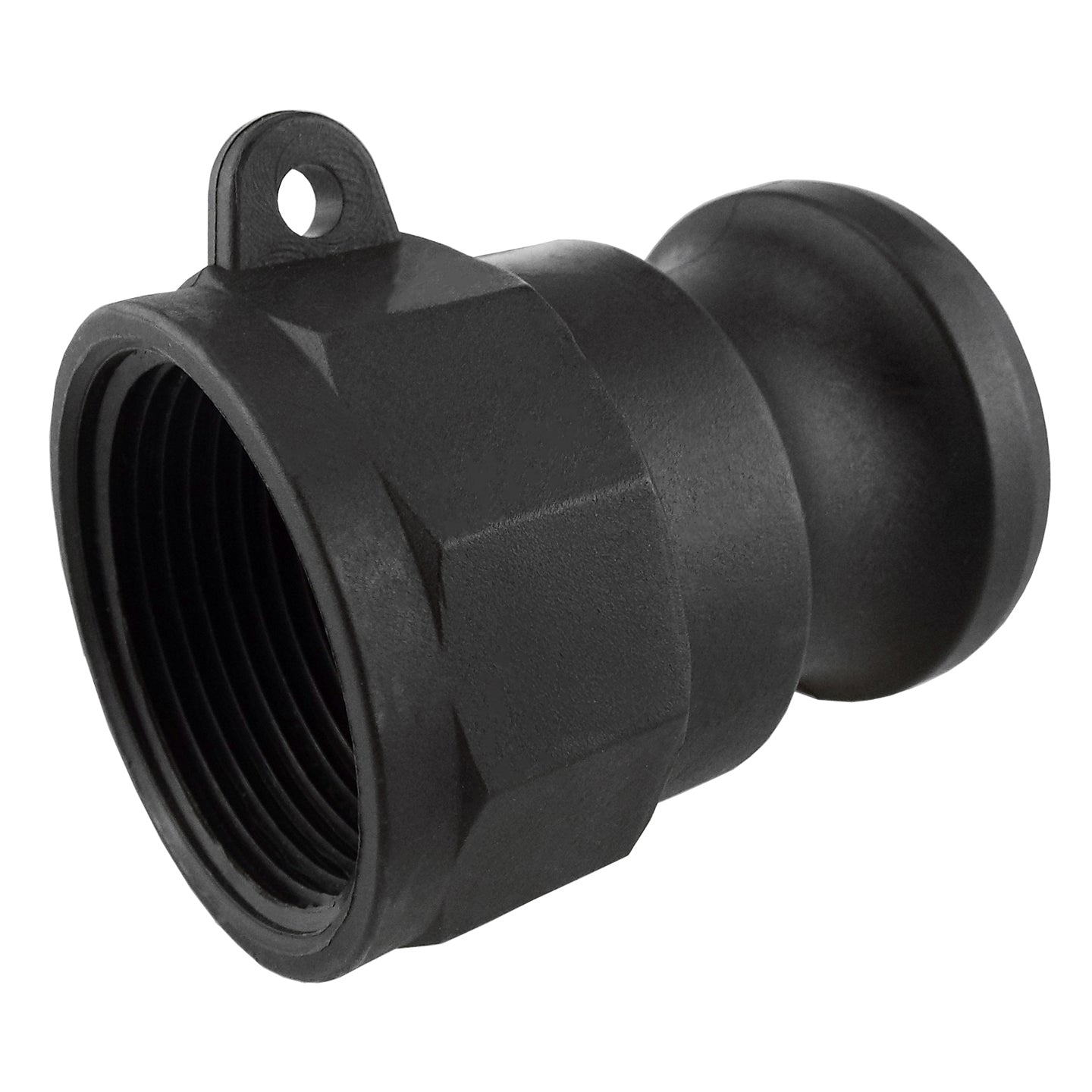

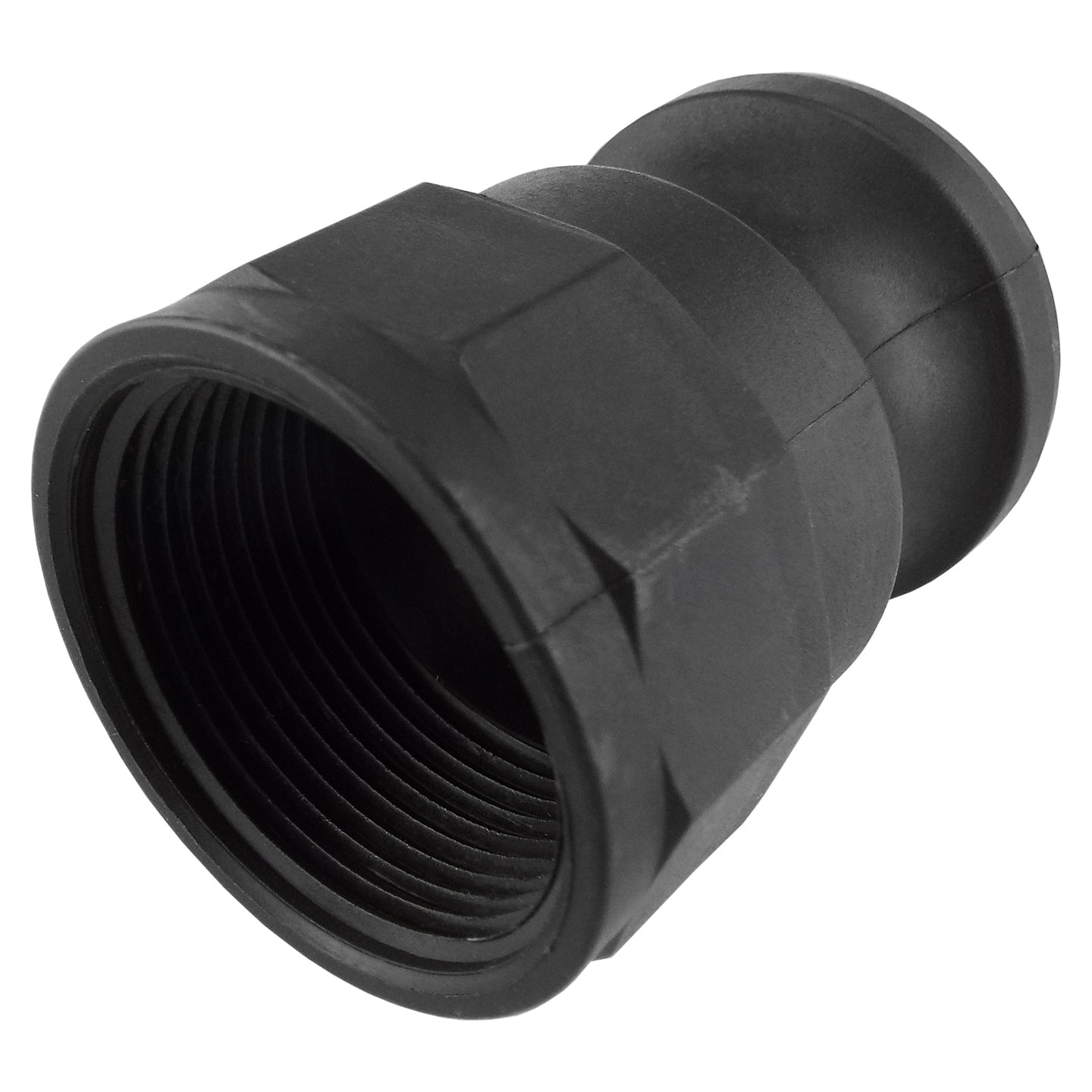

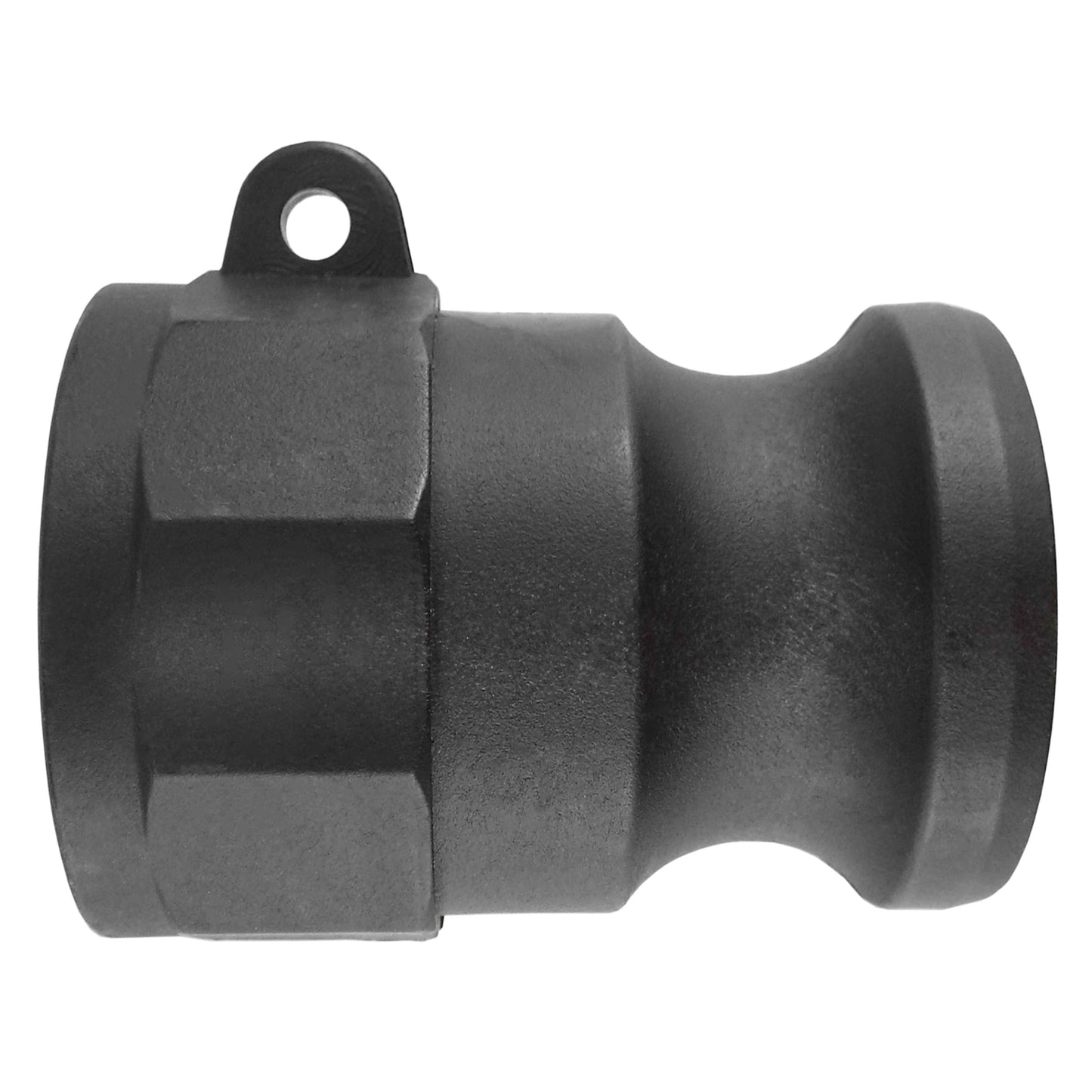

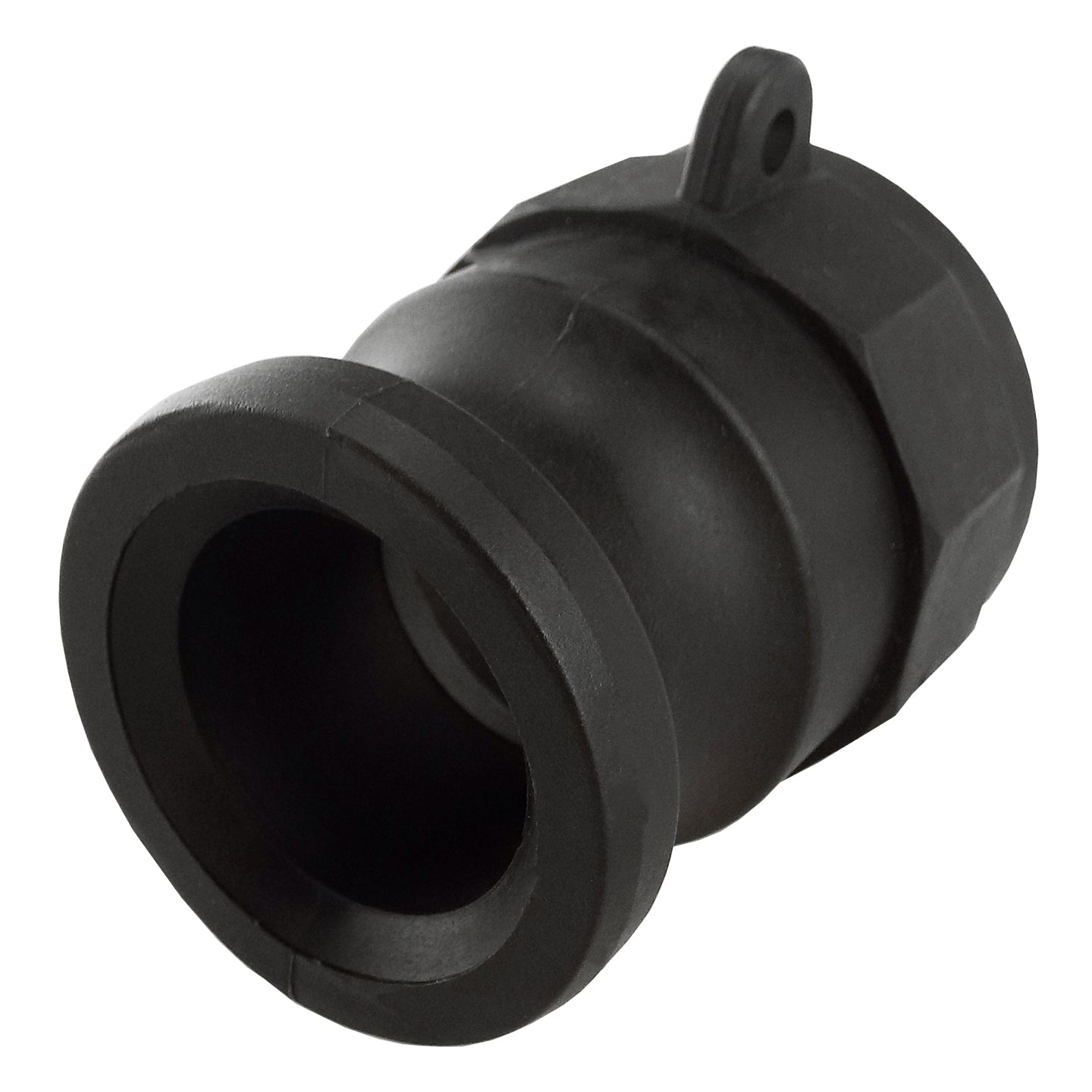

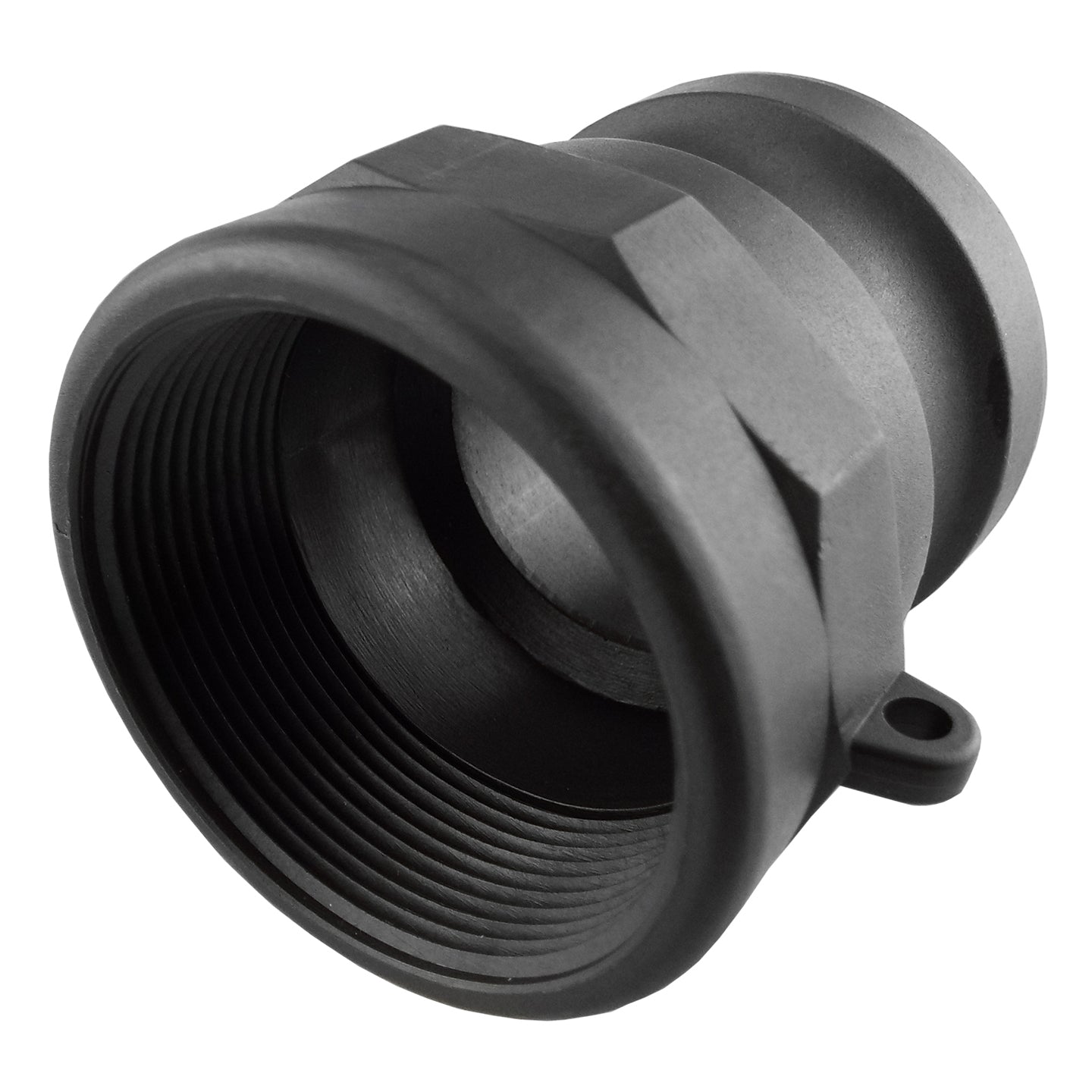

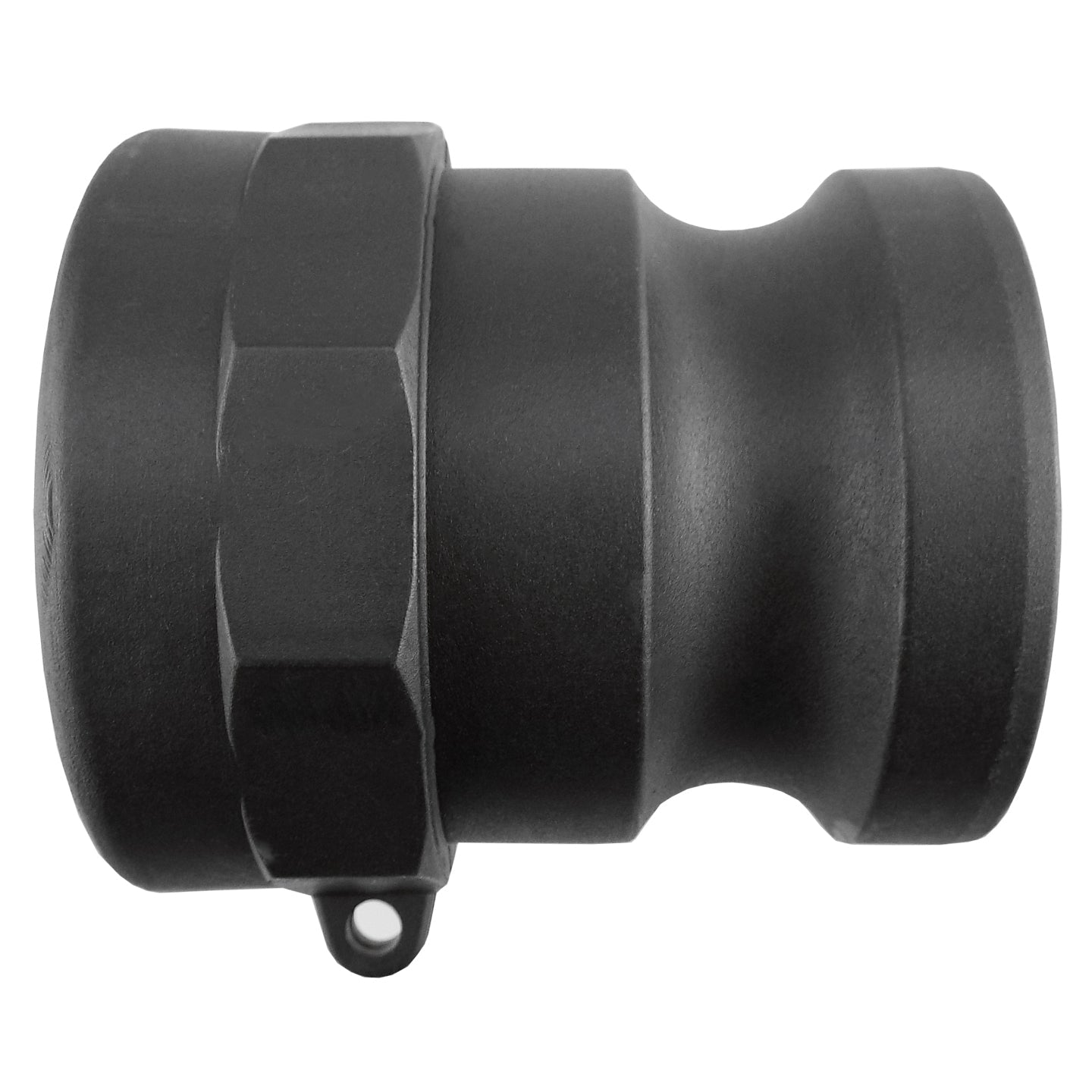

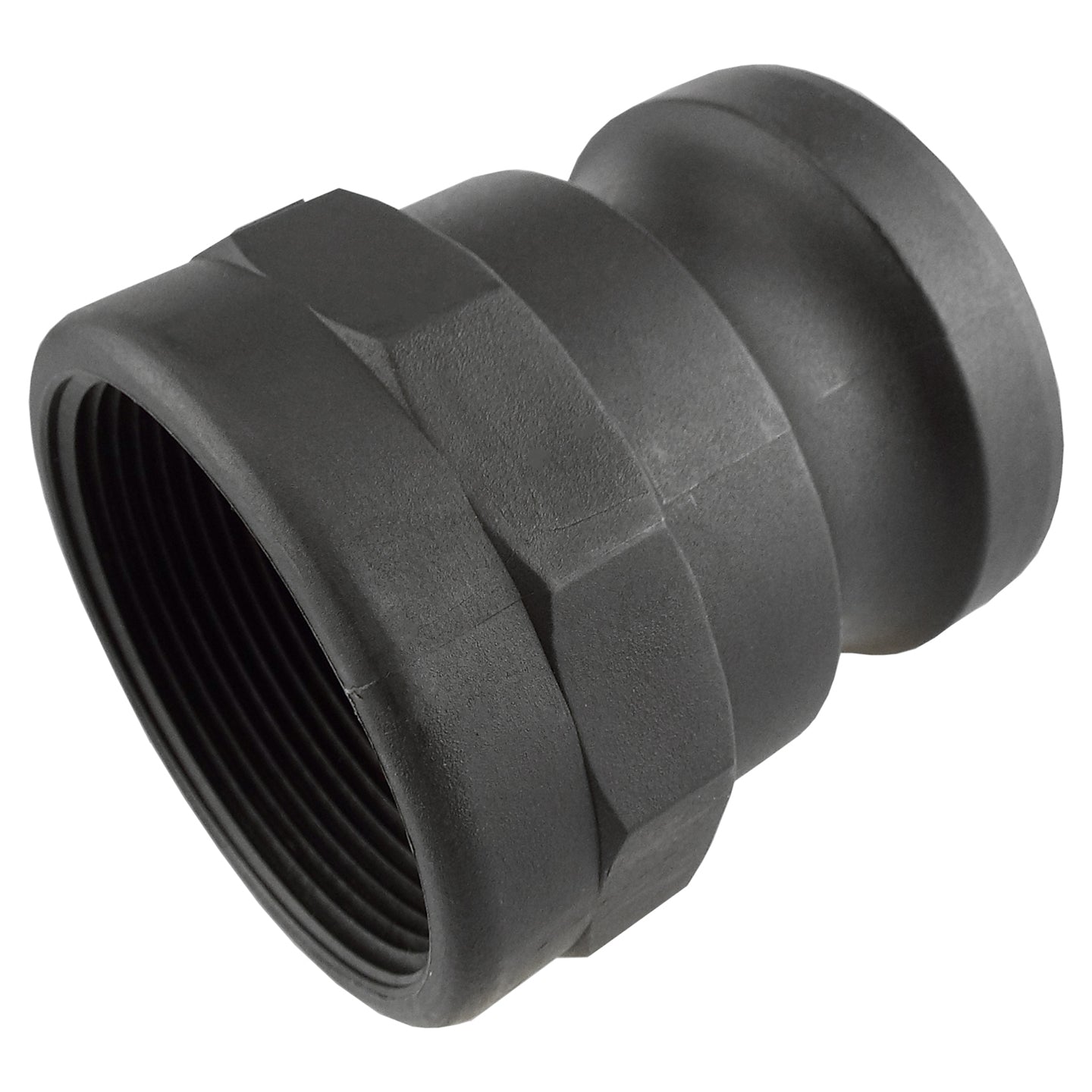

The ½-inch labels are nominal sizes. They do not mean the body measures 12.7mm across, or establish the actual cam mating diameter. Check the mating dimensions of your existing coupling as well as its size label. Family photographs show the connection design, not a measured size reference.
Fit the screw end. Release at the cam joint.
Work with the flow stopped and the system depressurised.
- Install and seal the female BSP socket on the matching male equipment thread.
- Open both arms on the separate female coupler, fully seat the male camlock, then close the arms evenly by hand. Fit the coupler’s retaining hardware as instructed.
- Check the completed joint before use. Isolate and depressurise before opening it again.
Choose the mating coupler to suit the line. A Type C has a hose tail, while a Type D has a female BSP thread; confirm its actual cam fit and downstream connection. Check that the polypropylene body and mating seal suit your liquid, temperature and working pressure.
Before you order
Is a female coupler included?
No. One Type A adapter is supplied. The female camlock coupler, hose, clamps and thread-sealing materials are separate purchases.
Does it connect directly to a garden hose?
There is no hose tail or garden quick-connect end on this adapter. It connects to a compatible male BSP thread at one end and a suitable female camlock at the other. Choose the additional hose connection to match your hose bore and system.
Product information & technical details
| SKU | CAMTA12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 1/2" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal ½-inch male camlock × ½-inch female BSP thread. Check actual mating dimensions; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
