Description
A quick-change point for your pipework.

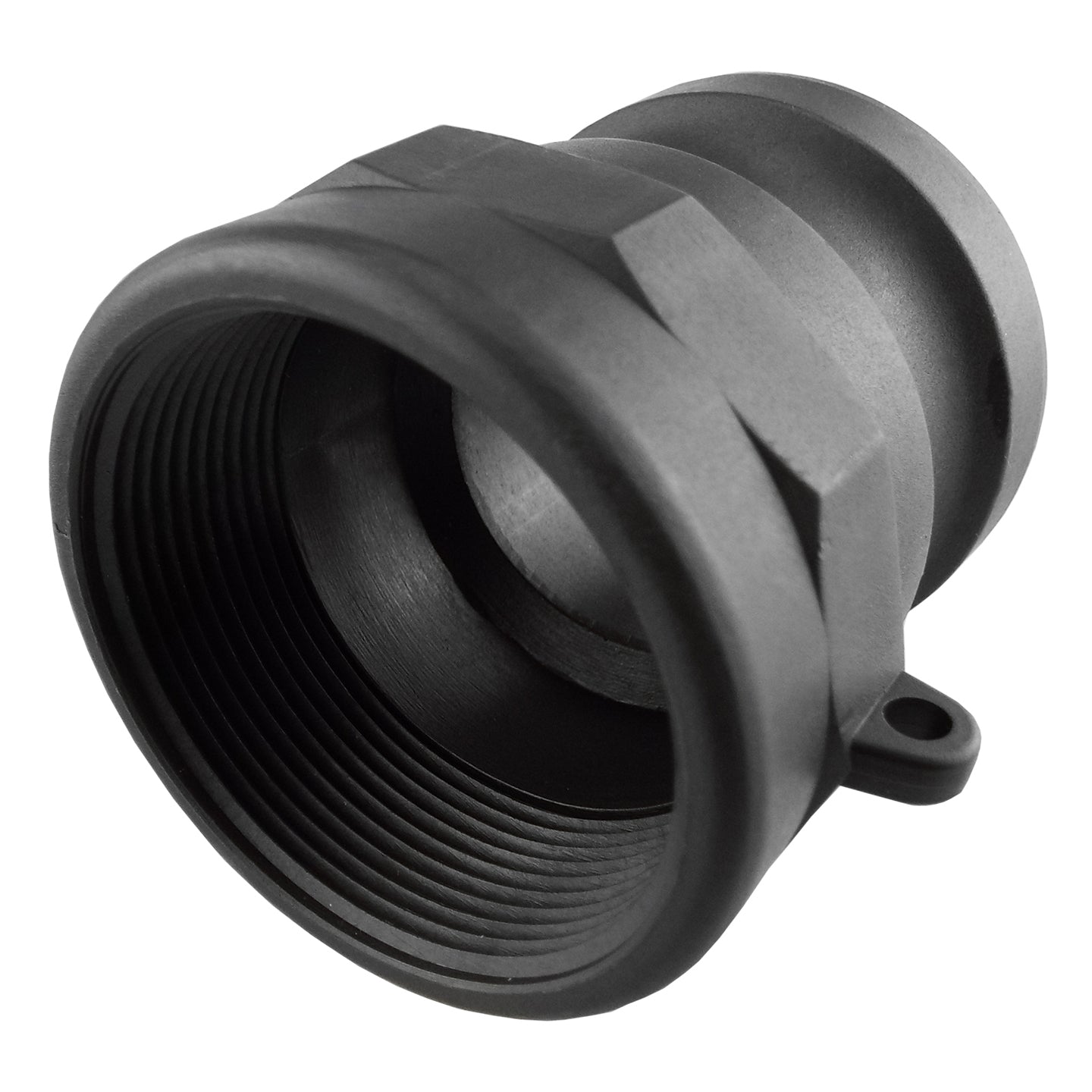

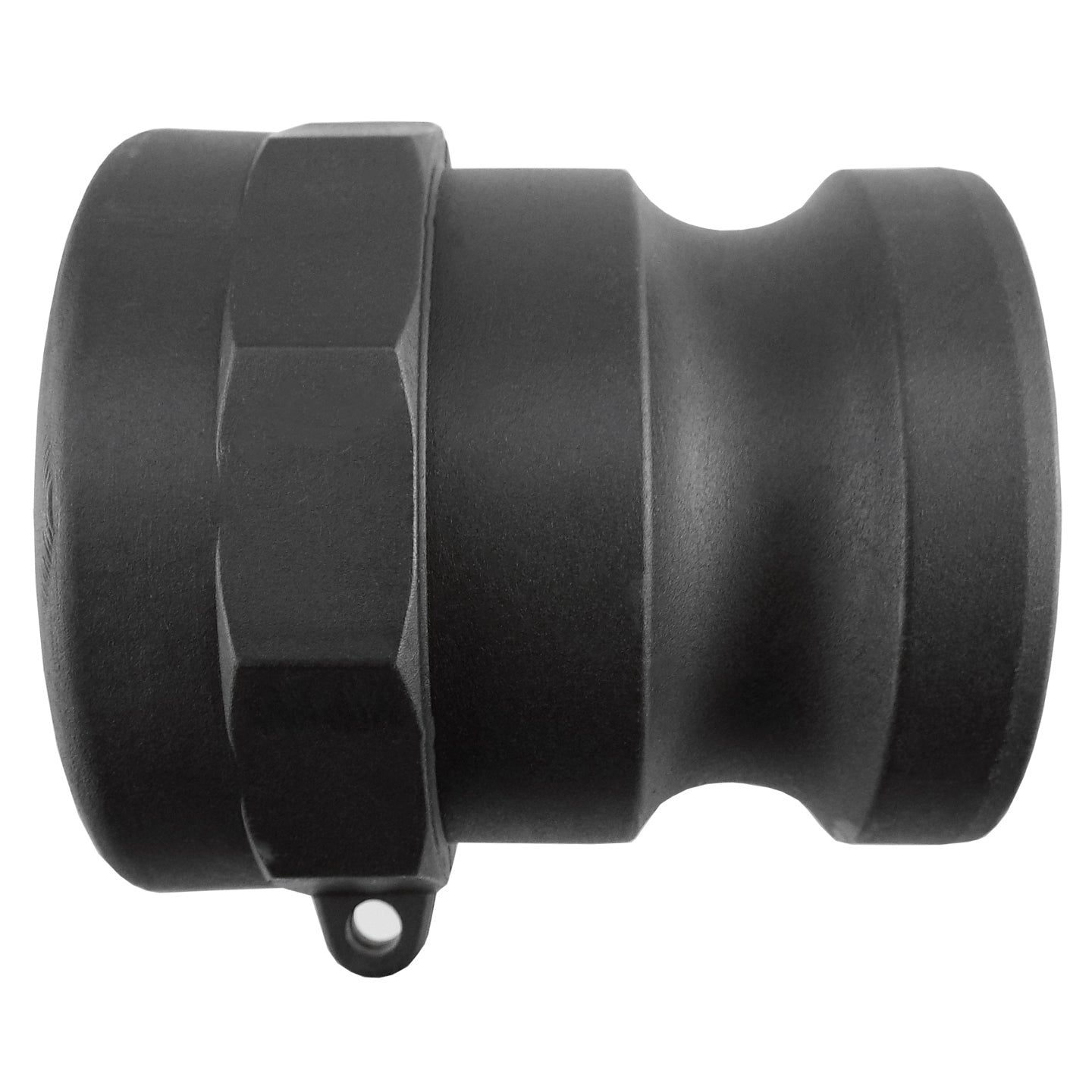

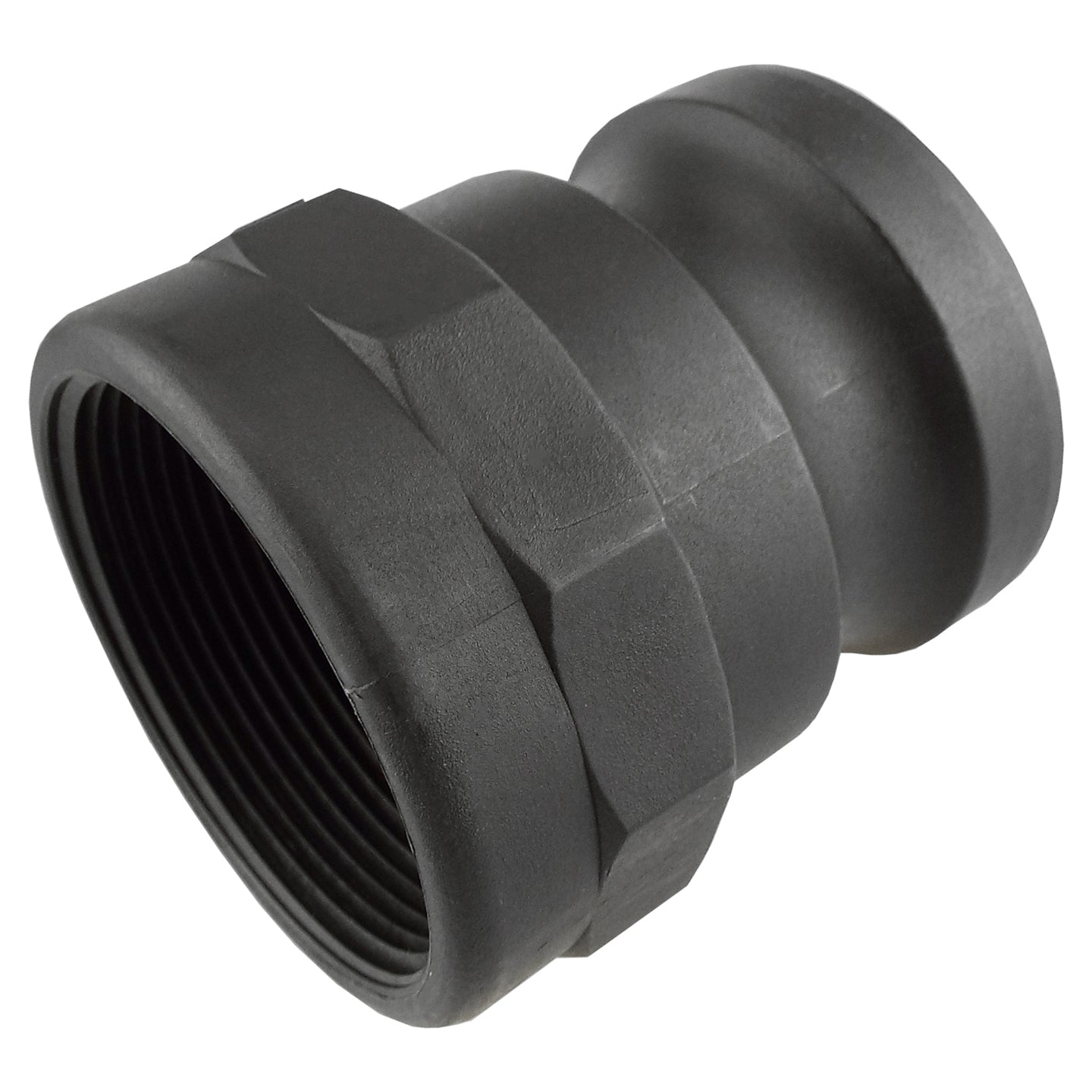

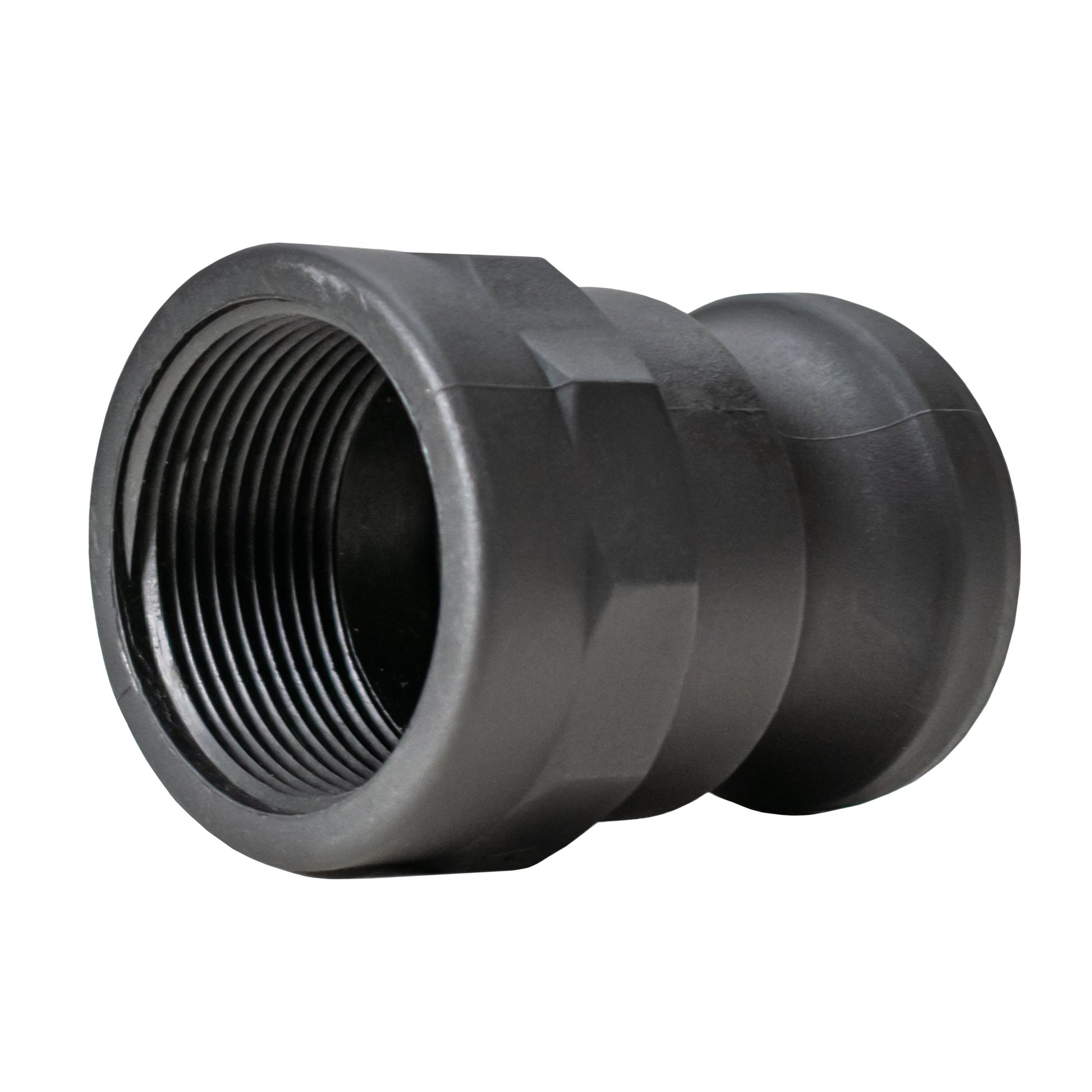

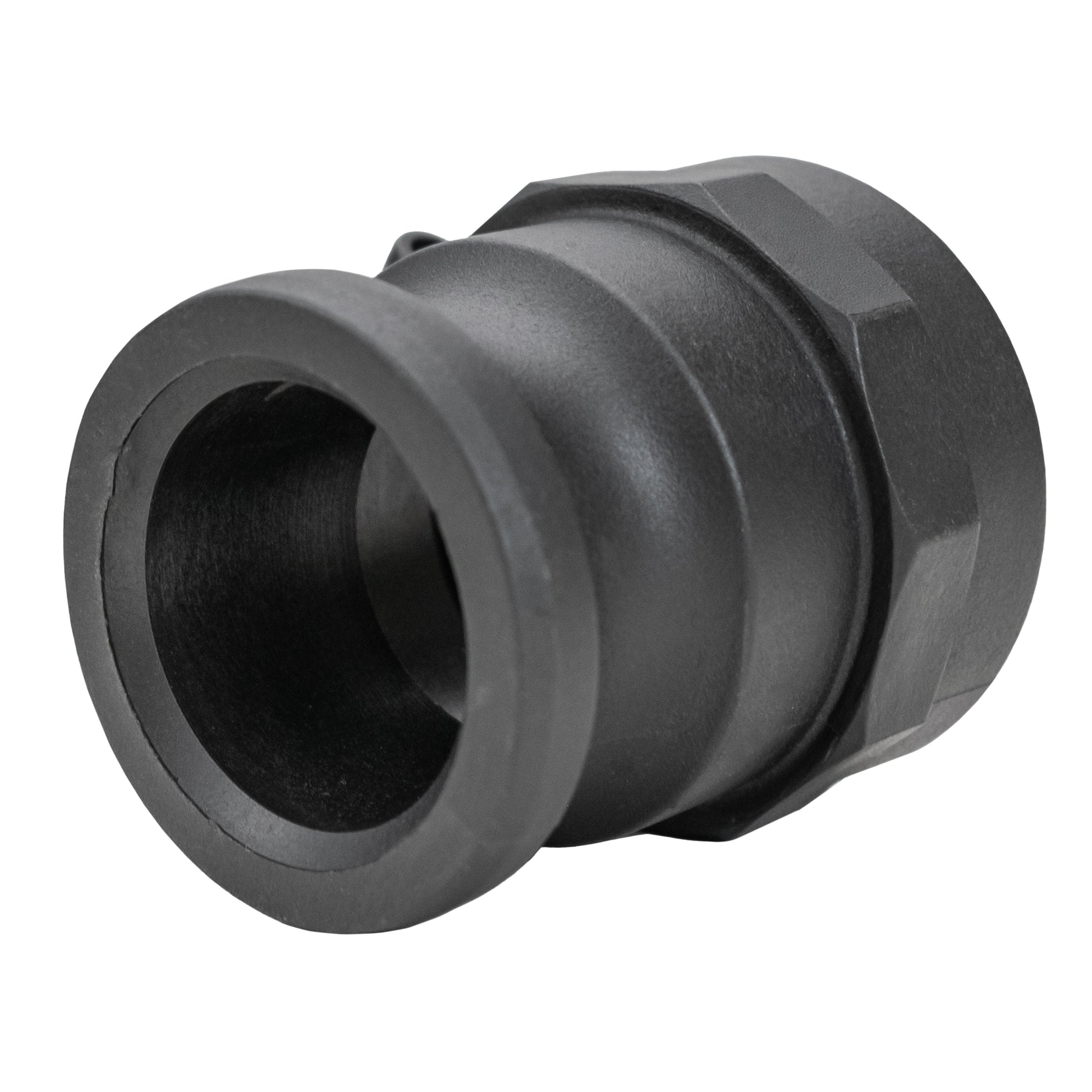

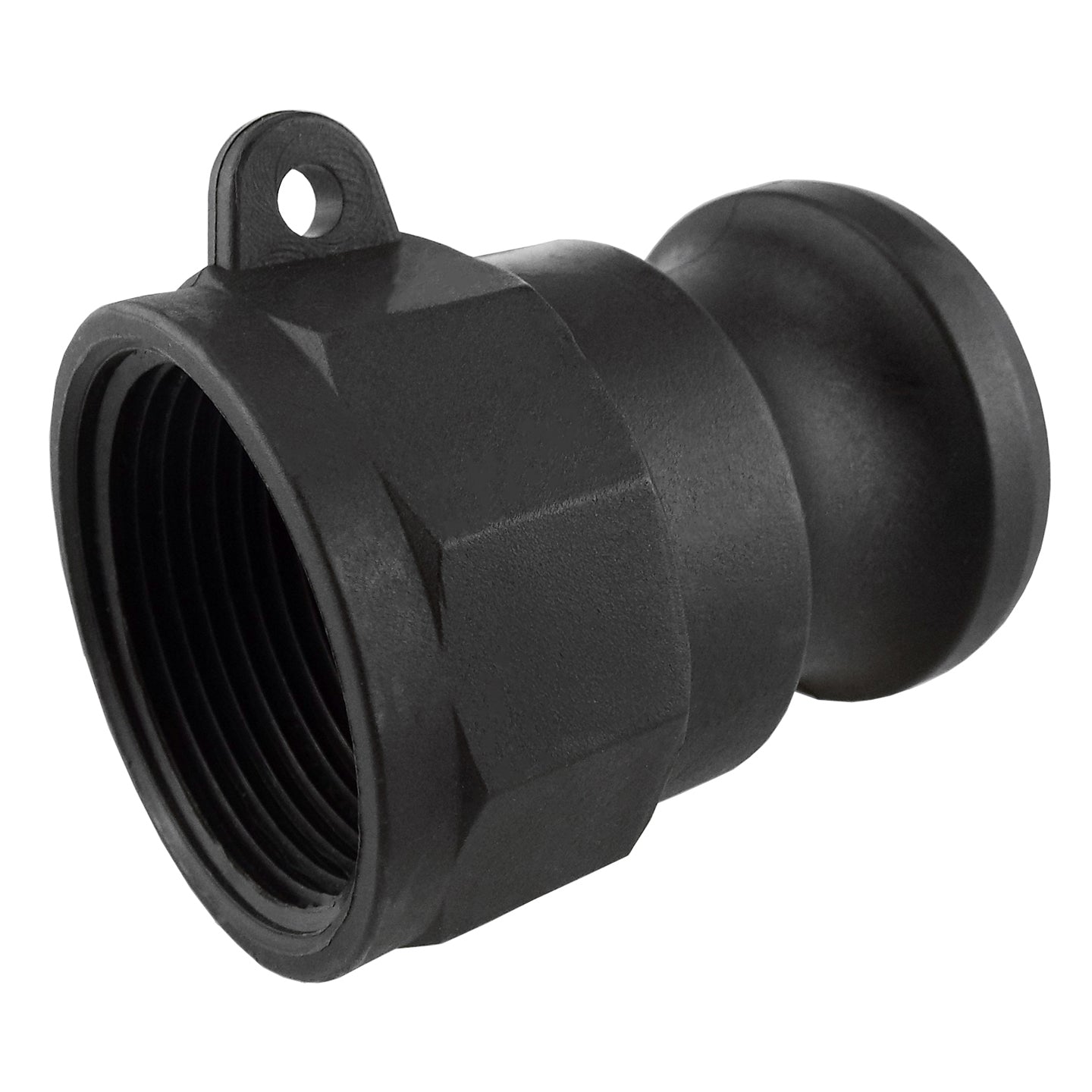

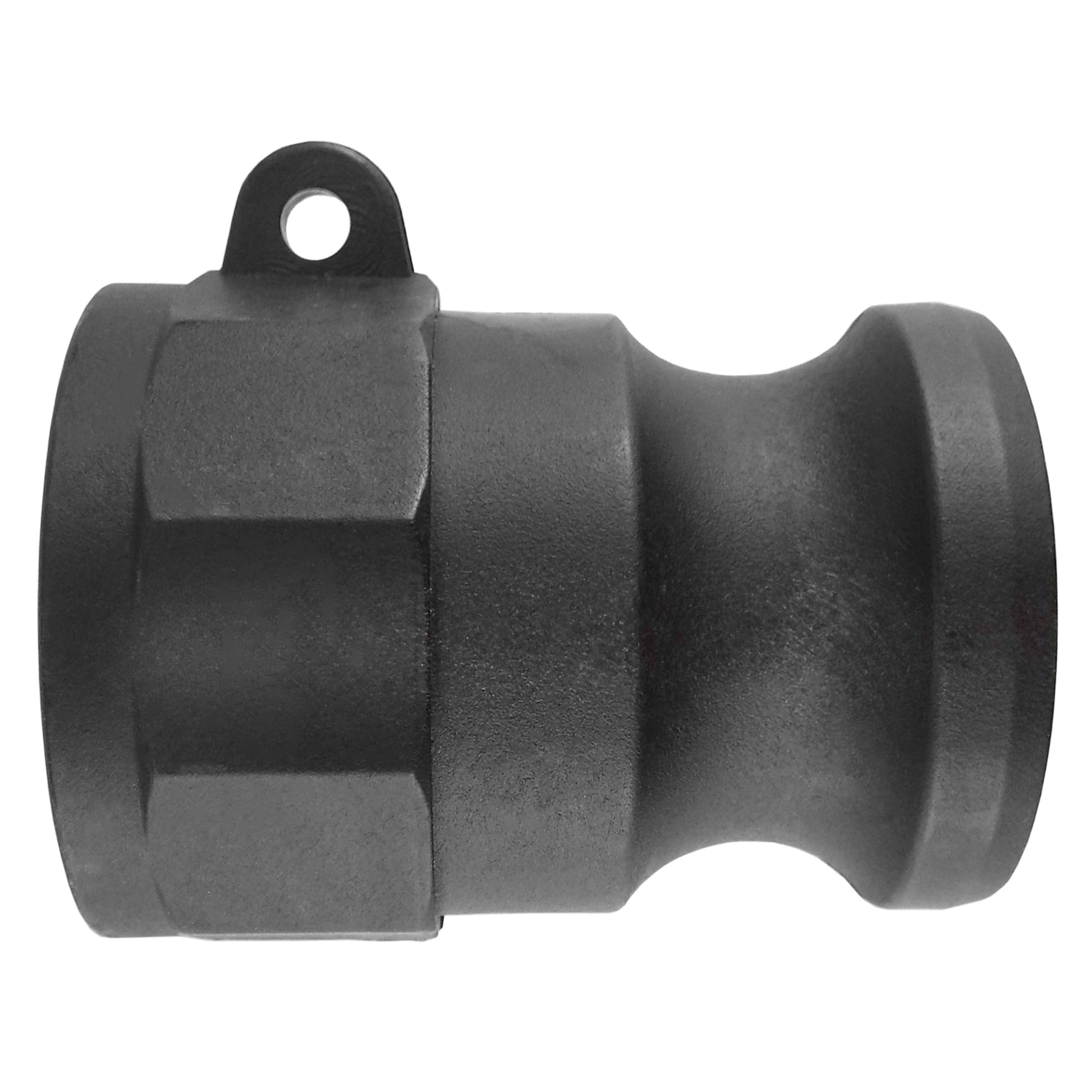

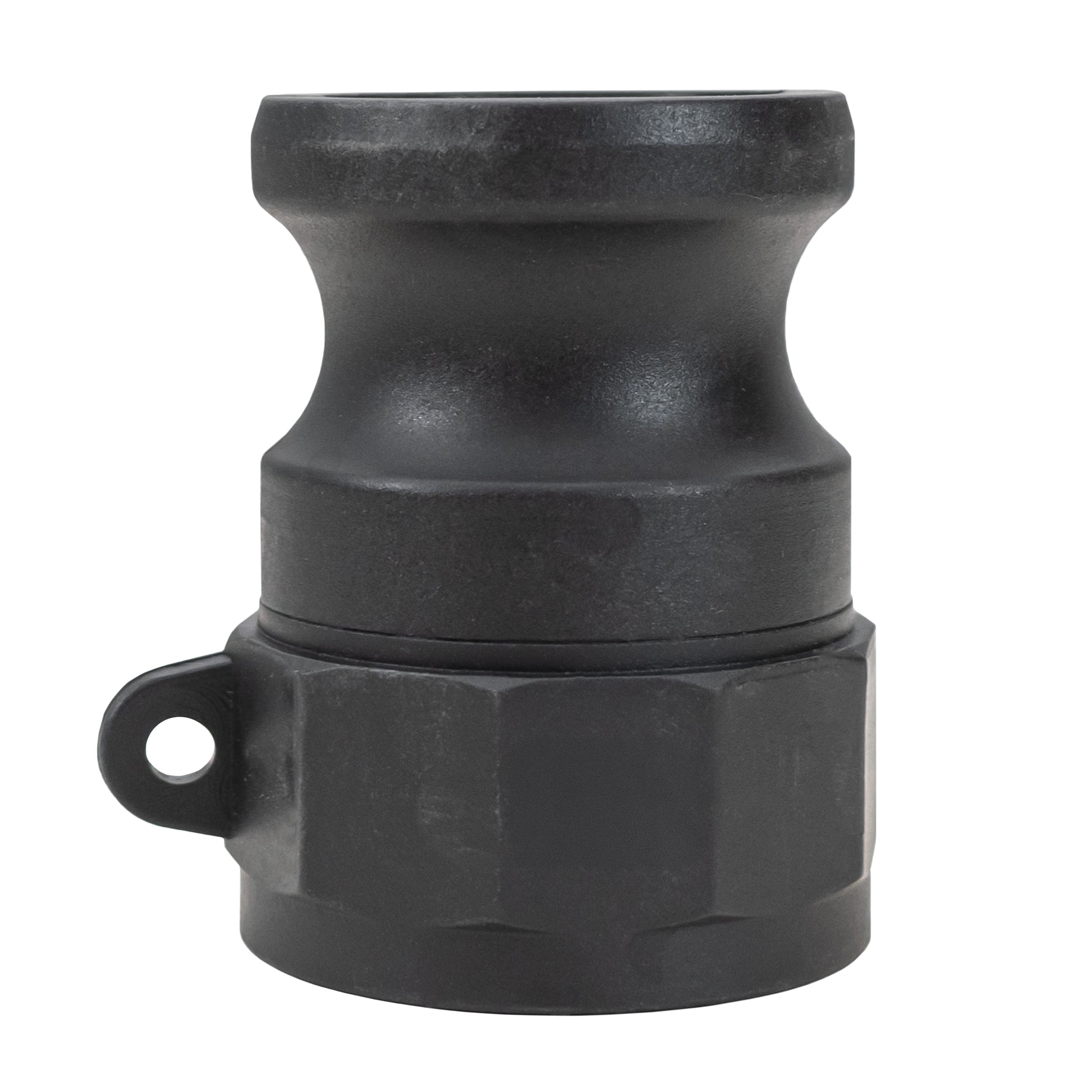

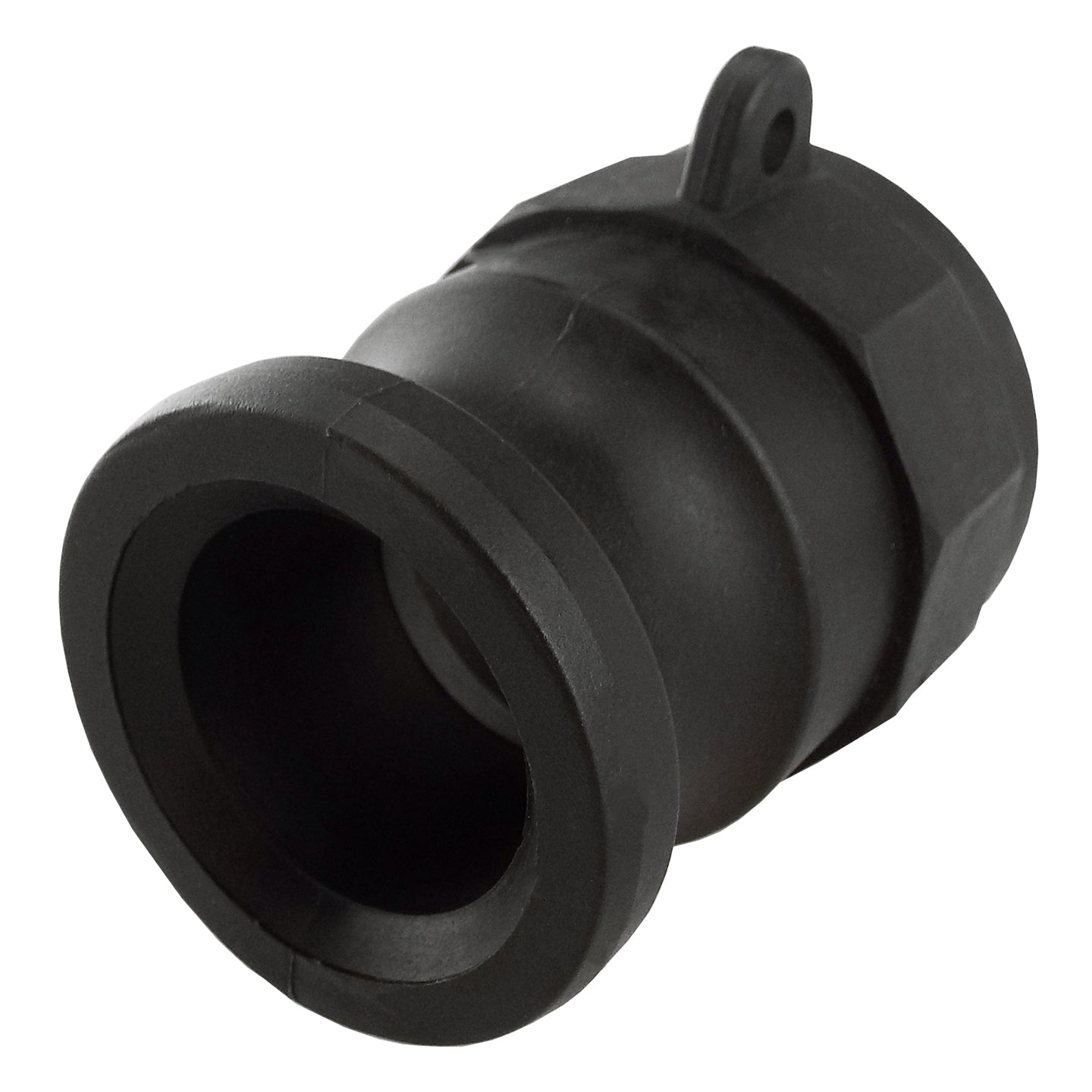

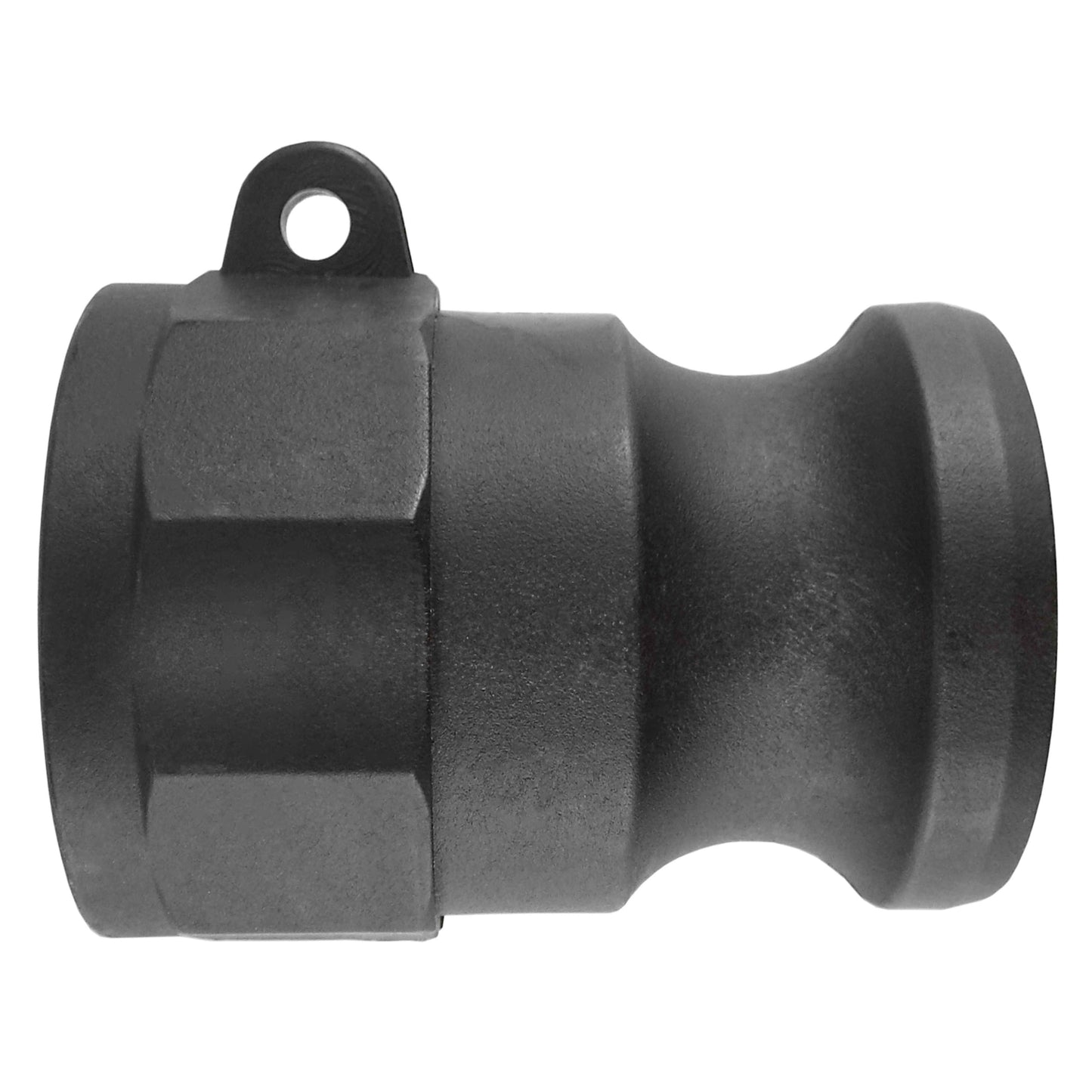

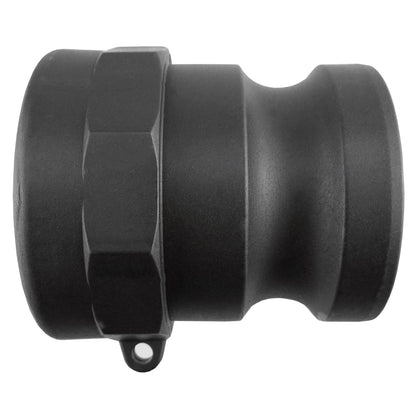

Keep your equipment connection in place and detach the hose where it is convenient. This 1-inch Type A camlock adapter screws onto a matching male BSP outlet and leaves a grooved male camlock end ready for a compatible female coupler.
The compact polypropylene fitting is useful when a hose assembly needs to be removed for storage, maintenance or a change of setup. One adapter is supplied; the mating coupler is chosen separately.
Match the thread. Match the camlock.
The two ends do different jobs, despite sharing a nominal size.

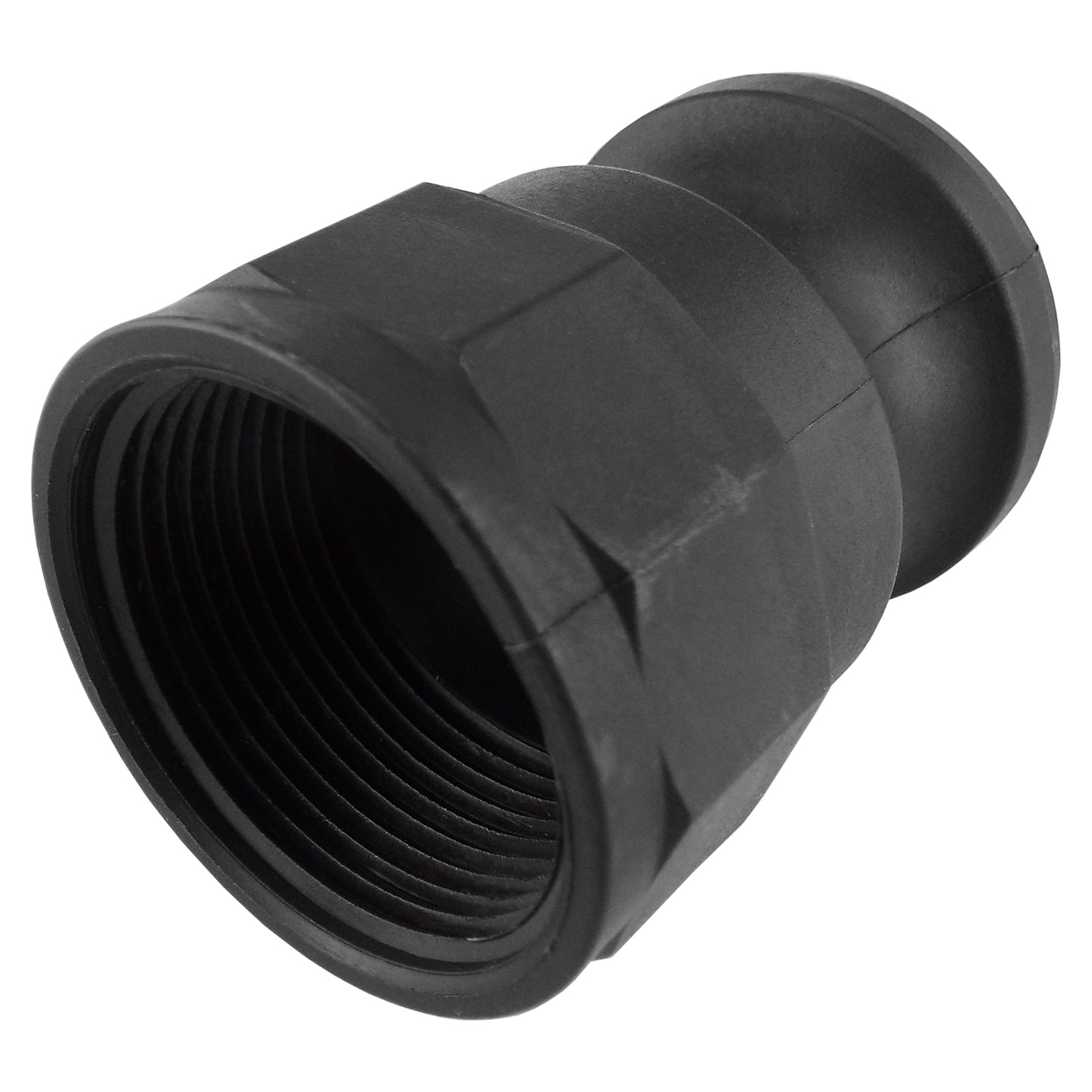

At the equipment: the internal 1-inch female BSP thread accepts a matching male BSP thread. Use a sealing arrangement suitable for the thread and equipment.
At the removable line: the 1-inch male camlock seats inside a compatible female camlock coupler. The operating arms and seal are in that separate female part; this adapter has no arms or shut-off mechanism.
A nominal inch is not a direct body measurement. For example, a 1-inch male BSP thread is about 33.25mm across its outer thread crests. Identify the thread and check the mating parts rather than measuring the outside of this adapter and treating it as 25.4mm.
For a hose-tail connection, a compatible 1-inch Type C female coupler is one option; match its tail to your hose bore and secure the hose with a suitable clamp. The optional coupler shown above is sold separately.
Connect by hand at the cam joint
Prepare the threaded end first, with the system isolated.
- Fit and seal the female BSP end to the correct male equipment thread.
- Open both arms on the separate female coupler and seat the male camlock fully. Close both arms evenly by hand and fit the coupler’s retaining hardware as instructed.
- Check the assembled joint before use. Stop flow, isolate and depressurise before opening the cam connection.
The adapter has an open passage. It provides the connection, while any valve or other flow control remains a separate part of your system.
Before you connect
Will it screw onto an IBC tank?
Only where the outlet has a matching 1-inch male BSP thread. IBC coarse threads are different; identify your outlet and use a suitable converter where required. No IBC converter is supplied with this fitting.
Is this a reducer or a complete hose coupling?
Neither: it is one Type A adapter with a nominal 1-inch connection at each end. A compatible female camlock coupler completes the detachable joint. Hose, clamps and sealing materials are separate.
Product information & technical details
| SKU | CAMTA1BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 1" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter. Female coupler, hose, clamps and sealing materials are separate. |
| Connection layout | Nominal 1-inch male camlock × 1-inch female BSP thread. Open passage; no shut-off valve. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
