Description
Two hoses, one tap

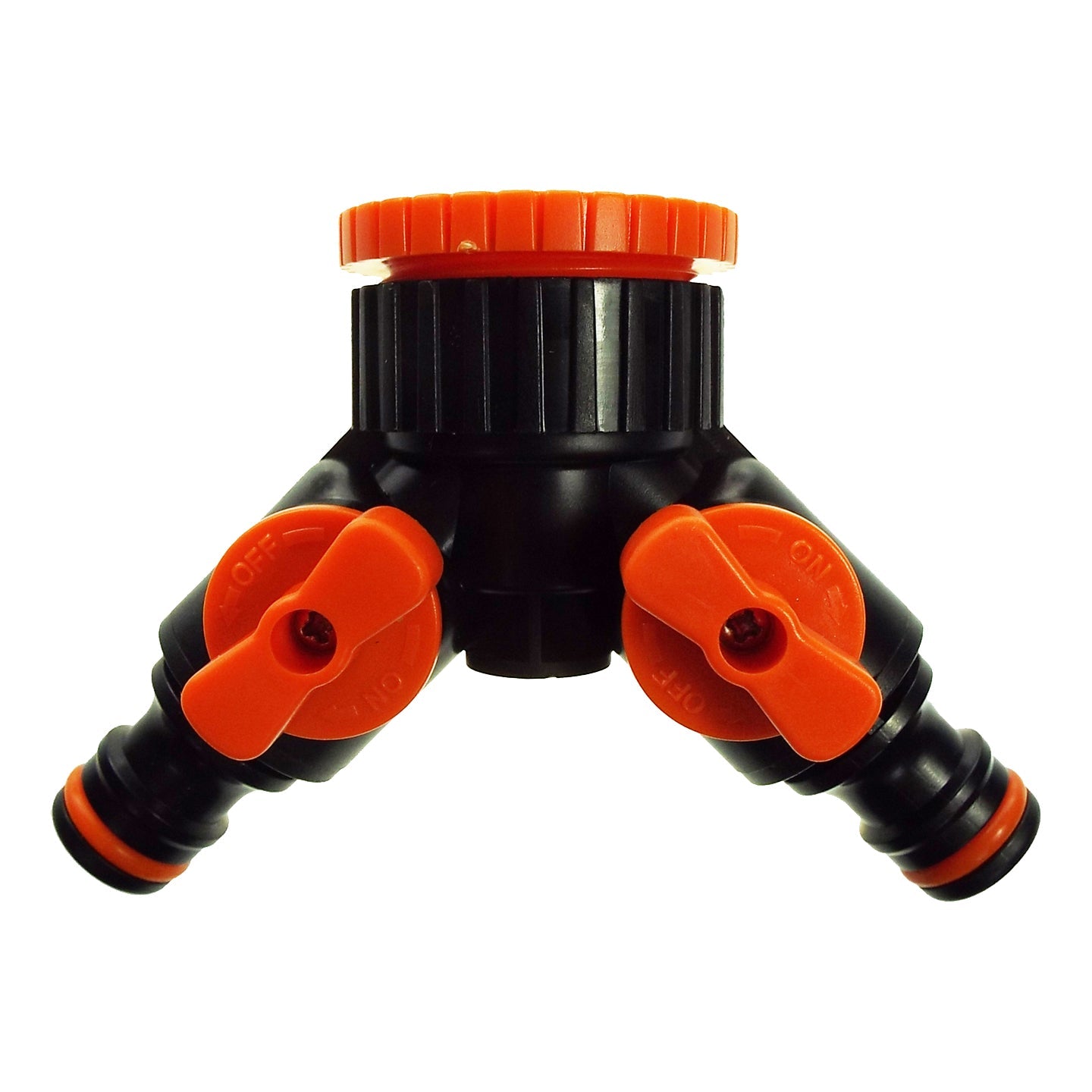

A hose for the borders and another for the lawn can stay ready at the same tap. This black and orange two-way splitter provides two angled outlets, each controlled by its own orange wing valve.

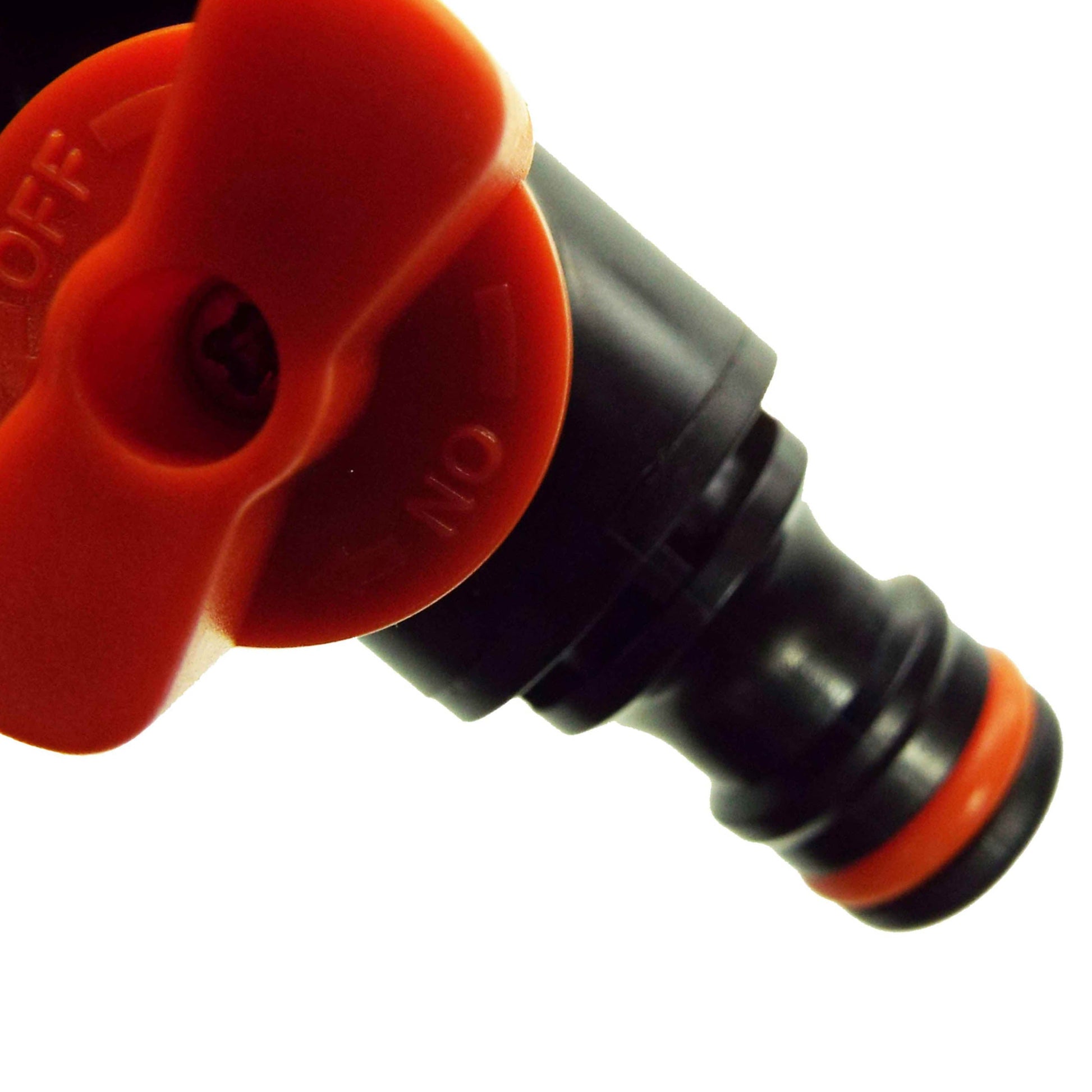

Its compact Y body carries two male garden quick-connect plugs. Add suitable female sockets to your hoses, leave them connected and select the branch needed for the job.
One splitter supplied with its inlet fittings, valves and outlet plugs. Tap, hoses, female hose sockets and watering tools are separate.
A socket on each hose
The illustration shows two additional female quick-connect sockets fitted over the splitter’s male plugs. The sockets grip the hose ends with their own nuts, while the quick-connect collars make the connection at the splitter.
Choose each female socket for the internal diameter of its hose. The optional black connector above suits ½-inch garden hose and is sold singly. Two such hoses need two sockets; the bare hose does not push directly onto a garden plug.
Opening both valves divides the available water between the lines. Test the connected tools together: if a sprinkler loses reach, close the other branch or water in turn. These are manual flow controls, not individual pressure regulators.
Connect, check, then water

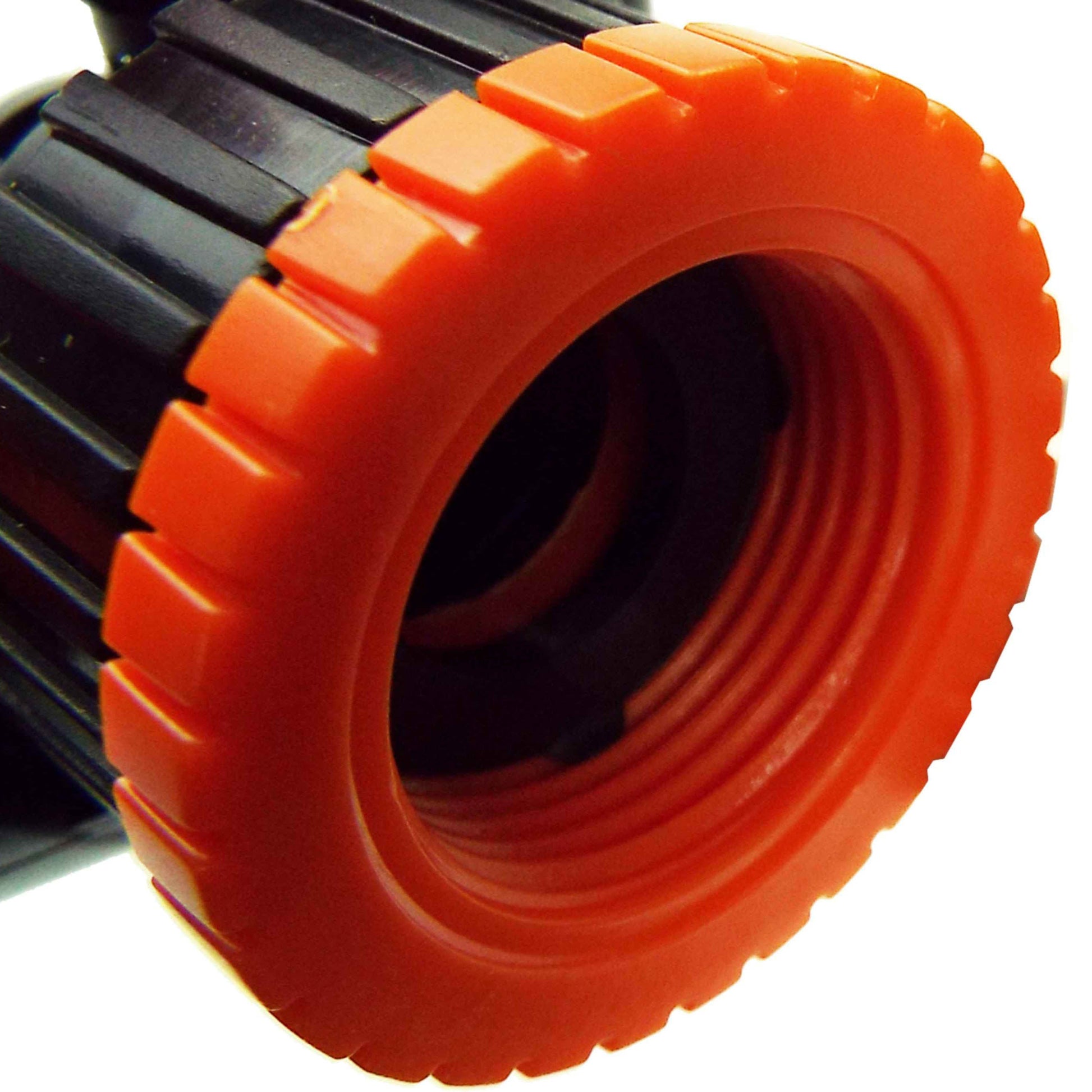

Fit the tap inlet
Turn off the supply and match the female inlet configuration to your 1-inch or ¾-inch BSP male tap thread. Check the seal and start the fitting squarely by hand without forcing it.
Engage the sockets
Fit suitable female sockets to the hoses and engage them fully on the two plugs. Leave enough slack to prevent the hoses pulling on the tap. Close an unused branch with its valve.
Test each line
Open the tap gradually and check the joints. Try each valve and attached tool before using both together. Turn off the main tap after watering, release pressure before disconnecting and drain exposed fittings before freezing weather.
Connection questions
Are the hose-end sockets supplied?
No. The splitter includes its two male garden plugs, manual valves and inlet fittings. Female hose sockets, hoses and the illustrated tap are separate.
Can I leave both hoses attached?
Yes. Select the branch you need using its orange valve and close the other one. Turn off the main tap when you finish watering.
Do both outlets have a pressure setting?
No. The valves adjust or stop flow but do not regulate pressure. Both outlets draw from the same tap supply.
Do I choose my hose by the BSP size?
No. Match BSP to the tap thread. Choose the separate female hose socket by the hose’s internal diameter; those are different measurements.
Product information & technical details
| SKU | TC2-WAY001B |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Orange |
| Material | Plastic |
|---|---|
| Tap connection | Female BSP inlet with 1-inch and ¾-inch connection options |
| Outlet connections | Two angled male garden quick-connect plugs |
| Manual controls | Two orange wing valves, one for each branch |
| In the pack | One plastic splitter with inlet fittings, two valves and two male plugs; hoses, sockets and tap separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
