Description
Three lines, one tap

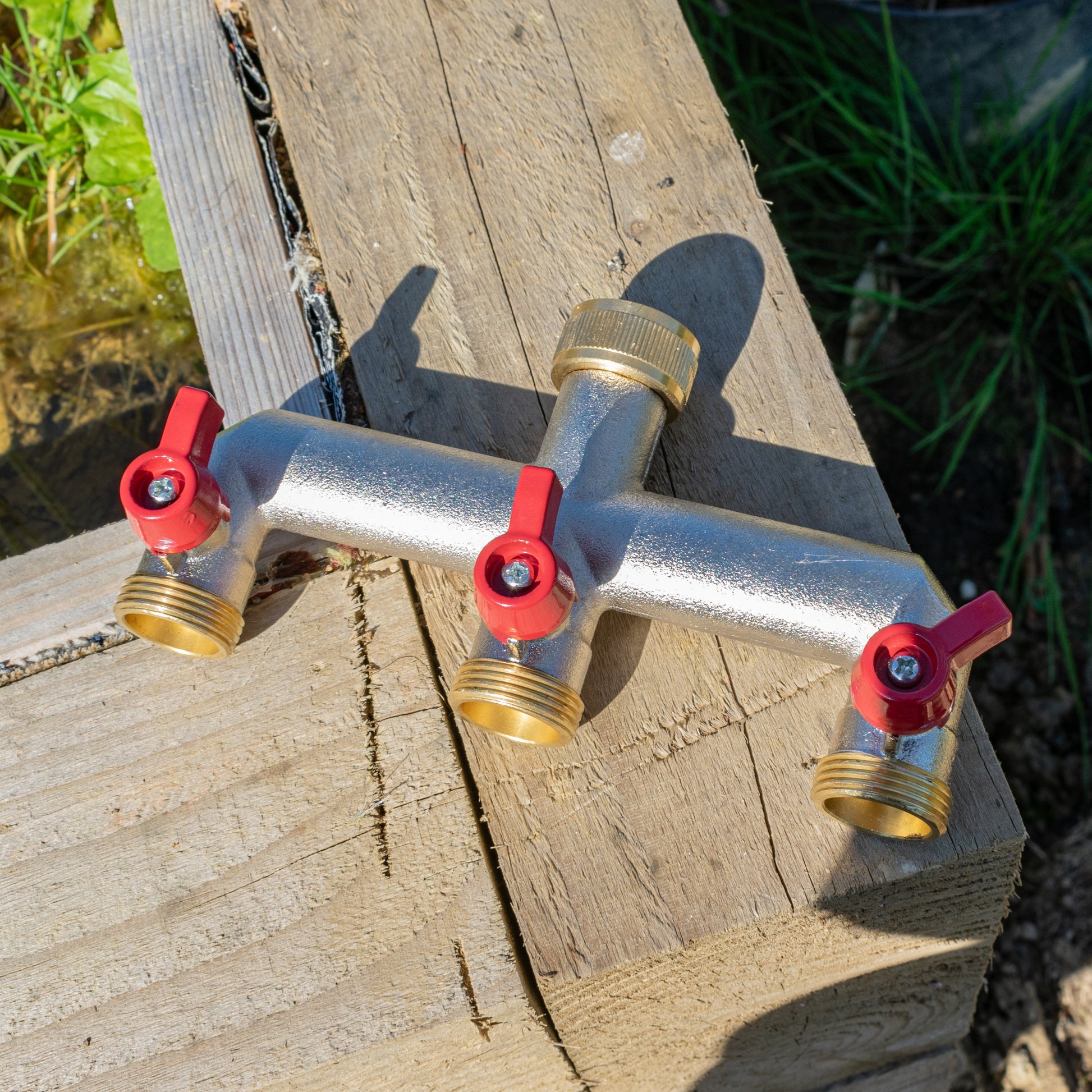

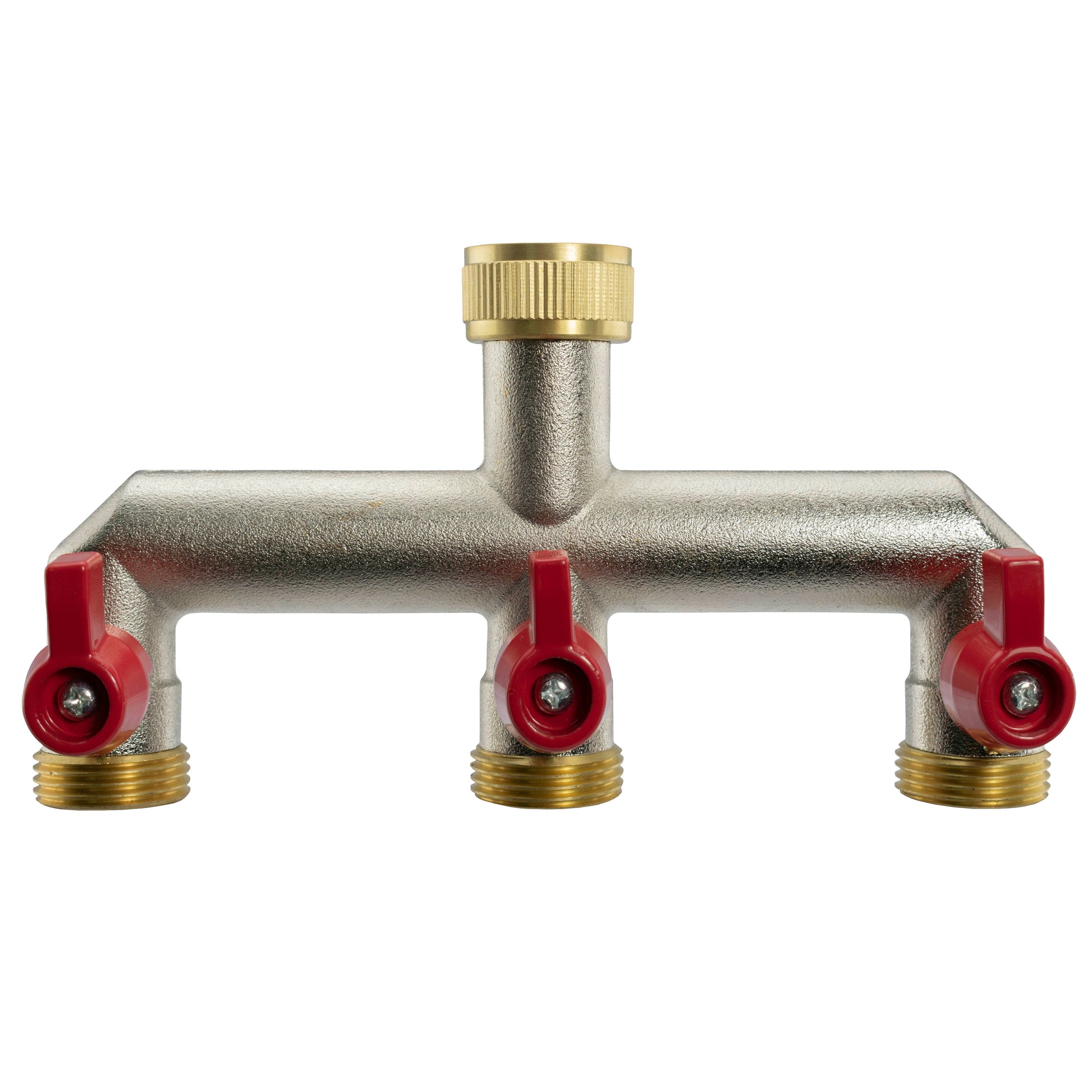

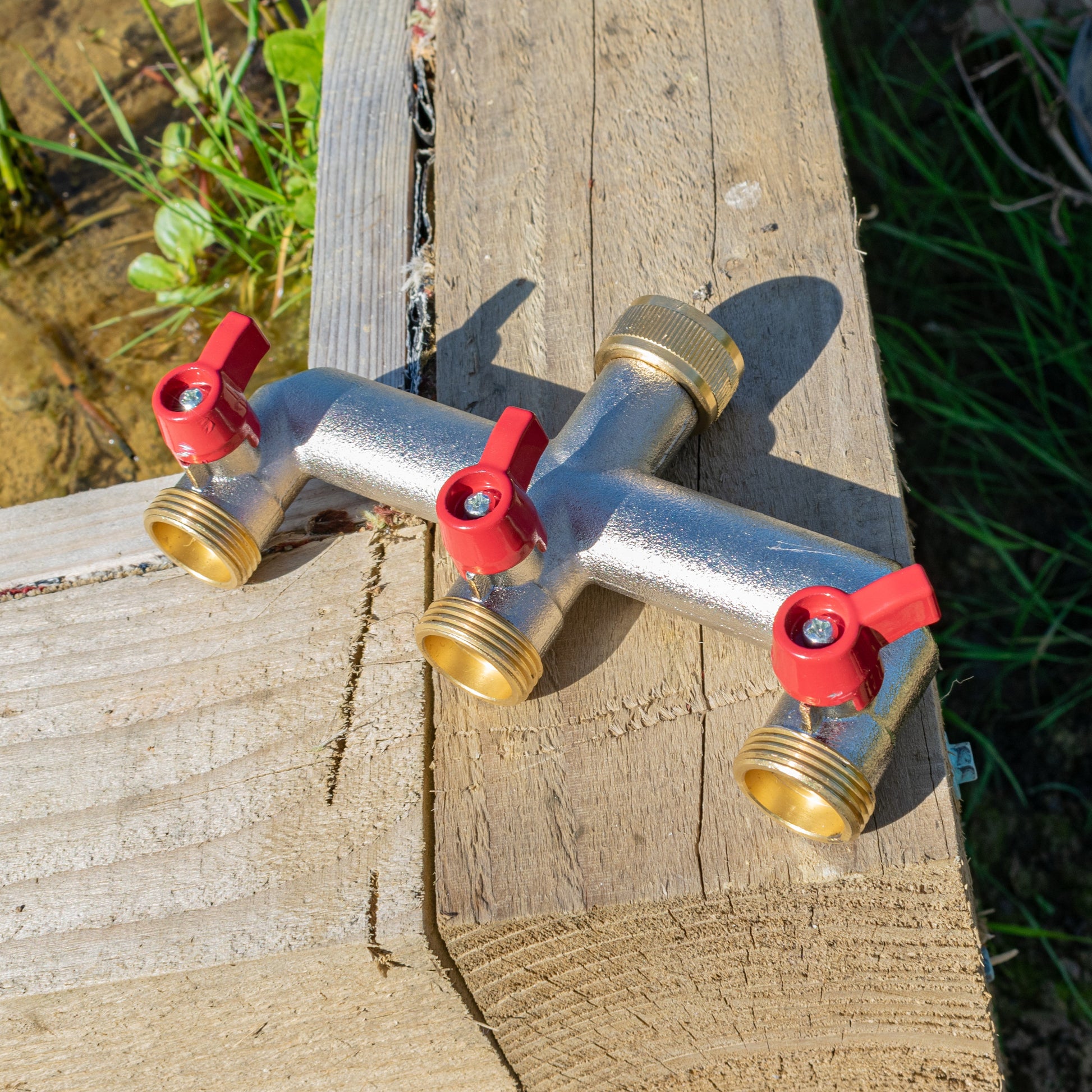

Keep your watering connections together with this three-way tap splitter. Its horizontal metal body gives you three ¾-inch BSP male threaded outlets, each with a red control lever, beneath one ¾-inch BSP female tap connection.
Leave a watering hose ready while a sprinkler or separate irrigation line is connected to another branch. Open, adjust or close the outlets individually as your watering task changes.
One nickel-plated brass splitter supplied. Tap, hoses and outlet fittings are separate.
Choose how each line connects

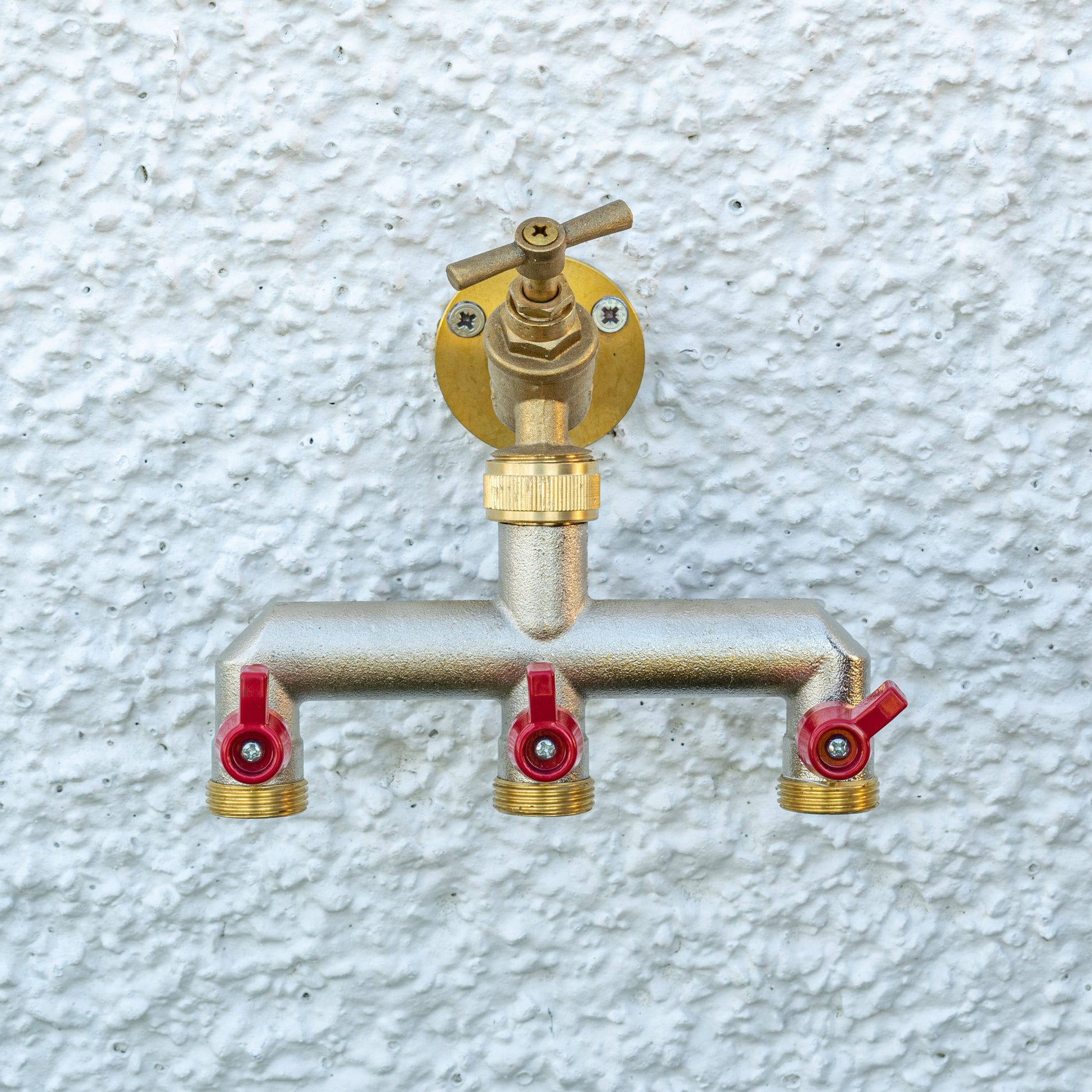

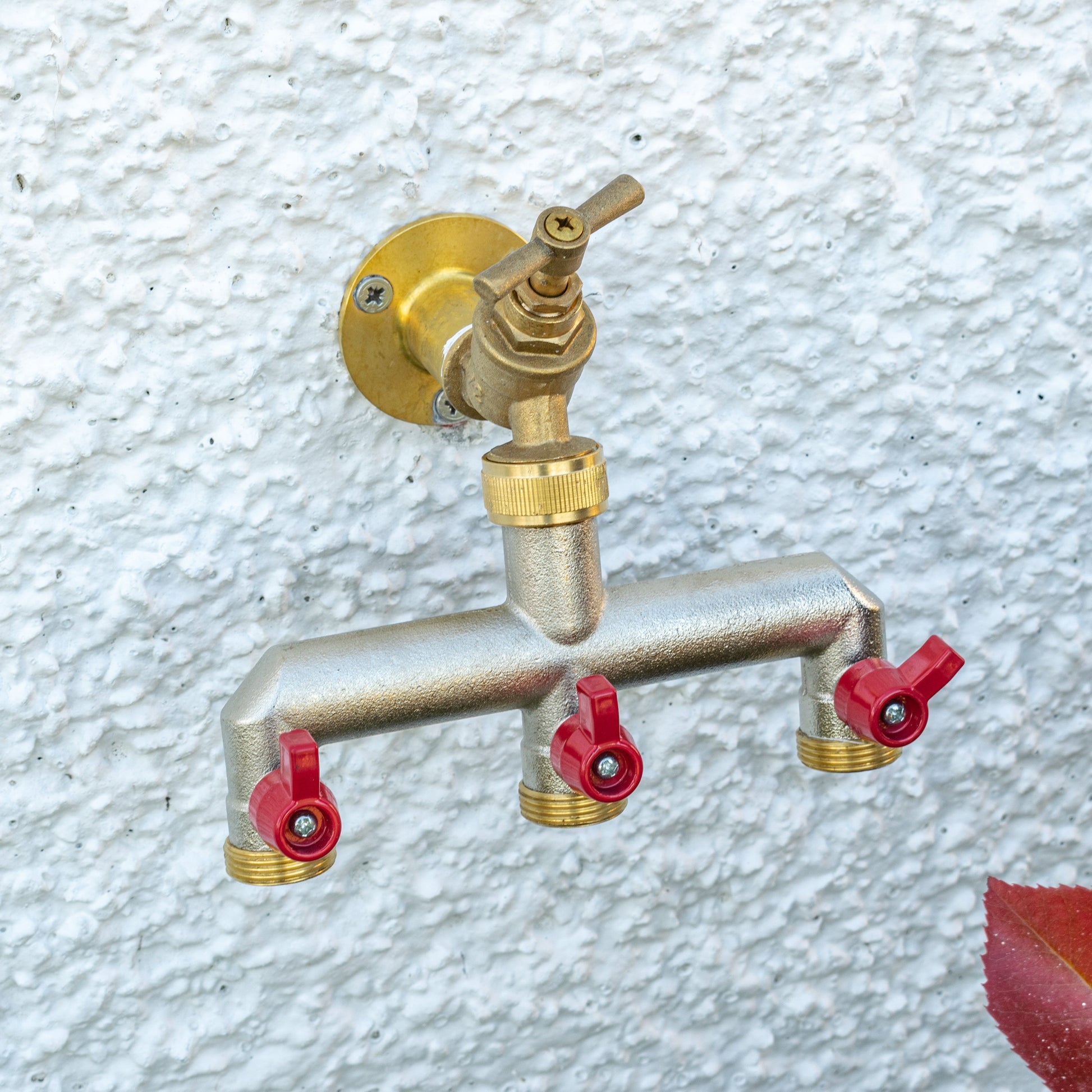

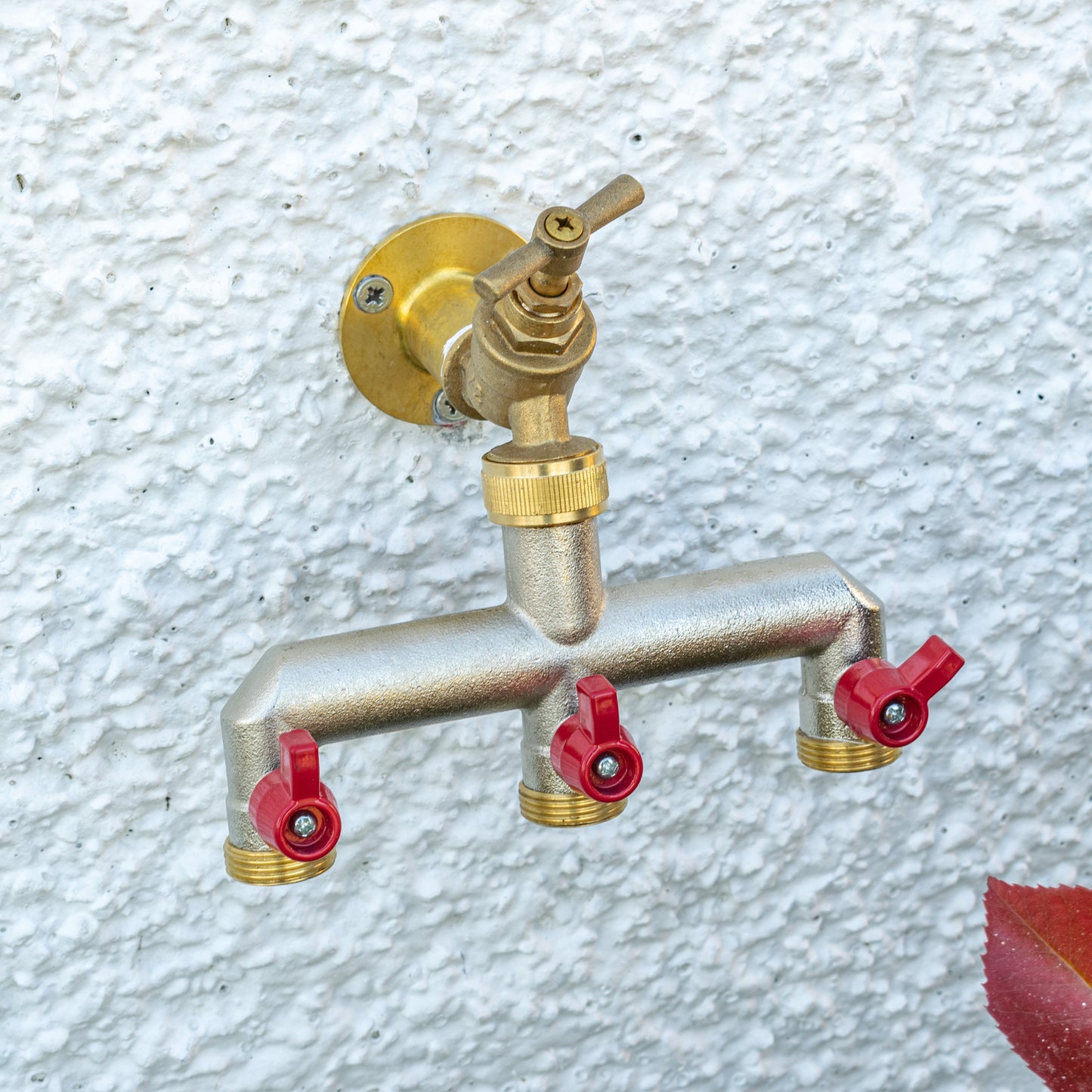

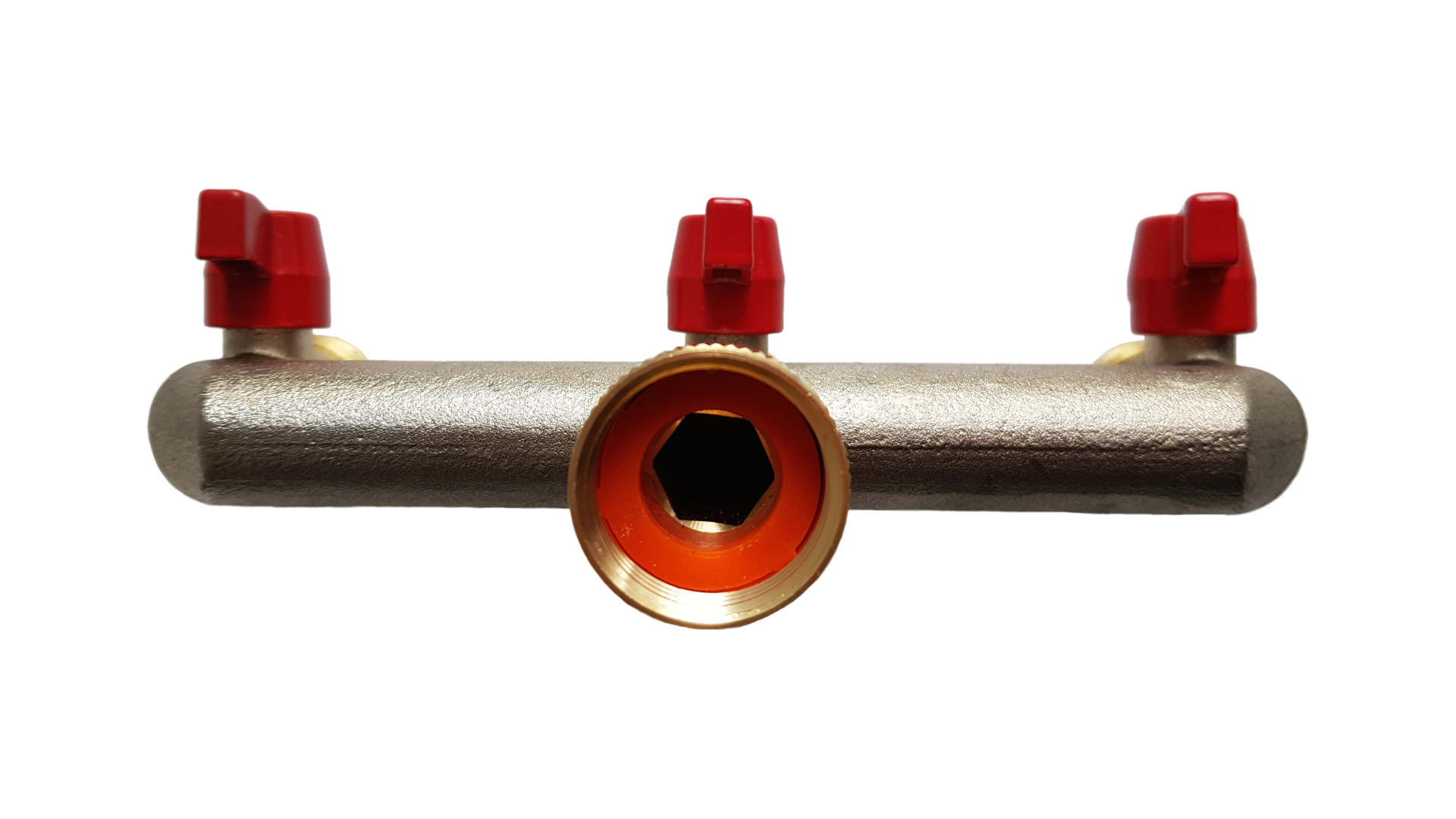

The female swivel nut at the top attaches to a matching ¾-inch BSP male tap outlet. The three lower connections are screw threads: they need suitable female threaded fittings for the equipment you want to connect.
For garden quick-connect hoses, fit a ¾-inch BSP female tap adapter to each outlet you want to convert. The adapter provides the male garden plug; a compatible hose-end socket then clips onto it. The optional brass adapter above is sold individually, so choose the quantity needed for your setup.
Each red lever controls its own branch, but the water still comes from a single tap. Running several lines together shares the available flow; test your sprinkler or irrigation equipment with the combination you intend to use.
Set up your watering branches
Check the tap connection
Turn off the supply and check the tap thread and inlet seal. Start the swivel nut squarely by hand and support the manifold while fitting. Do not force a mismatched thread.
Fit the outlet connections
Use matching female threaded fittings and the sealing method appropriate to each joint. Support hoses and attached equipment so their weight or movement does not pull on the tap.
Test each branch
Open the tap gradually, inspect the joints and adjust each red lever. Turn off the main tap and relieve pressure before disconnecting. Drain exposed fittings before freezing weather.
Before you order
Does this include three quick-connect tap adapters?
No. This is the splitter on its own, with three bare male threaded outlets. Tap adapters, hose sockets and hoses are separate; choose fittings for the connections you need.
Can I leave one outlet closed?
Yes. Each branch has its own manual valve, so you can use one, two or all three outlets. Close unused branches and turn off the main tap when the system is not in use.
Will it fit a ½-inch or 1-inch BSP tap?
The supplied inlet is ¾-inch BSP female. A different tap thread needs a suitable separate adapter; this splitter does not include an inlet reducer.
Is the silver body made from plastic?
No. The manifold is nickel-plated brass. Its body has a silver-coloured finish, with a brass-coloured swivel nut and male outlet threads.
Product information & technical details
| SKU | TC3-WAY-H-TH-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Colour | Silver, Brass |
| Material | Brass |
|---|---|

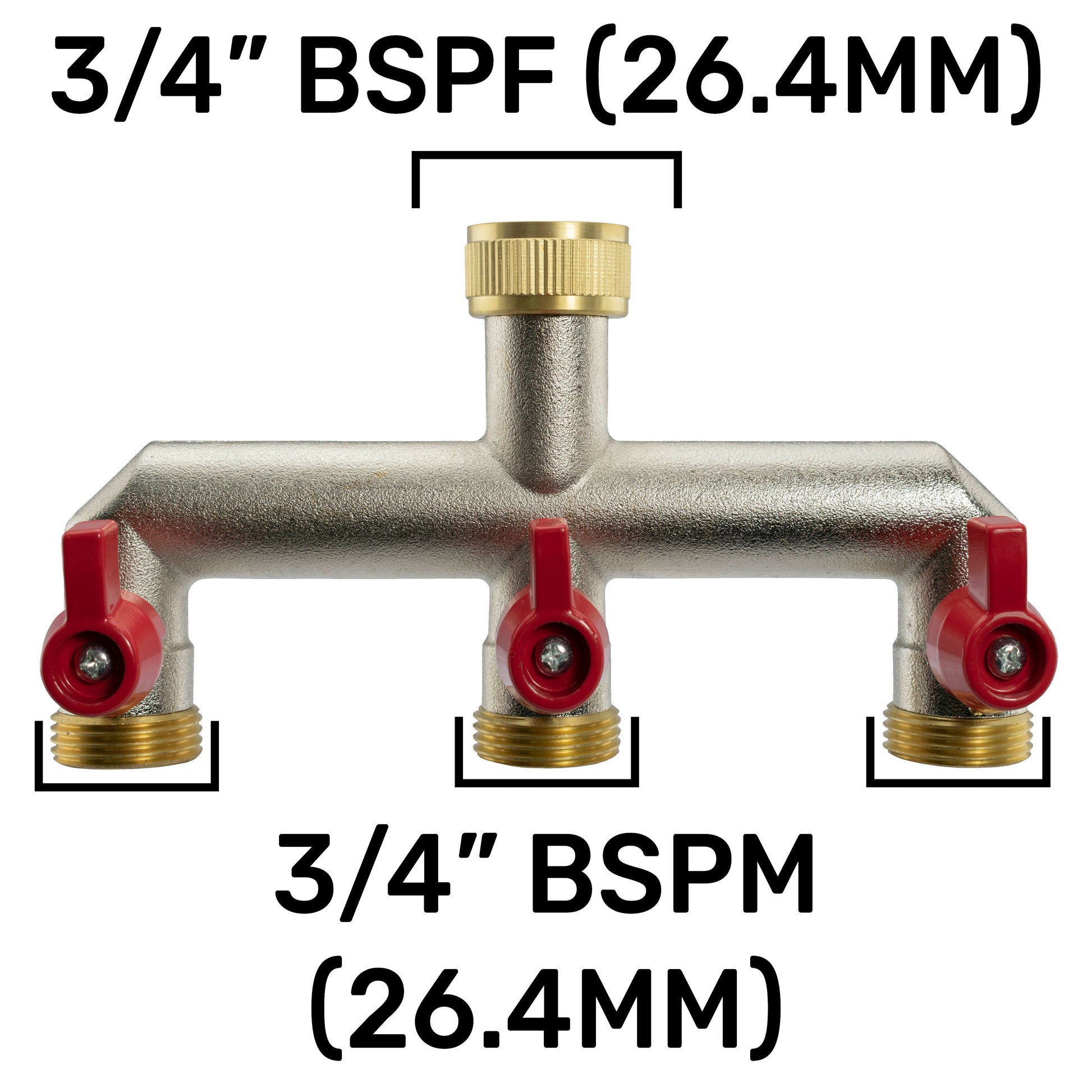

| Tap inlet | ¾-inch BSP female thread with brass swivel nut |
| Branch outlets | Three ¾-inch BSP male threads; matching female fittings required |
| Controls | Three separate manual valves with red levers |
| Supplied quantity | One nickel-plated brass splitter; tap, hoses and outlet fittings sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
