Description
¾-inch BSP outlet

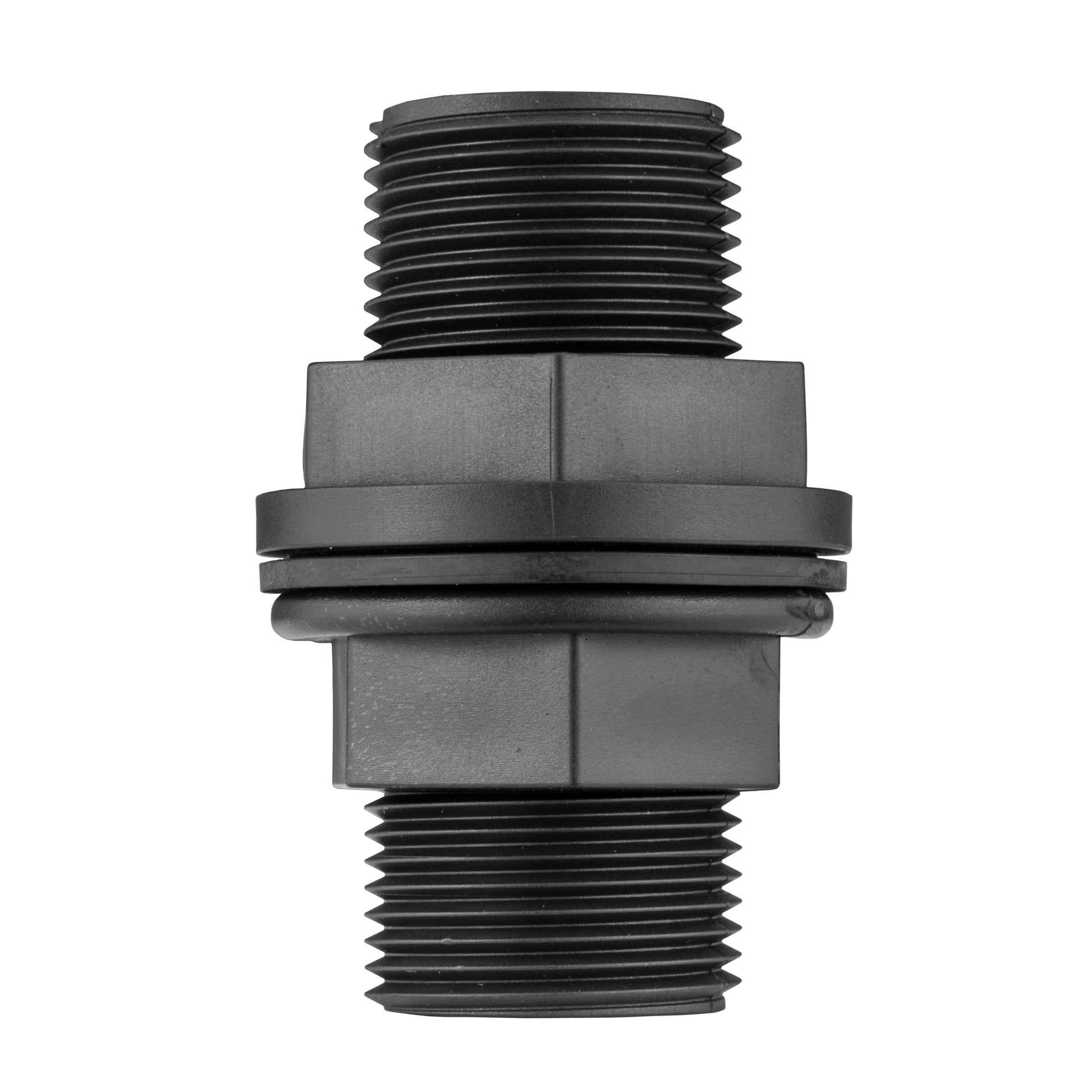

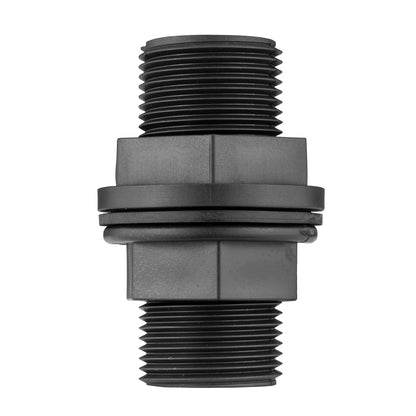

Make a threaded connection through a suitable tank wall with this black plastic double-male adapter.
Both ends are ¾-inch BSP male. The set includes a back nut and two mounting washers, ready for an appropriate water-butt or tank installation.
Add the female-threaded fitting your outlet needs. A valve, tap, hose and any additional adapters are sold separately.
One washer each side

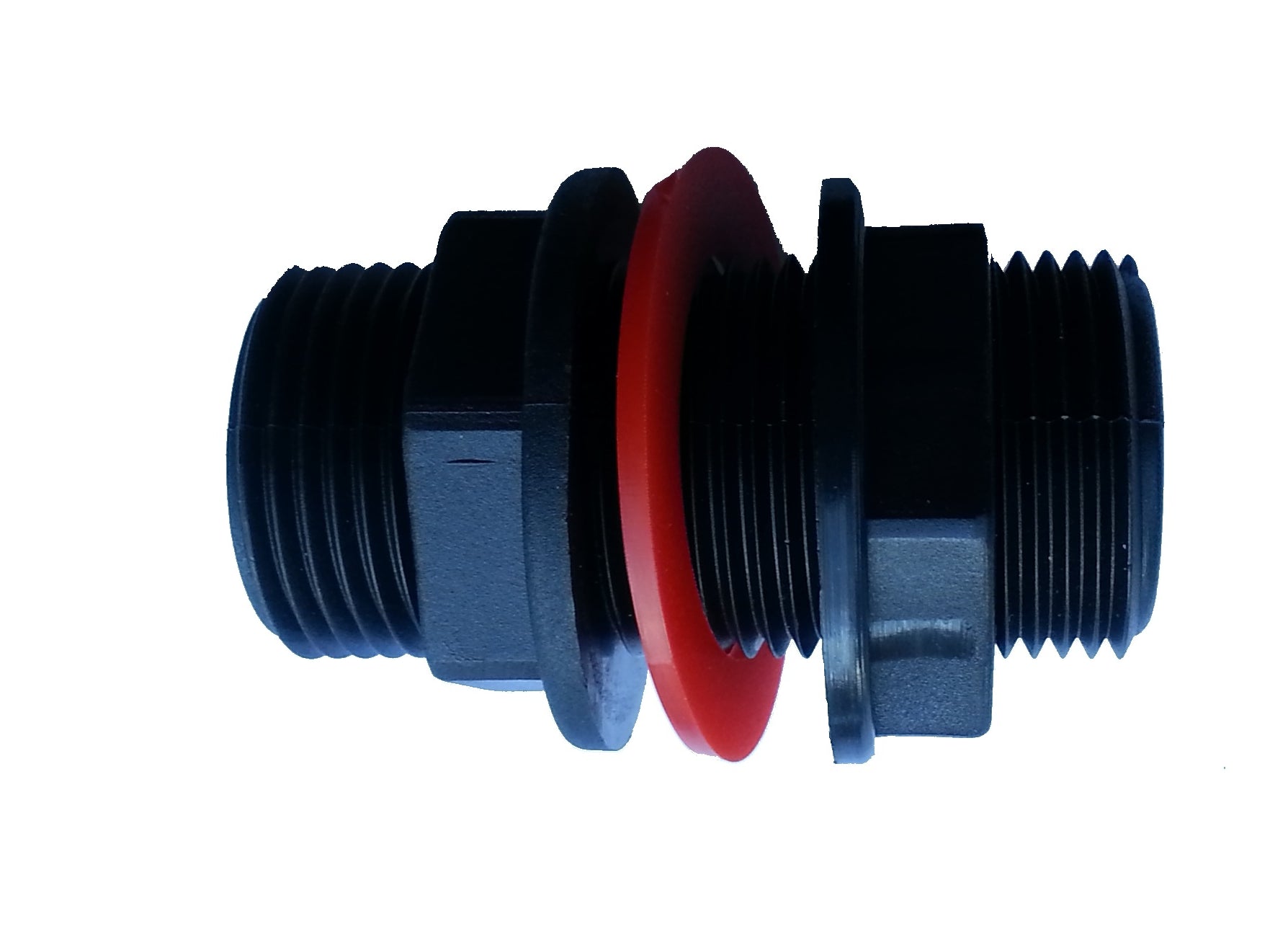

With the back nut loosened, you can see the two mounting washers and the threaded stem between the body flange and nut.

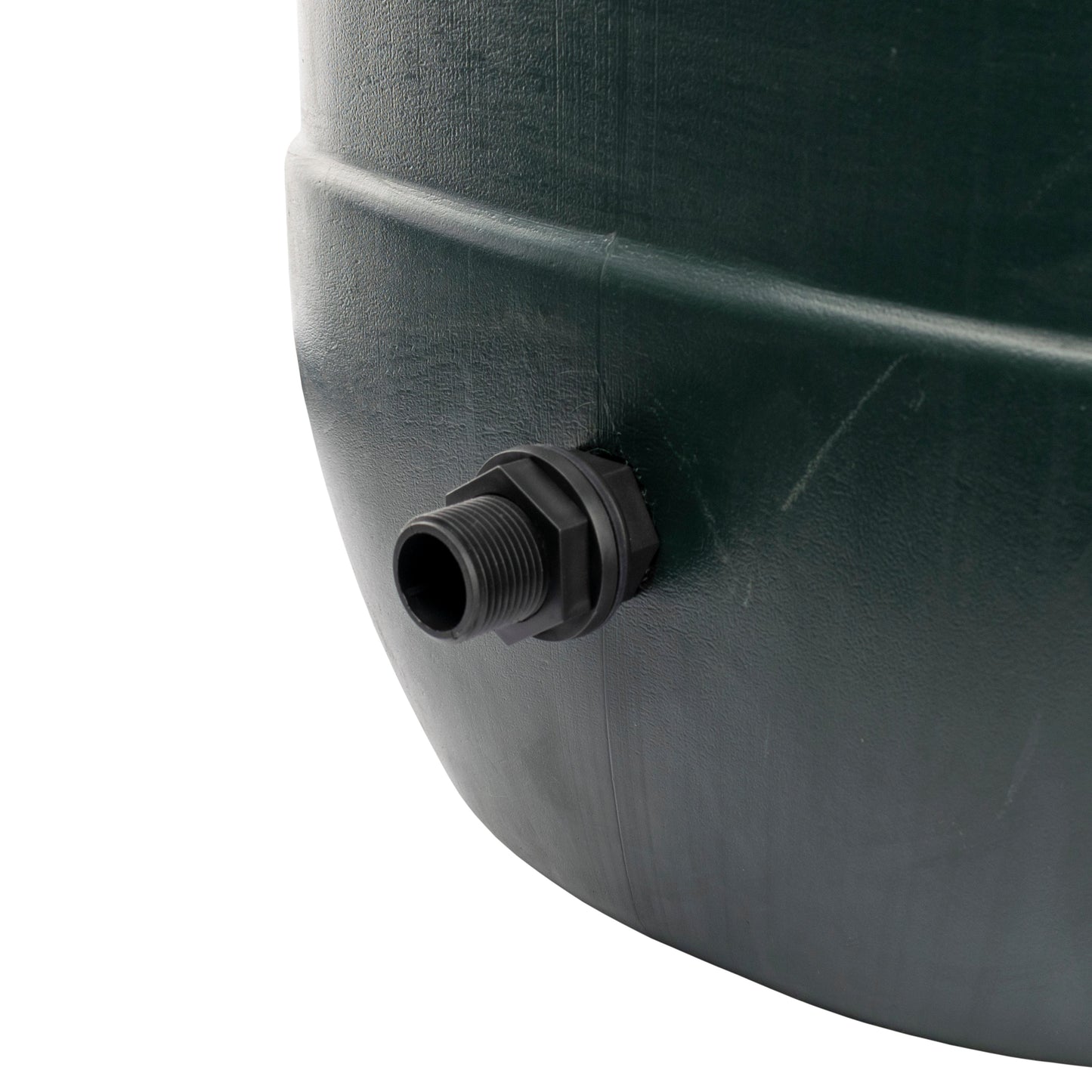

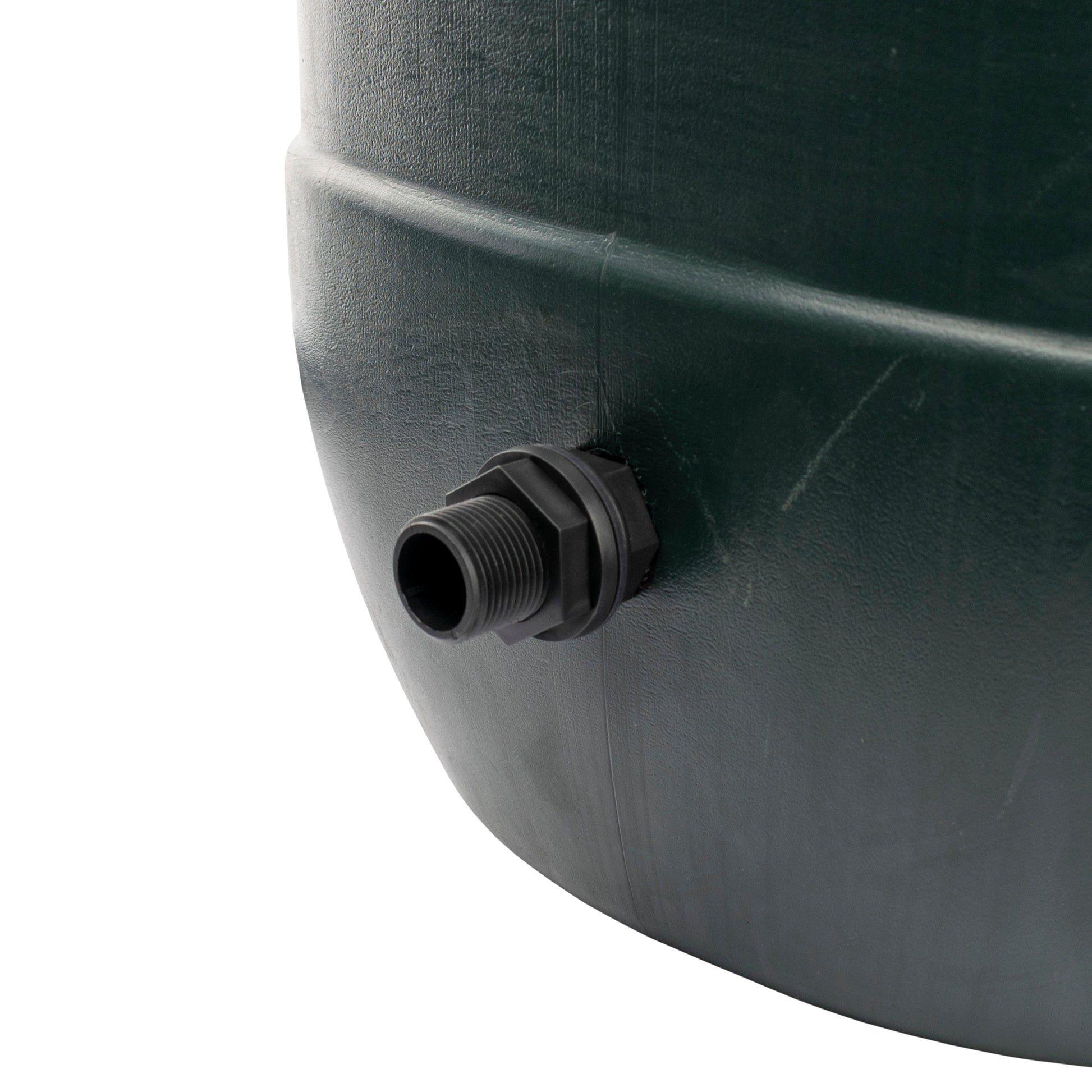

For a suitable through-wall mounting, place one washer against the flange on one side of the tank wall, then fit the second washer and retaining nut on the opposite side.
The washers seal against the wall. A valve or coupling screwed onto either male end needs its own appropriate sealing arrangement at that threaded joint.
Choose your fitting by its ¾-inch BSP female thread. The central passage is not an internal female socket for a male-inlet tap.
Plan the connected outlet
Check the tank mounting, flow control and hose connection before assembly.
Mounting space
Check the container is suitable, with clean seating surfaces and enough access for the inner washer and nut. Measure the actual connector before preparing an opening; the BSP designation does not specify a drill size.
Flow control
This connector has no valve. A separately sold ¾-inch BSP female lever valve is a matching thread option if you need to stop the flow. Check its clearance and suitability for the complete installation.
Final connection
Select any hose or pipe adapter separately, matching its threaded end and outlet to your system. Support attached parts so they do not pull on the tank wall, and check the wall seal and every joint with water after fitting.
Connector questions
Does this take a male-inlet water-butt tap?
No. Both ends have external ¾-inch BSP male threads. Choose a matching female-threaded fitting, or a different tank-adapter arrangement that provides the female socket your male-inlet tap needs. The centre of this connector is an open passage.
What is supplied with the adapter?
One black plastic connector body, one retaining back nut and two mounting washers. The photographs show the nut fitted and loosened for clarity. A tank, valve, tap, hose and any other fittings are not included.
Do the washers seal the valve connection too?
The two mounting washers sit against the tank wall in a suitable through-wall installation. They do not replace the sealing arrangement needed at a separate valve or coupling screwed onto a male thread. Inspect both kinds of joint after assembly.
How do I choose the tank opening?
Check the actual connector against the container’s wall thickness, seating surfaces and available room for the nut before cutting. The nominal ¾-inch BSP thread size is not a drill diameter or a promise that the fitting suits every tank wall.
Product information & technical details
| SKU | BUTT34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Black |
| Material | Plastic |

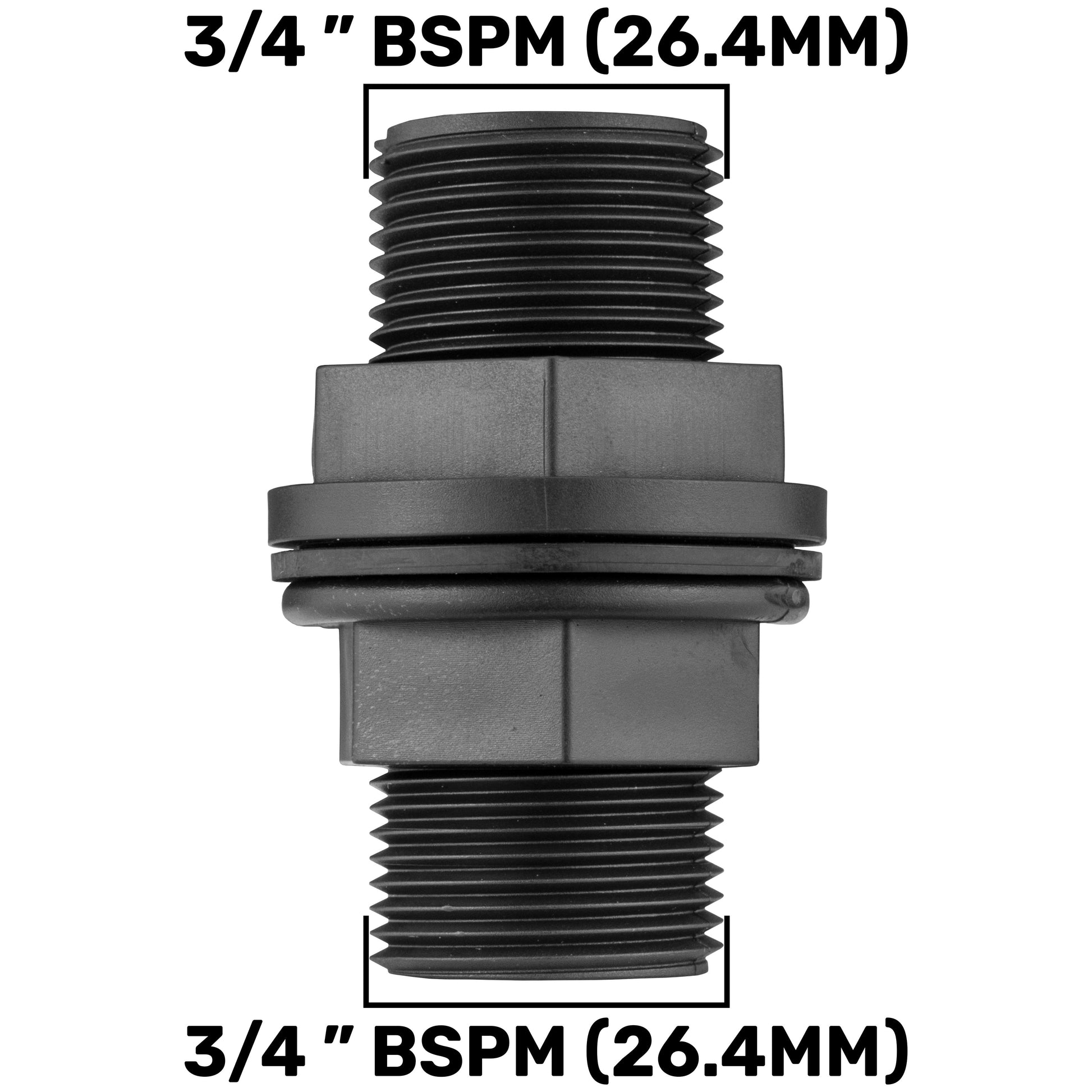

| Connections | ¾-inch BSP male at both ends |
|---|---|
| Body form | Straight connector with open passage |
| Back nut | 1 included |
| Mounting washers | 2 included |
| Supplied contents | 1 connector, 1 back nut and 2 mounting washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
