Description
2-inch BSP outlet

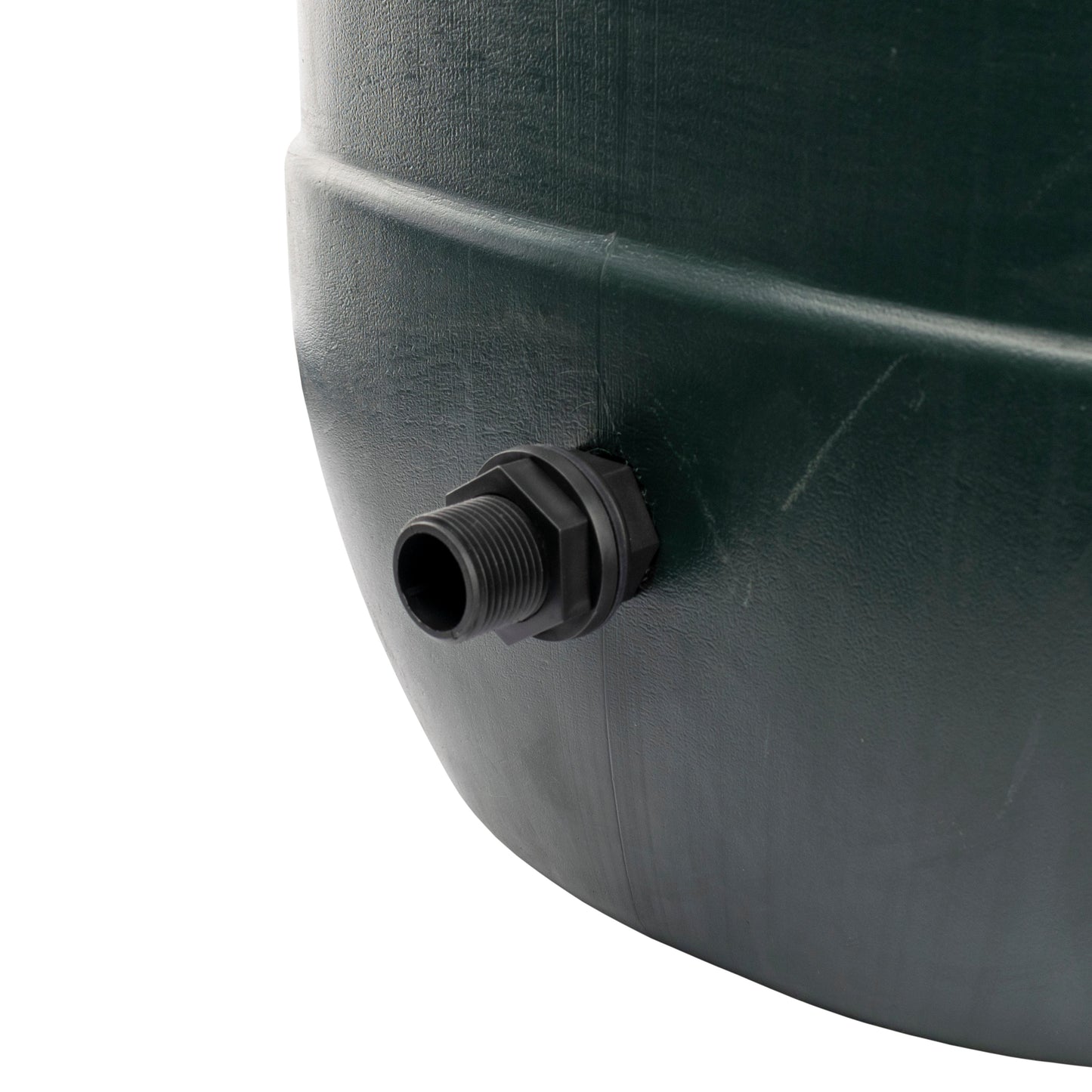

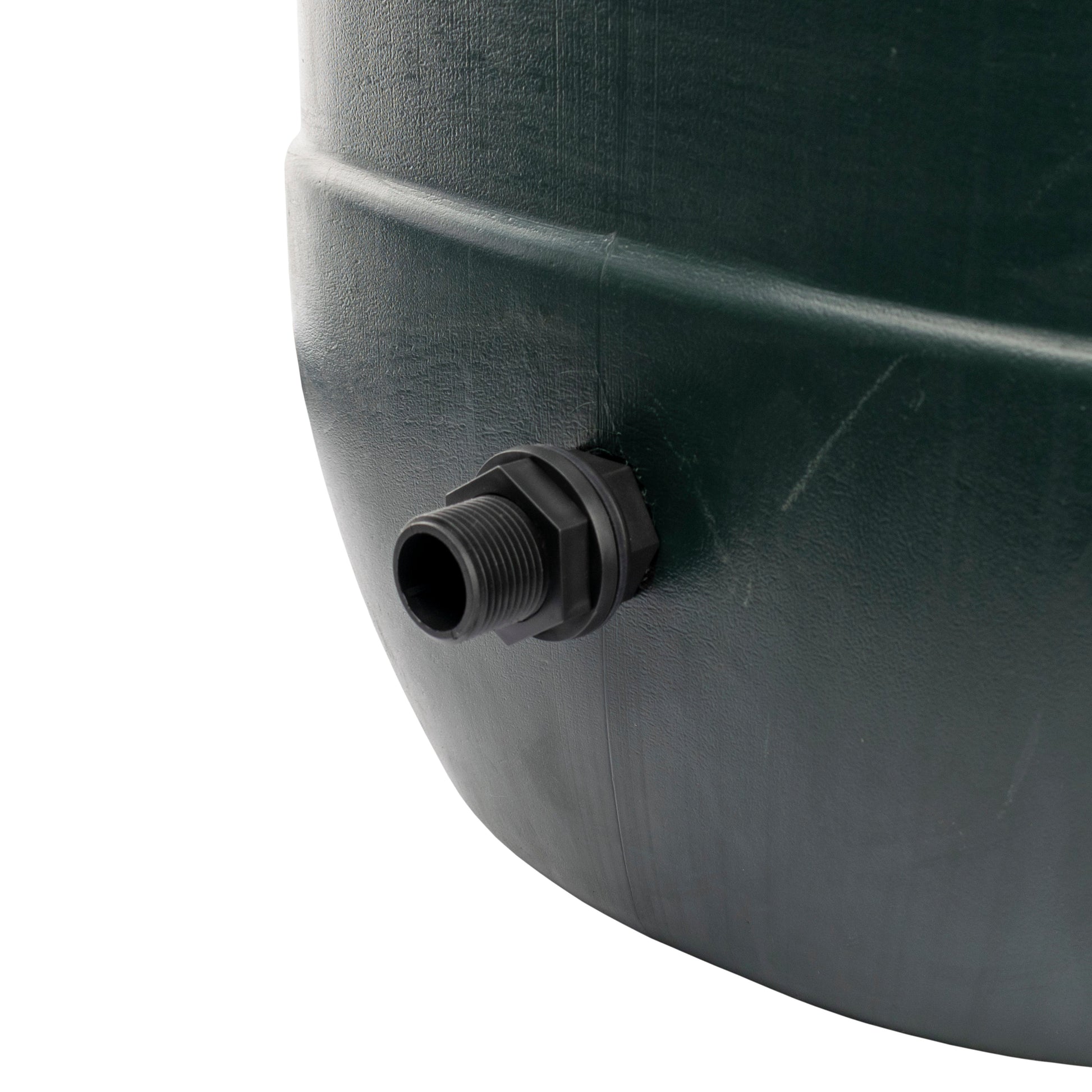

Use this black plastic double-male connector to create a threaded outlet in a suitable water butt or tank.

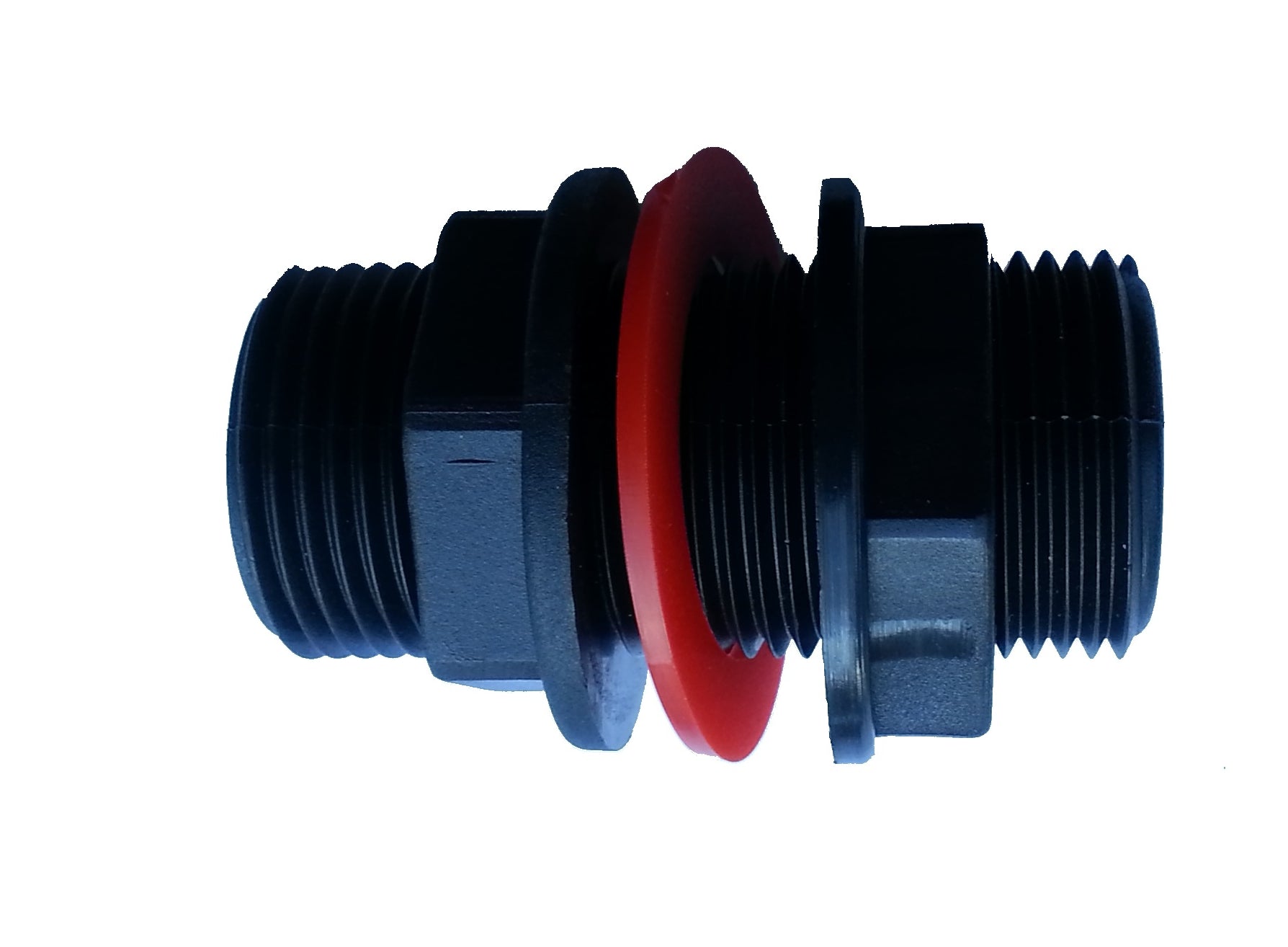

Both external threads are 2-inch BSP male. A back nut and mounting seal are supplied for an appropriate through-wall installation.
The body has an open passage. Choose a matching female-threaded valve or outlet fitting separately to complete your arrangement.
Match the female fitting
The size label identifies the connector’s external male threads. A matching 2-inch BSP female fitting screws over the male end you want to use.
The centre is a water passage, not a female-threaded socket. A tap with a male inlet cannot screw directly into this connector.

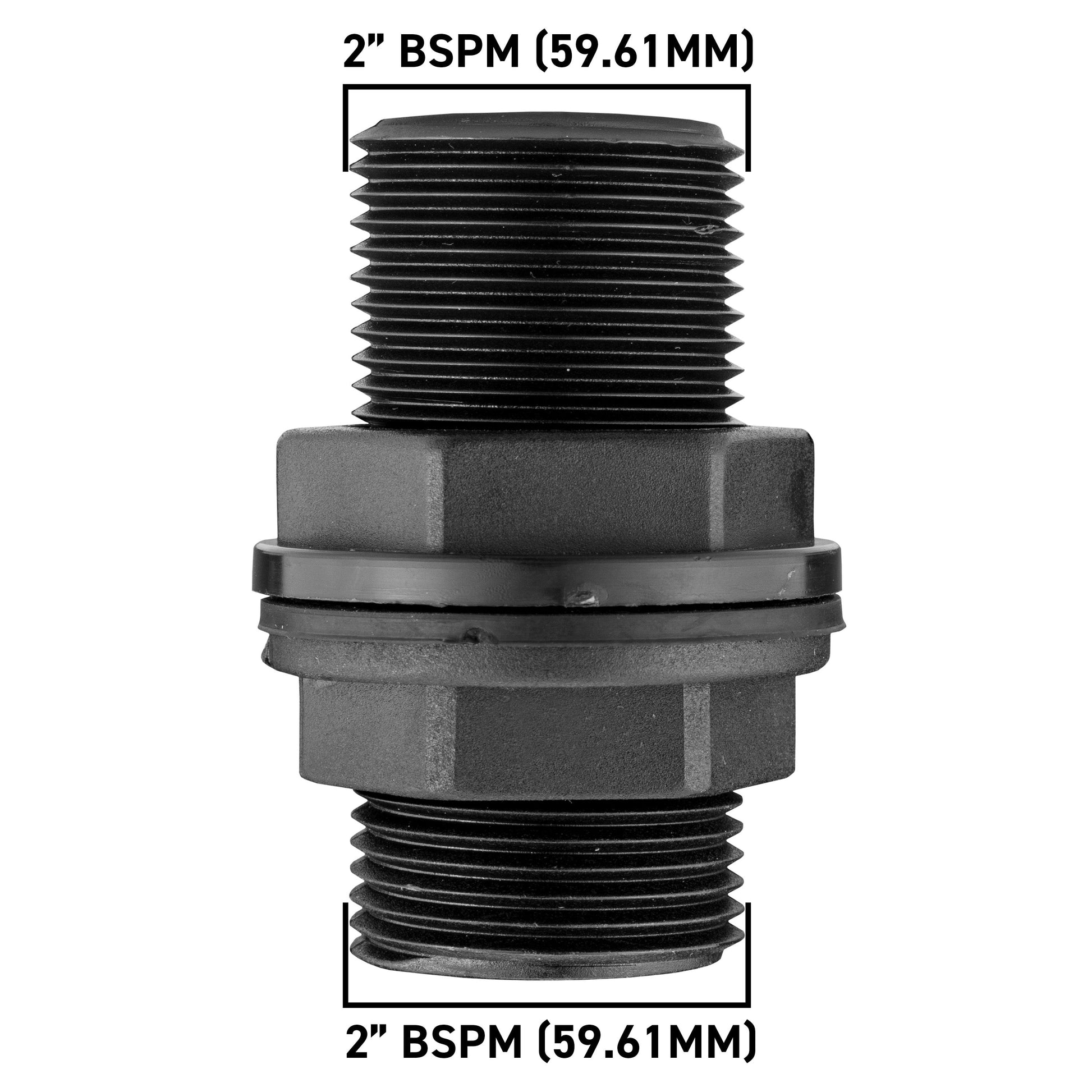

Thread size, hose size and tank-opening size are different checks. The BSP label and the thread measurement pictured here do not specify the hole to cut or the tank-wall thickness the fitting can accept.
If you want flow control, the separately sold 2-inch BSP female lever valve is a matching thread option. Check the complete assembly’s clearance, support and suitability before ordering.
Build the complete outlet
Plan the wall mounting and any attached fittings before filling the tank.
Prepare the mounting
Check that the tank and opening suit the actual connector. The flange and seal need suitable seating surfaces, and the retaining nut needs enough access and thread engagement. Measure before cutting a new opening.
Attach the chosen fitting
Use a matching female BSP thread and a suitable sealing arrangement at that joint. The tank-wall mounting seal does not seal a separate valve or hose fitting. Support the adapter while assembling the outlet.
Check with water
Inspect the wall seal and each threaded joint after assembly. Support any attached valve, pipe or hose so its weight and movement do not strain the plastic connector or tank wall. A valve and hose are not included.
Questions about the 2-inch adapter
Are both threads 2-inch BSP male?
Yes. This is a double-male connector with a 2-inch BSP external thread at each end. Use matching female-threaded fittings. It is not the male-to-female version that provides an internal socket for a male-inlet tap.
Is a valve supplied with the connector?
No. The connector is supplied with its back nut and mounting seal. The body remains open, so any shut-off valve, tap, hose or further adapter must be chosen separately. Match the valve’s female thread and check clearance for its operation.
Does the mounting seal also seal an attached valve?
No. The included mounting seal is for the connector’s tank-wall arrangement. A valve or coupling screwed onto an external male end needs its own suitable joint-sealing method. Check the wall mounting and every attached connection for leaks after fitting.
Can I choose the tank opening from the 2-inch label?
No. Two-inch BSP describes the nominal thread, not the hole to drill. Check the actual fitting against the tank wall, sealing surfaces and available space for the retaining nut before preparing a new opening.
Product information & technical details
| SKU | BUTT2BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male |
| Colour | Black |
| Material | Plastic |
| Connections | 2-inch BSP male at both ends |
|---|---|
| Body form | Straight connector with open passage |
| Back nut | 1 included |
| Mounting seal | Included |
| Supplied contents | 1 connector with back nut and mounting seal |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
