Description
1.5-inch male BSP
A straight plastic tank connector with the same 1.5-inch BSP male thread at both ends.
Use the retaining nut and mounting seal with a suitable tank wall, then add the female-threaded fitting that suits your outlet.
One connector set is supplied. Tank, valve and hose are sold separately.
Match a female fitting

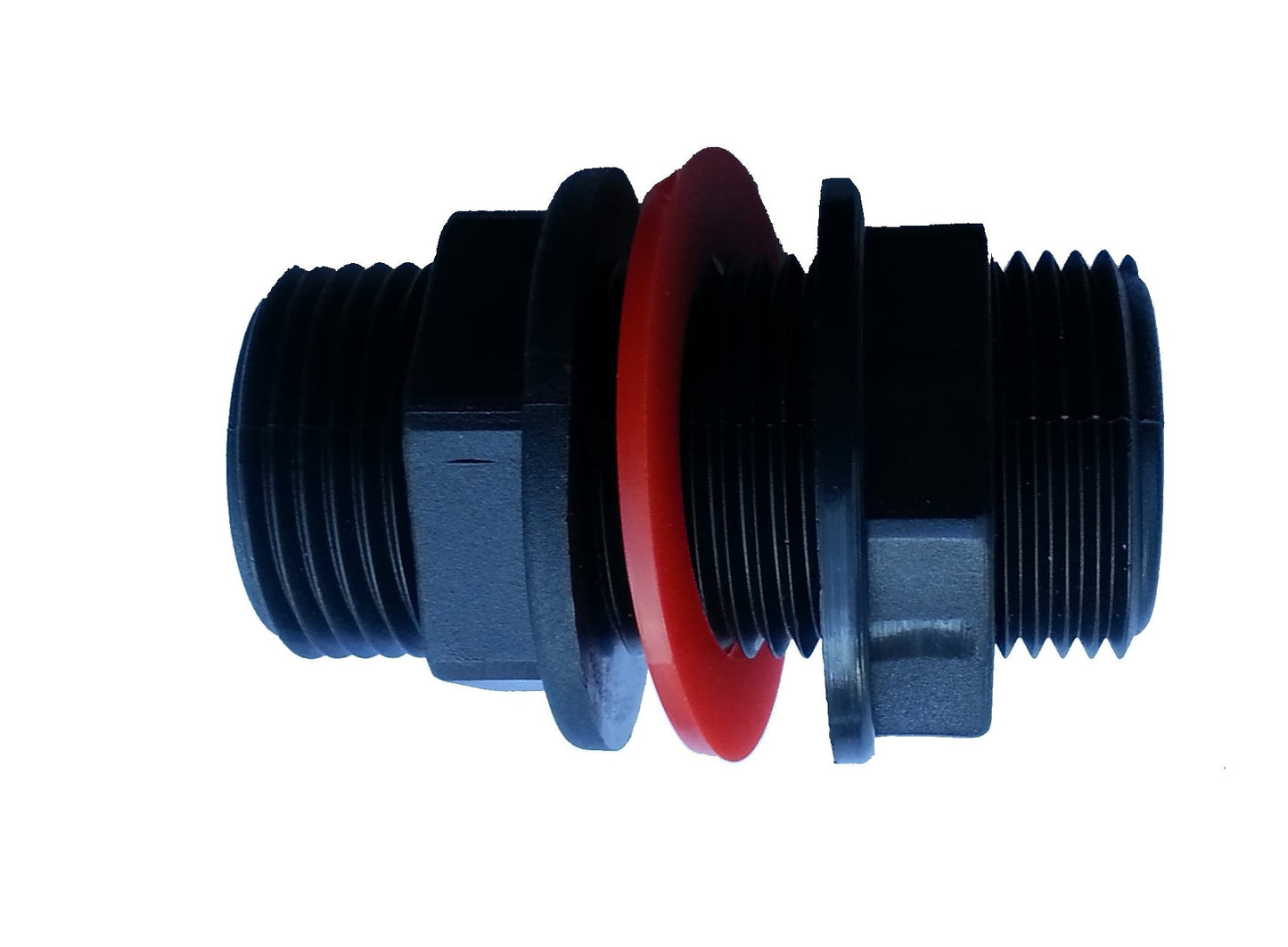

The photograph shows the two external male threads and central mounting parts. A matching female fitting screws onto the male end; the centre of the connector is an open water passage.
A male-inlet tap cannot connect directly to another male thread. For a valve or hose outlet, select a suitable 1.5-inch BSP female connection and check the separate fitting’s own seal.
The mounting seal serves the tank-wall joint. It does not remove the need to seal and support any additional threaded connections appropriately.
Check the tank mounting
Build around the tank and fittings you have, starting with these three checks.
Opening and wall
Check the actual body, flange and mounting parts against the tank wall before preparing an opening. The 1.5-inch BSP designation describes the thread; it is not a drill diameter or a permitted wall thickness.
Access and seating
Make sure you can reach and support both sides of the fitting. Keep the sealing surfaces clean, seat the supplied mounting seal correctly and hold the body while tightening the nut. Avoid distorting the plastic or tank wall.
Connections and checks
Add matching female-threaded fittings with an appropriate sealing arrangement. Support attached pipework or hose so it does not pull on the tank outlet, then inspect the wall mounting and all joints for leaks before leaving water stored.
Questions about the 1.5-inch fitting
Are both threads 1.5-inch BSP male?
Yes. Both ends have external male threads of the same nominal 1.5-inch BSP size. This connector does not reduce the connection size, and its central opening is not an internal female-threaded socket.
Will it fit directly into a 1.5-inch hose?
Not as a bare hose connection. BSP identifies the nominal thread, while hose sizes describe a different connection measurement. Use a separate matching female-threaded adapter with a hose connection suited to your hose and installation.
What hole should I make in the tank?
Check the actual connector and mounting parts before making an opening. Allow for the tank wall, sealing surface and access needed to tighten the retaining nut. Do not choose a drill from the nominal BSP thread size alone.
What comes with the connector?
One black plastic connector in the 1.5-inch BSP size, with its retaining nut and mounting seal. A tap, valve, tank, hose and any extra adapters are separate. Check each additional fitting’s thread and sealing arrangement when planning the outlet.
Product information & technical details
| SKU | BUTT15BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Male |
| Colour | Black |
| Material | Plastic |

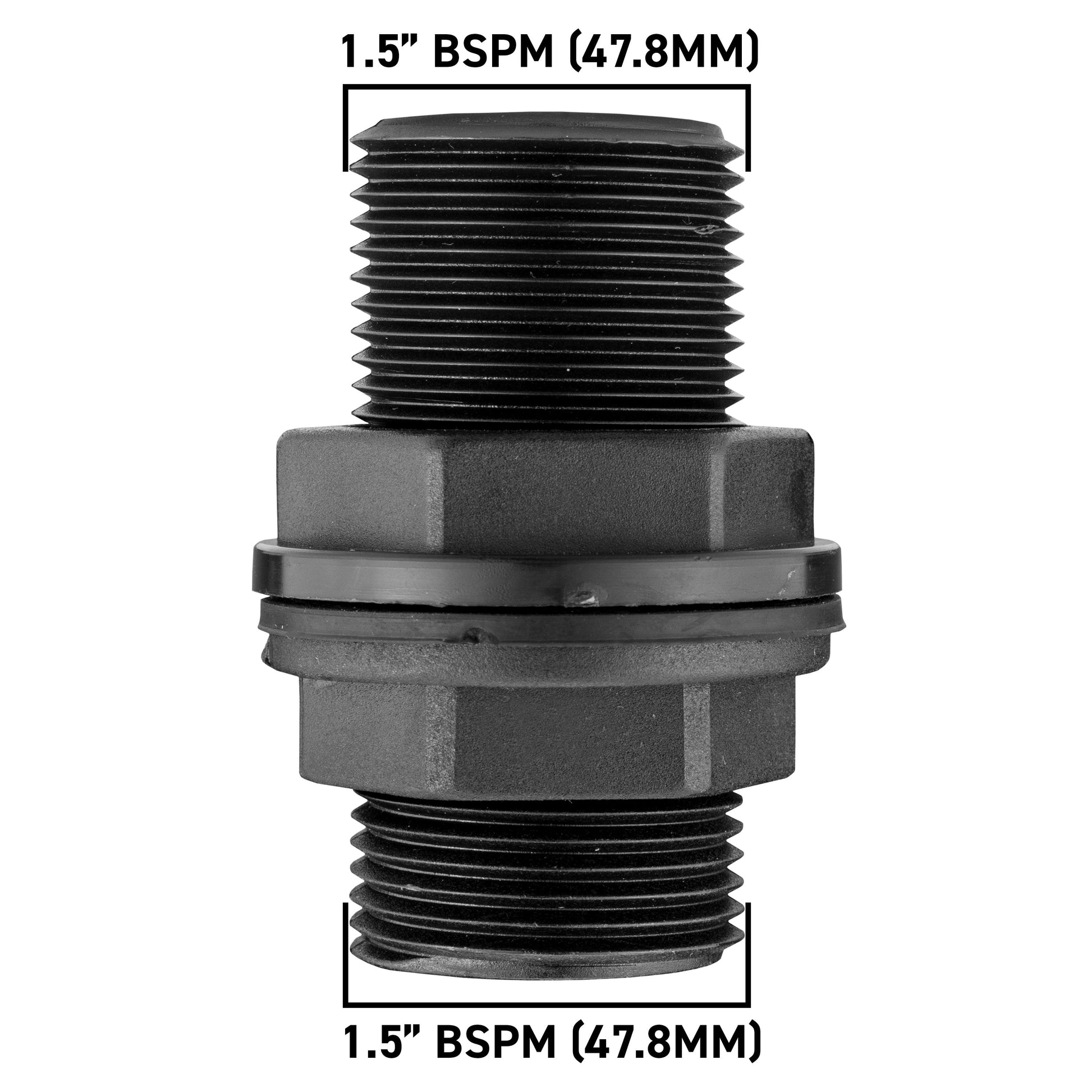

| Connections | 1.5-inch BSP male at both ends |
|---|---|
| Connector form | Straight double-male tank fitting |
| Retaining nut | Included |
| Mounting seal | Included |
| Pack contents | 1 connector with nut and mounting seal |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
