Description
½-inch BSP outlet
Connect a suitable water butt to the fitting you need with this ½-inch BSP double-male adapter.
Both ends have an external male thread. The black plastic body provides an open passage, and the back nut and two mounting washers hold a suitable through-wall installation in place.
Add a matching female-threaded fitting separately. This connector does not include a tap, valve or hose outlet.
Three checks before fitting
Plan the tank opening and the attached fitting together.
Match the thread
Choose a fitting with a matching ½-inch BSP female connection. The connector’s centre is an open water passage, not an internal threaded socket for a male tap.
Check the tank wall
Make sure the flange, washers and nut can seat on suitable surfaces. Check wall thickness and access on both sides, and measure the actual connector before preparing an opening.
Plan the complete joint
The mounting washers seal against the tank wall. A separate fitting screwed onto a male end needs an appropriate sealing arrangement for that joint. Leave room for any valve handle and attached hose.
See the mounting parts
The photograph shows the back nut loosened so the threaded stem and two separate mounting washers are visible.
For a suitable through-wall mounting, one washer sits against the body flange on one side of the tank wall. The other washer and back nut fit on the opposite side.
Keep the sealing surfaces clean and avoid overtightening the plastic parts. Support the connector while attaching other fittings so the assembly does not twist against the tank.
Fill and check the completed mounting and each attached joint for leaks before leaving the tank in use. Tank and additional fittings are sold separately.
Questions about this connector
Does a ½-inch male tap screw straight into it?
No. Both ends of this connector have ½-inch BSP male threads. It needs a matching female-threaded fitting. A male-inlet tap requires a different connection arrangement, such as a suitable male-to-female tank adapter.
Where do the two washers go?
For a suitable through-wall mounting, place one washer against each side of the tank wall, held between the connector flange and back nut. The tank wall needs suitable sealing surfaces, and you need access inside to fit the washer and nut.
Does the connector stop the water flow?
No. It has an open passage with no built-in valve. If you need to control the outlet, select a compatible valve or tap arrangement separately. Check the female BSP connection and any hose or pipe connection as separate requirements.
Is ½-inch BSP the size of the mounting hole?
No. BSP is the nominal thread designation. Check the actual connector and the container before choosing an opening size. The wall thickness, seating surfaces and space for the retaining nut all matter to the mounting.
Product information & technical details
| SKU | BUTT12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Black |
| Material | Plastic |
| Connections | ½-inch BSP male at both ends |
|---|---|
| Body form | Straight connector with open passage |
| Back nut | 1 included |
| Mounting washers | 2 included |
| Supplied contents | 1 connector, 1 back nut and 2 mounting washers |
What is BSP?
What is BSP thread size?

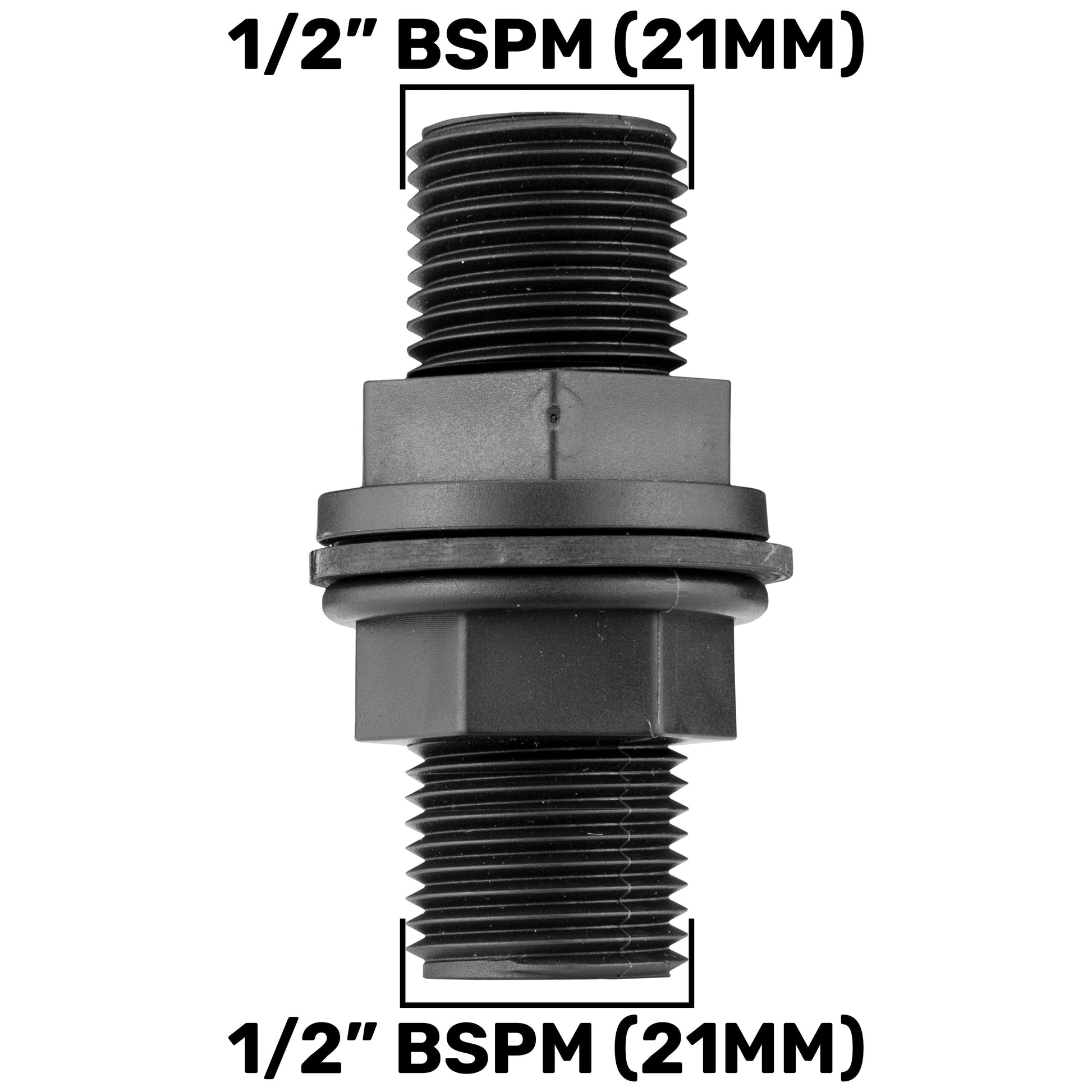

BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
