Description

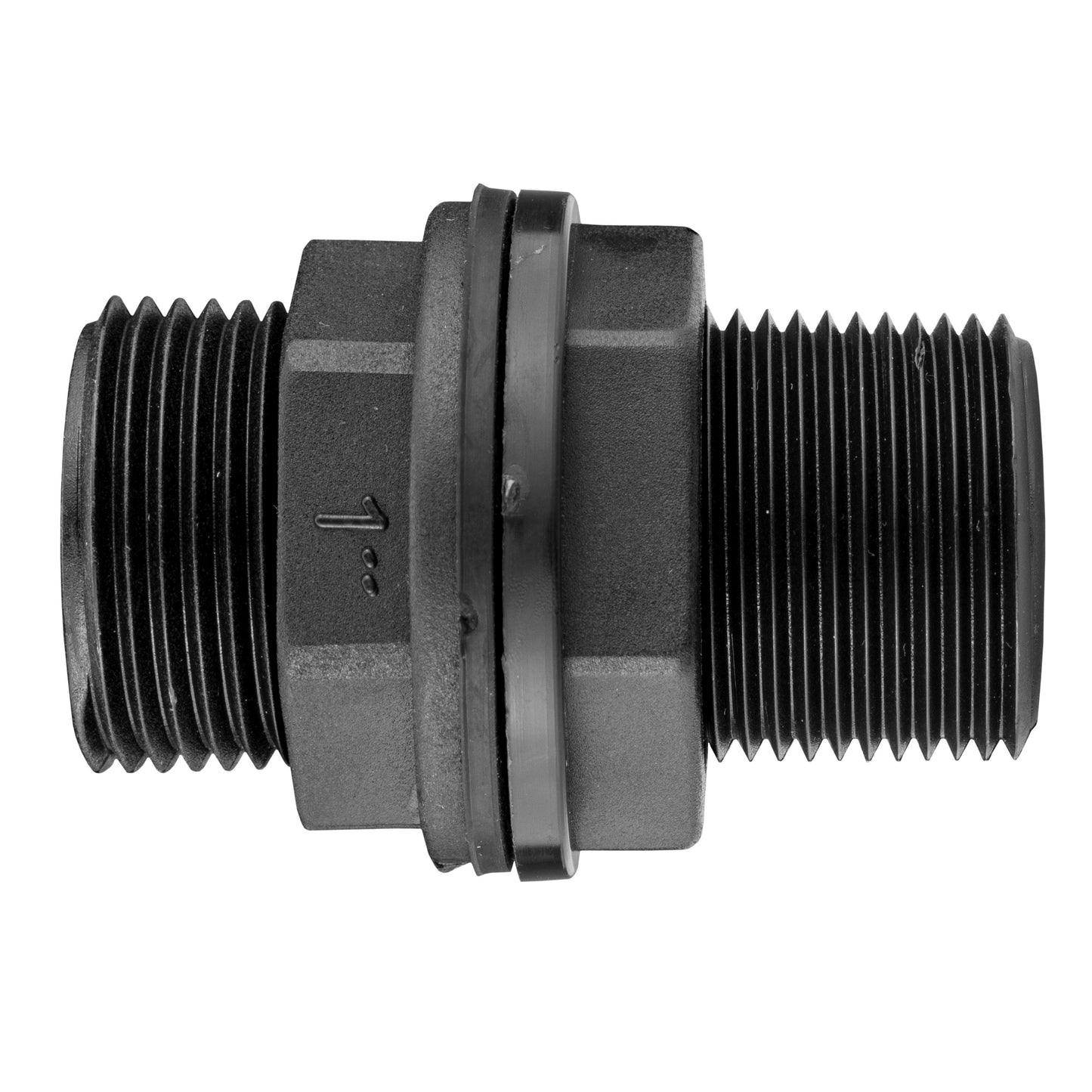

Two male threads
Create a threaded outlet on a suitable tank with this 1-inch BSP double-male connector.
The straight plastic body provides an open passage, while the back nut and two mounting washers secure a through-wall arrangement.
Connect a matching female-threaded fitting separately. Tank, valve and hose are not included.
See how the mounting parts fit
With the retaining nut removed, you can see the long threaded stem, the body flange and the separate mounting parts.
For a suitable tank wall, leave one washer against the flange, pass the stem through the prepared opening, then fit the second washer and nut on the opposite side. The washers seal the wall rather than the separate fittings screwed onto the ends.

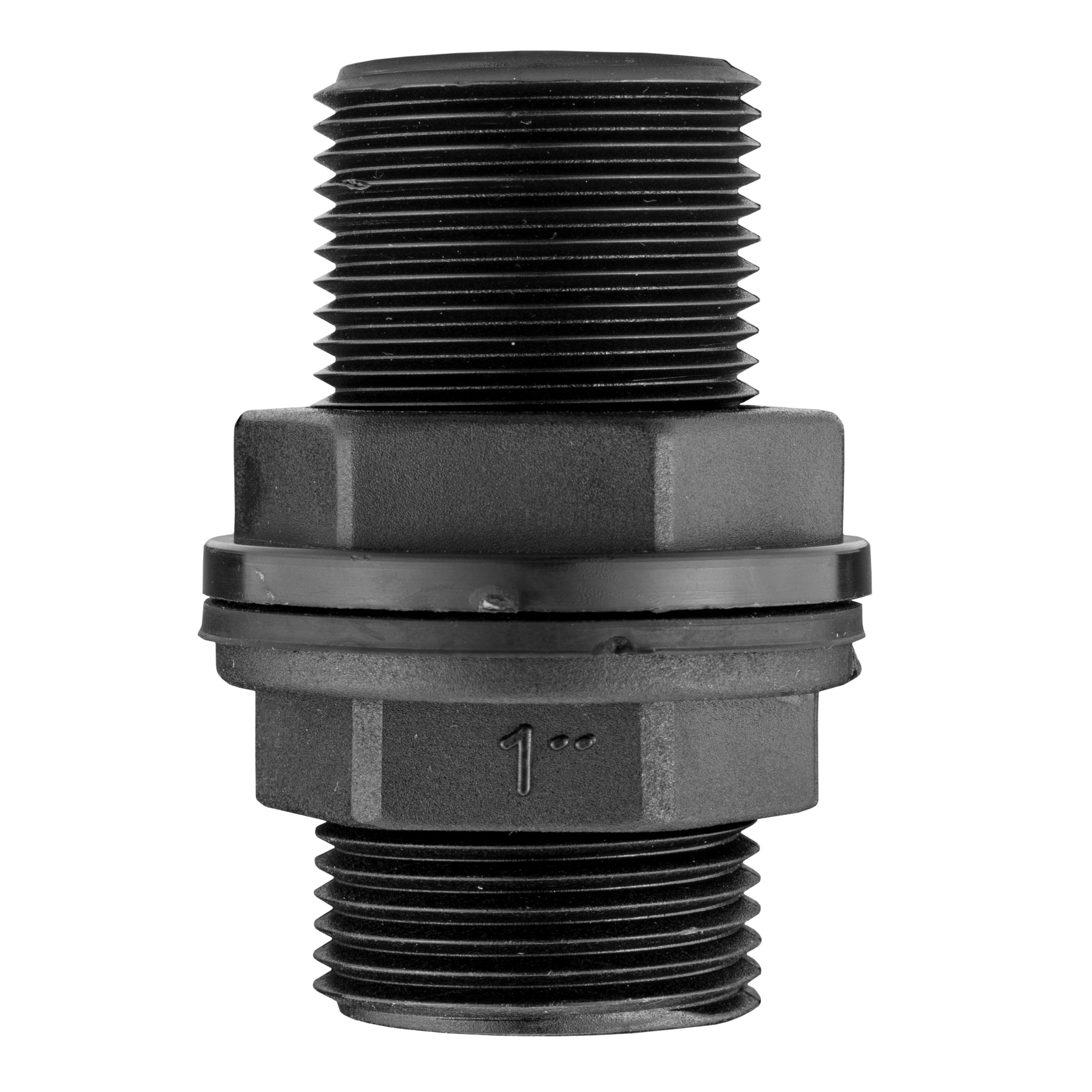

The connector has male threads on both ends. Its central opening is a passage for water, not a female-threaded socket for a male tap.
Plan the complete outlet
Match the tank mounting, threaded fitting and hose connection as separate parts of the installation.

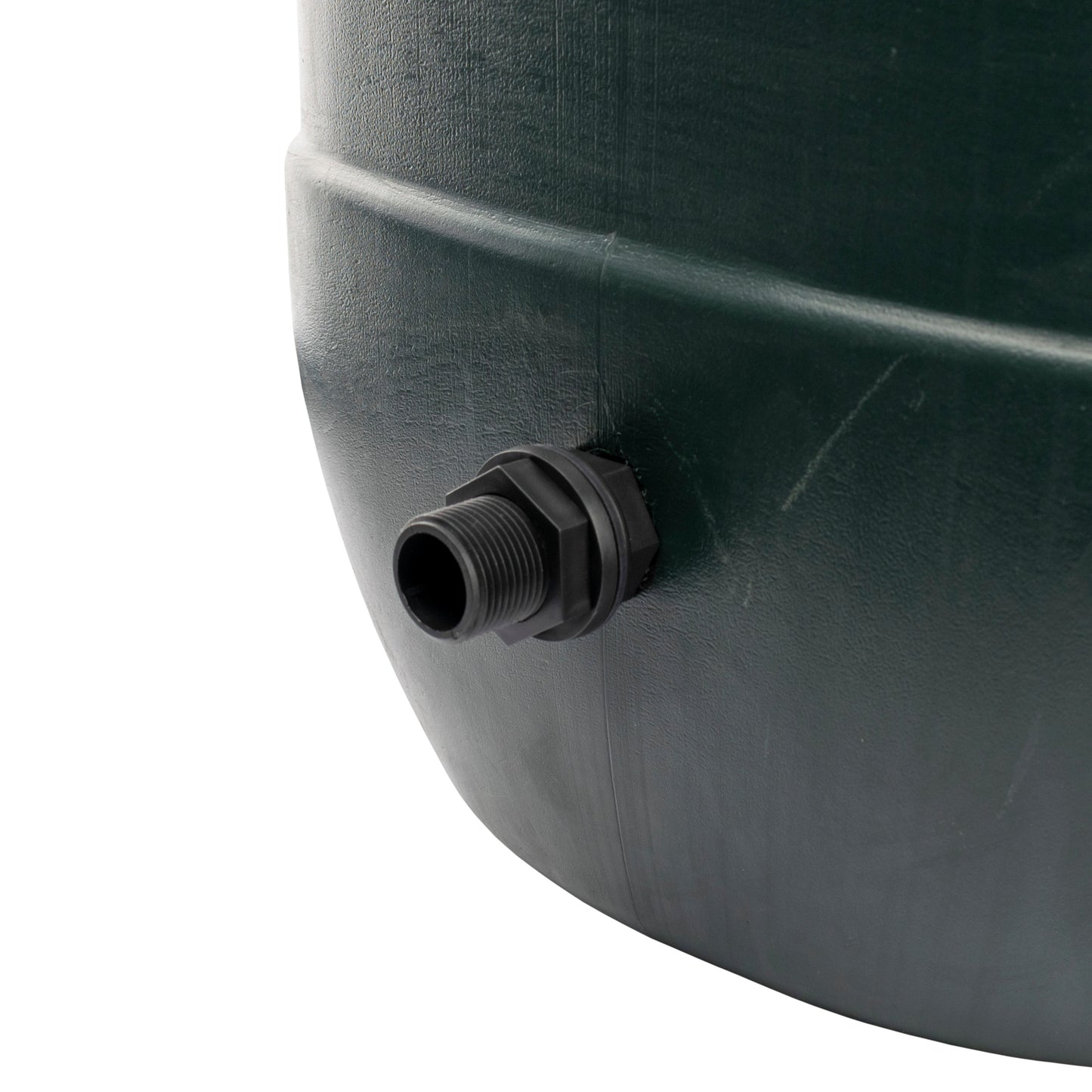

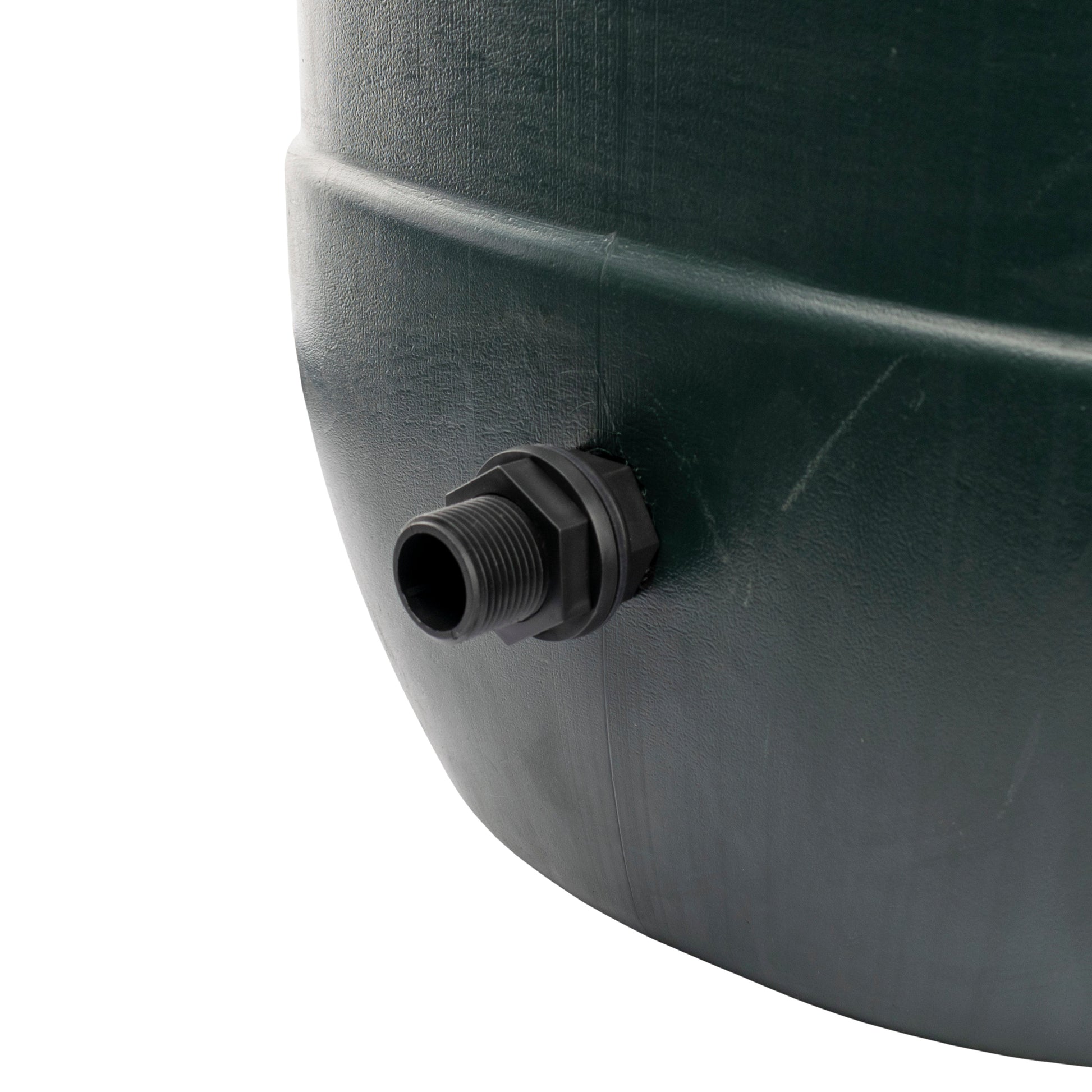

Tank wall
Check the wall is suitable for the flange, washers and retaining nut to seat correctly. Plan access on both sides and check the actual connector before making an opening. The nominal BSP size is not a drilling measurement.
Threaded connection
Choose a matching 1-inch BSP female fitting for the male end you intend to use. Check the joint’s sealing arrangement and leave room for a valve handle or any other operating parts.
Hose or pipe
If you need a hose outlet, select a separate threaded adapter with the correct hose connection. Support the connector during assembly and check the completed mounting and joints for leaks before leaving water stored.
Questions about this one-inch connector
Does it have a female thread inside?
No. This connector has 1-inch BSP male threads at both ends and an open passage through the centre. A male-inlet tap cannot screw directly into it; choose a matching female-threaded connection or a different adapter for that arrangement.
Where are the washers positioned?
For a suitable through-wall installation, one mounting washer seats against each side of the tank wall. They are retained between the connector flange and the back nut. Check the surfaces are clean and avoid overtightening the plastic parts.
Is a tap or hose connector included?
No. The set contains one black plastic connector, one back nut and two mounting washers. Any tap, valve, hose or additional adapter is separate. Match those parts to the connector’s one-inch BSP male thread and the hose or pipe you intend to use.
Can I choose the drill size from the BSP label?
No. One-inch BSP is the nominal thread designation, not the mounting-hole diameter. Check the actual connector, wall thickness and sealing surfaces before preparing an opening, and make sure you can reach the retaining nut inside the tank.
Product information & technical details
| SKU | BUTT1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| Colour | Black |
| Material | Plastic |

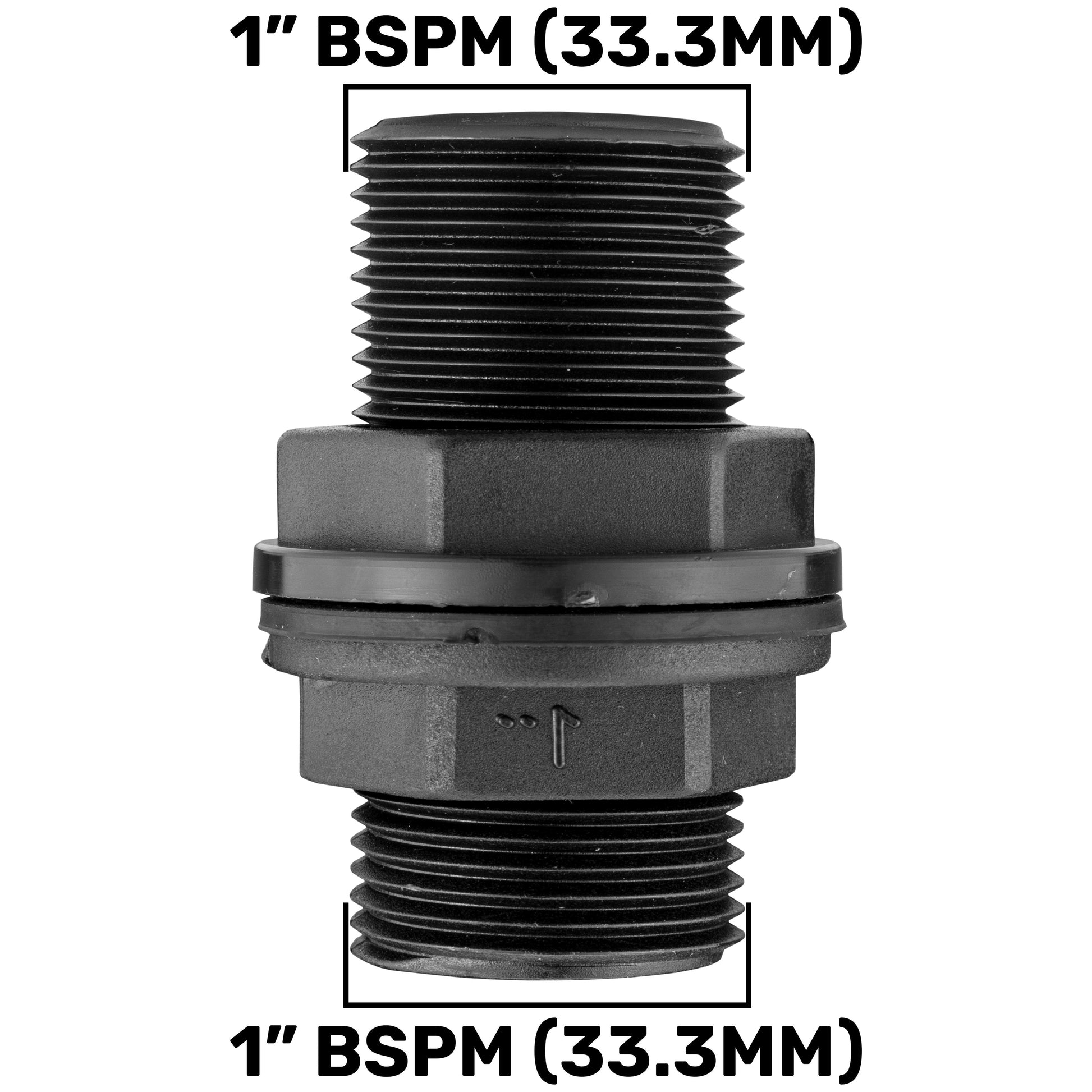

| Connections | 1-inch BSP male at both ends |
|---|---|
| Body form | Straight connector with open passage |
| Back nut | 1 included |
| Mounting washers | 2 included |
| Supplied contents | 1 connector, 1 back nut and 2 washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
