Description
A stepped connection for 25mm, 32mm or 38mm hose
Join suitable flexible pond hose to a 1¼-inch BSP female fitting using this straight male-threaded adapter.
Choose one of the three hose sections to match your hose bore and fitting requirements.
One bare black plastic connector supplied. Hose, clips, separate nuts and washers are sold separately.
Measure the space around your connection

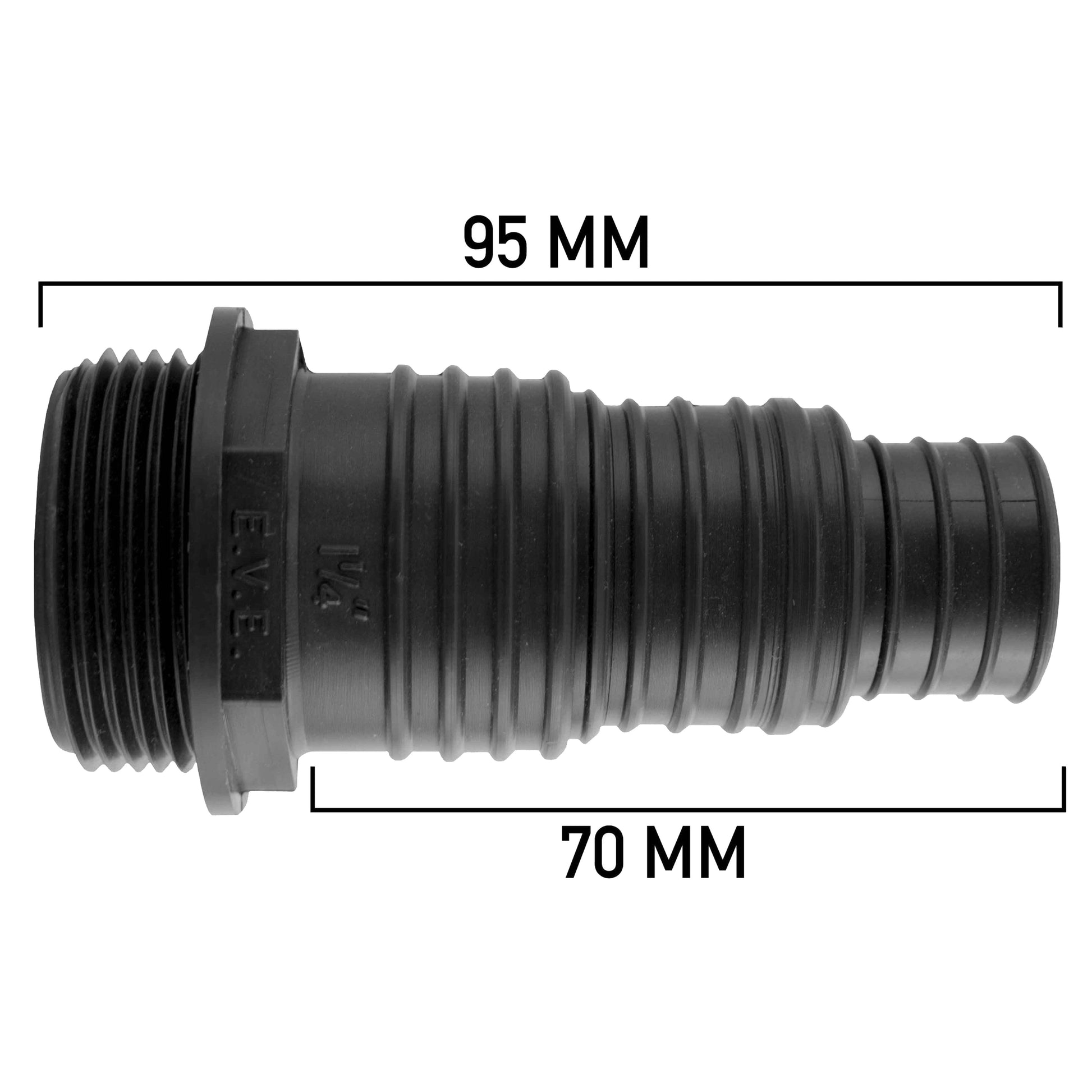

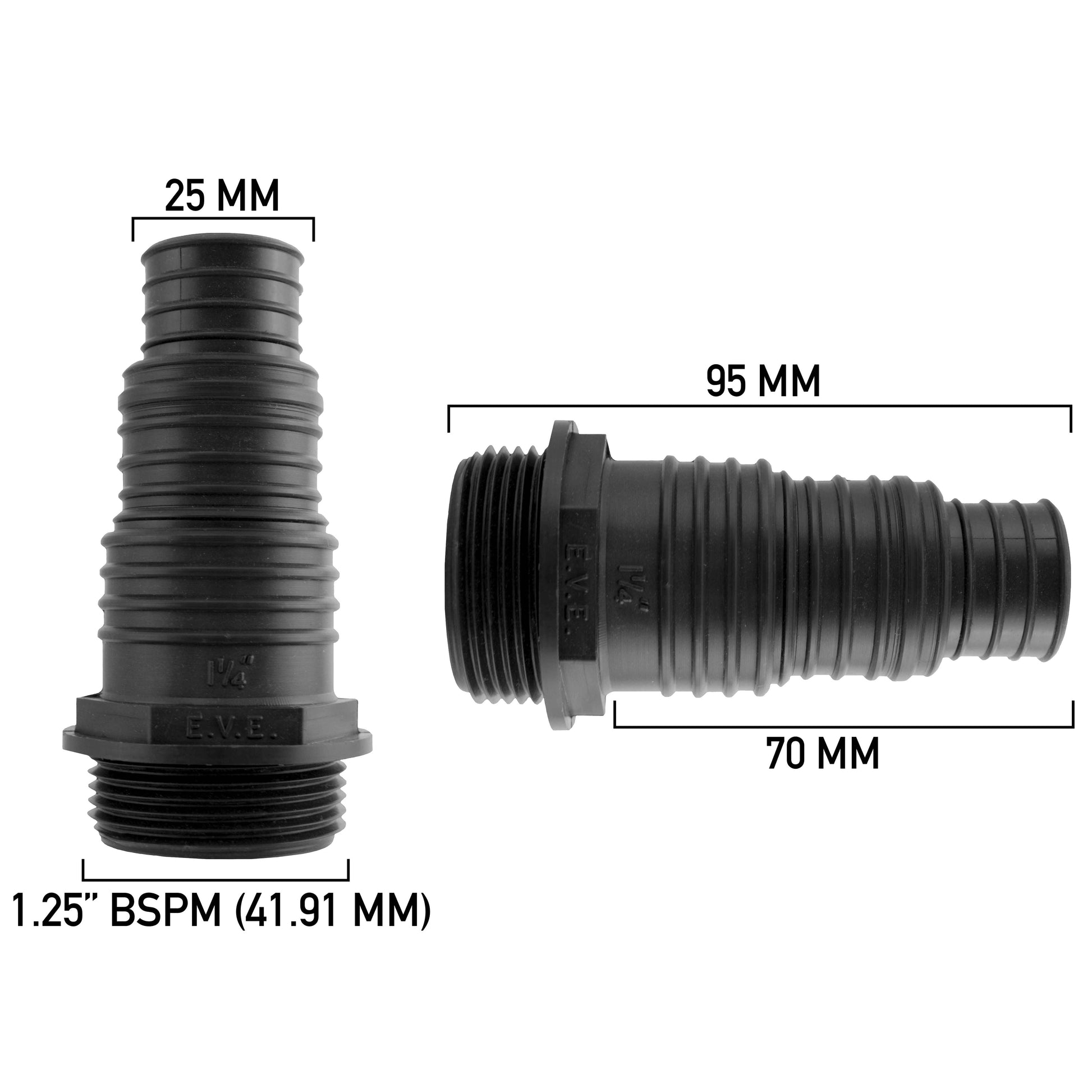

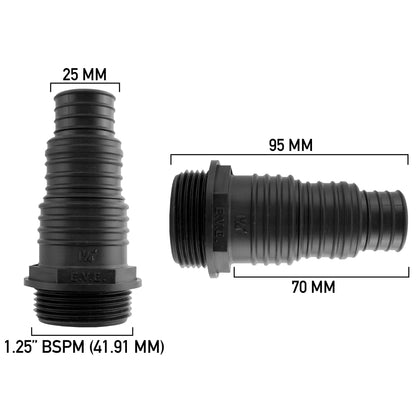

The reference photograph shows an approximately 95mm overall length and a 70mm stepped section.

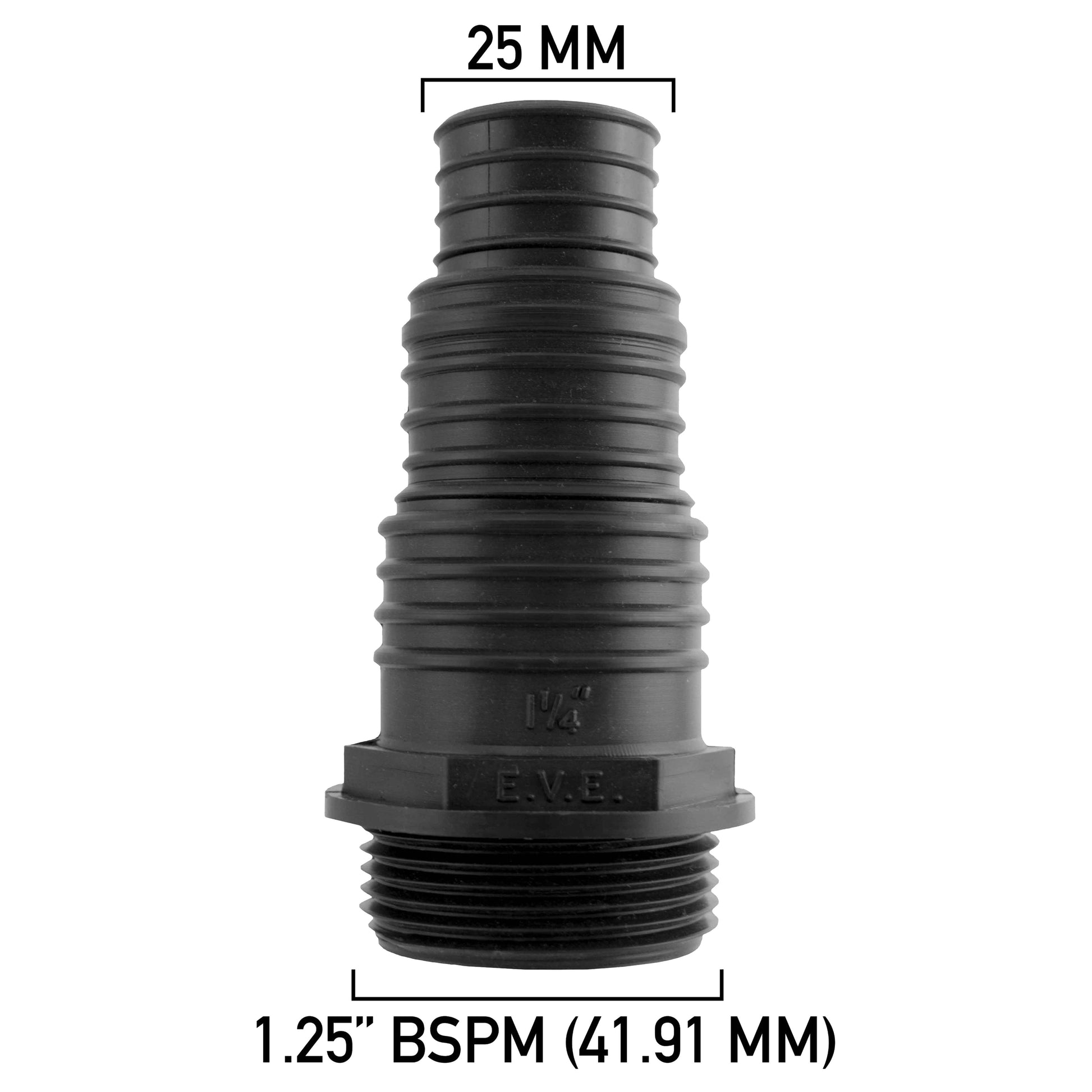

The 1¼-inch BSP male thread is labelled 41.91mm across. That equipment connection is separate from the hose-bore sizes along the tail.
Allow room for the hose to seat and bend gradually, and keep access to the thread and any securing clip.
Choose the ends that match your setup
Start at the equipment, then check the hose and its support.
Confirm the female port
Match the 1¼-inch BSP male thread to a female fitting on compatible equipment. Follow its sealing and tightening instructions. The shoulder is fixed to the body; it is not an independent swivel.
Use the correct hose step
Check the 25mm, 32mm or 38mm bore and hose wall profile against the intended section. Confirm the fitting method before trimming. Choose a clip for the outside diameter of the seated hose.
Leave a supported bend
Do not pull the hose tight or force a sharp bend at the adapter. Keep the joints accessible and check them with water before concealing the equipment or hose route.
Before ordering the 25/32/38mm adapter
Is this suitable for 40mm hose?
The stated hose options on this version are 25mm, 32mm and 38mm. The 38mm and 40mm ranges have different nominal bores, even where similar inch labels appear in product names. Check the hose’s metric internal diameter, wall profile and fitting instructions; do not assume the largest step is interchangeable with a 40mm fitting.
What does 1¼-inch BSP male mean here?
It describes the external thread at the equipment end, which needs a matching 1¼-inch BSP female fitting. The reference photo labels the male thread at 41.91mm across. BSP is a nominal system, separate from the 25mm, 32mm and 38mm hose-bore choices on the other end. Check both connection specifications before ordering.
How should I allow for the stepped tail?
The connector is approximately 95mm overall when uncut, with a 70mm stepped section. Choose the hose size first, then check its seating and securing instructions before any permanent trimming. Leave room for the hose and clip, plus a gradual bend beyond the fitting. The overall fitting length is not the complete installed clearance.
Does the fitting include a backnut and sealing washer?
No. One bare black plastic adapter is supplied, without a separate backnut, washer, hose or clip. Follow your equipment’s instructions for the appropriate sealing method at the threaded connection. Match any hose clip to the fitted hose’s outside diameter and wall profile, keep the run supported and inspect the assembled joints with water.
Product information & technical details
| SKU | POND25B32B38B125BSPMSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Male |
| Barb size | 25mm (1"), 32mm (1.25"), 38mm (1.5") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Stepped 25mm / 32mm / 38mm hosetail to 1¼-inch BSP male thread |
| Overall length | Approximately 95mm, uncut |
| Stepped section length | Approximately 70mm |
| Contents | One bare connector; hose, clips, separate nut and washer not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
