Description
Match your hose to a threaded pond fitting

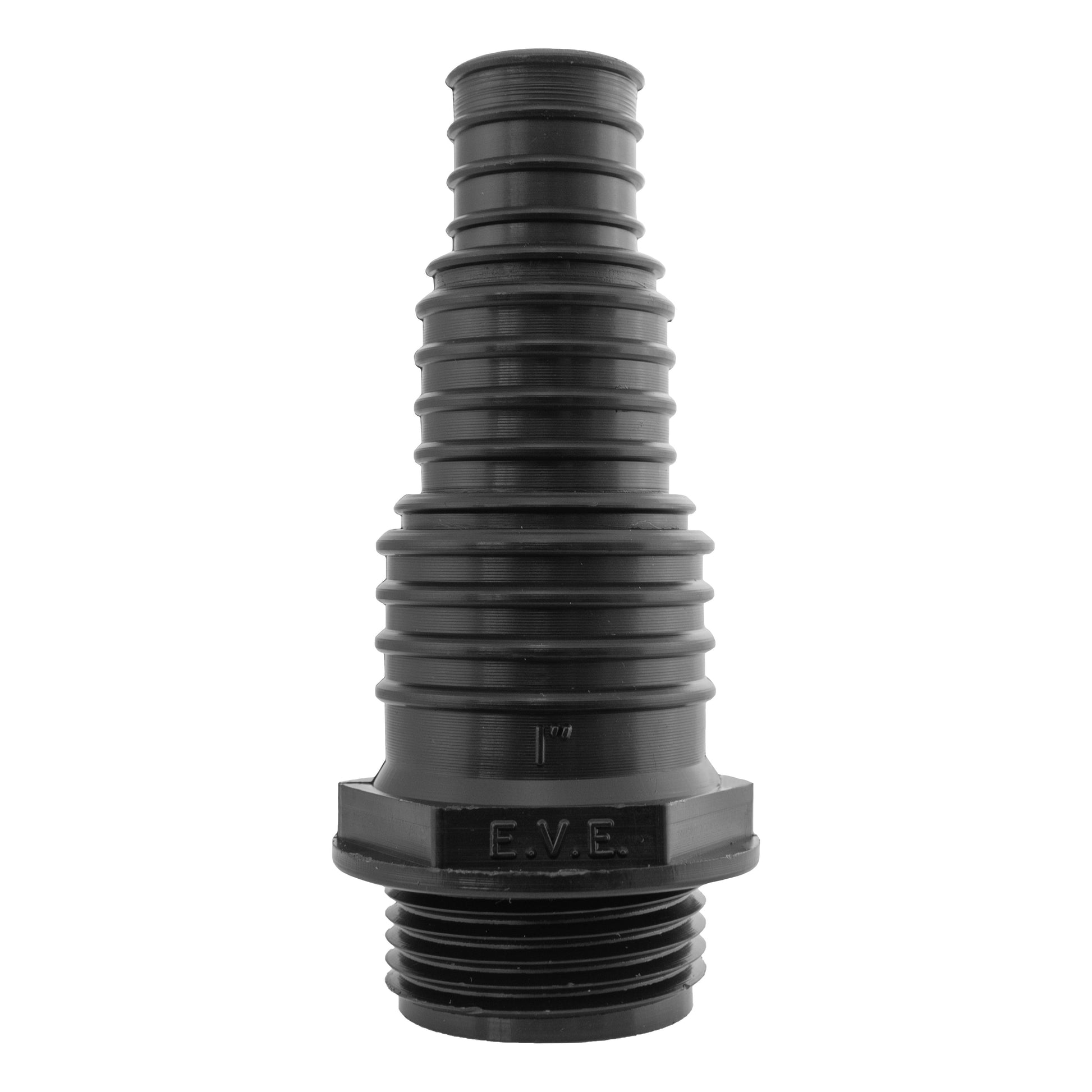

A 20mm, 25mm or 32mm stepped hosetail and a 1-inch BSP male thread in one straight black plastic adapter.
Choose the hose section for your installation, then connect the threaded end to a matching female fitting on compatible equipment.
One bare connector supplied. Hose, clips, separate nuts and washers are not included.
Size the fitting and the space around it

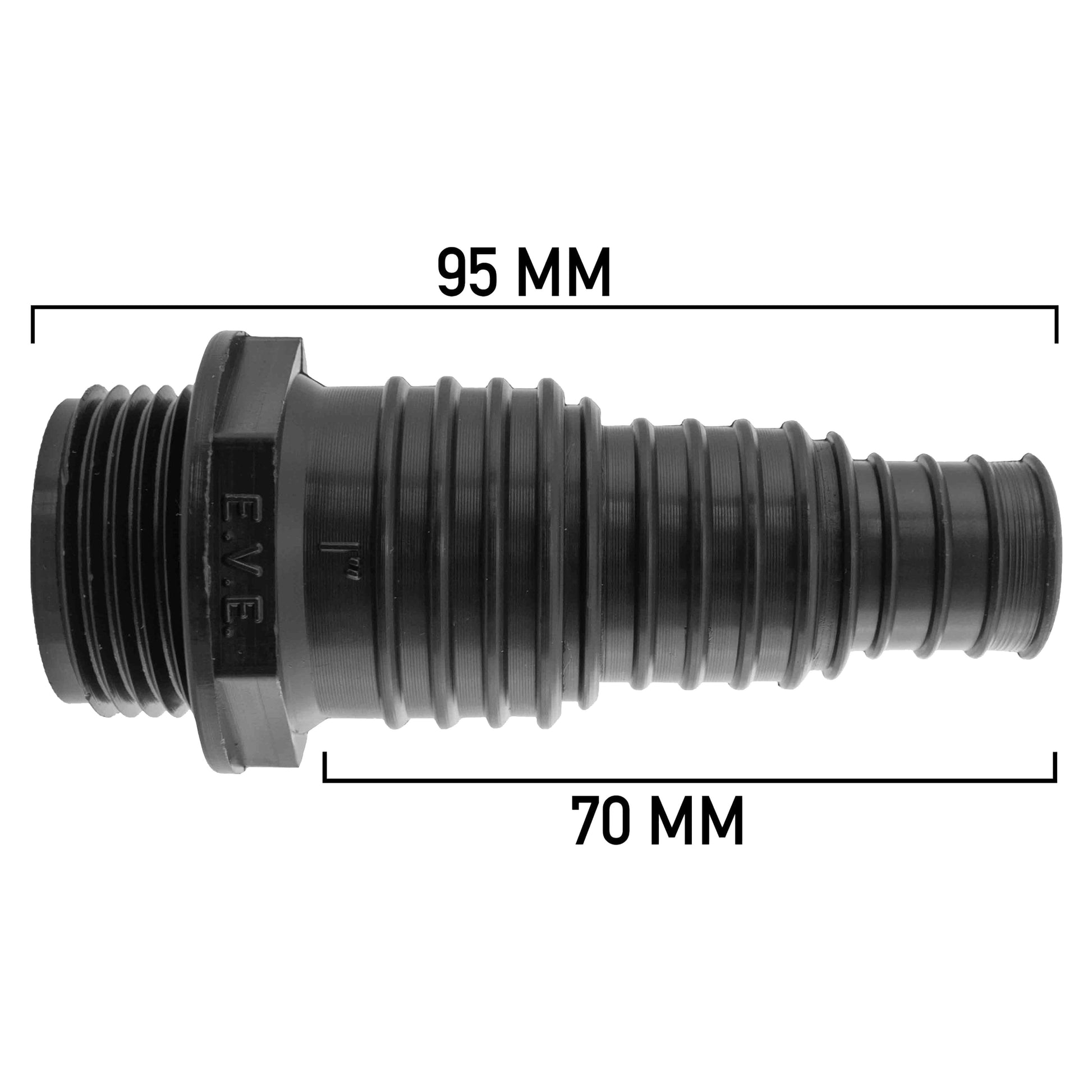

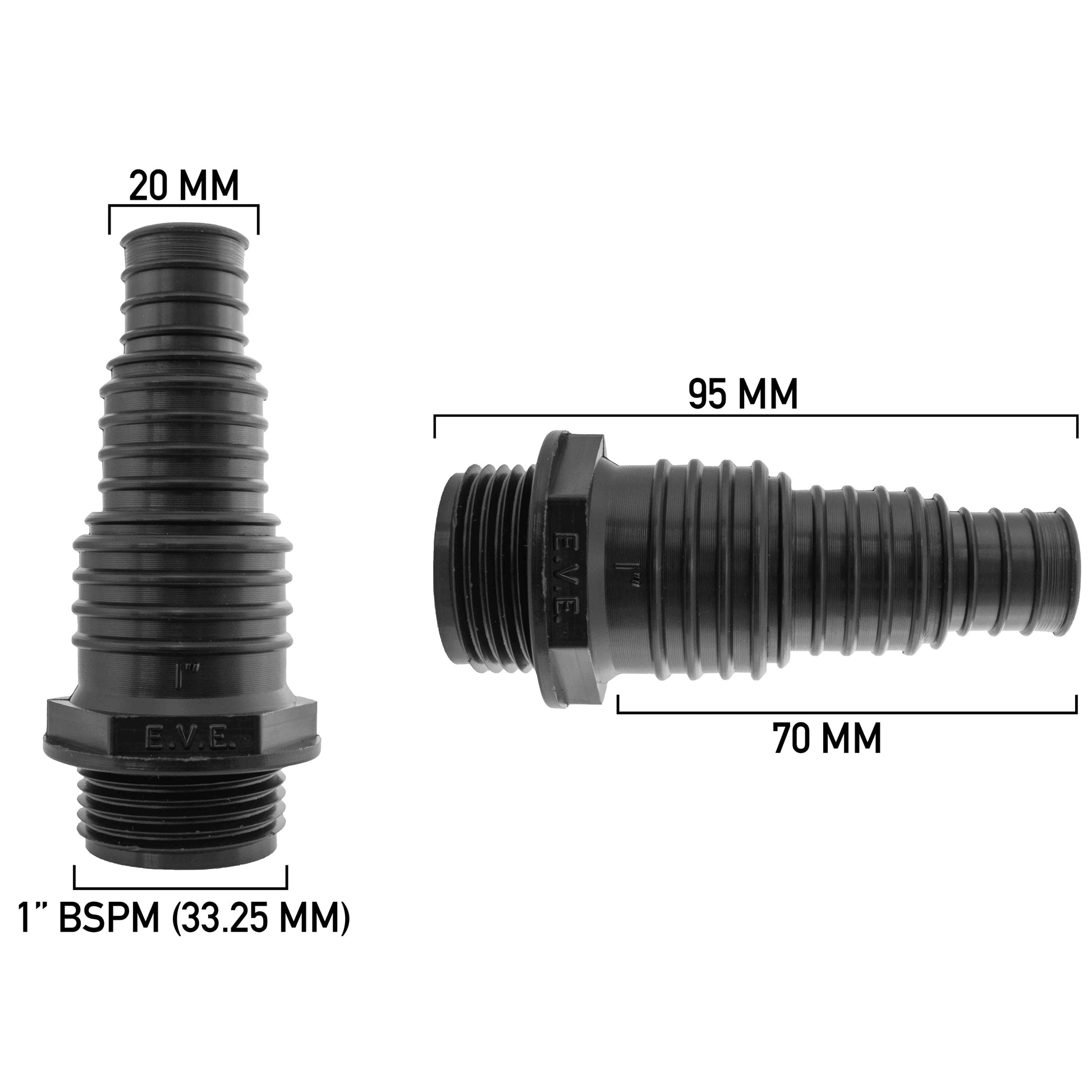

The uncut connector measures approximately 95mm overall, with a 70mm stepped section, as shown in the reference photograph.

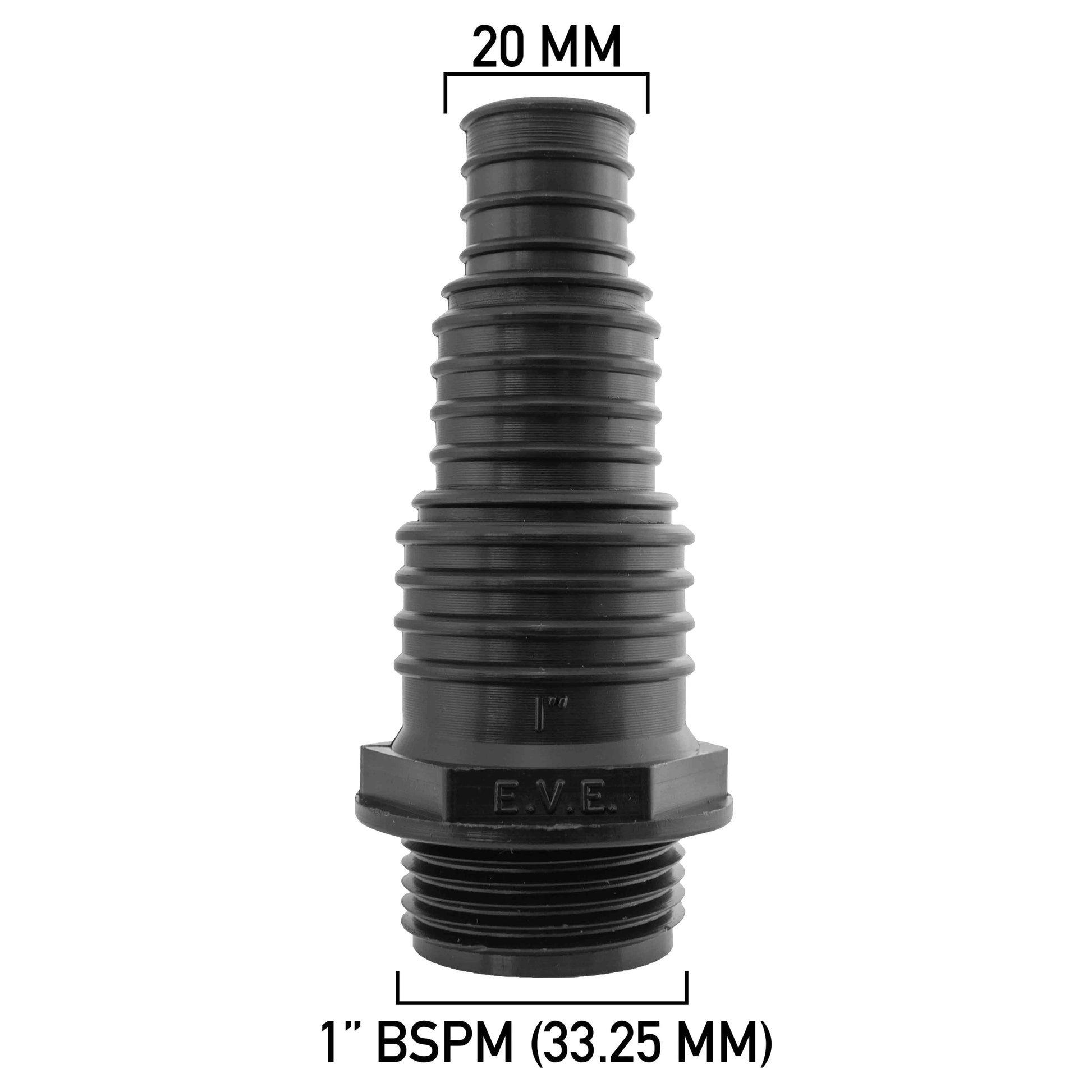

The threaded end is 1-inch BSP male, labelled 33.25mm across. It needs a matching female thread, independently of which hose step you use.
Leave room for the hose to seat, bend gradually and remain accessible for inspection.
Build the connection in three checks
Confirm the equipment thread, hose fit and supported route.
Check the female fitting
Use a matching 1-inch BSP female port on compatible equipment. Follow the equipment’s sealing and tightening instructions for the plastic thread. The fixed shoulder is not a swivel collar.
Match the hose bore
Choose the 20mm, 25mm or 32mm section for your hose and check its wall profile. Confirm the fitting method before any permanent trimming. A clip is sized around the outside of the seated hose.
Support and inspect
Keep the hose run supported without a sharp bend or sideways pull at the adapter. Leave access to both connections and check them with water before covering or concealing the route.
Questions about the 20/25/32mm adapter
Is the 1-inch thread the same size as the 25mm hose step?
They describe different ends of the fitting. The 25mm figure is a nominal hose bore, while 1-inch BSP identifies the threaded connection. The male thread is labelled 33.25mm across in the reference photo. Match the equipment’s specified BSP size and gender, then choose the hose step separately.
Which of the three steps should the hose use?
Use the section intended for your hose’s nominal internal bore: 20mm, 25mm or 32mm. Check its wall profile and the fitting instructions as well as the size label. The connector makes one hose connection, not three branches. Confirm the seating and securing method before any permanent trimming; do not copy cut positions from another fitting.
Will the whole connection fit within a 95mm space?
The 95mm measurement is the uncut connector’s overall length. The hose, bend radius and working access need additional space. The reference photo also shows a 70mm stepped section. Plan enough room to assemble the thread, seat and secure the hose, and inspect the joint without forcing a sharp bend beside the equipment.
Are a nut and red washer included?
No. This is the bare male-threaded connector, rather than the separate nut-and-washer kit. Hose and clips are also supplied separately. Check your equipment’s sealing requirements and select the appropriate accessories for that installation. Support the hose so it does not pull sideways on the threaded connection.
Product information & technical details
| SKU | POND20B25B32B1BSPMSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| Barb size | 19mm (3/4"), 20mm (3/4"), 25mm (1"), 32mm (1.25") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Stepped 20mm / 25mm / 32mm hosetail to 1-inch BSP male thread |
| Overall length | Approximately 95mm, uncut |
| Stepped section length | Approximately 70mm |
| Body design | Black plastic; fixed hex shoulder |
| Contents | One bare connector; hose, clips, separate nut and washer not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
