Description
From a male pond fitting to your choice of hose

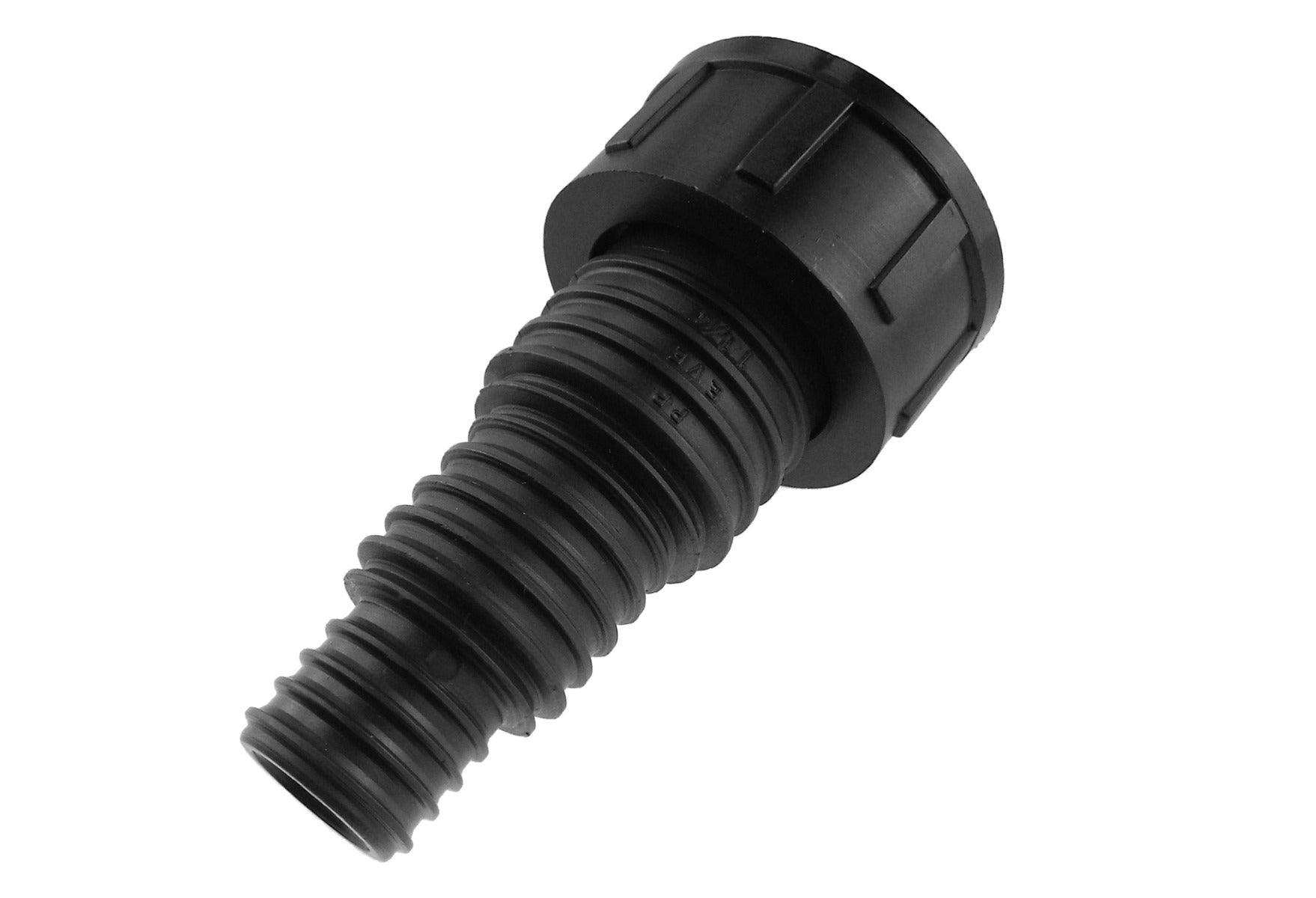

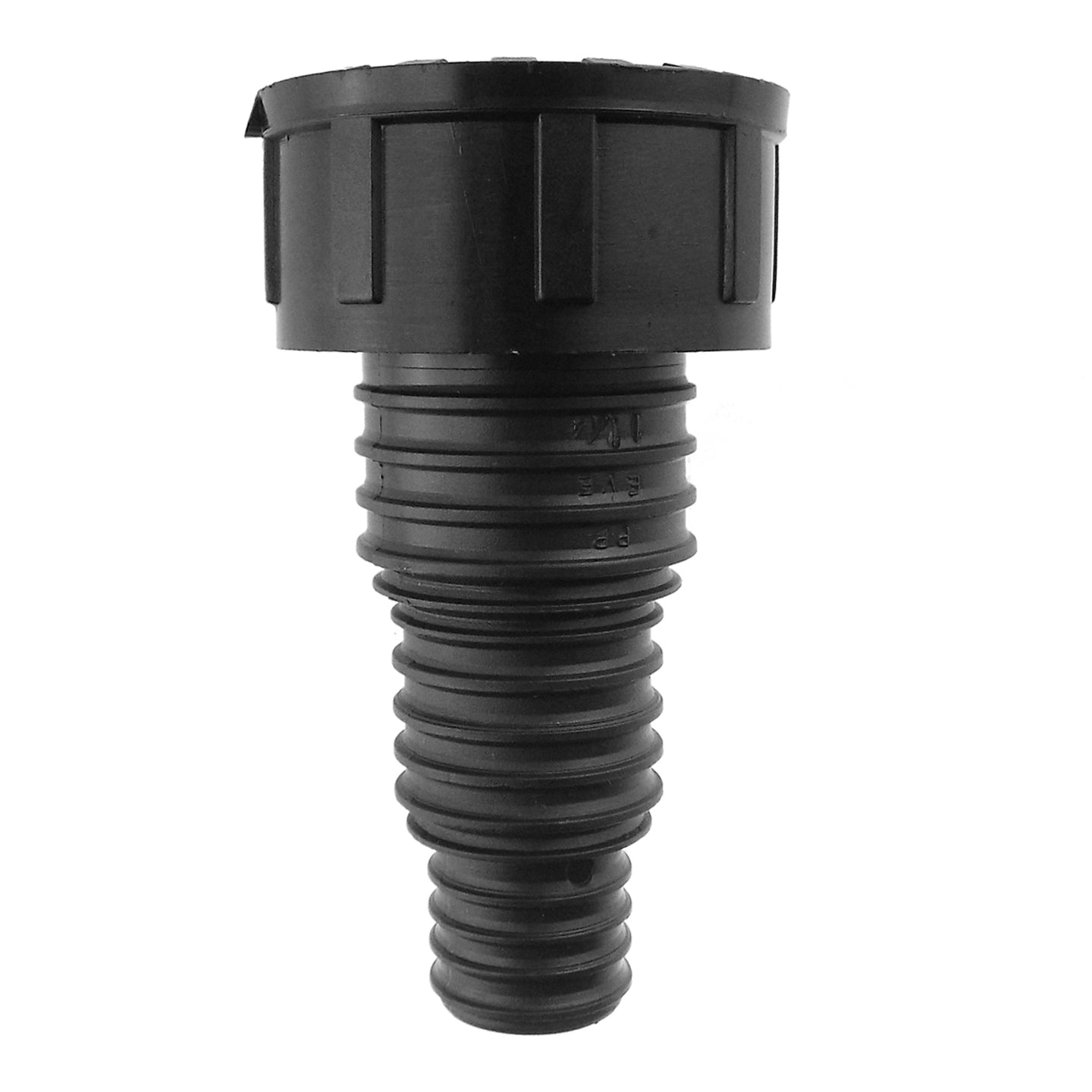

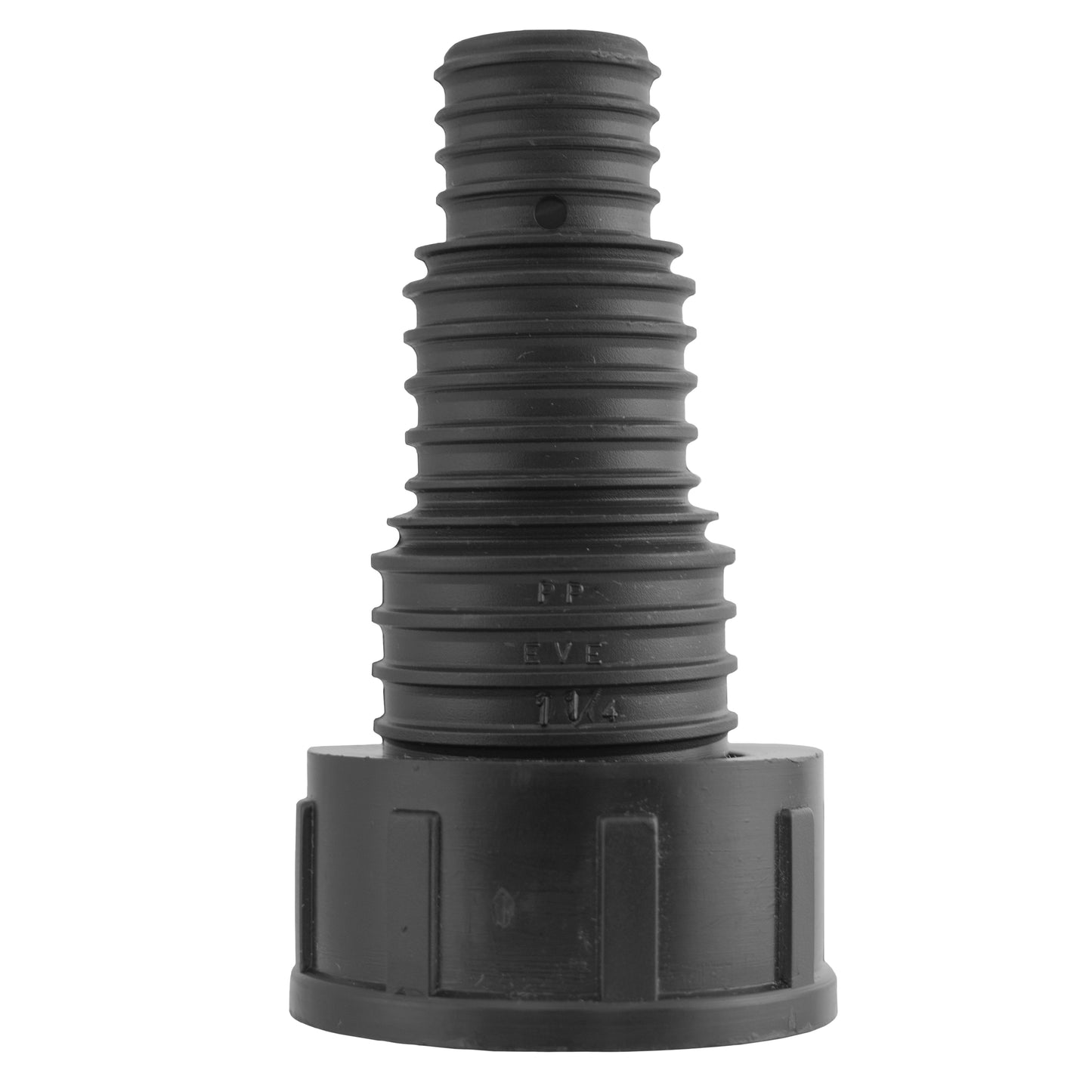

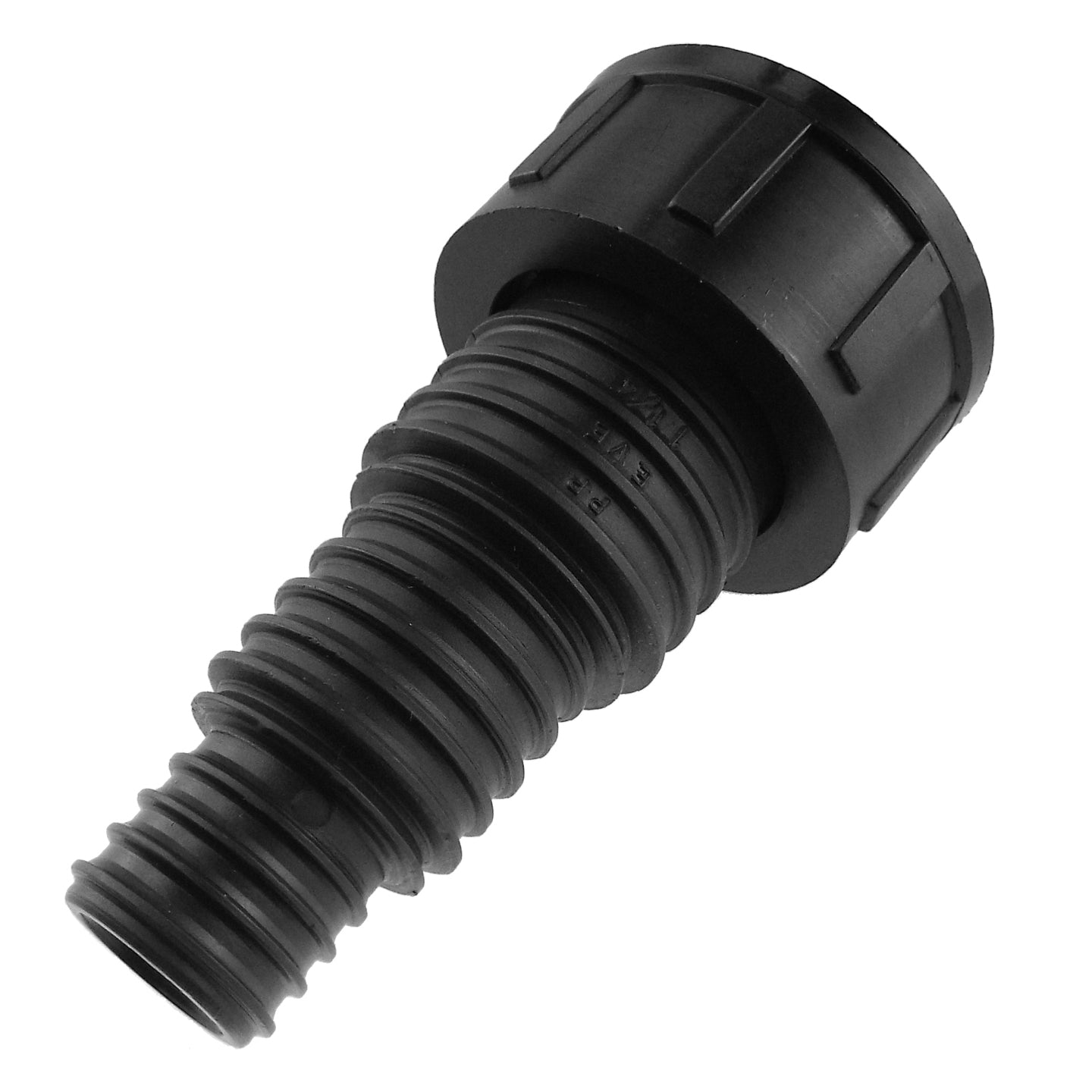

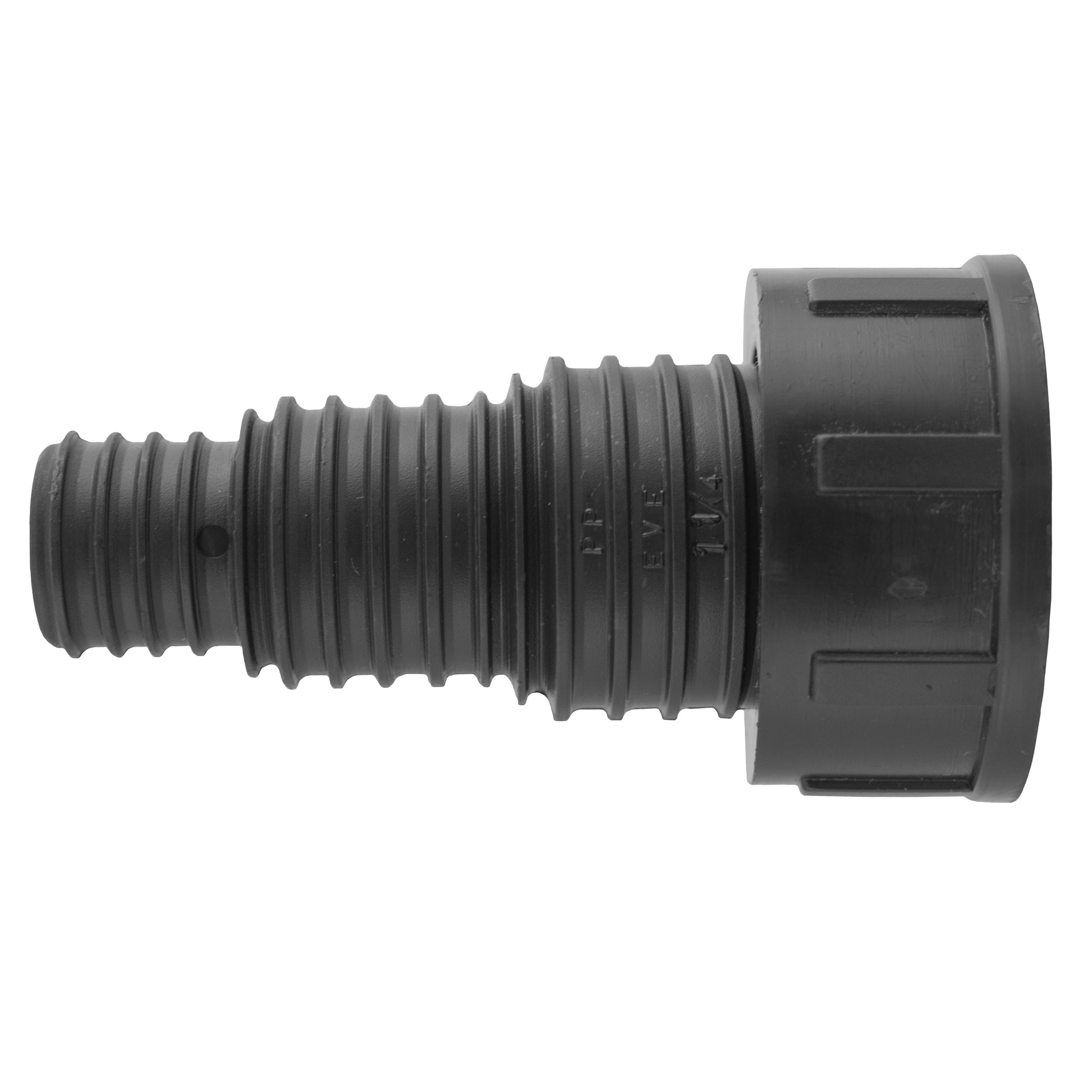

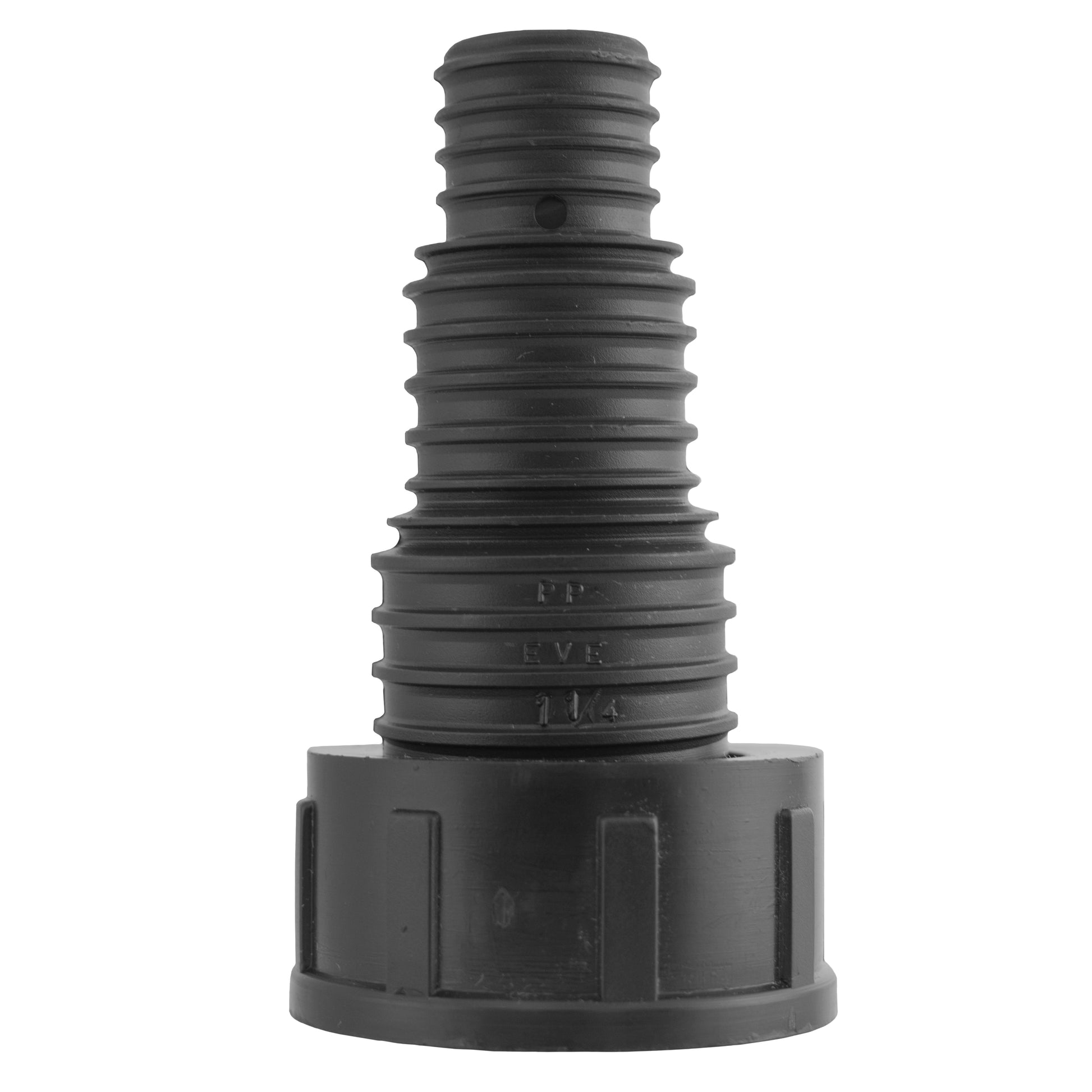

A straight adapter with a 1¼-inch BSP female collar and a 20mm, 25mm or 32mm stepped hosetail.
Match the collar to your equipment’s male thread and choose the hose section for the connection you need.
One black plastic connector supplied. Hose, clips and pond equipment are sold separately.
Check the dimensions before planning the hose route

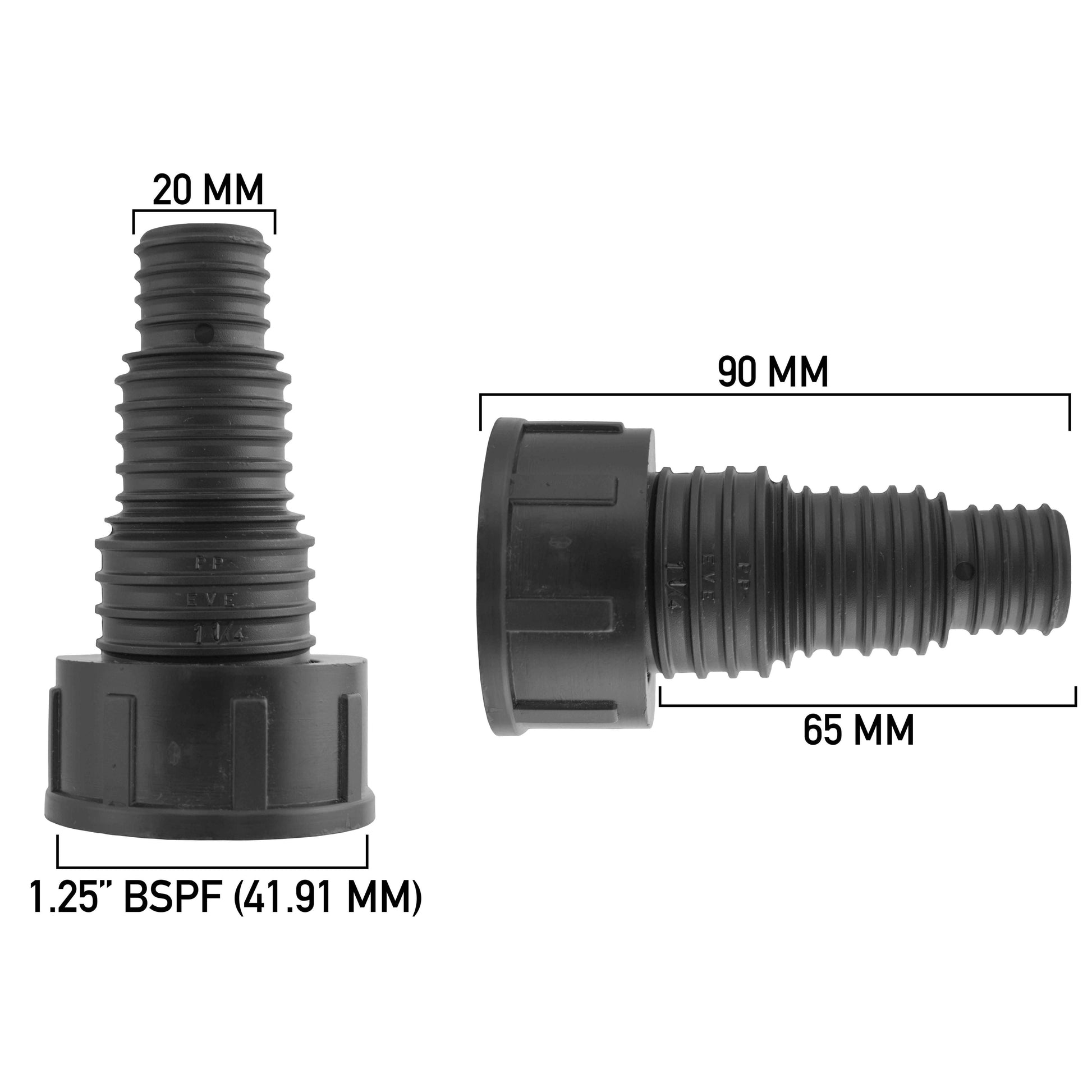

The reference photograph shows an approximately 90mm overall length and a 65mm stepped section.
The broad collar houses the 1¼-inch BSP female thread. That nominal thread size is separate from the hose-bore options along the tail.
Allow room beyond the connector for the hose to seat and bend gradually, with access to inspect the finished joints.
Match both ends before assembly
The equipment connection and the hose need separate checks.
Find the male thread
Confirm a 1¼-inch BSP male fitting on your equipment. Follow its sealing and tightening instructions for the connection; the female collar does not change the required thread size.
Choose the hose section
Check the hose’s 20mm, 25mm or 32mm internal bore and wall profile against the intended step. Confirm seating and securing requirements before trimming or fitting. Size a clip around the outside of the seated hose.
Support the run
Leave a gradual bend beyond the hosetail without sideways pull on the equipment. Keep both joints accessible and check them with water before covering or concealing the installation.
Choosing the female stepped connector
Will this screw into a female threaded port?
No. This adapter has a female thread inside the collar, so it needs a matching 1¼-inch BSP male fitting. It will not screw directly into another female port. Check the equipment’s stated thread size and gender, then choose the hose section separately; a matching hose bore does not establish that the equipment connection is correct.
Does 32mm hose mean I need a 1¼-inch BSP thread?
The 32mm hose step and the 1¼-inch BSP collar are separate specifications. Hose size describes the intended internal bore of the hose; BSP is a nominal thread system. This adapter brings those two connection types together. Match each end to its own specification rather than using an inch label as a physical measurement of the collar.
Do the steps need to be trimmed before fitting?
Confirm the hose size, seating and securing method in the relevant fitting instructions before making any permanent alteration. This adapter offers 20mm, 25mm and 32mm hose sections, but cut positions should not be assumed from another connector. The reference photo shows it uncut at approximately 90mm overall, with a 65mm stepped section.
What else is needed to complete the connection?
The listing supplies one black plastic connector. Hose, clips and pond equipment are separate. Choose a suitable hose for the required step and a securing method compatible with its wall profile. Follow the equipment’s sealing and tightening instructions, leave a supported hose bend and inspect the joints with water before covering the route.
Product information & technical details
| SKU | POND20B25B32B125BSPFSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Female |
| Barb size | 19mm (3/4"), 20mm (3/4"), 25mm (1"), 32mm (1.25") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Stepped 20mm / 25mm / 32mm hosetail to 1¼-inch BSP female thread |
| Overall length | Approximately 90mm, uncut |
| Stepped section length | Approximately 65mm |
| Contents | One connector; hose, clips and equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
