Description
Four hose options for a threaded pond connection
Adapt a 1½-inch BSP female fitting to suitable 20mm, 25mm, 32mm or 40mm hose.

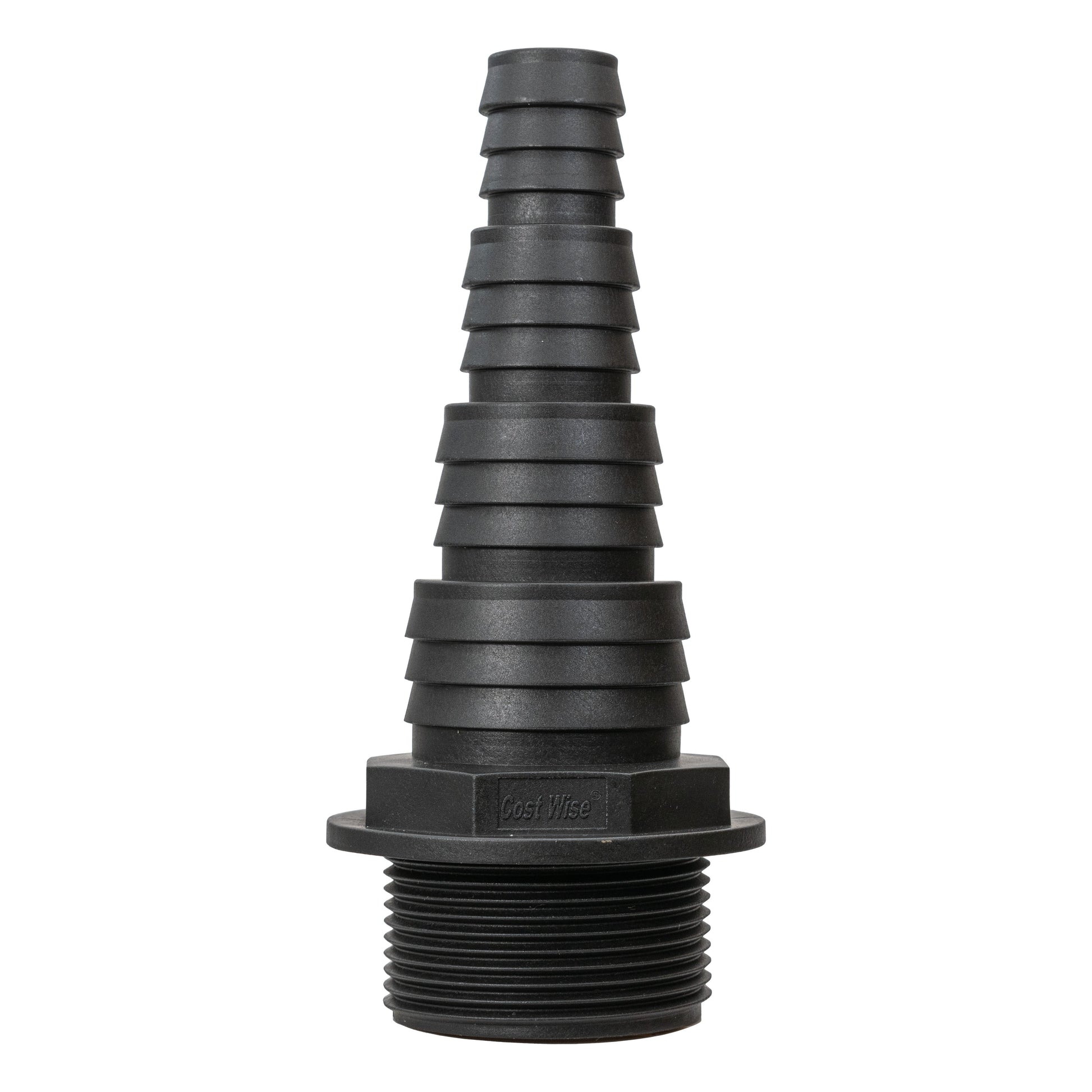

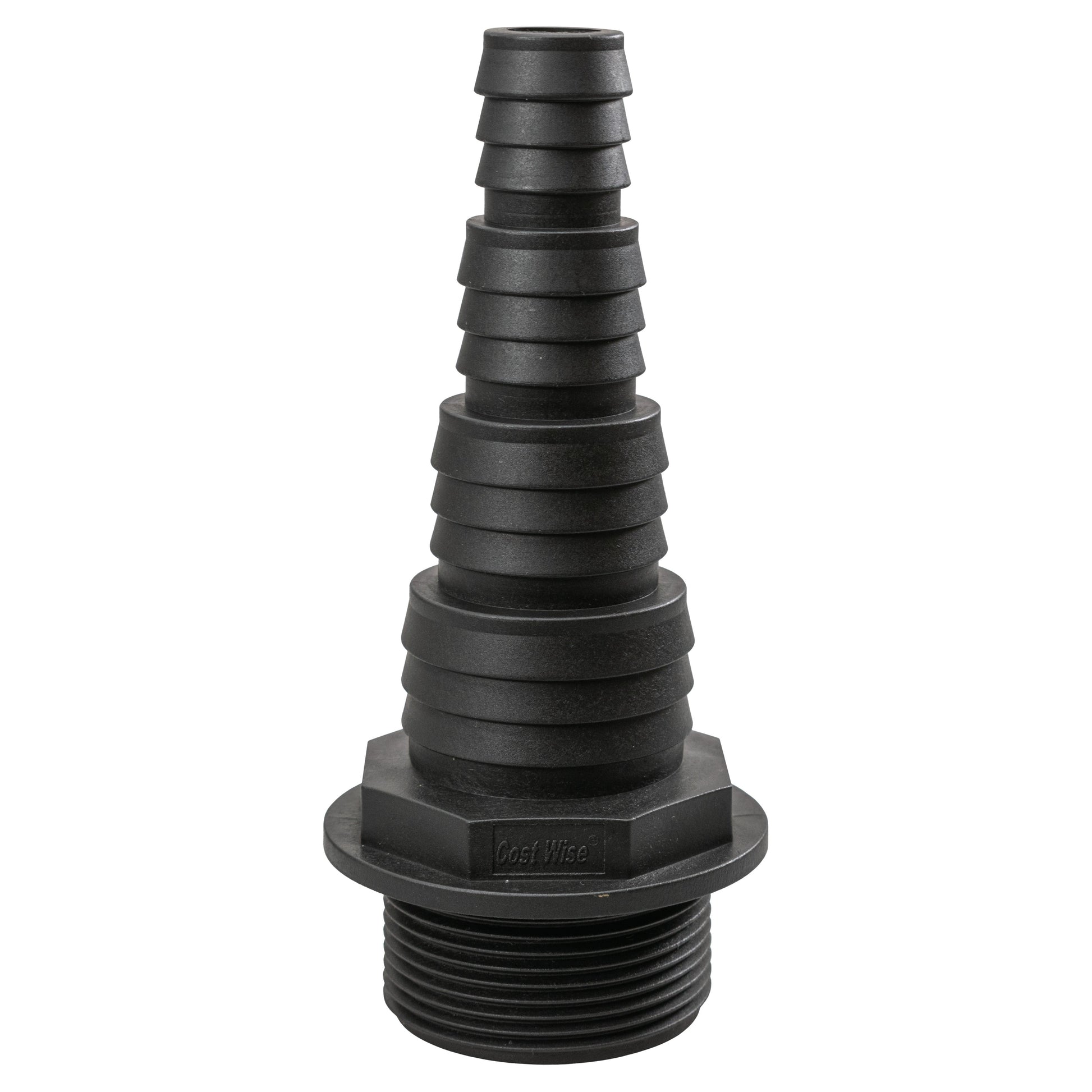

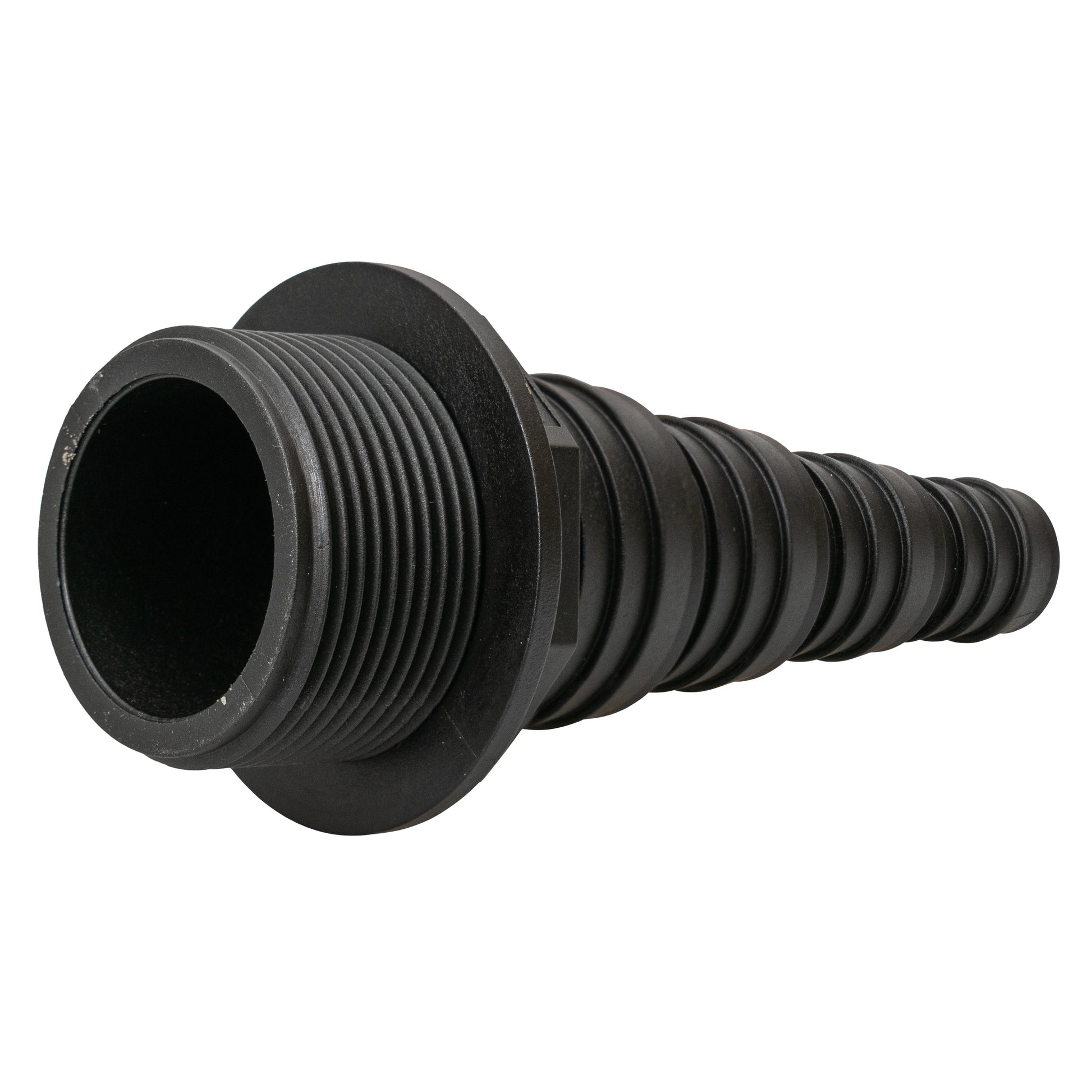

The straight black plastic body combines a male thread, fixed hex shoulder and four graduated hose sections.
One bare connector supplied. Hose, clips, separate nuts and washers are sold separately.
Allow room for the fitting and hose

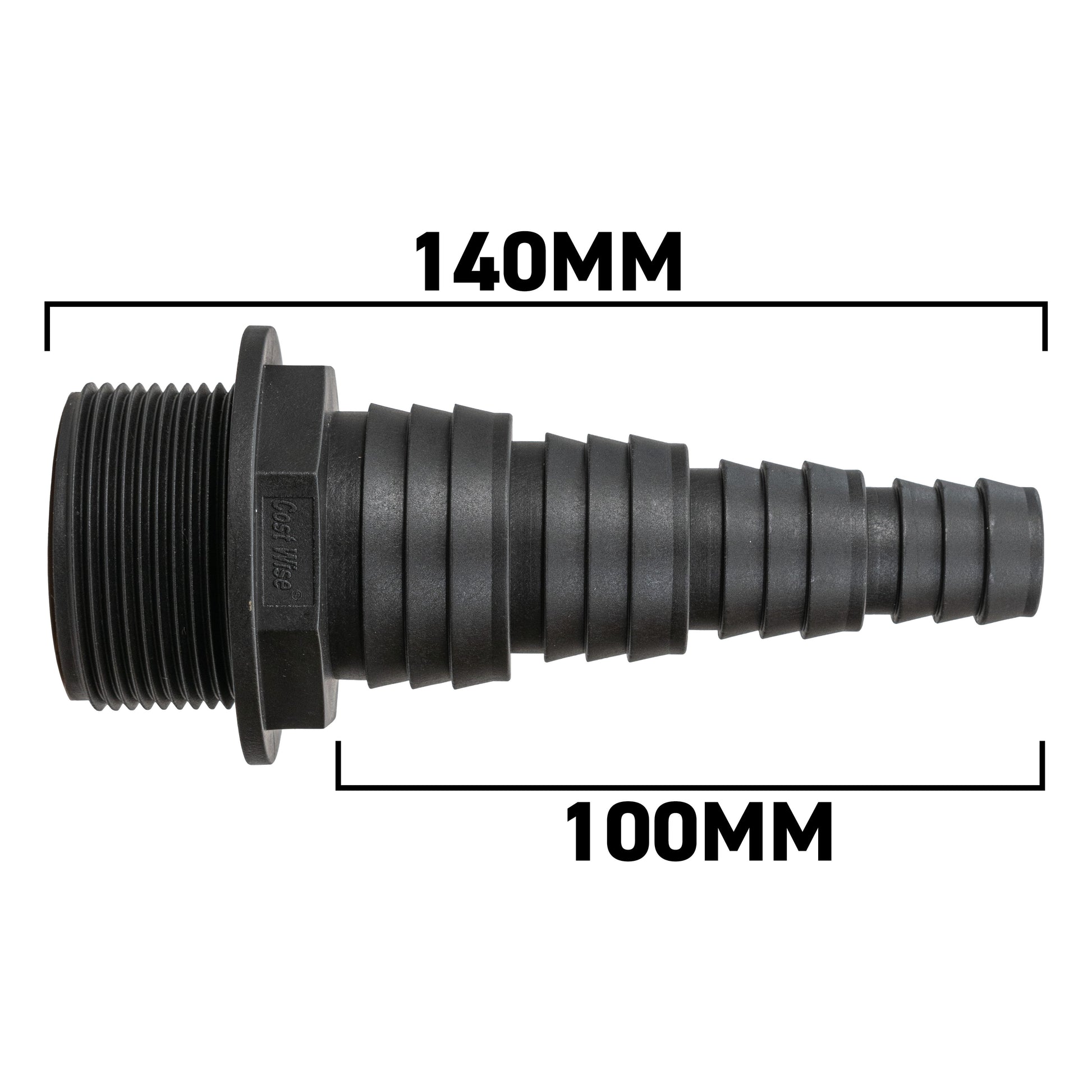

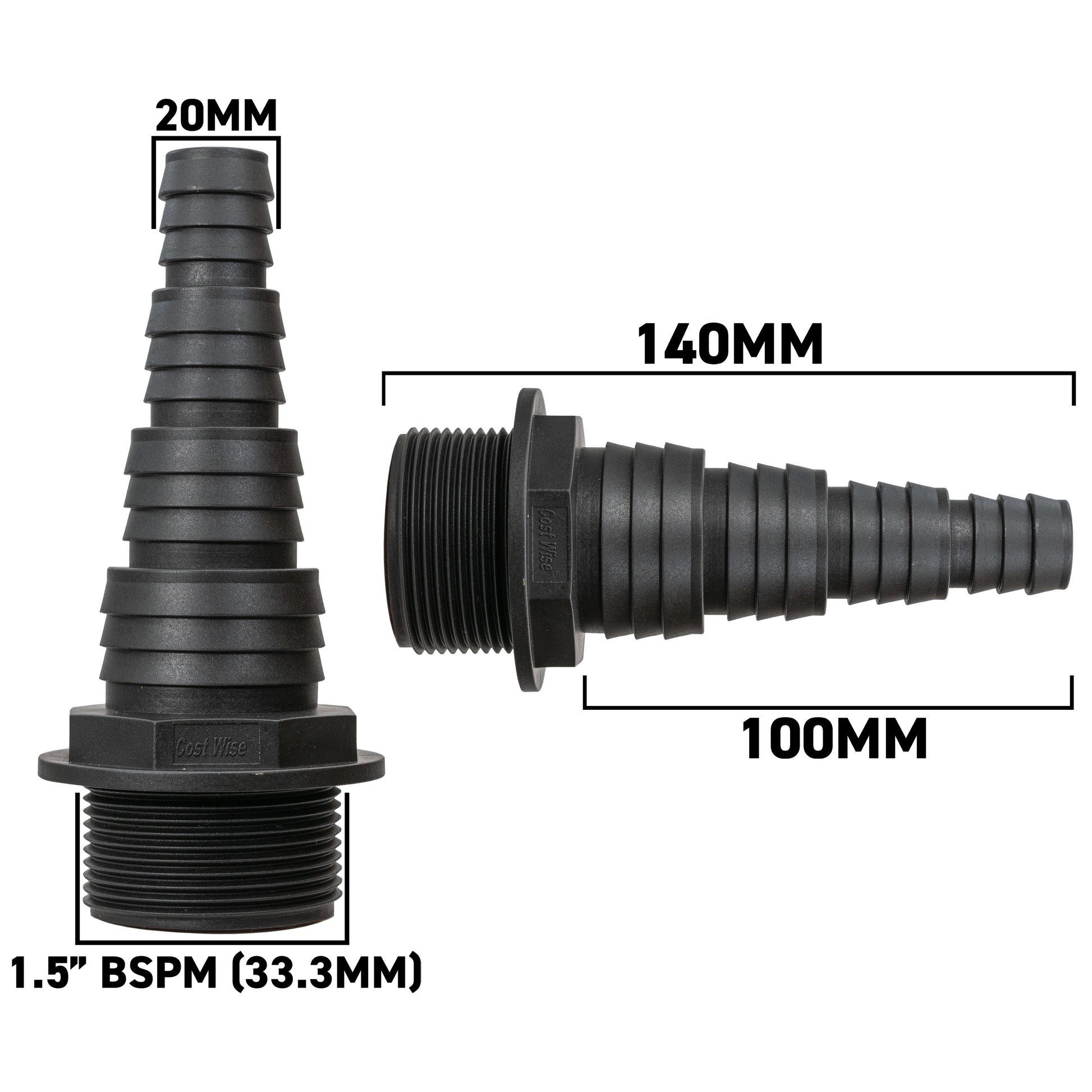

The reference photo shows approximately 140mm overall and a 100mm stepped section.
The four sections offer 20mm, 25mm, 32mm and 40mm hose options. Choose the section for your hose rather than treating the whole tail as one uniform diameter.
Plan enough space to assemble the threaded end, seat and secure the hose, and form a supported bend beyond it.
Check the thread, step and hose route
Each connection needs to suit the equipment and hose you are using.
Start with the female port
Confirm a 1½-inch BSP female fitting. Follow the equipment’s sealing and tightening instructions for plastic connections. The hex shoulder is fixed to the body, rather than an independent swivel.
Select one hose section
Match the 20mm, 25mm, 32mm or 40mm bore and hose wall profile to the intended step. Confirm the fitting method before any trimming. Size a securing clip around the outside of the seated hose.
Keep the run supported
Arrange a gradual bend without sideways strain at the equipment port. Keep access to both joints and inspect them with water before concealing the hose route.
Questions about the four-step adapter
Does this fit a male or female equipment connection?
The adapter has an exposed 1½-inch BSP male thread, so it needs a matching female BSP fitting. Confirm the thread specification on the pump, filter or other equipment before ordering. A male outlet requires a different connection. The four hose steps describe the opposite end and do not alter the thread size or gender.
Can I use 38mm hose on the 40mm step?
The stated largest hose option on this connector is 40mm. The 38mm and 40mm hose ranges have different nominal internal bores, even where similar inch trade labels are used. Do not assume they are interchangeable. Check the hose’s metric bore, wall profile and fitting instructions against the intended step before selecting or securing it.
How much space will the connector need?
The uncut fitting is approximately 140mm long overall, including a 100mm stepped section, as shown in the dimension photo. The installed hose and access for assembly require additional space. Leave a gradual bend beyond the selected step and keep the threaded joint and any clip accessible. Check the required fitting method before any permanent trimming.
Is this a tank connector with a nut and washer?
This listing supplies the bare male-threaded stepped adapter. A separate backnut and washer, hose and clips are not included. Do not assume that it forms a complete through-wall tank fitting on its own. Match the accessories and sealing method to your equipment’s instructions and check the finished connection with water.
Product information & technical details
| SKU | POND20B25B32B40B15BSPMSTR001 |
|---|---|
| Product type | |

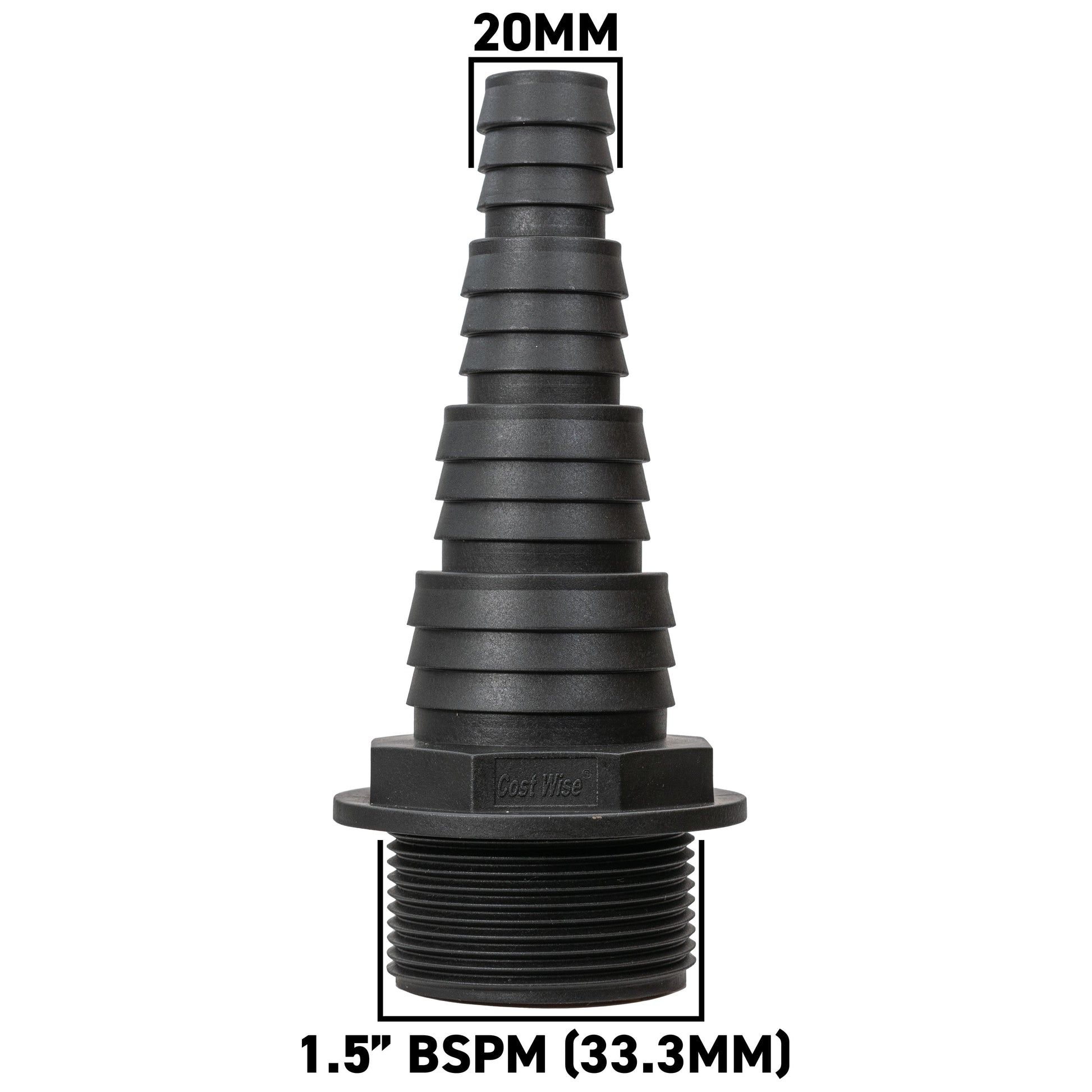

| BSP thread size | 1.5" |
| Thread gender | Male |
| Barb size | 19mm (3/4"), 20mm (3/4"), 25mm (1"), 32mm (1.25"), 40mm (1.5") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Stepped 20mm / 25mm / 32mm / 40mm hosetail to 1½-inch BSP male thread |
| Overall length | Approximately 140mm, uncut |
| Stepped section length | Approximately 100mm |
| Contents | One bare connector; hose, clips, separate nut and washer not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
