Description
A choice of hose sizes at your pond connection
Connect suitable 13mm, 20mm or 25mm hose to equipment with a ¾-inch BSP female fitting.

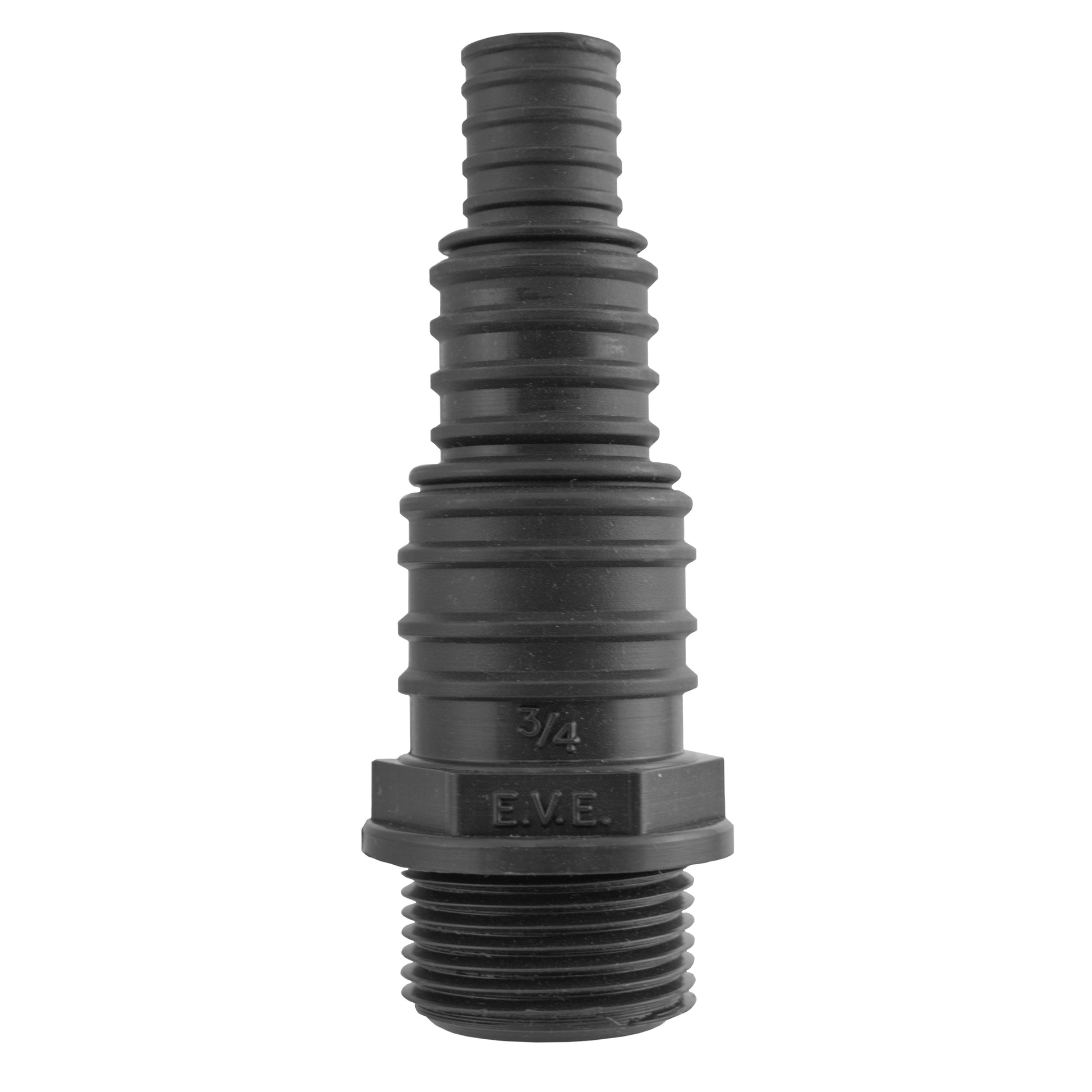

This straight adapter combines an external male thread, a fixed hex shoulder and a graduated ribbed hosetail.
One bare black plastic connector supplied. Hose, clips and separate sealing accessories are not included.
Check the fitting length and thread

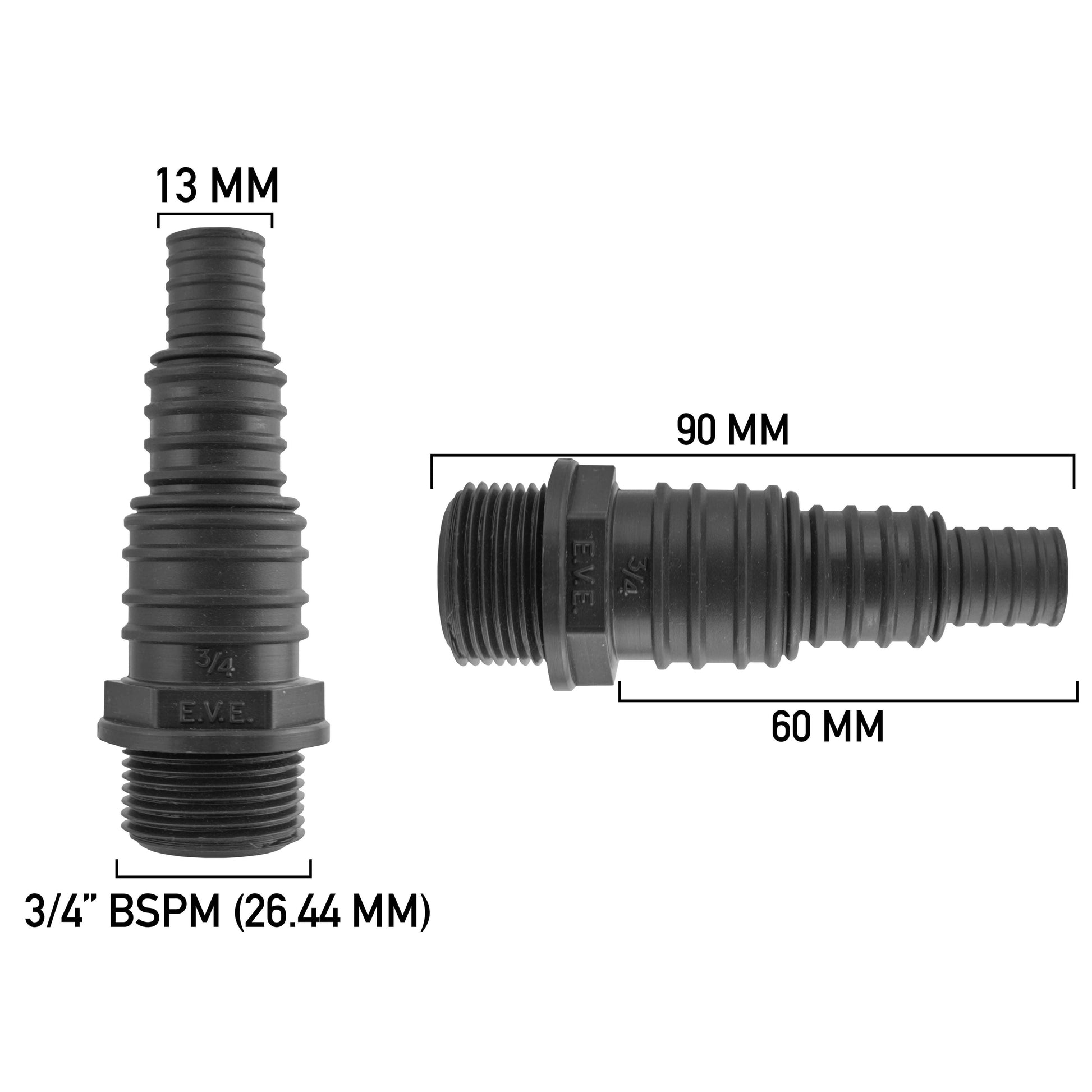

The reference photograph shows an approximately 90mm overall length and a 60mm stepped section.
The threaded end is ¾-inch BSP male, labelled 26.44mm across. This nominal thread size is separate from the hose-bore options along the tail.
Leave space beyond the fitting for a supported hose bend and access to the finished connection.
Put the right ends together
Check the port, hose and finished clearance before assembly.
Match the female port
Confirm the equipment calls for a ¾-inch BSP male adapter. Follow its instructions for sealing and tightening the plastic thread. Another male outlet needs a different connection.
Fit one hose size
Use the 13mm, 20mm or 25mm section appropriate to your hose. Check the fit and securing method before making any permanent alteration. Select a clip by the fitted hose outside diameter.
Keep the joint accessible
The hex shoulder is fixed to the body. Plan the hose direction before tightening, support the run and inspect both joints with water before concealing the installation.
Before choosing the male stepped connector
Which equipment thread does this fit?
The connector has an external ¾-inch BSP male thread. It needs a matching female BSP fitting on your equipment. The thread is labelled 26.44mm across in the reference photo because BSP is a nominal size; it is not a 19mm outside-diameter thread. Check the stated thread size and gender before ordering.
Why are there three hose sizes on one fitting?
The tail is stepped to accept one of three nominal hose bores: 13mm, 20mm or 25mm. They are alternatives, not separate outlets. Select the appropriate size for the hose and check how it seats and will be secured. Follow the relevant fitting instructions before any permanent trimming; do not assume cut positions from a different connector.
How much space should I leave beside the equipment?
The uncut fitting is approximately 90mm long, with a 60mm stepped hose section, as shown in the reference photograph. Those are fitting dimensions, not the complete installed clearance. Allow room to assemble the threaded joint, seat and secure the hose, and form a gradual bend without pulling sideways on the equipment port.
Does this include the red washer and nut shown on some similar fittings?
No. This listing supplies one bare male-threaded connector. It is not the nut-and-washer kit. Hose, securing clips and separate sealing accessories are also excluded. Follow your equipment’s fitting instructions for the required sealing method and select any clip for the hose’s outside diameter once seated on the chosen step.
Product information & technical details
| SKU | POND13B20B25B34BSPMSTR001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 12.7mm (1/2"), 13mm (1/2"), 19mm (3/4"), 20mm (3/4"), 25mm (1") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Stepped 13mm / 20mm / 25mm hosetail to ¾-inch BSP male thread |
| Overall length | Approximately 90mm, uncut |
| Stepped section length | Approximately 60mm |
| Body design | Black plastic; fixed hex shoulder |
| Contents | One bare connector; hose, clips, separate nut and washer not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
