Description
One threaded connection. Three hose-size options.

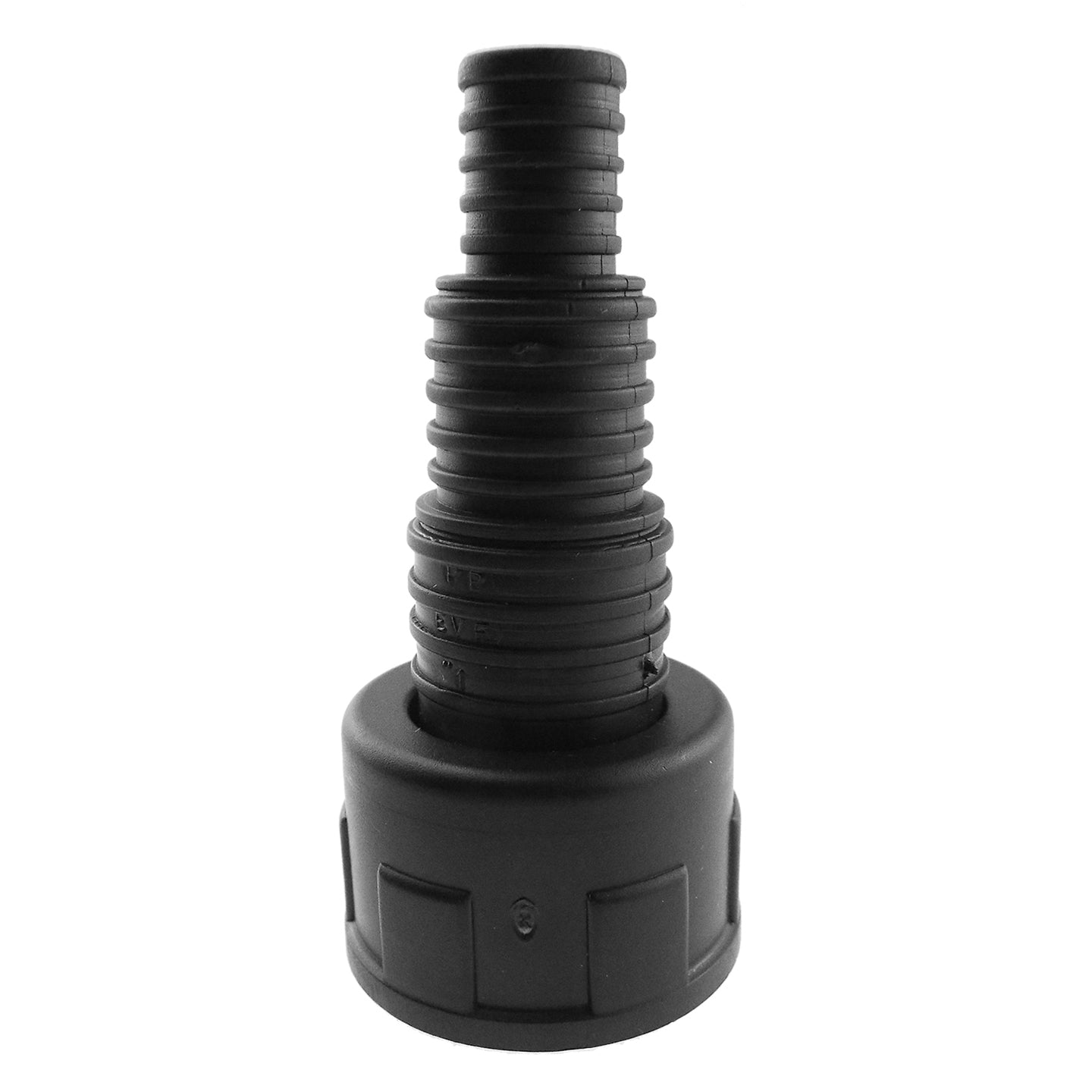

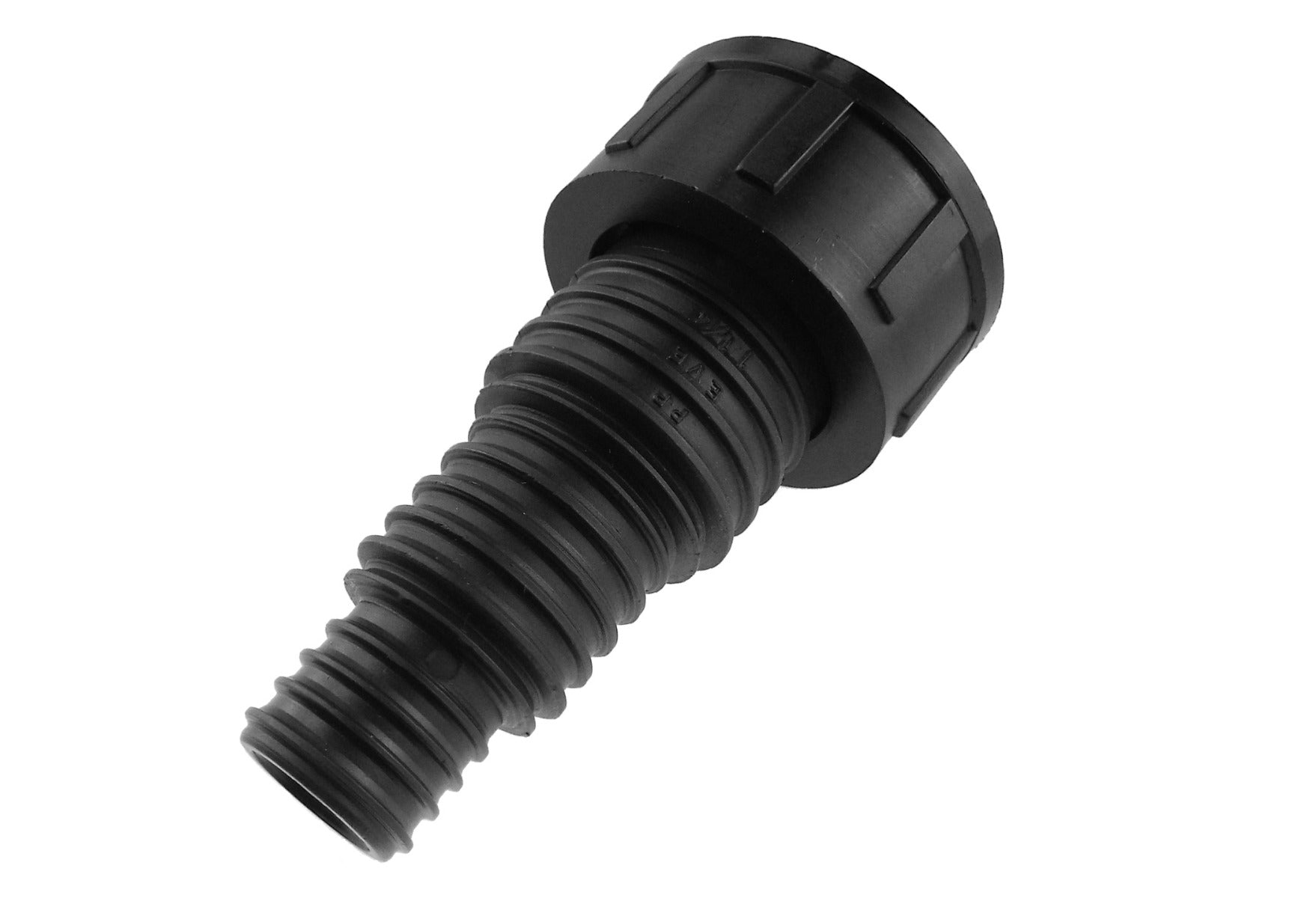

Adapt a compatible pond outlet to 13mm, 20mm or 25mm hose with this straight stepped connector.
The 1-inch BSP female thread connects to a matching male fitting. Choose the hose section that suits your installation.
Black plastic connector supplied on its own; hose and clips are separate.
Check the threaded end, too
The close-up shows the internal female thread and sealing washer inside the collar. Match this end to a 1-inch BSP male fitting on your equipment.
The stepped hose sizes describe the other end. A hose that fits the barb does not establish that the equipment thread is correct.
Follow your equipment’s sealing and tightening instructions for the finished connection.
Plan the connection before fitting
Match the equipment end first, then the hose and securing method.
Identify the outlet
Confirm a 1-inch BSP male connection on the pump, filter or other equipment. This adapter has a female thread, so it will not screw directly into another female port.
Choose one hose size
Check the hose’s internal bore against the 13mm, 20mm or 25mm step. Follow the relevant fitting instructions before trimming or securing the hose; do not use the connector as a branching outlet.
Leave room to inspect
Support a gradual hose bend beyond the tail. Keep access to the collar and any hose clip, then inspect the joints with water before concealing the route.
Questions about the stepped connector
Can I connect three hoses at once?
No. The 13mm, 20mm and 25mm sections offer alternative hose sizes along one straight tail. This fitting makes one hose-to-equipment connection. It is not a three-way connector or manifold. Match the hose bore to the appropriate section and check the equipment’s fitting instructions before assembly.
Does the female end fit a 1-inch hose?
The female end is a 1-inch BSP thread, intended to screw onto a matching male BSP fitting. It is not a hose socket. The other end accepts suitable hose at the stated stepped sizes. Nominal BSP thread size and hose bore describe different things, so check both ends rather than matching the word “inch” alone.
Do I need to cut the stepped tail?
Check the fitting instructions for your equipment and chosen hose before making any cut. Do not remove a section simply because another stepped fitting required it. Confirm which hose size you will use, how it will seat and how it will be secured first. Cutting is permanent; the supplied connector is shown uncut.
Are clips or hose included?
You receive one bare connector. Hose and clips are separate. Choose a hose compatible with the required step, then select the securing method for its wall profile and fitted outside diameter. Keep the joint supported and accessible, and inspect it with water before concealing the installation.
Product information & technical details

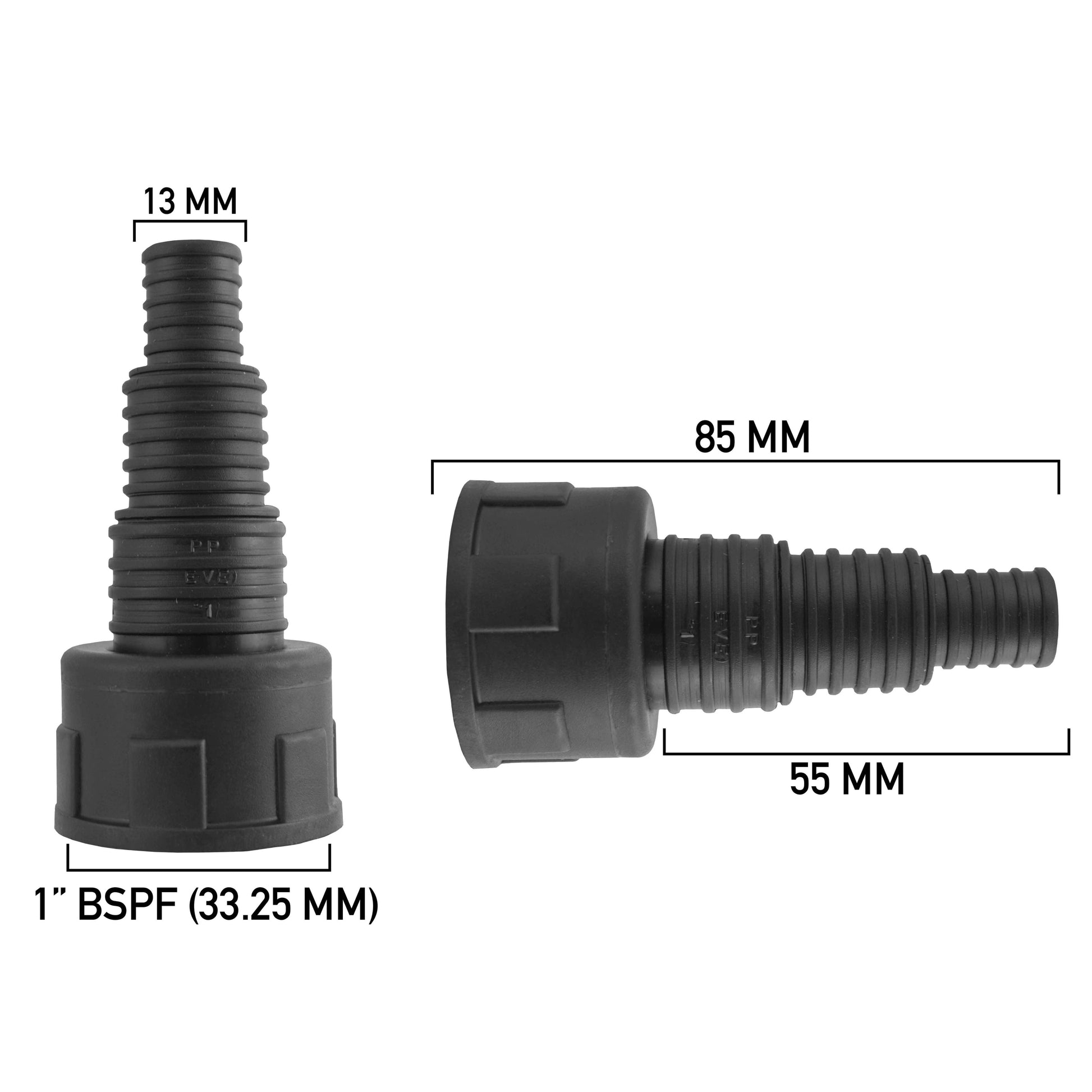

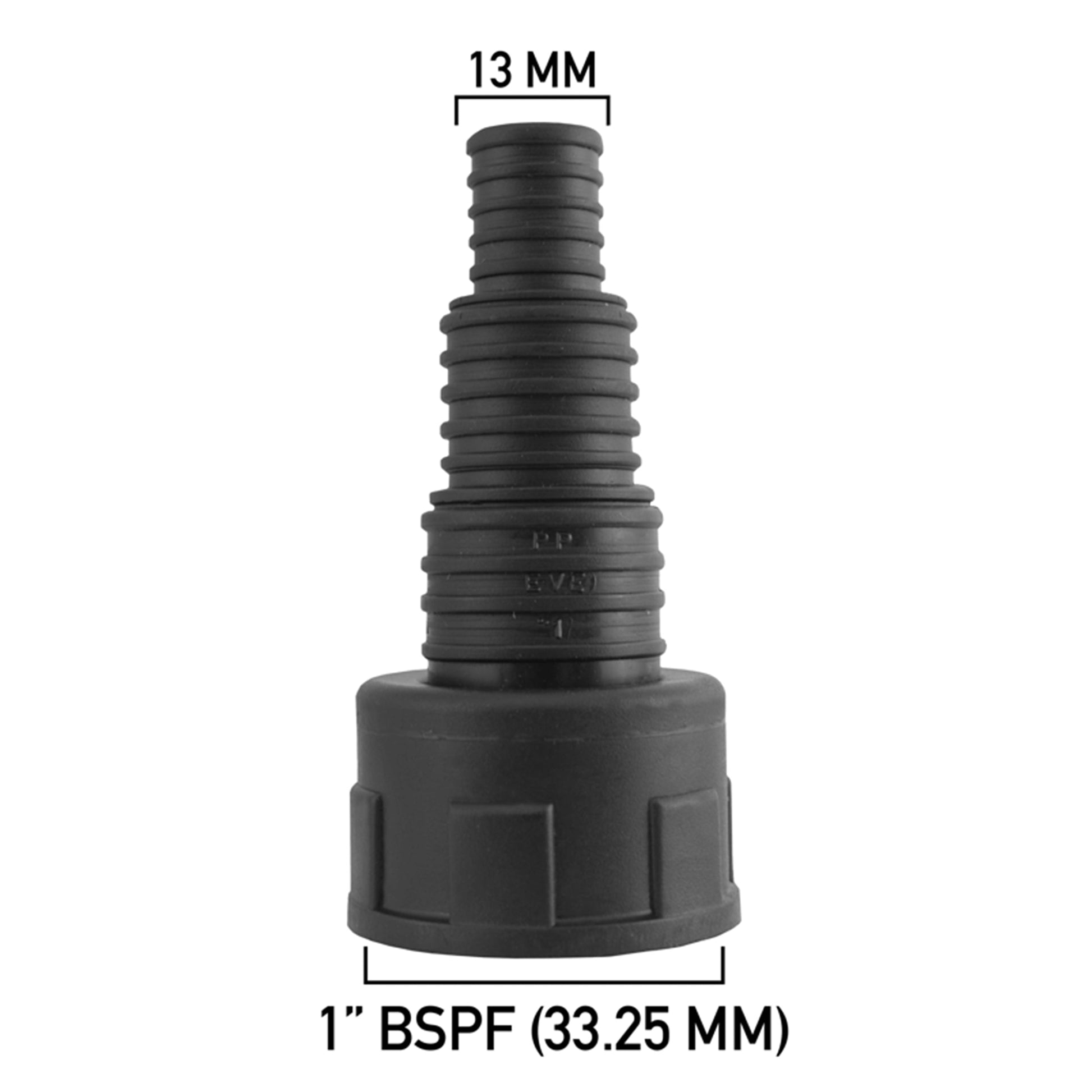

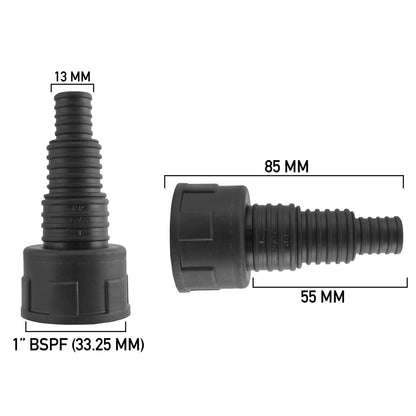

| SKU | POND13B20B25B1BSPFSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Barb size | 12.7mm (1/2"), 13mm (1/2"), 19mm (3/4"), 20mm (3/4"), 25mm (1") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight stepped hosetail to 1-inch BSP female thread |
| Hose options | 13mm, 20mm or 25mm nominal hose bore; one hose connection |
| Body | Black plastic |
| Contents | One connector; hose, clips and equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
